Amana RS511M (BOM P1327801M)

Model: RS511M (BOM P1327801M)

Save Part Not Listed?
product name

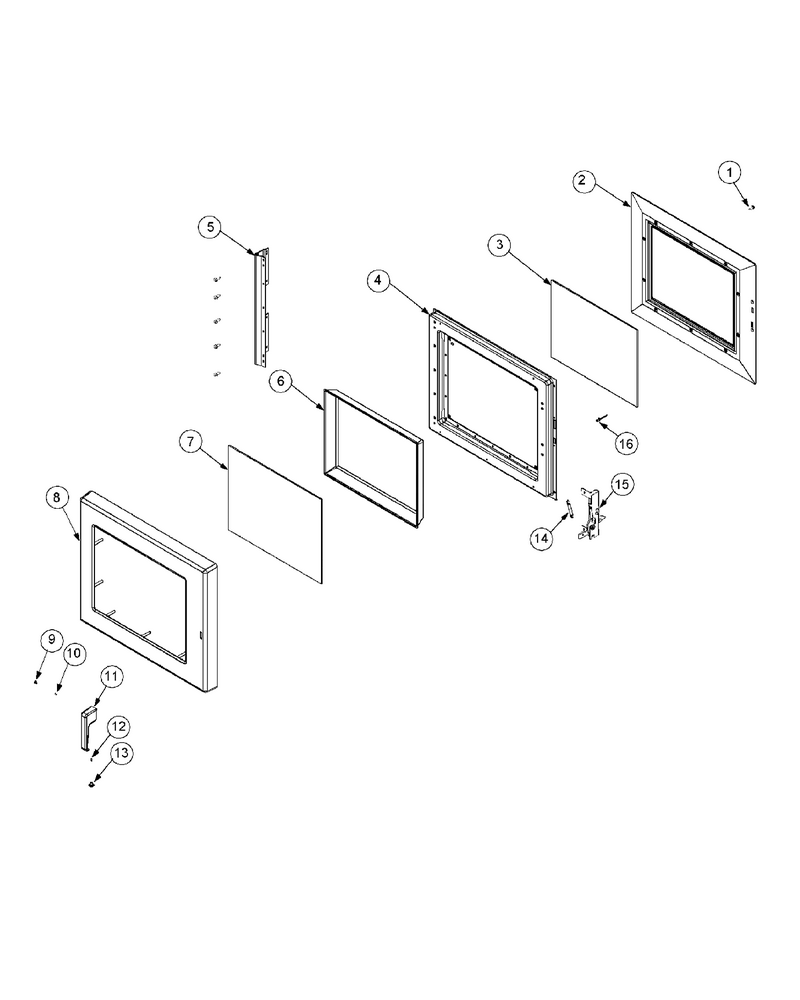

02 - Door

...
...
001
Screw-Hi Lo Y-Drive Head WPL-67003392
...
002
Door, Inner WPL-D7683508
...
003
Window, Inner WPL-B8371202
...
004
Door Ring Weld WPL-59002013
...
005
Screw WPL-WP90767
...
006
Box,shadow WPL-NLA
...
007
Window,outer WPL-C8960402
...
008
Door,outer WPL-12667101
...
009
Hole, Plug WPL-59001007
...
010
Screw WPL-WP8533976
...
011
Handle, Door WPL-12490901
...
012
Screw WPL-WP8533976
...
013
Plug, Button (Wht) WPL-M0310305
...
014
Spring, Door Latch WPL-C8893502
...
015
Screw WPL-WP3388228
...
016
Rivet-Pop WPL-59002054

...
...
001
Screw, Tf WPL-M0231704
...
002
Air Duct. Bottom WPL-D7772202
...
003
Duct, Top Air WPL-D7772007
...
004
Gasket (Inch) WPL-A3030301
...
005
Screw WPL-WP59002061
...
006
Sleeve, Wire WPL-M0322602
...
007
Rectifier WPL-10649001
...
008
Fuse, 12 Amp WPL-M0805105
...
009
Socket, Light WPL-B8376801
...
010
Screw WPL-WP59002061
...
011
Capacitor-1.20 WPL-59001171
...
012
Strap, Capacitor WPL-A4055406
...
013
Bulb-Light WPL-WP67002552
...
014
Cover, Light WPL-B8370702
...
015
Cover-Air Duct WPL-NLA
...
016
Stud-Self Clinch WPL-NLA
...
017
Washer WPL-M0272503
...
018
Nut K WPL-M0282005
...
019
Gasket, Neoprene WPL-10966602

...
...
001
Diagram, Wiring WPL-NLA

...
...
001
Oven Rack WPL-D7780102
...
002
Bit For Torx 15h Drive Screws WPL-NLA
...
003
Magnetic Y-Drive Bit WPL-NLA
...
004
Manual, Service WPL-59001068
...
005
Manual-Use & Care WPL-NLA

...
...
001
Timer-30 Min WPL-12492901
...
002
Screw WPL-M0213815
...
003
Brkt,control(E-Ct) WPL-12471402
...
004
Button, Push WPL-12487801
...
005
Thinplate WPL-59001063
...
006
Knob, Timer WPL-12360802
...
007
Light-Pilot WPL-NLA

...
...
001
Wrapper,oc WPL-D7684913
...
002
Screw, Tf WPL-M0231704
...
003
Gasket (Per Foot) WPL-10839706
...
004
Screw, Tf WPL-M0231804
...
005
Gasket K WPL-A4591129
...
006
Clip, Guide WPL-M0118705
...
007
Nut-Keps WPL-M0282021
...
008
Washer-U Type WPL-12152201
...
009
Screw-Mach WPL-M0200843
...
010
Brkt, Line Filter WPL-B5696109
...
011
Line Filter Xx WPL-NLA
...
012
Screw, Tf WPL-M0231704
...
013
Screw, Tf WPL-M0231704
...
014
Side Escutcheon-Des11m WPL-59001066
...
015
Screw WPL-WP12990527
...
016
Gasket WPL-A3263904

...
...
001
Gasket, Oven Top WPL-B8369901
...
002
Magnetron WPL-12096201
...
003
Screw T.c WPL-M0229916
...
004
Thermal Protector WPL-B5684106
...
005
Screw T.c WPL-M0229916
...
006
Screw WPL-M0232012
...
007
Toroid (Arc Suppressor) WPL-44780P01
...
008
Screw WPL-WPW10068250
...
009
Gasket (Inch) WPL-A3030301
...
010
Nut WPL-NLA
...
011
Window, Oven Light WPL-B8367701
...
012
Screw WPL-NLA
...
013
Cord, Power WPL-59002001
...
014
Insulator, Pod K WPL-M0325501
...
015
Relief- Strain WPL-M0370009
...
016
Screw-Sm/hex WPL-12990523
...
017
Gasket WPL-A3030302
...
018
Blower Partition,black E Ct WPL-D7685413
...
019
Gasket WPL-A3030302
...
020
Screw-Sm/hex WPL-12990523
...
021
Screw, Tf WPL-M0231704
...
022
Screw WPL-NLA
...
023
Scroll, Blower WPL-D7684601
...
024
Blower Wheel WPL-C8793501
...
025
Nut WPL-WP3195558
...
026
Brkt Scroll WPL-C8942501
...
027
Tray-Glass Floor WPL-C8936902
...
028
Adhesive WPL-W10841140
...
029
Screw,tf WPL-M0231617
...
030
Cradle, Antenna WPL-D7685505
...
031
Assy, Antenna WPL-C8943002Q
...
032
Foot O.c. Wrapper WPL-B5732506
...
033
Support, Shelf WPL-B8374901
...
034
Support Rack WPL-B8371001
...
035
Brkt,hinge Support WPL-C8935903
