Amana RS511M (BOM: P1324501M)

Model: RS511M (BOM: P1324501M)

Save Part Not Listed?
product name

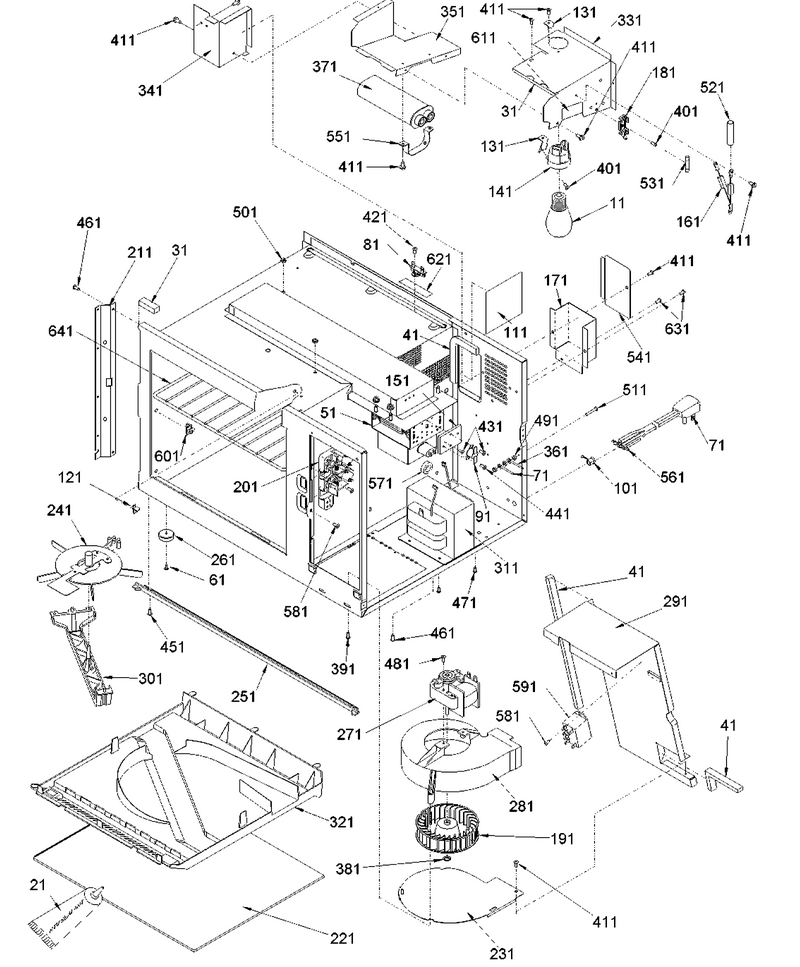

03 - Internal Components

...
...
11
Bulb-Light WPL-WP67002552
...
21
Adhesive WPL-W10841140
...
31
Gasket (Inch) WPL-A3030301
...
41
Gasket WPL-A3030302
...
51
Magnetron WPL-12096201
...
61
Pop Rivet WPL-A4539625
...
71
Cord, Power WPL-59002001
...
81
Fuse, Thermal WPL-B5795305
...
91
Thermal Protector WPL-B5684106
...
101
Relief- Strain WPL-M0370009
...
111
Window, Oven Light WPL-B8367701
...
121
Support, Shelf WPL-B8374901
...
131
Bracket, Light WPL-B8376701
...
141
Socket, Light WPL-B8376801
...
151
Plate, Thermal Cutout WPL-B8380601
...
161
Rectifier WPL-10649001
...
171
Cover,air Duct WPL-C8988002
...
181
Block-Fuse WPL-W10206728
...
191
Blower Wheel WPL-C8793501
...
201
Switch, Interlock Kit WPL-12002647
...
211
Brkt,hinge Support WPL-C8935903
...
221
Tray-Glass Floor WPL-C8936902
...
231
Brkt Scroll WPL-C8942501
...
241
Assy, Antenna WPL-C8943002Q
...
251
Trim WPL-C8943602
...
261
Foot O.c. Wrapper WPL-B5732506
...
271
Motor, Blower WPL-D7670307
...
281
Scroll, Blower WPL-D7684601
...
291
Blower Partition,black E Ct WPL-D7685413
...
301
Cradle, Antenna WPL-D7685505
...
311
Transformer WPL-D7686914
...
321
Grease Shield WPL-D7692501
...
331
Duct, Top Air WPL-D7772007
...
341
Shield, Light WPL-D7772101
...
351
Air Duct. Bottom WPL-D7772202
...
361
Harness, Oven WPL-12490501
...
371
Capacitor-1.20 WPL-59001171
...
381
Nut WPL-WP3195558
...
391
Screw WPL-M0254706
...
401
Screw WPL-WP59002061
...
411
Screw, Tf WPL-M0231704
...
421
Screw WPL-WPW10068250
...
431
Screw T.c WPL-M0229916
...
441
Screw WPL-M0232012
...
451
Screw WPL-12992301
...
461
Screw, Tf WPL-M0231704
...
471
Screw WPL-M0251030
...
481
Screw WPL-M0213123
...
491
Nut K WPL-M0282005
...
501
Nut WPL-M0288808
...
511
Stud-Self Clinch WPL-M0293502
...
521
Sleeve, Wire WPL-M0322602
...
531
Fuse, 12 Amp WPL-M0805105
...
541
Cover, Light WPL-B8370702
...
551
Strap, Capacitor WPL-A4055406
...
561
Insulator, Pod K WPL-M0325501
...
571
Toroid (Arc Suppressor) WPL-44780P01
...
581
Screw-Sm/hex WPL-12990523
...
591
Relay WPL-12492202
...
601
Support Rack WPL-B8371001
...
611
4.25`` Tape-Poly WPL-M0275051
...
621
Tape, Protective WPL-M0275157
...
631
Screw WPL-489392
...
641
Oven Rack WPL-D7780102

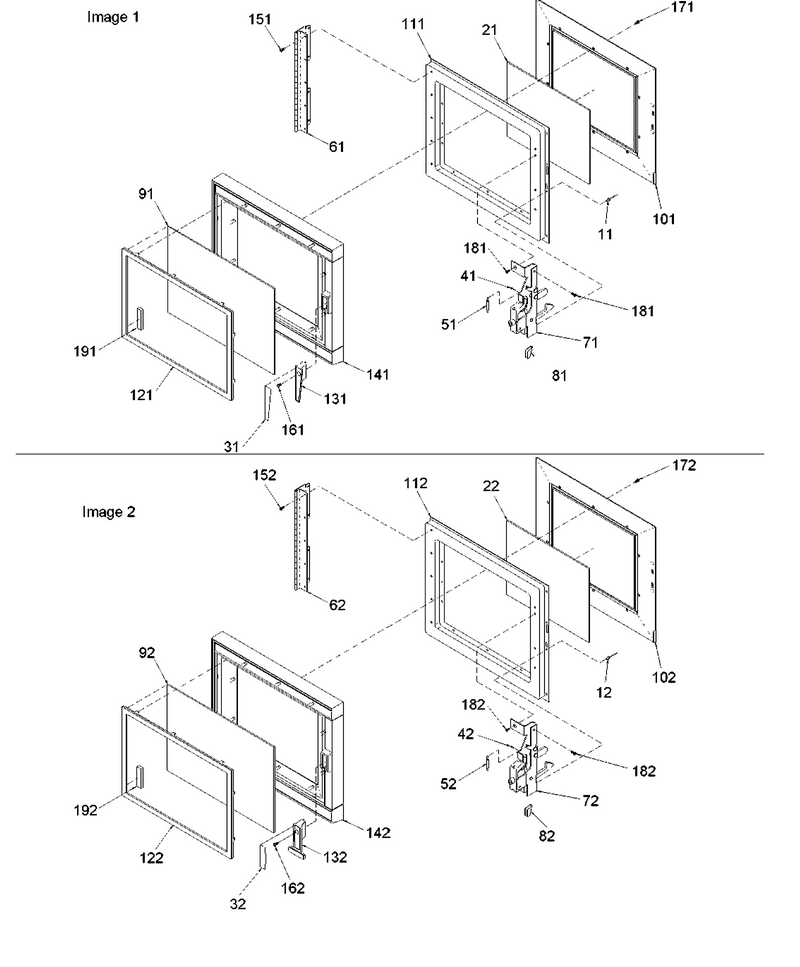

02 - Door Assembly

...
...
11
Rivet-Pop WPL-59002054
...
12
Rivet-Pop WPL-59002054
...
21
Window, Inner WPL-B8371202
...
22
Window, Inner WPL-B8371202
...
32
Insert, Handle WPL-B8381101
...
41
Pin, Latch WPL-B8379201
...
42
Pin, Latch WPL-B8379201
...
51
Spring, Door Latch WPL-C8893502
...
52
Spring, Door Latch WPL-C8893502
...
61
Hinge, Door (Black) WPL-C8936213
...
62
Hinge, Door (Black) WPL-C8936213
...
71
Latch Assy WPL-R0150122
...
72
Latch Assy WPL-R0150122
...
81
Pad-Latch Assy WPL-C8991301
...
82
Pad-Latch Assy WPL-C8991301
...
91
Window WPL-C8965302
...
92
Window WPL-C8965302
...
101
Door, Inner WPL-D7683508
...
102
Door, Inner WPL-D7683508
...
111
Kit-Door R WPL-R0131710
...
112
Kit-Door R WPL-R0131710
...
121
Retainer, Lens WPL-D7716001
...
122
Retainer, Lens WPL-D7716001
...
132
Handle Front Tee WPL-D7751101
...
141
Door, Blk Outer V WPL-D7755402
...
142
Door, Blk Outer V WPL-D7755402
...
151
Screw WPL-M0234403
...
152
Screw WPL-M0234403
...
161
Screw WPL-M0234030
...
162
Screw WPL-M0234030
...
171
Screw WPL-489392
...
172
Screw WPL-489392
...
181
Screw WPL-WP59002061
...
182
Screw WPL-WP59002061
...
191
Gasket (Inch) WPL-A3030301
...
192
Gasket (Inch) WPL-A3030301

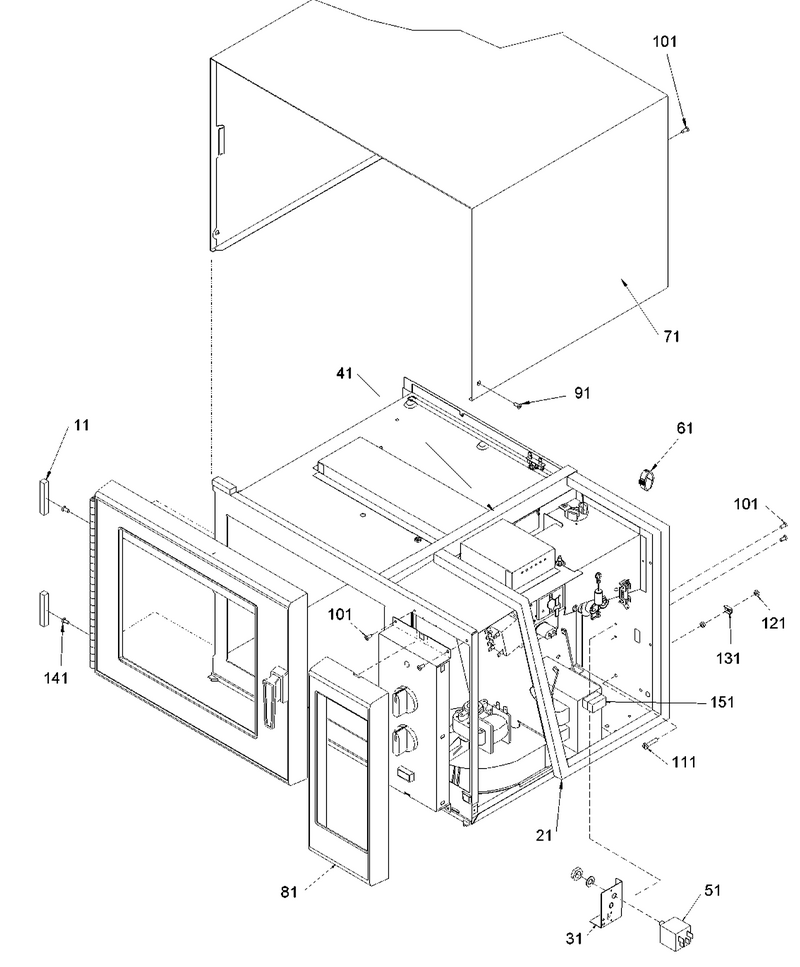

04 - Outer Cabinet

...
...
11
Gasket WPL-A3263904
...
21
Gasket (Per Foot) WPL-10839706
...
31
Brkt, Line Filter WPL-B5696109
...
41
Gasket, Oven Top WPL-B8369901
...
51
Line Filter Xx WPL-B5717801
...
61
Clip, Guide WPL-M0118705
...
71
Wrapper O.c. (Black) WPL-D7684909
...
81
Escut, Control (Black) WPL-D7704517
...
91
Screw, Tf WPL-M0231817
...
101
Screw, Tf WPL-M0231704
...
111
Screw-Mach WPL-M0200843
...
121
Nut-Keps WPL-M0282021
...
131
Washer-U Type WPL-12152201
...
141
Screw WPL-WP90767
...
151
Gasket, Neoprene WPL-10966602

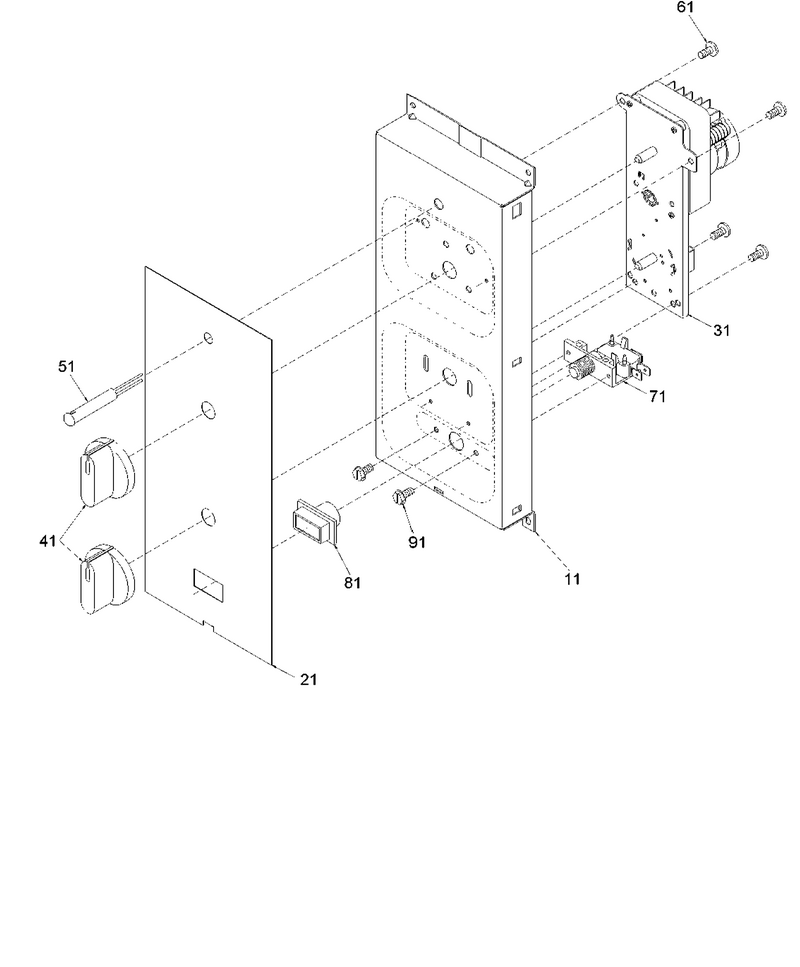

01 - Control Panel Assembly

...
...
11
Brkt,control(E-Ct) WPL-12471402
...
21
Thinplate, Control WPL-12487904
...
31
Timer, 30 Minute WPL-12492901
...
41
Knob, Timer WPL-12360802
...
51
Light, Pilot WPL-B5785708
...
61
Screw WPL-WP59002061
...
71
Switch, Start WPL-12492101
...
81
Button, Push WPL-12487801
...
91
Screw WPL-M0213815
