product name

Amana RS30 (BOM: P7669503M)

Model: RS30 (BOM: P7669503M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

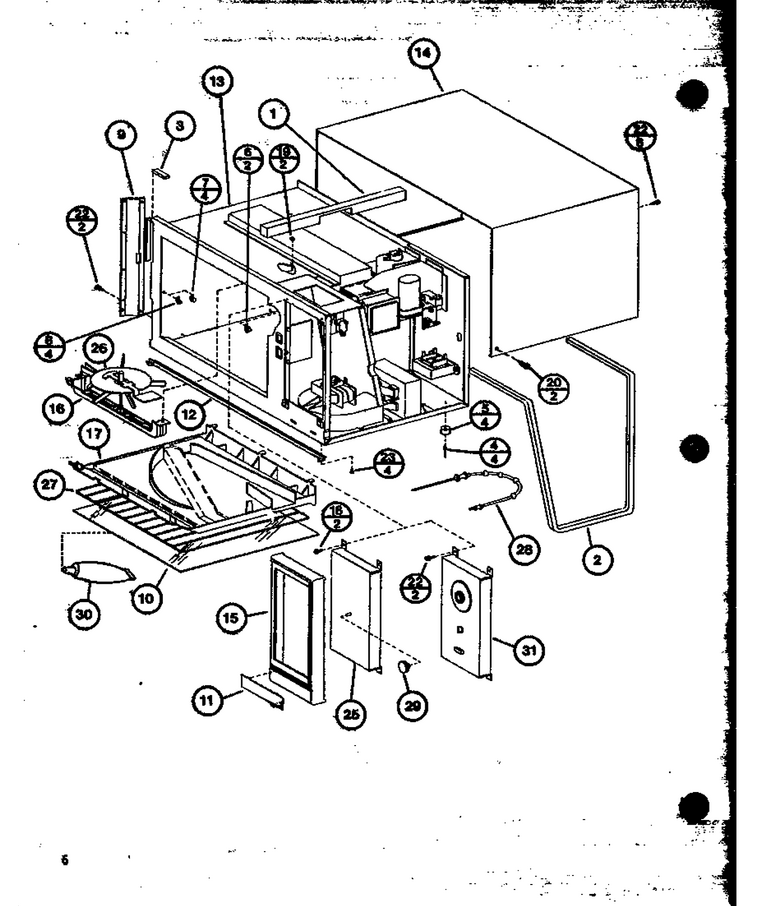

02 - Page 2

...
...
NI
Gasket WPL-A3030302
...
1
Gasket, Oven Top WPL-B8369901
...
2
Gasket 1/2 By 3/8 WPL-10839716
...
3
Gasket (Inch) WPL-A3030301
...
4
Pop Rivet WPL-A4539625
...
5
Foot O.c. Wrapper WPL-B5732506
...
6
Support Tray WPL-B8370801
...
7
Hole Plug WPL-B8370901
...
9
Brkt,hinge Support WPL-C8935903
...
10
Tray-Glass Floor WPL-C8936901
...
11
Thinplate Escut WPL-C8942001
...
12
Trim WPL-C8943602
...
13
Oven Cavity WPL-D7684104
...
14
Wrapper O.c. (Black) WPL-D7684909
...
15
Escut. Control WPL-D7685120
...
16
Cradle, Antenna WPL-D7685505
...
17
Grease Shield WPL-D7692501
...
19
Nut WPL-M0288808
...
20
Screw, Tf WPL-M0231817
...
22
Screw WPL-WP3388228
...
23
Screw WPL-M0259218
...
25
Timer Assy WPL-R0163210
...
26
Assy, Antenna WPL-C8943002Q
...
28
Temp Probe WPL-C8821504
...
29
Knob Control K WPL-C8906901
...
30
Sealer WPL-M0275501

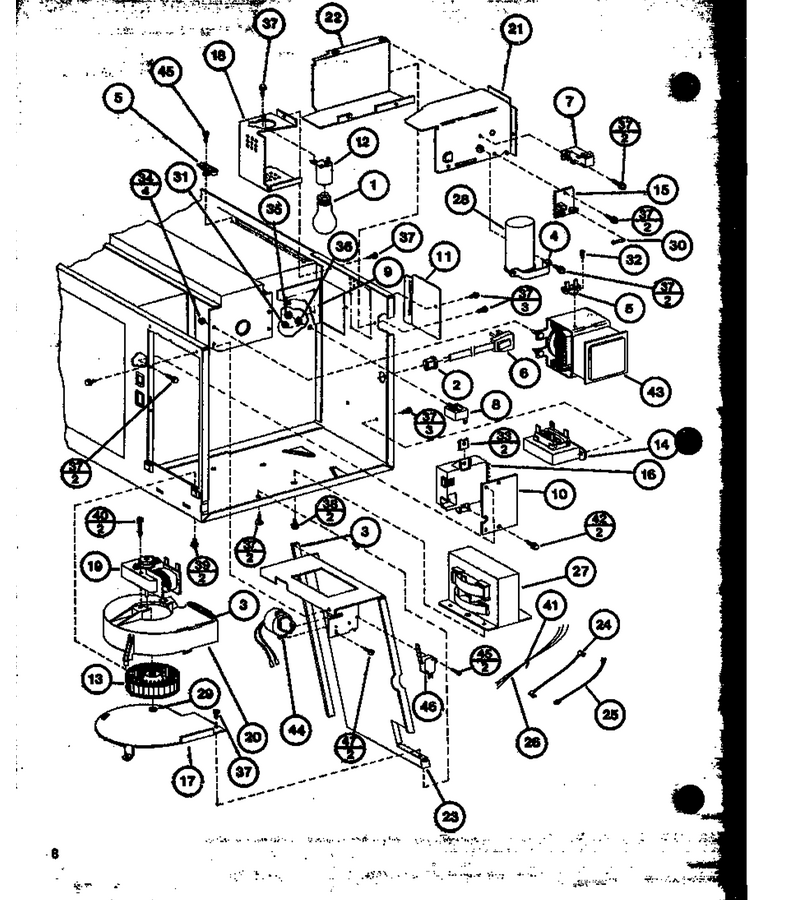

03 - Page 3

...
...
1
Light Bulb WPL-8009
...
2
Grommet, Cord WPL-211881
...
3
Gasket WPL-A3030302
...
4
Strap, Capacitor WPL-A4055405
...
5
Fuse, Thermal WPL-B5795305
...
6
Cord, Power WPL-B8310501
...
7
Kit, Diode WPL-M3D71
...
8
Temp Probe Jack K WPL-B8355401
...
9
Window, Oven Light WPL-B8367701
...
10
Bracket S.w. Mtg WPL-B8370602
...
11
Cover, Light WPL-B8370702
...
12
Receptacle, Lamp WPL-B8371401
...
13
Blower Wheel WPL-C8793501
...
15
Board-Term WPL-C8988701
...
16
Switch, Interlock WPL-C8935801
...
17
Brkt Scroll WPL-C8942501
...
18
Shield Light WPL-C8942901
...
19
Motor, Blower WPL-D7670301
...
20
Scroll, Blower WPL-D7684601
...
21
Exhaust Duct Top WPL-D7684701
...
22
Exhaust Duct, Bottom WPL-D7684801
...
23
Blower Partition WPL-D7685403
...
24
Jumper Wire WPL-D7685630
...
25
Jumper Wire WPL-D7685636
...
26
Harness, Wire WPL-10872402
...
27
Transformer WPL-10133701
...
28
Capacitor- WPL-WP59001168
...
29
Nut WPL-WP3195558
...
30
Fuse 20 A WPL-WPM0805101
...
32
Screw WPL-WP488234
...
33
Clip WPL-M0288213
...
34
Lock-Nut---K WPL-M0282801
...
35
Nut K WPL-M0281405
...
36
Washer WPL-M0270536
...
37
Screw WPL-WP3388228
...
38
Screw WPL-WP3390631
...
39
Screw WPL-M0254706
...
40
Screw WPL-M0254712
...
41
Wire Tie WPL-M0321204
...
42
Screw-Sm/hex WPL-12990523
...
43
Magnetron WPL-10794402

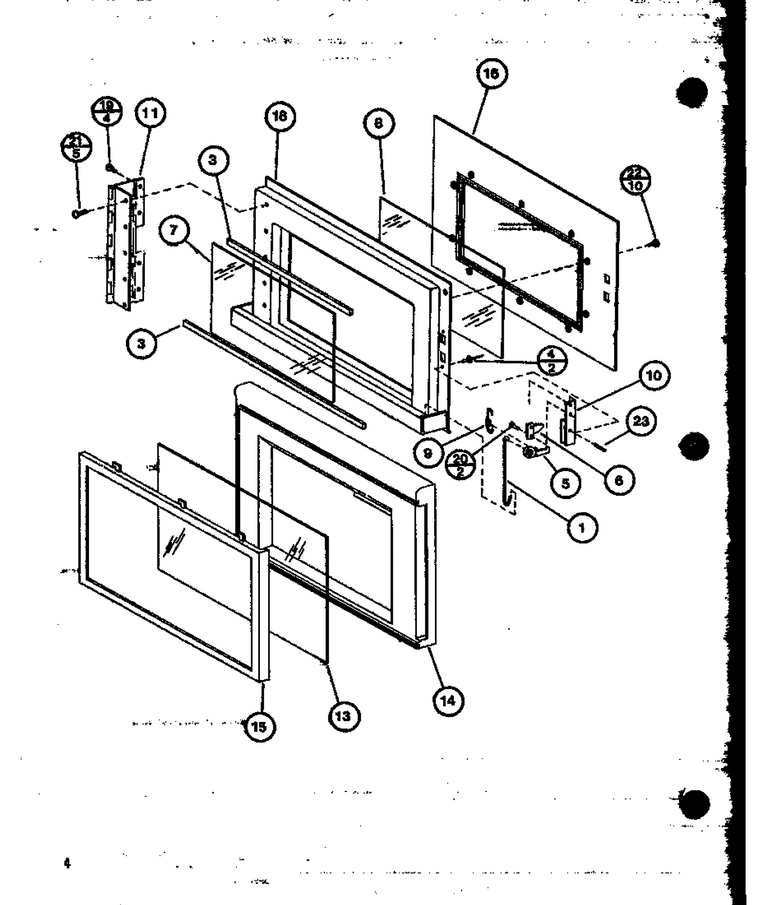

01 - Page 1

...
...
1
Connecting Rod A WPL-A1050103
...
4
Rivet-Pop WPL-59002054
...
5
Latch Dr K WPL-B8370301
...
6
Guide, Door K WPL-B8370401
...
8
Window, Inner WPL-B8371202
...
9
Spring, Door Latch WPL-C8893502
...
10
Bracket Dr Latch K WPL-C8936101
...
11
Hinge-Door WPL-C8961811
...
13
Window, Outer WPL-D7534010
...
14
Outer Door WPL-D7683206
...
15
Retainer, Lens WPL-D7683404
...
16
Door, Inner WPL-D7683508
...
18
Door Ring Assy WPL-R0156518
...
19
Screw WPL-M0259218
...
20
Rivet A K WPL-M0010214
...
21
Screw WPL-WP59002061
...
22
Screw WPL-489392
...
23
Pin Roll K WPL-M1200107

04 - Page 4

...
...
NI
Bit For Torx 15h Drive Screws WPL-R0193551
