Amana RR7 (BOM: P7258202M)

Model: RR7 (BOM: P7258202M)

Save Part Not Listed?
product name

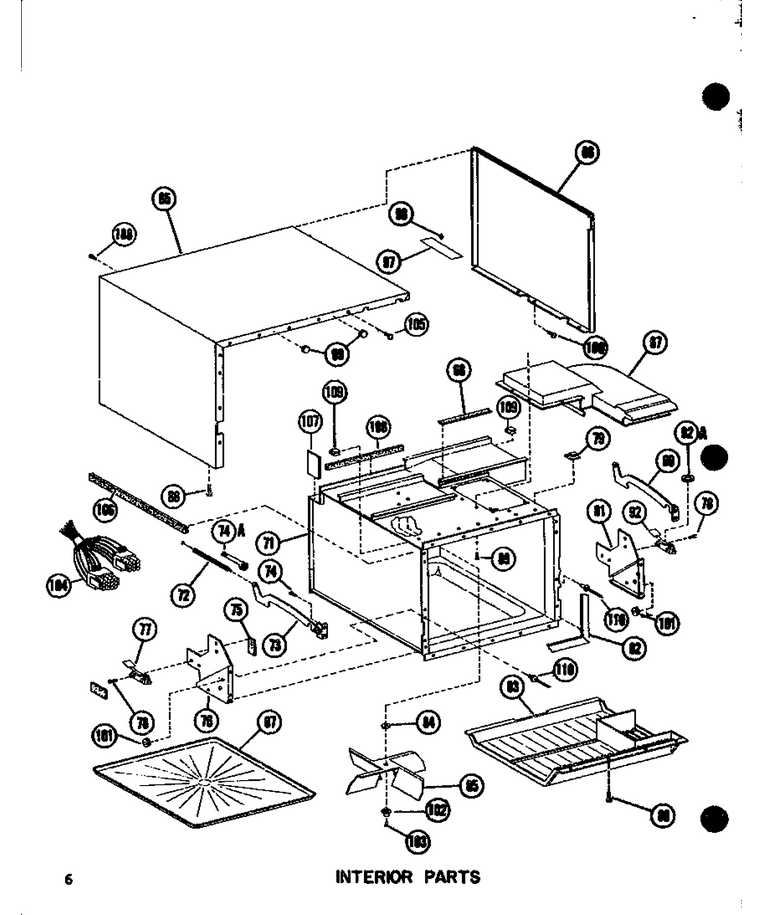

01 - Interior Parts

...
...
65
Wrapper, Outer Case WPL-D7257501
...
66
Access Panel WPL-D7335801
...
67
Duct, Air Discharge WPL-D7258703
...
68
Gasket WPL-A3030302
...
71
Weldment, Oven WPL-D7168306
...
72
Spring WPL-M0775001
...
73
Arm, Counterbalance, Left Hand WPL-B5693102
...
74
Screw Remover WPL-R0193032
...
75
X$x Pad WPL-M0050902
...
76
Bracket, Counterbalance, Left WPL-B5693205
...
77
Weld Switch WPL-A3162507
...
78
Screw A-K WPL-M0227525
...
79
Clip WPL-WPM0104106
...
80
Arm, Counterbalance, R.h. WPL-B5693101
...
81
Bracket, Counterbalance, Right WPL-B5693206
...
82
Gasket WPL-C3637201
...
83
Grease Shield WPL-D7352601
...
84
Bushing-Stirrer Mt WPL-B5704203
...
85
Xfan Blade-Stirrer WPL-C8720801
...
87
Oven Tray WPL-R0156726
...
88
Screw WPL-M0230015
...
89
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
92
Washer WPL-M0274049
...
97
Seal K WPL-B5738501
...
98
Rivet-Pop WPL-59002054
...
99
Bumper WPL-A1511502
...
100
Screw WPL-WP59002061
...
101
Roller Assy Kit WPL-R0157145
...
102
Bearing WPL-A3214801
...
103
Shoulder Screw WPL-A3214902
...
104
Wiring Harness WPL-D7324701
...
105
Screw WPL-WP489349
...
106
Gasket WPL-A3263901
...
107
Gasket WPL-B5695301
...
108
Gasket, Air Sealing WPL-B5695302
...
109
Clip WPL-M0118801
...
110
Rivet-Pop WPL-59002054

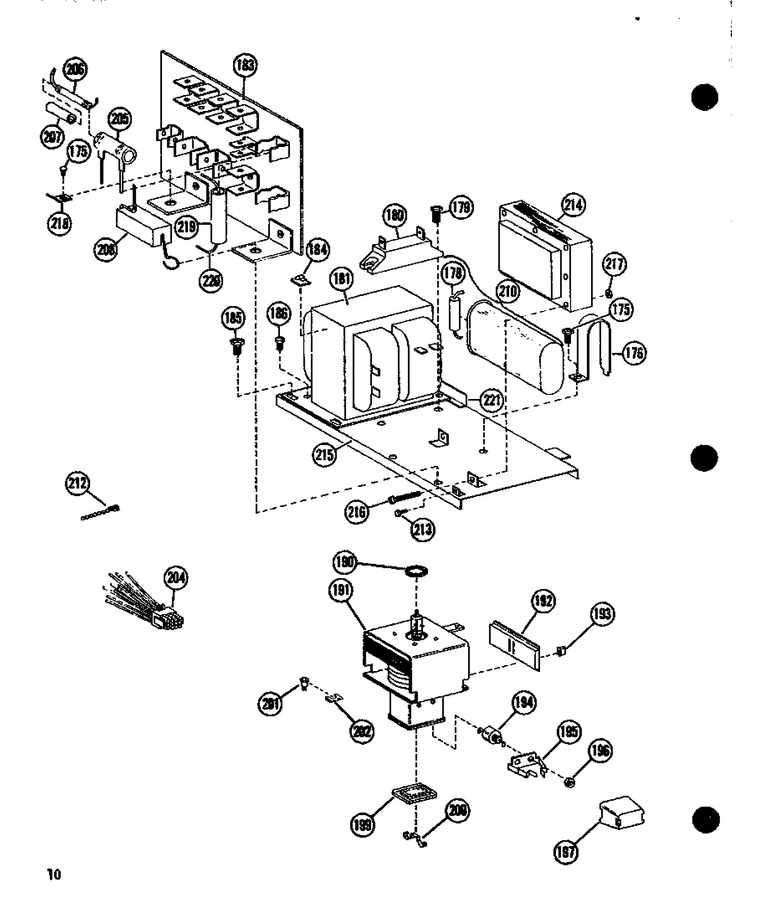

04 - Page 4

...
...
NI
Insulator, Term. K WPL-M0325301
...
175
Screw WPL-M0218116
...
176
Strap-Capacitor WPL-A3257001
...
178
Resistor A WPL-M0305202
...
179
Screw-Sm/hex WPL-12990523
...
180
Kit, Diode WPL-M3D71
...
181
Transformer, Plate WPL-D7255701
...
183
Terminal Board WPL-B5740601
...
184
Clip, Cord WPL-M0104102
...
185
Sems Fastener WPL-YM0258229
...
186
Screw WPL-WP90767
...
190
Gasket, Magnetron WPL-A3185102
...
191
Magnetron Kit,700w WPL-D7157002
...
192
Baffle WPL-B5679101
...
193
Clip K WPL-M0113504
...
194
Capacitor K WPL-A3148801
...
195
Clip K WPL-B5655902
...
196
Hex Nut WPL-M0281901
...
197
Shield Hv K WPL-B5656001
...
199
Cover Cap Box K WPL-B5647901
...
200
Bale Strap K WPL-A3145401
...
201
Thermal Protector WPL-B5665805
...
202
Clip WPL-B5744201
...
204
Wiring Harness WPL-C8737501
...
205
Resistor A WPL-M0305009
...
206
Fuse WPL-M0308110
...
207
Sleeve WPL-M0321701
...
208
Resistor WPL-M0305204
...
210
Capacitor Assy WPL-R0160021
...
212
Tie-Wire WPL-WPW10339879
...
213
Screw WPL-M0218116
...
214
Transformer Filament WPL-C8735502
...
215
Mtg Plate-Trans WPL-D7255502
...
216
Screw WPL-M0204346
...
217
Nut K WPL-M0282005
...
218
Terminal WPL-M0320901
...
219
Resistor Fuse Kit WPL-R0157332
...
220
Fuse WPL-M0308101

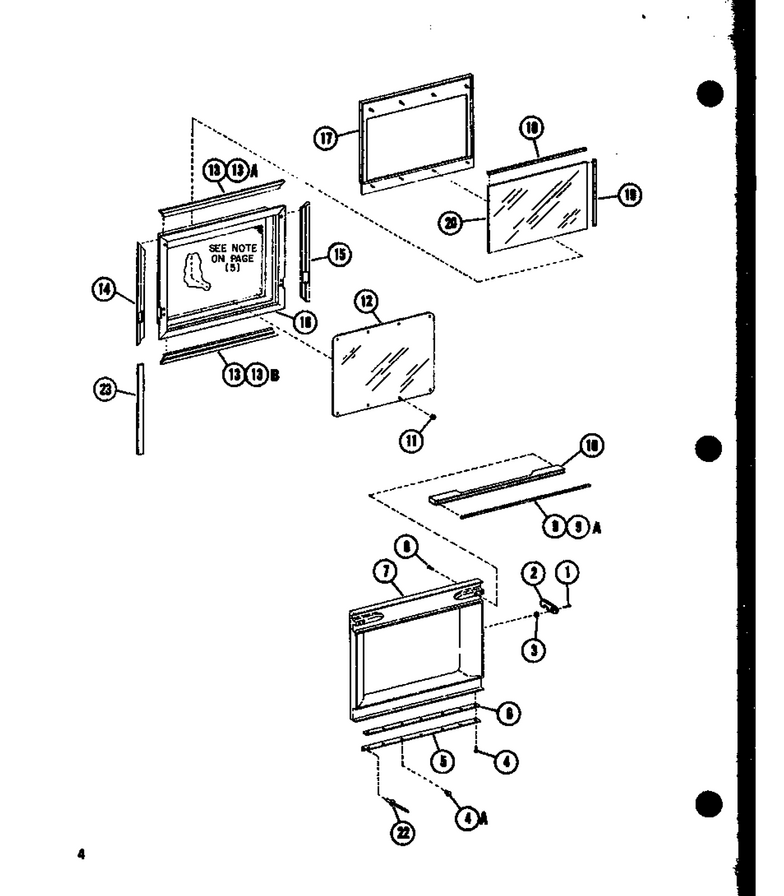

03 - Page 1

...
...
1
Rivet WPL-A3183901
...
2
Latch, Door WPL-A3183001
...
3
Nut WPL-M0287401
...
4
Screw WPL-M0227501
...
5
Hinge WPL-B5603203
...
6
Shim WPL-A3127102
...
7
Door Outer WPL-D7238603
...
8
Screw, No.6x18x1/4 (3) WPL-487010
...
9
Insert-Handle WPL-B5604802
...
10
Handle WPL-D3964801
...
11
Nut WPL-717488
...
12
Window Outer A WPL-A3254901
...
13
Gasket Top A WPL-D7268601
...
14
Gasket, Door, Left Side WPL-D7268604
...
15
Gasket Right A WPL-D7268603
...
16
Inner Door Assy A WPL-C8755401
...
17
Inner Door Mold Assy WPL-D7240301
...
18
Gasket Window A-K WPL-A3264601
...
19
Gasket Window A-K WPL-A3264602
...
20
Inner Window A-K WPL-A3167901
...
22
Pop Rivet WPL-A4539602
...
23
Tape Per Roll WPL-M0275163

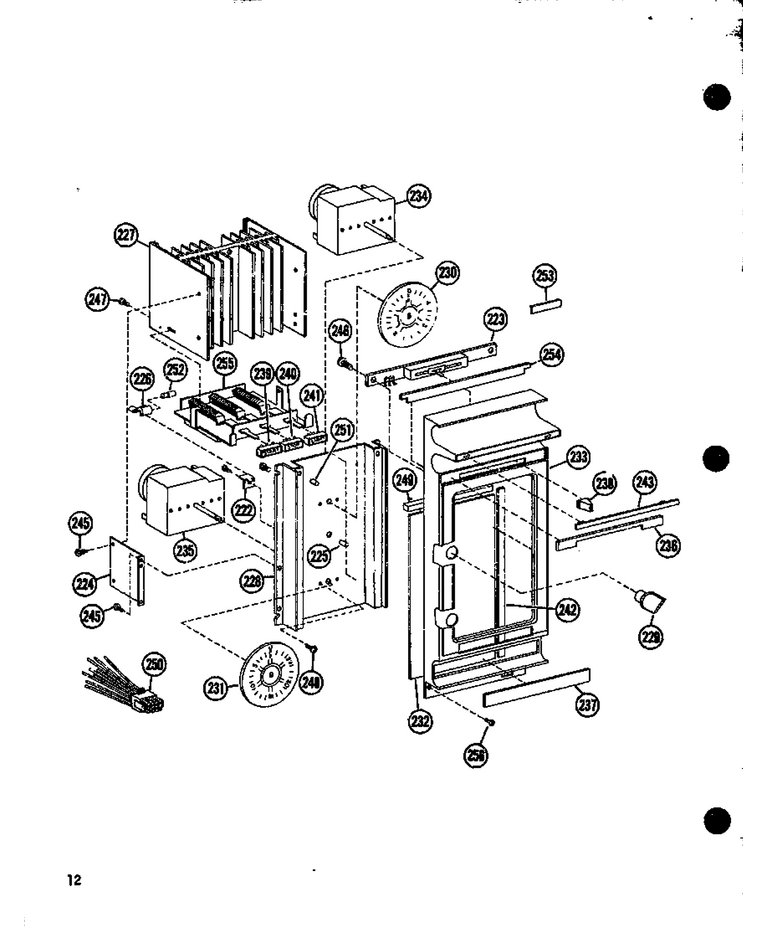

05 - Page 5

...
...
NI
Adhesive WPL-M0910002
...
222
Bracket-Pilot Light WPL-A3257601
...
223
Control-Cm WPL-B5741502
...
224
Bracket Mod Mtg WPL-B5748103
...
225
Pipe-Light WPL-B5741001
...
226
Lampholder WPL-B5741101
...
227
Timer Kit WPL-C8734901
...
228
Extrusion-Control WPL-C8735101
...
229
Knob WPL-C8735901
...
230
Disc-Timer WPL-C8735703
...
231
Disc-Timer WPL-C8735704
...
232
Lens, Escutcheon WPL-C8735601
...
233
Escutcheon, Control WPL-D7255301
...
234
Timer-5 Min WPL-C8736201
...
235
Timer-30 Min WPL-C8736001
...
236
Nameplate WPL-B5755902
...
237
Nameplate K WPL-B5741301
...
238
Knob-Control WPL-B5742501
...
239
Button (Start) K WPL-C8743101
...
240
Button (Stop) K WPL-C8743108
...
241
Button (Light) WPL-C8743109
...
242
Gasket WPL-A3259201
...
243
Insert- K WPL-B5703901
...
245
Screw WPL-M0234114
...
246
Screw WPL-WP59002061
...
247
Screw WPL-M0234003
...
248
Screw WPL-WPW10068250
...
249
Gasket WPL-A4591128
...
250
Wiring Harness WPL-C8737701
...
251
Pin WPL-M1200104
...
252
Bulb WPL-A3171201
...
253
Tape WPL-M0275009
...
254
Shield-Cm Control WPL-A3266001
...
255
Switch Assy WPL-C8742801
...
256
Screw T.c WPL-M0229916

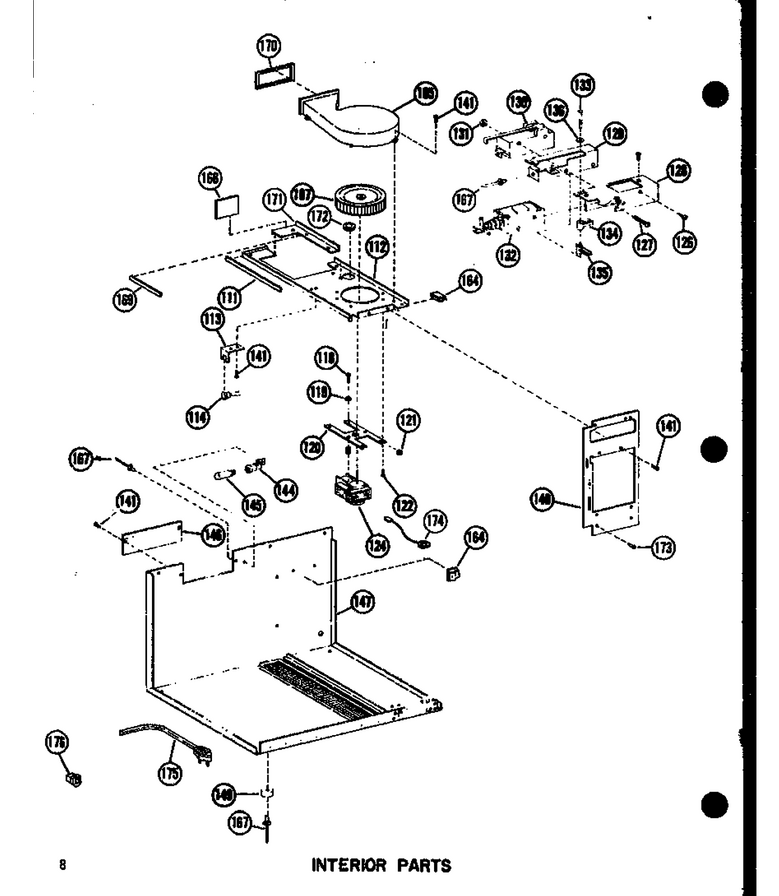

02 - Interior Parts

...
...
NI
Insulator, Term. K WPL-M0325301
...
105
Scroll-Blower WPL-C3667301
...
107
Ass`y, Blower Wheel WPL-R0156050
...
111
Gasket WPL-A3030302
...
112
Bulkhead WPL-D7255601
...
113
Bracket-Cut Out WPL-B5680301
...
114
Thermal Cut-Out WPL-B5665803
...
118
Screw WPL-M0202642
...
119
Washer WPL-M0272605
...
120
Motor Mount-Bl WPL-B5744001
...
121
Clip, Waterline WPL-12454802
...
122
Screw-Sm/hex WPL-12990523
...
124
Motor- Blo WPL-C8793205
...
126
Screw WPL-M0201414
...
127
Screw WPL-M0227520
...
128
Bracket, Latch Switch WPL-C8712101
...
129
Spring, Latch WPL-B5719601
...
130
Switch Preform A WPL-A3163405
...
131
Nut K WPL-M0282005
...
132
Solenoid, Door Locking WPL-B5682103
...
133
Pin-Bell Crank WPL-A3182602
...
134
Bell Crank WPL-B5672502
...
135
Bell Crank WPL-B5672503
...
136
Washer WPL-M0270530
...
140
Front-Oc WPL-D7256401
...
141
Screw WPL-M0230015
...
144
Socket-Oven Light WPL-B5742001
...
145
Bulb-Light WPL-WPA3167501
...
146
Panel-Bulb Access WPL-A3198103
...
147
Basepan Wld WPL-D7256701
...
149
Foot WPL-B5732505
...
164
Clip, Cord WPL-M0104102
...
167
Rivet-Pop WPL-59002054
...
168
Gasket WPL-B5695301
...
169
Gasket (Per Foot) WPL-10839706
...
170
Gasket (Inch) WPL-A3030301
...
171
Ext-Bulkhead WPL-C8735001
...
172
Grommet WPL-A3258801
...
173
Screw WPL-WP59002061
...
174
Jumper Wire WPL-C3655867
...
175
Cord, Power WPL-1731300208
...
176
Strain Relief WPL-M0370001
