Amana RR6W (BOM: P7211002M)

Model: RR6W (BOM: P7211002M)

Save Part Not Listed?
product name

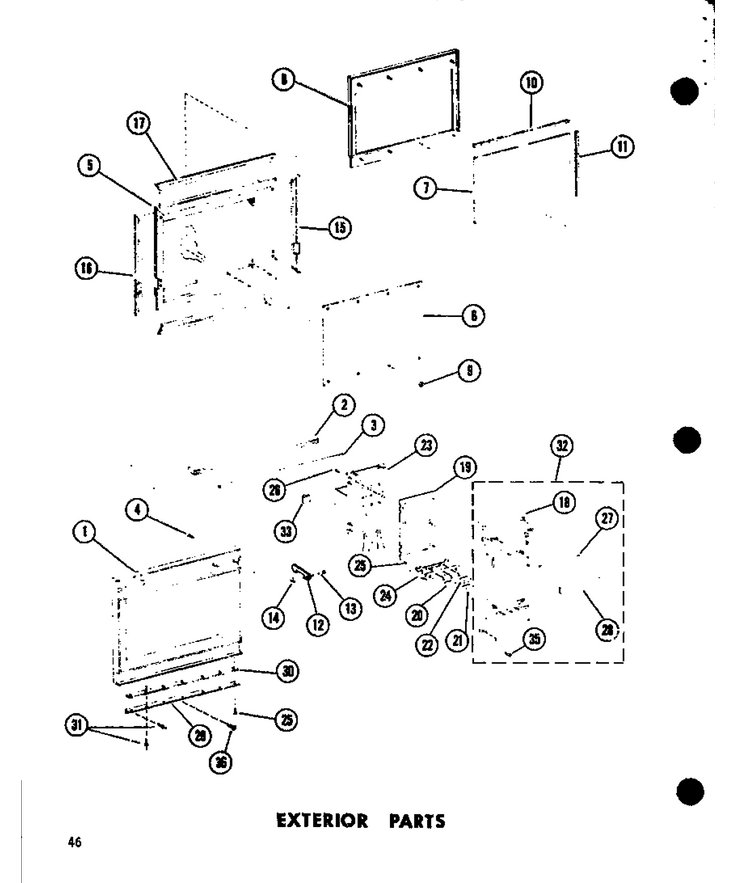

02 - Exterior Parts

...
...
1
Door Outer WPL-D7186801
...
2
Handle WPL-D3964801
...
3
Adhesive WPL-M0910002
...
4
Screw, No.6x18x1/4 (3) WPL-487010
...
5
Assembly, Inner Door WPL-C3605606
...
6
Window Outer A WPL-A3254901
...
7
Inner Window A-K WPL-A3167901
...
8
Molding Inner W WPL-D7106401
...
9
Nut WPL-717488
...
10
Gasket, Inner Window, 13-3/8`` WPL-A4591112
...
11
Gasket, Inner Window, 8-3/16`` WPL-A4591113
...
12
Latch, Door WPL-A3183001
...
13
Rivet WPL-A3183901
...
14
Nut WPL-M0287401
...
15
Gasket Right A WPL-D7141305
...
16
Gasket, Door, Left Side WPL-D7141306
...
17
Tape Per Roll WPL-M0275163
...
18
Escutcheon K WPL-D7238701
...
19
Gasket-Escutcheon WPL-C8716001
...
20
Button (Start) K WPL-C8718401
...
21
Button (Stop) K WPL-C8743108
...
22
Button (Light) WPL-C8743109
...
23
Net-Module WPL-D7211401
...
24
Switch, Start, Stop, Light WPL-B5724601
...
25
Screw WPL-M0227501
...
26
Screw WPL-WP59002061
...
27
Adhesive WPL-M0910002
...
28
Tape-Roll WPL-M0275142
...
29
Hinge WPL-B5603203
...
30
Shim WPL-A3127101
...
31
Pop Rivet WPL-A4539602
...
32
Escutcheon Assy Kit WPL-R0177008
...
33
Clip WPL-WPM0104106
...
35
Screw T.c WPL-M0229916
...
36
Screw WPL-M0214503

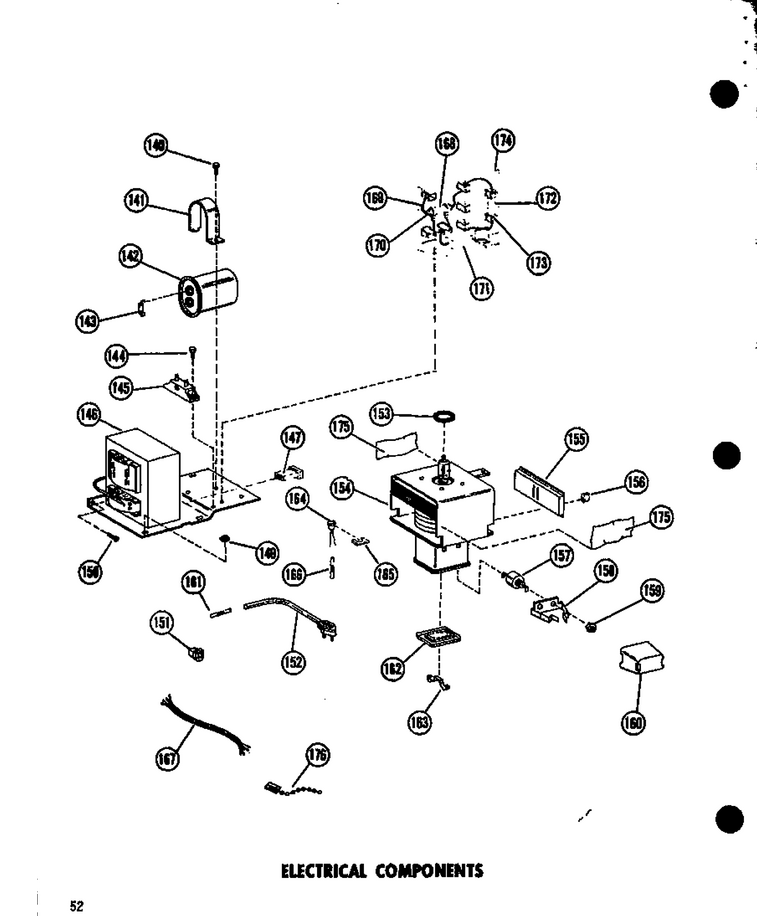

01 - Electrical Components

...
...
NI
Jumper Wire K WPL-C3655835
...
140
Screw WPL-M0218116
...
141
Strap-Capacitor A WPL-A3197101
...
142
Capacitor Assy WPL-R0160021
...
143
Resistor A WPL-M0305202
...
144
Screw-Sm/hex WPL-12990523
...
145
Kit, Diode WPL-M3D71
...
146
Transformer WPL-D7152101
...
147
Insulator, Term. K WPL-M0325301
...
149
Nut WPL-WP487939
...
150
Screw WPL-WP90767
...
151
Strain Relief WPL-M0370001
...
152
Power Cord WPL-B5703503
...
153
Gasket, Magnetron WPL-A3185102
...
154
Magnetron Kit,700w WPL-D7157002
...
155
Baffle WPL-B5679101
...
156
Clip K WPL-M0113504
...
157
Capacitor K WPL-A3148801
...
158
Clip K WPL-B5655902
...
159
Hex Nut WPL-M0281901
...
160
Shield Hv K WPL-B5656001
...
161
Connector WPL-WP75614
...
162
Cover Cap Box K WPL-B5647901
...
163
Bale Strap K WPL-A3145401
...
164
Thermal Prot WPL-M0370403
...
165
Clip WPL-M0115802
...
166
Connector WPL-WP75614
...
167
Wiring Harness WPL-D7230601
...
168
Resistor A WPL-M0305009
...
169
Fuse WPL-M0308110
...
170
Sleeve WPL-M0321701
...
171
Resistor WPL-M0305204
...
172
Resistor Fuse Kit WPL-R0157332
...
173
Fuse WPL-M0308101
...
174
Terminal Board WPL-B5730901
...
175
Tape, Foil 1.25 X 12`` WPL-74003472
...
176
Tie-Wire WPL-WPW10339879

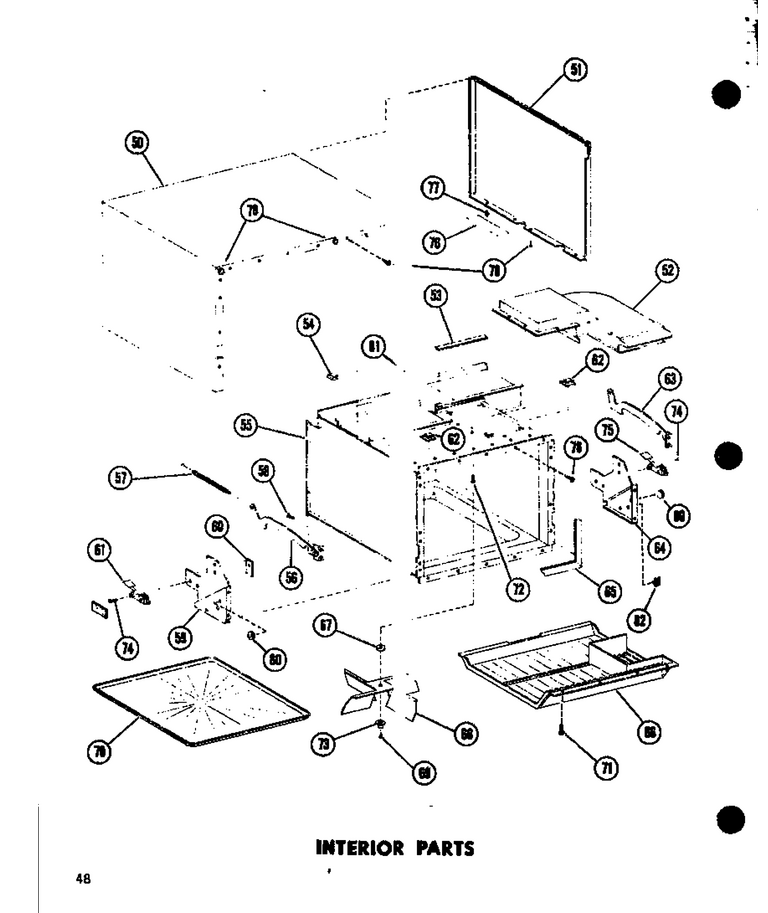

03 - Interior Parts

...
...
NI
Gasket-Cavity Top WPL-10839709
...
50
Wrapper, Outer Case WPL-C3688401
...
51
Access Panel WPL-C3689601
...
52
Duct, Air Discharge WPL-D7106003
...
53
Gasket WPL-A3030302
...
54
Clip WPL-M0114901
...
55
Weldment, Oven WPL-D7168306
...
56
Arm, Counterbalance, Left Hand WPL-B5693102
...
57
Spring WPL-M0775001
...
58
Screw WPL-WP59002061
...
59
Bracket, Counterbalance, Left WPL-B5693205
...
60
X$x Pad WPL-M0050902
...
61
Weld Switch WPL-A3162507
...
62
Clip WPL-WPM0104106
...
63
Arm, Counterbalance, R.h. WPL-B5693101
...
64
Bracket, Counterbalance, Right WPL-B5693206
...
65
Gasket WPL-C3637201
...
66
Grease Shield WPL-D7352601
...
67
Bushing-Stirrer Mt WPL-B5704203
...
68
Xfan Blade-Stirrer WPL-C8720801
...
69
Shoulder Screw WPL-A3214902
...
70
Oven Tray WPL-R0156726
...
71
Screw WPL-M0230015
...
72
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
73
Bearing WPL-A3214801
...
74
Screw A-K WPL-M0227525
...
75
Switch Kit WPL-R0157218
...
76
Seal K WPL-B5738501
...
77
Rivet-Pop WPL-59002054
...
78
Screw WPL-WP59002061
...
79
Bumper WPL-A1511502
...
80
Roller Assy Kit WPL-R0157145
...
81
Nut K WPL-M0282005
...
82
Clip,wire WPL-B5667301

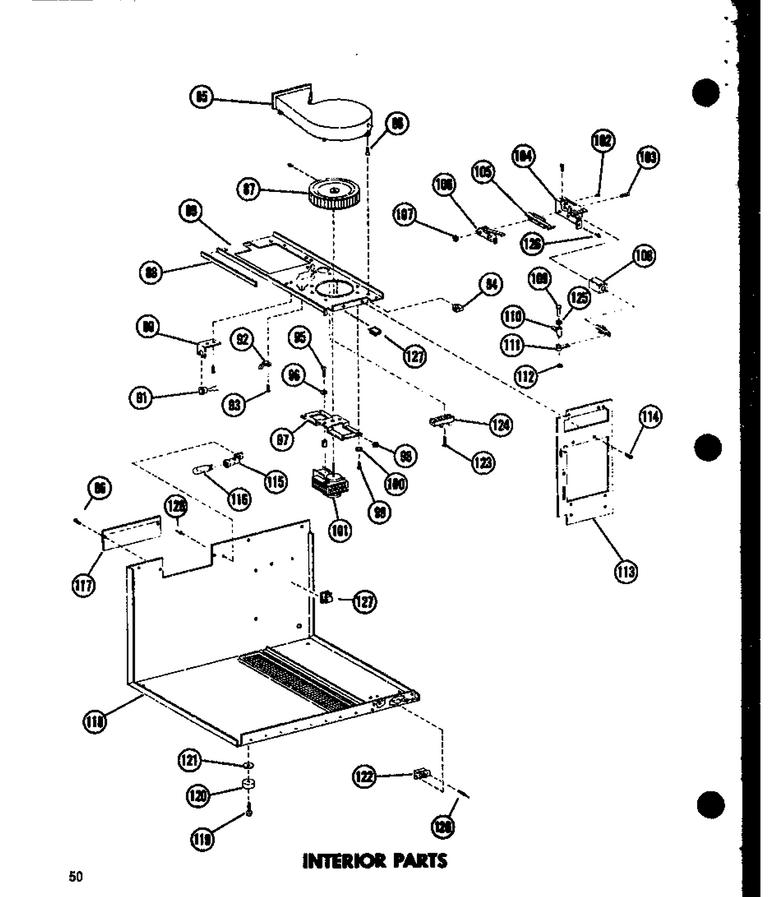

04 - Interior Parts

...
...
NI
Ground Wire Motor WPL-C3655853
...
85
Scroll-Blower WPL-C3667301
...
86
Screw WPL-M0230015
...
87
Ass`y, Blower Wheel WPL-R0156050
...
88
Gasket WPL-A3030302
...
89
Bulkhead WPL-D7167801
...
90
Bracket-Cut Out WPL-B5680301
...
91
Thermal Cut-Out WPL-B5665803
...
92
Terminal WPL-M0320901
...
93
Screw WPL-WP90767
...
94
Grommet WPL-A4568702
...
95
Screw WPL-M0202642
...
96
Washer WPL-M0272605
...
97
Motor Mount WPL-B5647301
...
98
Clip, Waterline WPL-12454802
...
99
Screw-Sm/hex WPL-12990523
...
100
Washer WPL-M0270504
...
101
Motor- Blo WPL-C8793205
...
102
Screw WPL-M0201414
...
103
Screw WPL-M0230015
...
104
Bracket, Latch Switch WPL-C8712101
...
105
Spring, Latch WPL-B5719601
...
106
Switch Preform A WPL-A3163405
...
107
Nut K WPL-M0282005
...
108
Solenoid WPL-B5682101
...
109
Pin-Bell Crank WPL-A3182602
...
110
Bell Crank WPL-B5672502
...
111
Bell Crank WPL-B5672503
...
112
Washer WPL-M0270530
...
113
Oc Front WPL-D7215501
...
114
Screw WPL-M0230015
...
115
Socket WPL-B5691203
...
116
Bulb-Light WPL-WPA3167501
...
117
Panel-Bulb Access WPL-A3198101
...
118
Base Pan Wld WPL-C3639910
...
119
Screw WPL-M0221132
...
120
Foot WPL-M0011001
...
121
Washer WPL-M0270519
...
122
Switch WPL-A3116201
...
123
Screw WPL-M0216617
...
124
Terminal Block WPL-B5677202
...
125
Washer WPL-M0270530
...
126
Rivet-Pop WPL-59002054
...
127
Clip, Cord WPL-M0104102
