Amana RR1220 (BOM: P7633301M)

Model: RR1220 (BOM: P7633301M)

Save Part Not Listed?
product name

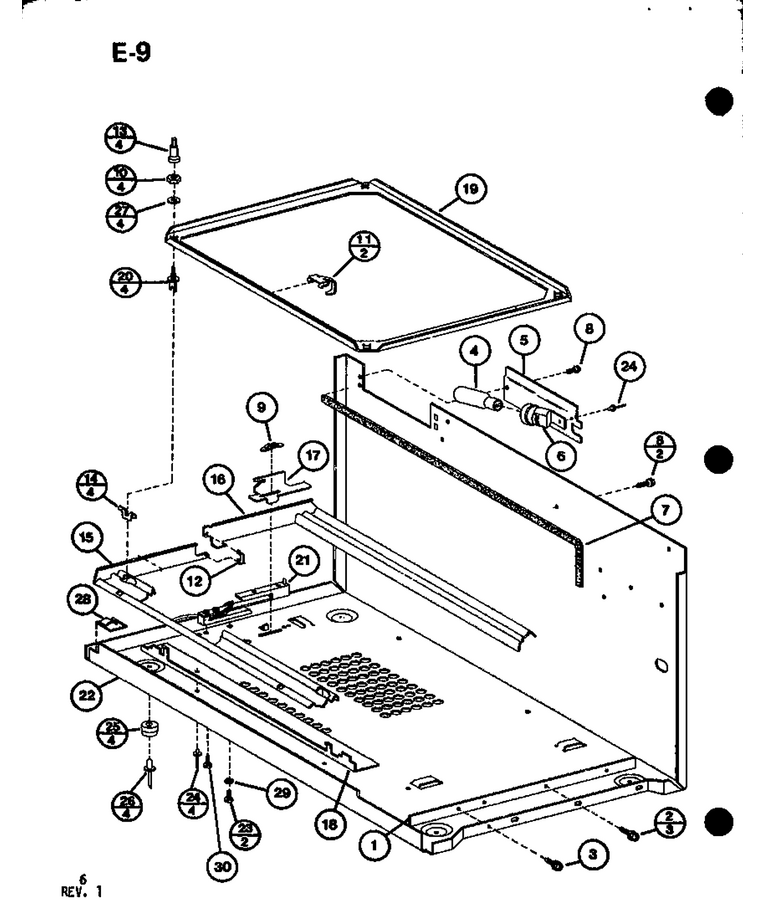

03 - Page 3

...
...
1
Temp Probe WPL-C8821504
...
2
Oven Tray WPL-R0156726
...
3
Grommet, Cord WPL-211881
...
4
Bumper WPL-A1511502
...
5
Cord, Power WPL-B8310501
...
6
Wrapper Oc WPL-D7396705
...
7
Access Panel WPL-D7396803
...
8
Screw Torx WPL-M0243324
...
9
Screw Torx WPL-M0259318
...
10
Screw-Sm/hex WPL-12990523
...
11
Tape Alum WPL-M0275166
...
12
Screw WPL-WP3388228
...
13
Grease Shield WPL-D7544002
...
14
Temp Probe Jack K WPL-B8355401
...
15
Flange, Ov-Cov Pntd WPL-D7533902
...
16
Wiring Harness WPL-D7657801
...
17
Rivet-Pop WPL-A4539615
...
18
Screw WPL-WP3388228
...
19
Screw WPL-WP489349
...
20
Screw WPL-M0217514
...
21
Screw, Tf WPL-M0231817
...
22
Nut K WPL-M0281405
...
23
Washer WPL-M0270536
...
24
Module Rr1220 WPL-R163075A
...
25
Escutcheon WPL-D7625801
...
26
Screw WPL-WP59002061
...
27
Seal K WPL-B5738501
...
28
Speed Nut K WPL-M0288301

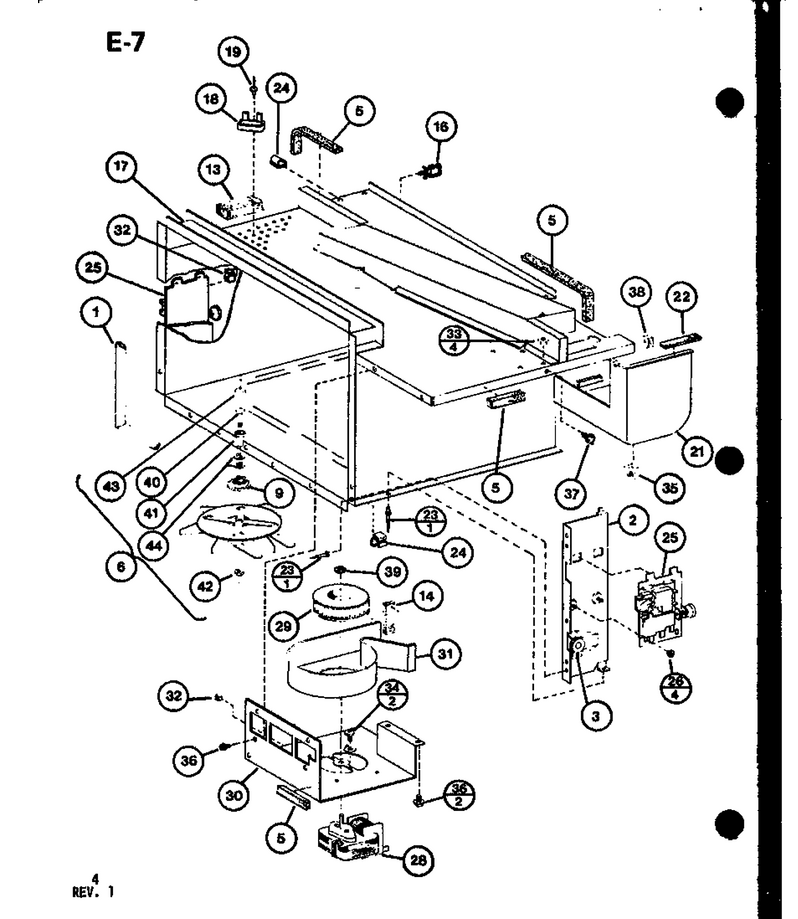

01 - Page 1

...
...
1
Gasket, Oven Cavity WPL-C8882101
...
2
Latch Bracket Rh Assy WPL-C8889602
...
3
Door Kit-Chute WPL-R0157146
...
5
Gasket (Per Foot) WPL-A3030303
...
6
Assy, Antenna WPL-C8806701
...
9
Bushing A WPL-C8838501
...
13
Gasket WPL-A3263902
...
14
Gasket-Cavity Top WPL-10839709
...
16
Clip WPL-B5667303
...
17
Oven Weld WPL-D7350518
...
18
Fuse- Ther WPL-59001951
...
19
Rivet WPL-WP210720
...
21
Magnetron Cover WPL-D7349003
...
22
Gasket (Per Foot) WPL-10839706
...
23
Rivet-Pop WPL-59002054
...
24
Clip WPL-M0118801
...
25
Switch, Interlock WPL-C8889905
...
26
Nut K WPL-M0282005
...
28
Motor- Blo WPL-C8793205
...
29
Blower Wheel WPL-C8793501
...
30
Mtg Plate WPL-D7533302
...
31
Scroll WPL-D7609401
...
32
Clip WPL-M0110508
...
33
Lock-Nut---K WPL-M0282801
...
34
Screw WPL-WP3400094
...
35
Clip WPL-M0106801
...
36
Screw WPL-WP3388228
...
37
Screw WPL-WP489349
...
38
Clip WPL-M0288213
...
39
Nut WPL-WP3195558
...
40
Stub-Antenna A WPL-B5783101
...
41
Bearing-Antenna A WPL-B5783001
...
42
Nut A WPL-M0281203
...
43
Bearing Cap WPL-B5792601
...
44
Washer WPL-M0274051

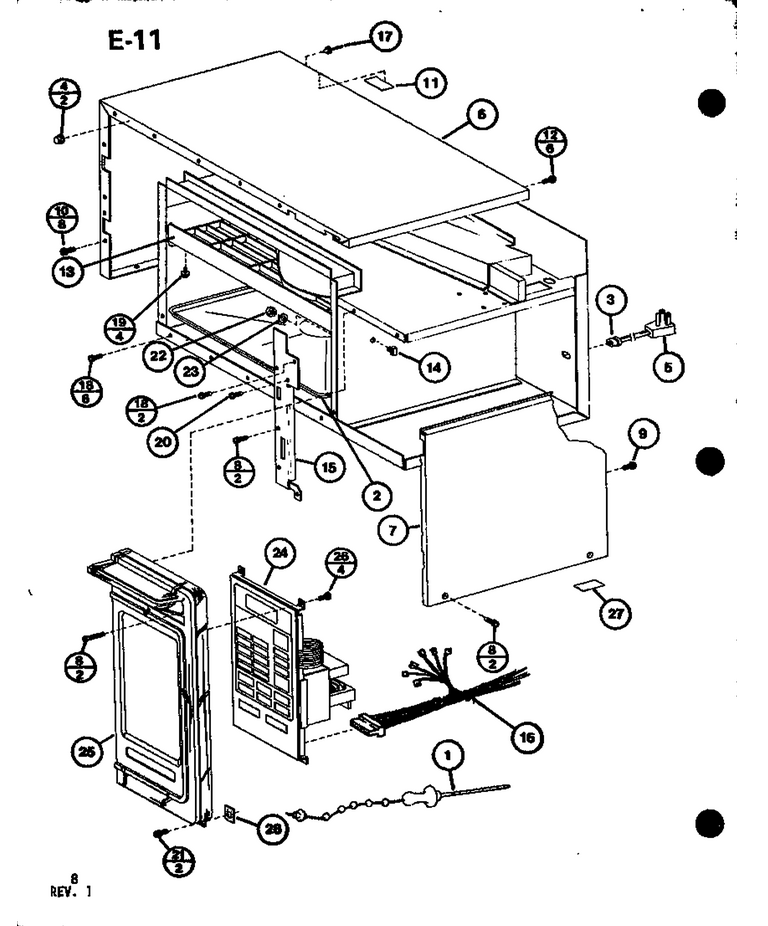

02 - Page 2

...
...
1
Brace, Base Pan WPL-B8356701
...
2
Screw WPL-WP489464
...
3
Screw WPL-WP90767
...
4
Bulb-Light WPL-WPA3167501
...
5
Access Panel WPL-B5782906
...
6
Socket WPL-B5784001
...
7
Gasket WPL-A3030302
...
8
Screw WPL-WP3388228
...
9
Spring Nut WPL-M0119902
...
10
Nut WPL-M0281407
...
11
Clip WPL-A1044802
...
12
Link Rivet Arm WPL-A1042401
...
13
Post Platform WPL-B8328601
...
14
Rivet WPL-B8328901
...
15
Pivot Arm Front Assy WPL-C8925801
...
16
Pivot Arm Front Assy WPL-C8925901
...
17
Lock Rivet Arm WPL-B8360501
...
18
Chassis WPL-D7674801
...
19
Platform WPL-C8922901
...
20
Pin Tray Support WPL-C8919601
...
21
Transducer Assy WPL-C8921601
...
22
Base Pan WPL-D7506220
...
24
Rivet-Pop WPL-59002054
...
25
Foot O.c. Wrapper WPL-B5732506
...
26
Pop Rivet WPL-A4539624
...
27
Washer WPL-M0270535
...
28
Clip WPL-WPM0104106
...
29
Washer WPL-M0272503
...
30
Screw WPL-M0234114

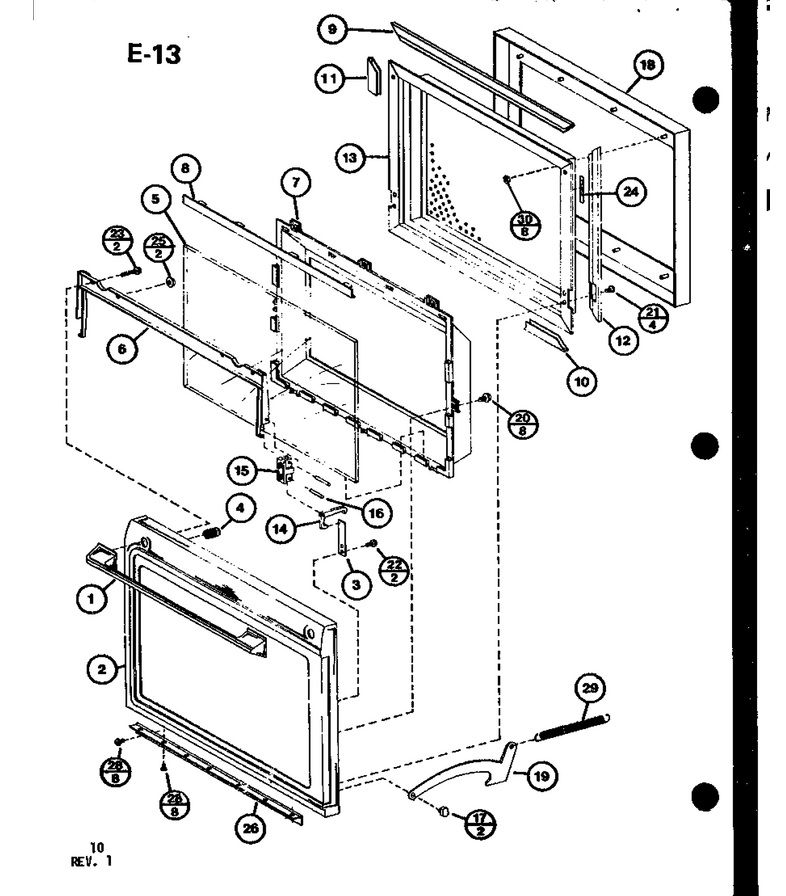

04 - Page 4

...
...
1
Handle, Door WPL-D7517701
...
2
Outer Door WPL-D7533701
...
3
Spring Latch WPL-A1008501
...
4
Spring, Handle WPL-A1030101
...
5
Outer Window WPL-D7534003
...
6
Handle Lever Weld WPL-B8340901
...
7
Retainer WPL-D7533601
...
8
Cap Lens Retainer WPL-D7533502
...
9
Gasket, Door WPL-D7542001
...
10
Gasket, Door WPL-D7542002
...
11
Gasket, Door WPL-D7542003
...
12
Gasket, Door WPL-D7542004
...
13
Inner Door Assy WPL-C8755403
...
14
Latch Hook WPL-B8333802
...
15
Pivot Block WPL-C8885101
...
16
Pin A WPL-M1200106
...
17
Pin Counterbalance WPL-A1028501
...
18
Inner Door Mold Assy WPL-D7564601
...
19
Counterbalance Arm WPL-C8890602
...
20
Screw A K WPL-M0253704
...
21
Screw WPL-M0259218
...
22
Screw WPL-WP59002061
...
23
Screw WPL-WPW10068250
...
24
Tape Per Roll WPL-M0275163
...
25
Bumper Rubber WPL-B8344702
...
26
Hinge WPL-C8886601
...
28
Screw WPL-M0259203
...
29
Spring Dr Latch K WPL-C8893501
...
30
Nut WPL-717488

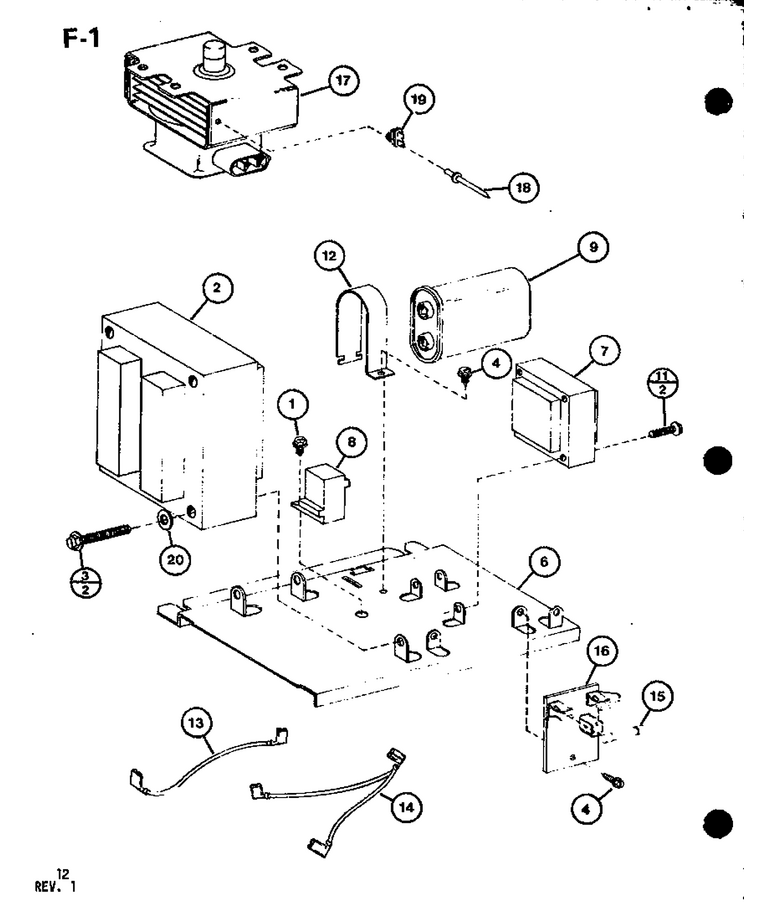

05 - Page 5

...
...
1
Screw WPL-WP3388228
...
2
Transformer WPL-D7498503
...
3
Screw WPL-M0254452
...
4
Screw WPL-WP489349
...
6
Mtg Plate Trans WPL-D7351805
...
7
Transformer-Filament WPL-C8807801
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0253509
...
12
Strap-Capacitor WPL-A3257003
...
13
Jumper Wire WPL-D7292618
...
14
Jumper Wire WPL-D7292686
...
15
Fuse 20 A WPL-WPM0805101
...
16
Board-Term WPL-C8988701
...
17
Magnetron WPL-10794402
...
18
Rivet WPL-WP210720
...
19
Fuse- Ther WPL-59001951
...
20
Lock Washer WPL-M0272805
