Amana RR-9TA (BOM: P7355901M)

Model: RR-9TA (BOM: P7355901M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

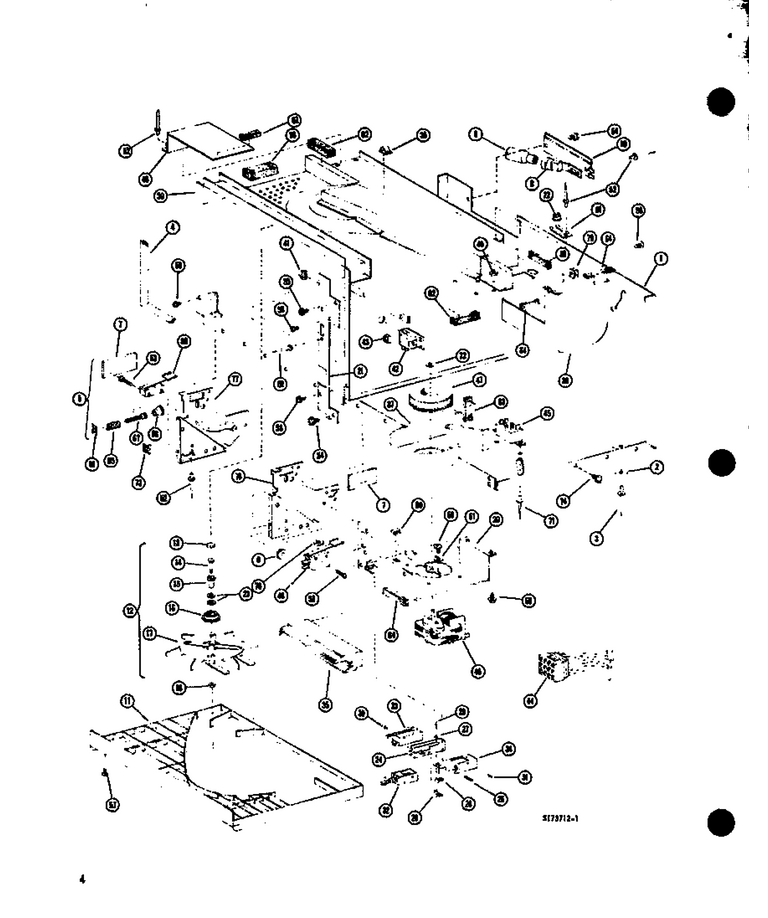

01 - Page 1

...
...
1
Base Pan WPL-D7351701
...
2
Foot WPL-B5732505
...
3
Pop Rivet WPL-A4539619
...
4
Gasket WPL-C3637201
...
5
Bracket L.h. Assembly With Rol WPL-C8783106
...
6
Roller Assy Kit WPL-R0157145
...
7
X$x Pad WPL-M0050902
...
8
Socket WPL-B5784001
...
9
Bulb-Light WPL-WPA3167501
...
10
Panel WPL-B5782901
...
11
Grease Shield WPL-D7544002
...
12
Assy, Antenna WPL-C8806701
...
13
Bearing Cap WPL-B5792601
...
14
Stub-Antenna A WPL-B5783101
...
15
Bearing-Antenna A WPL-B5783001
...
16
Bushing A WPL-C8804801
...
17
Assy, Antenna WPL-C8806701
...
18
Nut A WPL-M0281203
...
19
Gasket WPL-A3263901
...
20
Motor Plate WPL-D7364801
...
21
Flange WPL-D7365501
...
22
Thermal Cut-Out WPL-B5665803
...
23
Washer WPL-M0274044
...
24
Latch Spring WPL-B5769001
...
25
Screw WPL-M0227520
...
26
Bell Crank WPL-B5672502
...
27
Washer WPL-M0270530
...
28
Bell Crank WPL-B5672503
...
29
Pin-Bell Crank WPL-A3182602
...
30
Nut K WPL-M0282005
...
31
Screw WPL-M0201414
...
32
Solenoid, Door Locking WPL-B5682103
...
33
Switch Preform A WPL-A3163412
...
34
Bracket Latch K WPL-C8782403
...
35
Escutcheon-Duct WPL-D7370701
...
36
Clip WPL-WPM0104106
...
37
Blower Scroll WPL-C8797201
...
38
Cover-Tube WPL-D7349001
...
39
Oven Weld. WPL-D7350515
...
40
Reflector WPL-B5783801
...
41
Nut-Decorative WPL-A3275701
...
43
Jack Assembly WPL-A3275601
...
44
Wiring Harness WPL-D7371301
...
46
Motor- Blo WPL-C8793205
...
47
Blower Wheel WPL-C8793501
...
48
Interlock Switch WPL-C8736705
...
49
Lock-Nut---K WPL-M0282801
...
50
Screw WPL-M0202842
...
51
Washer WPL-M0272605
...
52
Rivet-Pop WPL-59002054
...
53
Screw A-K WPL-M0227525
...
54
Screw WPL-WP3388228
...
55
Screw WPL-WP489349
...
56
Gasket WPL-A3030302
...
57
Screw WPL-M0213815
...
58
Screw-Sm/hex WPL-12990523
...
59
Screw WPL-M0217514
...
60
Clip WPL-M0113501
...
61
Clip WPL-B5725102
...
62
Gasket 1/2 By 3/8 WPL-10839716
...
63
Gasket-Cavity Top WPL-10839709
...
64
Gasket (per Foot) WPL-10839706
...
65
Spring A WPL-A3277701
...
66
Guide Screw A-K WPL-A3277801
...
67
Screw Adjusting A-K WPL-A3277601
...
68
Switch-L Intl A WPL-A3162510
...
69
Speed Nut A WPL-M0286114
...
70
Washer WPL-M0274049
...
72
Nut WPL-WP3195558
...
73
Clip WPL-B5667302
...
74
Screw WPL-WP489464
...
76
Clip WPL-M0288213
...
77
Cb Arm L A WPL-B5693104
...
78
Cb Arm R A WPL-B5693103

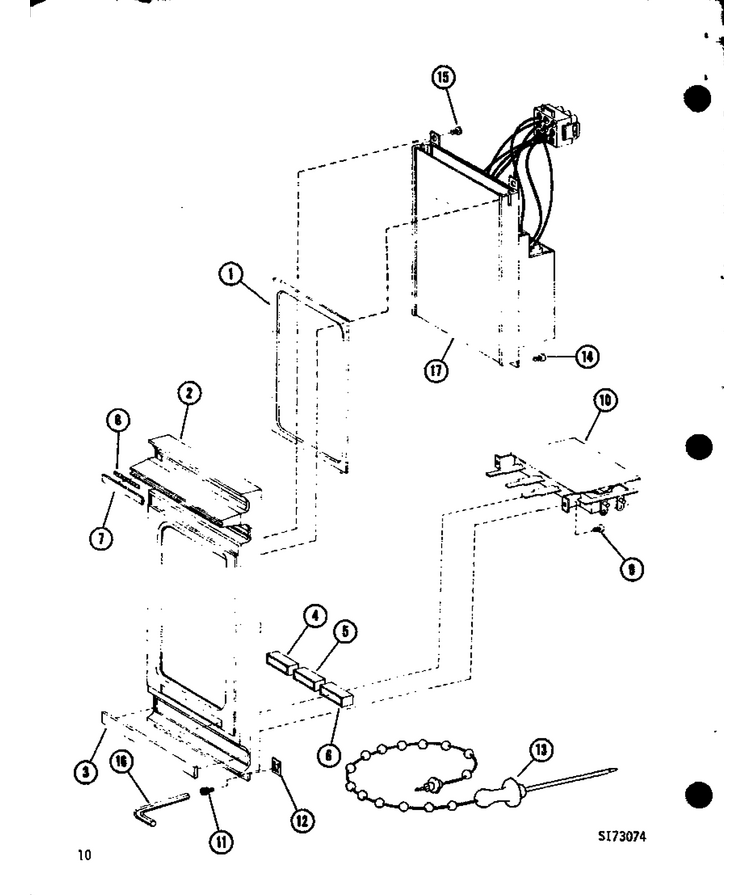

04 - Page 4

...
...
1
Gasket WPL-C8776701
...
2
Escutcheon K WPL-D7350302
...
3
Nameplate K WPL-B5741301
...
4
Button (start) K WPL-C8743104
...
5
Button (stop) K WPL-C8743108
...
6
Button (light) WPL-C8743109
...
7
Insert- K WPL-B5703901
...
8
Adhesive WPL-M0910002
...
9
Screw WPL-M0234003
...
10
Switch Ssl K WPL-C8742802
...
11
Screw WPL-WP59002061
...
12
Speed Nut K WPL-M0288301
...
13
Temp Probe WPL-C8821504
...
14
Screw WPL-WP59002061
...
15
Screw WPL-214597
...
16
Wrench-Hex WPL-A4696103
...
17
Sub 54678, Touchmatic Timer WPL-R163079A

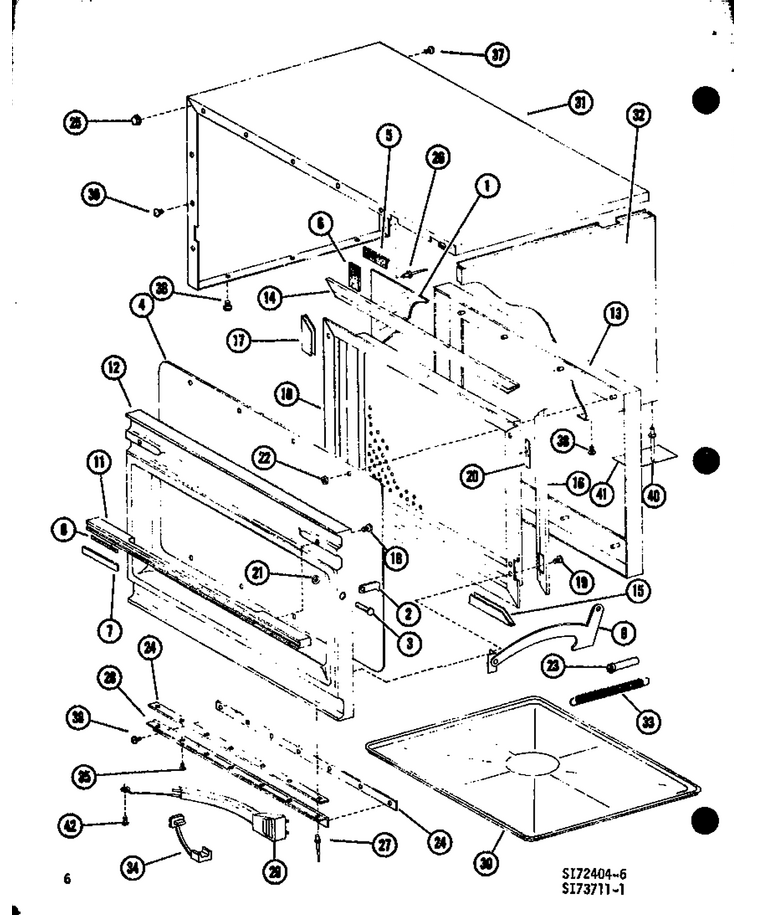

02 - Page 2

...
...
1
Inner Window A-K WPL-A3167901
...
2
Latch, Door WPL-A3183001
...
3
Rivet WPL-A3183901
...
4
Window Outer A WPL-A3254901
...
5
Gasket Window A-K WPL-A3264601
...
6
Gasket Window A-K WPL-A3264602
...
7
Insert-Handle WPL-B5604802
...
8
Adhesive WPL-M0910002
...
9
Cb Arm L A WPL-B5693104
...
10
Inner Door Assy A WPL-C8755401
...
11
Handle WPL-D3964801
...
12
Door Outer WPL-D7238603
...
13
Inner Door Mold Assy WPL-D7240301
...
14
Gasket Top A WPL-D7320001
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Right A WPL-D7320003
...
17
Gasket Left A WPL-D7320004
...
18
Screw, No.6x18x1/4 (3) WPL-487010
...
19
Screw WPL-M0258518
...
20
Tape Per Roll WPL-M0275163
...
21
Nut WPL-M0287401
...
22
Nut WPL-717488
...
23
Screw Remover WPL-R0193032
...
24
Shim WPL-A3127101
...
25
Bumper WPL-A1511502
...
26
Rivet-Pop WPL-A4539615
...
27
Pop Rivet WPL-A4539602
...
28
Hinge WPL-B5603203
...
29
Cord, Power WPL-1731300208
...
30
Oven Tray WPL-R0156726
...
31
Outer Cabinet WPL-D7378101
...
32
Access Pnl WPL-D7378001
...
33
Spring WPL-M0775001
...
34
Strain Relief WPL-M0370001
...
35
Screw WPL-W11084238
...
36
Screw WPL-M0217701
...
37
Screw WPL-M0213815
...
38
Screw WPL-WP59002061
...
39
Screw-Sm/hex WPL-12990523
...
40
Rivet-Pop WPL-59002054
...
41
Seal K WPL-B5738501
...
42
Screw WPL-M0218116

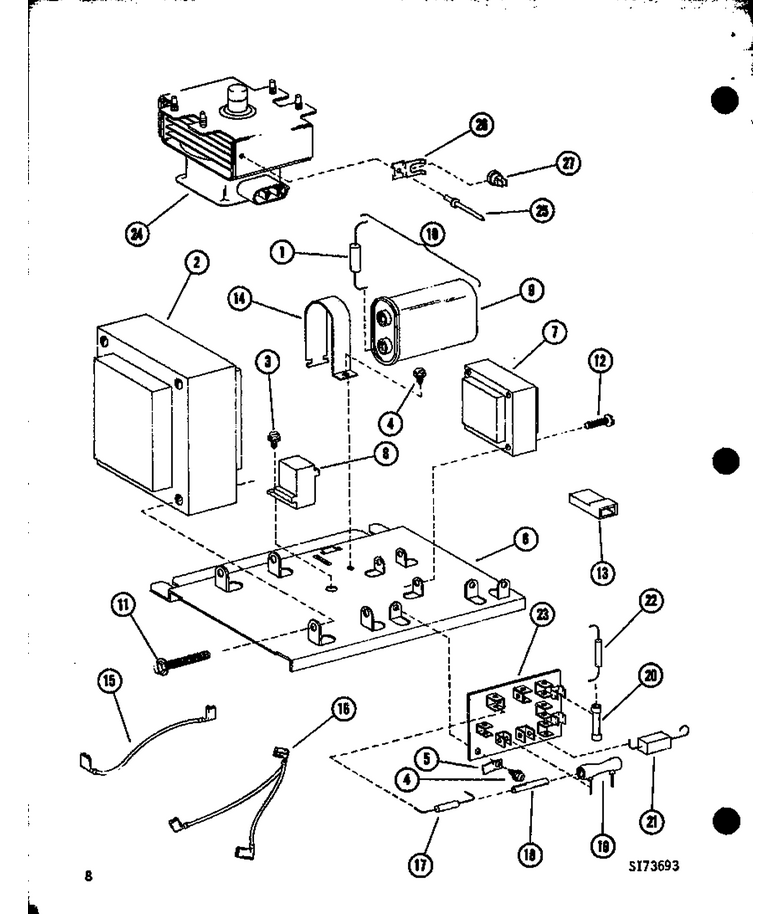

03 - Page 3

...
...
1
Resistor A WPL-M0305202
...
2
Transformer WPL-D7369201
...
3
Screw-Sm/hex WPL-12990523
...
4
Screw WPL-M0218116
...
5
Terminal WPL-M0320901
...
6
Transformer Mounting Plate WPL-D7351801
...
7
Transformer-Filament WPL-C8807801
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor Assy WPL-R0160021
...
10
Capacitor Assy WPL-R0160021
...
11
Screw WPL-M0254452
...
12
Screw WPL-M0254409
...
13
Insulator, Term. K WPL-M0325301
...
14
Strap-Capacitor WPL-A3257001
...
15
Jumper Wire WPL-D7365101
...
16
Wire, Jumper, Rectifiers Fuse WPL-D7292617
...
17
Fuse WPL-M0308110
...
18
Sleeve WPL-M0321701
...
19
Resistor A WPL-M0305009
...
20
Resistor Fuse Kit WPL-R0157332
...
21
Resistor WPL-M0305204
...
22
Fuse WPL-M0308101
...
23
Terminal Bd WPL-C8806401
...
24
Magnetron WPL-10794402
...
25
Rivet-Pop WPL-59002054
...
26
Clip WPL-B5725102
...
27
Thermal Cut Out WPL-B5665815
