Amana RR-9T (BOM: P7354101M)

Model: RR-9T (BOM: P7354101M)

Save Part Not Listed?
product name

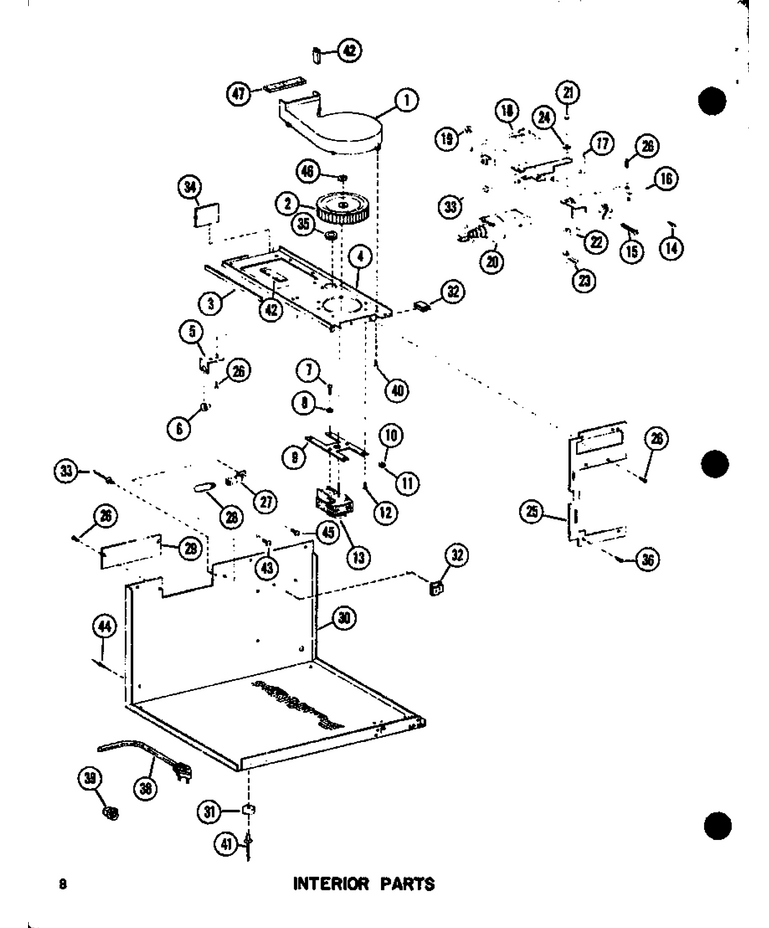

02 - Interior Parts

...
...
1
Scroll-Blower WPL-C8785801
...
2
Blower Wheel WPL-C8793501
...
3
Gasket WPL-A3030302
...
4
Bulk Head WPL-D7323001
...
5
Bracket-Cut Out WPL-B5680301
...
6
Thermal Cut-Out WPL-B5665803
...
7
Screw WPL-M0202642
...
8
Washer WPL-M0272605
...
9
Motor Mount-Bl WPL-B5744001
...
10
Clip, Waterline WPL-12454802
...
11
Eyelet K WPL-A0381401
...
12
Screw-Sm/hex WPL-12990523
...
13
Motor- Blo WPL-C8793205
...
14
Screw WPL-M0201414
...
15
Screw WPL-M0227520
...
16
Bracket Latch K WPL-C8782401
...
17
Latch Spring WPL-B5769001
...
18
Switch Preform A WPL-A3163412
...
19
Nut K WPL-M0282005
...
20
Solenoid, Door Locking WPL-B5682103
...
21
Pin-Bell Crank WPL-A3182602
...
22
Bell Crank WPL-B5672502
...
23
Bell Crank WPL-B5672503
...
24
Washer WPL-M0270530
...
25
Front-Oc WPL-D7307001
...
26
Screw WPL-WP489349
...
27
Socket-Oven Light WPL-B5742001
...
28
Bulb-Light WPL-WPA3167501
...
29
Panel-Bulb Access WPL-A3198103
...
30
Base Pan Wld WPL-D7256707
...
31
Foot WPL-B5732505
...
32
Clip, Cord WPL-M0104102
...
33
Rivet-Pop WPL-59002054
...
34
Gasket WPL-A3272801
...
35
Grommet WPL-A3258801
...
36
Screw WPL-WP3388228
...
38
Cord, Power WPL-1731300208
...
39
Strain Relief WPL-M0370001
...
40
Screw WPL-M0230015
...
41
Pop Rivet WPL-A4539619
...
42
Gasket (per Foot) WPL-A3030303
...
43
Screw,sm WPL-M0233329
...
44
Rivet-Pop WPL-A4539615
...
45
Screw WPL-WP3388228
...
46
Nut WPL-WP3195558
...
47
Gasket (per Foot) WPL-10839706

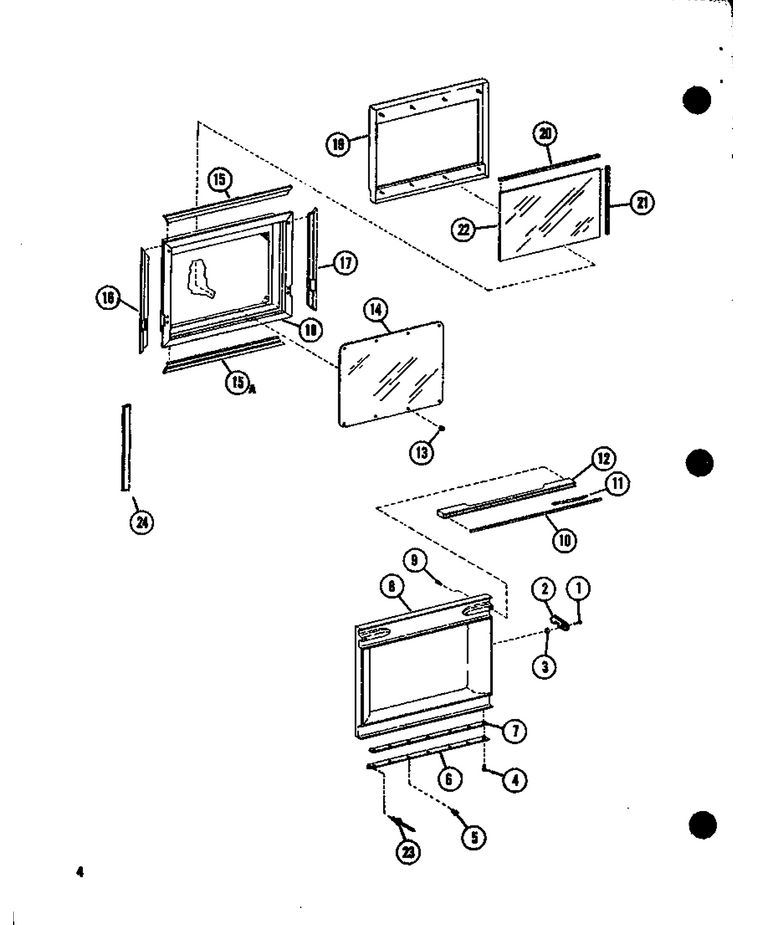

03 - Page 1

...
...
1
Rivet WPL-A3183901
...
2
Latch, Door WPL-A3183001
...
3
Nut WPL-M0287401
...
4
Screw WPL-W11084238
...
5
Screw WPL-M0214503
...
6
Hinge WPL-B5603203
...
7
Shim WPL-A3127101
...
8
Door Outer WPL-D7238603
...
9
Screw, No.6x18x1/4 (3) WPL-487010
...
10
Insert-Handle WPL-B5604802
...
11
Adhesive WPL-M0910002
...
12
Handle WPL-D3964801
...
13
Nut WPL-717488
...
14
Window Outer A WPL-A3254901
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Left A WPL-D7320004
...
17
Gasket Right A WPL-D7320003
...
18
Inner Door Assy A WPL-C8755401
...
19
Inner Door Mold Assy WPL-D7240301
...
20
Gasket Window A-K WPL-A3264601
...
21
Gasket Window A-K WPL-A3264602
...
22
Inner Window A-K WPL-A3167901
...
23
Pop Rivet WPL-A4539602
...
24
Tape Per Roll WPL-M0275163

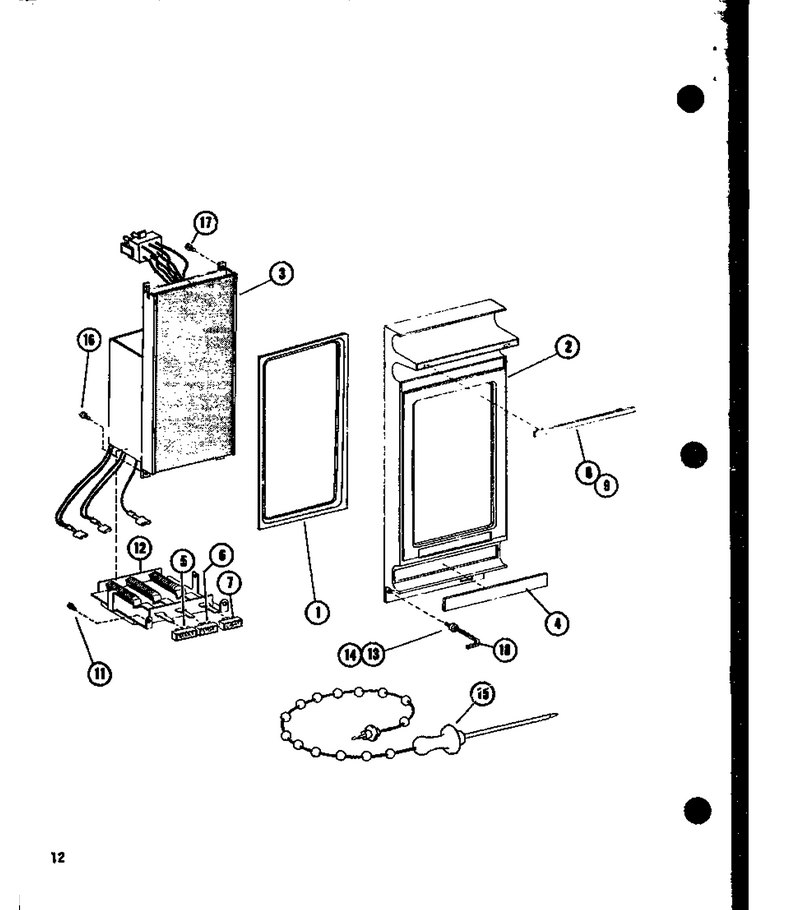

05 - Page 5

...
...
1
Gasket WPL-C8776701
...
2
Escutcheon K WPL-D7350302
...
3
Sub 54678, Touchmatic Timer WPL-R163079A
...
4
Nameplate K WPL-B5741301
...
5
Button (start) K WPL-C8743101
...
6
Button (stop) K WPL-C8743108
...
7
Button (light) WPL-C8743109
...
8
Insert- K WPL-B5703901
...
9
Adhesive WPL-M0910002
...
11
Screw WPL-M0234003
...
12
Switch Ssl K WPL-C8742802
...
13
Screw WPL-WP59002061
...
14
Speed Nut K WPL-M0288301
...
15
Temp Probe WPL-C8821504
...
16
Screw WPL-WP59002061
...
17
Screw WPL-M0253218
...
18
Wrench-Hex WPL-A4696103

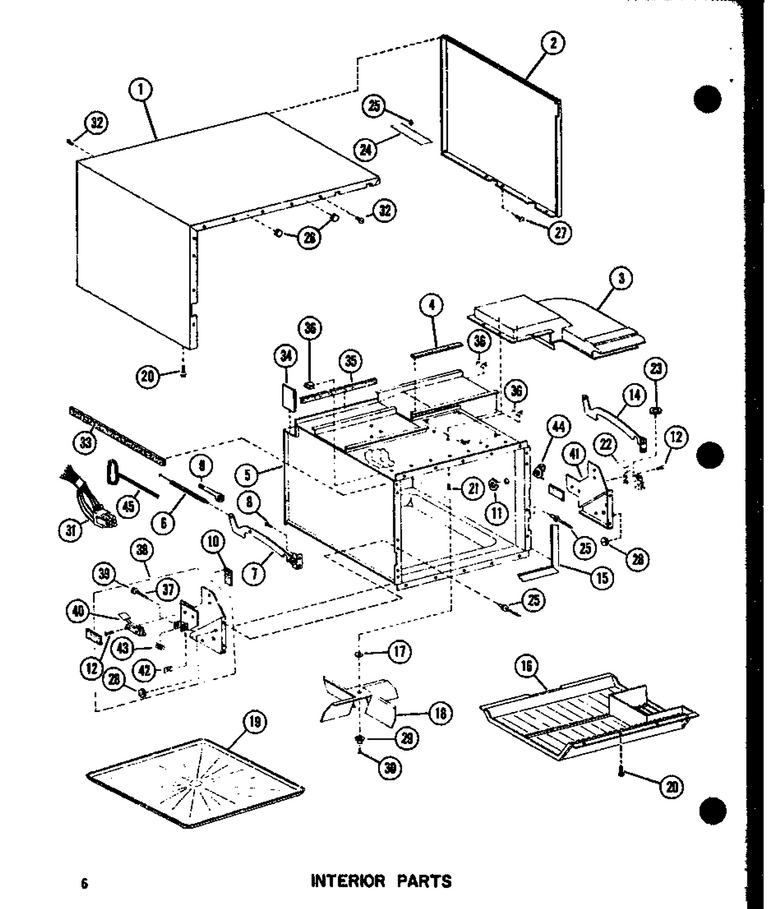

01 - Interior Parts

...
...
1
Wrapper-Oc WPL-D7257502
...
2
Access Panel WPL-D7335801
...
3
Air Duct WPL-D7350203
...
4
Gasket WPL-A3030302
...
5
Oven Wld WPL-D7168315
...
6
Spring WPL-M0775001
...
7
Cb Arm L A WPL-B5693104
...
8
Screw WPL-M0258518
...
9
Screw Remover WPL-R0193032
...
10
X$x Pad WPL-M0050902
...
11
Nut-Decorative WPL-A3275701
...
12
Screw A-K WPL-M0227525
...
14
Cb Arm R A WPL-B5693103
...
15
Gasket WPL-C3637201
...
16
Grease Shield WPL-D7352601
...
17
Bushing-Stirrer Mt WPL-B5704203
...
18
Xfan Blade-Stirrer WPL-C8720801
...
19
Oven Tray WPL-R0156726
...
20
Screw WPL-M0230015
...
21
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
22
Interlock Switch WPL-C8736705
...
23
Washer WPL-M0274049
...
24
Seal K WPL-B5738501
...
25
Rivet-Pop WPL-59002054
...
26
Bumper WPL-A1511502
...
27
Screw WPL-WP59002061
...
28
Roller Assy Kit WPL-R0157145
...
29
Bearing WPL-A3214801
...
30
Shoulder Screw WPL-A3214903
...
31
Wiring Harness WPL-D7348501
...
32
Screw WPL-WP489349
...
33
Gasket WPL-A3263901
...
34
Gasket WPL-B5695301
...
35
Gasket, Air Sealing WPL-B5695302
...
36
Clip WPL-M0118801
...
37
Screw Adjusting A-K WPL-A3277601
...
38
Bracket L.h. Assembly With Rol WPL-C8783106
...
39
Guide Screw A-K WPL-A3277801
...
40
Switch-L Intl A WPL-A3162510
...
41
Bracket R.h. Assembly With Rol WPL-C8783102
...
42
Speed Nut WPL-M0286105
...
43
Spring A WPL-A3277701
...
44
Jack Assembly WPL-A3275601
...
45
Adj Tool-Interlock WPL-R0193039

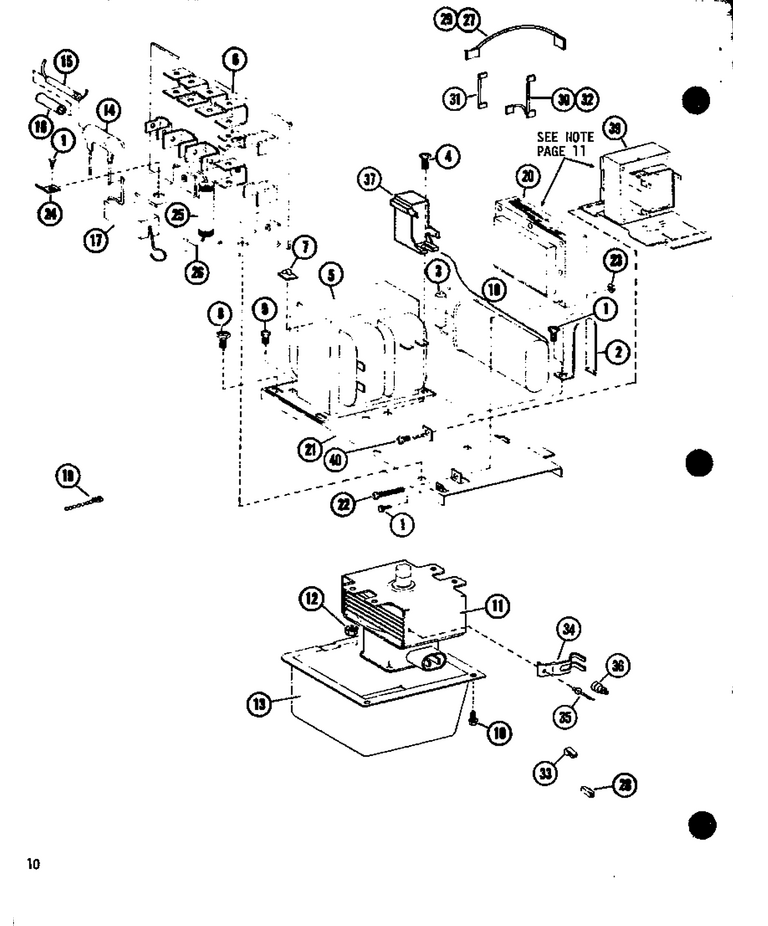

04 - Page 4

...
...
1
Screw WPL-M0218116
...
2
Strap-Capacitor WPL-A3257001
...
3
Resistor A WPL-M0305202
...
4
Screw-Sm/hex WPL-12990523
...
5
Transformer, Plate WPL-D7255701
...
6
Terminal Board WPL-C8791301
...
7
Clip, Cord WPL-M0104102
...
8
Sems Fastener WPL-YM0258229
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489349
...
11
Magnetron WPL-10794402
...
12
Nut WPL-WP488130
...
13
Cover-Magnetron WPL-C8785701
...
14
Resistor A WPL-M0305009
...
15
Fuse WPL-M0308110
...
16
Sleeve WPL-M0321701
...
17
Resistor WPL-M0305204
...
18
Capacitor Assy WPL-R0160021
...
19
Tie-Wire WPL-WPW10339879
...
20
Transformer Filament WPL-C8788008
...
21
Mtg Plate-Trans WPL-D7255502
...
22
Screw WPL-M0204346
...
23
Nut K WPL-M0282005
...
24
Terminal WPL-M0320901
...
25
Resistor Fuse Kit WPL-R0157332
...
26
Fuse WPL-M0308101
...
27
Jumper Wire WPL-C3655807
...
28
Insulator, Term. K WPL-M0325301
...
29
Jumper Wire WPL-D7292618
...
30
Wire, Jumper, Rectifiers Fuse WPL-D7292617
...
31
Jumper Wire WPL-D7292619
...
32
Jumper Wire WPL-D7292620
...
33
Insulator, Pod K WPL-M0325501
...
34
Clip WPL-B5725102
...
35
Rivet-Pop WPL-59002054
...
36
Thermal Cut Out WPL-B5665810
...
37
Kit, Diode WPL-M3D71
...
39
Transformer Filament WPL-C8810101
...
40
Screw WPL-WP90767
