Amana RR-810 (BOM: P7559202M)

Model: RR-810 (BOM: P7559202M)

Save Part Not Listed?
product name

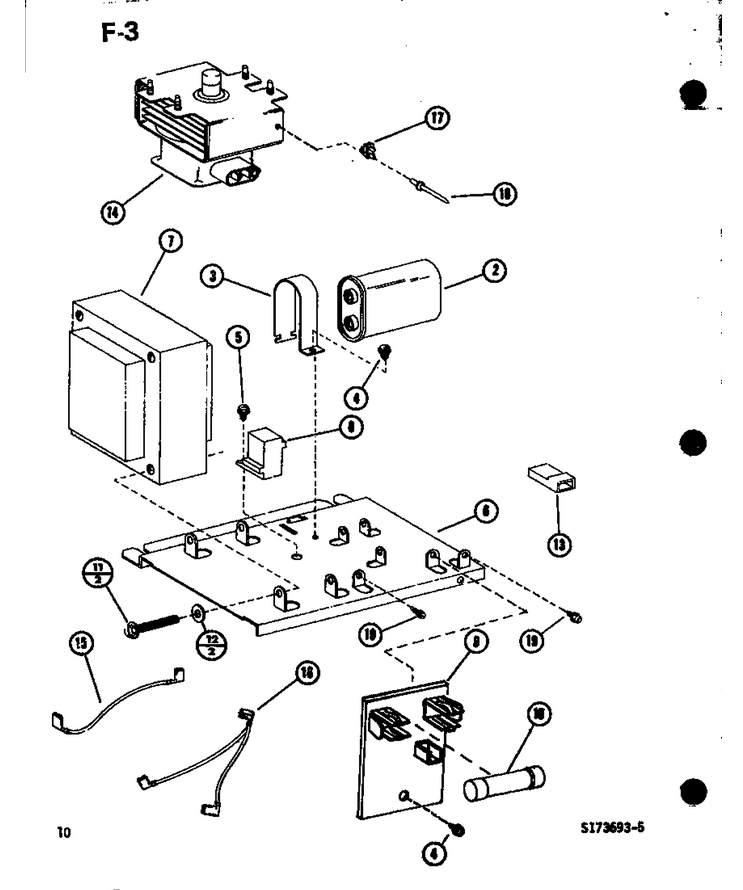

04 - Page 4

...
...
2
Capacitor-.85 WPL-59001651
...
3
Strap-Capacitor WPL-A3257003
...
4
Screw WPL-WP489349
...
5
Screw WPL-WP3388228
...
6
Transformer Mounting Plate WPL-D7351804
...
7
Transformer Kit WPL-D7391403
...
8
Kit, Diode WPL-M3D71
...
9
Board-Term WPL-C8988701
...
10
Fuse WPL-WPM0805102
...
11
Screw WPL-M0254452
...
12
Lock Washer WPL-M0272805
...
13
Insulator, Term. K WPL-M0325301
...
14
Magnetron WPL-10794402
...
15
Hv Wire WPL-D7365120
...
16
Jumper Wire WPL-D7292673
...
17
Fuse- Ther WPL-59001951
...
18
Pop Rivet WPL-A4539602
...
19
Screw WPL-M0218116

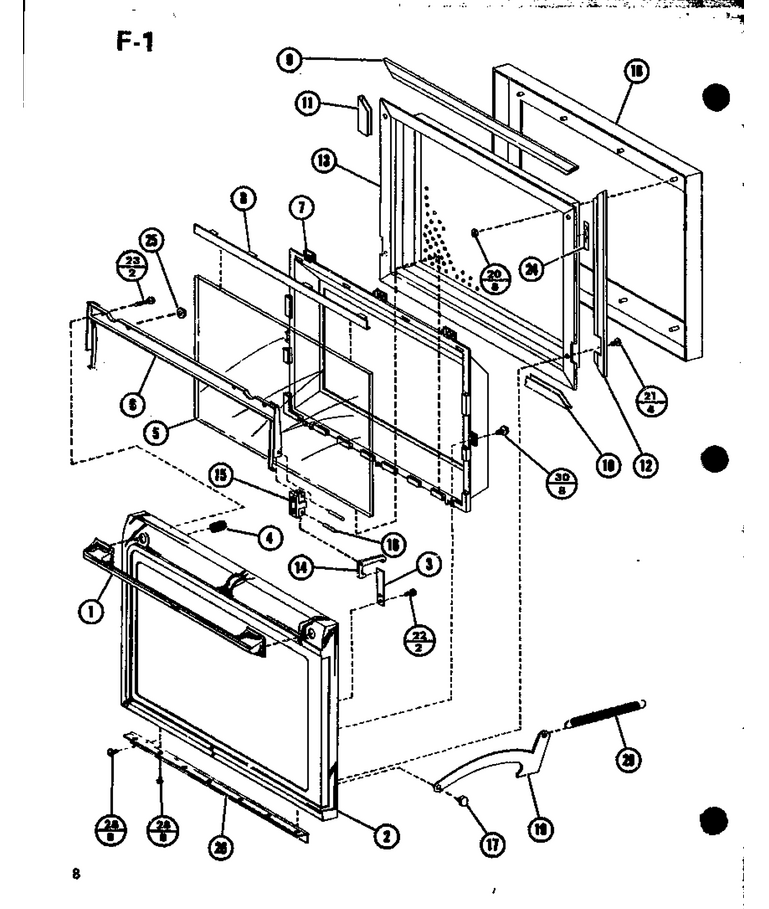

01 - Page 1

...
...
1
Gasket, Oven Cavity WPL-C8882101
...
2
Latch Bracket Rh Assy WPL-C8889602
...
3
Roller Assy Kit WPL-R0157145
...
4
Clip WPL-WPM0104106
...
5
Grease Shield WPL-D7544002
...
6
Assy, Antenna WPL-C8806701
...
7
Bearing Cap WPL-B5792601
...
8
Stub-Antenna A WPL-B5783101
...
9
Bearing-Antenna A WPL-B5783001
...
10
Bushing A WPL-C8838501
...
11
Assy, Antenna WPL-C8806701
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263902
...
14
Flange, Ov-Cov Pntd WPL-D7533902
...
15
Washer WPL-M0274044
...
16
Clip WPL-B5667303
...
17
Oven Weld WPL-D7350514
...
18
Screw WPL-WP3388228
...
19
Screw A K WPL-M0211516
...
21
Screw WPL-M0217514
...
22
Gasket (per Foot) WPL-A3030303
...
23
Rivet-Pop WPL-59002054
...
24
Clip WPL-M0118801
...
25
Switch, Interlock WPL-C8889904
...
26
Nut K WPL-M0282005
...
27
Gasket WPL-53001610

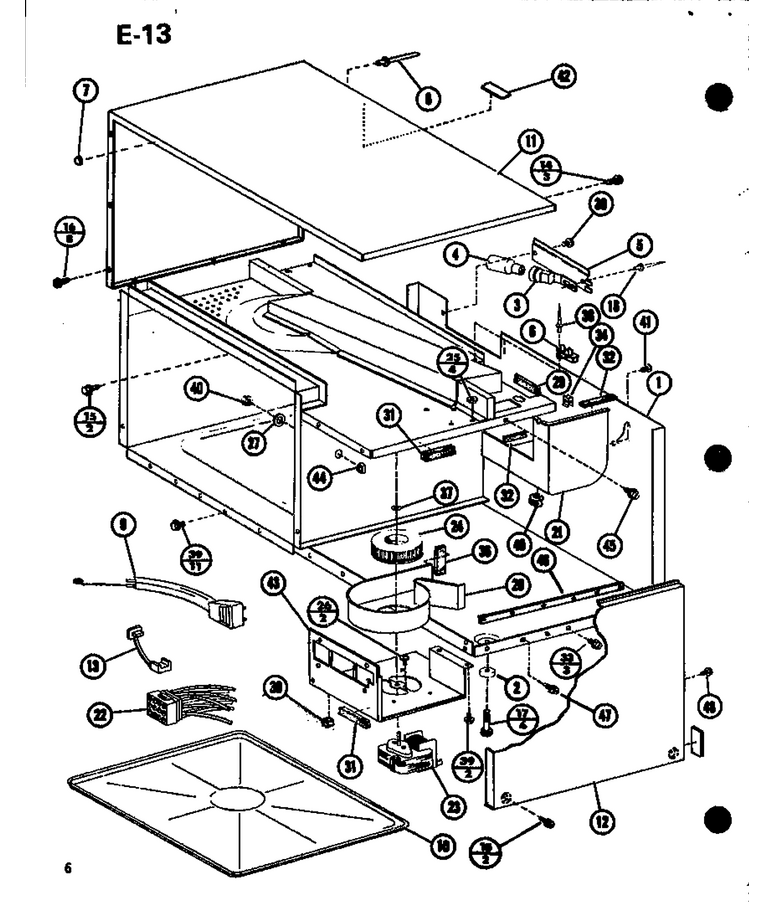

03 - Page 3

...
...
1
Handle, Door WPL-D7517701
...
2
Outer Door WPL-D7533701
...
3
Spring Latch WPL-A1008501
...
4
Spring, Handle WPL-A1030101
...
5
Outer Window WPL-D7534003
...
6
Handle Lever Weld WPL-B8340901
...
7
Retainer WPL-D7533601
...
8
Cap Lens Retainer WPL-D7533502
...
9
Gasket, Door WPL-D7542001
...
10
Gasket, Door WPL-D7542002
...
11
Gasket, Door WPL-D7542003
...
12
Gasket, Door WPL-D7542004
...
13
Inner Door Assy WPL-C8755403
...
14
Latch Hook WPL-B8333802
...
15
Pivot Block WPL-C8885101
...
16
Pin A WPL-M1200106
...
17
Pin Counterbalance WPL-A1028501
...
18
Inner Door Mold Assy WPL-D7564601
...
19
Counterbalance Arm WPL-C8890601
...
20
Nut WPL-717488
...
21
Screw WPL-M0259218
...
22
Screw WPL-WP59002061
...
23
Screw WPL-WPW10068250
...
24
Tape Per Roll WPL-M0275163
...
25
Bumper Rubber WPL-B8344702
...
26
Hinge WPL-C8886601
...
28
Screw WPL-M0259203
...
29
Spring Dr Latch K WPL-C8893501
...
30
Screw A K WPL-M0253704

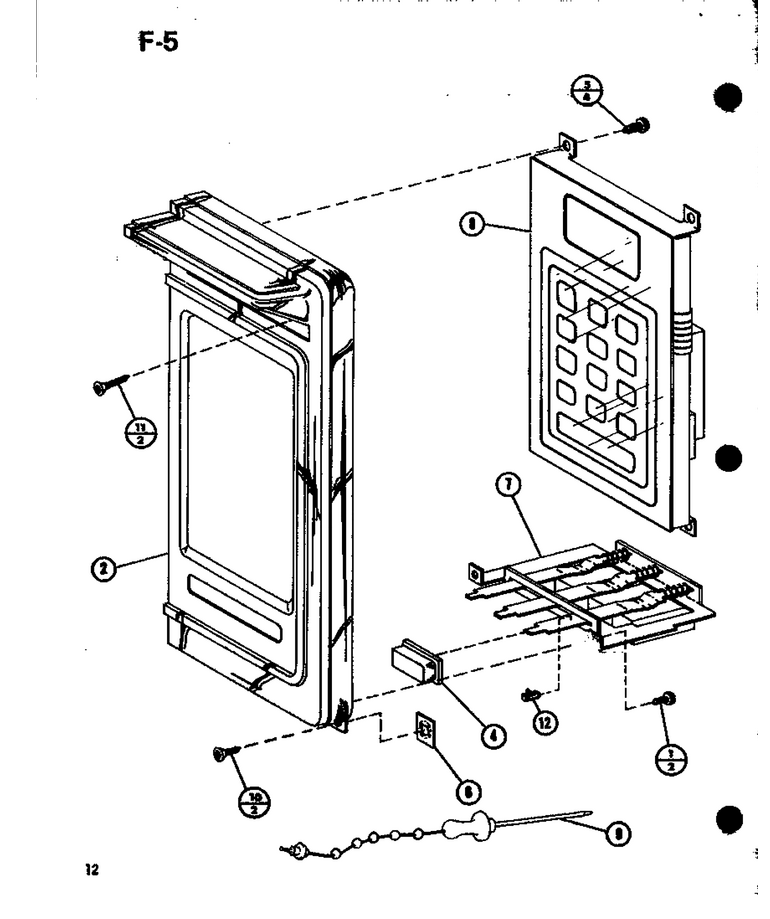

05 - Page 5

...
...
NI
Torx Bit Tx 15h WPL-R0193046
...
1
Screw WPL-M0259203
...
2
Escut. Control WPL-D7533801
...
4
Start Button WPL-C8869501
...
5
Screw WPL-WP59002061
...
6
Speed Nut K WPL-M0288301
...
7
Switch Ssl K WPL-D7546302
...
8
Module, Timer WPL-R163168A
...
9
Temp Probe WPL-C8821504
...
10
Screw, Tf WPL-M0231817
...
11
Spring WPL-A1039301
...
12
Spring WPL-A1039301

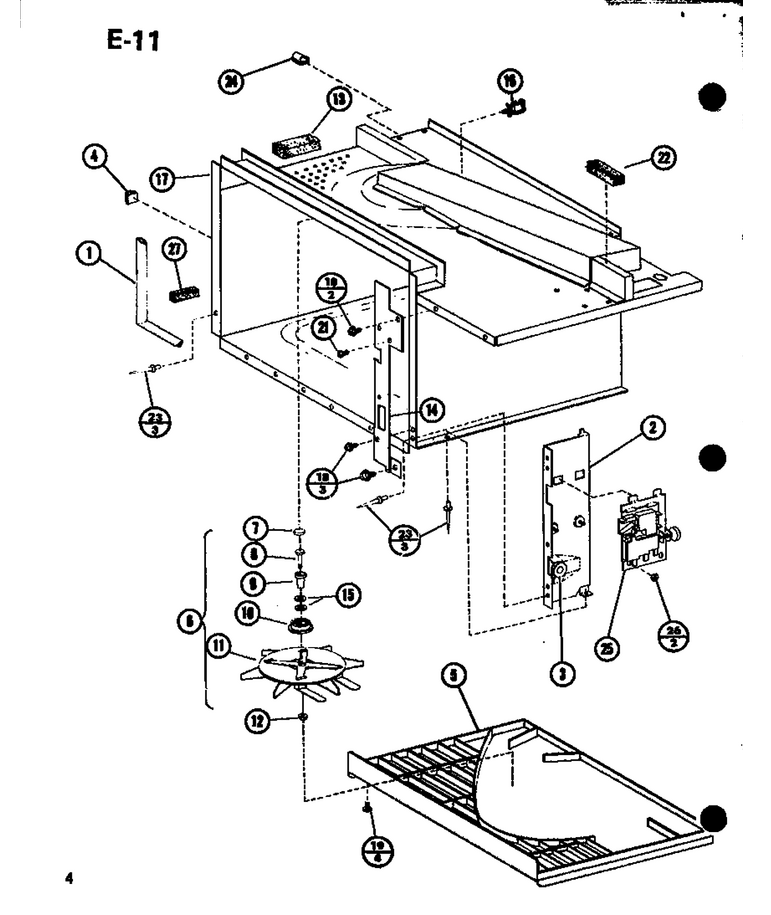

02 - Page 2

...
...
1
Base Pan WPL-D7506212
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Socket WPL-B5784001
...
4
Bulb-Light WPL-WPA3167501
...
5
Access Panel WPL-B5782906
...
6
Fuse, Thermal WPL-B5795303
...
7
Bumper WPL-A1511502
...
8
Rivet-Pop WPL-A4539615
...
9
Cord, Power WPL-B8310501
...
10
Oven Tray WPL-R0156726
...
11
Wrapper WPL-D7378108
...
12
Access Panel WPL-D7378006
...
13
Grommet, Cord WPL-211881
...
14
Screw WPL-WP3388228
...
15
Screw Torx WPL-M0243324
...
16
Screw-Sm/hex WPL-12990523
...
17
Screw-Shoulder WPL-M0220219
...
18
Rivet-Pop WPL-59002054
...
19
Seal K WPL-B5738501
...
20
Blower Scroll WPL-C8797201
...
21
Magnetron Cover WPL-D7349003
...
22
Wiring Harness WPL-D7609001
...
23
Motor- Blo WPL-C8793205
...
24
Blower Wheel WPL-C8793501
...
25
Lock-Nut---K WPL-M0282801
...
26
Screw WPL-WP3400094
...
27
Washer WPL-M0270536
...
29
Gasket WPL-A3030302
...
30
Clip WPL-M0110508
...
31
Gasket (per Foot) WPL-A3030303
...
32
Gasket (per Foot) WPL-10839706
...
33
Screw WPL-WP489464
...
34
Clip WPL-M0288213
...
36
Gasket-Cavity Top WPL-10839709
...
37
Nut WPL-WP3195558
...
38
Rivet WPL-WP210720
...
39
Screw WPL-WP3388228
...
40
Nut K WPL-M0281405
...
41
Screw WPL-M0216519
...
42
Tape Alum WPL-M0275166
...
43
Mtg Plate WPL-D7533302
...
44
Temp Probe Jack K WPL-B8355401
...
45
Screw WPL-M0216516
...
46
Brace, Base Pan WPL-B8356701
...
47
Screw WPL-WP90767
...
48
Screw Torx WPL-M0259318
...
49
Clip WPL-M0116801
