Amana RR-8 (BOM: P7291003M)

Model: RR-8 (BOM: P7291003M)

Save Part Not Listed?
product name

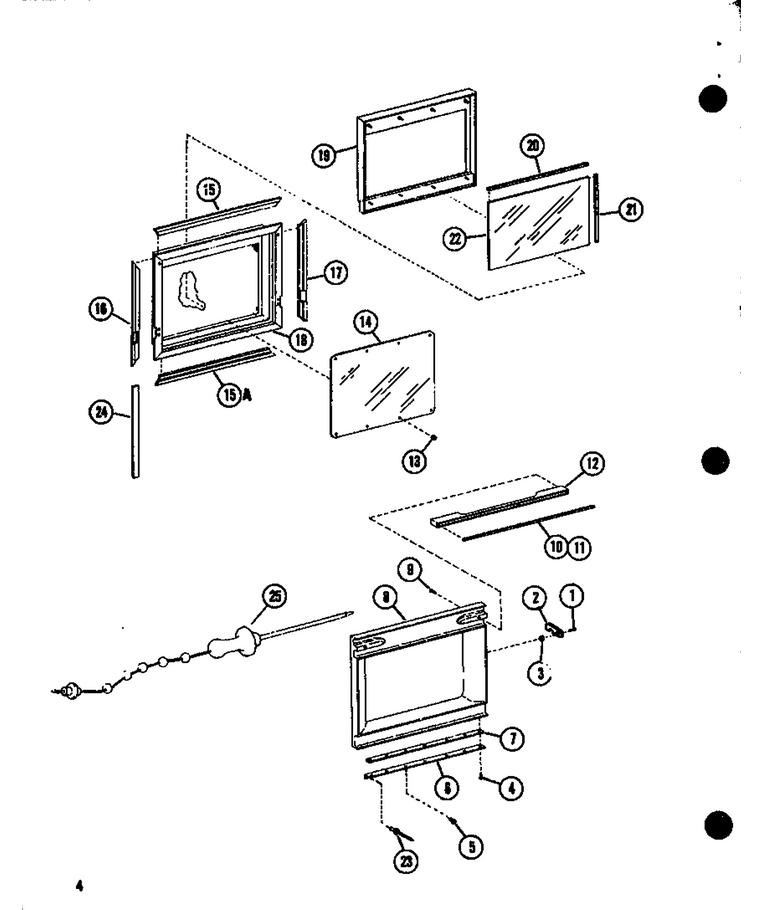

03 - Page 1

...
...
1
Rivet WPL-A3183901
...
2
Latch, Door WPL-A3183001
...
3
Nut WPL-M0287401
...
4
Screw WPL-M0227501
...
5
Screw WPL-M0214503
...
6
Hinge WPL-B5603203
...
7
Shim WPL-A3127101
...
8
Door Outer WPL-D7238603
...
9
Screw, No.6x18x1/4 (3) WPL-487010
...
10
Insert-Handle WPL-B5604802
...
11
Adhesive WPL-M0910002
...
12
Handle WPL-D3964801
...
13
Nut WPL-717488
...
14
Window Outer A WPL-A3254901
...
15
Gasket Top A WPL-D7320001
...
16
Gasket Left A WPL-D7320004
...
17
Gasket Right A WPL-D7320003
...
18
Inner Door Assy A WPL-C8755401
...
19
Inner Door Mold Assy WPL-D7240301
...
20
Gasket Window A-K WPL-A3264601
...
21
Gasket Window A-K WPL-A3264602
...
22
Inner Window A-K WPL-A3167901
...
23
Pop Rivet WPL-A4539602
...
24
Tape Per Roll WPL-M0275163
...
25
Temp Probe WPL-C8821504

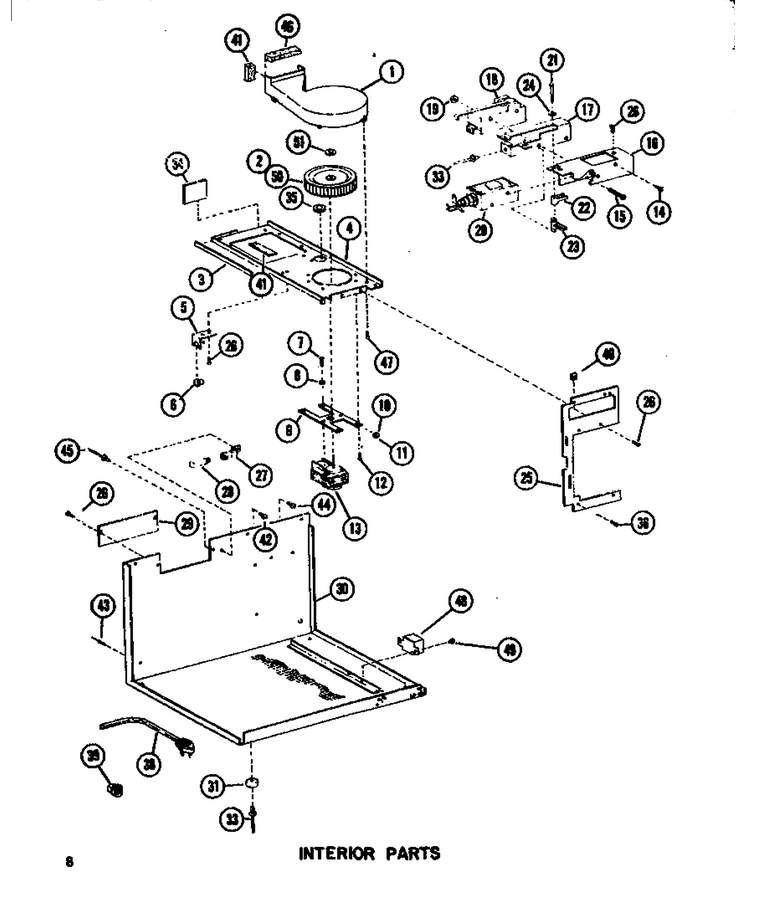

02 - Interior Parts

...
...
1
Scroll-Blower WPL-C8785801
...
2
Ass`y, Blower Wheel WPL-R0156050
...
3
Gasket WPL-A3030302
...
4
Bulk Head WPL-D7323001
...
5
Bracket-Cut Out WPL-B5680301
...
6
Thermal Cut-Out WPL-B5665803
...
7
Screw WPL-M0202642
...
8
Washer WPL-M0272605
...
9
Motor Mount-Bl WPL-B5744001
...
10
Clip, Waterline WPL-12454802
...
11
Eyelet K WPL-A0381401
...
12
Screw-Sm/hex WPL-12990523
...
13
Motor- Blo WPL-C8793205
...
14
Screw WPL-M0201414
...
15
Screw WPL-M0227520
...
16
Bracket Latch K WPL-C8782401
...
17
Latch Spring WPL-B5769001
...
18
Switch Preform A WPL-A3163412
...
19
Nut K WPL-M0282005
...
20
Solenoid, Door Locking WPL-B5682103
...
21
Pin-Bell Crank WPL-A3182602
...
22
Bell Crank WPL-B5672502
...
23
Bell Crank WPL-B5672503
...
24
Washer WPL-M0270530
...
25
Front-Oc WPL-D7307001
...
26
Screw WPL-WP489349
...
27
Socket-Oven Light WPL-B5742001
...
28
Bulb-Light WPL-WPA3167501
...
29
Panel-Bulb Access WPL-A3198103
...
30
Base Pan Wld WPL-D7256707
...
31
Foot WPL-B5732505
...
33
Pop Rivet WPL-A4539619
...
34
Gasket WPL-A3272801
...
35
Grommet WPL-A3258801
...
36
Screw WPL-WP59002061
...
38
Cord, Power WPL-1731300208
...
39
Strain Relief WPL-M0370001
...
40
Speed Nut K WPL-M0288301
...
41
Gasket (per Foot) WPL-A3030303
...
42
Screw,sm WPL-M0233329
...
43
Rivet-Pop WPL-A4539615
...
44
Screw WPL-WP3388228
...
45
Rivet-Pop WPL-59002054
...
46
Gasket (per Foot) WPL-10839706
...
47
Screw WPL-M0218116
...
48
Relay WPL-B5773501
...
49
Screw WPL-WP489349
...
50
Blower Wheel WPL-C8793501
...
51
Nut WPL-WP3195558

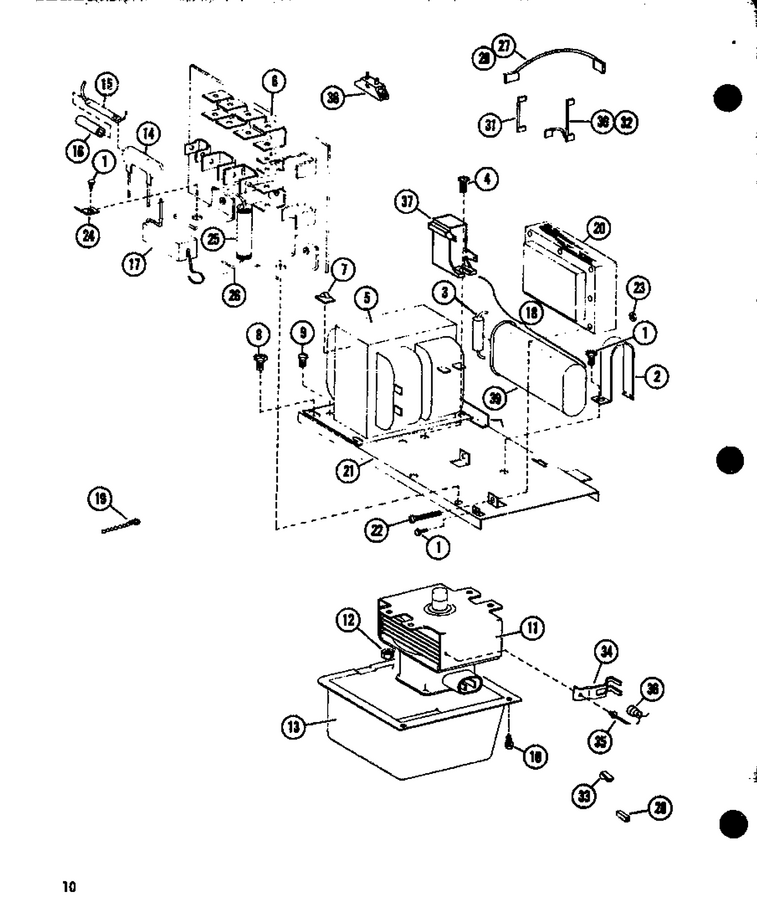

04 - Page 4

...
...
1
Screw WPL-M0218116
...
2
Strap-Capacitor WPL-A3257001
...
3
Resistor A WPL-M0305202
...
4
Screw-Sm/hex WPL-12990523
...
5
Transformer, Plate WPL-D7255701
...
6
Terminal Board WPL-C8791301
...
7
Clip, Cord WPL-M0104102
...
8
Sems Fastener WPL-YM0258229
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489349
...
11
Magnetron WPL-10794402
...
12
Nut WPL-WP488130
...
13
Cover-Magnetron WPL-C8785701
...
14
Resistor A WPL-M0305009
...
15
Fuse WPL-M0308110
...
16
Sleeve WPL-M0321701
...
17
Resistor WPL-M0305204
...
18
Capacitor Assy WPL-R0160021
...
19
Tie, Electrical WPL-A0321201
...
20
Transformer Filament WPL-C8788008
...
21
Mtg Plate-Trans WPL-D7255502
...
22
Screw WPL-M0204346
...
23
Nut K WPL-M0282005
...
24
Terminal WPL-M0320901
...
25
Resistor Fuse Kit WPL-R0157332
...
26
Fuse WPL-M0308101
...
27
Jumper Wire WPL-D7365101
...
28
Insulator, Term. K WPL-M0325301
...
29
Jumper Wire WPL-D7292618
...
30
Wire, Jumper, Rectifiers Fuse WPL-D7292617
...
31
Jumper Wire WPL-D7292619
...
32
Jumper Wire WPL-D7292620
...
33
Insulator, Pod K WPL-M0325501
...
34
Clip WPL-B5725102
...
35
Rivet-Pop WPL-59002054
...
36
Thermal Cut Out WPL-B5665810
...
37
Kit, Diode WPL-M3D71
...
38
Kit, Diode WPL-M3D71
...
39
Capacitor Assy WPL-R0160021

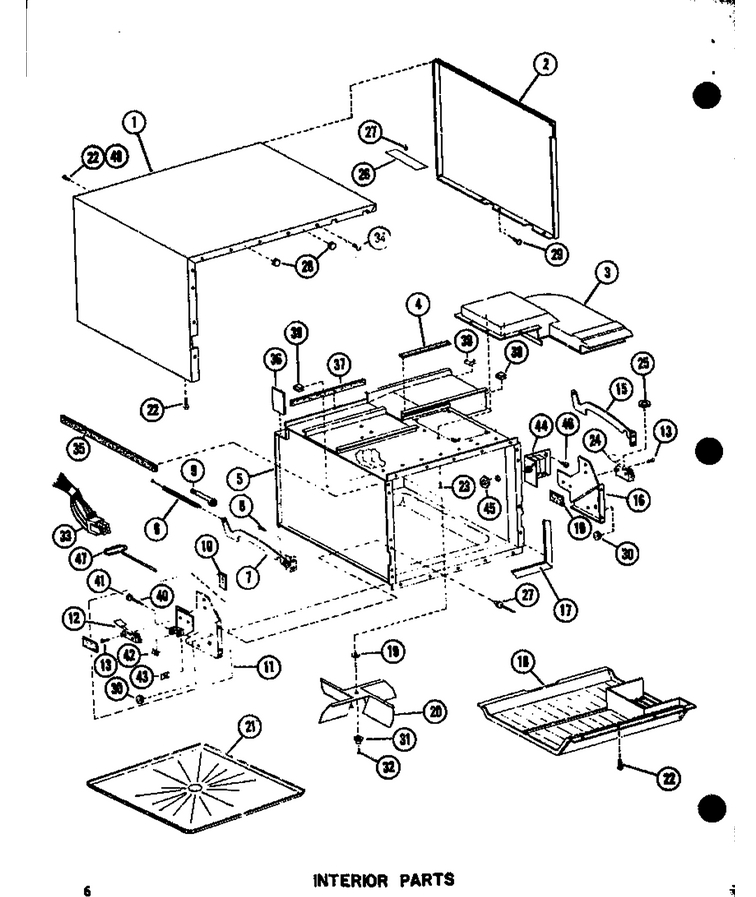

01 - Interior Parts

...
...
1
Wrapper-Oc WPL-D7257502
...
2
Access Panel WPL-D7335801
...
3
Air Duct WPL-D7350203
...
4
Gasket WPL-A3030302
...
5
Oven Wld WPL-D7168315
...
6
Spring WPL-M0775001
...
7
Cb Arm L A WPL-B5693104
...
8
Screw WPL-M0258518
...
9
Screw Remover WPL-R0193032
...
10
X$x Pad WPL-M0050902
...
11
Bracket L.h. Assembly With Rol WPL-C8783106
...
12
Switch-L Intl A WPL-A3162510
...
13
Screw A-K WPL-M0227525
...
15
Cb Arm R A WPL-B5693103
...
16
Bracket R.h. Assembly With Rol WPL-C8783102
...
17
Gasket WPL-C3637201
...
18
Grease Shield WPL-D7352601
...
19
Bushing-Stirrer Mt WPL-B5704203
...
20
Xfan Blade-Stirrer WPL-C8720801
...
21
Oven Tray WPL-R0156726
...
22
Screw WPL-M0230015
...
23
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
24
Interlock Switch WPL-C8736705
...
25
Washer WPL-M0274049
...
26
Seal K WPL-B5738501
...
27
Rivet-Pop WPL-59002054
...
28
Bumper WPL-A1511502
...
29
Screw WPL-WP59002061
...
30
Roller Assy Kit WPL-R0157145
...
31
Bearing WPL-A3214801
...
32
Shoulder Screw WPL-A3214903
...
33
Wiring Harness WPL-D7400001
...
34
Screw WPL-WP489349
...
35
Gasket WPL-A3263901
...
36
Gasket WPL-B5695301
...
37
Gasket, Air Sealing WPL-B5695302
...
38
Clip WPL-M0118801
...
40
Screw Adjusting A-K WPL-A3277601
...
41
Guide Screw A-K WPL-A3277801
...
42
Spring A WPL-A3277701
...
43
Speed Nut A WPL-M0286114
...
44
Switch, Jack Assembly WPL-B5771901
...
45
Nut-Decorative WPL-A3275701
...
46
Screw WPL-M0234008
...
47
Adj Tool-Interlock WPL-R0193039
...
48
Screw-Sm/hex WPL-12990523

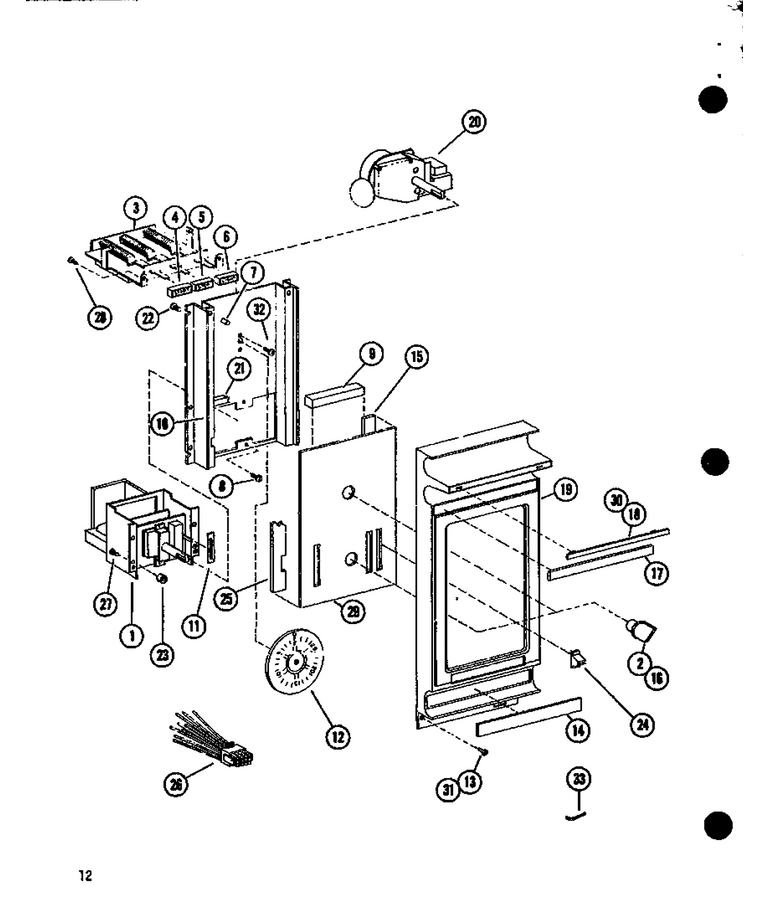

05 - Page 5

...
...
1
See Svc Ltr R226 WPL-D7325901
...
2
Knob-Temp Indicator WPL-B5772001
...
3
Switch Ssl K WPL-C8787802
...
4
Button (start) K WPL-C8743104
...
5
Button (stop) K WPL-C8743108
...
6
Button (light) WPL-C8743109
...
7
Pin WPL-M1200104
...
8
Screw WPL-M0202528
...
9
Gasket WPL-A4591128
...
10
Extrusion-Control WPL-C8787601
...
11
Cover-Dust WPL-A3279501
...
12
Disc-30 Min Timer WPL-C8787401
...
13
Screw T.c WPL-M0229916
...
14
Nameplate K WPL-B5741301
...
15
Gasket WPL-A3259201
...
16
Knob WPL-C8735901
...
17
Nameplate WPL-B5770102
...
18
Insert- K WPL-B5703901
...
19
Escutcheon, Control WPL-D7255301
...
20
Timer WPL-C8791701
...
21
Gasket (per Foot) WPL-10839706
...
22
Screw WPL-WP59002061
...
23
Sleeve WPL-A3284601
...
24
Knob-Control WPL-B5742501
...
25
Gasket WPL-A3285801
...
26
Wiring Harness WPL-C8821801
...
27
Screw WPL-M0234114
...
28
Screw WPL-M0234003
...
29
Lens-Escutcheon WPL-C8787701
...
30
Adhesive WPL-M0910002
...
31
Speed Nut K WPL-M0288301
...
32
Screw WPL-WP59002061
...
33
Wrench-Hex WPL-A4696103
