Amana RR-7D (BOM: P7330701M)

Model: RR-7D (BOM: P7330701M)

Save Part Not Listed?
product name

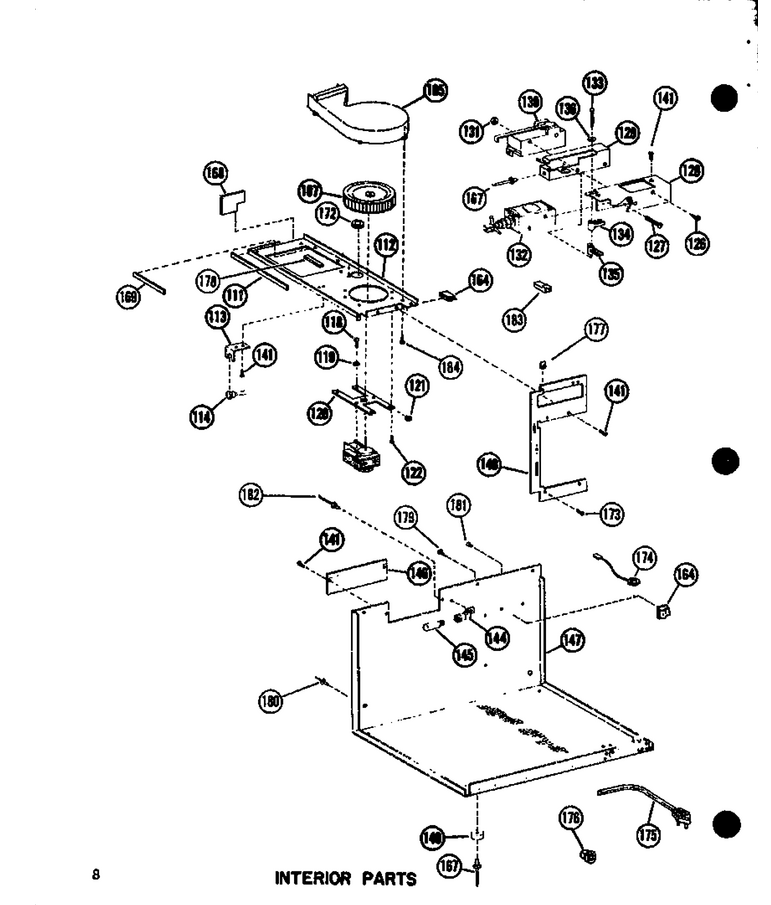

02 - Interior Parts

...
...
105
Scroll-Blower WPL-C8785801
...
107
Ass`y, Blower Wheel WPL-R0156050
...
111
Gasket WPL-A3030302
...
112
Bulk Head WPL-D7323001
...
113
Bracket-Cut Out WPL-B5680301
...
114
Thermal Cut-Out WPL-B5665803
...
118
Screw WPL-M0202642
...
119
Washer WPL-M0272605
...
120
Motor Mount-Bl WPL-B5744001
...
121
Clip, Waterline WPL-12454802
...
122
Screw-Sm/hex WPL-12990523
...
124
Motor- Blo WPL-C8793205
...
126
Screw WPL-M0201414
...
127
Screw WPL-M0227520
...
128
Bracket Latch K WPL-C8782401
...
129
Latch Spring WPL-B5769001
...
130
Switch Preform A WPL-A3163405
...
131
Nut K WPL-M0282005
...
132
Solenoid, Door Locking WPL-B5682103
...
133
Pin-Bell Crank WPL-A3182602
...
134
Bell Crank WPL-B5672502
...
135
Bell Crank WPL-B5672503
...
136
Washer WPL-M0270530
...
140
Front-Oc WPL-D7307001
...
141
Screw WPL-WP489349
...
144
Socket-Oven Light WPL-B5742001
...
145
Bulb-Light WPL-WPA3167501
...
146
Panel-Bulb Access WPL-A3198103
...
147
Base Pan Wld WPL-D7256707
...
149
Foot WPL-B5732505
...
164
Clip, Cord WPL-M0104102
...
167
Pop Rivet WPL-A4539607
...
168
Gasket WPL-A3272801
...
172
Grommet WPL-A3258801
...
173
Screw WPL-WP59002061
...
174
Jumper Wire WPL-C3655867
...
175
Cord, Power WPL-1731300208
...
176
Strain Relief WPL-M0370001
...
177
Speed Nut K WPL-M0288301
...
178
Gasket (Per Foot) WPL-A3030303
...
179
Screw,sm WPL-M0233329
...
180
Rivet-Pop WPL-A4539615
...
181
Screw WPL-WP3388228
...
182
Rivet-Pop WPL-59002054
...
183
Insulator, Term. K WPL-M0325301
...
184
Screw WPL-M0230015

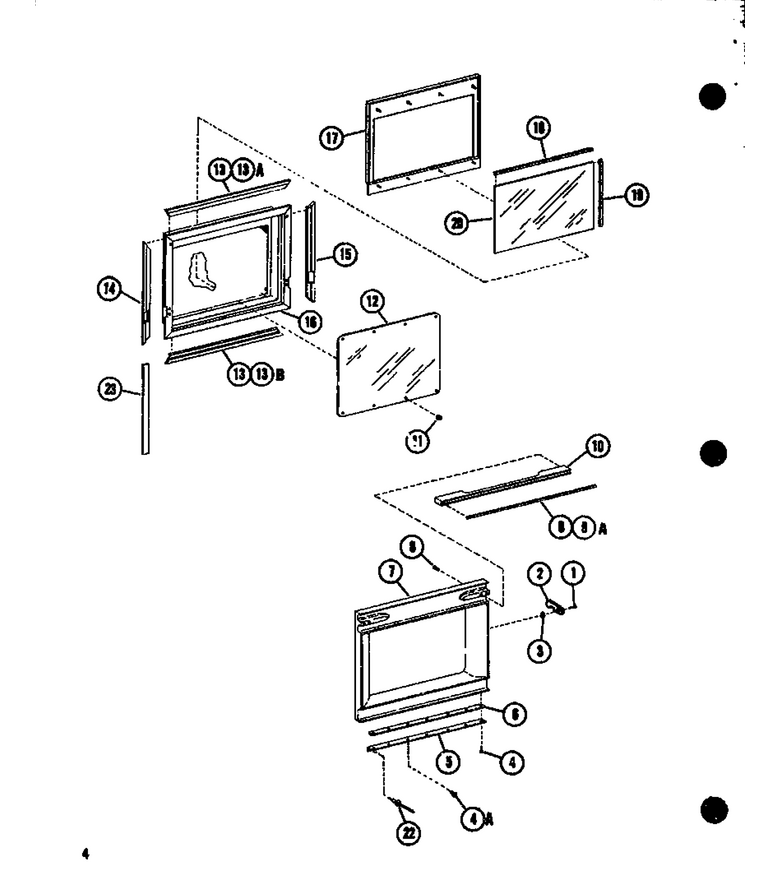

03 - Page 1

...
...
1
Rivet WPL-A3183901
...
2
Latch, Door WPL-A3183001
...
3
Nut WPL-M0287401
...
4
Screw WPL-M0214503
...
5
Hinge WPL-B5603203
...
6
Shim WPL-A3127101
...
7
Door Outer WPL-D7238603
...
8
Screw, No.6x18x1/4 (3) WPL-487010
...
9
Adhesive Ec-4475 WPL-A0059103
...
10
Handle WPL-D3964801
...
11
Nut WPL-717488
...
12
Window Outer A WPL-A3254901
...
13
Gasket Top A WPL-D7320001
...
14
Gasket Left A WPL-D7320004
...
15
Gasket Right A WPL-D7320003
...
16
Inner Door Assy A WPL-C8755401
...
17
Inner Door Mold Assy WPL-D7240301
...
18
Gasket Window A-K WPL-A3264601
...
19
Gasket Window A-K WPL-A3264602
...
20
Inner Window A-K WPL-A3167901
...
22
Pop Rivet WPL-A4539602
...
23
Tape Per Roll WPL-M0275163

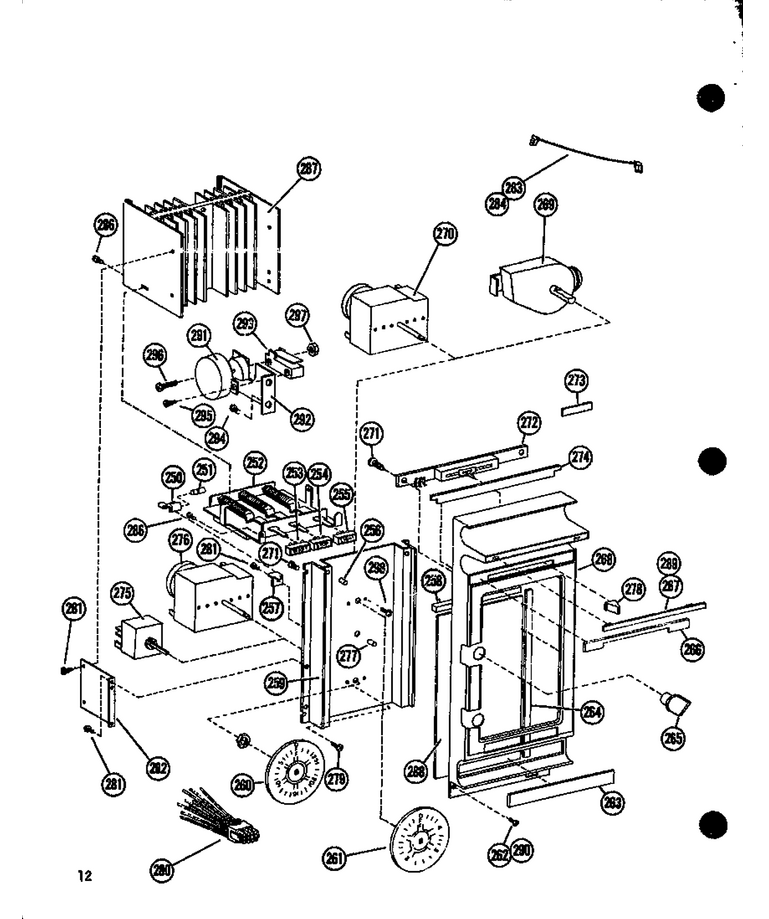

05 - Page 5

...
...
250
Lampholder WPL-B5741101
...
251
Bulb WPL-A3171201
...
252
Switch Ssl K WPL-C8787802
...
253
Button (Start) K WPL-C8743101
...
254
Button (Stop) K WPL-C8743108
...
255
Button (Light) WPL-C8743109
...
256
Pin WPL-M1200104
...
257
Bracket-Pilot Light WPL-A3257601
...
258
Gasket WPL-A4591128
...
259
Extrusion-Control WPL-C8789601
...
260
Disc-Selector WPL-C8789302
...
261
Disc-Timer WPL-C8789301
...
262
Screw T.c WPL-M0229916
...
263
Nameplate K WPL-B5741301
...
264
Gasket WPL-A3259201
...
265
Knob WPL-C8735901
...
266
Insert WPL-B5773001
...
267
Insert- K WPL-B5703901
...
268
Escutcheon, Control WPL-D7255301
...
269
Timer-35 Min WPL-C8789401
...
271
Screw WPL-WP59002061
...
275
Switch-Selector WPL-B5740103
...
277
Pipe-Light WPL-B5741001
...
280
Wiring Harness WPL-D7330301
...
281
Screw WPL-M0234114
...
283
Jumper Wire K WPL-C3655835
...
284
Jumper Wire-Red WPL-D7292622
...
286
Screw WPL-M0234003
...
288
Lens, Escutcheon WPL-C8735601
...
289
Adhesive WPL-M0910002
...
290
Speed Nut K WPL-M0288301
...
291
Timer WPL-B5699801
...
292
Bracket WPL-B5699601
...
293
Switch-Cut-Off WPL-A3220704
...
294
Screw WPL-M0230015
...
295
Screw WPL-M0218116
...
296
Screw WPL-W11084238
...
297
Nut K WPL-M0282005
...
298
Screw A WPL-M0202516

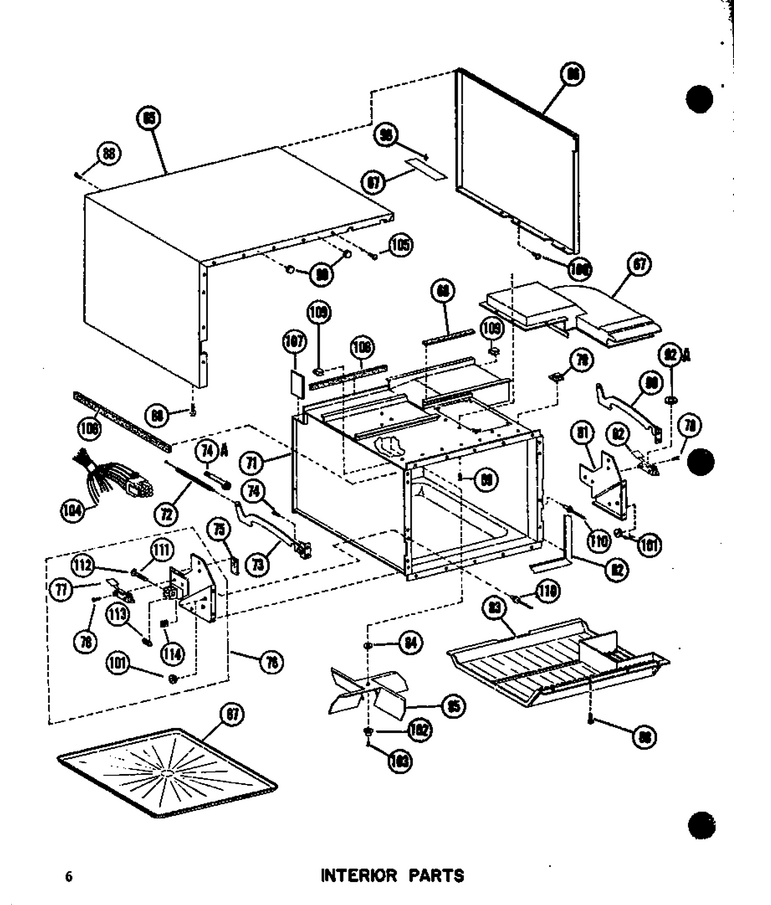

01 - Interior Parts

...
...
65
Wrapper-Oc WPL-D7257502
...
66
Access Panel WPL-D7335801
...
67
Duct, Air Discharge WPL-D7258706
...
68
Gasket WPL-A3030302
...
71
Weldment, Oven Cavity WPL-D7168309
...
72
Spring WPL-M0775001
...
73
Arm, Counterbalance, Left Hand WPL-B5693102
...
74
Screw Remover WPL-R0193032
...
75
X$x Pad WPL-M0050902
...
76
Bracket L.h. Assembly With Rol WPL-C8783106
...
77
Switch-L Intl A WPL-A3162510
...
78
Screw A-K WPL-M0227525
...
79
Clip WPL-WPM0104106
...
80
Arm, Counterbalance, R.h. WPL-B5693101
...
81
Bracket R.h. Assembly With Rol WPL-C8783102
...
82
Gasket WPL-C3637201
...
83
Grease Shield WPL-D7352601
...
84
Bushing-Stirrer Mt WPL-B5704203
...
85
Xfan Blade-Stirrer WPL-C8720801
...
87
Oven Tray WPL-R0156726
...
88
Screw WPL-M0230015
...
89
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
92
Washer WPL-M0274049
...
97
Seal K WPL-B5738501
...
98
Rivet-Pop WPL-59002054
...
99
Bumper WPL-A1511502
...
100
Screw WPL-WP59002061
...
101
Roller Assy Kit WPL-R0157145
...
102
Bearing WPL-A3214801
...
103
Shoulder Screw WPL-A3214902
...
104
Wiring Harness WPL-D7329901
...
105
Screw WPL-WP489349
...
106
Gasket WPL-A3263901
...
107
Gasket WPL-B5695301
...
108
Gasket, Air Sealing WPL-B5695302
...
109
Clip WPL-M0118801
...
110
Rivet-Pop WPL-59002054
...
111
Screw Adjusting A-K WPL-A3277601
...
112
Guide Screw A-K WPL-A3277801
...
113
Spring A WPL-A3277701
...
114
Speed Nut WPL-M0286105

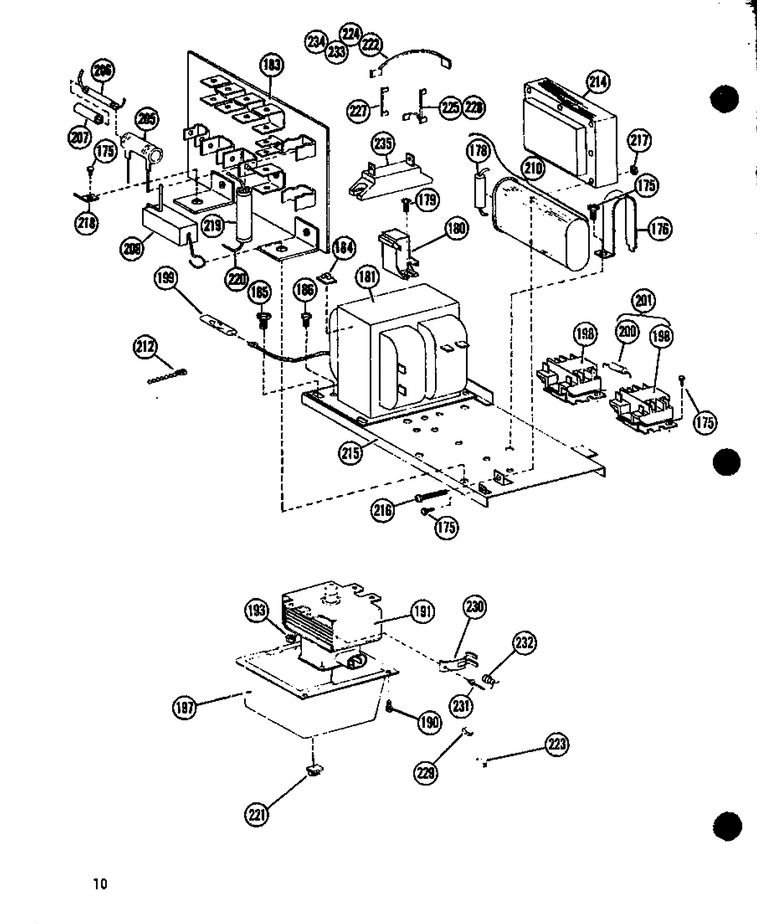

04 - Page 4

...
...
175
Screw WPL-M0218116
...
176
Strap-Capacitor WPL-A3257001
...
178
Resistor A WPL-M0305202
...
179
Screw-Sm/hex WPL-12990523
...
180
Kit, Diode WPL-M3D71
...
181
Transformer-Hv WPL-D7329801
...
183
Terminal Board WPL-C8791301
...
184
Clip, Cord WPL-M0104102
...
185
Sems Fastener WPL-YM0258229
...
186
Screw WPL-WP90767
...
190
Screw WPL-WP489349
...
191
Magnetron WPL-10794402
...
193
Nut WPL-WP488130
...
197
Cover-Magnetron WPL-C8785701
...
198
Relay A WPL-C3656303
...
199
Connector WPL-WP75614
...
200
Resistor, Relay A WPL-M0305007
...
201
Relay Assy K WPL-R0159004
...
205
Resistor A WPL-M0305009
...
206
Fuse WPL-M0308110
...
207
Sleeve WPL-M0321701
...
208
Resistor WPL-M0305204
...
210
Capacitor Assy WPL-R0160021
...
212
Tie-Wire WPL-WPW10339879
...
215
Plate-Trans Mtg WPL-D7330001
...
218
Terminal WPL-M0320901
...
219
Resistor Fuse Kit WPL-R0157332
...
220
Fuse WPL-M0308101
...
221
Clip-Cord WPL-M0104701
...
222
Jumper Wire WPL-C3655807
...
223
Insulator, Term. K WPL-M0325301
...
224
Wire, Jumper H.v. Capacitor To WPL-D7292630
...
225
Jumper Wire WPL-D7292621
...
227
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
228
Jumper Wire WPL-D7292627
...
229
Insulator, Pod K WPL-M0325501
...
230
Clip WPL-B5725101
...
231
Rivet-Pop WPL-59002054
...
232
Thermal Cut Out WPL-B5665810
...
233
Jumper Wire WPL-C3655868
...
234
Jumper Wire-Yellow K WPL-D7292623
