Amana RR-7B (BOM: P7436402M)

Model: RR-7B (BOM: P7436402M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

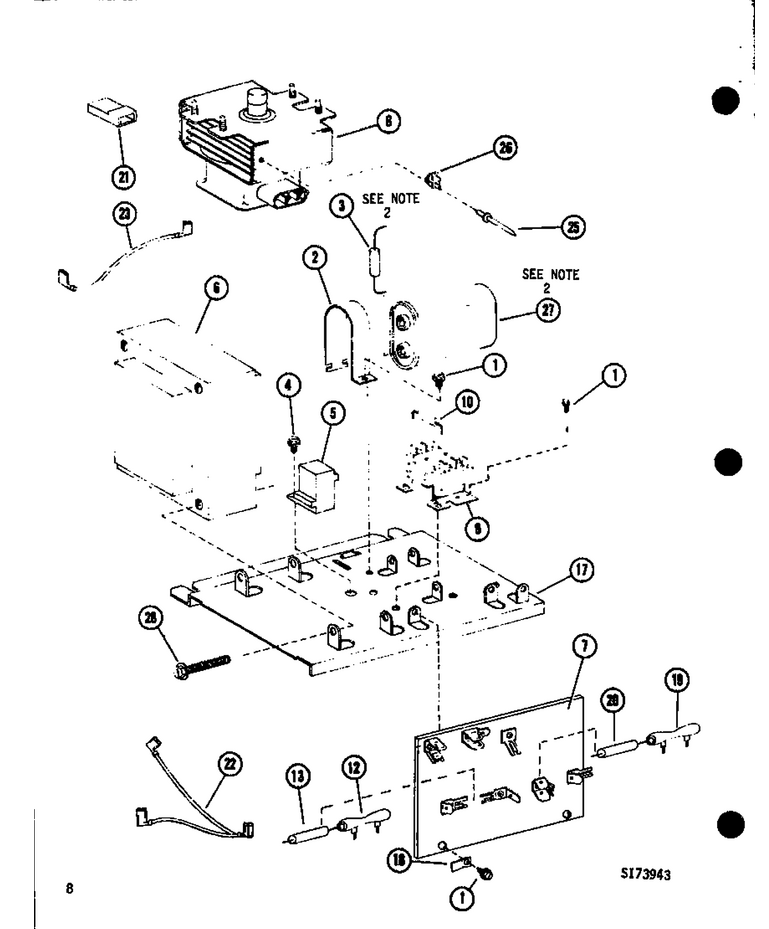

02 - Page 3

...
...
1
Screw WPL-M0218116
...
2
Strap-Capacitor WPL-A3257003
...
3
Capacitor Assy WPL-R0160021
...
4
Screw-Sm/hex WPL-12990523
...
5
Kit, Diode WPL-M3D71
...
6
Transformer WPL-D7391401
...
7
Terminal Board WPL-C8821002
...
8
Magnetron WPL-10794402
...
12
Resistor A WPL-M0308601
...
13
Fuse WPL-M0308110
...
17
Transformer Mounting Plate WPL-D7351801
...
18
Terminal WPL-M0320901
...
19
Resistor K WPL-M0308607
...
20
Fuse Resistor K WPL-M0308109
...
21
Insulator, Term. K WPL-M0325301
...
22
Jumper Wire WPL-D7365104
...
23
Jumper Wire WPL-D7292627
...
25
Rivet WPL-WP210720
...
26
Thermal Cut Out WPL-B5795302
...
27
Capacitor-.85 WPL-59001651
...
28
Screw WPL-M0254452

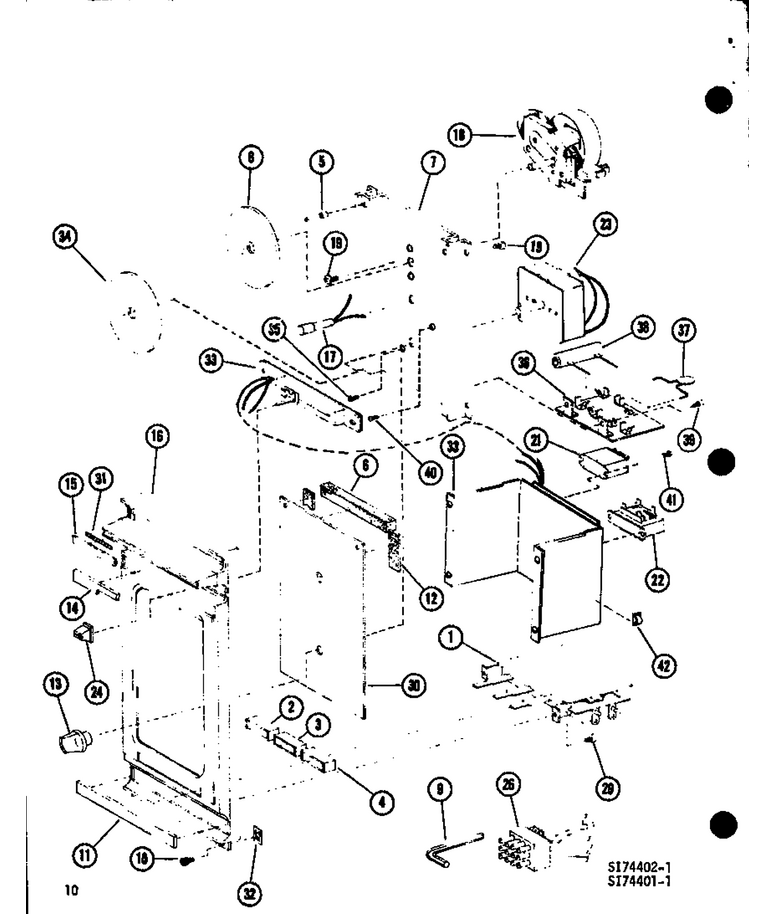

03 - Page 4

...
...
1
Switch Ssl K WPL-C8787802
...
2
Button (start) K WPL-C8743104
...
3
Button (stop) K WPL-C8743108
...
4
Button (light) WPL-C8743109
...
5
Pin WPL-M1200104
...
6
Gasket WPL-A4591128
...
7
Control Plate WPL-D7465101
...
8
Disk-Timer A WPL-C8730413
...
9
Wrench-Hex WPL-A4696103
...
10
Screw T.c WPL-M0229916
...
11
Nameplate WPL-B5799701
...
12
Gasket WPL-A3259201
...
13
Knob WPL-C8735901
...
14
Insert Cookmatic A WPL-B8311301
...
15
Insert- K WPL-B5703901
...
16
Escutcheon WPL-D7255302
...
17
Light Pilot WPL-B5786605
...
18
Timer 30 Min K-A WPL-C8791704
...
19
Screw WPL-WP59002061
...
23
Timer Percent A WPL-C8843701
...
26
Wire Harness WPL-C8843301
...
29
Screw WPL-M0234003
...
30
Lens A WPL-C8844501
...
31
Adhesive WPL-M0910002
...
32
Speed Nut K WPL-M0288301
...
34
Disk-Timer A WPL-C8730414
...
35
Screw WPL-8169474
...
36
Terminal Board WPL-C8821004
...
37
P.t.c. WPL-B8308601
...
38
Resistor WPL-M0308603
...
39
Screw WPL-M0213815
...
40
Screw A WPL-M0228018

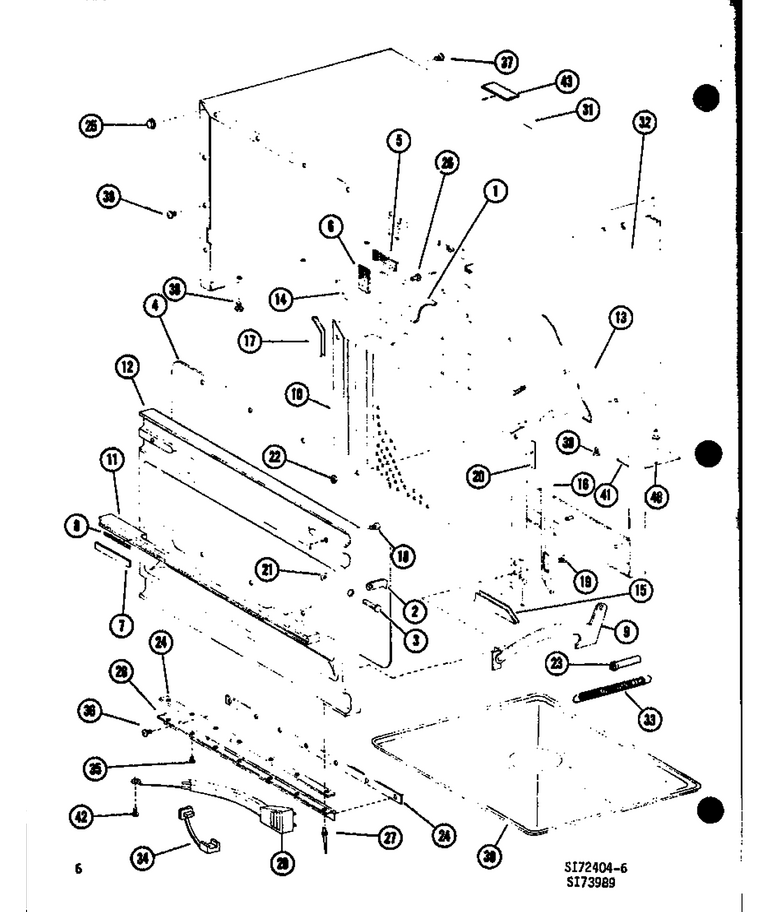

01 - Page 2

...
...
1
Inner Window A-K WPL-A3167901
...
2
Latch, Door WPL-A3183001
...
3
Rivet WPL-A3183901
...
4
Window Outer A WPL-A3254901
...
5
Gasket Window A-K WPL-A3264601
...
6
Gasket Window A-K WPL-A3264602
...
7
Insert-Handle WPL-B5604802
...
8
Adhesive WPL-M0910002
...
9
Cb Arm R A WPL-B5693103
...
10
Inner Door Assy A WPL-C8755401
...
11
Handle WPL-D3964801
...
12
Door Outer WPL-D7238603
...
13
Inner Door Mold Assy WPL-D7240301
...
14
Gasket Top A WPL-D7320001
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Right A WPL-D7320003
...
17
Gasket Left A WPL-D7320004
...
18
Screw, No.6x18x1/4 (3) WPL-487010
...
19
Screw WPL-M0258518
...
20
Tape Per Roll WPL-M0275163
...
21
Nut WPL-M0287401
...
22
Nut WPL-717488
...
24
Shim WPL-A3127101
...
25
Bumper WPL-A1511502
...
26
Rivet-Pop WPL-A4539615
...
27
Pop Rivet WPL-A4539602
...
28
Hinge WPL-B5603203
...
29
Cord, Power WPL-B8310501
...
30
Oven Tray WPL-R0156726
...
31
Outer Cabinet WPL-D7378101
...
32
Access Pnl WPL-D7378001
...
33
Spring WPL-M0775001
...
34
Grommet, Cord WPL-211881
...
35
Screw WPL-W11084238
...
36
Screw WPL-M0217701
...
37
Screw WPL-M0213815
...
38
Screw WPL-WP59002061
...
39
Screw-Sm/hex WPL-12990523
...
40
Rivet-Pop WPL-59002054
...
41
Seal K WPL-B5738501
...
42
Screw WPL-M0218116
...
43
Tape Alum WPL-M0275166
