Amana RR-7A (BOM: P7355701M)

Model: RR-7A (BOM: P7355701M)

Save Part Not Listed?
product name

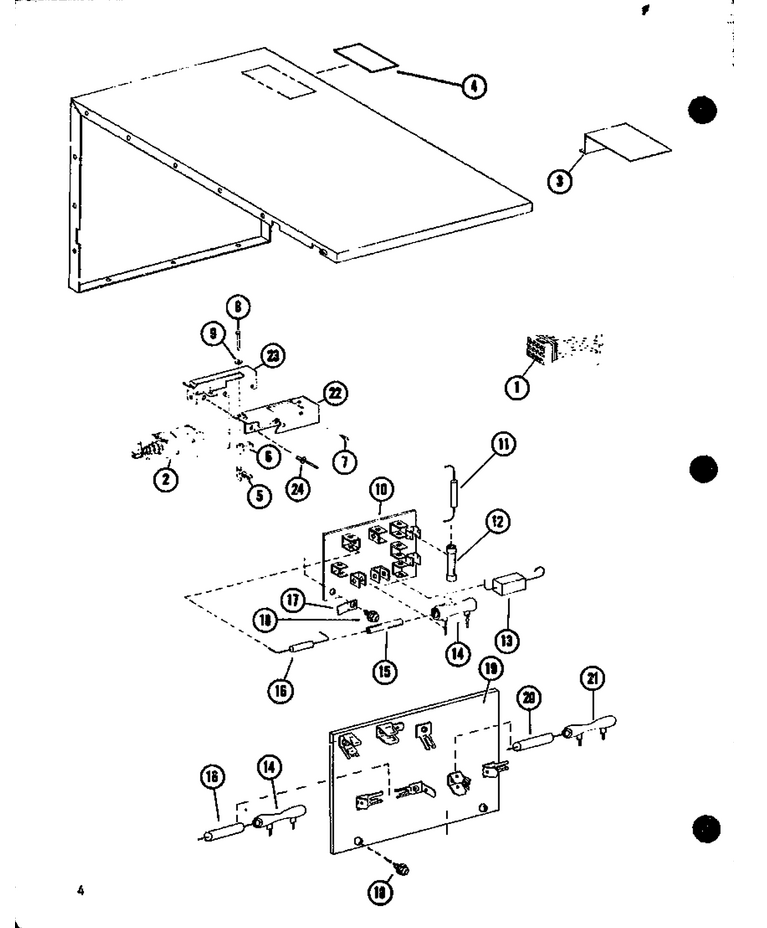

01 - Page 1

...
...
1
Wiring Harness WPL-D7395201
...
2
Solenoid, Door Locking WPL-B5682103
...
3
Reflector WPL-B5783801
...
5
Bell Crank WPL-B5672503
...
6
Bell Crank WPL-B5672502
...
7
Screw WPL-M0201414
...
8
Pin-Bell Crank WPL-A3182602
...
9
Washer WPL-M0270530
...
10
Terminal Bd WPL-C8806401
...
11
Fuse WPL-M0308101
...
12
Resistor Fuse Kit WPL-R0157332
...
13
Resistor WPL-M0305204
...
14
Resistor A WPL-M0305009
...
15
Sleeve WPL-M0321701
...
16
Fuse WPL-M0308110
...
17
Terminal WPL-M0320901
...
18
Screw WPL-M0218116
...
22
Bracket Latch K WPL-C8782403
...
23
Latch Spring WPL-B5769001
