Amana RR-5B (BOM: P7517501M)

Model: RR-5B (BOM: P7517501M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

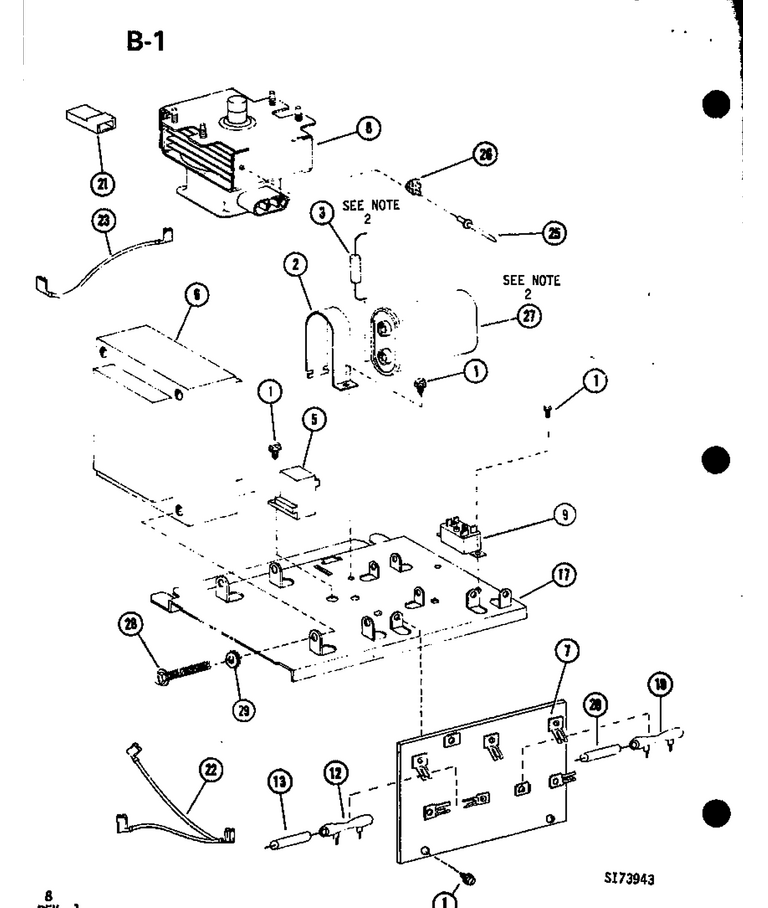

03 - Page 3

...
...
1
Screw WPL-WP489349
...
2
Strap-Capacitor WPL-A3257003
...
3
Resistor A WPL-M0305202
...
5
Kit, Diode WPL-M3D71
...
6
Transformer WPL-D7391401
...
7
Terminal Board WPL-C8861001
...
8
Magnetron WPL-10794402
...
9
Relay K WPL-B5773502
...
12
Resistor A WPL-M0308601
...
13
Fuse WPL-M0308110
...
17
Transformer Mounting Plate WPL-D7351802
...
19
Resistor K WPL-M0308607
...
20
Fuse Resistor K WPL-M0308109
...
21
Insulator, Term. K WPL-M0325301
...
22
Jumper Wire WPL-D7365101
...
23
Jumper Wire WPL-D7292627
...
25
Rivet-Pop WPL-59002054
...
26
Fuse- Ther WPL-59001951
...
27
Capacitor-.85 WPL-59001651
...
28
Screw WPL-M0254452
...
29
Lock Washer WPL-M0272805

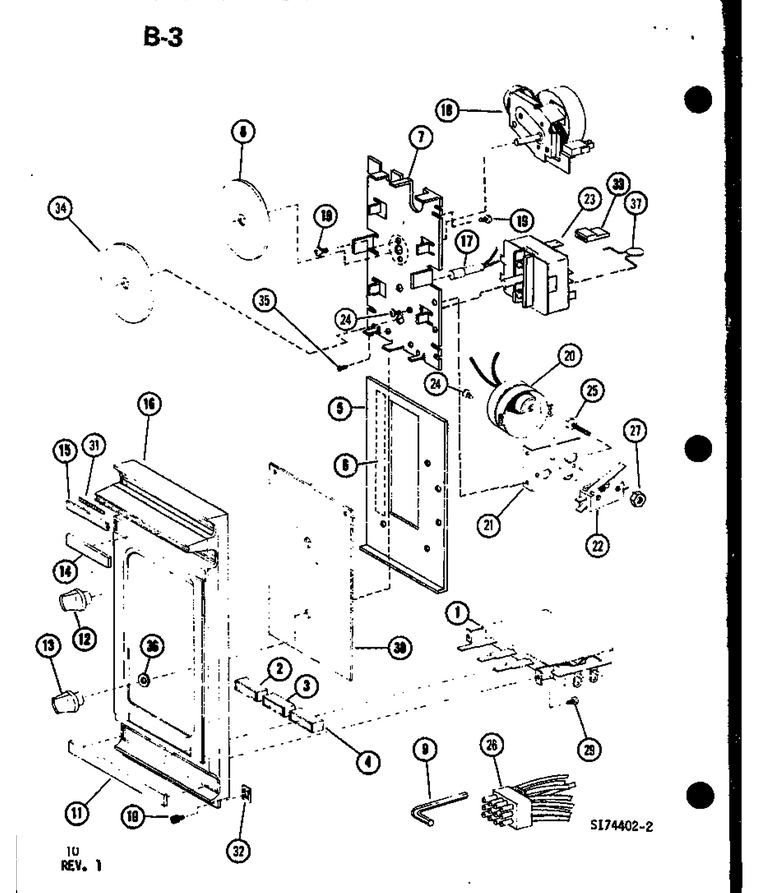

04 - Page 4

...
...
1
Switch Ssl K WPL-C8787802
...
2
Button (Start) K WPL-C8743104
...
3
Button (Stop) K WPL-C8743108
...
4
Button (Light) WPL-C8743109
...
7
Control Mtg Plate WPL-D7465103
...
8
Disk-Timer A WPL-C8730413
...
9
Wrench-Hex WPL-A4696103
...
10
Screw T.c WPL-M0229916
...
11
Nameplate WPL-B5799701
...
12
Knob WPL-C8735901
...
13
Knob, Switch WPL-C8879701
...
14
Insert WPL-B5773002
...
15
Insert- K WPL-B5703901
...
16
Escutcheon WPL-D7255302
...
18
Timer 30 Min K-A WPL-C8791704
...
19
Screw WPL-WP59002061
...
20
Timer WPL-B5699801
...
21
Bracket WPL-B5699601
...
22
Switch-Cut-Off WPL-A3220704
...
23
Switch WPL-B8334101
...
24
Screw WPL-M0213815
...
25
Screw WPL-M0227520
...
26
Wiring Harness Cav WPL-D7516701
...
27
Nut K WPL-M0282005
...
29
Screw WPL-M0234003
...
30
Lens, Escutcheon WPL-C8844502
...
31
Adhesive WPL-M0910002
...
32
Speed Nut K WPL-M0288301
...
33
Insulator, Term. K WPL-M0325301
...
34
Disk Timer WPL-C8730419
...
35
Screw WPL-M0234114
...
36
O Ring K WPL-M0500702
...
37
Ptc Resistor Assy WPL-A1027301Q

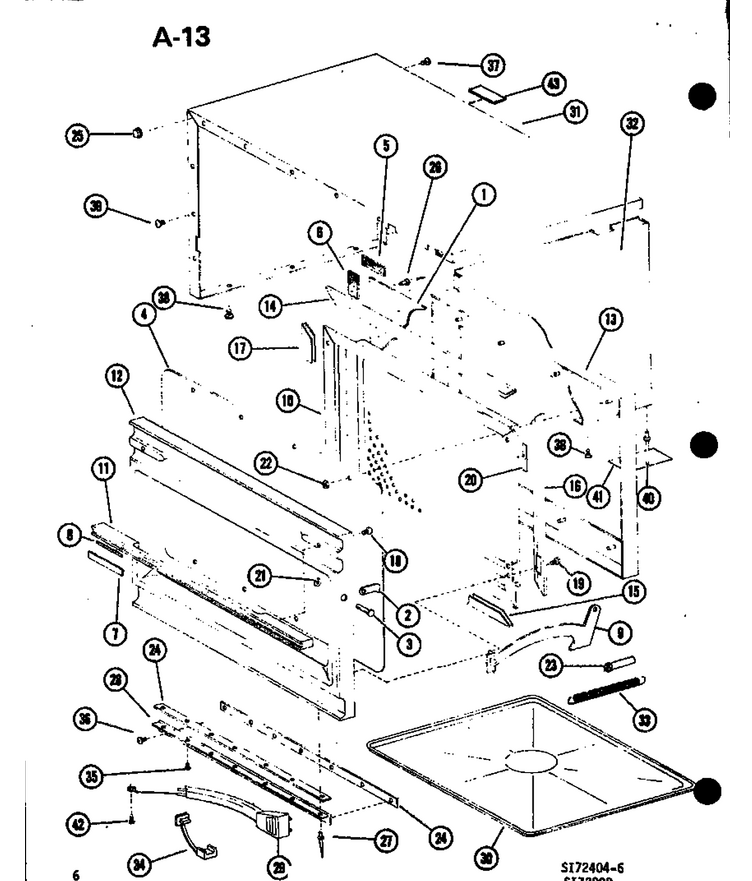

02 - Page 2

...
...
1
Inner Window A-K WPL-A3167901
...
2
Latch, Door WPL-A3183001
...
3
Rivet WPL-A3183901
...
4
Window Outer A WPL-A3254901
...
5
Gasket Window A-K WPL-A3264601
...
6
Gasket Window A-K WPL-A3264602
...
7
Insert-Handle WPL-B5604802
...
8
Adhesive WPL-M0910002
...
9
Cb Arm R A WPL-B5693103
...
10
Inner Door Assy A WPL-C8755401
...
11
Handle WPL-D3964801
...
12
Door Outer WPL-D7514801
...
13
Inner Door Mold Assy WPL-D7240304
...
14
Gasket Top A WPL-D7320001
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Right A WPL-D7320003
...
17
Gasket Left A WPL-D7320004
...
18
Screw, No.6x18x1/4 (3) WPL-487010
...
19
Screw WPL-M0258518
...
20
Tape Per Roll WPL-M0275163
...
21
Nut WPL-M0287401
...
22
Nut WPL-717488
...
24
Shim WPL-A3127101
...
25
Bumper WPL-A1511502
...
26
Rivet-Pop WPL-A4539615
...
27
Pop Rivet WPL-A4539602
...
28
Hinge WPL-B5603203
...
29
Cord, Power WPL-B8310501
...
30
Oven Tray WPL-R0156726
...
31
Outer Cabinet WPL-D7378101
...
32
Access Pnl WPL-D7378001
...
33
Spring WPL-M0775001
...
34
Grommet, Cord WPL-211881
...
35
Screw WPL-W11084238
...
36
Screw WPL-M0217701
...
37
Screw WPL-M0213815
...
38
Screw WPL-WP59002061
...
39
Screw-Sm/hex WPL-12990523
...
40
Rivet-Pop WPL-59002054
...
41
Seal K WPL-B5738501
...
42
Screw WPL-M0218116
...
43
Tape Alum WPL-M0275166

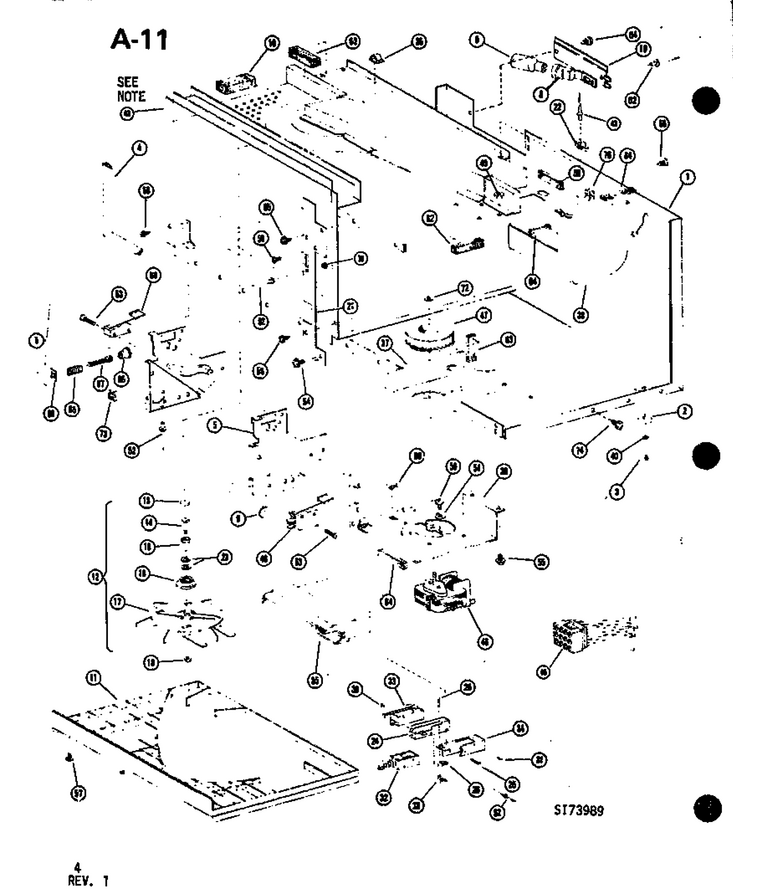

01 - Page 1

...
...
1
Base Pan WPL-D7506203
...
2
Foot WPL-B5732505
...
3
Pop Rivet WPL-A4539619
...
4
Gasket WPL-C3637201
...
5
Ctr Brkt Assy WPL-D7482003
...
6
Roller Assy Kit WPL-R0157145
...
8
Socket WPL-B5784001
...
9
Bulb-Light WPL-WPA3167501
...
10
Panel WPL-B5782901
...
11
Grease Shield WPL-D7544002
...
12
Assy, Antenna WPL-C8806701
...
13
Bearing Cap WPL-B5792601
...
14
Stub-Antenna A WPL-B5783101
...
15
Bearing-Antenna A WPL-B5783001
...
16
Bushing A WPL-C8838501
...
17
Assy, Antenna WPL-C8806701
...
18
Nut A WPL-M0281203
...
19
Gasket WPL-A3263901
...
20
Plate WPL-D7364803
...
21
Flange-Oven Cav WPL-D7365505
...
22
Fuse, Thermal WPL-B5795303
...
23
Washer WPL-M0274044
...
24
Spring Latch- WPL-B8311201
...
25
Screw WPL-M0227520
...
26
Bell Crank WPL-B5672502
...
28
Bell Crank WPL-B5672503
...
29
Pin-Bell Crank WPL-A3182602
...
30
Nut K WPL-M0282005
...
31
Screw WPL-M0201414
...
32
Solenoid, Door Locking WPL-B5682103
...
33
Switch Preform A WPL-A3163412
...
34
Bracket Latch K WPL-C8845301
...
35
Escutcheon-Duct WPL-D7370701
...
36
Clip WPL-WPM0104106
...
37
Blower Scroll WPL-C8797201
...
38
Magnetron Cover WPL-D7349002
...
40
Oven Cavity WPL-D7350507
...
43
Rivet WPL-WP210720
...
45
Oven Wiring Harness WPL-D7517201
...
46
Motor- Blo WPL-C8793205
...
47
Blower Wheel WPL-C8793501
...
48
Switch WPL-C8736703
...
49
Lock-Nut---K WPL-M0282801
...
50
Screw WPL-M0202842
...
51
Washer WPL-M0272605
...
52
Rivet-Pop WPL-59002054
...
53
Screw A-K WPL-M0227525
...
54
Screw WPL-WP3388228
...
55
Screw WPL-WP489349
...
56
Gasket WPL-A3030302
...
57
Screw WPL-M0213815
...
58
Screw-Sm/hex WPL-12990523
...
59
Screw WPL-M0217514
...
60
Clip WPL-M0113501
...
62
Gasket (Per Foot) WPL-A3030303
...
63
Gasket-Cavity Top WPL-10839709
...
64
Gasket (Per Foot) WPL-10839706
...
65
Spring A WPL-A3277701
...
66
Guide Screw A-K WPL-A3277801
...
67
Screw Adjusting A-K WPL-A3277601
...
68
Switch-L Intl A WPL-A3162510
...
69
Speed Nut A WPL-M0286114
...
72
Nut WPL-WP3195558
...
73
Clip WPL-B5667302
...
74
Screw WPL-WP489464
...
76
Clip WPL-M0288213
