product name

Amana RR-4D (BOM: P7110005M)

Model: RR-4D (BOM: P7110005M)

Save Part Not Listed?
product name

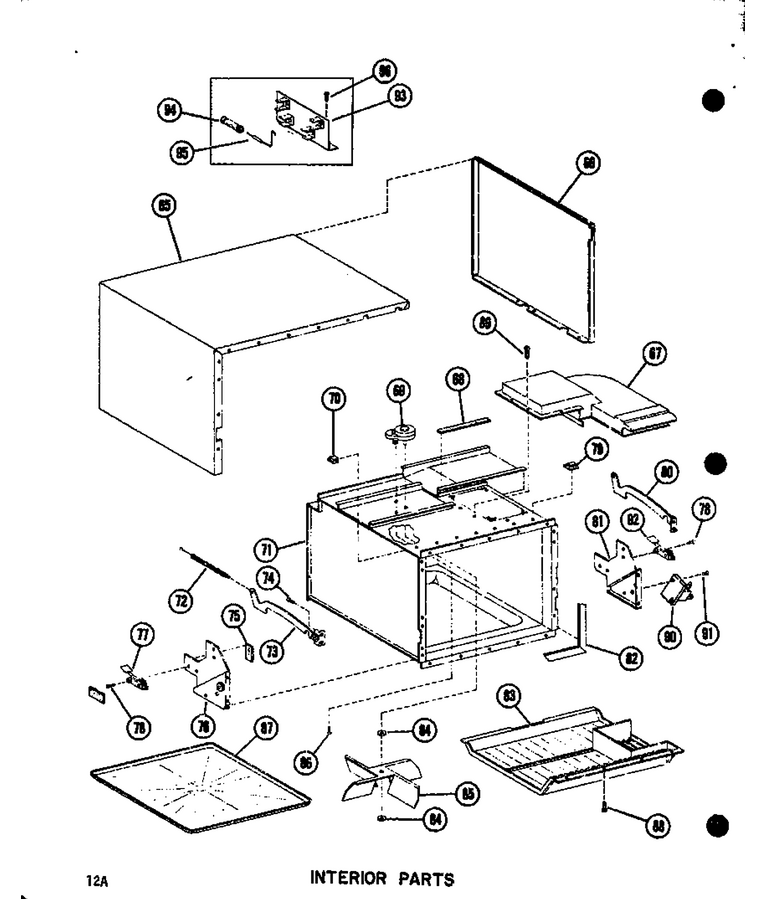

02 - Interior Parts

...
...
65
Wrapper, Outer Case WPL-C3688401
...
66
Access Panel WPL-C3689601
...
67
Duct, Air Discharge WPL-D7106003
...
68
Gasket WPL-A3030302
...
69
Motor WPL-B5602803
...
70
Clip WPL-M0114901
...
71
Weldment, Oven WPL-D7168302
...
72
Spring WPL-M0775001
...
73
Arm, Counterbalance, Left Hand WPL-B5693102
...
74
Screw WPL-WP59002061
...
75
X$x Pad WPL-M0050902
...
76
Bracket, Counterbalance, Left WPL-B5693203
...
77
Switch, Interlock, Left Hand WPL-A3162503
...
78
Screw A-K WPL-M0227525
...
79
Clip, Cord WPL-M0104102
...
80
Arm, Counterbalance, R.h. WPL-B5693101
...
81
Bracket, Counterbalance, Right WPL-B5693204
...
82
Gasket WPL-C3637201
...
83
Grease Shield WPL-D7352601
...
84
Washer WPL-A3109101
...
85
Fan Blade, Stirrer WPL-C3609101
...
86
Screw WPL-WP90767
...
87
Oven Tray WPL-R0156726
...
88
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
89
Screw WPL-M0230015
...
90
Relay, Time Delay WPL-B5688701
...
91
Screw, No.6x18x1/4 (3) WPL-487010
...
92
Switch, Interlock, Left Hand WPL-A3162503
...
93
Terminal Board A WPL-B5722001
...
94
Resistor Fuse Kit WPL-R0157332
...
95
Fuse WPL-M0308101
...
96
Screw WPL-M0230015

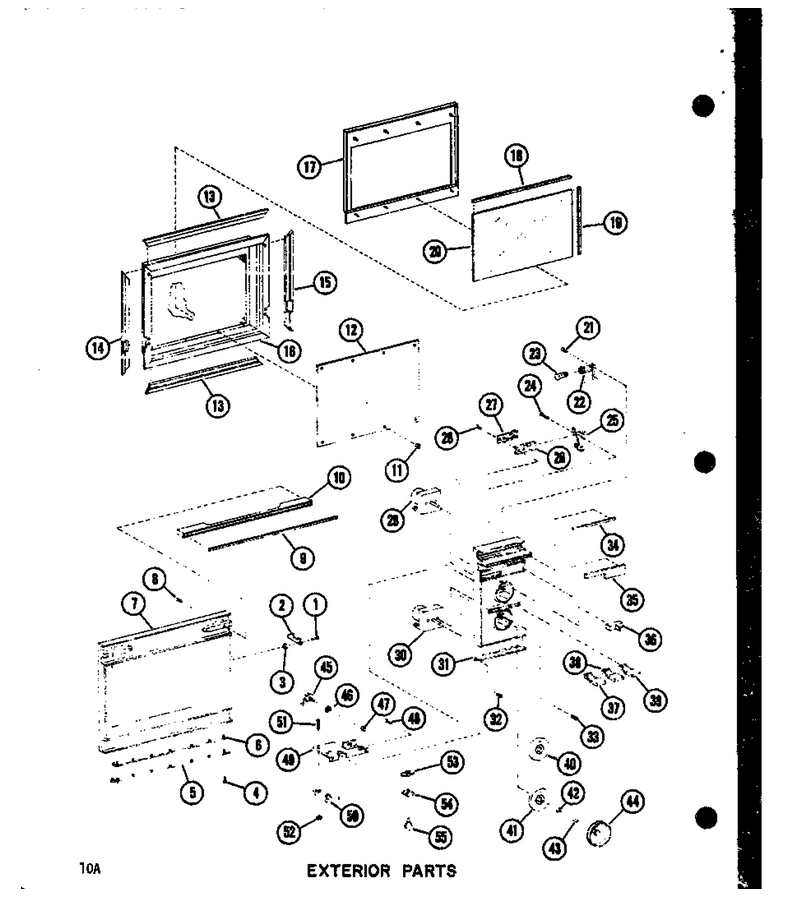

01 - Exterior Parts

...
...
1
Rivet WPL-A3183901
...
2
Latch, Door WPL-A3183001
...
3
Nut WPL-M0287401
...
4
Screw WPL-M0214503
...
5
Hinge WPL-B5603203
...
6
Shim WPL-A3127101
...
7
Door Outer WPL-D7186801
...
8
Screw, No.6x18x1/4 (3) WPL-487010
...
9
Insert-Handle WPL-B5604802
...
10
Handle WPL-D3964801
...
11
Nut WPL-717488
...
12
Window Outer A WPL-A3254901
...
13
Tape Per Roll WPL-M0275163
...
14
Gasket, Door, Left Side WPL-D7141306
...
15
Gasket Right A WPL-D7141305
...
16
Weldment, Inner Door WPL-C3605605
...
17
Molding Inner W WPL-D7106401
...
18
Gasket, Inner Window, 13-3/8`` WPL-A4591112
...
19
Gasket, Inner Window, 8-3/16`` WPL-A4591113
...
20
Inner Window A-K WPL-A3167901
...
21
Screw WPL-WP59002061
...
22
Socket K WPL-B5603103
...
23
Bulb-Light WPL-W10857122
...
24
Screw A-K WPL-M0227525
...
25
Switch, Cut-Off WPL-A3220701
...
26
Retainer WPL-B5699401
...
27
Spring WPL-B5699701
...
28
Screw WPL-WP59002061
...
29
Timer, 5 Minute WPL-B5631601
...
30
Timer, 30 Minute WPL-B5681902
...
31
Escutcheon, Control WPL-D7186501
...
32
Screw T.c WPL-M0229916
...
33
Screw WPL-WPW10068250
...
34
Insert- K WPL-B5703901
...
35
Name Plate- K WPL-C3654102
...
36
Bar Slide K WPL-C3694701
...
37
Start Button WPL-B5631004
...
38
Stop Button WPL-B5631005
...
39
Light Button WPL-B5631006
...
40
Escut Indicator K WPL-B5696001
...
41
Escut Indicator K WPL-B5696002
...
42
Bearing Knob K WPL-A3206801
...
43
Clip WPL-M0117001
...
44
Knob A WPL-D7028702
...
45
Switch WPL-M0340105
...
46
Nut A WPL-M0281401
...
47
Washer WPL-M0272511
...
48
Screw WPL-WP59002061
...
49
Bracket, Switch Mounting WPL-C3667602
...
50
Start Switch, Preform WPL-A3141503
...
51
Screw WPL-M0227520
...
52
Nut K WPL-M0282005
...
53
Cam WPL-A3127701
...
54
Bearing Insert WPL-A3134301
...
55
Cam,switch WPL-B5631101

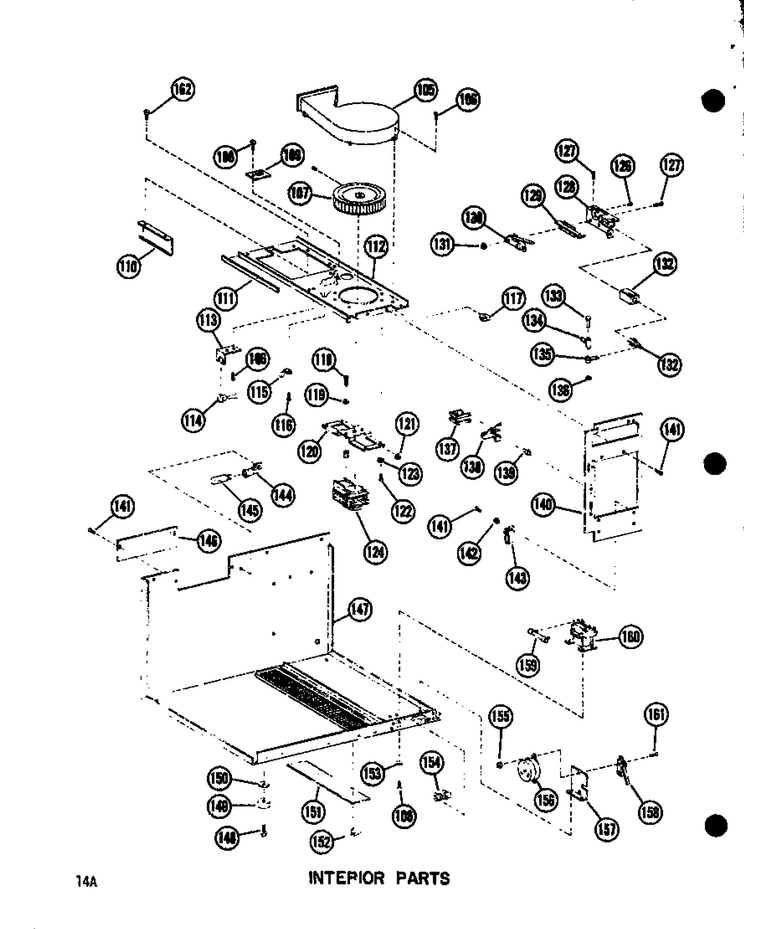

03 - Interior Parts

...
...
105
Scroll-Blower WPL-C3667301
...
106
Screw WPL-M0230015
...
107
Ass`y, Blower Wheel WPL-R0156050
...
108
Screw-Sm/hex WPL-12990523
...
109
Terminal Board WPL-B5607002
...
110
Support-Magnetron WPL-B5691601
...
111
Gasket WPL-A3030302
...
112
Bulkhead WPL-D7167801
...
113
Bracket-Cut Out WPL-B5680301
...
114
Thermal Cut-Out WPL-B5665803
...
115
Terminal WPL-M0320901
...
116
Screw WPL-WP90767
...
117
Grommet WPL-A4568702
...
118
Screw WPL-M0202642
...
119
Washer WPL-M0272605
...
120
Motor Mount WPL-B5647301
...
121
Clip, Waterline WPL-12454802
...
122
Screw WPL-M0219018
...
123
Washer WPL-M0270504
...
124
Motor- Blo WPL-C8793205
...
126
Screw WPL-M0201414
...
127
Screw WPL-M0227520
...
128
Bracket, Latch Switch WPL-C3666902
...
129
Spring, Latch WPL-A3148501
...
130
Switch Preform A WPL-A3163405
...
131
Nut K WPL-M0282005
...
132
Solenoid WPL-B5682101
...
133
Pin Bell-Crank WPL-A3182601
...
134
Bell Crank WPL-B5672502
...
135
Bell Crank WPL-B5672503
...
136
Washer WPL-M0270530
...
137
Spring-Reset Arm WPL-B5685302
...
138
Arm-Reset WPL-C3667501
...
139
Button-Reset Arm WPL-A3183103
...
140
Front-O C WPL-B5660203
...
141
Screw WPL-M0230015
...
142
Grommet WPL-M0500101
...
143
Buzzer WPL-A3152501
...
144
Socket-Oven Light WPL-B5691201
...
145
Bulb-Light WPL-WPA3167501
...
146
Panel-Bulb Access WPL-A3198101
...
147
Base Pan Wld WPL-C3639909
...
148
Screw WPL-M0221132
...
149
Foot WPL-M0011001
...
150
Washer WPL-M0270519
...
151
Filter WPL-A3094901
...
152
Clip WPL-M0111203
...
153
Eyelet K WPL-A0381401
...
154
Switch WPL-A3116201
...
155
Nut K WPL-M0282005
...
156
Timer WPL-B5699801
...
157
Bracket WPL-B5699601
...
158
Switch, Cut-Off WPL-A3220701
...
159
Resistor, Relay A WPL-M0305007
...
160
Relay A WPL-C3656303
...
161
Screw WPL-M0227520
...
162
Screw-Sm/hex WPL-12990523
