Amana RR-4 (BOM: P7110002M)

Model: RR-4 (BOM: P7110002M)

Save Part Not Listed?
product name

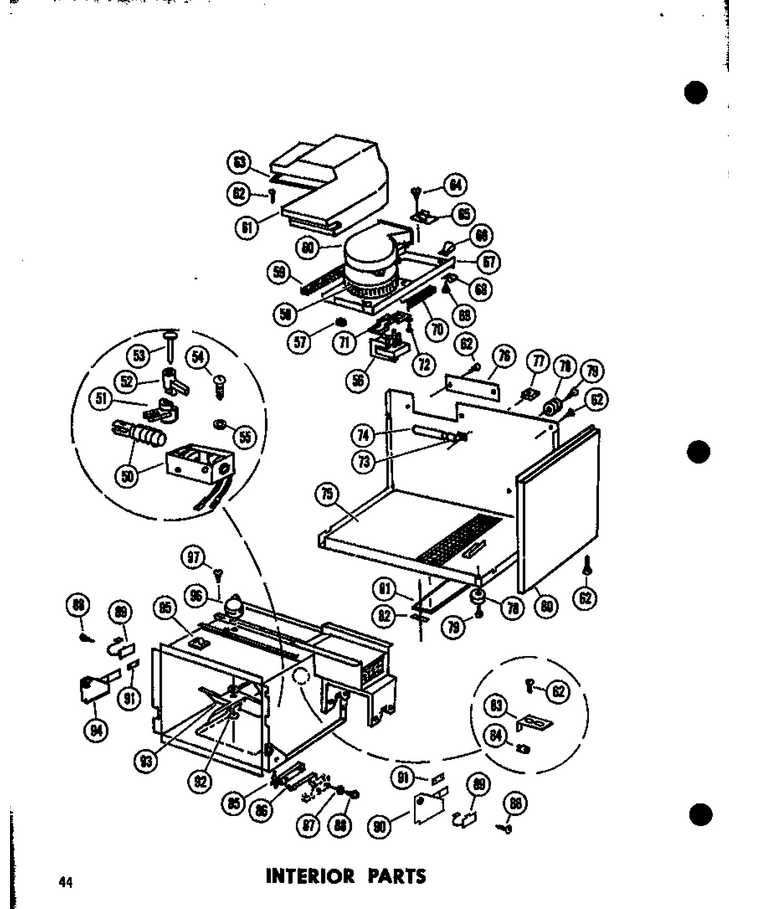

03 - Interior Parts

...
...
50
Solenoid WPL-B5682101
...
51
Bell Crank WPL-B5672503
...
52
Bell Crank WPL-B5672502
...
53
Pin Bell-Crank WPL-A3182601
...
54
Screw WPL-M0232012
...
55
Washer WPL-M0270524
...
56
Motor- Blo WPL-C8793205
...
57
Grommet WPL-A4568702
...
58
Ass`y, Blower Wheel WPL-R0156050
...
59
Gasket WPL-A3030302
...
60
Scroll-Blower WPL-C3667301
...
61
Duct, Air Discharge WPL-D7106003
...
62
Screw WPL-M0230015
...
63
Gasket WPL-A3030302
...
64
Screw-Sm/hex WPL-12990523
...
65
Terminal Board WPL-B5607002
...
66
Clamp, Power Cord To Bulkhead WPL-M0102402
...
67
Bulkhead WPL-D7130801
...
68
Clamp, Wiring WPL-M0102310
...
69
Screw WPL-WP90767
...
70
Gasket WPL-A3030302
...
71
Motor Mount WPL-B5647301
...
72
Screw WPL-M0202642
...
73
Socket WPL-A3091004
...
74
Bulb-Light WPL-WPA3073101
...
75
Base Pan Wld WPL-C3639909
...
76
Panel WPL-A3092001
...
77
Speed Nut WPL-M0288302
...
78
Foot WPL-M0011001
...
79
Washer WPL-M0270519
...
80
Access Panel WPL-C3673101
...
81
Filter WPL-A3094901
...
82
Clip WPL-M0111203
...
83
Bracket-Cut Out WPL-B5680301
...
84
Thermal Cut-Out WPL-B5665802
...
85
Switch Preform A WPL-A3163405
...
86
Spring, Latch WPL-A3148501
...
87
Nut K WPL-M0282005
...
88
Sems Fastner WPL-M0256821
...
89
Switch Preformed WPL-A3171604
...
90
Bracket, Counterbalance, Right WPL-B5662102
...
91
Speed Nut WPL-M0289502
...
92
Washer WPL-A3109101
...
93
Fan Blade, Stirrer WPL-C3609101
...
94
Bracket, Counterbalance, Left WPL-B5662103
...
95
Clip WPL-WPM0104106
...
96
Motor WPL-B5602803
...
97
Screw WPL-WP90767

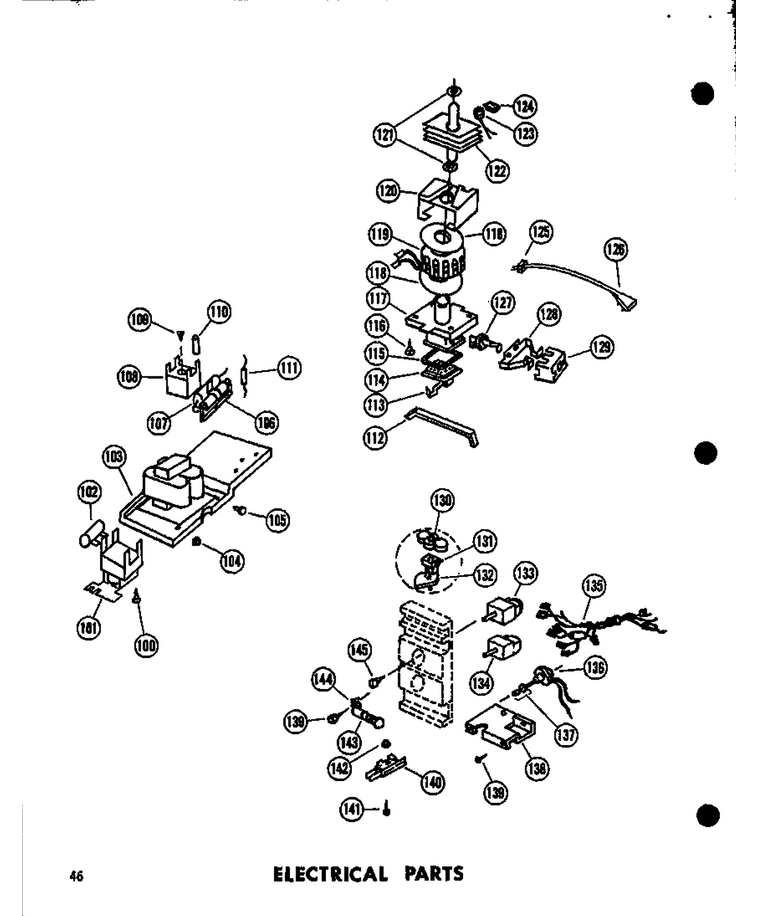

01 - Electrical Parts

...
...
100
Eyelet K WPL-A0381401
...
101
Relay A WPL-C3656303
...
102
Resistor, Relay A WPL-M0305007
...
103
Transformer K WPL-C3656001
...
104
Nut WPL-WP487939
...
105
Screw WPL-WP90767
...
106
Resistor,adj WPL-M0305101
...
107
Capacitor WPL-M0300201
...
108
Rectifier-Bridge K WPL-A3165201
...
109
Screw WPL-M0218116
...
110
Insulator, Term. K WPL-M0325301
...
111
Resistor WPL-M0305201
...
112
Retainer Bar WPL-A3164702
...
113
Bale Strap K WPL-A3145401
...
114
Cover Cap Box K WPL-B5647901
...
115
Gasket WPL-A3148701
...
116
Screw WPL-WP90767
...
117
Housing Plate Assy WPL-B5663702
...
118
Washer WPL-M0274028
...
119
Magnet Coil WPL-M0370602
...
120
Support WPL-C3596101
...
121
Washer WPL-B5621901
...
122
Magnetron WPL-M0371101
...
123
Thermal Prot WPL-M0370403
...
124
Clip WPL-M0115802
...
125
Strain Relief WPL-M0370001
...
126
Power Cord WPL-B5602302
...
127
Hex Nut WPL-M0281901
...
128
Clip K WPL-B5655902
...
129
Shield Hv K WPL-B5656001
...
130
Cam WPL-A3127701
...
131
Bearing Insert WPL-A3134301
...
132
Cam,switch WPL-B5631101
...
133
Timer, 5 Minute WPL-B5631601
...
134
Timer, 30 Minute WPL-B5630901
...
135
Wiring Harness WPL-D7148101
...
136
Switch, Oven Light WPL-M0340102
...
137
Washer WPL-M0272511
...
138
Bracket, Switch Mounting WPL-C3667601
...
139
Screw WPL-WP59002061
...
140
Start Switch, Preform WPL-A3141503
...
141
Sems Fastner WPL-M0256821
...
142
Nut K WPL-M0282005
...
143
Bulb-Light WPL-W10857122
...
144
Socket K WPL-B5603103
...
145
Screw WPL-WPW10068250

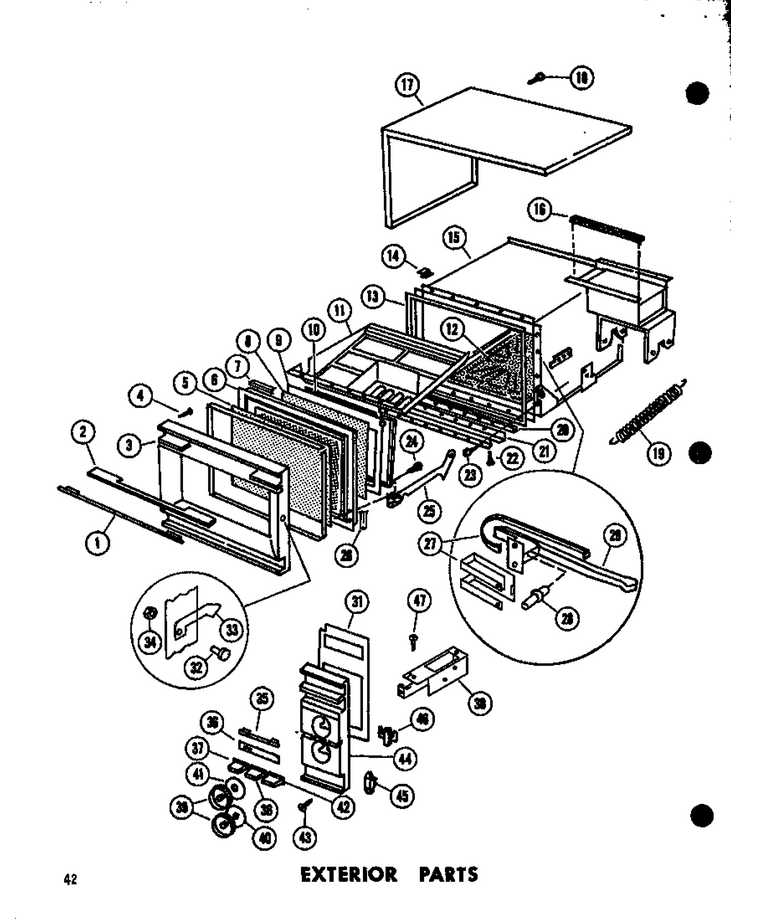

02 - Exterior Parts

...
...
1
Insert-Handle WPL-B5604802
...
2
Handle WPL-D3964801
...
3
Door Outer WPL-D7131901
...
4
Screw, No.6x18x1/4 (3) WPL-487010
...
5
Washer Non-Metal WPL-M0274032
...
6
Weldment, Inner Door WPL-C3605604
...
7
Gasket, Inner Window, 13-3/8`` WPL-A4591112
...
8
Inner Window A-K WPL-A3167901
...
9
Molding Inner W WPL-D7106401
...
10
Gasket Bottom A WPL-D7141303
...
11
Grease Shield WPL-D7352601
...
12
Oven Tray WPL-R0156726
...
13
Screw WPL-M0230015
...
14
Clip WPL-M0114901
...
15
Oven Wldmt WPL-D7131301
...
16
Gasket WPL-A3030302
...
17
Wrapper, Outer Case WPL-C3673001
...
18
Screw WPL-M0230015
...
19
Spring WPL-M0775001
...
20
Shim WPL-A3127102
...
21
Hinge, Door WPL-B5603202
...
22
Screw WPL-M0227501
...
23
Screw WPL-M0214503
...
24
Screw WPL-WP59002061
...
25
Counter Balance Lh WPL-B5642501
...
26
Gasket, Inner Window, 8-3/16`` WPL-A4591113
...
27
Spring-Reset Arm WPL-A3183501
...
28
Button-Reset Arm WPL-A3183103
...
29
Arm-Reset WPL-C3667501
...
30
Bracket, Solenoid & Latch Swit WPL-C3666901
...
31
Front-O C WPL-B5660203
...
32
Rivet WPL-A3183901
...
33
Latch, Door WPL-A3183001
...
34
Clip, Round, Push-On, Retainer WPL-A3184001
...
35
Insert- K WPL-B5703901
...
36
Name Plate K WPL-B5673201
...
37
Start Button WPL-B5631004
...
38
Stop Button WPL-B5631005
...
39
Clip WPL-M0117001
...
40
Gasket, Mullion, L.h. WPL-B5672802
...
41
Indicator, Escutcheon WPL-B5672801
...
42
Light Button WPL-B5631006
...
43
Screw T.c WPL-M0229916
...
44
Escutcheon, Control WPL-D7131701
...
45
Switch WPL-A3116201
...
46
Grommet WPL-M0500101
...
47
Screw WPL-M0230015
