Amana RR-1110 (BOM: P7605201M)

Model: RR-1110 (BOM: P7605201M)

Save Part Not Listed?
product name

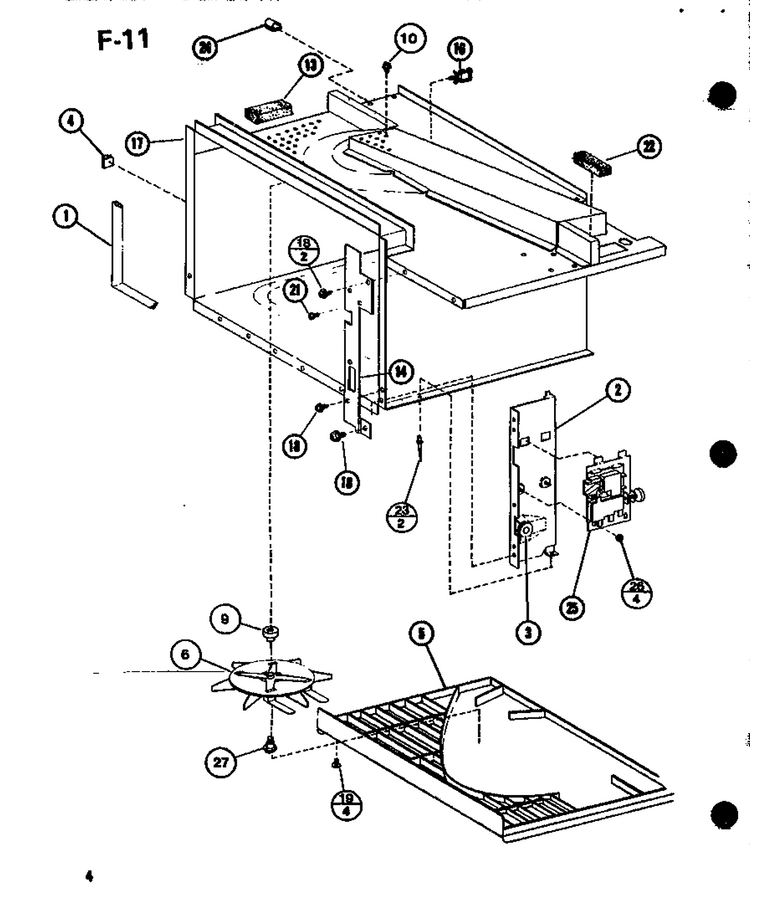

01 - Page 1

...
...
1
Gasket, Oven Cavity WPL-C8882101
...
2
Latch Bracket Rh Assy WPL-C8889602
...
3
Roller Assy Kit WPL-R0157145
...
4
Clip WPL-WPM0104106
...
5
Grease Shield WPL-D7544002
...
6
Antenna Assy WPL-C8920201
...
9
Knob WPL-B8358902
...
10
Screw WPL-M0259218
...
13
Gasket WPL-A3263902
...
14
Flange, Ov-Cov Pntd WPL-D7533902
...
16
Clip WPL-B5667303
...
17
Oven Cavity WPL-D7350517
...
18
Screw WPL-WP3388228
...
19
Screw WPL-WP489349
...
21
Screw WPL-M0217514
...
22
Gasket (per Foot) WPL-10839706
...
23
Rivet-Pop WPL-59002054
...
24
Clip WPL-M0118801
...
25
Switch, Interlock WPL-C8889905
...
26
Nut K WPL-M0282005
...
27
Screw Shoulder WPL-A1043002

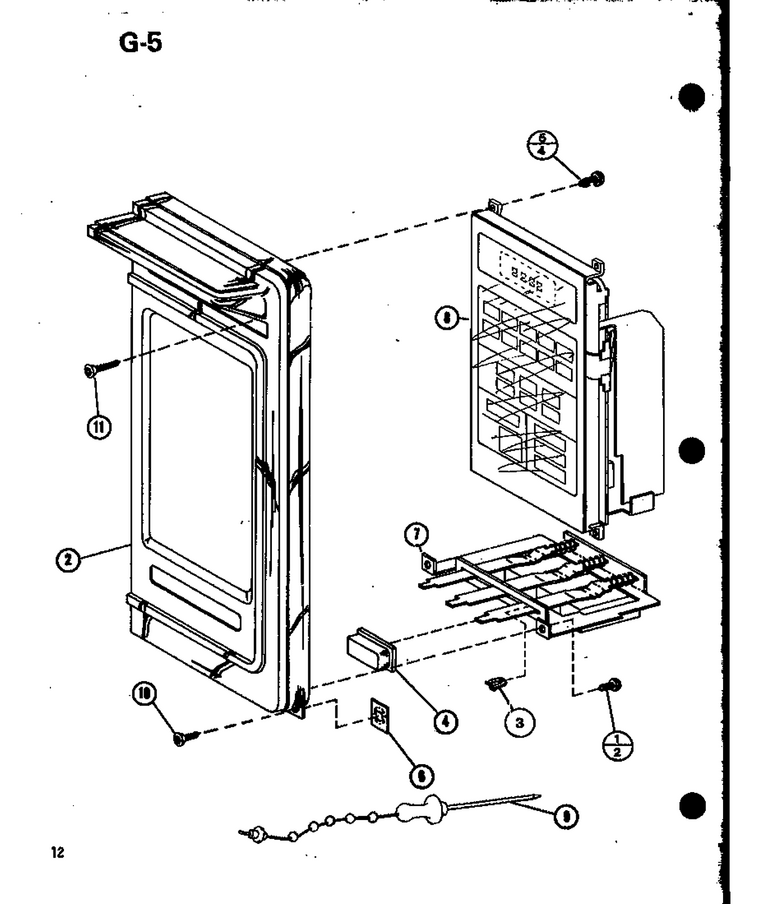

05 - Page 5

...
...
1
Screw WPL-W11084238
...
2
Escut. Control WPL-D7533801
...
3
Spring WPL-A1039301
...
4
Light Button WPL-C8869301
...
5
Screw WPL-WP59002061
...
6
Speed Nut K WPL-M0288301
...
7
Switch Ssl K WPL-D7546302
...
8
Module Rr1110 WPL-R163069A
...
9
Temp Probe WPL-C8821504
...
10
Screw, Tf WPL-M0231817
...
11
Screw Torx WPL-M0243324

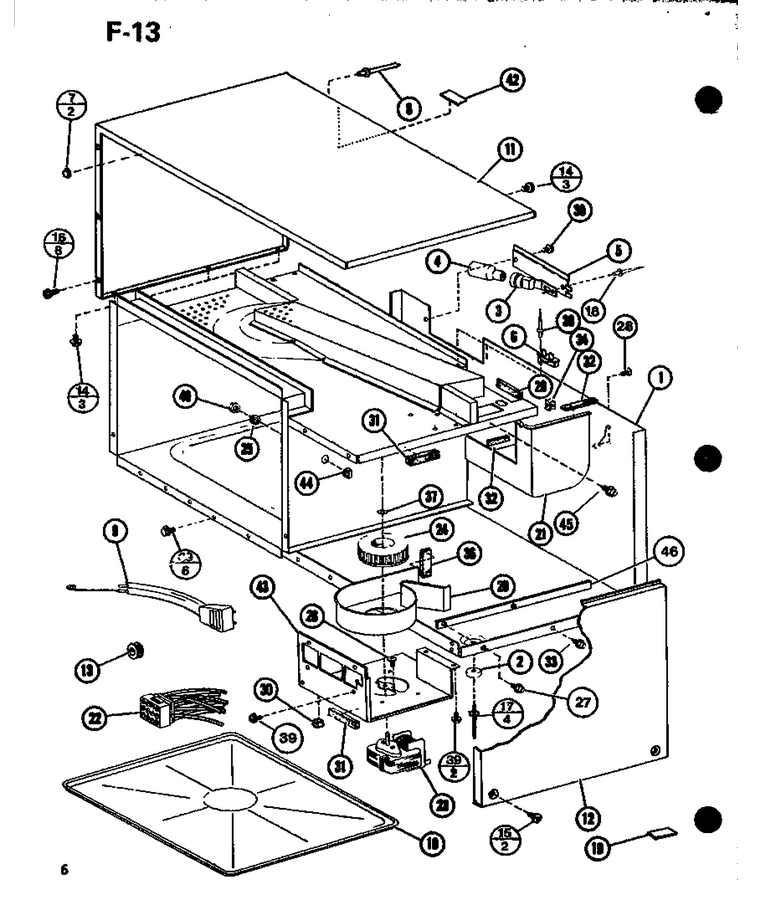

02 - Page 2

...
...
1
Base Pan WPL-D7506216
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Socket WPL-B5784001
...
4
Bulb-Light WPL-WPA3167501
...
5
Access Panel WPL-B5782906
...
6
Thermal Cut Out WPL-B5795302
...
7
Bumper WPL-A1511502
...
8
Rivet-Pop WPL-A4539615
...
9
Cord Set WPL-B8356001
...
10
Oven Tray WPL-R0156726
...
11
Outer Cabinet WPL-D7396704
...
12
Access Panel WPL-D7396803
...
13
Strain Relief WPL-M0370008
...
14
Screw WPL-WP3388228
...
15
Screw Torx WPL-M0243324
...
16
Screw-Sm/hex WPL-12990523
...
17
Gasket WPL-A3263902
...
18
Rivet-Pop WPL-59002054
...
19
Seal K WPL-B5738501
...
20
Scroll WPL-D7609401
...
21
Magnetron Cover WPL-D7349003
...
22
Wiring Harness WPL-D7611501
...
23
Motor- Blo WPL-C8793205
...
24
Blower Wheel WPL-C8793501
...
25
Washer WPL-M0270536
...
26
Screw WPL-WP3400094
...
27
Screw WPL-WP90767
...
28
Screw WPL-M0216519
...
29
Gasket WPL-A3030302
...
30
Clip WPL-M0110508
...
31
Gasket (per Foot) WPL-A3030303
...
32
Gasket (per Foot) WPL-10839706
...
33
Screw WPL-WP489464
...
34
Clip WPL-M0288213
...
36
Gasket-Cavity Top WPL-10839709
...
37
Nut WPL-WP3195558
...
38
Rivet WPL-WP210720
...
39
Screw WPL-WP3388228
...
40
Nut K WPL-M0281405
...
42
Tape Alum WPL-M0275166
...
43
Mtg Plate WPL-D7533302
...
44
Temp Probe Jack K WPL-B8355401
...
45
Screw WPL-WP489349
...
46
Brace, Base Pan WPL-B8356701

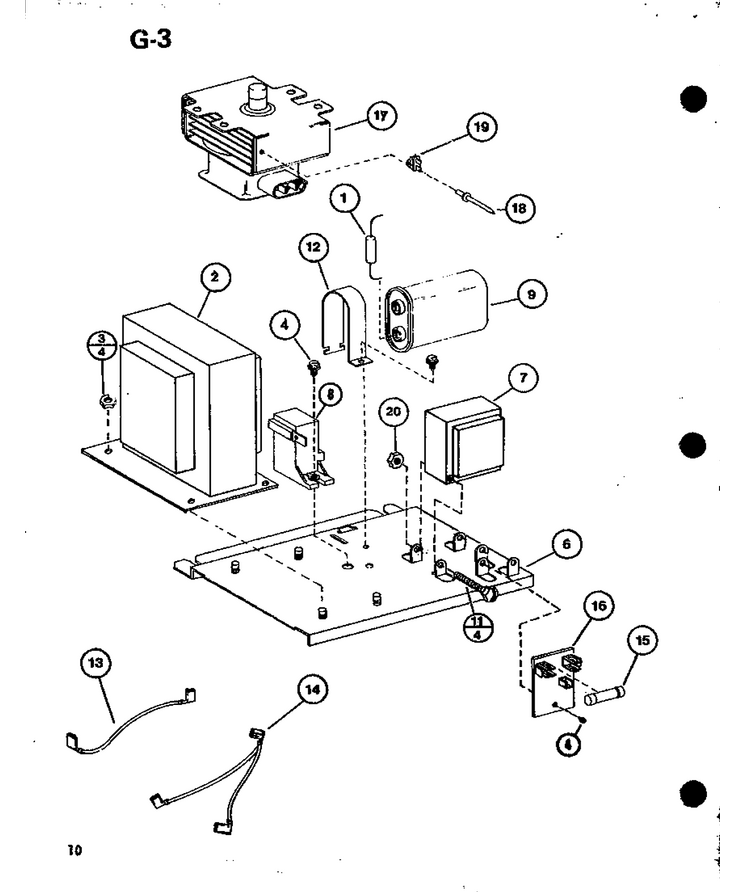

04 - Page 4

...
...
1
Resistor Assy WPL-A1001901
...
2
Transformer WPL-D7374904
...
3
Nut WPL-WP487939
...
4
Screw WPL-WP489349
...
6
Transformer Plate WPL-D7422903
...
7
Trans Filament WPL-C8798801
...
8
Kit, Diode WPL-M3D71
...
9
Oil-Filled Capacitor WPL-C8790510
...
11
Screw WPL-M0253509
...
12
Strap-Capacitor WPL-A3257001
...
13
H.v. Wire Jumper, Fuse Board, WPL-D7292612
...
14
Jumper Wire WPL-D7292653
...
15
Fuse 20 A WPL-WPM0805101
...
16
Board-Term WPL-C8988701
...
17
Kit, Magnetron WPL-C8798602
...
18
Rivet WPL-WP210720
...
19
Fuse- Ther WPL-59001951
...
20
Nut K WPL-M0282005

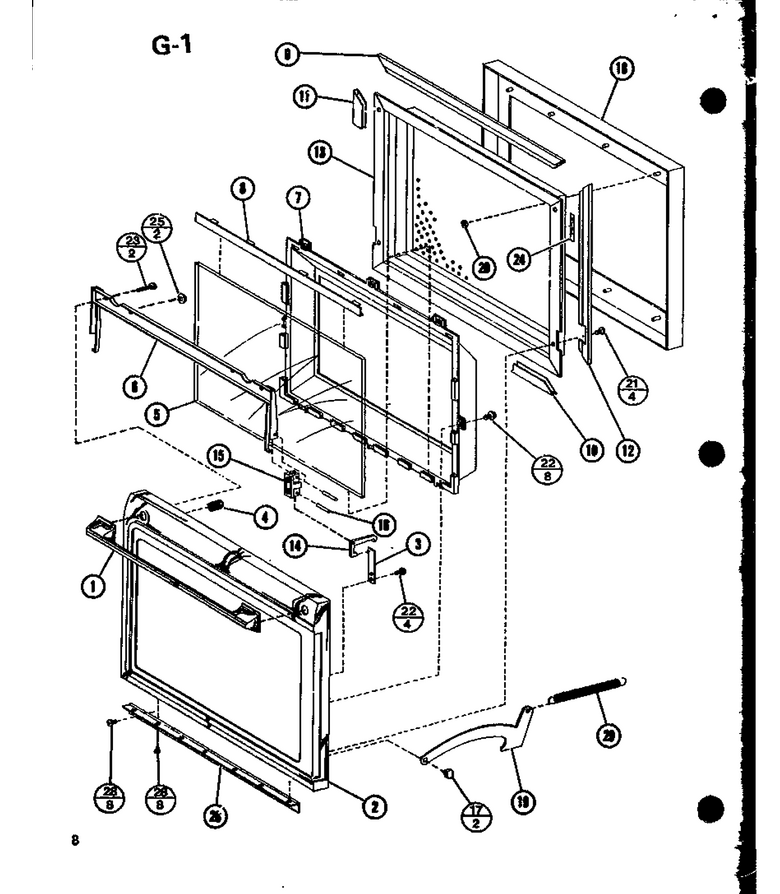

03 - Page 3

...
...
1
Handle, Door WPL-D7517701
...
2
Outer Door WPL-D7533701
...
3
Spring Latch WPL-A1008501
...
4
Spring, Handle WPL-A1030101
...
5
Outer Window WPL-D7534003
...
6
Handle Lever Weld WPL-B8340901
...
7
Retainer WPL-D7533601
...
8
Cap Lens Retainer WPL-D7533502
...
9
Gasket, Door WPL-D7542001
...
10
Gasket, Door WPL-D7542002
...
11
Gasket, Door WPL-D7542003
...
12
Gasket, Door WPL-D7542004
...
13
Inner Door Assy WPL-C8755403
...
14
Latch Hook WPL-B8333802
...
15
Pivot Block WPL-C8885101
...
16
Pin A WPL-M1200106
...
17
Pin Counterbalance WPL-A1028501
...
18
Inner Door Mold Assy WPL-D7564601
...
19
Counterbalance Arm WPL-C8890601
...
20
Nut WPL-717488
...
21
Screw WPL-M0259218
...
22
Screw WPL-WP59002061
...
23
Screw WPL-WPW10068250
...
24
Tape Per Roll WPL-M0275163
...
25
Bumper Rubber WPL-B8344702
...
26
Hinge WPL-C8886601
...
28
Screw WPL-M0259203
...
29
Spring Dr Latch K WPL-C8893501
