Amana RO-8B (BOM: P7406301M)

Model: RO-8B (BOM: P7406301M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

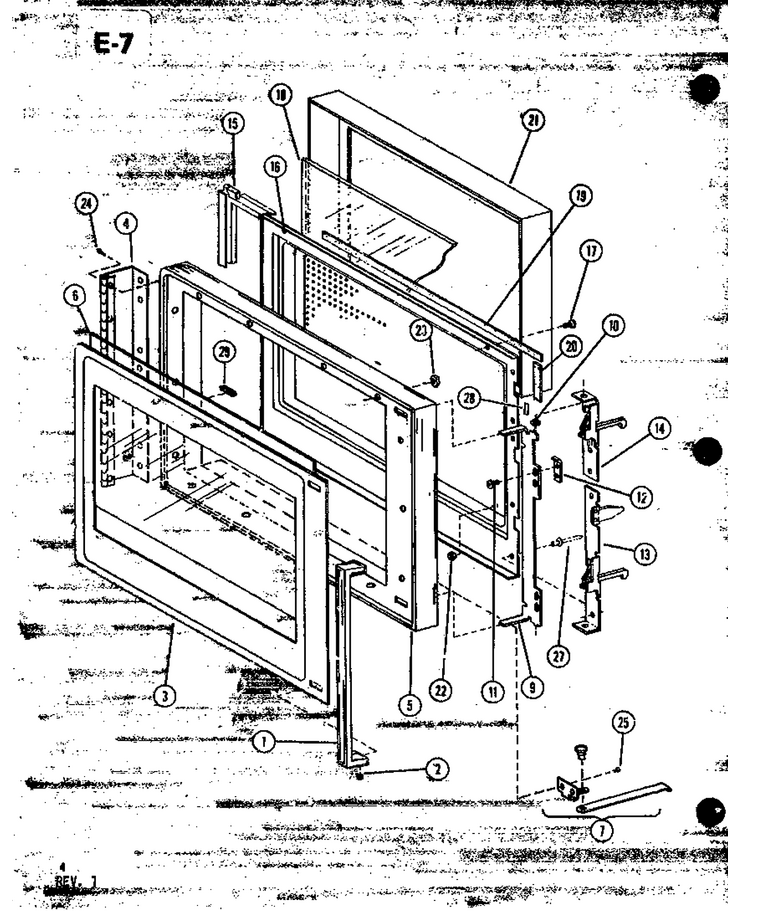

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8853001
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
7
Arm Door Stop Assy WPL-R0189027
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320006
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0258518
...
18
Inner Window A-K WPL-A3167901
...
19
Gasket Window A-K WPL-A3264601
...
20
Gasket Window A-K WPL-A3264602
...
21
Inner Door Mold Assy WPL-D7240304
...
22
Nut WPL-717488
...
23
Nut WPL-M0288806
...
24
Screw WPL-214597
...
25
Screw WPL-M0232702
...
27
Rivet-Pop WPL-59002054
...
28
Tape Per Roll WPL-M0275163
...
29
Gasket 1 WPL-10839714

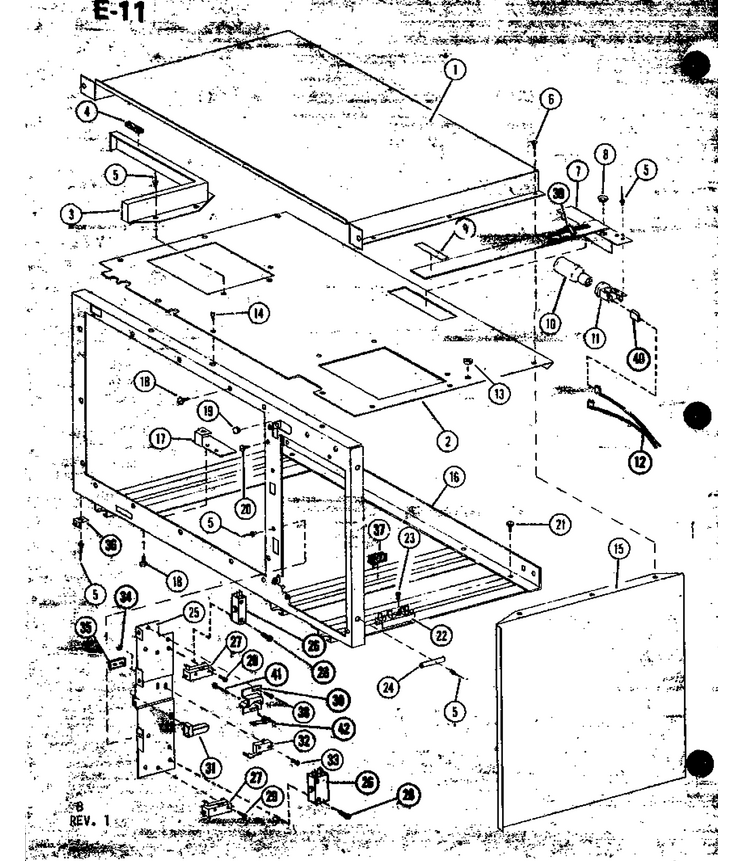

03 - Page 3

...
...
1
Air Duct Painted WPL-D7298402
...
2
Top Wrapper WPL-D7460502
...
3
Air Baffle WPL-C8857002
...
4
Gasket,per Ft WPL-A30303-30
...
5
Rivet-Pop WPL-59002054
...
6
Screw WPL-M0213815
...
7
Light Holder WPL-D8529904
...
8
Bushing (Blk) WPL-74009866
...
9
Tape, Vinyl WPL-M0275106
...
10
Bulb-Light WPL-WPA3167501
...
11
Socket-Oven Light WPL-B5742001
...
12
Wiring Harness WPL-C8820101
...
13
Strain, Relief WPL-M0370005
...
14
Screw T.c WPL-M0229916
...
15
Side Oc WPL-D7298301
...
16
Yoke Pntd WPL-D7353114
...
17
Bracket WPL-B8316401
...
18
Screw WPL-WP489349
...
19
Bumper WPL-A1511502
...
20
Screw WPL-WP488234
...
21
Screw WPL-M0220114
...
22
Terminal Block WPL-B5677203
...
23
Screw WPL-8169474
...
24
Bracket WPL-B8319701
...
25
Bracket, Switch Mounting WPL-D7446101
...
27
Limit Switch WPL-C2724308
...
29
Screw WPL-M0227520
...
30
Door Catch WPL-B8316501
...
31
Sleeve, Door Guide WPL-C8840401
...
32
Limit Switch WPL-B8306602
...
33
Screw K WPL-M0229005
...
35
Nut A WPL-M0289504
...
36
Fastener WPL-B8319801
...
37
Gasket-Per Ft WPL-A3030340
...
38
Screw A K WPL-M0211516
...
39
Clip-Cable WPL-M0110504
...
40
Insulator, Pod K WPL-M0325501

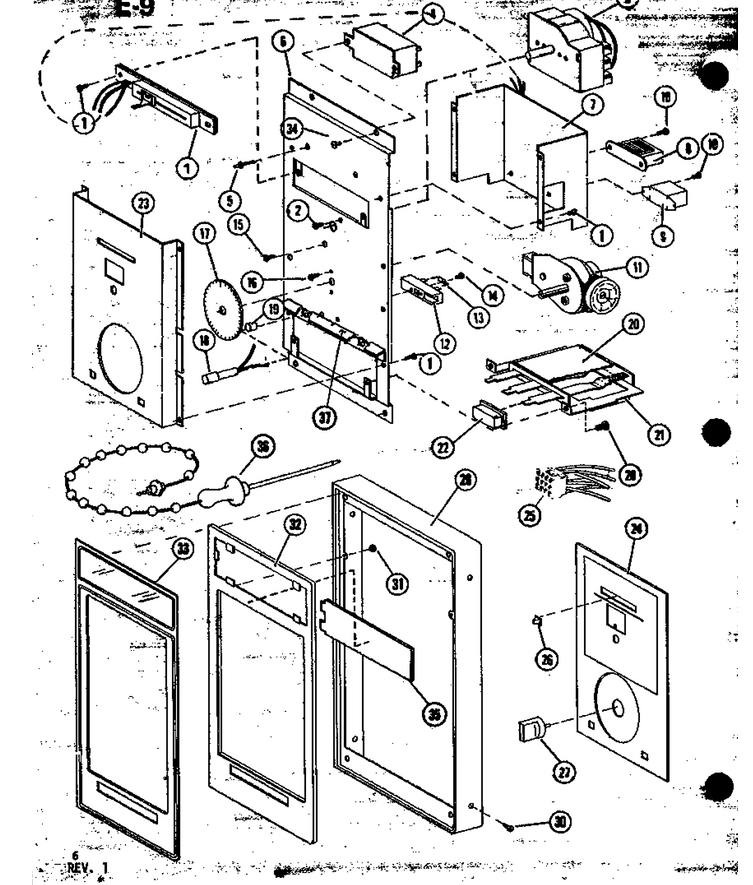

02 - Page 2

...
...
1
Screw WPL-M0213815
...
2
Screw WPL-8169474
...
3
Timer Percent A WPL-C8843701
...
4
Relay K WPL-B5773502
...
5
Rivet-Pop WPL-A4539638
...
6
Plate WPL-D7440701
...
7
Temp Contr Assy WPL-C8843606
...
8
Transformer WPL-C8845602
...
9
Kit, Relay WPL-C8845501
...
10
Screw WPL-WP59002061
...
11
Timer WPL-C8791705
...
12
Terminal Block WPL-B5677205
...
13
Resistor WPL-M0305205
...
14
Screw, No.6x18x1/4 (3) WPL-487010
...
15
Screw A WPL-M0228018
...
16
Screw WPL-M0234402
...
17
Disk, Timer WPL-C8730415
...
18
Indicator Light WPL-B5020003
...
19
Spacer WPL-A4422102
...
20
Insulator Bd A WPL-A1024501
...
21
Switch Ssl K WPL-C8787802
...
22
Button (Stop) K WPL-C8743108
...
23
Sub Plate WPL-D7467501
...
24
Lens Timer WPL-C8860002
...
25
Harness WPL-D7503201
...
26
Knob WPL-B5776201
...
27
Knob WPL-C8735901
...
28
Screw WPL-M0234003
...
29
Casting,cont.esc WPL-D7455501
...
30
Screw WPL-WP8281236
...
31
Speednut WPL-M0120301
...
32
Lens WPL-D7457401
...
33
Lens WPL-D7457501
...
34
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
35
Nameplate WPL-B8318901
...
36
Temp Probe WPL-C8821504

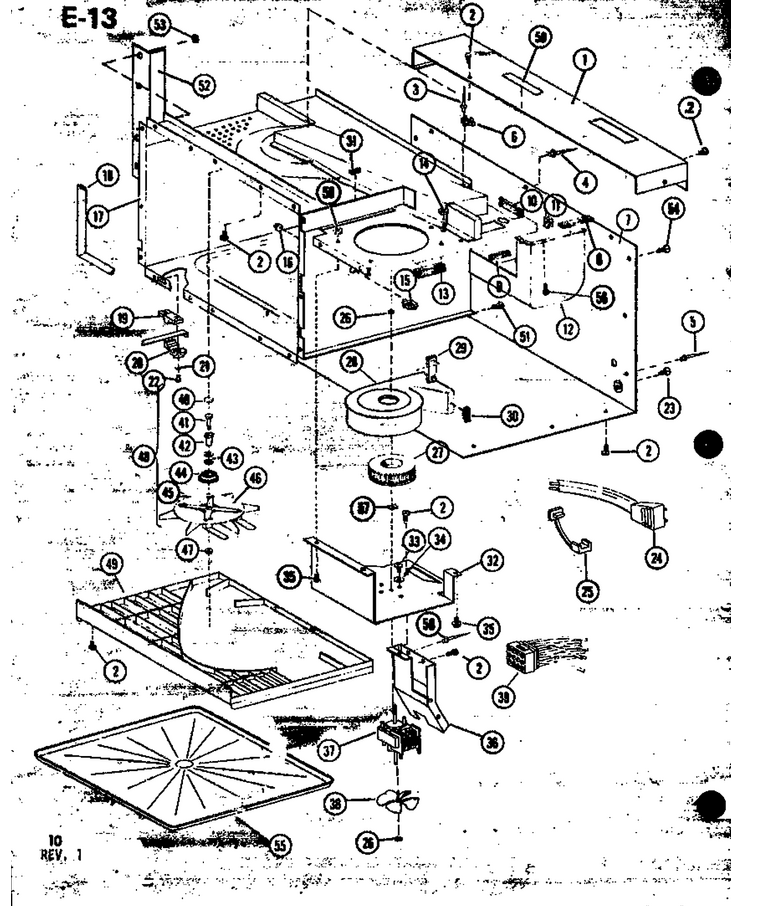

04 - Page 4

...
...
1
Duct Back Weld WPL-C8847202
...
2
Screw WPL-M0213815
...
3
Rivet WPL-WP210720
...
4
Pop Rivet WPL-A4539619
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795303
...
7
Base Pan WPL-D7470402
...
8
Gasket (Per Foot) WPL-A3030313
...
9
Gasket (Per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349002
...
13
Gasket 1/2 By 3/8 WPL-10839716
...
14
Lock-Nut---K WPL-M0282801
...
15
Switch-Jack WPL-C8845401
...
16
Nut-Decorative WPL-A3275701
...
17
Oven Weld WPL-D7350516
...
18
Gasket Oven Cavity WPL-D7442201
...
19
Bushing WPL-C3696902
...
20
Bushing WPL-C3696903
...
21
Clip,hairpin WPL-A3171501
...
22
Pin-Door Stop WPL-A3222601
...
23
Screw K WPL-M0253543
...
24
Cord, Power WPL-1731300208
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
31
Gasket-Per Ft WPL-A3030329
...
32
Bracket WPL-C8847301
...
33
Screw WPL-M0202842
...
34
Washer WPL-M0272605
...
35
Screw WPL-WP489349
...
36
Air Chute Assy WPL-C8848601
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Harness WPL-D7503001
...
40
Bearing Cap WPL-B5792601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing-Antenna A WPL-B5783001
...
43
Washer WPL-M0274044
...
44
Bushing A WPL-C8838501
...
45
Assy, Antenna WPL-C8806701
...
46
Rotor A WPL-C8806002
...
47
Nut A WPL-M0281203
...
48
Assy, Antenna WPL-C8806701
...
49
Grease Shield WPL-D7544002
...
50
Tape Alum WPL-M0275166
...
51
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
52
Plate Back Up WPL-C8853401
...
53
Nut WPL-M0282009
...
54
Screw WPL-8169474
...
55
Oven Tray WPL-R0156726
...
56
Screw-Sm/hex WPL-12990523

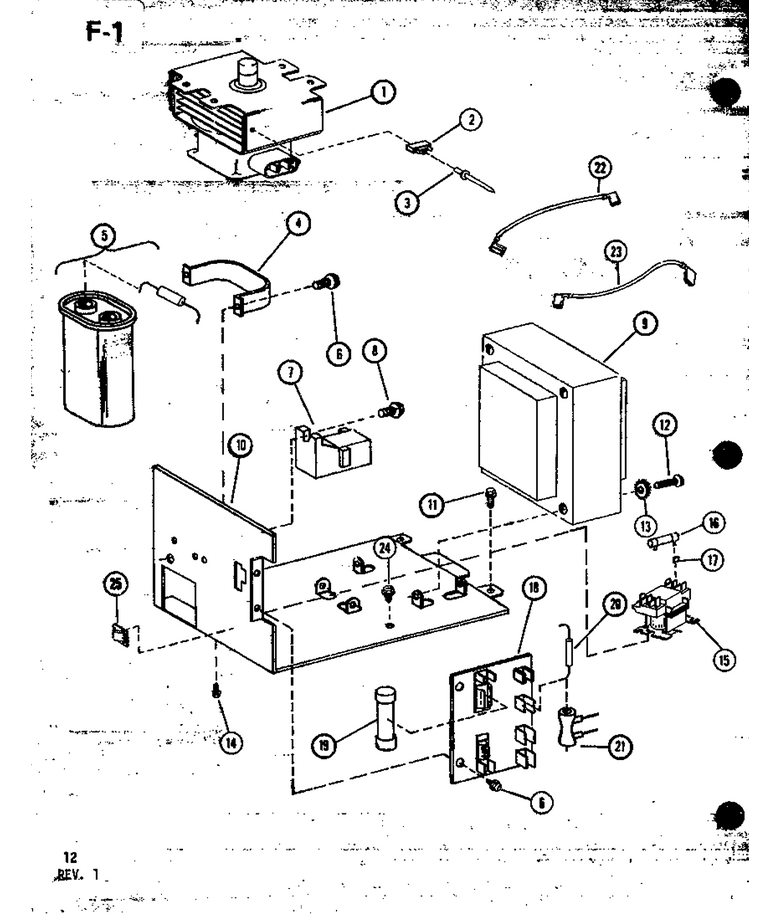

05 - Page 5

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-WP3388228
...
9
Transformer WPL-D7391401
...
10
Plate-Trans Mtg WPL-D7442102
...
11
Screw WPL-M0220114
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
14
Screw WPL-M0253916
...
15
Relay A WPL-C3656303
...
16
Resistor, Relay A WPL-M0305007
...
17
Terminal Pb A WPL-M0320704
...
18
Terminal Board WPL-C8841603
...
19
Fuse-20a WPL-M0850507
...
20
Fuse WPL-M0308110
...
21
Resistor K WPL-M0308607
...
22
Jumper Wire WPL-D7292627
...
23
Jumper Wire WPL-D7292655
...
24
Sems Fastener WPL-YM0258229
...
25
Clip, Cord WPL-M0104102
