Amana RO-10A (BOM: P7406703M)

Model: RO-10A (BOM: P7406703M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

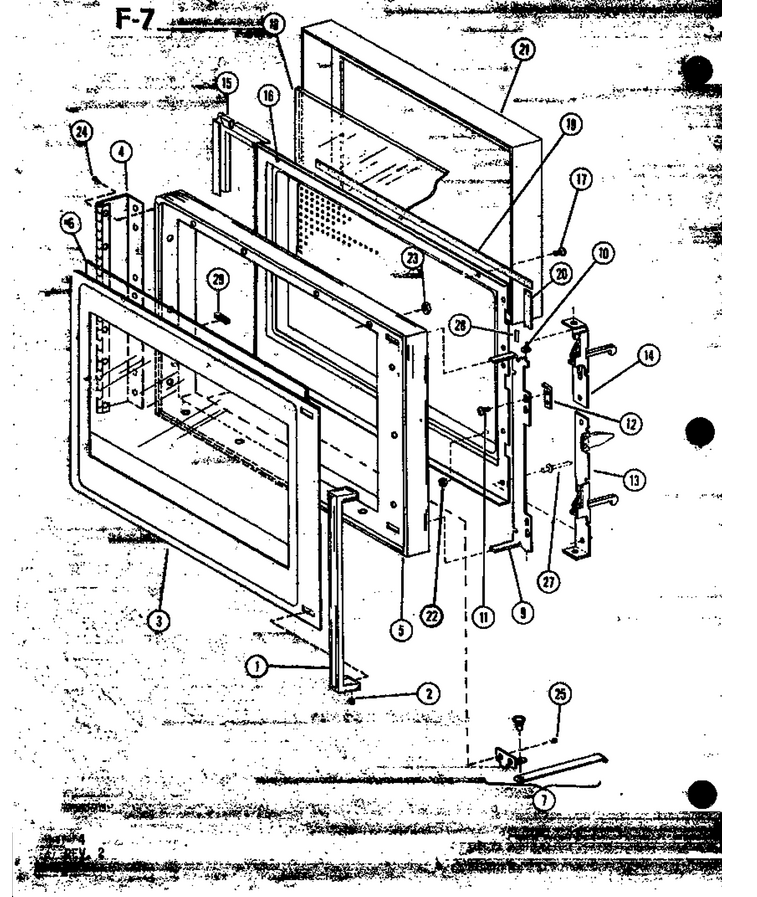

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8853001
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
7
Arm Door Stop Assy WPL-R0189027
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320006
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0258518
...
18
Inner Window A-K WPL-A3167901
...
19
Gasket Window A-K WPL-A3264601
...
20
Gasket Window A-K WPL-A3264602
...
21
Inner Door Mold Assy WPL-D7240304
...
22
Nut WPL-717488
...
23
Nut WPL-M0288806
...
24
Screw WPL-214597
...
25
Screw WPL-M0232702
...
27
Rivet-Pop WPL-59002054
...
28
Tape Per Roll WPL-M0275163
...
29
Gasket 1 WPL-10839714

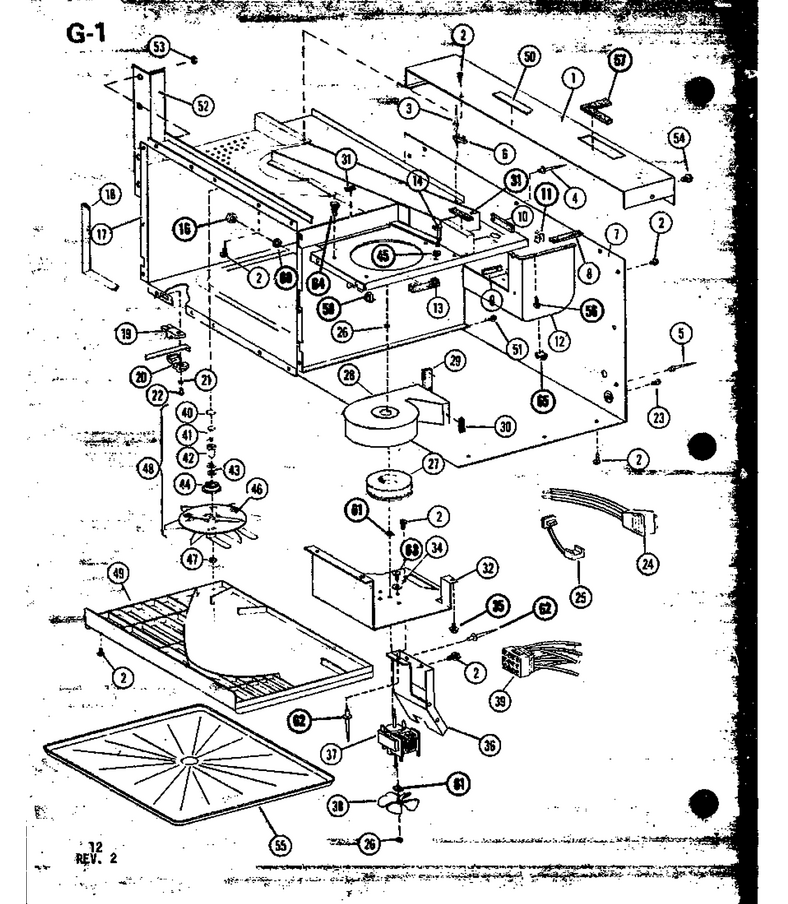

04 - Page 5

...
...
1
Duct Weld Pnt WPL-D7529510
...
2
Screw WPL-M0213815
...
3
Rivet WPL-WP210720
...
4
Pop Rivet WPL-A4539619
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795303
...
7
Base Pan WPL-D7470402
...
8
Gasket (per Foot) WPL-A3030313
...
9
Gasket (per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349002
...
13
Gasket 1/2 By 3/8 WPL-10839716
...
14
Lock-Nut---K WPL-M0282801
...
16
Nut-Decorative WPL-A3275701
...
17
Oven Weld WPL-D7350516
...
18
Gasket Oven Cavity WPL-D7442201
...
19
Bushing WPL-C3696902
...
20
Bushing WPL-C3696903
...
21
Clip,hairpin WPL-A3171501
...
22
Pin-Door Stop WPL-A3222601
...
23
Screw K WPL-M0253543
...
24
Cord, Power WPL-1731300208
...
25
Strain Relief WPL-M0370001
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
31
Gasket-Per Ft WPL-A3030329
...
32
Bracket WPL-C8847301
...
34
Washer WPL-M0272605
...
35
Screw WPL-WP59002061
...
36
Air Chute Assy WPL-C8848601
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Wiring Harness WPL-D7447901
...
40
Bearing Cap WPL-B5792601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing-Antenna A WPL-B5783001
...
43
Washer WPL-M0274044
...
44
Bushing A WPL-C8838501
...
45
Nut K WPL-M0282005
...
46
Assy, Antenna WPL-C8806701
...
47
Nut A WPL-M0281203
...
48
Assy, Antenna WPL-C8806701
...
49
Grease Shield WPL-D7544002
...
50
Tape, Foil 1.25 X 12`` WPL-74003472
...
51
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
52
Plate Back Up WPL-C8853401
...
53
Nut WPL-M0282009
...
54
Screw WPL-8169474
...
55
Oven Tray WPL-R0156726
...
56
Screw-Sm/hex WPL-12990523
...
58
Jack Assembly WPL-A3275602
...
63
Screw WPL-M0202842

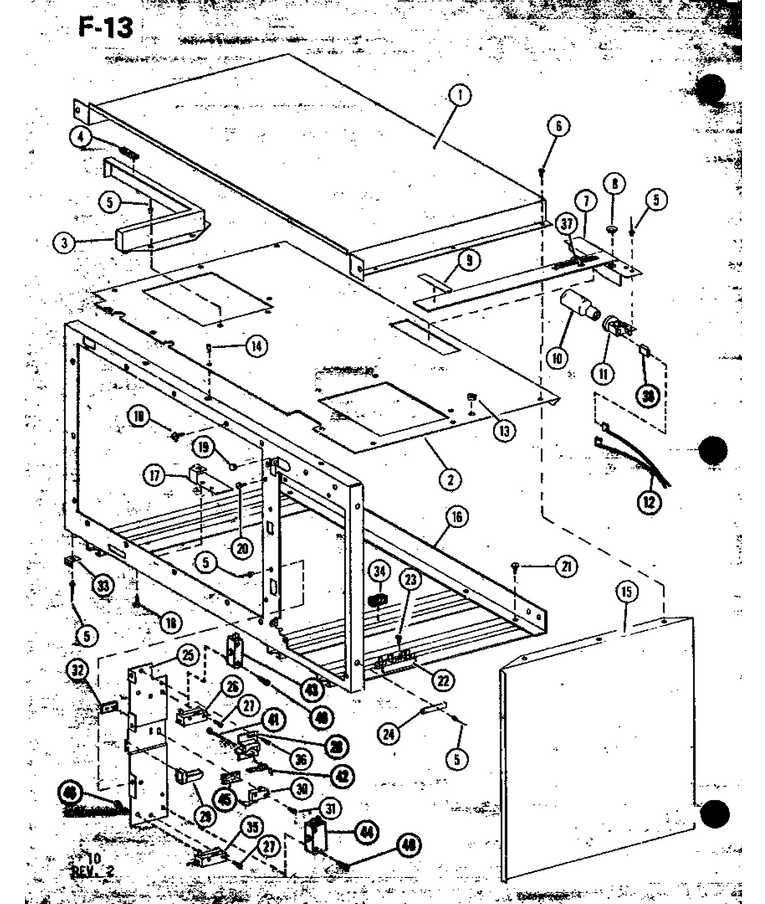

03 - Page 4

...
...
1
Air Duct Painted WPL-D7298402
...
2
Top Wrapper WPL-D7460502
...
3
Air Baffle WPL-C8857002
...
4
Gasket,per Ft WPL-A30303-30
...
5
Rivet-Pop WPL-59002054
...
6
Screw WPL-M0213815
...
7
Light Holder WPL-D8529904
...
8
Bushing (blk) WPL-74009866
...
9
Tape, Vinyl WPL-M0275106
...
10
Bulb-Light WPL-WPA3167501
...
11
Lampholder WPL-B5691206
...
12
Power Harness WPL-C8894101
...
13
Strain, Relief WPL-M0370005
...
14
Screw T.c WPL-M0229916
...
15
Side Oc WPL-D7298301
...
16
Yoke Pntd WPL-D7353124
...
17
Bracket WPL-B8316401
...
18
Screw WPL-WP489349
...
19
Bumper WPL-A1511502
...
20
Screw WPL-WP488234
...
21
Screw WPL-M0220114
...
22
Terminal Block WPL-B5677203
...
23
Screw, No.6x18x1/4 (3) WPL-487010
...
24
Bracket WPL-B8319701
...
25
Bracket WPL-D7545101
...
28
Door Catch WPL-C8889701
...
29
Door Guide,sleeve WPL-C8840402
...
30
Limit Switch WPL-B8306602
...
31
Screw K WPL-M0229005
...
33
Fastener WPL-B8319801
...
34
Gasket-Per Ft WPL-A3030340
...
36
Screw A K WPL-M0211516
...
37
Clip-Cable WPL-M0110504
...
38
Insulator, Pod K WPL-M0325501
...
40
Screw WPL-M0227520
...
41
Pin Bell-Crank WPL-A3182601
...
42
Lever WPL-B8305701
...
43
Switch, Limit WPL-C8842003
...
44
Switch Limit WPL-C8842004
...
46
Nut K WPL-M0282005

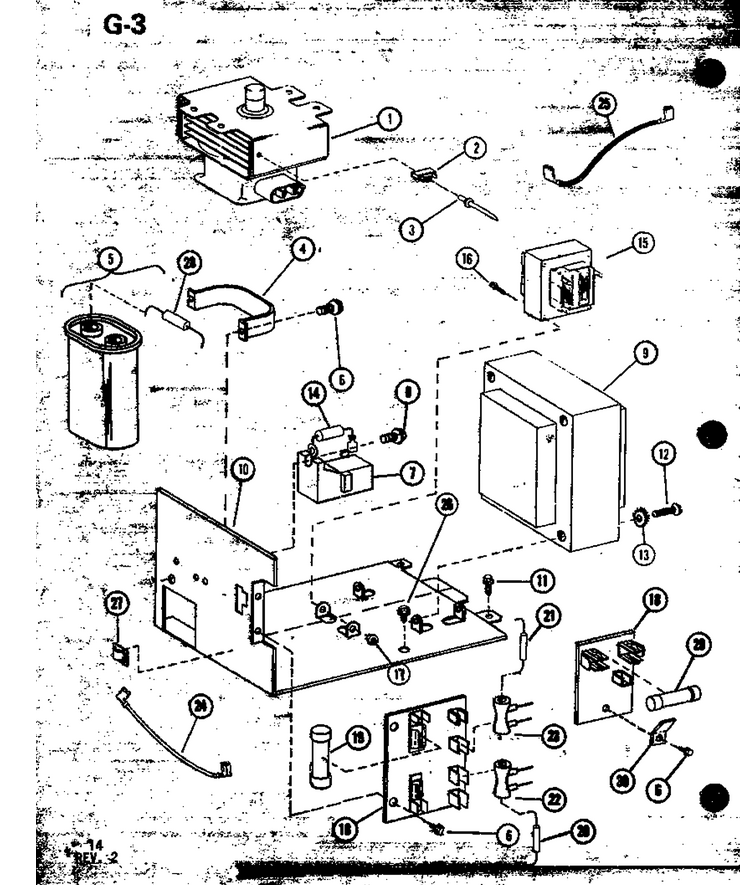

05 - Page 6

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-WP3388228
...
9
Transformer WPL-D7369203
...
10
Plate-Trans Mtg WPL-D7442102
...
11
Screw WPL-M0220114
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
14
Mov Assy A-K WPL-B8339201
...
15
Transformer-Filament WPL-C8807801
...
16
Screw WPL-M0253509
...
17
Nut K WPL-M0282005
...
18
Terminal Board WPL-C8841603
...
19
Fuse-20a WPL-M0850507
...
20
Fuse WPL-M0308110
...
21
Fuse Resistor K WPL-M0308109
...
22
Resistor A WPL-M0308601
...
23
Resistor K WPL-M0308607
...
24
Jumper Wire WPL-D7292655
...
25
Jumper Wire WPL-D7292672
...
26
Sems Fastener WPL-YM0258229
...
27
Clip WPL-WPM0104106
...
28
Resistor A WPL-M0305202

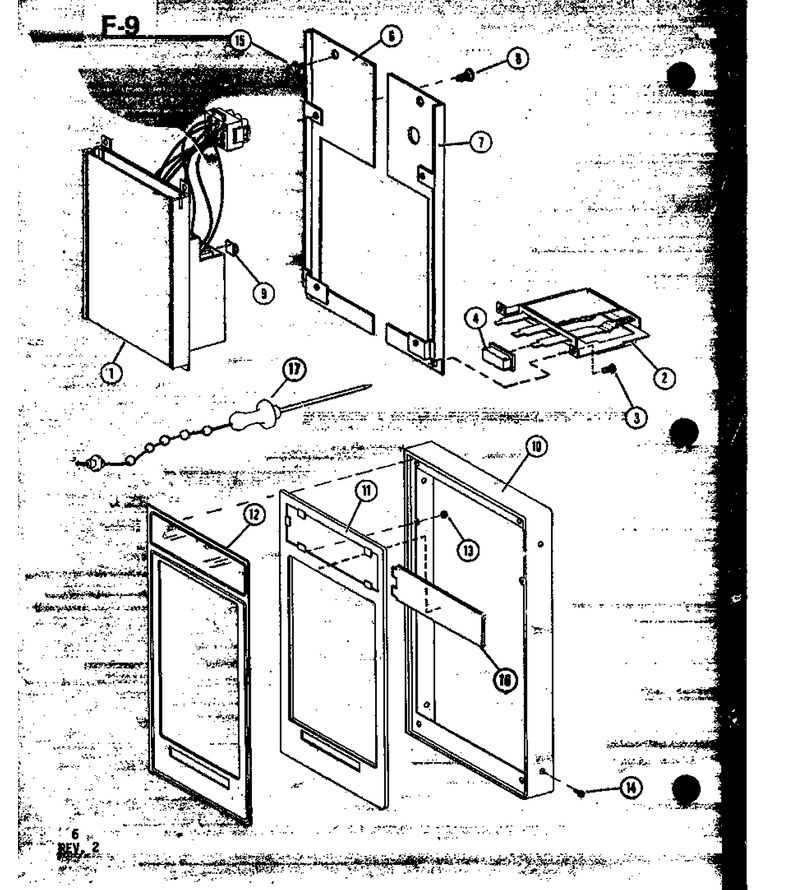

02 - Page 2

...
...
1
Sub 54678, Touchmatic Timer WPL-R163079A
...
2
Switch Ssl K WPL-C8787803
...
3
Screw WPL-M0234003
...
4
Button (stop) K WPL-C8743108
...
6
Mounting Plate, Lh WPL-D7460601
...
7
Mounting Plate, Rh WPL-D7460602
...
8
Screw WPL-M0213815
...
9
Clip, Cord WPL-M0104102
...
10
Casting,cont.esc WPL-D7455501
...
11
Lens WPL-D7457401
...
12
Lens WPL-D7457501
...
13
Speednut WPL-M0120301
...
14
Screw WPL-WP8281236
...
15
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
16
Nameplate WPL-B8318901
...
17
Temp Probe WPL-C8821504
