Amana RO-1020 (BOM: P7664502M)

Model: RO-1020 (BOM: P7664502M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

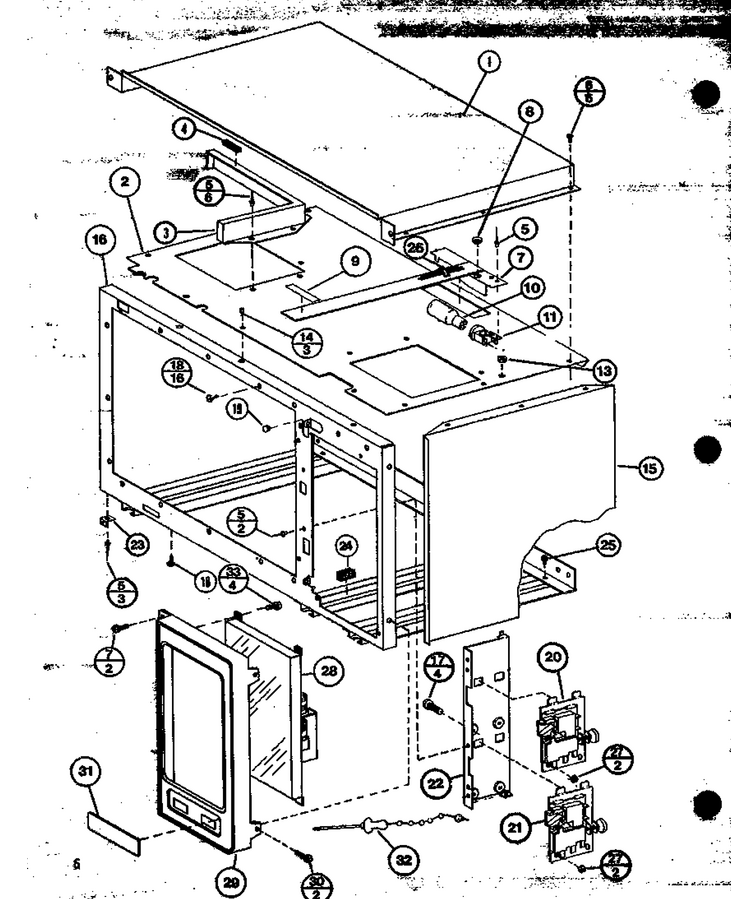

02 - Page 2

...
...
1
Air Duct Painted WPL-D7298402
...
2
Top Wrapper WPL-D7460502
...
3
Air Baffle WPL-C8857002
...
4
Gasket,per Ft WPL-A30303-30
...
5
Rivet-Pop WPL-59002054
...
6
Screw WPL-M0213815
...
7
Light Holder WPL-D8529904
...
8
Bushing (Blk) WPL-74009866
...
9
Tape, Vinyl WPL-M0275106
...
10
Bulb-Light WPL-WPA3167501
...
11
Lampholder WPL-B5691206
...
13
Strain, Relief WPL-M0370005
...
14
Screw T.c WPL-M0229916
...
15
Side Oc WPL-D7298301
...
16
Yoke Weld WPL-D7353126
...
17
Stud Self Clinching WPL-M0293501
...
18
Screw WPL-WP489349
...
19
Bumper WPL-A1511502
...
20
Interlock Switch WPL-C8889906
...
21
Interlock Switch WPL-C8889909
...
22
Bracket, Switch WPL-D7667301
...
23
Fastener WPL-B8319801
...
24
Gasket-Per Ft WPL-A3030340
...
25
Screw WPL-M0220114
...
26
Clip WPL-M0110508
...
27
Nut K WPL-M0282005
...
28
Timer- Ele WPL-R0163219
...
29
Escutcheon Cont. WPL-D7662401
...
30
Screw, Tf WPL-M0231817
...
31
Plate, Decorative WPL-B5033203
...
32
Temp Probe WPL-C8821504
...
33
Screw WPL-WP59002061

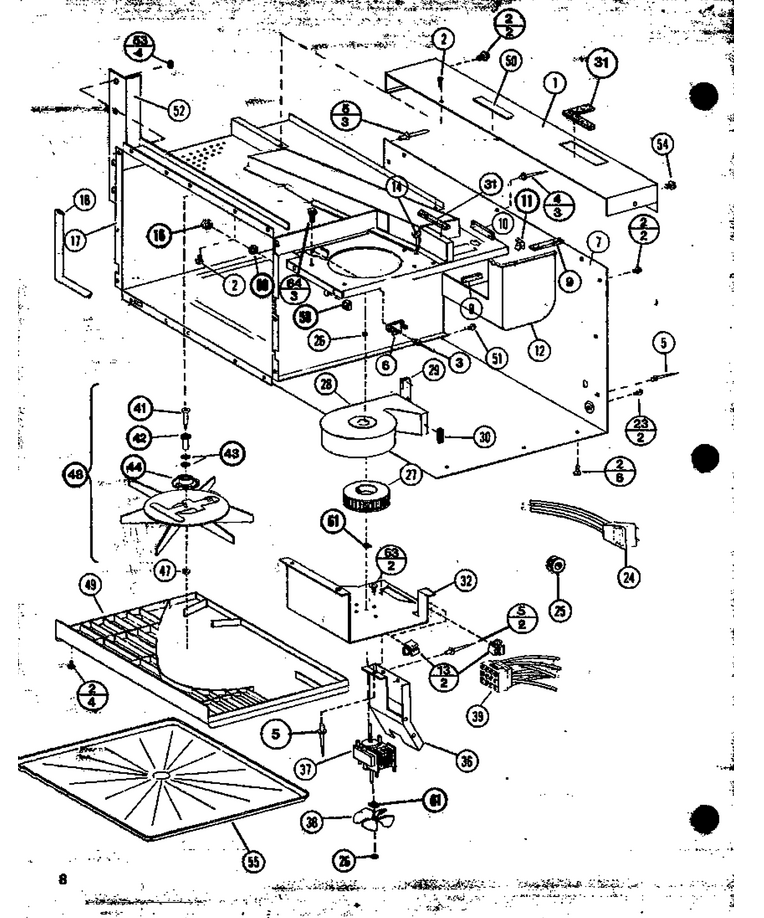

03 - Page 3

...
...
1
Duct Weld Pnt WPL-D7529510
...
2
Screw WPL-WP59002061
...
3
Rivet WPL-WP210720
...
4
Pop Rivet WPL-A4539619
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795301
...
7
Base Pan WPL-D7470402
...
9
Gasket (Per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349003
...
13
Clip-Cable WPL-M0110505
...
14
Lock-Nut---K WPL-M0282801
...
16
Nut K WPL-M0281405
...
17
Oven Weld WPL-D7350526
...
18
Gasket, Oven Cavity WPL-D7667401
...
23
Screw K WPL-M0253543
...
24
Cord, Power WPL-1731300208
...
25
Strain Relief WPL-M0370001
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
31
Gasket-Per Ft WPL-A3030329
...
32
Bracket-Blower WPL-C8910001
...
36
Air Chute Weld WPL-C8925201
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Harness, Chassis WPL-D7667601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing Antenna A WPL-B5783002
...
43
Washer WPL-M0274044
...
44
Bushing Antenna A WPL-D7606301
...
47
Nut A WPL-M0281203
...
48
Antenna Assembly WPL-C8934801
...
49
Grease Shield WPL-D7544002
...
50
Tape, Foil 1.25 X 12`` WPL-74003472
...
51
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
52
Plate, Back Up WPL-C8853402
...
53
Nut WPL-M0282009
...
54
Screw WPL-WP3388228
...
55
Oven Tray WPL-R0156726
...
58
Temp Probe Jack K WPL-B8355401
...
60
Washer WPL-M0270536
...
61
Washer Retainer WPL-A1034901
...
63
Screw WPL-WP3400094
...
64
Screw WPL-M0253504

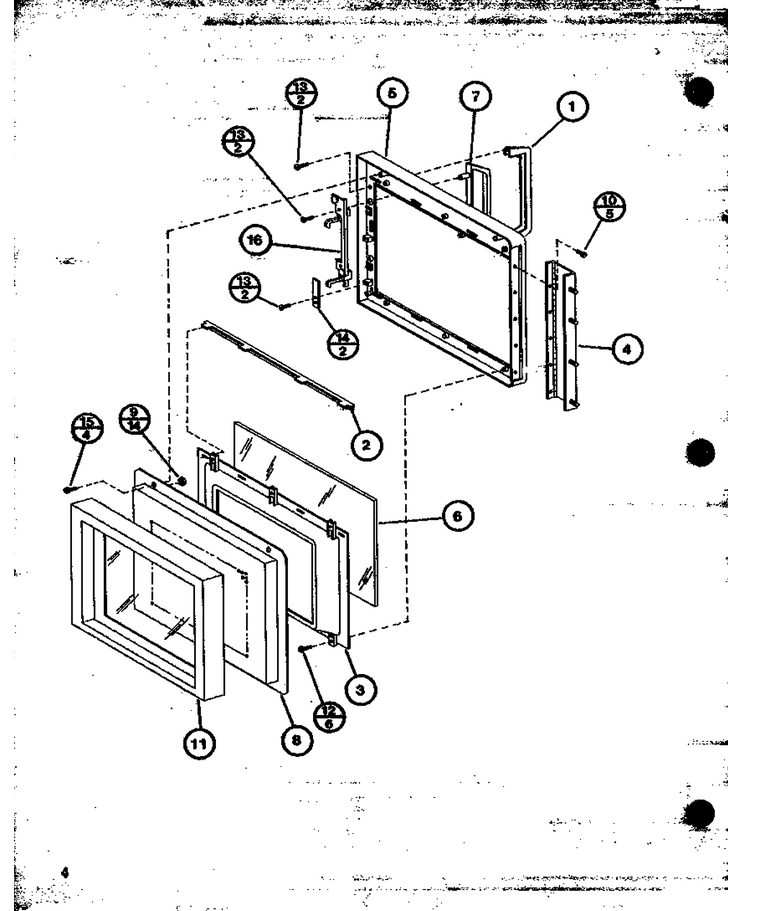

01 - Page 1

...
...
1
Handle Door WPL-D7680601
...
2
Cap Lens Retainer WPL-D7533502
...
3
Lens Retainer WPL-D7663001
...
4
Hinge, Door WPL-C8903601
...
5
Door Outer WPL-D7677301
...
6
Outer Window WPL-D7534003
...
7
Handle, Actuator WPL-D7680701
...
8
Inner Dr. Weld Pnt WPL-D7662904
...
9
Nut WPL-717488
...
10
Screw WPL-214597
...
11
Inner Door Mld Assy WPL-R0157489
...
12
Screw A K WPL-M0253704
...
13
Screw WPL-WP59002061
...
14
Spring Latch WPL-A1008501
...
15
Screw WPL-M0259218
...
16
Latch Assy WPL-C8938401Q

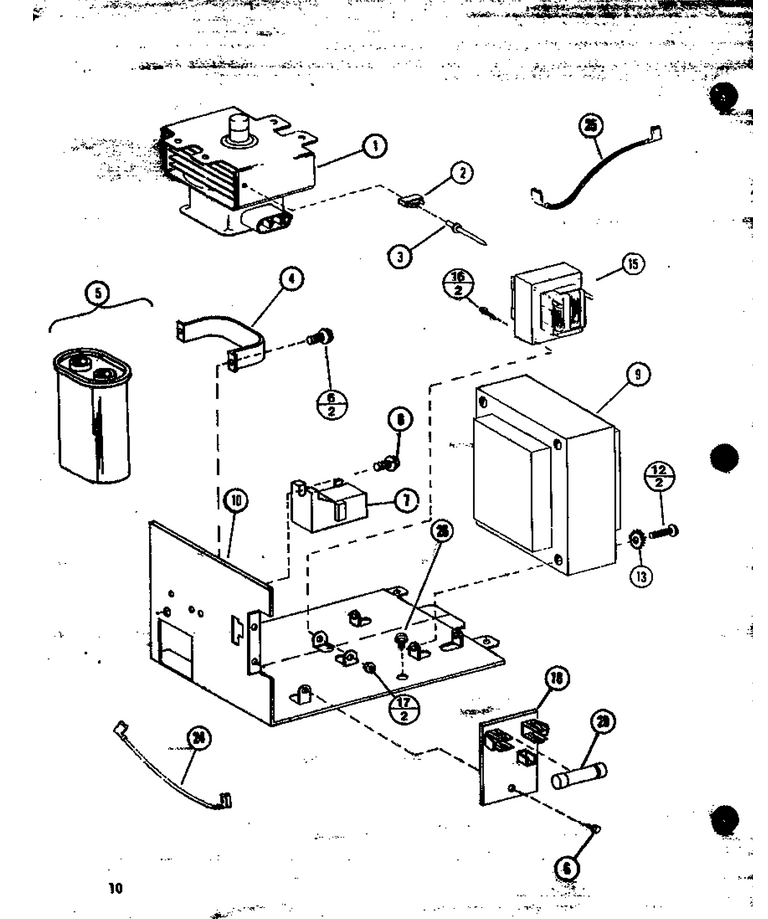

04 - Page 4

...
...
1
Magnetron WPL-10794402
...
2
Fuse- Ther WPL-59001951
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-WP3388228
...
9
Transformer-Hv WPL-D7498504
...
10
Xfmr Mtg Plate WPL-D7442104
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
15
Transformer-Filament WPL-C8807806
...
16
Screw WPL-M0253509
...
17
Nut K WPL-M0282005
...
18
Board-Term WPL-C8988701
...
24
Jumper Wire WPL-D7292676
...
25
Jumper Wire WPL-D7292671
...
26
Sems Fastener WPL-YM0258229
...
29
Fuse 20 A WPL-WPM0805101
