Amana RO-1010 (BOM: P7599202M)

Model: RO-1010 (BOM: P7599202M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

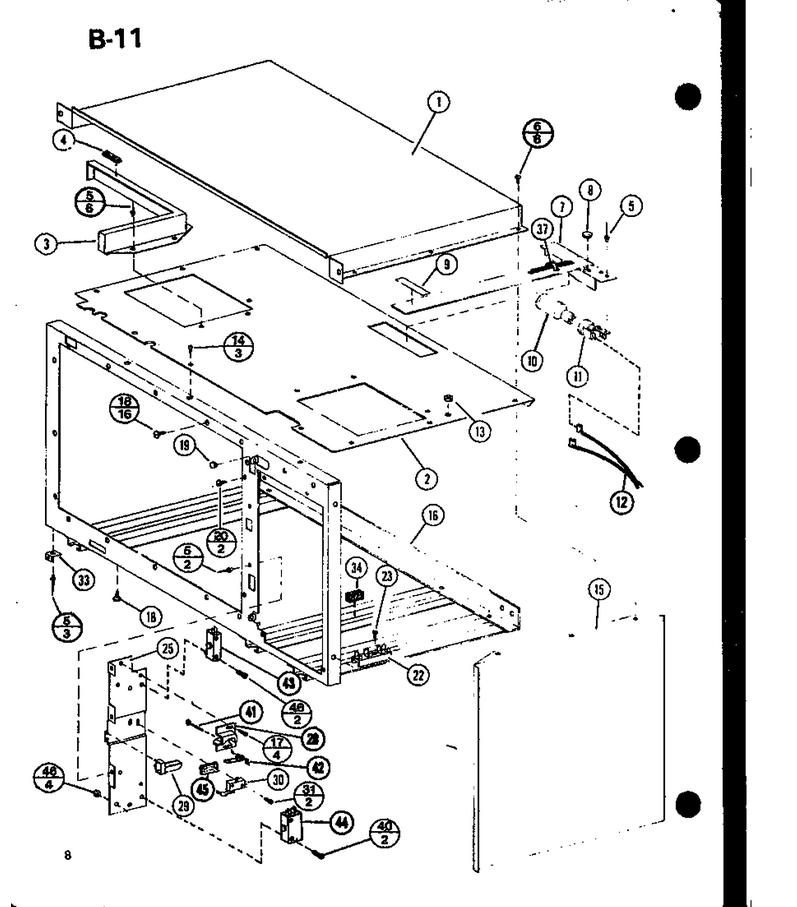

03 - Page 3

...
...
1
Air Duct Painted WPL-D7298402
...
2
Top Wrapper WPL-D7460502
...
3
Air Baffle WPL-C8857002
...
4
Gasket,per Ft WPL-A30303-30
...
5
Rivet-Pop WPL-59002054
...
6
Screw WPL-M0213815
...
7
Light Holder WPL-D8529904
...
8
Bushing (Blk) WPL-74009866
...
9
Tape, Vinyl WPL-M0275106
...
10
Bulb-Light WPL-WPA3167501
...
11
Lampholder WPL-B5691206
...
12
Power Harness WPL-C8894101
...
13
Strain, Relief WPL-M0370005
...
14
Screw T.c WPL-M0229916
...
15
Side Oc WPL-D7298301
...
16
Yoke Pntd WPL-D7353124
...
17
Screw WPL-M0234114
...
18
Screw WPL-WP489349
...
19
Bumper WPL-A1511502
...
20
Screw WPL-WP488234
...
22
Terminal Block WPL-B5677203
...
23
Screw, No.6x18x1/4 (3) WPL-487010
...
25
Bracket WPL-D7545101
...
28
Door Catch WPL-C8889701
...
29
Door Guide,sleeve WPL-C8840402
...
30
Limit Switch WPL-B8306602
...
31
Screw K WPL-M0229005
...
33
Fastener WPL-B8319801
...
34
Gasket-Per Ft WPL-A3030340
...
37
Clip-Cable WPL-M0110504
...
40
Screw WPL-M0227520
...
41
Pin Bell-Crank WPL-A3182601
...
42
Lever WPL-B8305701
...
43
Switch, Limit WPL-C8842003
...
44
Switch Limit WPL-C8842004
...
45
Insulation Intlk Brk WPL-A1032302
...
46
Nut K WPL-M0282005

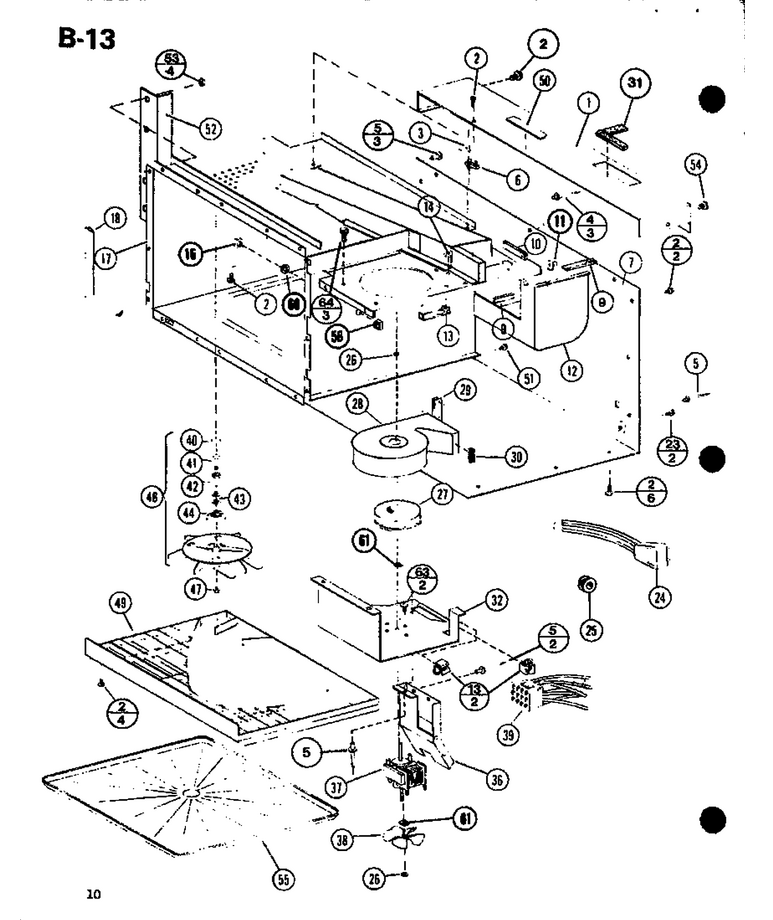

04 - Page 4

...
...
1
Duct Weld Pnt WPL-D7529510
...
2
Screw WPL-M0213815
...
3
Rivet WPL-WP210720
...
4
Pop Rivet WPL-A4539619
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795303
...
7
Base Pan WPL-D7470402
...
9
Gasket (Per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349003
...
13
Clip-Cable WPL-M0110505
...
14
Lock-Nut---K WPL-M0282801
...
16
Nut K WPL-M0281405
...
17
Oven Weld WPL-D7350516
...
18
Gasket Oven Cavity WPL-D7442201
...
23
Screw K WPL-M0253543
...
24
Cord, Power WPL-1731300208
...
25
Strain Relief WPL-M0370001
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
32
Bracket-Blower WPL-C8910001
...
36
Air Chute Weld WPL-C8925201
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Harness Chassis WPL-D7585301
...
40
Bearing Cap WPL-B5792601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing-Antenna A WPL-B5783001
...
43
Washer WPL-M0274044
...
44
Bushing A WPL-C8838501
...
47
Nut A WPL-M0281203
...
48
Assy, Antenna WPL-C8806701
...
49
Grease Shield WPL-D7544002
...
50
Tape, Foil 1.25 X 12`` WPL-74003472
...
51
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
52
Plate Back Up WPL-C8853401
...
53
Nut WPL-M0282009
...
54
Screw WPL-M0216519
...
55
Oven Tray WPL-R0156726
...
58
Temp Probe Jack K WPL-B8355401
...
60
Washer WPL-M0270536
...
61
Washer Retainer WPL-A1034901
...
63
Screw WPL-WP3400094
...
64
Screw WPL-M0253504

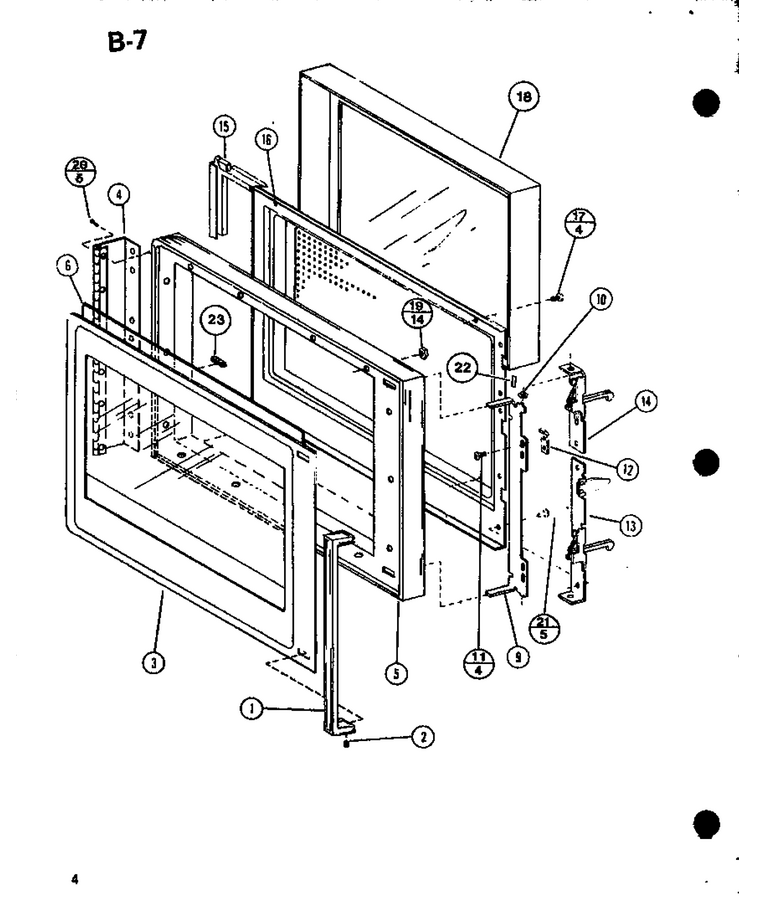

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8903601
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320007
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0259218
...
18
Inner Door Mold Assy WPL-D7564601
...
19
Nut WPL-M0288806
...
20
Screw WPL-214597
...
21
Rivet-Pop WPL-59002054
...
22
Tape Per Roll WPL-M0275163

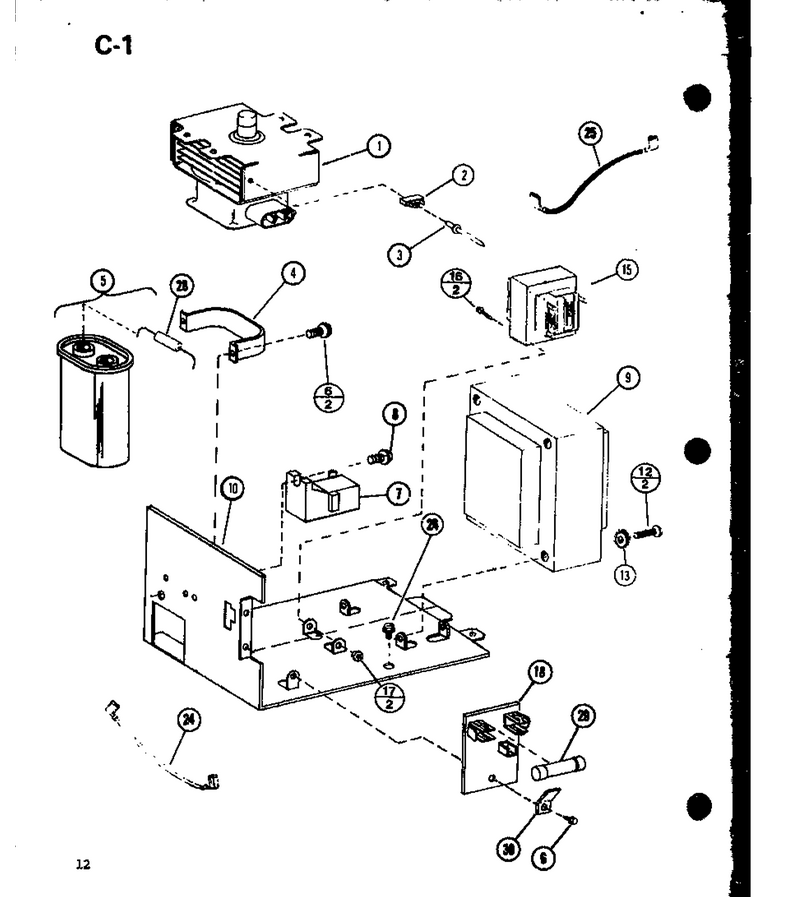

05 - Page 5

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-WP3388228
...
9
Transformer WPL-D7369203
...
10
Xfmr Mtg Plate WPL-D7442104
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
15
Transformer-Filament WPL-C8807806
...
16
Screw WPL-M0253509
...
17
Nut K WPL-M0282005
...
18
Board-Term WPL-C8988701
...
24
Jumper Wire WPL-D7292655
...
25
Jumper Wire WPL-D7292671
...
26
Sems Fastener WPL-YM0258229
...
29
Fuse WPL-WPM0805102
...
30
Terminal WPL-M0320901

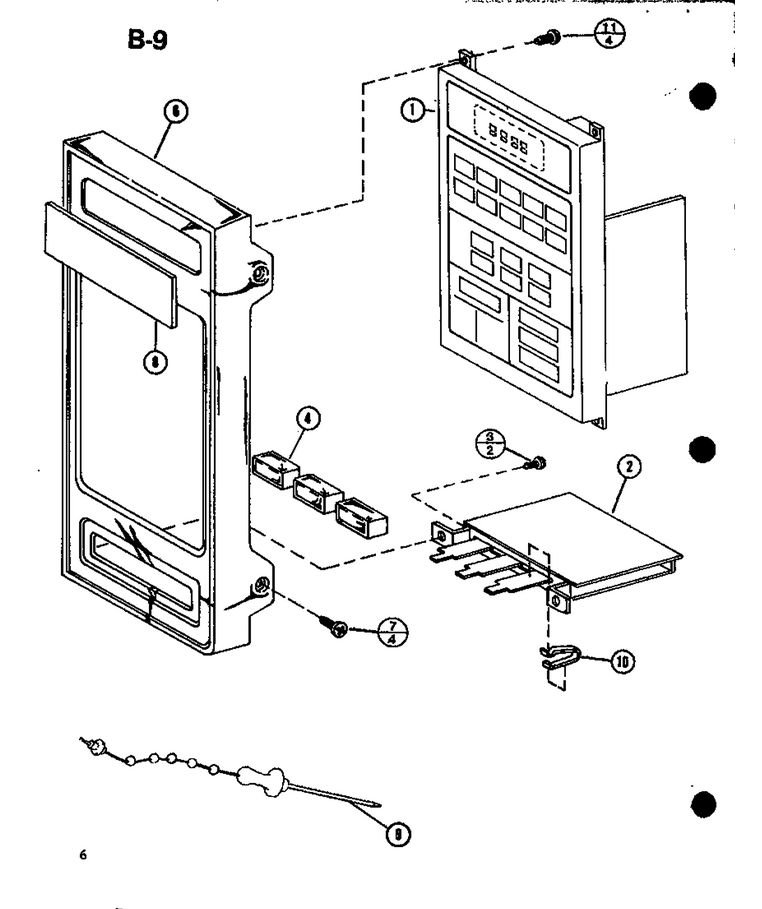

02 - Page 2

...
...
NI
Gasket-Per Ft WPL-A30303-35
...
1
Sub 54678, Touchmatic Timer WPL-R163079A
...
2
Switch Ssl K WPL-D7546302
...
3
Screw WPL-W11084238
...
4
Light Button WPL-C8869301
...
6
Escutch, Control WPL-D7569501
...
7
Screw WPL-M0253244
...
8
Nameplate WPL-A1038701
...
9
Temp Probe WPL-C8821504
...
10
Spring WPL-A1039301
...
11
Screw WPL-WP59002061
