Amana RMS341

Model: RMS341

Save Part Not Listed?
product name

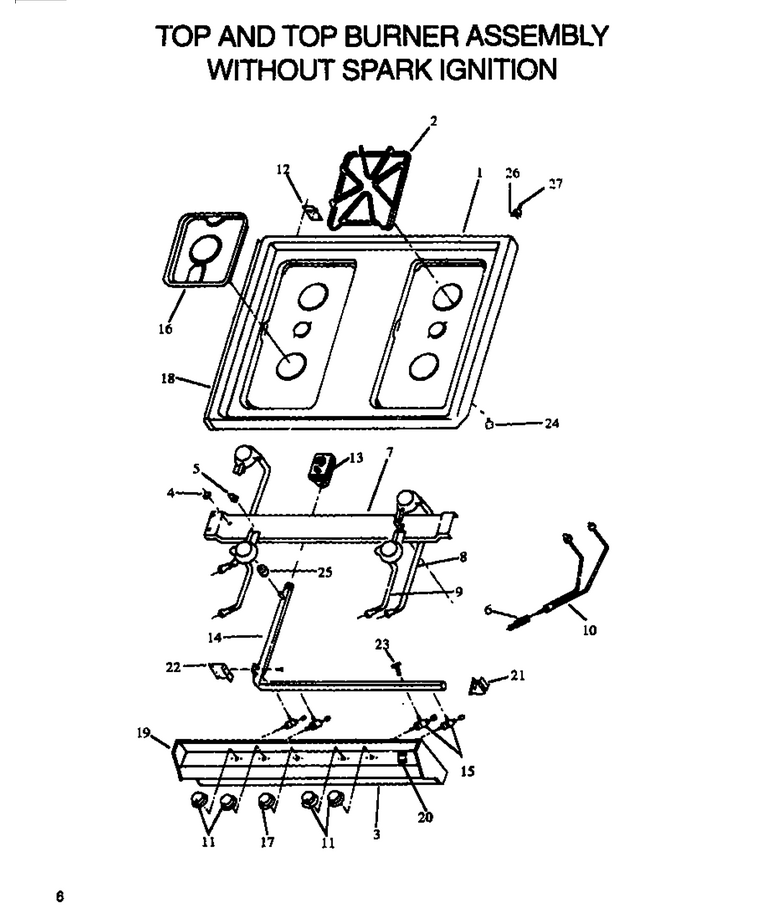

06 - Page 1

...
...
Model Rls379 Changed To ``glow Bar`` Oven Ignition On October 9, 1989, Code Bz, See Page 22 And 23 For Oven Components. WPL-NOTE:
...
1
Cooktop, White WPL-086960W
...
2
Grate, Top Burner (Blk) WPL-305815B
...
3
Panel- Man WPL-Y07588804A
...
4
Square Nut {j} WPL-0088650
...
5
Pilot Tip (J) WPL-0057313
...
6
Filter WPL-0088789
...
7
Support, Top Burner, 30`` {j} WPL-Y0086719
...
8
Burner - Top Rear (Cal) WPL-Y07699200
...
9
Burner - Top Front (Cal) WPL-Y07699100
...
10
Tubing, Top Burner Pilot WPL-31827501
...
11
Knob WPL-W11032824
...
12
Hinge, Main Top WPL-0088782
...
13
Pressure Regulator WPL-77001246
...
14
Manifold Round Pipe WPL-0086978
...
15
Valve, Gas WPL-Y07596400
...
16
Burner Bow WPL-WPY0060872
...
17
Knob, Thermostat WPL-Y0055029
...
19
End Cap, Lh WPL-0086975
...
20
Switch, Rocker WPL-Y0063997
...
21
Support-Sq Manifold Pipe-Rh WPL-0056118
...
22
Support-Rd Manifold Pipe-Rh WPL-0086724
...
23
Screw WPL-W10491986
...
24
Bumper, Oven Door WPL-Y0063661
...
25
Spacer, Manifold WPL-0310219
...
26
Nut, Speed, Flat WPL-Y0310032
...
27
Screw, Stud WPL-31750709

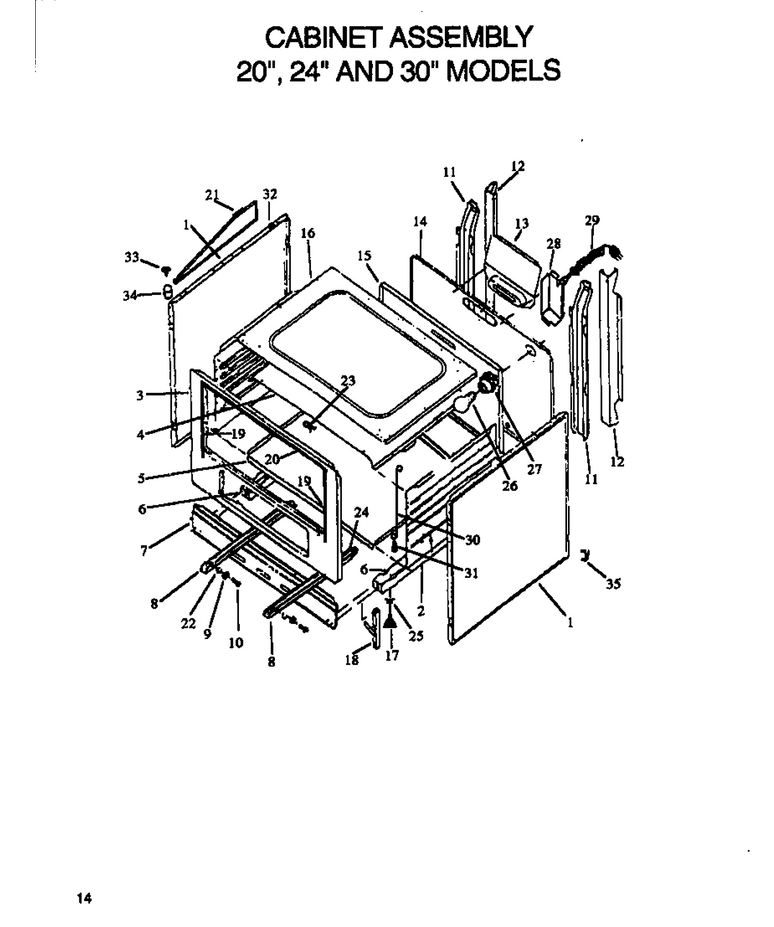

03 - Cabinet Assy 20``

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
6
Rail, Base WPL-0088654
...
7
Base, Main Front WPL-0088655
...
8
Track, Lower R.h. WPL-Y0310523
...
9
Roller, Front Lower WPL-Y0086920
...
10
Pin, Front Lower WPL-Y0086919
...
11
Vertical Sup. (J) WPL-0052742
...
12
Rear Support WPL-0088658
...
13
Flue Box WPL-0088718
...
14
Main Back {j} WPL-0088656
...
16
Box, Burner WPL-Y06469301E
...
17
Leg, Leveling WPL-Y0062362
...
18
Hinge, Oven Door WPL-Y07489700
...
19
Seal, Oven-Sides WPL-Y0056090
...
20
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
22
Ring, Lower Track WPL-0086922
...
23
Clip, Capillary WPL-0088050
...
24
Button, Nylon WPL-0311091
...
25
Snap-In Tee Nut WPL-Y0088571
...
26
Light Bulb WPL-8009
...
27
Socket, Oven Light WPL-Y0316385
...
28
Wire Cover WPL-0088662
...
29
Cord Set (J) WPL-0088884
...
30
Support Rod WPL-0087023
...
31
Shoulder Screw WPL-0088779
...
35
Kit, Anti-Tip WPL-07687600

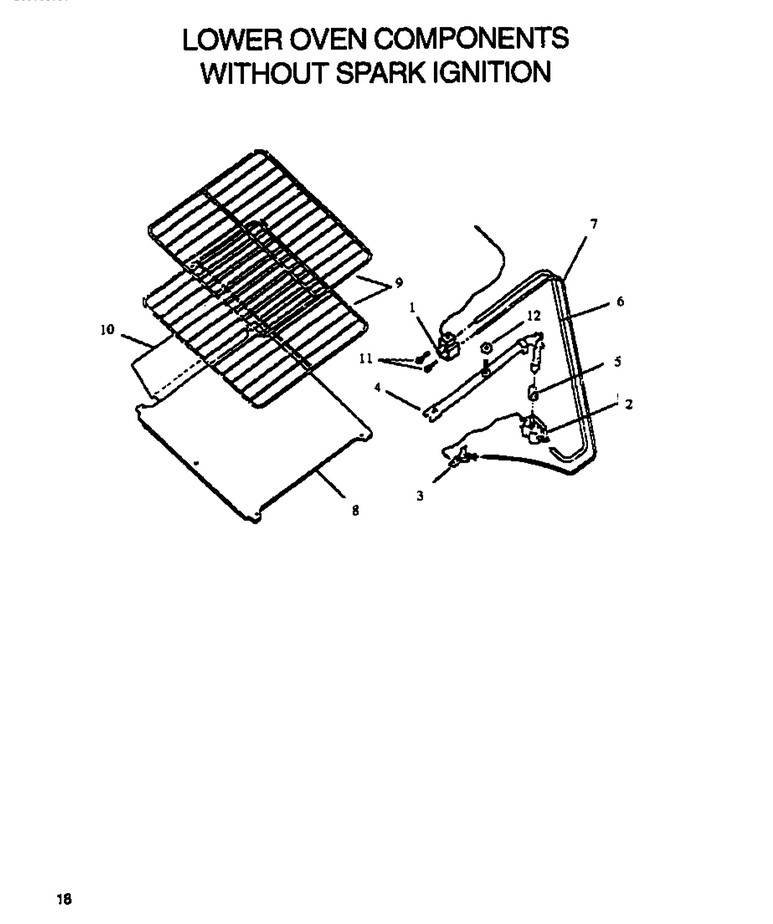

04 - Lower Oven Compnt Without Spark Ign

...
...
1
Thermostat WPL-0052767
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Spreader, Flame W/o Notch WPL-0311821
...
11
Bolt With Gasket-Thermostat Mo WPL-Y0086114
...
12
Nut WPL-M0282009

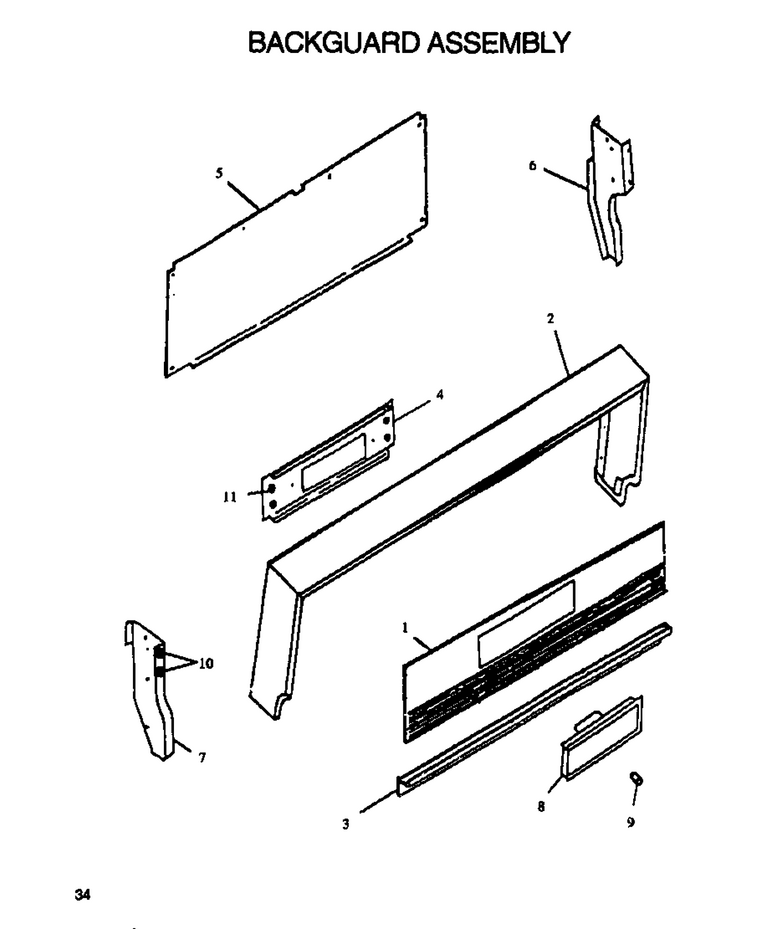

01 - Backguard Assy

...
...
1
Glass, Backguard WPL-0055002
...
2
Backguard Frame WPL-0057322
...
3
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
6
Support, Backguard Rh WPL-0088066
...
7
Support, Backguard Lh WPL-0088065
...
8
Clock WPL-Y0055037
...
10
Bumper-Rubber 1/4`` WPL-Y02068200

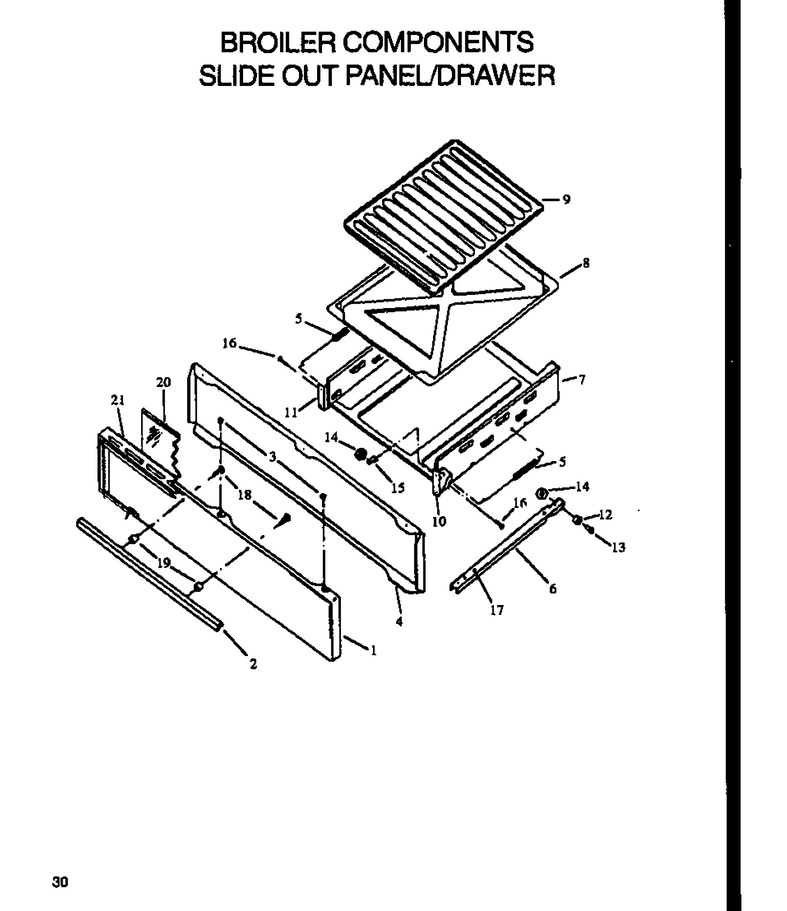

02 - Broiler Compnt Slide Out Panel/drawer

...
...
1
Broiler Door Panel, Gold WPL-Y088694D
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Screw No.10 X 1/2`` WPL-Y07691400
...
4
Liner, Broiler Door WPL-547684CG
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Rt (Gas) WPL-Y06478001
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Broiler Door Hinge, R.h. WPL-0088692
...
11
Broiler Door Hinge, L.h. WPL-0088691
...
12
Roller, Rear Upper WPL-Y0086915
...
13
Pin, Rear Upper WPL-0086921
...
14
Nut WPL-M0282009
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Clip WPL-Y03110078
...
18
Screw WPL-707407
...
19
Handle Spacer, Plastic (J) WPL-Y0310818

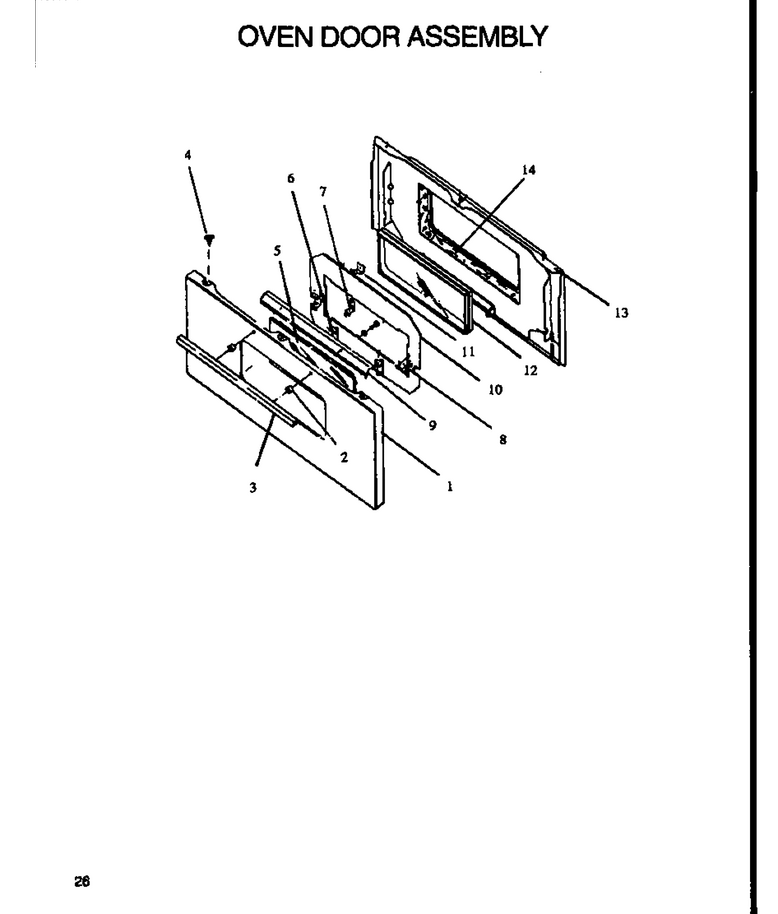

05 - Oven Door Assy

...
...
1
Panel, Oven Door, Almond WPL-Y088691L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Screw WPL-WP7101P126-60
...
10
Ring, Insulation Hold Down WPL-0088807
...
13
Backer, Oven Door (No Window) WPL-88069CG
...
14
Insulation, Wrapper WPL-31975801
