Amana RMS339

Model: RMS339

Save Part Not Listed?
product name

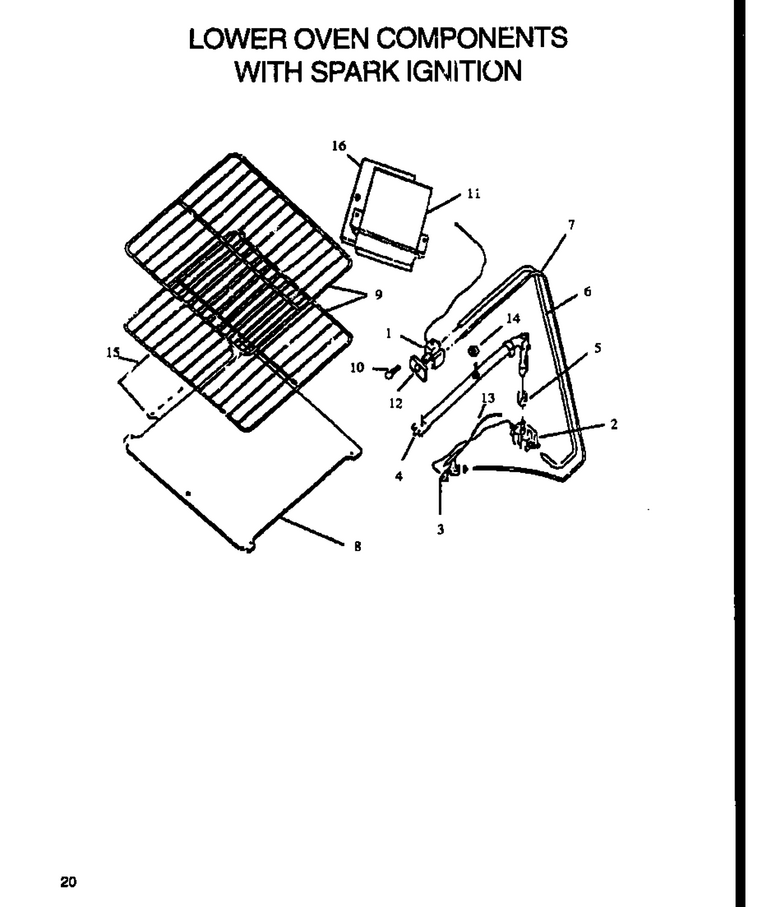

05 - Lower Oven Compnt With Spark Ign

...
...
1
Thermostat, Spark Oven Kit WPL-R0711029
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0089065
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module, 2+1 Spark WPL-Y0088870
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725

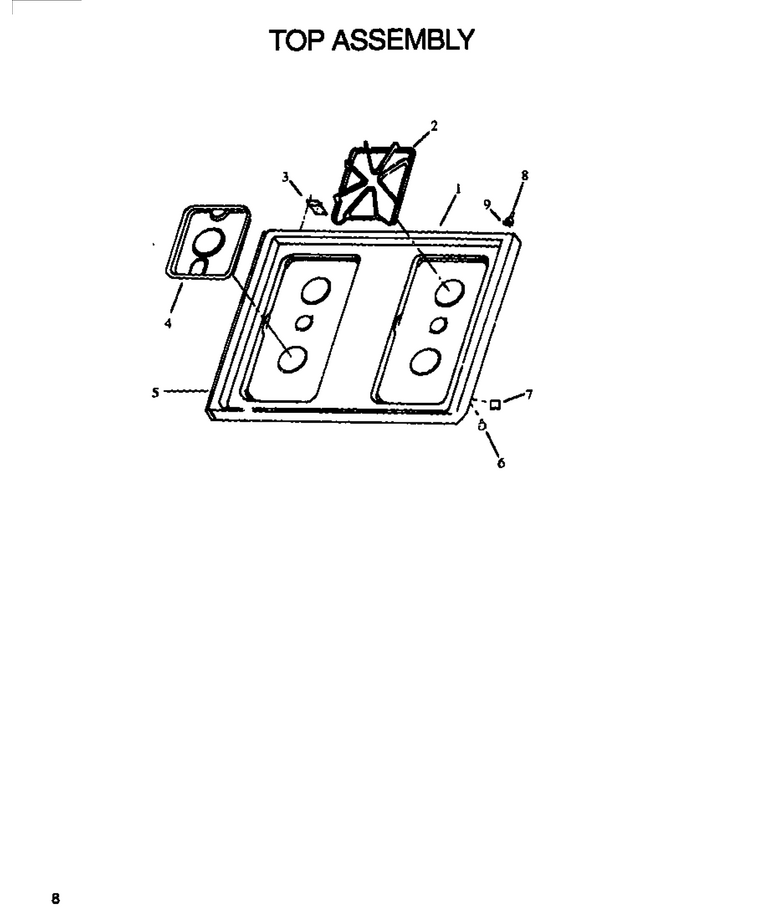

07 - Page 2

...
...
1
Cooktop, White WPL-086960W
...
2
Grate, Top Burner (Blk) WPL-305815B
...
3
Hinge, Main Top WPL-0088782
...
4
Burner Bow WPL-WPY0060872
...
5
Trim, Main Top WPL-0311853
...
6
Bumper, Oven Door WPL-Y0063661

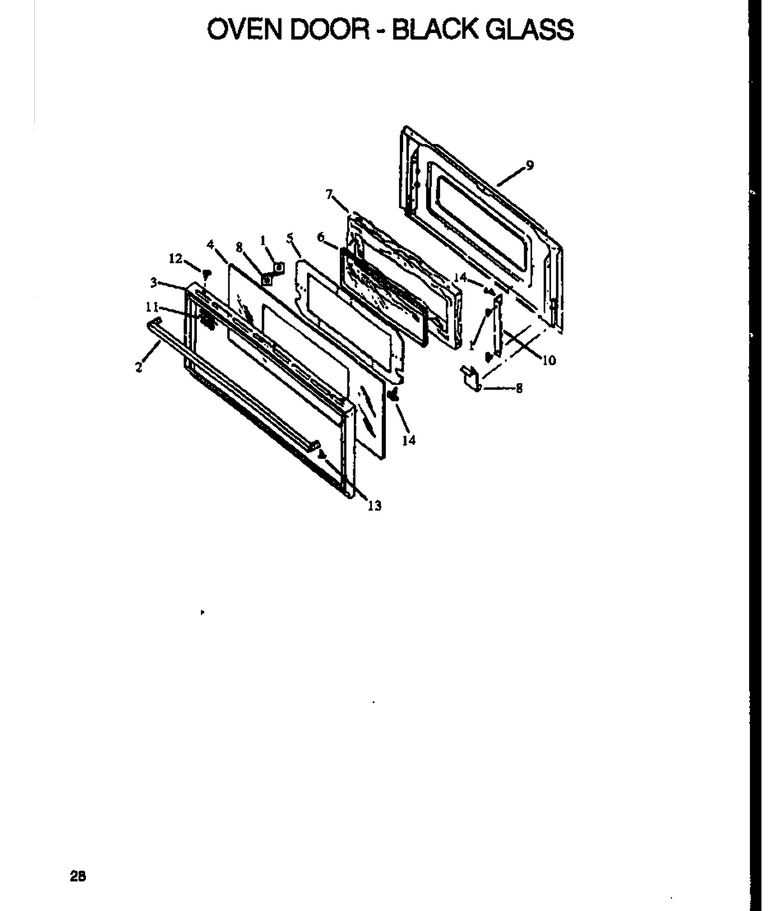

06 - Oven Door - Black Glass

...
...
1
Bumper, Oven Door WPL-Y0063661
...
2
Handle, Door (J) WPL-Y0057315
...
3
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
4
Glass, Oven Door 30`` WPL-Y07642602
...
5
Hold Down Ring (J) WPL-0088806
...
6
Window, Ov.dr.(2)pane WPL-Y0086785
...
7
Insulation, Wrapper WPL-31975801
...
8
Hinge-Oven WPL-Y07655200
...
9
Backer, Oven Door WPL-312045E
...
10
Support, Glass Panel{j} WPL-0088824
...
11
Oven Door Wire Mesh WPL-0312199
...
12
Screw WPL-0312041
...
13
Screw WPL-WP8281236
...
14
Screw WPL-WP7101P126-60

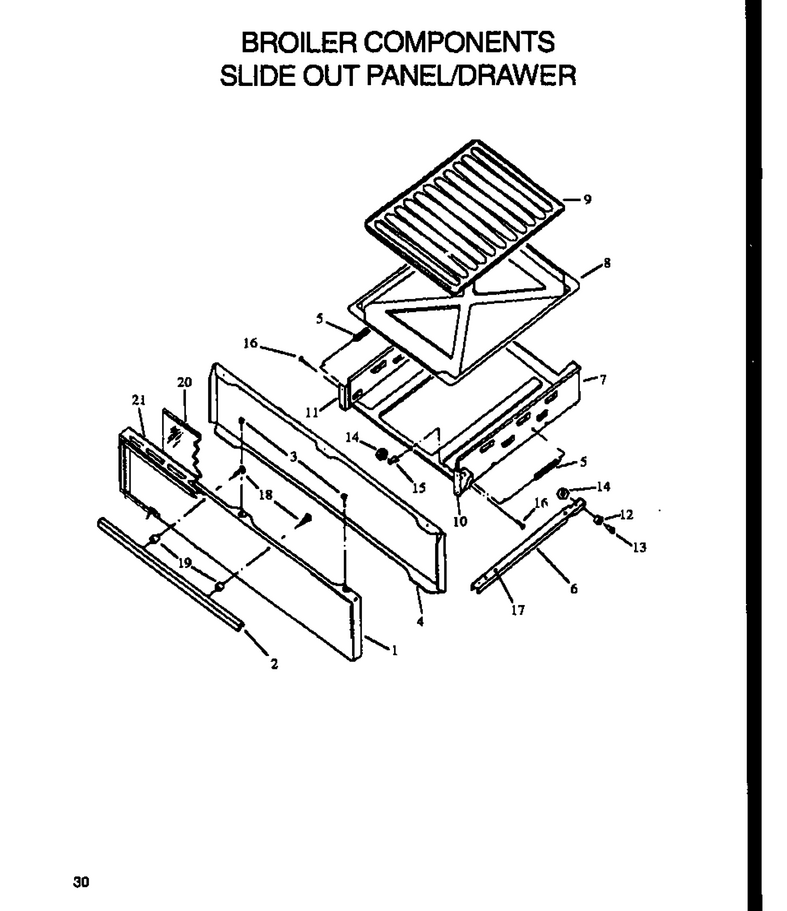

02 - Broiler Compnt Slide Out Panel/drawer

...
...
1
Broiler Door Panel, Gold WPL-Y088694D
...
2
Handle, Broiler Door WPL-Y0056139
...
3
Screw No.10 X 1/2`` WPL-Y07691400
...
4
Liner, Broiler Door WPL-547684CG
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Rt (Gas) WPL-Y06478001
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Broiler Door Hinge, L.h. WPL-0088691
...
12
Roller, Rear Upper WPL-Y0086915
...
13
Pin, Rear Upper WPL-0086921
...
14
Nut WPL-M0282009
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Clip WPL-Y03110078
...
18
Screw WPL-707407
...
19
Handle Spacer, Plastic (J) WPL-Y0310818

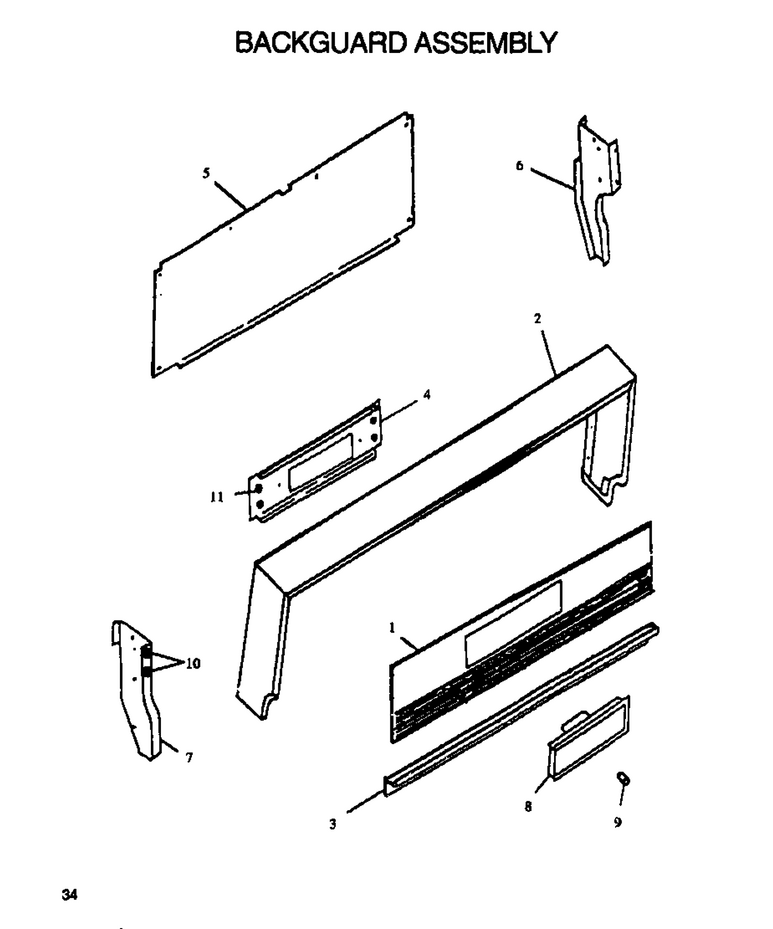

01 - Backguard Assy

...
...
1
Glass, Backguard WPL-Y0055008
...
2
Backguard Frame (J) WPL-0057319
...
3
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
4
Bracket, Clock WPL-Y0086779
...
5
Wire Cover WPL-0088814
...
6
Support, Backguard, R.h. WPL-0088667
...
7
Support, Backguard, L.h. WPL-0088666
...
8
Clock WPL-0055035
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Screw, No.8-18x 1/2 WPL-0311876

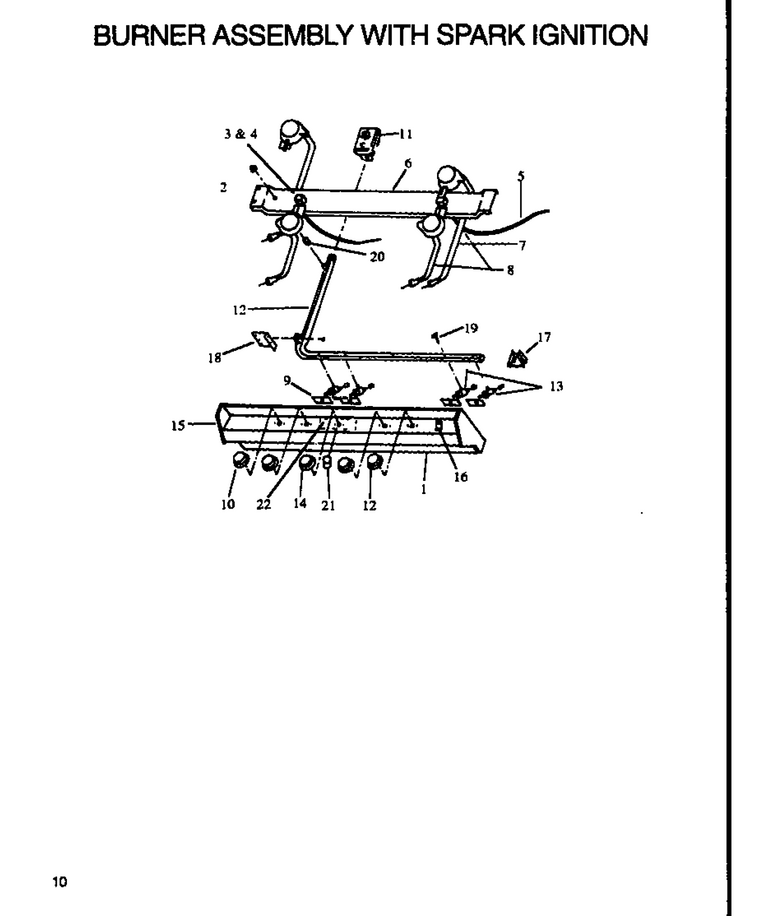

03 - Burner Assy With Spark Ignition

...
...
1
Panel, Manifold (Gas)-Sq Holes WPL-Y07588805
...
2
Square Nut {j} WPL-0088650
...
3
Bracket, Ignitor WPL-0310114
...
4
Ignitor- G WPL-Y07491203
...
5
Ignitor- G WPL-Y07491203
...
6
Burner Support WPL-Y0086969
...
7
Burner - Top Rear (Cal) WPL-Y07699200
...
8
Burner - Top Front (Cal) WPL-Y07699100
...
9
Swtch-Ignr WPL-WP4157180
...
11
Pressure Regulator WPL-77001246
...
12
Manifold Round Pipe WPL-0086978
...
13
Valve, Top Burner 90 Deg-Rd Ma WPL-0086989
...
14
Knob, Thermostat WPL-Y0055029
...
15
End Cap, Lh WPL-0086975
...
16
Switch, Rocker WPL-Y0063997
...
17
Support-Rd Manifold Pipe-Rh WPL-0086724
...
18
Support, Manifold, L.h. {j} WPL-0086725
...
19
Screw WPL-W10491986
...
20
Spacer, Manifold WPL-0310219

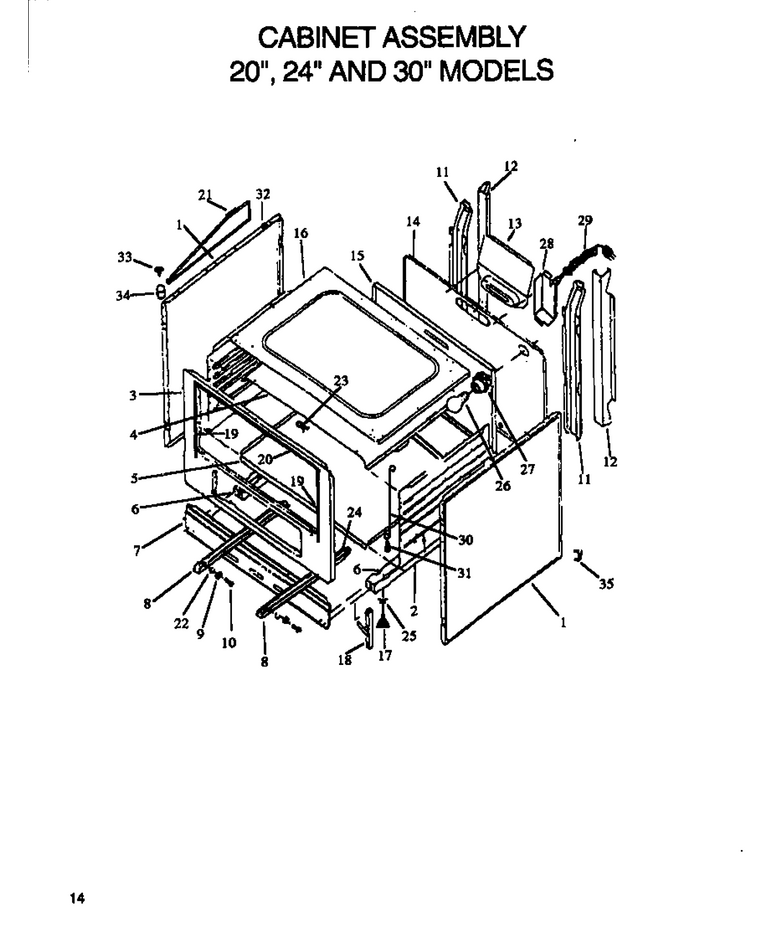

04 - Cabinet Assy 20``

...
...
1
Panel,body Side (Al) WPL-311003N
...
6
Rail, Base WPL-0088654
...
7
Base, Main Front WPL-0088655
...
8
Track, Lower R.h. WPL-Y0310523
...
9
Roller, Front Lower WPL-Y0086920
...
10
Pin, Front Lower WPL-Y0086919
...
11
Vertical Sup. (J) WPL-0052742
...
12
Rear Support WPL-0088658
...
13
Flue Box WPL-0088718
...
14
Main Back {j} WPL-0088656
...
16
Box, Burner WPL-Y06469301E
...
17
Leg, Leveling WPL-Y0062362
...
19
Seal, Oven-Sides WPL-Y0056090
...
20
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
22
Ring, Lower Track WPL-0086922
...
23
Clip, Capillary WPL-0088050
...
24
Button, Nylon WPL-0311091
...
25
Snap-In Tee Nut WPL-Y0088571
...
26
Light Bulb WPL-8009
...
27
Socket, Oven Light WPL-Y0316385
...
28
Wire Cover WPL-0088662
...
29
Cord Set (J) WPL-0088884
...
30
Support Rod WPL-0087023
...
31
Shoulder Screw WPL-0088779
...
35
Kit, Anti-Tip WPL-07687600
