Amana RMD664

Model: RMD664

Save Part Not Listed?
product name

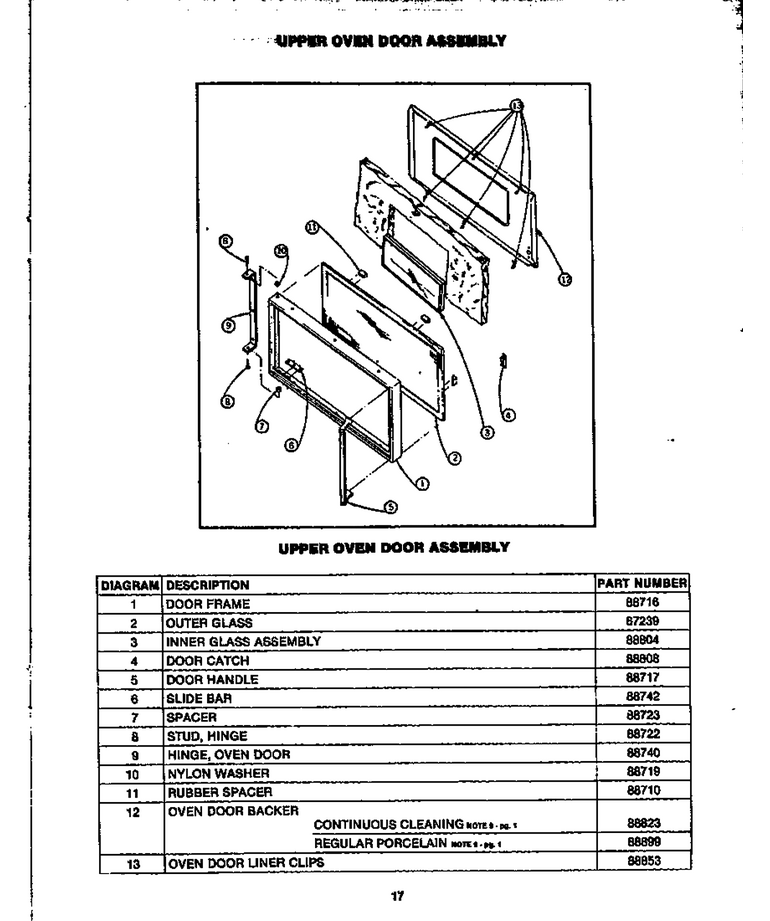

06 - Upper Oven Door Assy

...
...
1
Frame, Upper Oven Door WPL-0088716
...
2
Outer Glass WPL-Y67239
...
3
Inner Door Glass Assembly WPL-0088804
...
4
Door Catch WPL-0088808
...
5
Door Handle WPL-88717
...
6
Slide Bar WPL-Y88742
...
7
Spacer WPL-0088723
...
8
Hinge Stud WPL-0088722
...
9
Hinge, Oven Door WPL-88740
...
10
Nylon Washer WPL-0088719
...
11
Bumper ``l`` Shaped WPL-Y0312836
...
12
Door Backer, C/c WPL-Y0088823
...
13
Grommet WPL-0088853

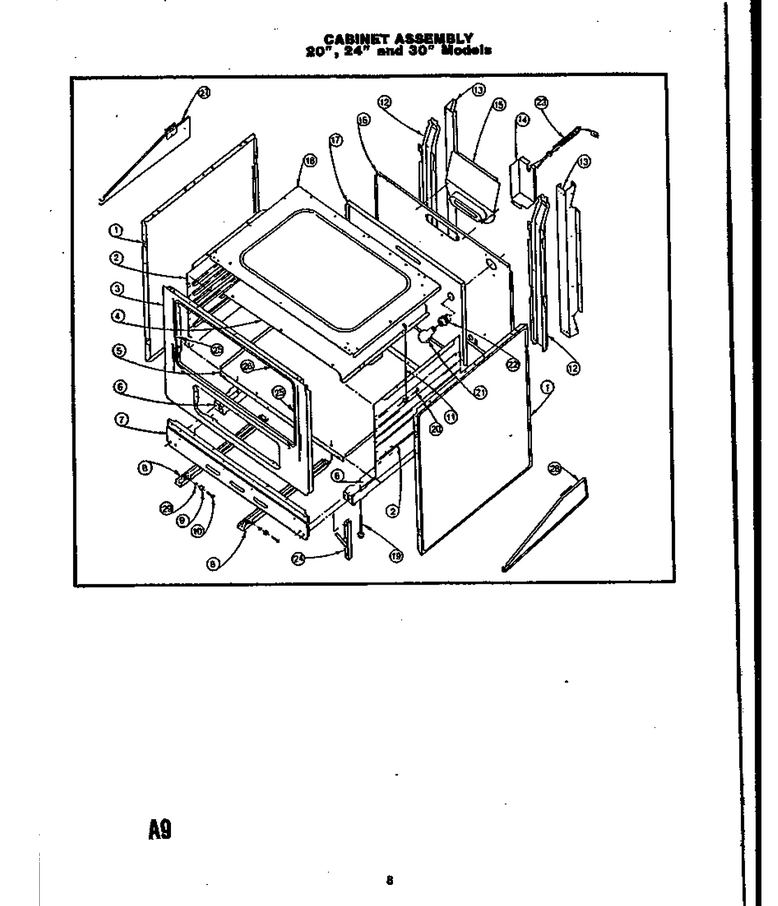

02 - Cabinet Assy 20``

...
...
15
Connector WPL-M0335314
...
16
Knob, Clock WPL-0087026

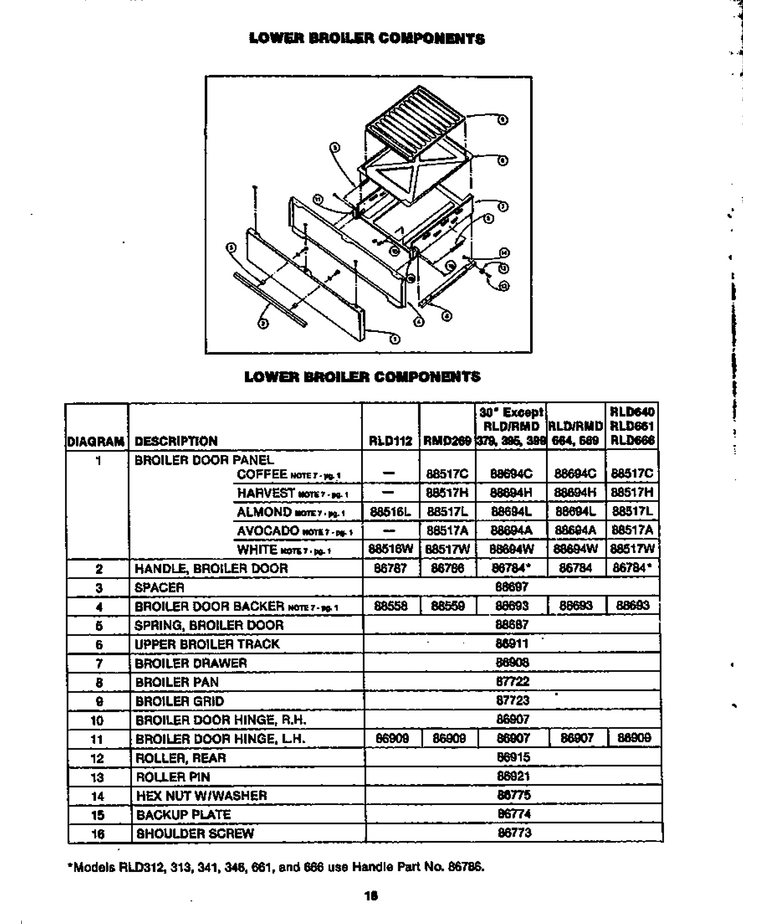

03 - Lower Broiler Components

...
...
1
Broiler Door Panel, Dark Cop. WPL-Y088694C
...
2
Handle, Broiler Door WPL-Y0056139
...
4
Sub 88693cg, Broiler Door Back WPL-0088693
...
11
Hinge, Broiler Door Rh (J) WPL-0086907

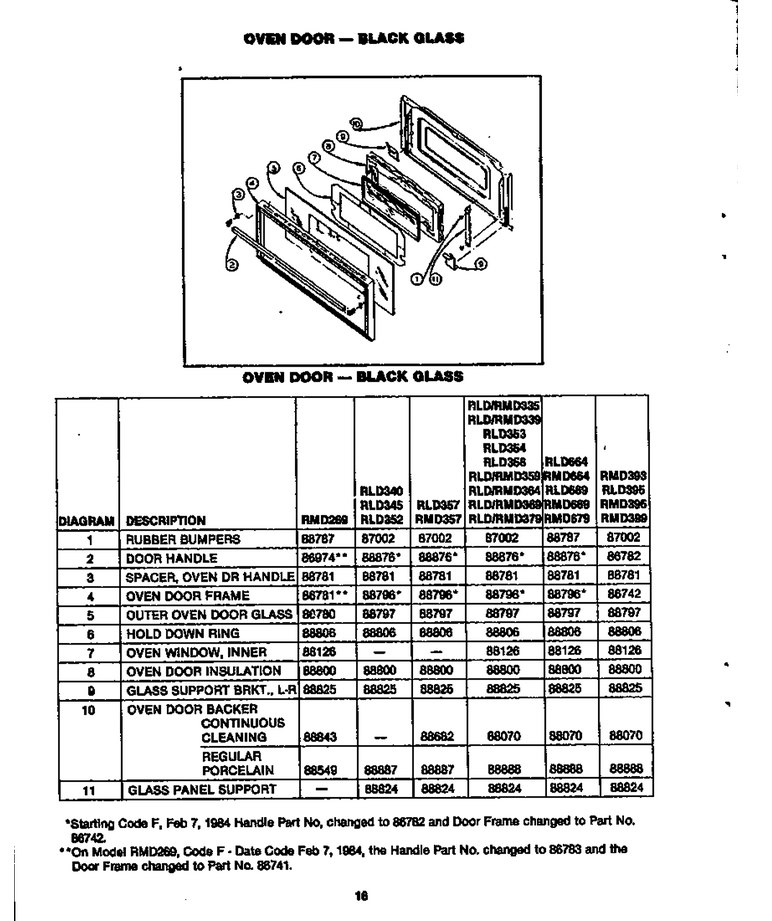

05 - Oven Door - Black Glass

...
...
1
Bumper-Rubber 1/4`` WPL-Y02068200
...
3
Handle Spacer WPL-0088781
...
5
Glass,oven Dr 29``x 14 13/16`` WPL-Y0088797
...
6
Hold Down Ring Start At Code P WPL-88806
...
8
Insulation, Wrapper WPL-31975801
...
9
Glass Support Brkt., L & R WPL-88825
...
10
Backer, Oven Door WPL-312045E
...
11
Support, Glass Panel{j} WPL-0088824

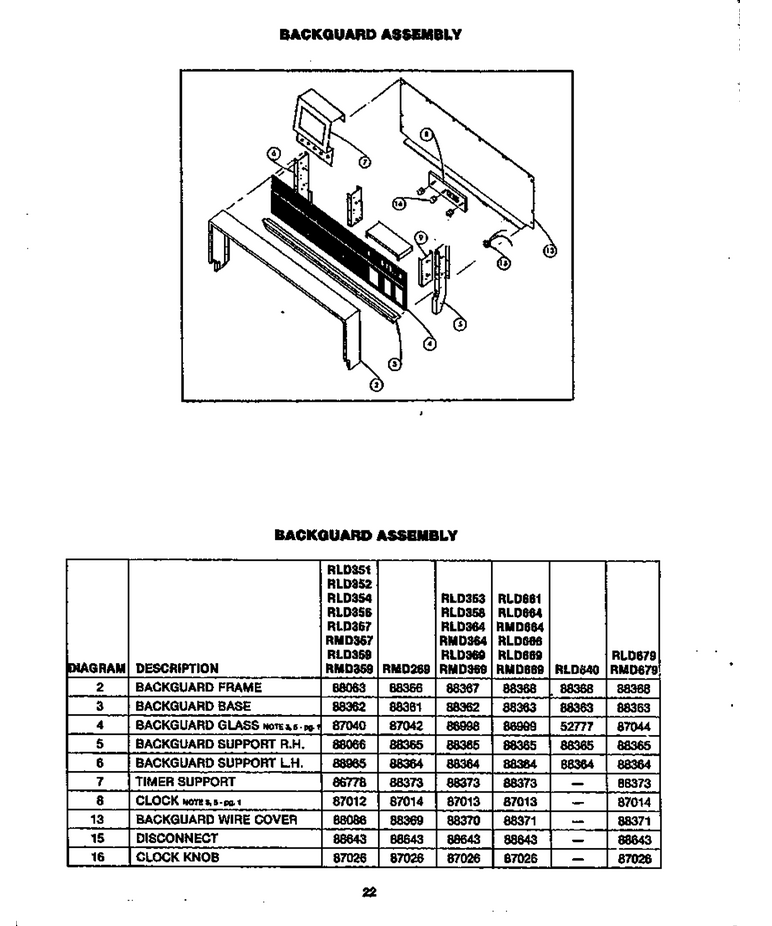

01 - Backguard Assy

...
...
2
Sub 57325, Frame, Backguard WPL-0088367
...
3
Backguard Base WPL-0088363
...
4
Backguard Glass WPL-0086999
...
5
Support, Backguard, R.h. WPL-0088365
...
6
Support, Backguard, L.h. WPL-0088364
...
7
Bracket, Clock WPL-0088373
...
8
Disconnect WPL-0088643
...
13
Sub 57236, Cover Wire Backguard WPL-0088371
...
15
Disconnect WPL-0088643
...
16
Knob, Clock WPL-0087026

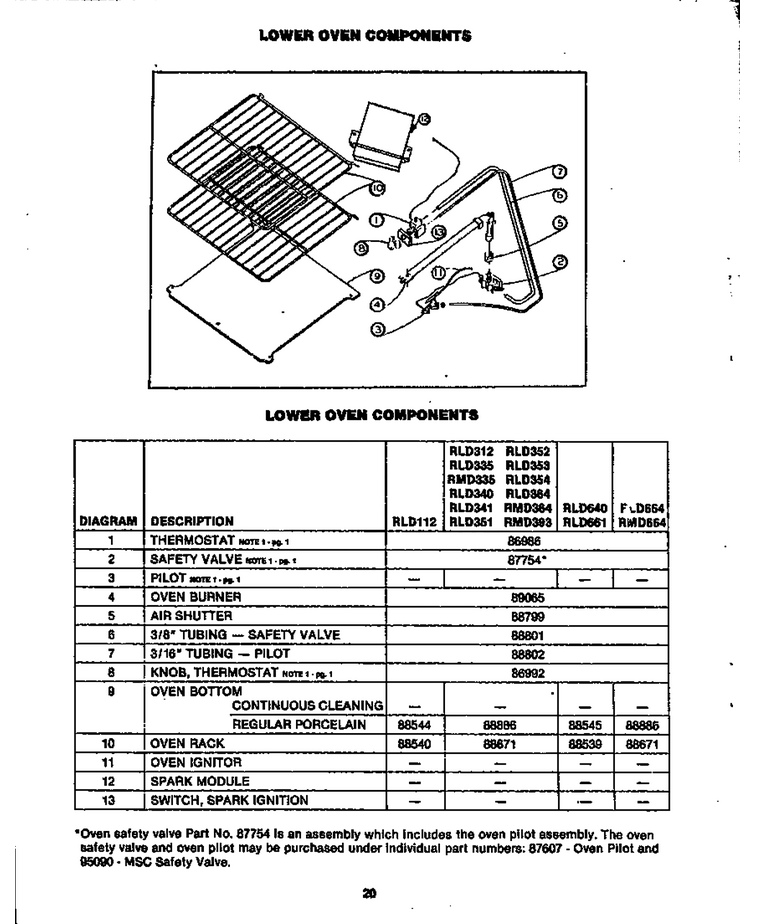

04 - Lower Oven Components

...
...
1
Oven Thermostat, Elo WPL-0086986
...
2
Valve- Msc WPL-Y07477600
...
4
Oven Burner WPL-0089065
...
5
Air Shutter WPL-88799
...
6
Sub 90761, Tubing WPL-0088801
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Knob- Ther WPL-Y07506701
...
9
Sub 88677cg, Oven Bottom WPL-0088886
...
10
Oven Rack WPL-Y0088671
