Amana RMA397

Model: RMA397

Save Part Not Listed?
product name

Popular Parts

Popular Parts

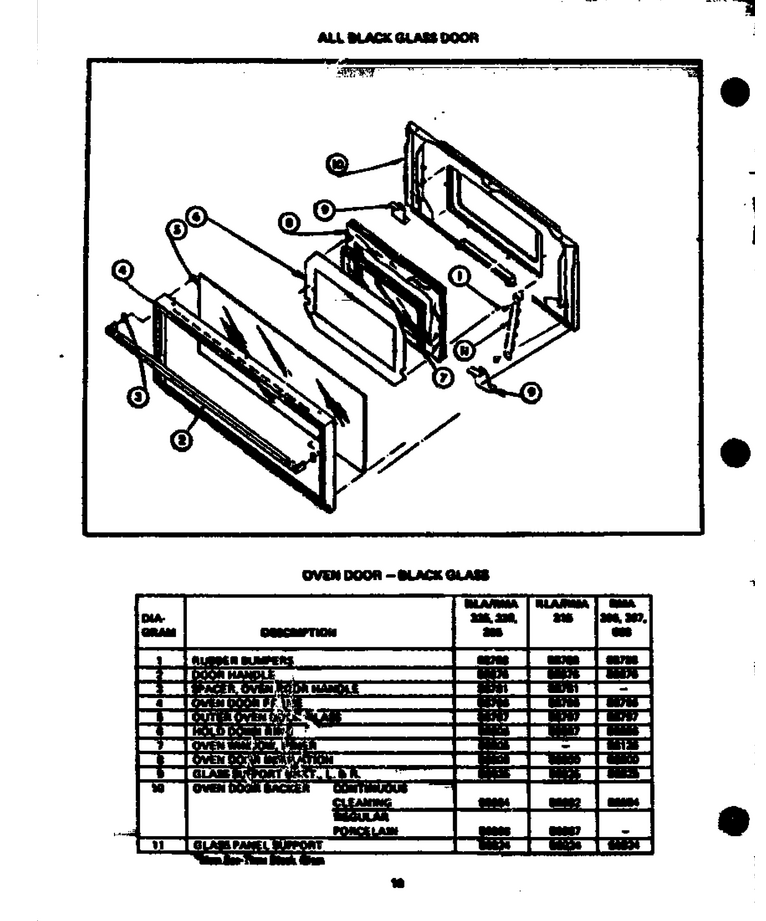

01 - All Black Glass Door

...
...
1
Bumper-Rubber 1/4`` WPL-Y02068200
...
2
Handle, Door WPL-0088876
...
4
Oven Door Frame WPL-Y88796
...
5
Glass,oven Dr 29``x 14 13/16`` WPL-Y0088797
...
6
Hold Down Ring Start At Code P WPL-88806
...
7
Sub 88647,window Assy Door WPL-Y0088126
...
8
Insulation, Wrapper WPL-31975801
...
9
Glass Support Brkt., L & R WPL-88825
...
10
Sub 88070 Backer, O.d. Cc WPL-0088684
...
11
Support, Glass Panel{j} WPL-0088824

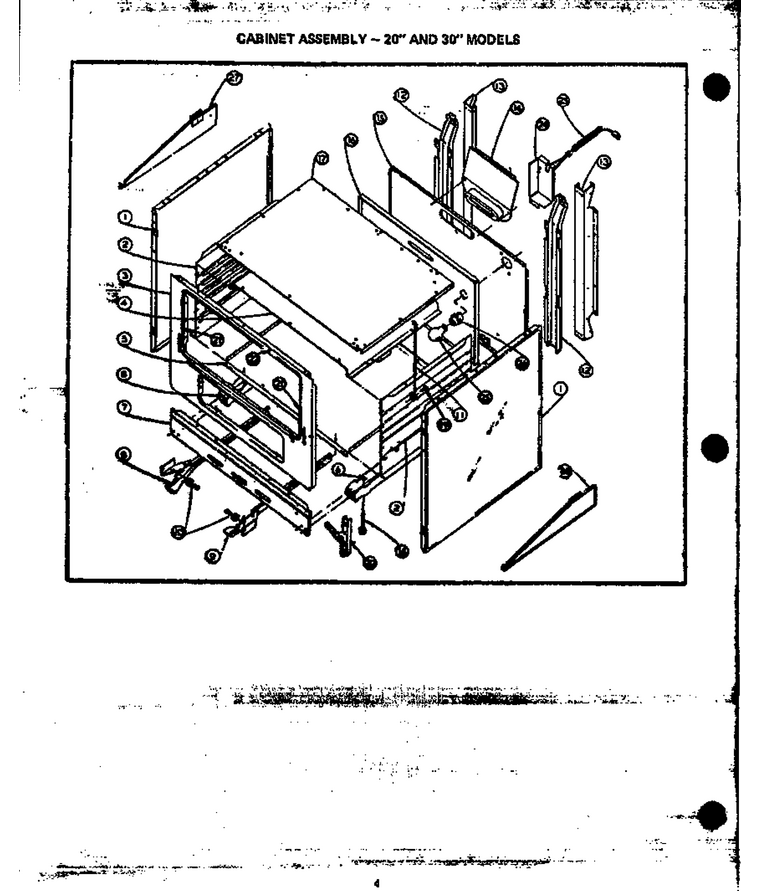

03 - Cabinet Assy

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
6
Rail, Base WPL-0088654
...
7
Base, Front Frame WPL-88655
...
8
Broiler Track, L.h. WPL-Y0088556
...
9
Broiler Track, R.h. WPL-Y0088557
...
10
Sub 310427, Roller And Rivet WPL-0088686
...
11
Sub 87023, Support Rod WPL-0088790
...
12
Sub 52742, Vertical Support WPL-0088657
...
13
Rear Support WPL-Y0088659
...
14
Flue Box WPL-0088718
...
15
Main Back WPL-88656
...
17
Burner Box Bottom WPL-0088661
...
18
Leg, Leveling WPL-Y0062362
...
19
Shoulder Screw WPL-0088779
...
20
Hinge, Oven Door WPL-Y07489700
...
21
Sub 56090, Gasket, Door WPL-Y0088847
...
22
Sub 56091, Top Seal, Door WPL-Y0088848
...
23
Cord Set (J) WPL-0088909
...
24
Wire Cover WPL-Y88734
...
25
Light Bulb WPL-8009
...
26
Socket, Oven Light WPL-Y0316385
...
27
Burner Box Side, L.h. WPL-0088728
...
28
Burner Box Side, L.h. WPL-0088728

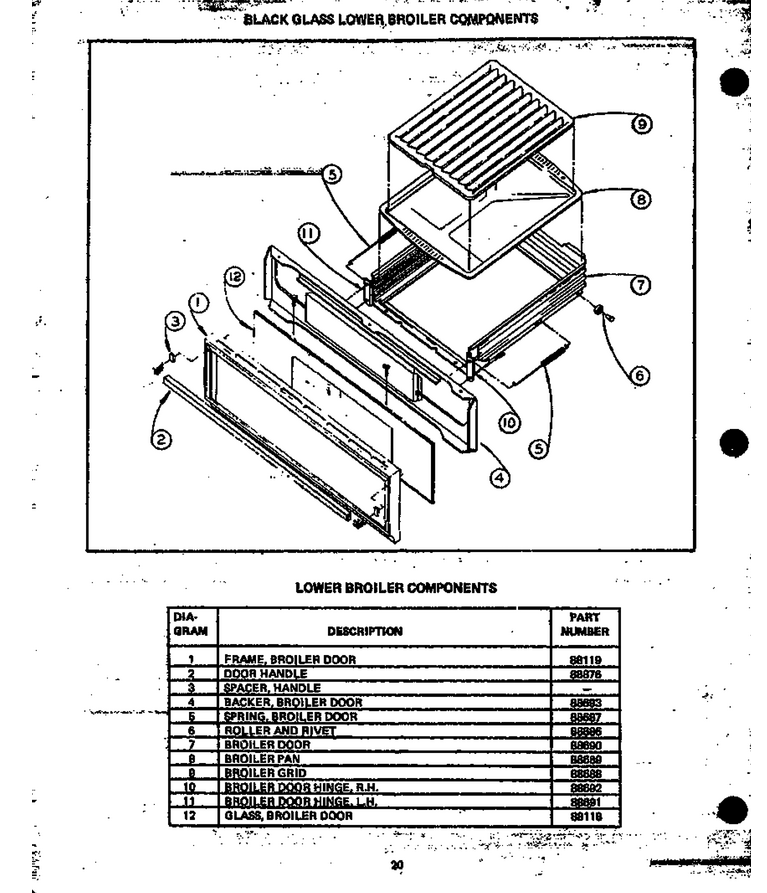

02 - Black Glass Lower Broiler Components

...
...
1
Frame, Broiler Door Glass WPL-0088119
...
2
Handle, Door WPL-0088876
...
3
See Note Spacer, Handle WPL-Y00000000
...
4
Sub 88693cg, Broiler Door Back WPL-0088693
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Sub 310427, Roller And Rivet WPL-0088686
...
7
Broiler Door WPL-Y88690
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Broiler Door Hinge, R.h. WPL-0088692
...
11
Broiler Door Hinge, L.h. WPL-Y88691
...
12
Glass, Broiler Door WPL-0088118

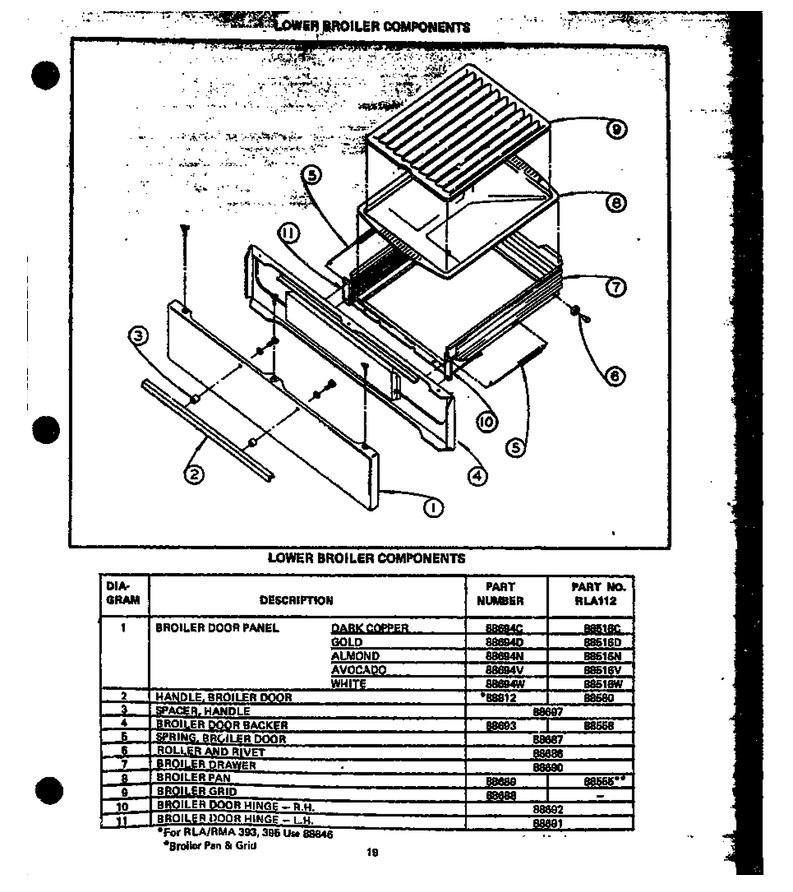

04 - Lower Broiler Components

...
...
1
Pnl-Brlr Dr,30-Alm WPL-088694N
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Sub 88693cg, Broiler Door Back WPL-0088693
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Sub 310427, Roller And Rivet WPL-0088686
...
7
Broiler Door WPL-Y88690
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Broiler Door Hinge, R.h. WPL-0088692
...
11
Broiler Door Hinge, L.h. WPL-Y88691

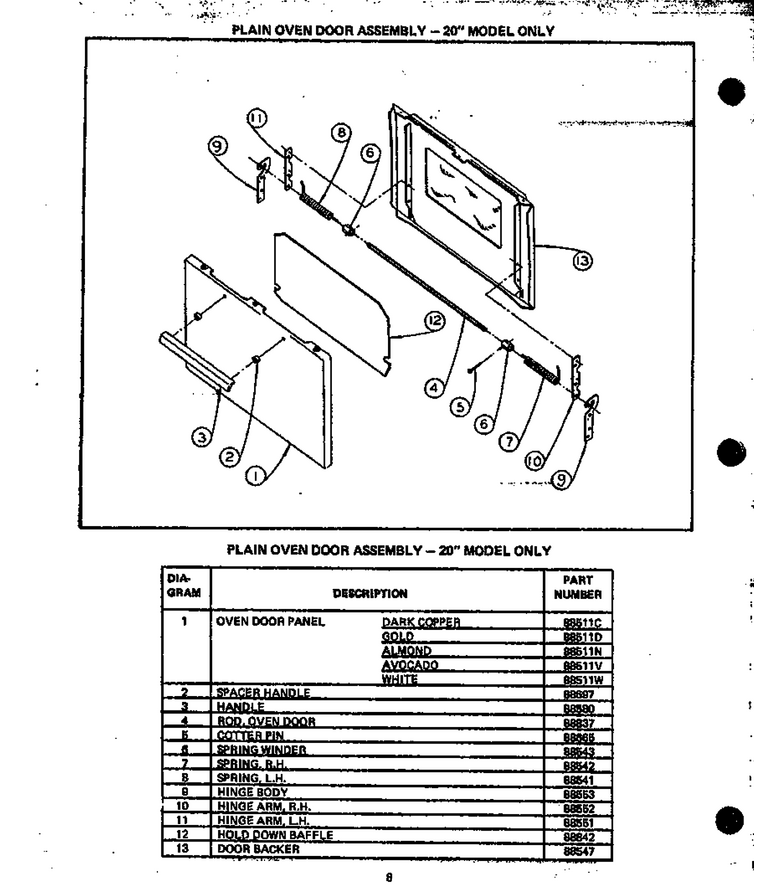

07 - Plain Oven Door Assy

...
...
1
Panel, Oven Door, Avocado WPL-Y088511V
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Rod, Oven Door WPL-88837
...
5
Cotter Pin WPL-88665
...
6
Winder, Spring WPL-Y0088543
...
7
Spring, Oven Door, R.h. WPL-Y0088542
...
8
Spring, Oven Door, L.h. WPL-Y0088541
...
9
Hinge Body WPL-Y88553
...
10
Hinge Arm, R H WPL-0088552
...
11
Hinge Arm, L.h. WPL-0088551
...
12
Baffle, Hold Down WPL-0088842
...
13
Liner Oven Door WPL-Y0088547

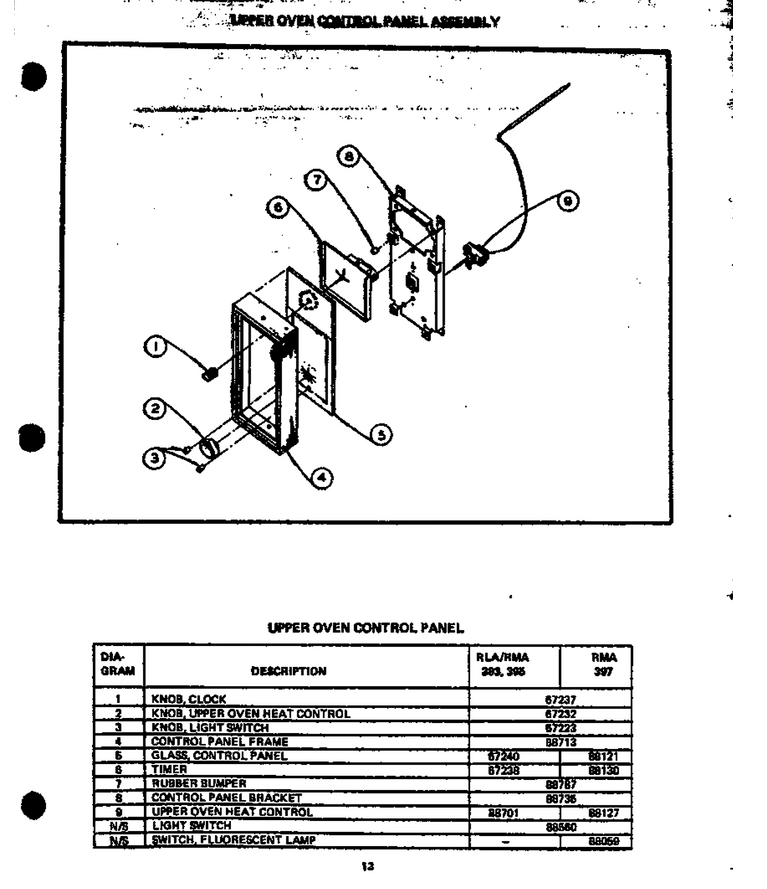

10 - Upper Oven Control Panel Assy

...
...
NI
Switch, Light WPL-0088560
...
1
Knob, Clock WPL-Y67237
...
2
Knob, Upper Oven Heat Control WPL-Y67232
...
3
Knob, Light Switch WPL-Y67223
...
4
Frame, Control Panel WPL-0088713
...
5
Glass, Control Panel WPL-Y0088121
...
6
Timer WPL-Y0057291
...
7
Bumper-Rubber 1/4`` WPL-Y02068200
...
8
Bumper-Rubber 1/4`` WPL-Y02068200
...
9
Oven Thermostat WPL-0088127

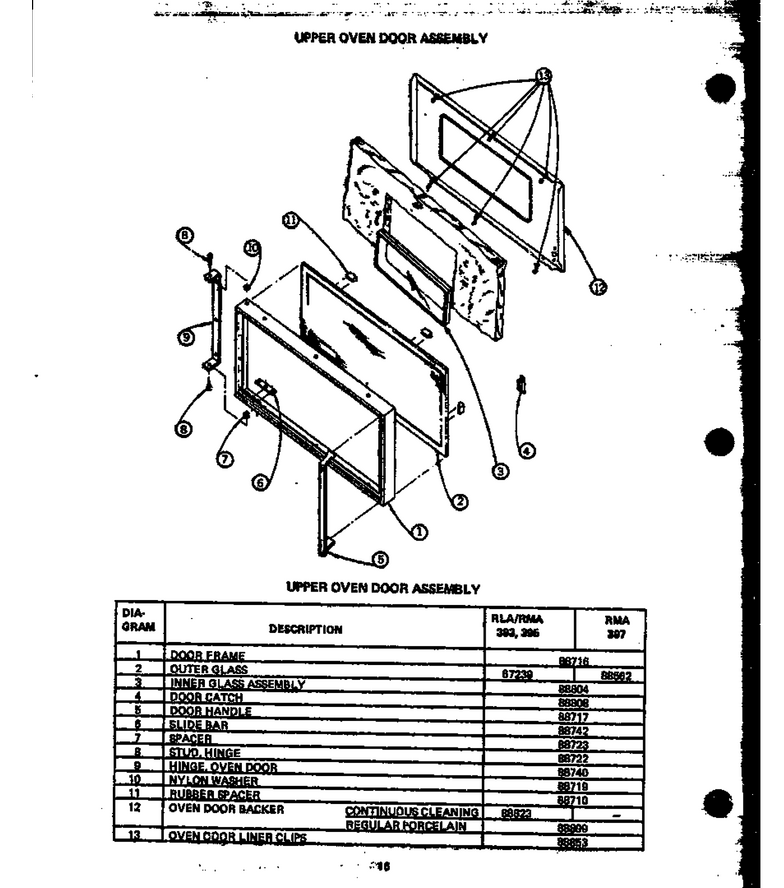

11 - Upper Oven Door Assy

...
...
1
Frame, Upper Oven Door WPL-0088716
...
2
Outer Door Glass WPL-0088562
...
3
Inner Door Glass Assembly WPL-0088804
...
4
Door Catch WPL-0088808
...
5
Door Handle WPL-88717
...
6
Slide Bar WPL-Y88742
...
7
Spacer WPL-0088723
...
8
Hinge Stud WPL-0088722
...
9
Hinge, Oven Door WPL-88740
...
10
Nylon Washer WPL-0088719
...
11
Bumper ``l`` Shaped WPL-Y0312836
...
12
Oven Door Backer, Regular Porc WPL-88899
...
13
Grommet WPL-0088853

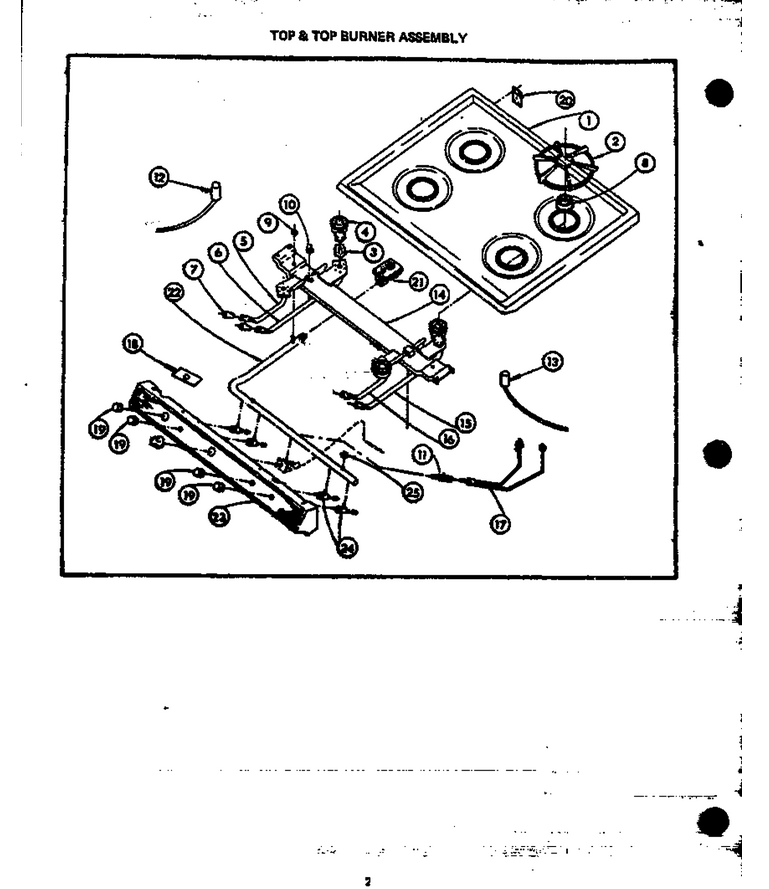

06 - Page 1

...
...
NI
Bowl-Drip WPL-Y07514500
...
1
Main Top, Dark Copper WPL-Y088669C
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Top Burner Gasket WPL-Y0088785
...
4
Top Burner Head WPL-Y0088784
...
5
Front Burner Tube WPL-Y0088830
...
6
Sub 88831, Rear Brnr. Assy. WPL-0088829
...
7
Air Shutter WPL-88786
...
8
Burner Cap WPL-0088670
...
9
Square Nut {j} WPL-0088650
...
10
Top Pilot Harness WPL-88794
...
11
Filter WPL-0088789
...
14
Top Burner Support WPL-Y0088826
...
15
Use 0310446 WPL-0088831
...
16
Front Burner Tube WPL-Y0088830
...
17
Tubing, Top Burner Pilot WPL-31827501
...
19
Knob, Top Burner WPL-Y0088641
...
20
Hinge, Main Top WPL-0088782
...
21
Pressure Regulator WPL-77001246
...
22
Manifold Pipe WPL-88792
...
23
Control Panel WPL-67246
...
24
Valve- Top WPL-Y0087004
...
25
Acorn Nut WPL-Y0088780

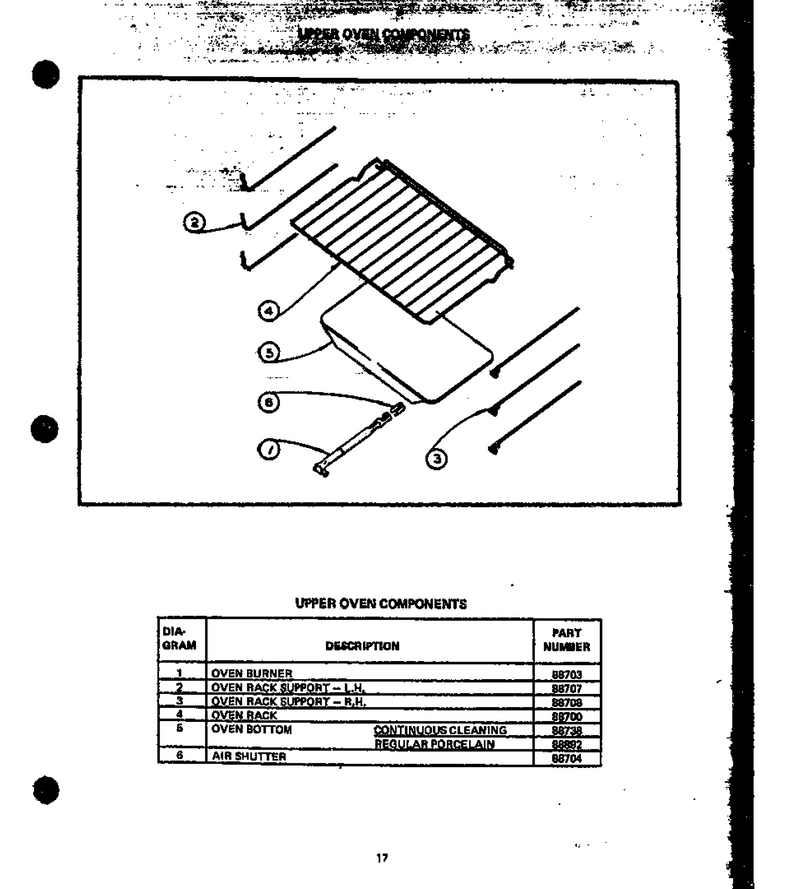

09 - Upper Oven Components

...
...
1
Oven Burner, Upper WPL-0088703
...
2
Oven Rack Support, L.h. WPL-0088707
...
3
Oven Rack Support, R.h. WPL-0088708
...
4
Oven Rack WPL-Y88700
...
5
Oven Bottom, C/c WPL-0088738
...
6
Oven Burner, Upper WPL-0088704

08 - Upper Oven Cabinet Parts

...
...
NI
Ballast WPL-74003033
...
1
Top Panel, White WPL-Y088733W
...
2
Top Trim WPL-Y0088715
...
3
Flue Box WPL-88749
...
4
Top Baffle WPL-88748
...
5
Burner Box Side-L.h. WPL-Y88747
...
6
Burner Box Side, R.h. WPL-Y0088746
...
7
Side Panel, L.h., Gold WPL-Y088731D
...
8
Side Panelwhite WPL-Y088732W
...
9
Oven Support-L.h. WPL-88698
...
10
Oven Support, R.h. WPL-Y0088699
...
11
See Note Oven Backliner WPL-Y00000000
...
12
See Note Oven Liner, Continuous Cleaning WPL-Y00000000
...
13
See Note Oven Liner, Regular Porcelain WPL-Y00000000
...
14
See Note Front Frame WPL-Y00000000
...
15
Oven Door Seal WPL-Y0088709
...
16
Hinge, Oven Door WPL-88740
...
17
Door Strike WPL-0088809
...
18
Door Support WPL-Y88720
...
19
Burner Enclosure WPL-Y0088739
...
20
Bottom Unit Wrapper WPL-Y88726
...
21
Light Shield WPL-Y0088714
...
22
Light Deflector WPL-Y0088727
...
23
Block-Term WPL-WP8203546
...
24
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
25
Backsplash Panel, Avocado WPL-Y088725V
...
26
Upper Back Cover WPL-Y0088743
...
27
Cord Set WPL-Y0088883
...
28
Air Shutter WPL-Y0088060
...
29
Lamp- Flou WPL-WPY0067945
...
30
Sub 89316, Kit, Fluor. Light WPL-0088081
...
31
Oven Light Reflector WPL-Y0088745
...
32
Light Bulb WPL-8009
...
33
Socket, Oven Light WPL-Y0316385
...
34
Oven Light Bracket WPL-Y0088744
...
35
Oven Pilot WPL-0088705
...
36
Use 0088822 WPL-Y0088773
...
37
Sub 310434, Upper Oven Valve WPL-0088702
...
38
Tubing 3/8`` X 21 1/2`` WPL-Y88712
...
39
Upper Oven Back Support WPL-Y88721
...
40
Bracket WPL-Y0088741

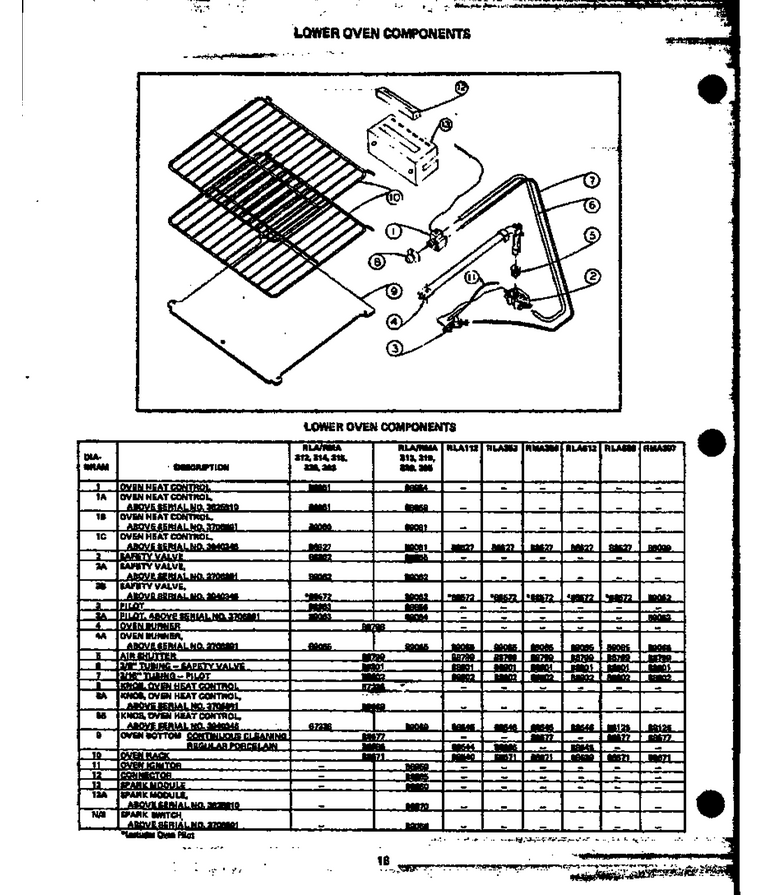

05 - Lower Oven Components

...
...
1
Thermostat WPL-0088099
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0089065
...
5
Air Shutter WPL-88799
...
6
Sub 90761, Tubing WPL-0088801
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Knob, Oven Heat Control, Above WPL-88125
...
9
Kit, Oven Bottom-30`` C.c. WPL-Y0088677
...
10
Oven Rack WPL-Y0088671
