Amana RLT375UL (BOM: P11410096NL)

Model: RLT375UL (BOM: P11410096NL)

Save Part Not Listed?
product name

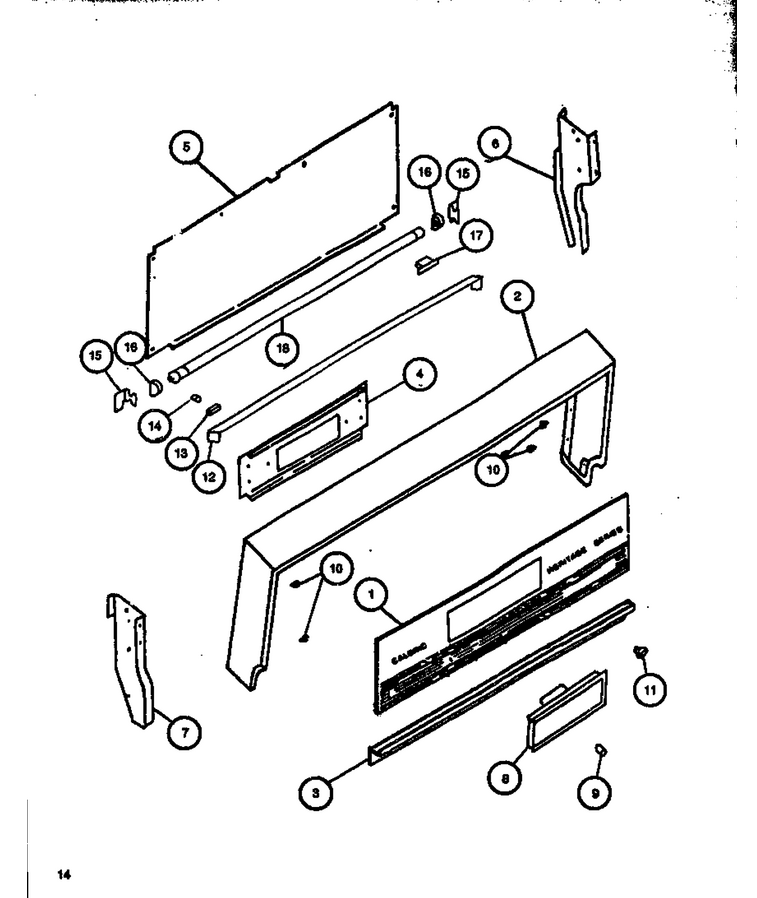

06 - Page 6

...
...
NI
U-Clip, Safe Edge WPL-31750803
...
1
Glass, Backguard WPL-0311840
...
2
Backguard Frame WPL-0057325
...
3
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
4
Bracket, Clock (Borg Timer) WPL-0311819
...
5
Wire Cover WPL-0310989
...
6
Backguard Support, Lh WPL-Y0056474
...
7
Backguard Support, Rh WPL-0056475
...
8
Timer, Cook & Off WPL-0301056
...
9
See Note Knob Set Button WPL-Y00000000
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Knob, Clock WPL-0300702
...
12
Bracket, Center Support WPL-Y0086927
...
13
Base, Fluor. Light Starter WPL-0087048
...
14
Starter, Flourescent WPL-0087047
...
15
Spacer, Socket WPL-0086928
...
16
Sub 89316, Kit, Fluor. Light WPL-0088081
...
17
Ballast WPL-74003033
...
18
Lamp- Flou WPL-WPY0067945

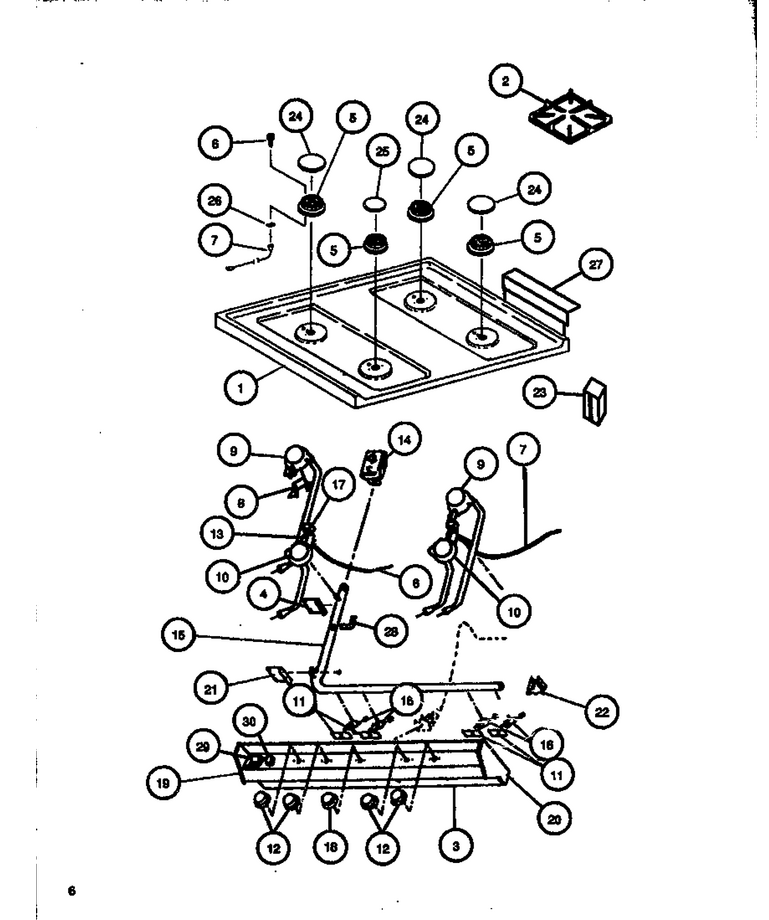

02 - Page 2

...
...
NI
3/8`` Lox-It Nut WPL-Y0077677
...
1
Main Top Almond WPL-312966L
...
2
Grate, Top Burner WPL-304829Y
...
3
Panel, Manifold WPL-07700500
...
4
Bracket Manifold WPL-Y0312951
...
5
Assy Burne WPL-Y0306105
...
6
Elctr-Kit WPL-WP3185804
...
7
Harness, Wire (Ignitor) WPL-Y0312959
...
8
Bracket Venturi WPL-0312950
...
9
Venturi Assy Rear WPL-Y0312961
...
10
Venturi Assy Front WPL-Y0312960
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob WPL-W11032824
...
13
Nipple Pipe 1/2`` X 7`` WPL-Y0312973
...
15
Pipe, Manifold WPL-0311832
...
16
Valve Top Burner 90 WPL-Y0312968
...
17
Elbow 1/2`` X 90 150no. WPL-Y0312974
...
18
Knob, Thermostat WPL-Y0311830
...
19
End Cap, L.h. WPL-Y0311833
...
20
End Cap, R.h. WPL-Y0311834
...
21
Bracket, Manifold Support WPL-Y0311811
...
22
Bracket, Manifold Support WPL-0311810
...
23
Module, Spark WPL-1430322
...
24
Cap, Burner (Large) WPL-314638B
...
25
Cap, Burner (Small) WPL-314637Y
...
26
Clip, Electrode WPL-Y0304365
...
27
Trim, Main Top WPL-0311853
...
28
Elbow, 90 Degrees WPL-0311890
...
29
Switch, Light, White WPL-Y0763480
...
30
Pilot Light, Surface WPL-Y0056018

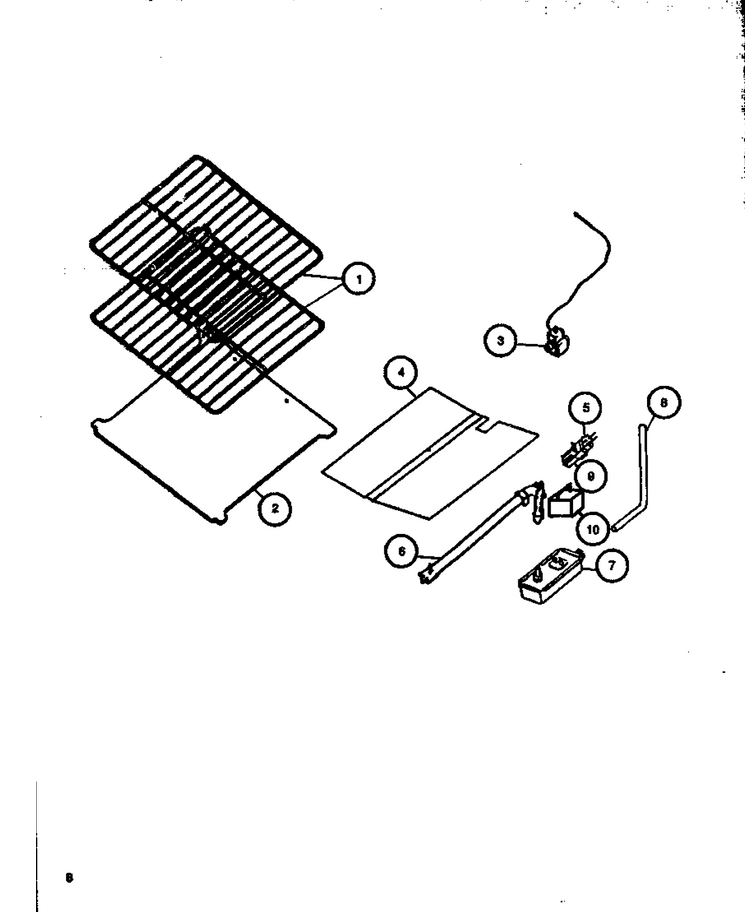

03 - Page 3

...
...
NI
Screw No.10 X 5/16 WPL-0310234
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-0311822
...
3
Thermostat WPL-Y07659500
...
4
Spreader, Flame W/o Notch WPL-0311821
...
5
Ignitor- B WPL-WP31939701
...
6
Burner, Oven WPL-0311628
...
7
Valve, Oven WPL-Y0311892
...
8
Tubing, 3/8`` Od, 10 Ft. WPL-Y0311891
...
9
Bracket- I WPL-Y06517600
...
10
Valve, Manual Shut-Off WPL-Y0311893

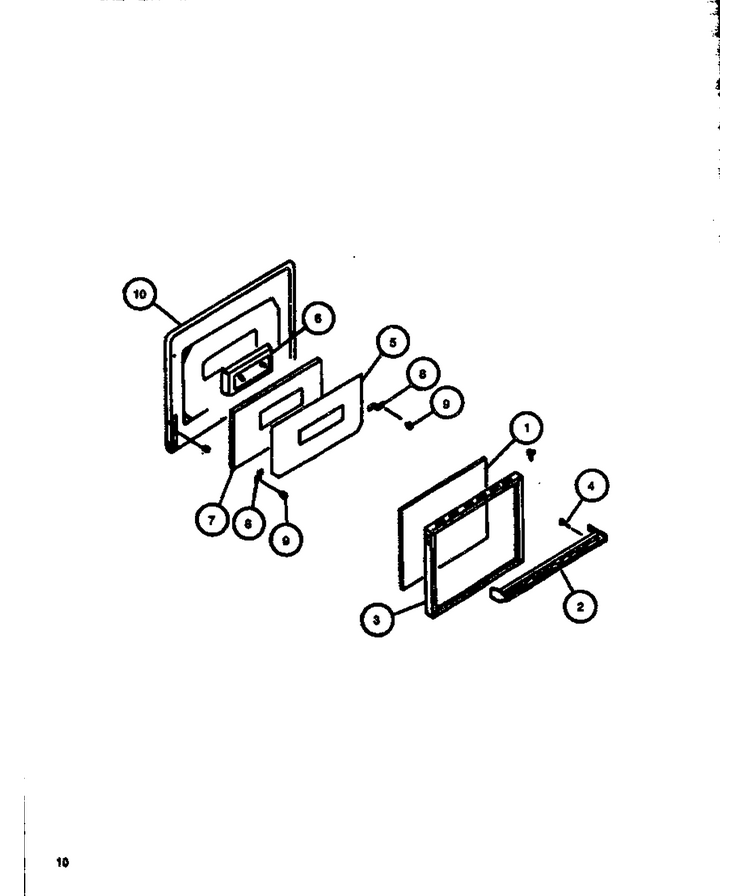

04 - Page 4

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Glass, Oven Door WPL-Y07637003
...
2
Handle, Vinyl (Oven Door) WPL-07636810
...
3
Frame, Door Glass WPL-0311827
...
4
Screw WPL-313806
...
5
Ring, Insulation Hold Down WPL-0311753
...
6
Sub 88647,window Assy Door WPL-Y0088126
...
7
Insulation, Wrapper WPL-31975801
...
8
Bracket, Bumper Mount {j} WPL-Y0311752
...
9
Bumper-Rubber 1/4`` WPL-Y02068200
...
10
Oven Door Liner, Charcoal Gray WPL-311816E

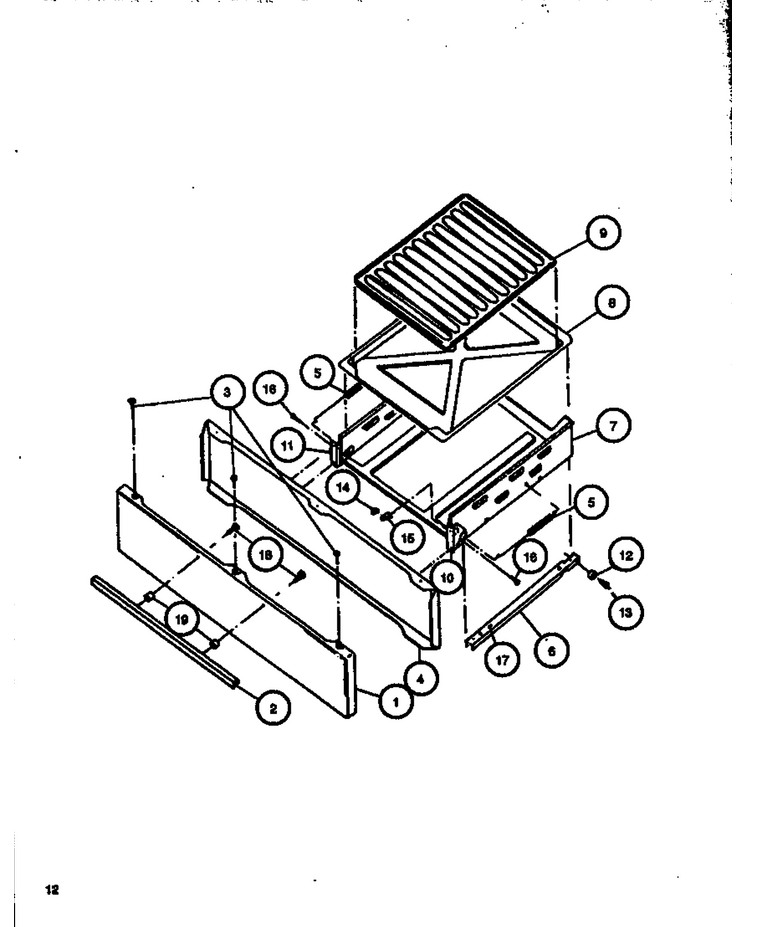

05 - Page 5

...
...
NI
Screw WPL-0310239
...
1
Panel-Broiler Drawer 30`` (Wht) WPL-Y06513101W
...
2
Handle, Vinyl (Brl Door) WPL-07636811
...
3
Screw No.10 X 1/2`` WPL-Y0310804
...
4
Liner, Broil Door,30`` WPL-312246E
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Rt (Gas) WPL-Y06478001
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door, Rh WPL-Y0066907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
See Note Roller, Track -- (Part Of Item 6) WPL-Y00000000
...
13
See Note Roller Pin -- (Part Of Item 6) WPL-Y00000000
...
14
Hex Nut W/washer {j} WPL-0056140
...
15
Spring Clip WPL-Y0088664
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Glide, Drawer (Wht) WPL-Y07674900
...
18
Screw WPL-313806
...
19
Handle Spacer, Plastic (J) WPL-Y0310818

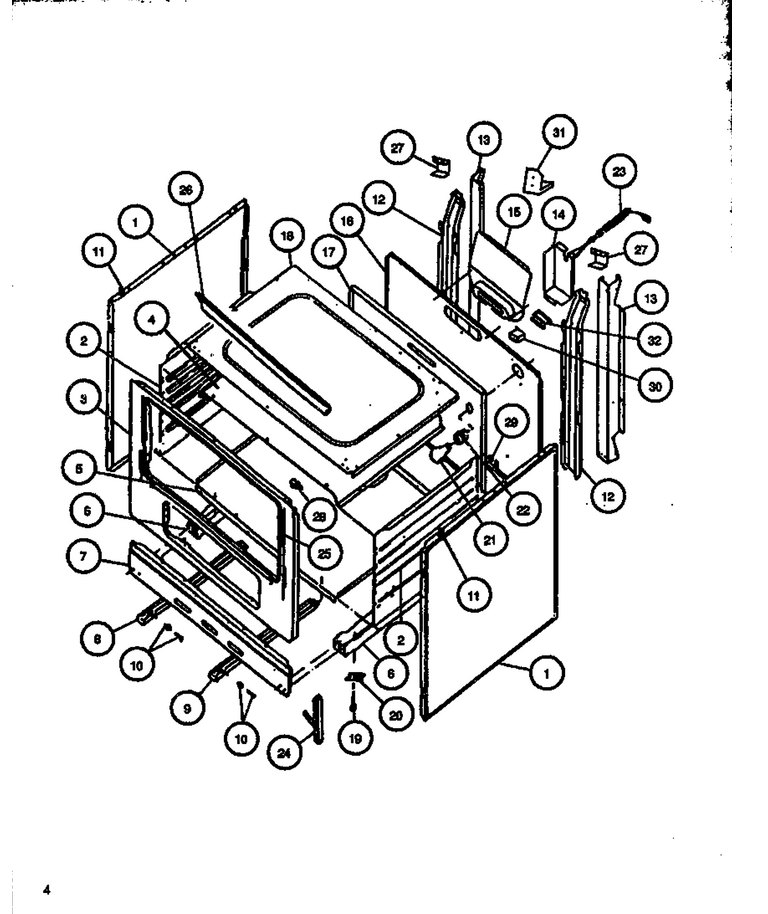

01 - Page 1

...
...
NI
Kit, Anti-Tip WPL-0312838
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-311807E
...
3
Front Frame WPL-Y0311880
...
4
Liner, Oven Top - Porcelain WPL-88885CG
...
5
Baffle, Base (30``gas) WPL-Y0311051
...
6
Rail, Base WPL-0310806
...
7
Base, Front Frame WPL-Y052744
...
8
Track, Lower L.h. WPL-0310522
...
9
Track, Lower R.h. WPL-Y0310523
...
10
See Note Roller And Pin -- (Part Of Track Assembly) WPL-Y00000000
...
11
Stud, Locating - Nylon WPL-0311086
...
12
Vertical Sup. (J) WPL-0052742
...
13
Support, Rear, Vertical {j} WPL-0056477
...
14
Wire Cover WPL-0088662
...
15
Flue Box WPL-0310821
...
16
Pnl, Main Back Gas 30`` WPL-Y01392002
...
17
Liner, Oven Back WPL-88889CG
...
18
Bottom, Burner Box WPL-0311931
...
19
Leg, Leveling WPL-Y0062362
...
20
Snap-In Tee Nut WPL-Y0088571
...
21
Light Bulb WPL-8009
...
22
Socket, Oven Light WPL-Y0316385
...
23
Cord Set (J) WPL-0088884
...
24
Hinge-Oven WPL-Y07655200
...
25
Seal- Oven WPL-31958801
...
26
No Longer Available WPL-0310217
...
27
No Longer Available WPL-0310217
...
28
Clip, Capillary WPL-0310802
...
29
Bushing, Snap WPL-Y0311619
...
30
Connector WPL-M0335314
...
31
Plate, Spark Module WPL-Y0087725
