Amana RLT370UCO (BOM: P1141109N W)

Model: RLT370UCO (BOM: P1141109N W)

Save Part Not Listed?
product name

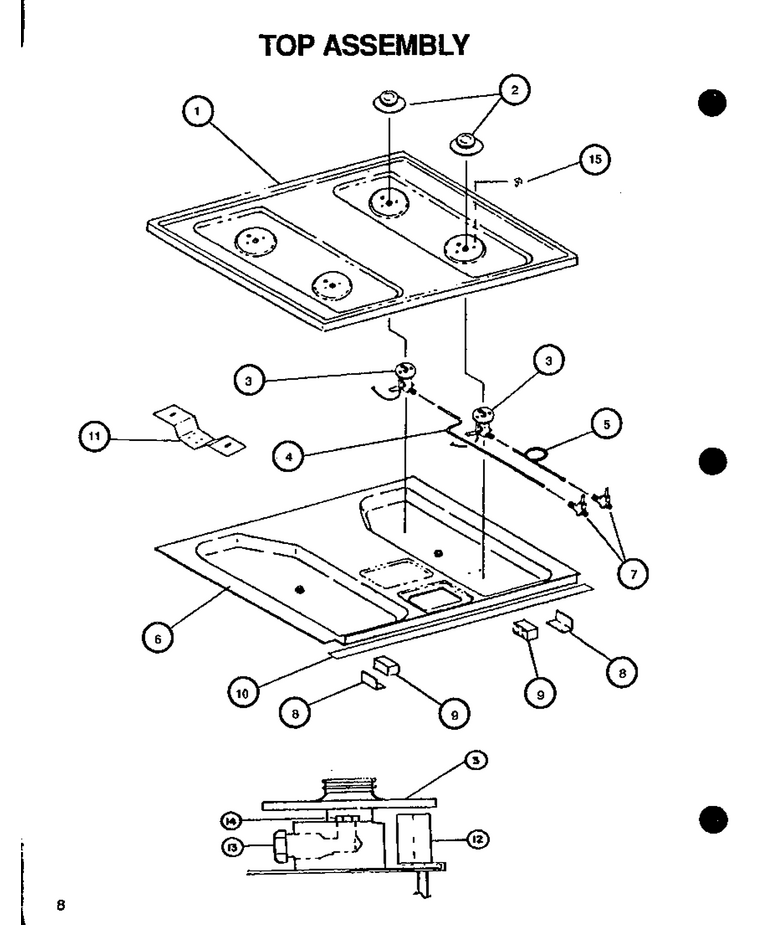

07 - Top Assy

...
...
1
Main Top WPL-312002W
...
2
Cap-Burnr WPL-WPY0307210
...
3
Venturi Assy WPL-Y0301350
...
4
Sub 90759, Tubing, 1/4`` WPL-Y0312020
...
5
Sub 90759, Tubing, 1/4`` WPL-Y0312019
...
6
Bottom, Burner Box WPL-0312007
...
7
Valve, Top Burner, 180 Degrees WPL-Y0312004
...
8
Plate, Spark Module WPL-Y0087725
...
9
Module, Spark WPL-1430322
...
10
Extension, Burner Box WPL-Y0312005
...
11
Support, Top Burner Ext. WPL-Y0312008
...
12
Electrode, Wire And Socket WPL-Y0301354
...
13
Nut Loxit WPL-0302406
...
14
Orifice, Natural WPL-Y0302405
...
15
Screw WPL-8169479

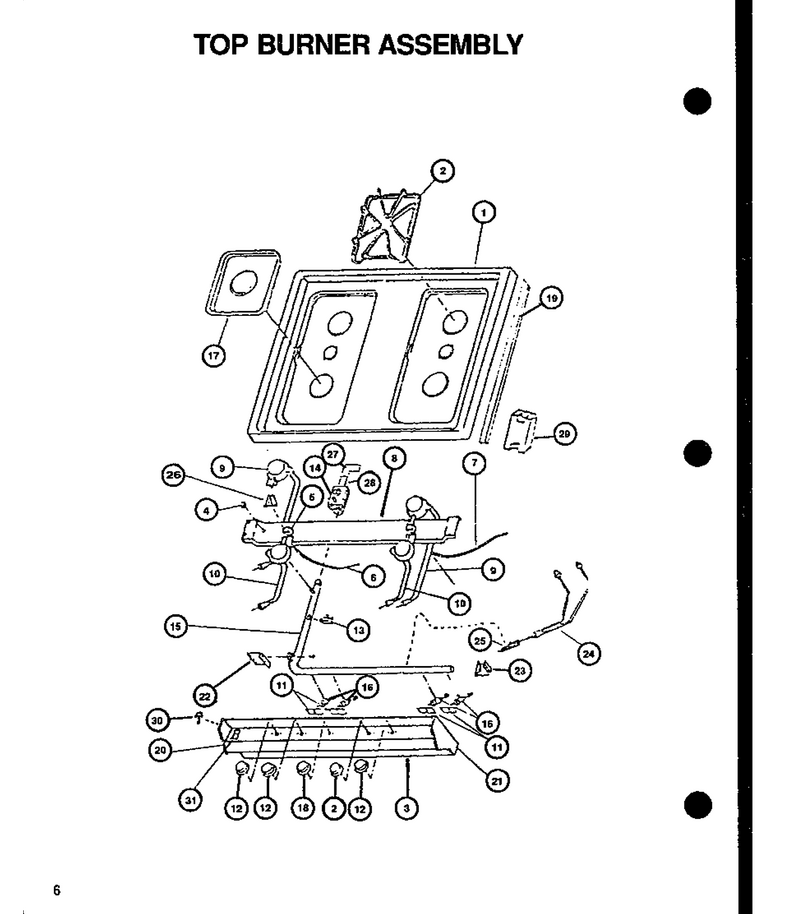

06 - Tob Burner Assy

...
...
1
Cooktop, White WPL-310082W
...
2
Grate-Brnr WPL-WP314647B
...
3
Panel, Manifold WPL-0311850
...
4
Square Nut {j} WPL-0088650
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Support, Top Burner (36``) WPL-311025E
...
9
Burner - Top Rear (Cal) WPL-Y07699200
...
10
Burner - Top Front (Cal) WPL-Y07699100
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob WPL-0311837
...
14
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
15
Pipe, Manifold WPL-0311832
...
16
Screw WPL-W10491986
...
17
Burner Bow WPL-WPY0060872
...
18
Knob, Thermostat WPL-Y0311830
...
19
Trim, Main Top WPL-0311853
...
20
End Cap, L.h. WPL-Y0311833
...
21
End Cap, R.h. WPL-Y0311834
...
22
Bracket, Manifold Support WPL-Y0311811
...
23
Bracket, Manifold Support WPL-0311810
...
27
Elbow 1/2`` X 90 150no. WPL-Y0312974
...
28
Nipple Pipe 1/2`` X 7`` WPL-Y0312973
...
29
Module, Spark WPL-1430322
...
30
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
31
Switch, Rocker (Blk) WPL-74008718

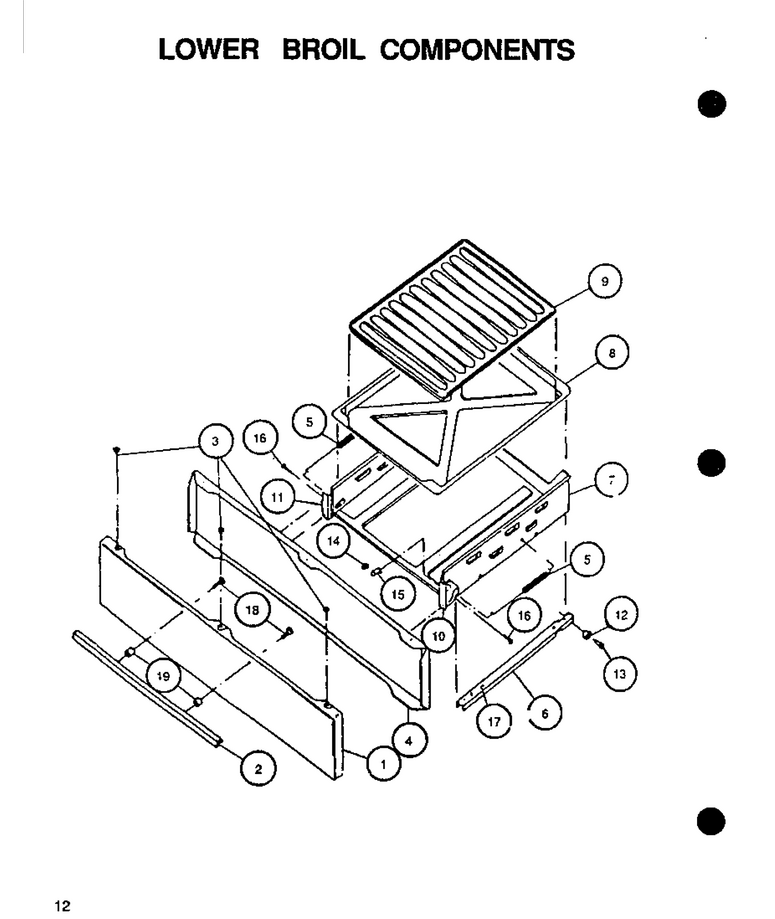

03 - Lower Broil Components

...
...
NI
Screw (J) WPL-0310233
...
1
Panel, Broiler Door, Al. 30`` WPL-311812L
...
2
Handle, Door WPL-Y0311765
...
3
Screw No.10 X 1/2`` WPL-Y0310804
...
4
Liner, 30``, Broiler Drawer WPL-Y0311568
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Lt (Gas) WPL-Y06478000
...
7
Drawer, Broiler WPL-86908CG
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Grid, Broiler WPL-88723CG
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
See Note Roller, Track -- (Part Of Ref No. 6) WPL-Y00000000
...
13
See Note Roller Pin -- (Part Of Ref. No. 6) WPL-Y00000000
...
14
Hex Nut W/washer {j} WPL-0056140
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Glide, Drawer (Wht) WPL-Y07674900
...
18
Screw WPL-313806
...
19
Handle Spacer, Plastic (J) WPL-Y0310818

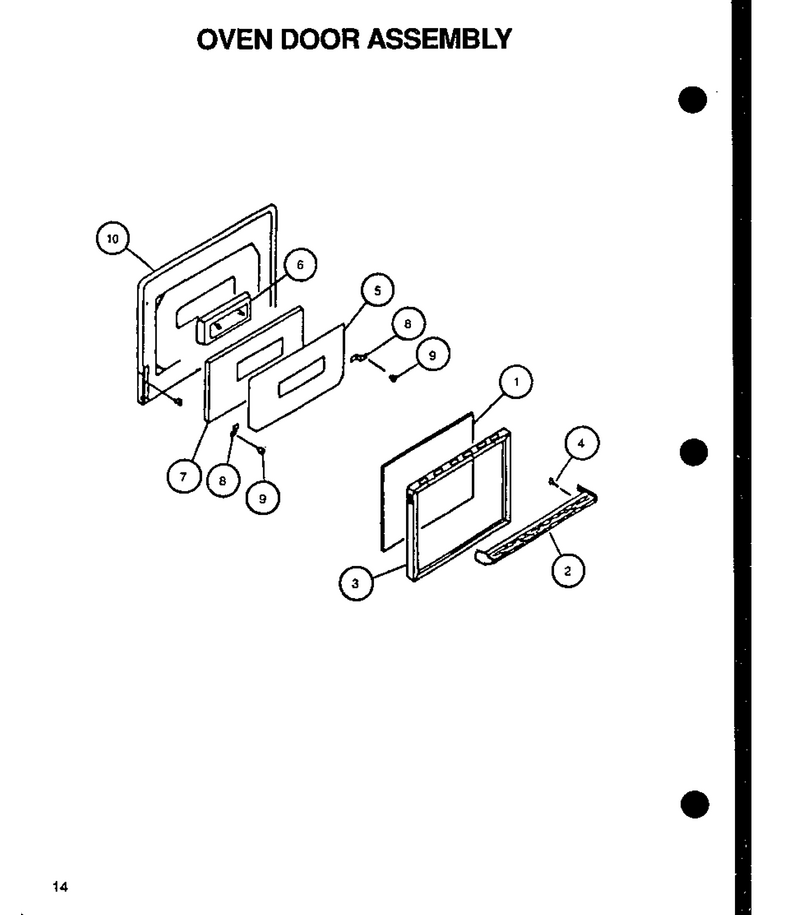

05 - Oven Door Assy

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Glass- Ove WPL-Y07637002
...
2
Handle, Door WPL-Y0311764
...
3
Frame, Door Glass WPL-0311827
...
4
Screw WPL-313806
...
5
Ring, Hold Down WPL-0311813
...
6
Sub 88647,window Assy Door WPL-Y0088126
...
7
Insulation, Wrapper WPL-31975801
...
8
Bracket, Bumper Mount {j} WPL-Y0311752
...
9
Bumper-Rubber 1/4`` WPL-Y02068200
...
10
Door Liner, W/window WPL-0311816

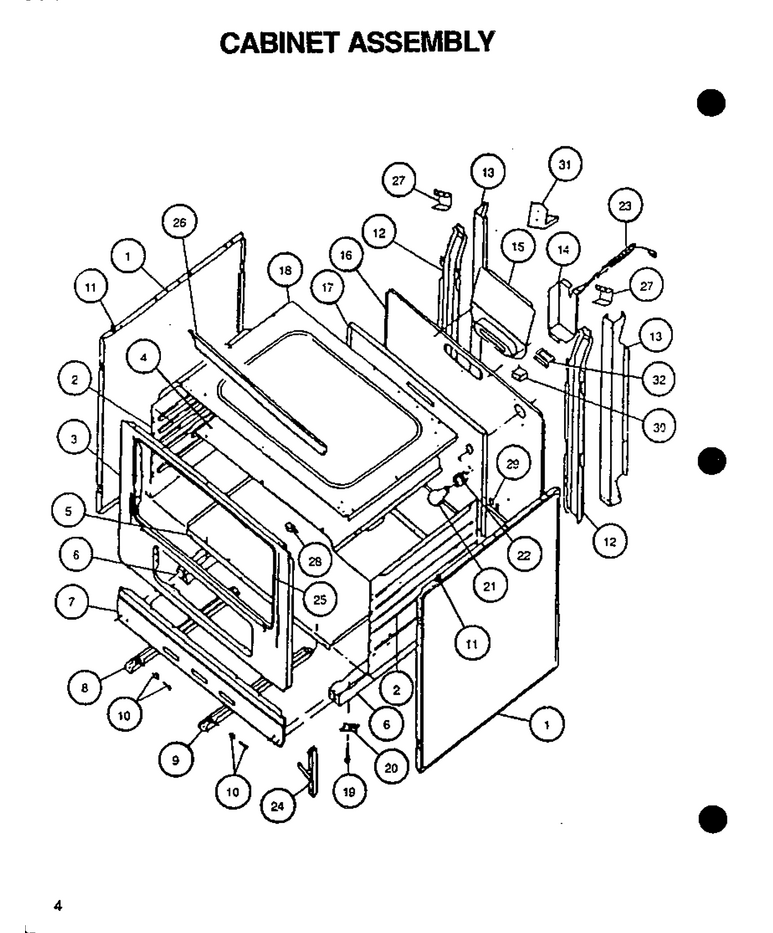

02 - Cabinet Assy

...
...
NI
Wire Cover (Ov. Light) {j} WPL-Y0310809
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
6
Rail, Base WPL-0310806
...
7
Toe Panel (J) WPL-0052744
...
8
Track, Lower L.h. WPL-0310522
...
9
Track, Lower R.h. WPL-Y0310523
...
10
See Note Roller And Pin -- (Part Of Broiler Track) WPL-Y00000000
...
11
Stud, Locating - Nylon WPL-0311086
...
12
Vertical Sup. (J) WPL-0052742
...
13
Support, Rear, Vertical {j} WPL-0056477
...
14
Wire Cover WPL-0088662
...
15
Flue Box WPL-0310821
...
16
Pnl, Main Back Gas 30`` WPL-Y01392002
...
17
See Note Oven Back Liner -- (Not Replaceable) WPL-Y00000000
...
18
Bottom, Burner Box WPL-0311931
...
19
Leg, Leveling WPL-Y0062362
...
20
Snap-In Tee Nut WPL-Y0088571
...
21
Light Bulb WPL-8009
...
22
Socket, Oven Light WPL-Y0316385
...
23
Cord Set (J) WPL-0088884
...
24
Hinge-Oven WPL-Y07655200
...
25
Seal- Oven WPL-31958801
...
26
Extension, Burner Box WPL-Y0312005
...
27
No Longer Available WPL-0310217
...
28
Clip, Capillary WPL-0310802
...
29
Bushing, Snap WPL-Y0311619
...
30
Connector WPL-M0335314
...
31
Plate, Spark Module WPL-Y0087725
...
32
Bracket WPL-0311551

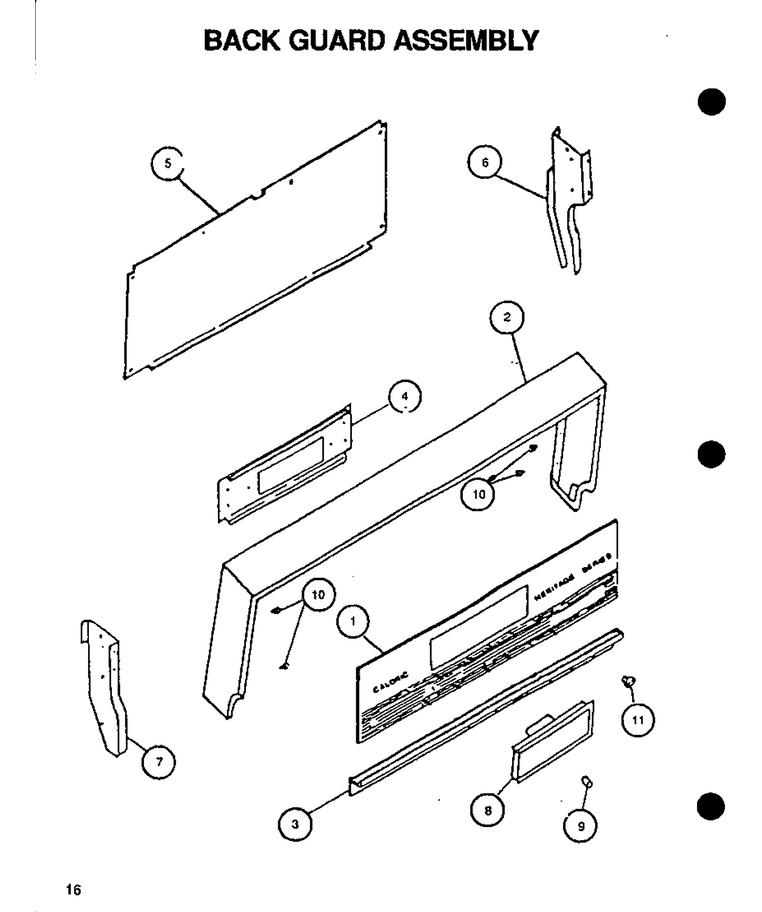

01 - Back Guard Assy

...
...
NI
Screw, No.8-18x 1/2 WPL-0311876
...
1
Glass, Backguard WPL-0311841
...
2
Backguard Frame WPL-0057325
...
3
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
4
Bracket, Clock (Borg Timer) WPL-0311819
...
5
Wire Cover WPL-0310989
...
6
Backguard Support, Lh WPL-Y0056474
...
7
Backguard Support, Rh WPL-0056475
...
8
Assy, Electronic Clock WPL-Y0300433
...
9
Knob, Clock WPL-0300702
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Sub 302045, Set Button Knob WPL-0300703

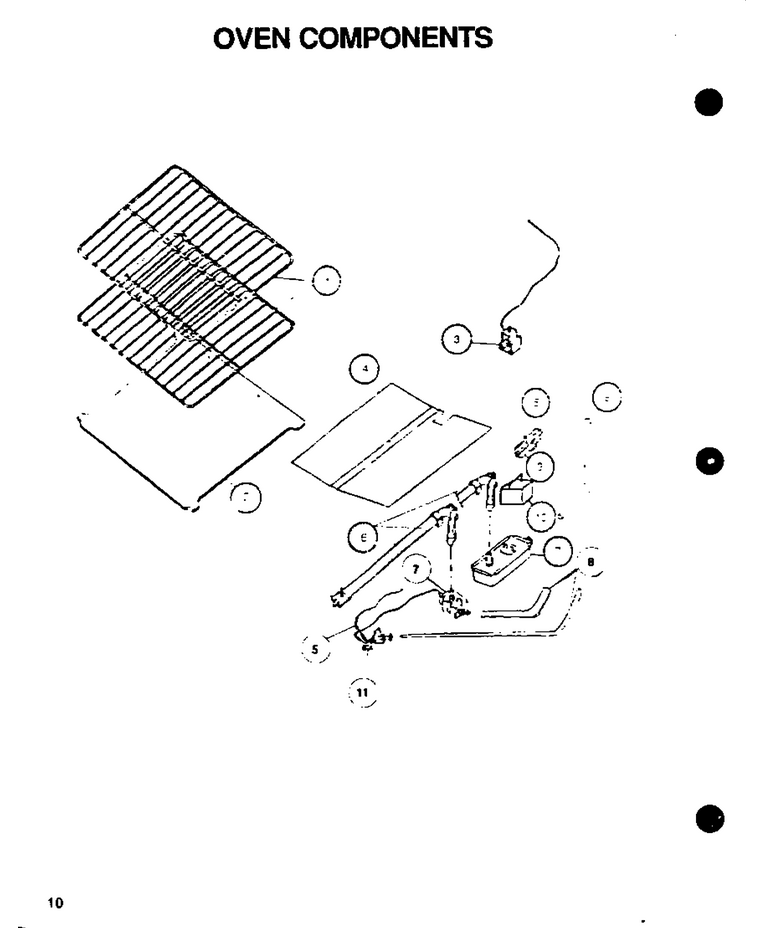

04 - Oven Components

...
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-0311822
...
3
Thermostat, Non-Spark Oven WPL-0056112
...
4
Spreader, Flame W/o Notch WPL-0311821
...
5
Ignitor- B WPL-WP31939701
...
6
Oven Burner WPL-0311865
...
7
Valve,oven WPL-Y0311626
...
8
Tubing, 3/8`` Od, 10 Ft. WPL-Y0311891
...
9
Bracket- I WPL-Y06517600
...
10
Valve, Manual Shut-Off WPL-Y0311893
