Amana RLT307UK (BOM: P1141098N)

Model: RLT307UK (BOM: P1141098N)

Save Part Not Listed?
product name

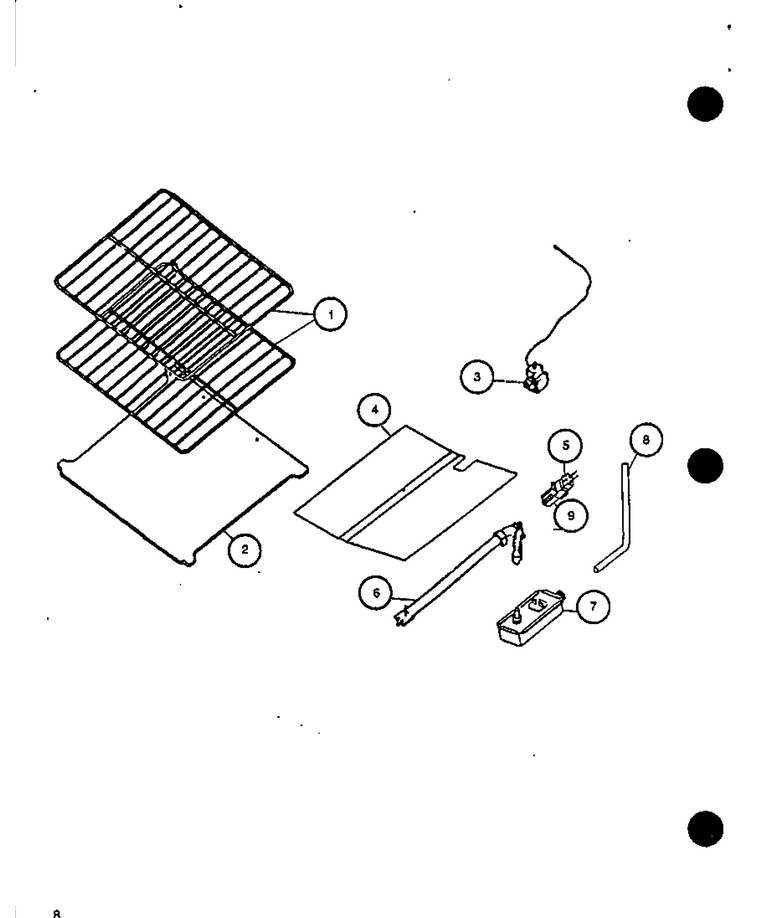

03 - Page 3

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-0311822
...
3
Thermostat WPL-Y07659500
...
4
Spreader, Flame W/o Notch WPL-0311821
...
5
Ignitor- B WPL-WP31939701
...
6
Burner, Oven WPL-0311628
...
7
Valve, Oven WPL-Y0311892
...
8
Tubing, 3/8`` Od W/fitt. WPL-Y0312052
...
9
Bracket- I WPL-Y06517600

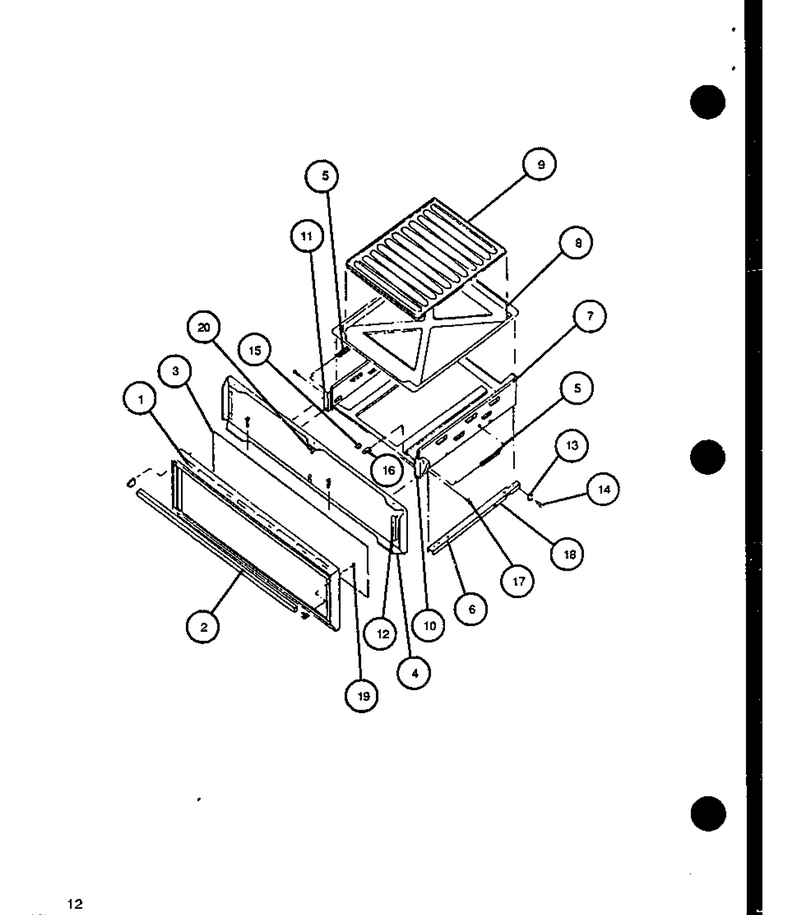

05 - Page 5

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Frame, Broiler Drawer X WPL-Y0311826
...
2
Handle, Door WPL-Y0311764
...
3
Glass, Broiler Drawer WPL-0311831
...
4
Liner, Broiler Door WPL-Y0311815
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Upper Lt (Gas) WPL-Y06478000
...
7
Drawer, Broiler WPL-86908CG
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Grid, Broiler WPL-88723CG
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
Bumper-Rubber 1/4`` WPL-Y02068200
...
13
See Note Roller, Track -- (Part Of Item 6) WPL-Y00000000
...
14
See Note Pin, Roller -- (Part Of Item 6) WPL-Y00000000
...
15
Hex Nut W/washer {j} WPL-0056140
...
16
Plate, Broiler Hinge {j} WPL-Y0086774
...
17
Screw, Shoulder (J) WPL-Y0086773
...
18
Glide, Drawer (Wht) WPL-Y07674900
...
19
Screw WPL-313806
...
20
Bumper WPL-0310037

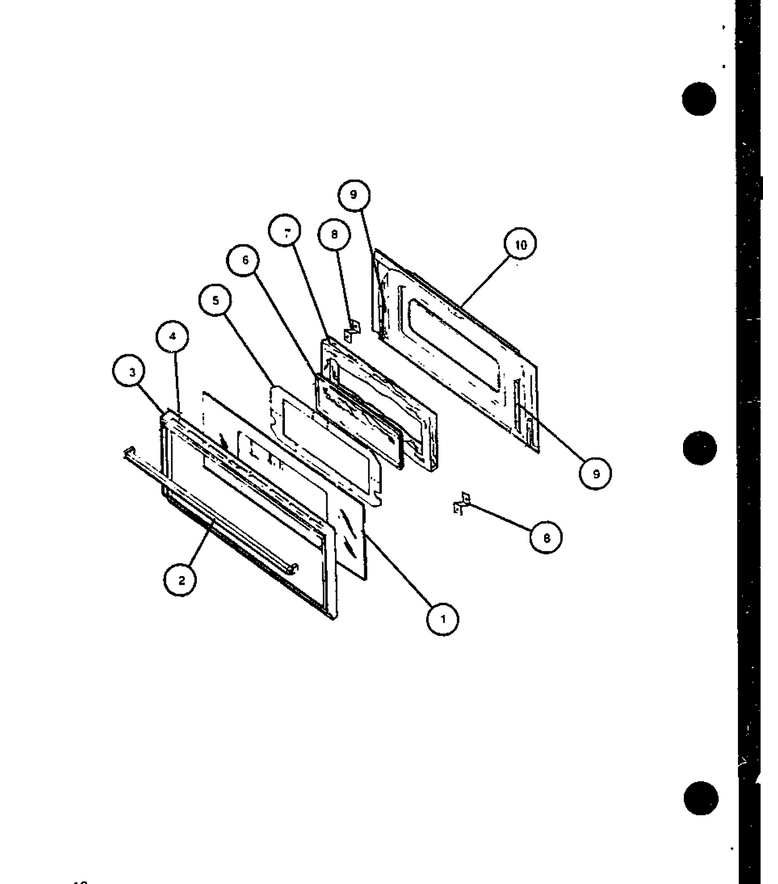

04 - Page 4

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Glass- Ove WPL-Y07637002
...
2
Handle, Door WPL-Y0311764
...
3
Frame, Door Glass WPL-0311827
...
4
Screw WPL-313806
...
5
Ring, Insulation Hold Down WPL-0311814
...
6
Sub 88647,window Assy Door WPL-Y0088126
...
7
Insulation, Wrapper WPL-31975801
...
8
Bracket, Bumper Mount {j} WPL-Y0311752
...
9
Bumper-Rubber 1/4`` WPL-Y02068200
...
10
Oven Door Liner, Charcoal Gray WPL-311816E

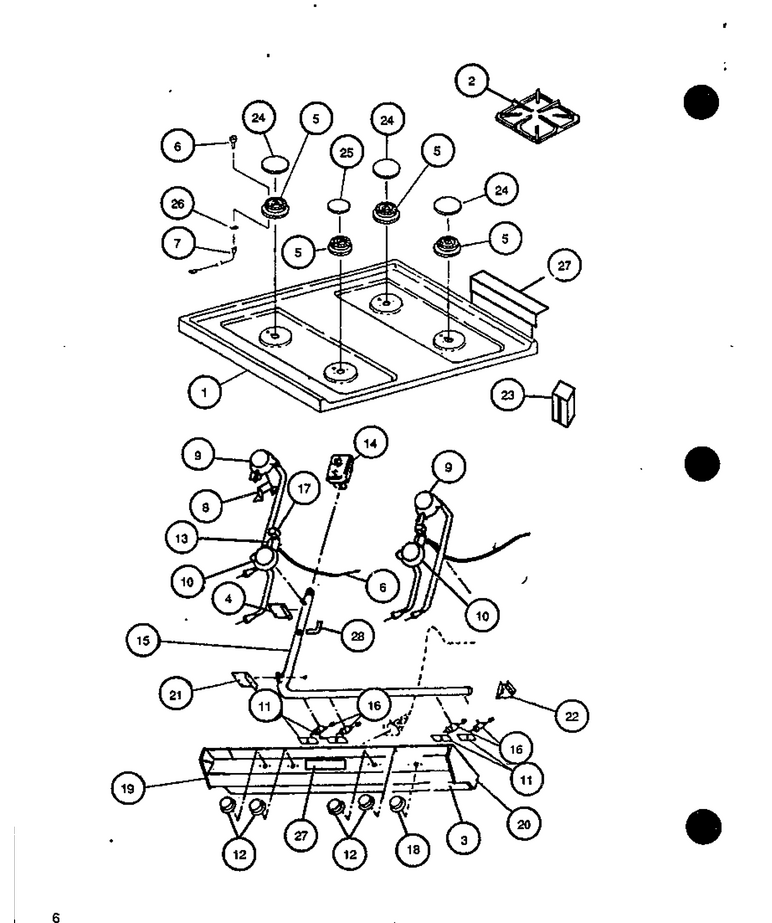

02 - Page 2

...
...
NI
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
1
Main Top Chrome WPL-312976K
...
2
Grate-Brnr WPL-WP314647B
...
3
Manifold Panel WPL-0312017
...
4
Bracket Manifold WPL-Y0312951
...
5
Assy Burne WPL-Y0306105
...
6
Elctr-Kit WPL-WP3185804
...
7
Harness, Wire (Ignitor) WPL-Y0312959
...
8
Bracket Venturi WPL-0312950
...
9
Venturi Assy Rear WPL-Y0312961
...
10
Venturi Assy Front WPL-Y0312960
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob WPL-0311837
...
13
Nipple Pipe 1/2`` X 7`` WPL-Y0312973
...
14
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
15
Pipe, Manifold WPL-0311832
...
16
Valve Top Burner 180 WPL-Y0312969
...
17
Elbow 1/2`` X 90 150no. WPL-Y0312974
...
18
Knob, Thermostat WPL-Y0311830
...
19
End Cap, L.h. WPL-Y0311833
...
20
End Cap, R.h. WPL-Y0311834
...
21
Bracket, Manifold Support WPL-Y0311811
...
22
Bracket, Manifold Support WPL-0311810
...
23
Module, Spark WPL-1430322
...
24
Burner Cap, 4``, Rr, Rf, Lr WPL-Y0303536
...
25
Cap, Burner 3`` L.f. WPL-Y0303534
...
26
Clip, Electrode WPL-Y0304365
...
27
Kit- Clock WPL-R0168021
...
28
Elbow, 90 Degrees WPL-0311890

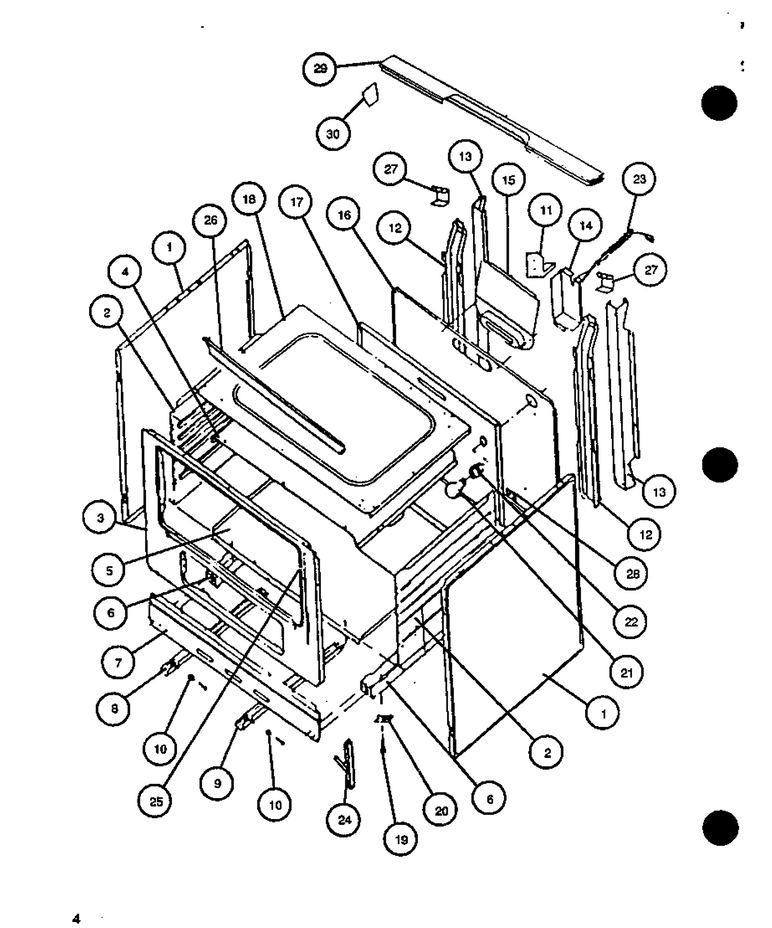

01 - Page 1

...
...
NI
Connector WPL-M0335314
...
1
Pnl. Body Side WPL-311003B
...
2
Liner,oven Side WPL-311807E
...
3
Front Frame WPL-Y0311880
...
4
Liner, Oven Top - Porcelain WPL-88885CG
...
5
Baffle, Base (30``gas) WPL-Y0311051
...
6
Rail, Base WPL-0310806
...
7
Toe Panel (J) WPL-0052744
...
8
Track, Lower L.h. WPL-0310522
...
9
Track, Lower R.h. WPL-Y0310523
...
10
See Note Roller And Pin -- (Part Of Broiler Track) WPL-Y00000000
...
11
Plate, Spark Module WPL-Y0087725
...
12
Vertical Sup. (J) WPL-0052742
...
13
Parts Catalog, Rlm305/rms306 WPL-Y0056447
...
14
Wire Cover WPL-0088662
...
15
Flue Box WPL-0310821
...
16
Pnl, Main Back Gas 30`` WPL-Y01392002
...
17
Liner, Oven Back WPL-88889CG
...
18
Bottom, Burner Box WPL-0311931
...
19
Leg, Leveling WPL-Y0062362
...
20
Snap-In Tee Nut WPL-Y0088571
...
21
Light Bulb WPL-8009
...
22
Socket, Oven Light WPL-Y0316385
...
23
Cord Set (J) WPL-0088884
...
24
Hinge-Oven WPL-Y07655200
...
25
Seal- Oven WPL-31958801
...
26
Extension, Burner Box WPL-Y0312005
...
27
No Longer Available WPL-0310217
...
28
Bushing, Snap WPL-Y0311619
...
29
Backbar Assy WPL-0310215
...
30
Bracket, Mtg Lh WPL-Y0310091
