Amana RLN385UWW (BOM: P1143501NWW)

Model: RLN385UWW (BOM: P1143501NWW)

Save Part Not Listed?
product name

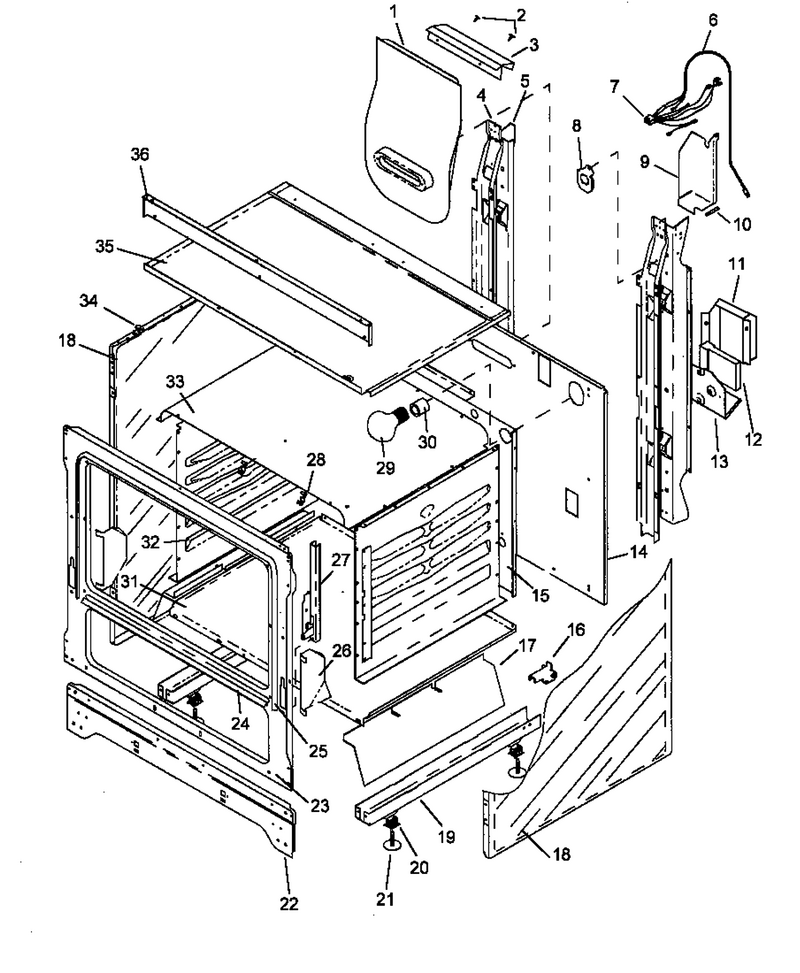

03 - Cabinet Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Flue, Oven WPL-06564800
...
2
Screw, Stud WPL-31750709
...
3
Diverter-Oven Flue(23.75``) WPL-Y06569121B
...
4
Supt. Main Back (Vert) WPL-Y06565600
...
5
Support, Rear, Vertical {j} WPL-0056477
...
6
Cord Set (J) WPL-0088884
...
7
Cord Set (J) WPL-06512300
...
8
Bracket WPL-0311551
...
10
U-Clip, Safe Edge WPL-31750803
...
11
Cover, Spark Module WPL-06462003
...
12
Module, Spark, 4+1 WPL-Y07726900
...
14
Main Back {j} WPL-0088656
...
15
Backliner, Oven (Enamel) WPL-Y03382001E
...
16
Kit, Anti-Tip WPL-07687600
...
17
Radiation Shield, Broiler WPL-0310816
...
18
Side, Body (White) WPL-06559000W
...
19
Rail, Base WPL-06554900
...
20
Snap-In Tee Nut WPL-Y0088571
...
21
Leveler WPL-W11117769
...
22
Panel, Toe 30`` (Black) WPL-Y06451602
...
23
Frame, Front (Enamel) WPL-06567101E
...
24
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
25
Seal- Oven WPL-31958801
...
26
Shield, Insulation (J) WPL-0310064
...
27
Hinge-Oven WPL-Y07655200
...
28
Clip, Capillary WPL-01052001
...
29
Light Bulb WPL-8009
...
30
Socket, Oven Light WPL-Y0316385
...
31
Baffle, Base (30``gas) WPL-Y06467101
...
32
Liner,oven Side WPL-0311807
...
33
Topliner, Oven 30``gas WPL-Y06470802E
...
34
Bumper, Oven Door WPL-Y0063661
...
35
Box, Burner WPL-Y06559500
...
36
Extension, Burner Box WPL-Y06559900

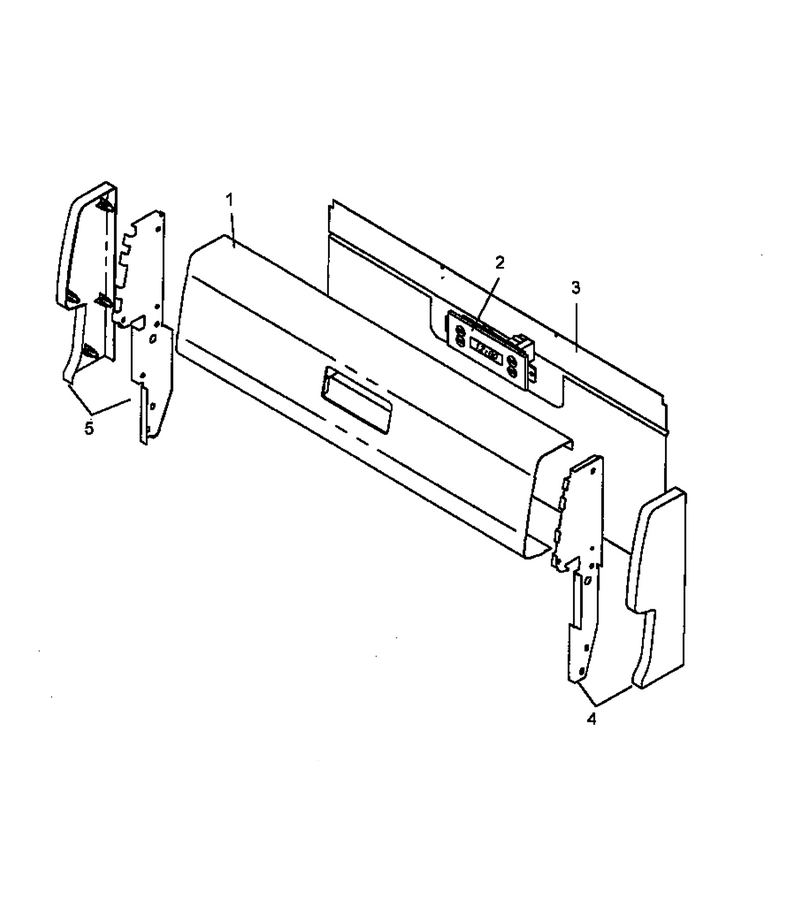

01 - Backguard Assy

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
Panel, Bkgd (White) WPL-07708805W
...
2
Clock (Gray) WPL-Y07707901
...
3
Cover, Bkgd Wire WPL-Y06559600
...
4
Endcap, Bkgd 11`` R.h. WPL-Y06567002
...
5
Endcap, Bkgd 11`` L.h. WPL-Y06567003

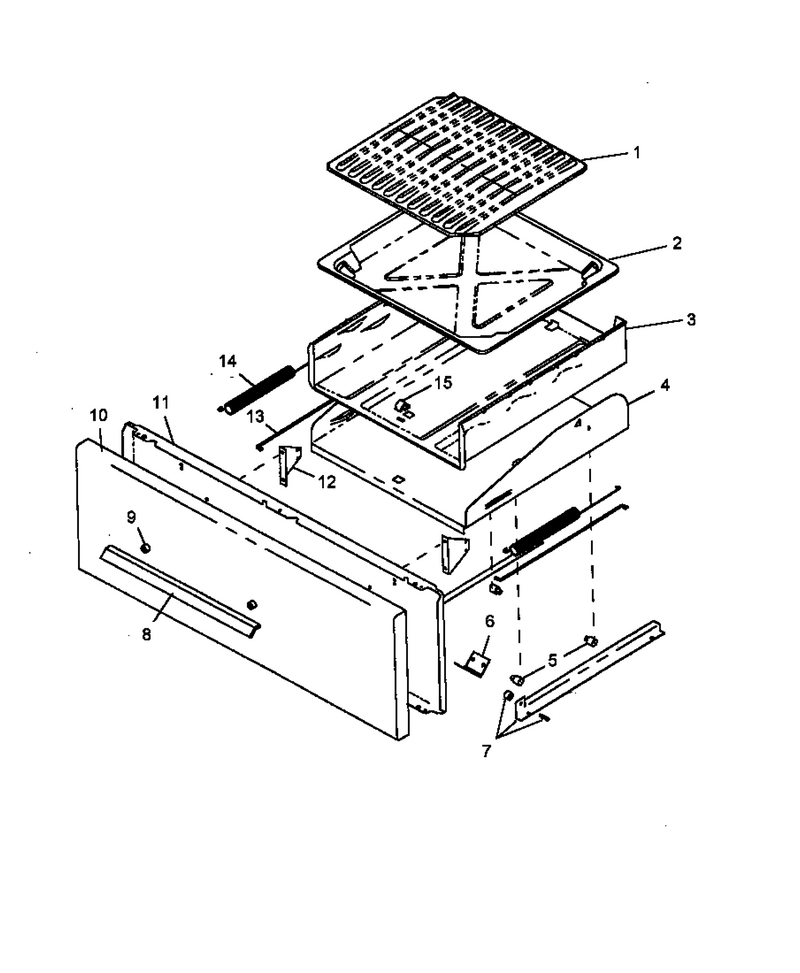

02 - Broiler Drawer Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Drawer, Broiler WPL-86908CG
...
4
Support,body Carriage WPL-06522100
...
5
Glide-Drwr WPL-W10709871
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Handle, Door (White 19``) WPL-Y07498611W
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broil Door,30``(Wht) WPL-Y06513100W
...
11
Liner, Broil Door,30`` WPL-312246E
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

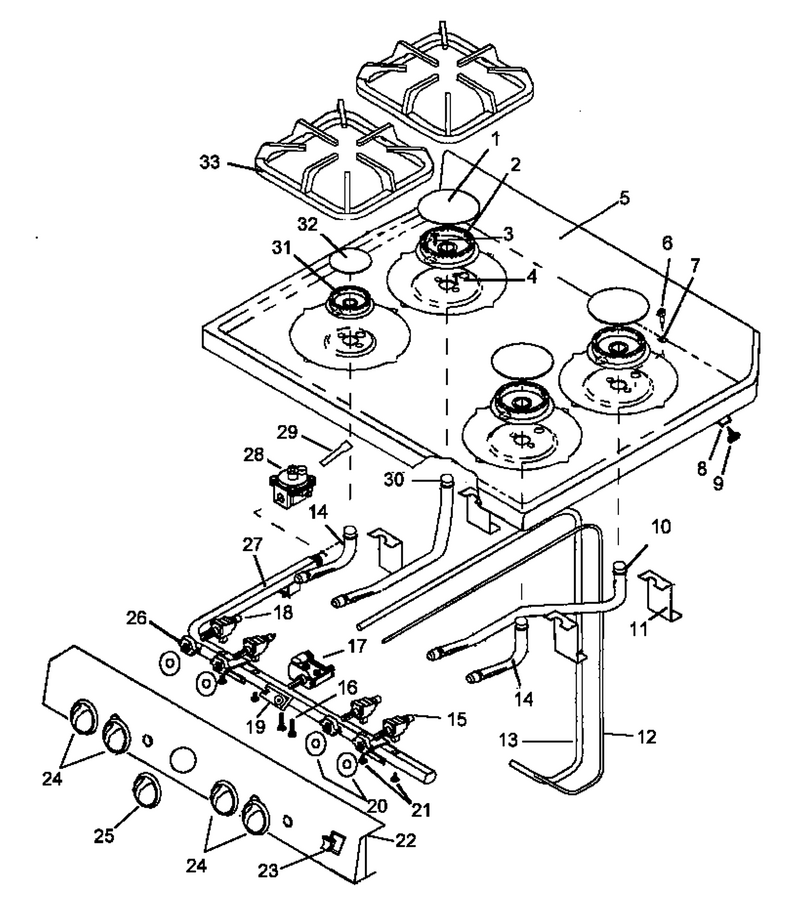

04 - Main Top Assy - Sealed Burners

...
...
NI
Square Nut {j} WPL-0088650
...
1
Cap, Burner (Large) WPL-314638Y
...
2
Burner, 4`` Die Cast WPL-Y0315332
...
3
Screw WPL-WP489474
...
5
Maintop-White WPL-306075W
...
6
Elctr-Kit WPL-WP3185804
...
7
Clip, Electrode WPL-Y07714200
...
8
Spacer, Nylon WPL-Y0062455
...
9
Screw, Stud WPL-31750709
...
10
Tube, Venturi-Left Rear WPL-Y0314968
...
11
Support, Venturi WPL-06582800
...
12
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
13
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
14
Tube, Venturi-Front WPL-31899401
...
15
Valve, Top Burner WPL-Y07720701
...
16
Bolt, Mtg Therm/gasket WPL-Y07721600
...
17
Kit- Spark WPL-R0711506
...
18
Valve, Top Burner WPL-Y07720700
...
19
Switch, Spark T-Stat WPL-Y07720900
...
20
Shield, Switch WPL-Y0314316
...
21
Screw WPL-W10491986
...
22
Panel, Manifold (White) WPL-07721201W
...
23
Switch, Light (Lt Grey) WPL-Y07634802
...
24
Knob, Top Burner WPL-07708203
...
25
Knob, Oven Thermostat WPL-07723301
...
26
Switch, Spark-Valve WPL-Y07721000
...
27
Pipe-Manifold WPL-07706802F
...
28
Pressure Regulator WPL-77001246
...
29
Ext. Pipe WPL-Y07725500
...
30
Tube, Venturi-Right Rear WPL-0314969
...
31
Burner, 3`` Die Cast WPL-Y0315333
...
32
Cap, Burner (Small) WPL-314637Y
...
33
Grate, Top Burner WPL-306151Y

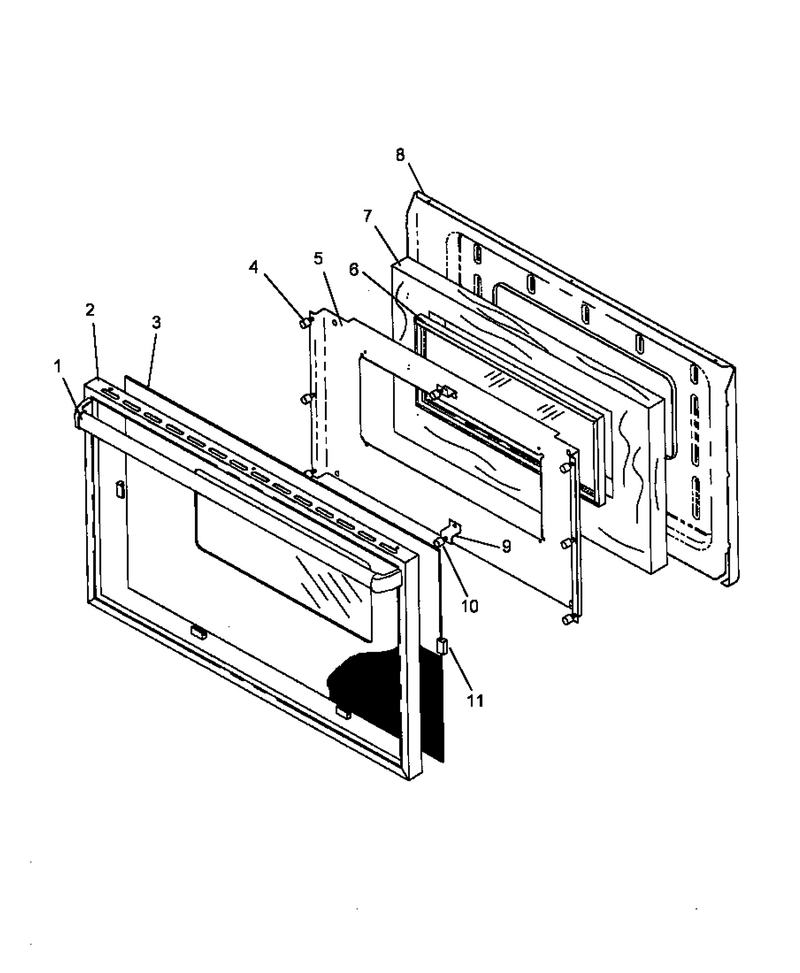

06 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Handle, Door (Gray) WPL-Y07708101
...
2
Frame, Door (White) WPL-07707801
...
3
Glass, Door (White) WPL-07707400
...
4
Bumper-Rubber 1/4`` WPL-Y02068200
...
5
Baffle, Oven Door WPL-06511800
...
6
Window, Oven Door (2) Pane WPL-Y07729700
...
7
Insulation, Wrapper WPL-31975801
...
8
Liner, Oven Door WPL-06565100E
...
9
Bracket, Bumper Mount {j} WPL-Y0311752
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bumper ``l`` Shaped WPL-Y0312836

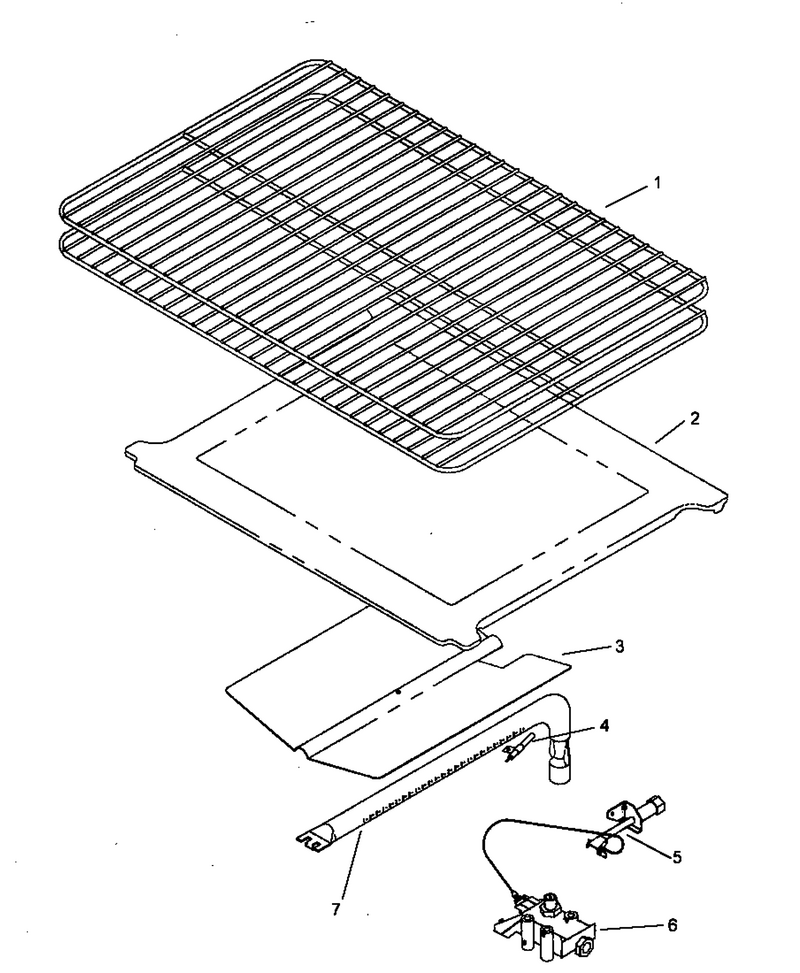

05 - Oven Components

...
...
NI
Screw, 10 X 1-1/2 WPL-Y01000300
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-06497102
...
4
Igniter W WPL-R0709005
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Valve, Sfty, Ov W/pil WPL-Y07720101
...
7
Burner, Oven WPL-Y07720500
