Amana RLN385UWW (BOM: P1142964NWW)

Model: RLN385UWW (BOM: P1142964NWW)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

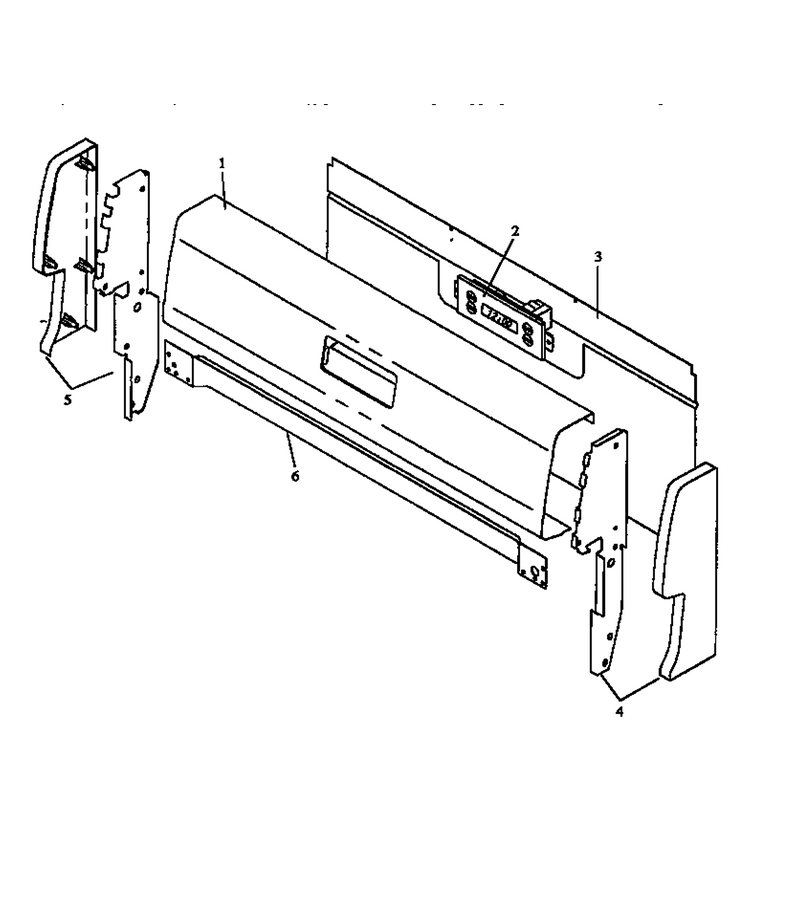

01 - Backguard Assy

...
...
NI
Shield, Heat WPL-06568500
...
1
Panel, Bkgd (White) WPL-07708805W
...
2
Clock (Gray) WPL-Y07707901
...
4
Endcap, Bkgd 11`` R.h. WPL-Y06567002
...
5
Endcap, Bkgd 11`` L.h. WPL-Y06567003
...
6
Tim, Lower Bkgd (Black) WPL-Y06559120B

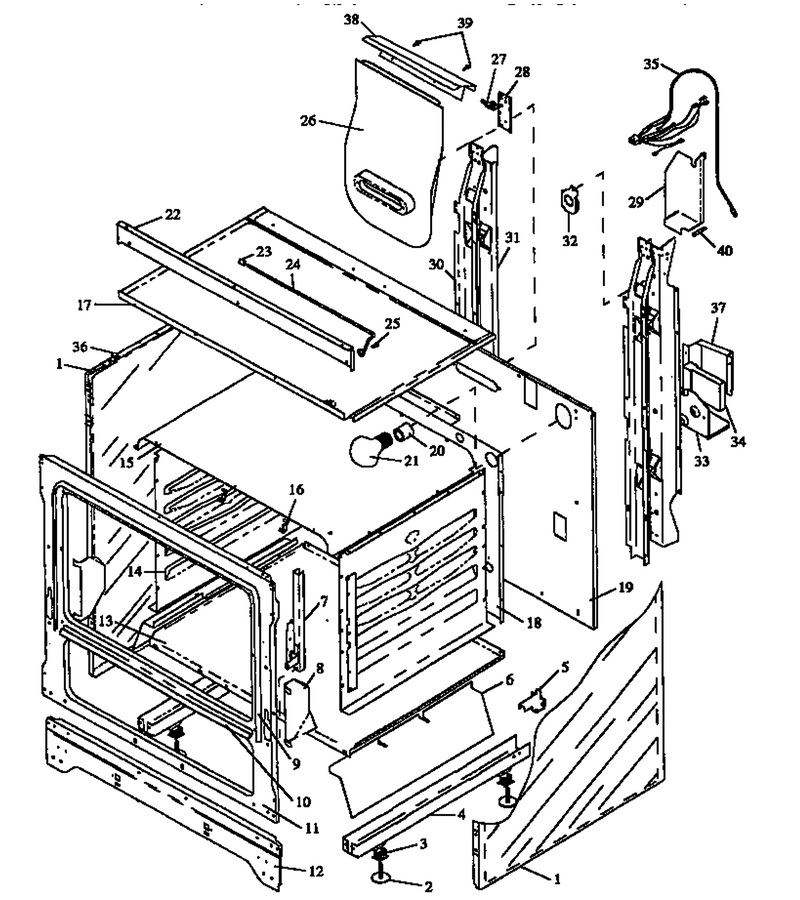

03 - Cabinet Section

...
...
Note: To Change Front Vent To Top Vent-Use: Frame Door (Top Vent) - 07707801; Glass, Door (Top Vent) - 07707400; Remove: Baffle, Door Upper Heat - 06576800e. WPL-NOTE:
...
NI
Clamp, Speed WPL-Y0310113
...
1
Side, Body (White) WPL-06559000W
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Radiation Shield, Broiler WPL-0310816
...
7
Hinge-Oven WPL-Y07655200
...
8
Shield, Insulation (J) WPL-0310064
...
9
Seal- Oven WPL-31958801
...
10
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
11
Front Frame WPL-Y0656710E
...
12
Panel, Toe 30`` (Black) WPL-Y06451600
...
13
Baffle, Base (30``gas) WPL-Y06467101
...
14
Liner,oven Side WPL-0311807
...
15
Liner, Oven Top - Porcelain WPL-88885CG
...
16
Clip, Capillary WPL-0310802
...
17
Box, Burner WPL-Y06559500
...
18
Backliner, Oven (Enamel) WPL-Y03382001E
...
19
Main Back {j} WPL-0088656
...
20
Socket, Oven Light WPL-Y0316385
...
21
Light Bulb WPL-8009
...
22
Extension, Burner Box WPL-Y06559900
...
26
Flue, Oven WPL-06564800
...
29
Wire Cover (Ov. Light) {j} WPL-Y0310809
...
30
Supt. Main Back (Vert) WPL-Y06565600
...
31
Support, Rear, Vertical {j} WPL-0056477
...
32
Bracket WPL-0311551
...
33
Plate, Spark Module WPL-Y0087725
...
34
Module, 4+1 Spark Kit WPL-Y07725200
...
35
Cord Set (J) WPL-0088884
...
36
Bumper, Oven Door WPL-Y0063661
...
37
Cover, Spark Module WPL-06462001
...
38
Diverter, Flue (12 ``) WPL-Y06569100E
...
39
Screw, Stud WPL-31750709
...
40
U-Clip, Safe Edge WPL-31750803

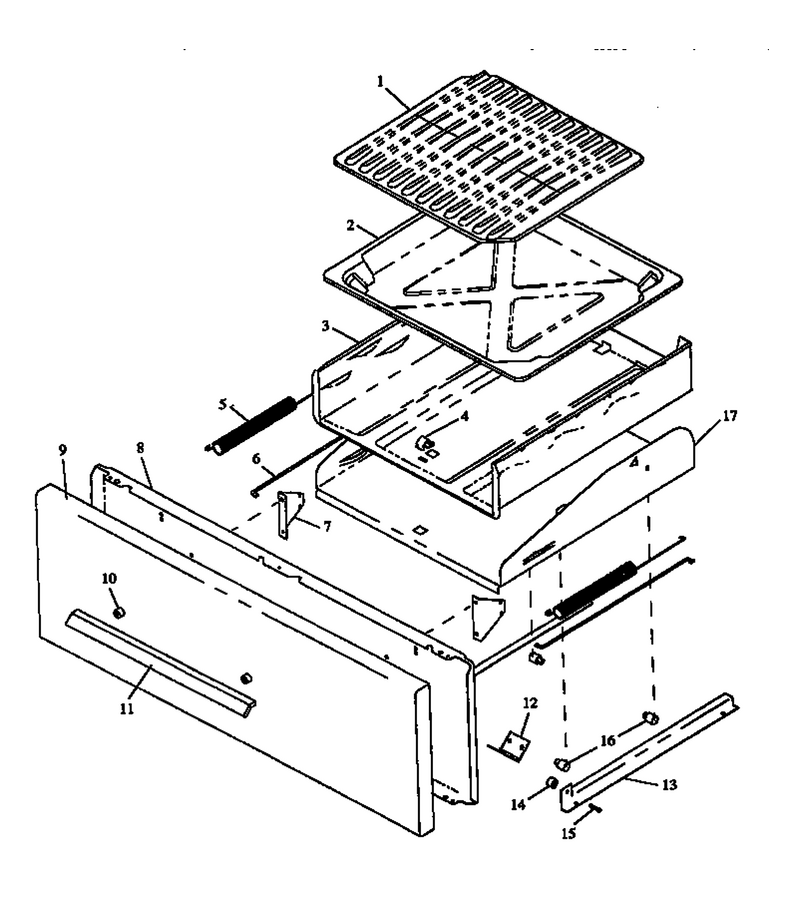

02 - Broiler Drawer Assy

...
...
NI
Screw WPL-0310240
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Spring Clip WPL-Y0088664
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Rod, Push-Broiler WPL-Y07685300
...
7
Brkt, Spring & Rod WPL-Y06520700
...
8
Liner, Broil Door,30`` WPL-312246E
...
9
Panel, Broil Door,30``(Wht) WPL-Y06513100W
...
10
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Handle, Door (White 19``) WPL-Y07498611W
...
12
Hinge, Black WPL-Y0313773
...
13
Track, Lower R.h. WPL-Y0313761
...
14
See Note Roller -- (Included With Item 13) WPL-Y00000000
...
15
See Note Pin -- (Included With Item 13) WPL-Y00000000
...
16
Glide-Drwr WPL-W10709871
...
17
Support,body Carriage WPL-06522100

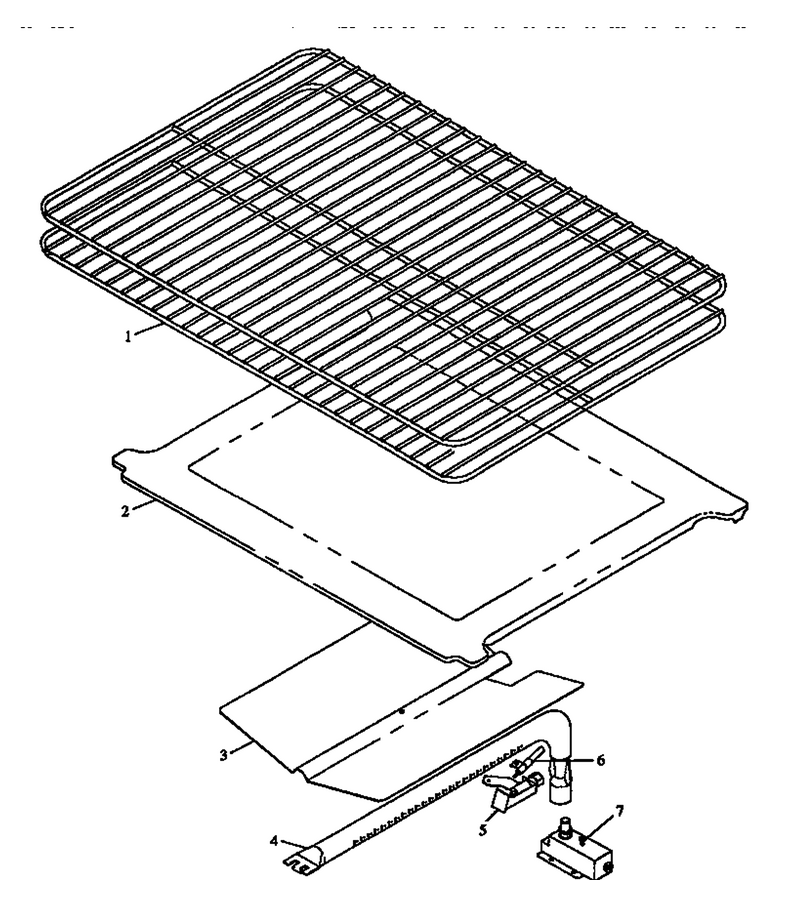

04 - Oven Components

...
...
NI
Clip, Wire Cable WPL-07601000
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-0311821
...
4
Oven Burner WPL-0311865
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Igniter W WPL-R0709005
...
7
Valve,safety (Oven) WPL-Y07720100

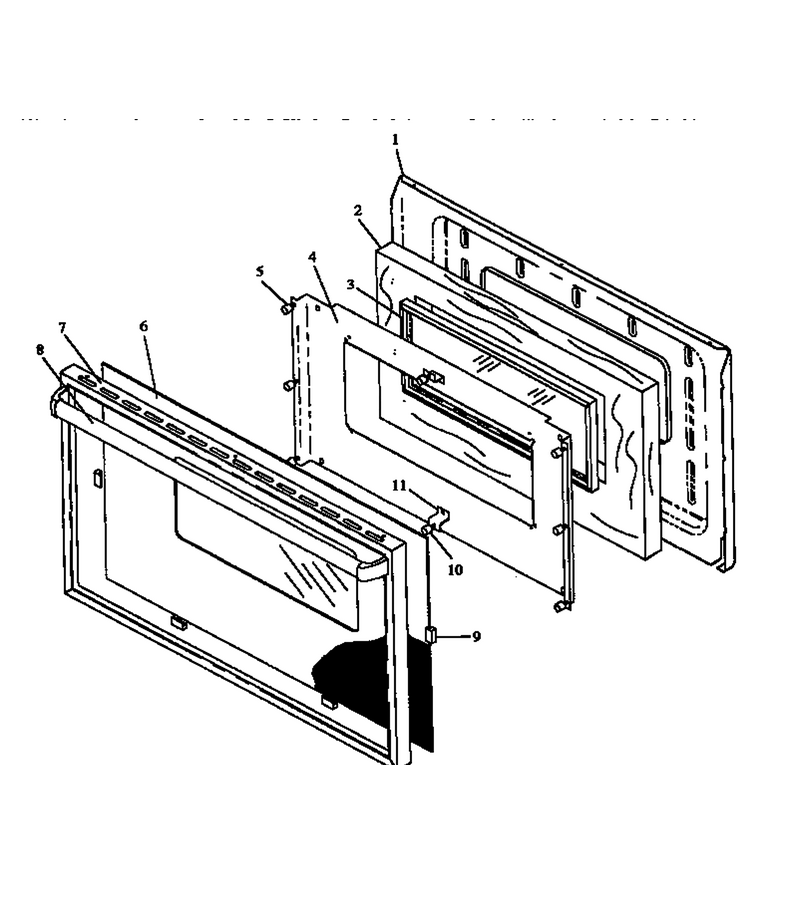

05 - Oven Door Assy

...
...
NI
Diverter-Baffle Oven Door, Fro WPL-06576800E
...
1
Liner, Oven Door WPL-06565100E
...
2
Insulation, Wrapper WPL-31975801
...
3
Window, Oven Door (2) Pane WPL-Y07729700
...
4
Baffle, Oven Door WPL-06511800
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door - W - Window WPL-07721100
...
7
Frame, Door (White) WPL-07707801
...
8
Handle, Door (Gray) WPL-Y07708101
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bracket, Bumper Mount {j} WPL-Y0311752

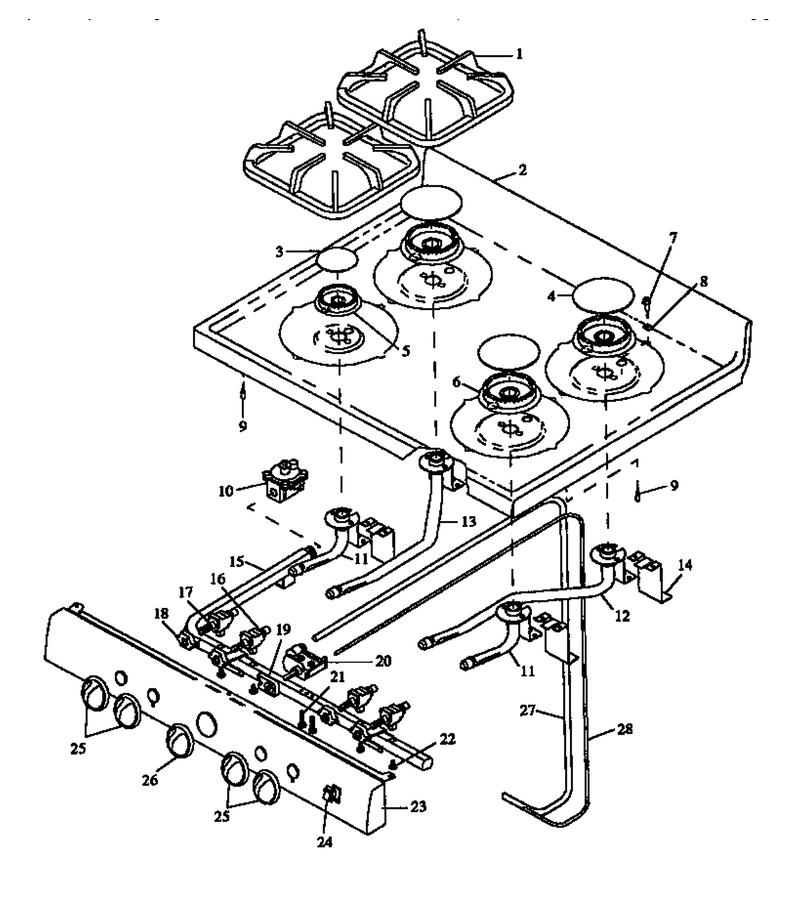

07 - Sealed Top Burner Assy

...
...
NI
Screw WPL-WPW10348409
...
1
Grate, Top Burner WPL-306151Y
...
2
Maintop-White WPL-306075W
...
3
Cap, Burner (Small) WPL-314637Y
...
4
Cap, Burner (Large) WPL-314638B
...
5
Burner 3`` Die Cast WPL-Y0306073
...
6
Burner, 4`` Die Cast WPL-Y0307339
...
7
Elctr-Kit WPL-WP3185804
...
8
Clip, Electrode WPL-Y07714200
...
9
Screw, Stud WPL-31750709
...
10
Pressure Regulator WPL-77001246
...
11
Venturi Assy WPL-Y0306161
...
12
Assy, Venturi-Rr WPL-Y0314736
...
13
Assy, Venturi-Lr WPL-0306160
...
14
Support, Sealed Burner WPL-06559200
...
15
Pipe, Manifold WPL-07706801
...
16
Valve, Top Burner WPL-Y07720701
...
17
Valve Top Burner WPL-Y0312956
...
18
Switch, Spark-Valve WPL-Y07721000
...
19
Switch, Spark T-Stat WPL-Y07720900
...
20
Kit- Spark WPL-R0711506
...
21
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
22
Screw WPL-W10491986
...
23
Pnl-Mnfd,30`` Black WPL-Y07710205
...
24
Switch, Light (Lt Grey) WPL-Y07634802
...
25
Knob, Top Burner WPL-07708203
...
26
Knob, Oven Thermostat WPL-07723301
...
27
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
28
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901

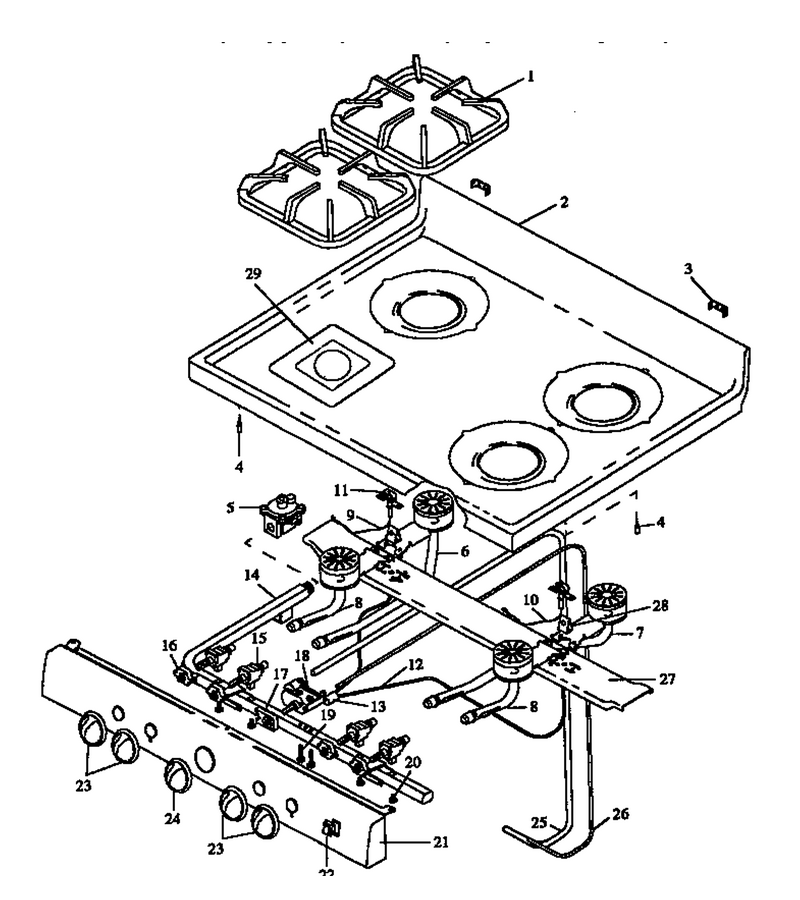

06 - Oven Top Burner Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
