Amana RLN380UW (BOM: P1143170N W)

Model: RLN380UW (BOM: P1143170N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

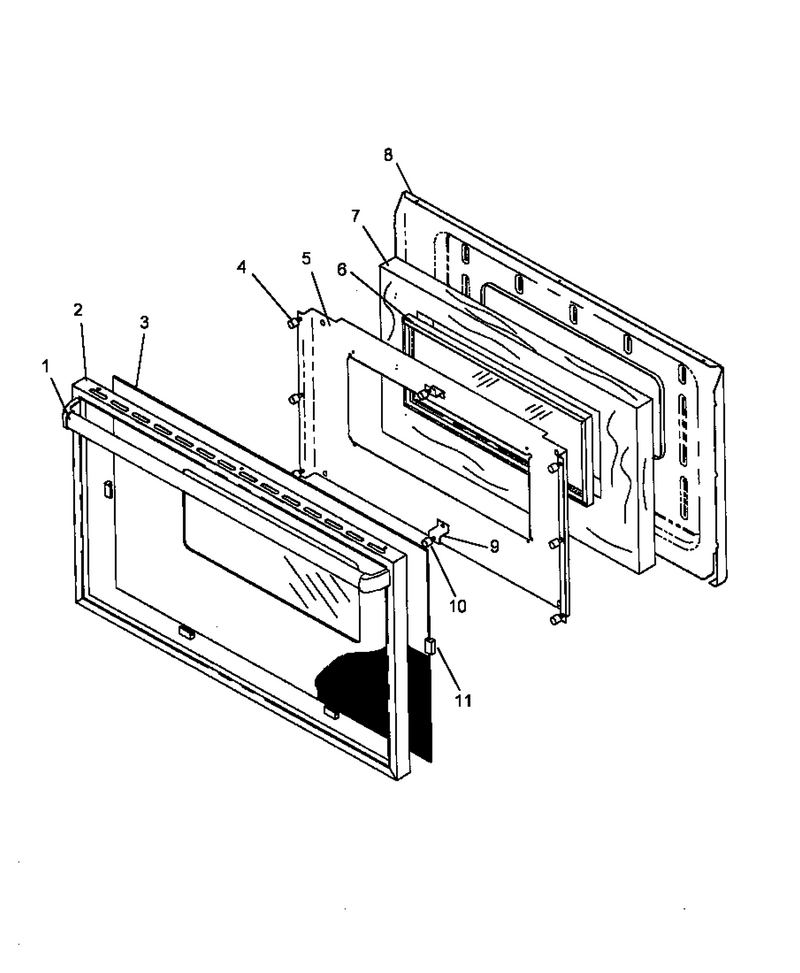

06 - Oven Door

...
...
NI
Screw WPL-313806
...
1
Handle, Door (Black) WPL-Y07708100
...
2
Frame, Door (Black) WPL-Y07707800
...
3
Glass, Door (Black) WPL-07707300
...
4
Bumper-Rubber 1/4`` WPL-Y02068200
...
5
Baffle, Oven Door WPL-06511800
...
6
Window, Oven Door (2) Pane WPL-Y07729700
...
7
Insulation, Wrapper WPL-31975801
...
8
Liner, Oven Door WPL-06565100E
...
9
Bracket, Bumper Mount {j} WPL-Y0311752
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bumper ``l`` Shaped WPL-Y0312836

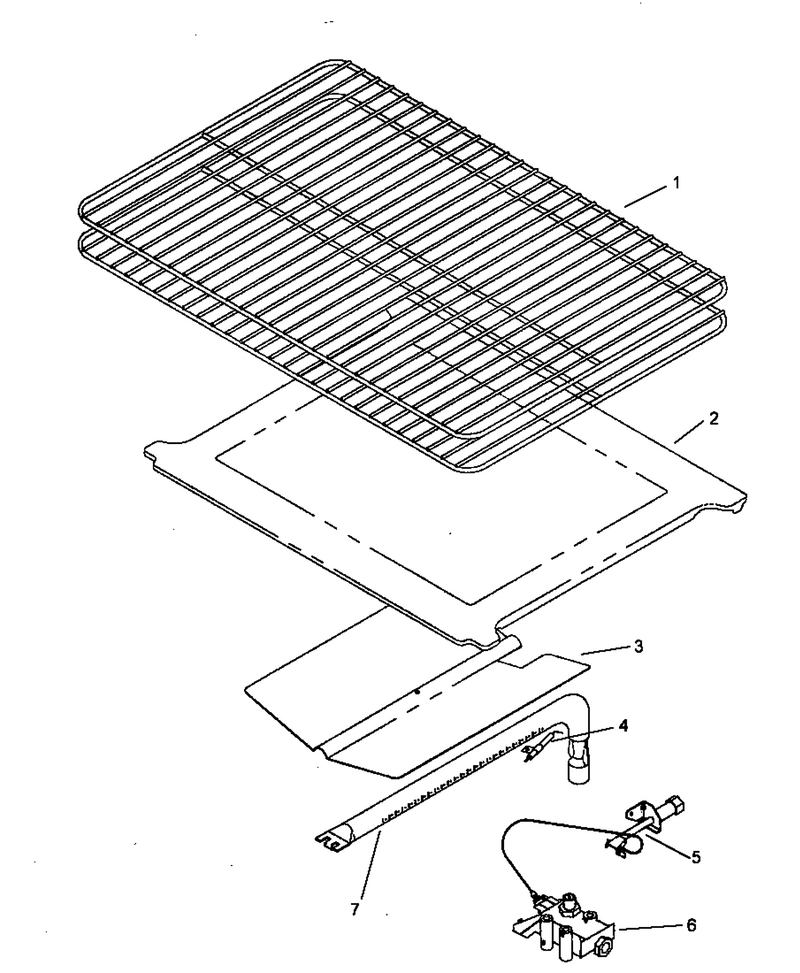

05 - Oven Components

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-06497102
...
4
Igniter W WPL-R0709005
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Valve, Sfty, Ov W/pil WPL-Y07720101
...
7
Burner, Oven WPL-Y07720500

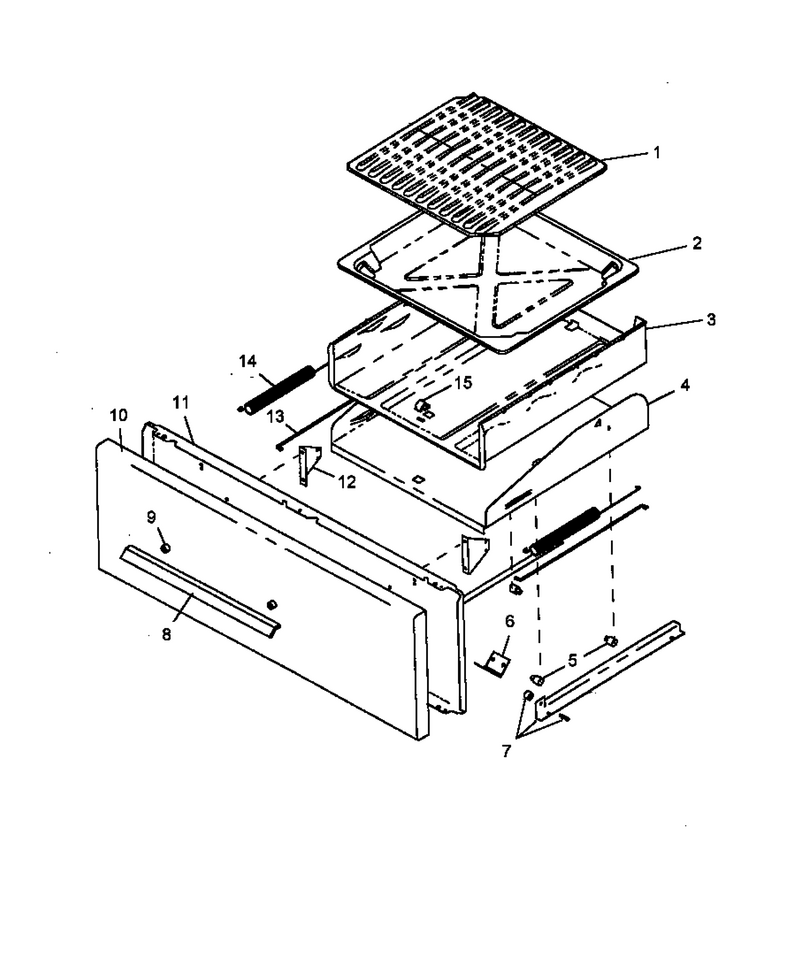

02 - Broiler Drawer

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Support,body Carriage WPL-06522100
...
5
Glide-Drwr WPL-W10709871
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Handle, Door (White 19``) WPL-Y07498611W
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broil Door,30``(Wht) WPL-Y06513100W
...
11
Liner, Broil Door,30`` WPL-312246E
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

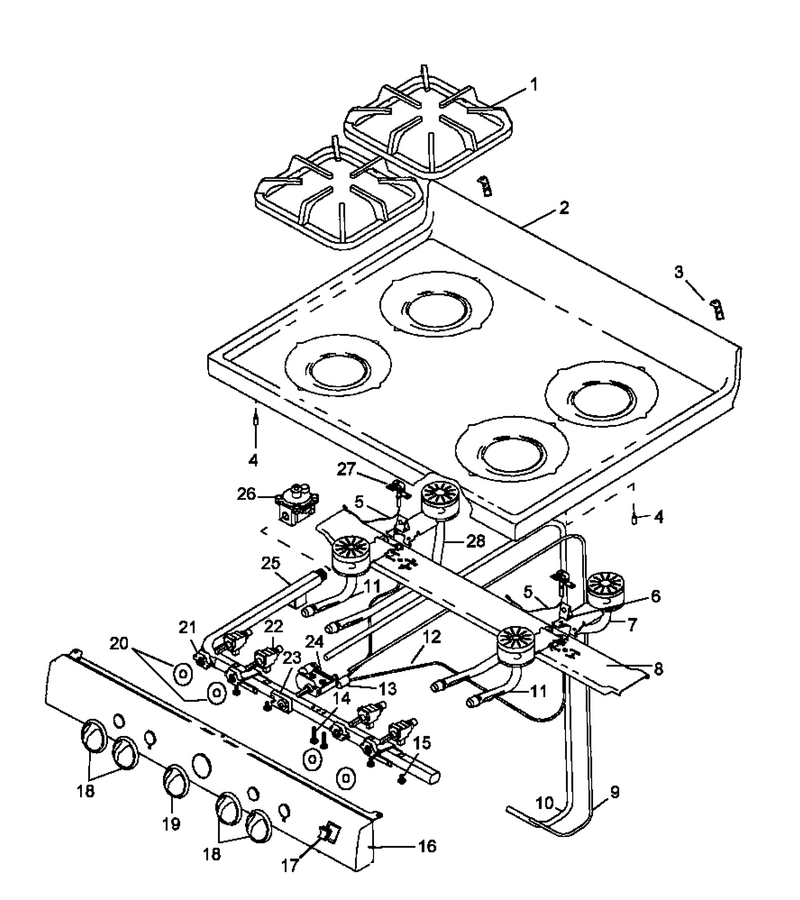

04 - Main Top, Open Top Burners

...
...
NI
Square Nut {j} WPL-0088650
...
1
Grate, Top Burner WPL-306151B
...
2
Maintop (White) WPL-308919W
...
3
Bushing, Hinge Wire WPL-Y07730700
...
4
Screw, Stud WPL-31750709
...
5
Ignitor- G WPL-Y07491203
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Supt-Top Brnr, 30 WPL-Y06561401
...
9
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
10
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
11
Burner, Front WPL-Y07706900
...
13
Pilot Filter WPL-0311054
...
14
Bolt, Mtg Therm/gasket WPL-Y07721600
...
15
Screw WPL-W10491986
...
16
Pnl-Mnfd,30`` Black WPL-Y07710205
...
17
Switch, Rocker WPL-Y07634800
...
18
Knob, Top Burner WPL-Y07708202
...
19
Knob, Oven Thermostat WPL-Y07723300
...
20
Shield, Switch WPL-Y0314316
...
21
Switch, Spark-Valve WPL-Y07721000
...
22
Valve, Top Burner WPL-Y07720701
...
23
Switch, Spark T-Stat WPL-Y07720900
...
24
Kit- Spark WPL-R0711506
...
25
Pipe-Manifold WPL-07706802F
...
26
Pressure Regulator WPL-77001246
...
27
Bracket, Ignitor WPL-0310114
...
28
Burner, Rear L.h. WPL-Y07707100

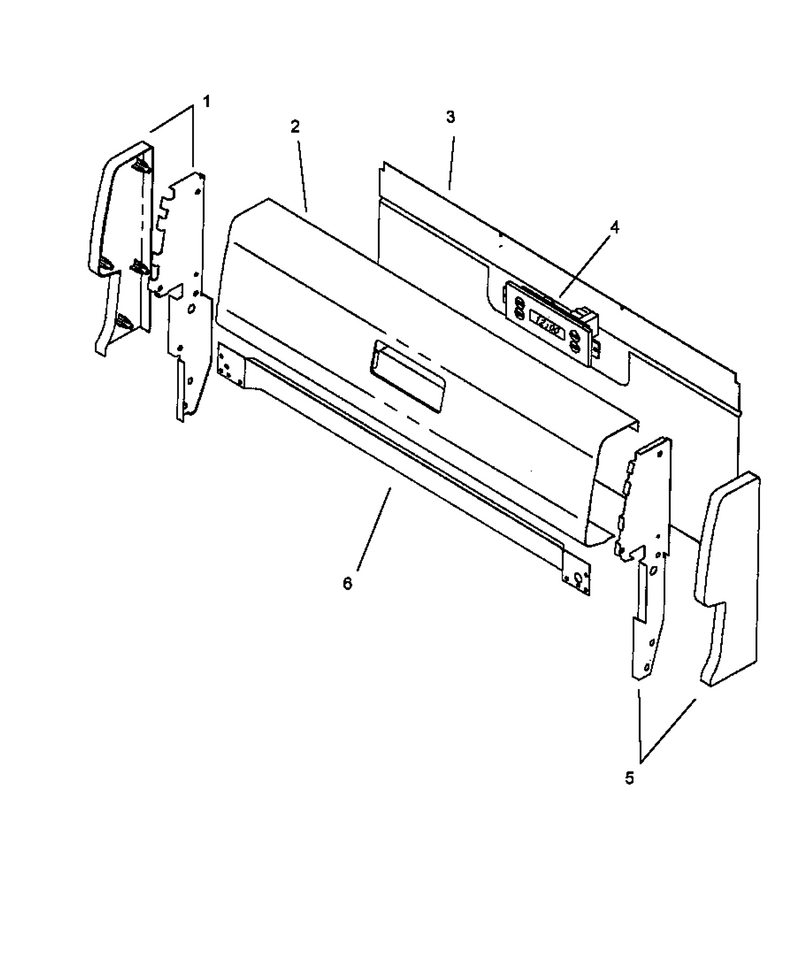

01 - Backguard

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
Endcap, Bkgd 11`` L.h. WPL-Y06567001
...
2
Panel, Backguard WPL-07708801
...
3
Cover, Bkgd Wire WPL-Y06559600
...
4
Clock (Black) WPL-Y07707900
...
5
End Cap, Bkgd 11`` R.h. WPL-Y06567000
...
6
Tim, Lower Bkgd (Black) WPL-Y06559120B

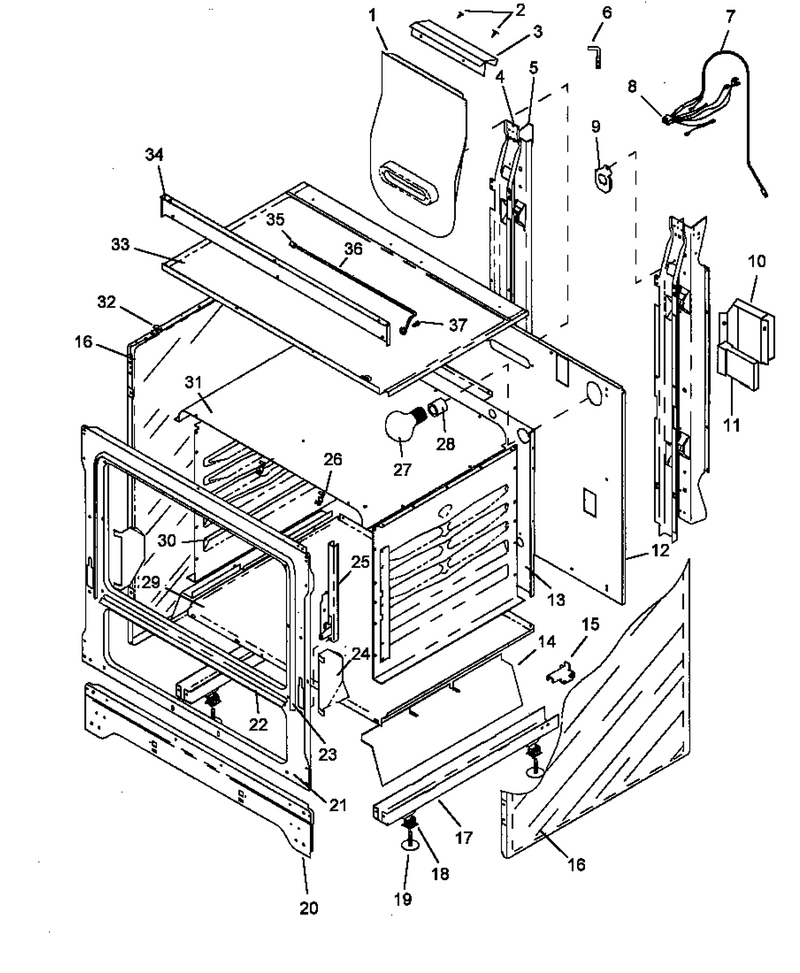

03 - Cabinet

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Flue, Oven WPL-06564800
...
2
Screw, Stud WPL-31750709
...
3
Diverter-Oven Flue WPL-Y06569120B
...
4
Supt. Main Back (Vert) WPL-Y06565600
...
5
Support, Rear, Vertical {j} WPL-0056477
...
6
Wire, Hinge (Left) WPL-07730601
...
7
Cord Set (J) WPL-0088884
...
8
Harness, Power WPL-07525801
...
9
Bracket WPL-0311551
...
10
Cover, Spark Module WPL-06462003
...
11
Module-Spk,2+1,apco WPL-Y07727100
...
12
Main Back {j} WPL-0088656
...
13
Backliner, Oven (Enamel) WPL-Y03382001E
...
14
Radiation Shield, Broiler WPL-0310816
...
15
Kit, Anti-Tip WPL-07687600
...
16
Side, Body (White) WPL-06559000W
...
17
Rail, Base WPL-06554900
...
18
Snap-In Tee Nut WPL-Y0088571
...
19
Leveler WPL-W11117769
...
20
Panel, Toe 30`` (Black) WPL-Y06451602
...
21
Frame, Front (Enamel) WPL-06567101E
...
22
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
23
Seal- Oven WPL-31958801
...
24
Shield, Insulation (J) WPL-0310064
...
25
Hinge-Oven WPL-Y07655200
...
26
Clip, Capillary WPL-01052001
...
27
Light Bulb WPL-8009
...
28
Socket, Oven Light WPL-Y0316385
...
29
Baffle, Base (30``gas) WPL-Y06467101
...
30
Liner,oven Side WPL-0311807
...
31
Topliner, Oven 30``gas WPL-Y06470802E
...
32
Bumper, Oven Door WPL-Y0063661
...
33
Burner Box, Gas 30`` WPL-Y06559504
...
34
Extension, Burner Box WPL-Y06559901
...
35
Support Rod WPL-07712200
...
36
Support, Rod WPL-Y07713700
...
37
Shoulder Screw WPL-0088779
