Amana RLN370UW (BOM: P1143110N W)

Model: RLN370UW (BOM: P1143110N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

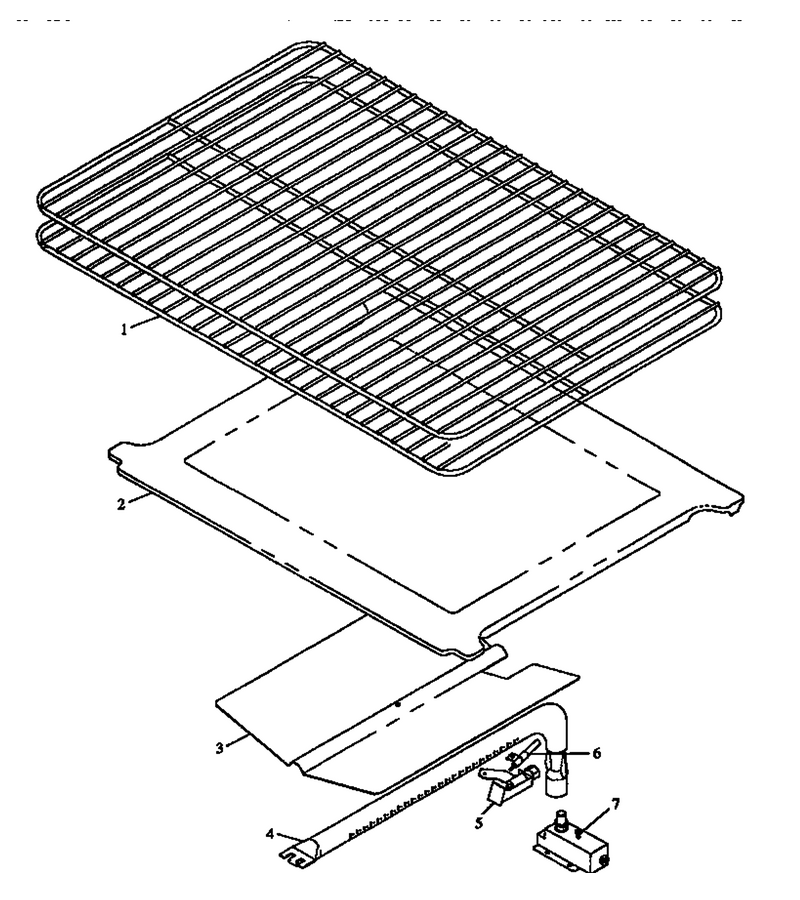

03 - Oven Components

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-0311821
...
4
Burner, Oven WPL-Y07720500
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Igniter W WPL-R0709005
...
7
Valve,safety (Oven) WPL-Y07720100

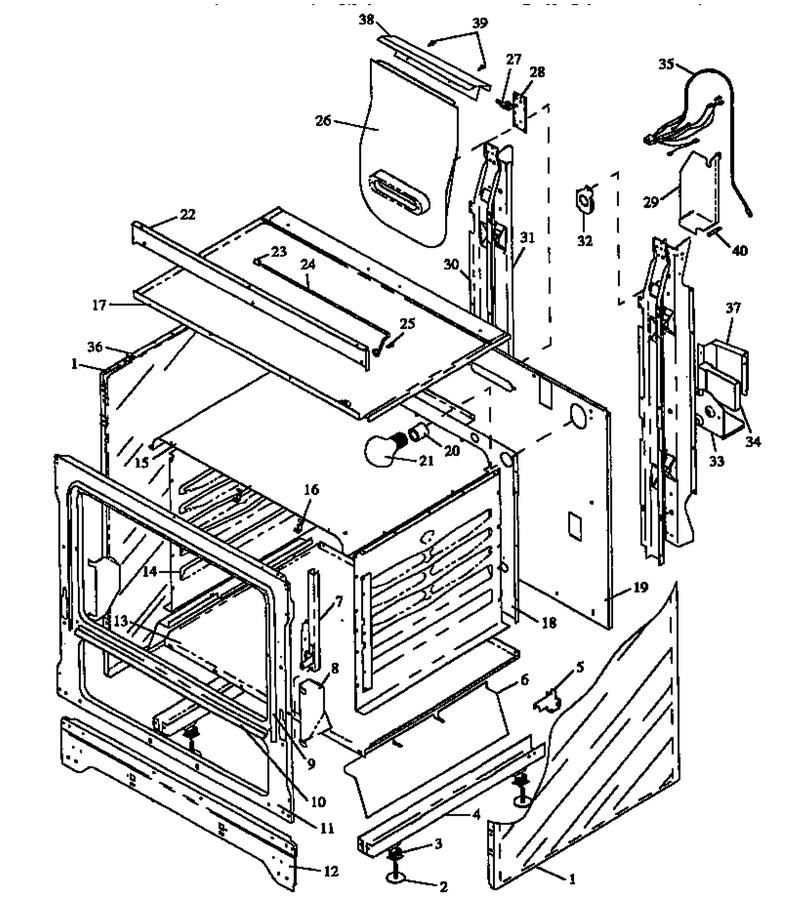

02 - Cabinet Section

...
...
Note: To Change Front Vent To Top Vent-Use: Frame Door (Top Vent) - 07707801; Glass, Door (Top Vent) - 07707400; Remove: Baffle, Door Upper Heat - 06576800e. WPL-NOTE:
...
NI
Screw WPL-0055047
...
1
Side, Body (White) WPL-06559000W
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Radiation Shield, Broiler WPL-0310816
...
7
Hinge-Oven WPL-Y07655200
...
8
Shield, Insulation (J) WPL-0310064
...
9
Seal- Oven WPL-31958801
...
10
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
11
Front Frame WPL-Y0656710E
...
12
Panel, Toe 30`` (Black) WPL-Y06451600
...
13
Baffle, Base (30``gas) WPL-Y06467101
...
14
Liner,oven Side WPL-0311807
...
15
Liner, Oven Top - Porcelain WPL-88885CG
...
16
Clip, Capillary WPL-0310802
...
17
Box, Burner WPL-Y06559500
...
18
Backliner, Oven (Enamel) WPL-Y03382001E
...
19
Main Back {j} WPL-0088656
...
22
Extension, Burner Box WPL-Y06559900
...
26
Flue, Oven WPL-Y06564900
...
30
Supt. Main Back (Vert) WPL-Y06565600
...
31
Support, Rear, Vertical {j} WPL-0056477
...
33
Plate, Spark Module WPL-Y0087725
...
34
Module, 4+1 Spark Kit WPL-Y07725200
...
35
Ass`y Power Cord WPL-0313772
...
36
Bumper, Oven Door WPL-Y0063661
...
40
U-Clip, Safe Edge WPL-31750803

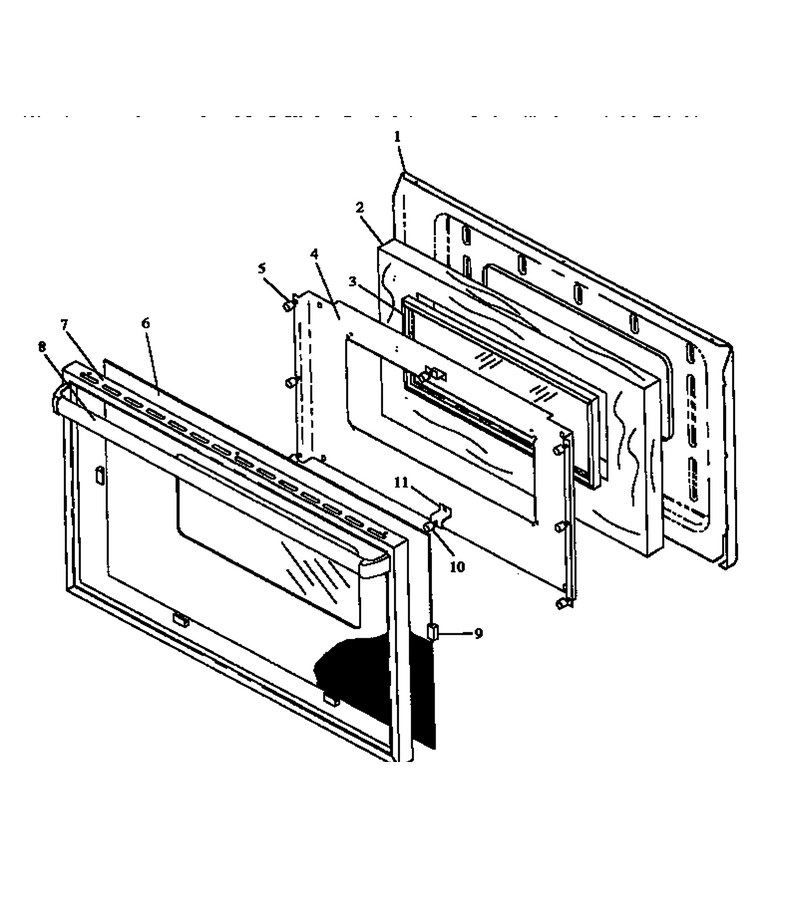

04 - Oven Door Assy

...
...
NI
Screw WPL-313806
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
4
Baffle, Oven Door WPL-06511801
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door (Black) WPL-Y07707500
...
7
Frame, Door (Black) WPL-Y07707800
...
8
Handle, Door (Black) WPL-Y07708100
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bracket, Bumper Mount {j} WPL-Y0311752

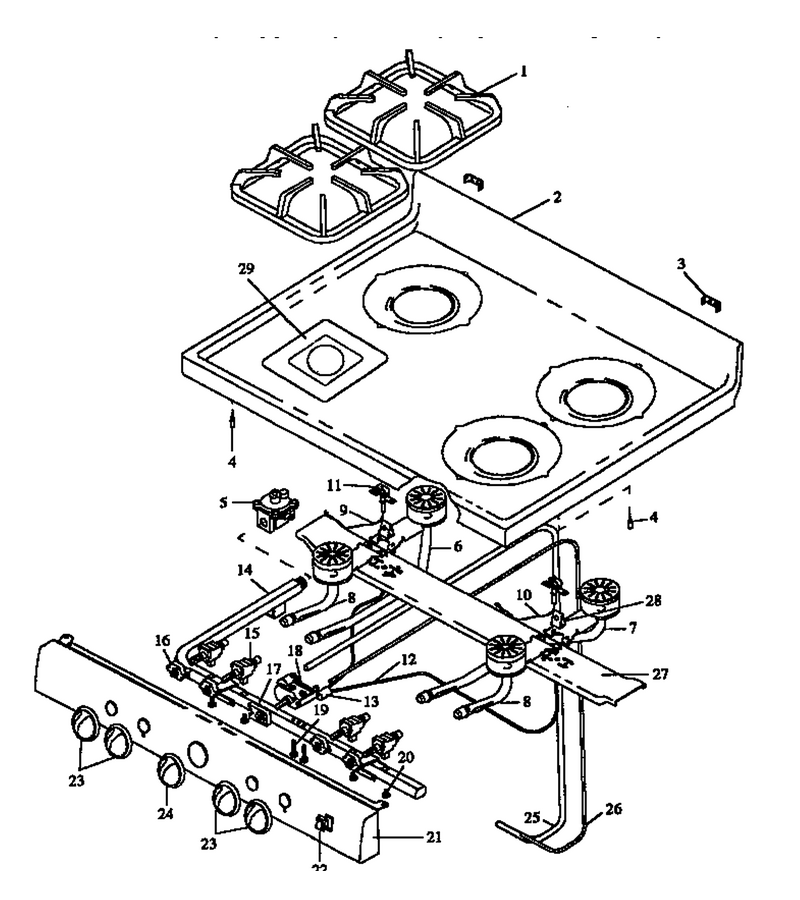

05 - Oven Top Burner Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
...
1
Grate, Top Burner WPL-306151B
...
2
Maintop (White) WPL-308919W
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw, Stud WPL-31750709
...
5
Pressure Regulator WPL-77001246
...
6
Burner, Rear L.h. WPL-Y07707100
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Burner, Front WPL-Y07706900
...
9
Ignitor- G WPL-Y07491203
...
10
Ignitor- G WPL-Y07491203
...
11
Bracket, Ignitor WPL-0310114
...
14
Pipe, Manifold WPL-07706801
...
15
Valve, Top Burner WPL-Y07720701
...
16
Switch, Spark-Valve WPL-Y07721000
...
17
Switch, Spark T-Stat WPL-Y07720900
...
18
Kit- Spark WPL-R0711506
...
19
Bolt, Mtg Therm/gasket WPL-Y07721600
...
20
Screw WPL-W10491986
...
21
Pnl-Mnfd,30`` Black WPL-Y07710205
...
22
Switch, Rocker WPL-Y07634800
...
23
Knob, Top Burner WPL-Y07708202
...
24
Knob, Oven Thermostat WPL-Y07723300
...
25
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
26
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
27
Support, Top Burner WPL-06561400
...
29
Bowl, Burner (Gray) WPL-30614717Y

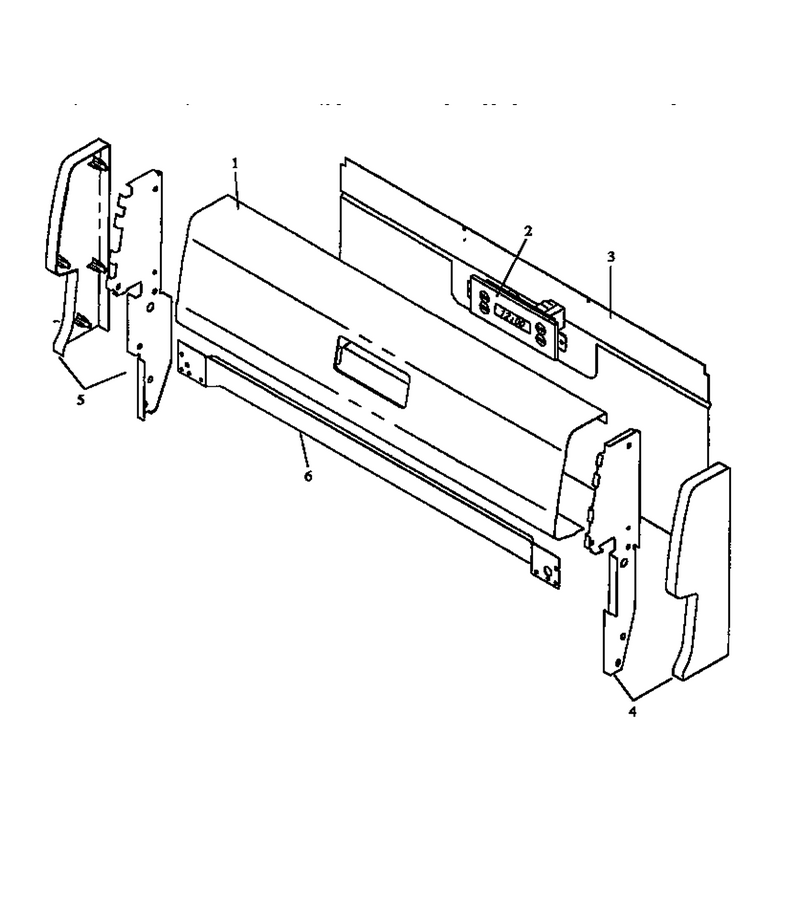

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Panel, Backguard WPL-07708801
...
2
Clock (Black) WPL-Y07707900
...
3
Cover, Bkgd Wire WPL-Y06559600
...
4
End Cap, Bkgd 11`` R.h. WPL-Y06567000
...
5
Endcap, Bkgd 11`` L.h. WPL-Y06567001
...
6
Tim, Lower Bkgd (Black) WPL-Y06559120B
