Amana RLN345UL (BOM: P1143509N L)

Model: RLN345UL (BOM: P1143509N L)

Save Part Not Listed?
product name

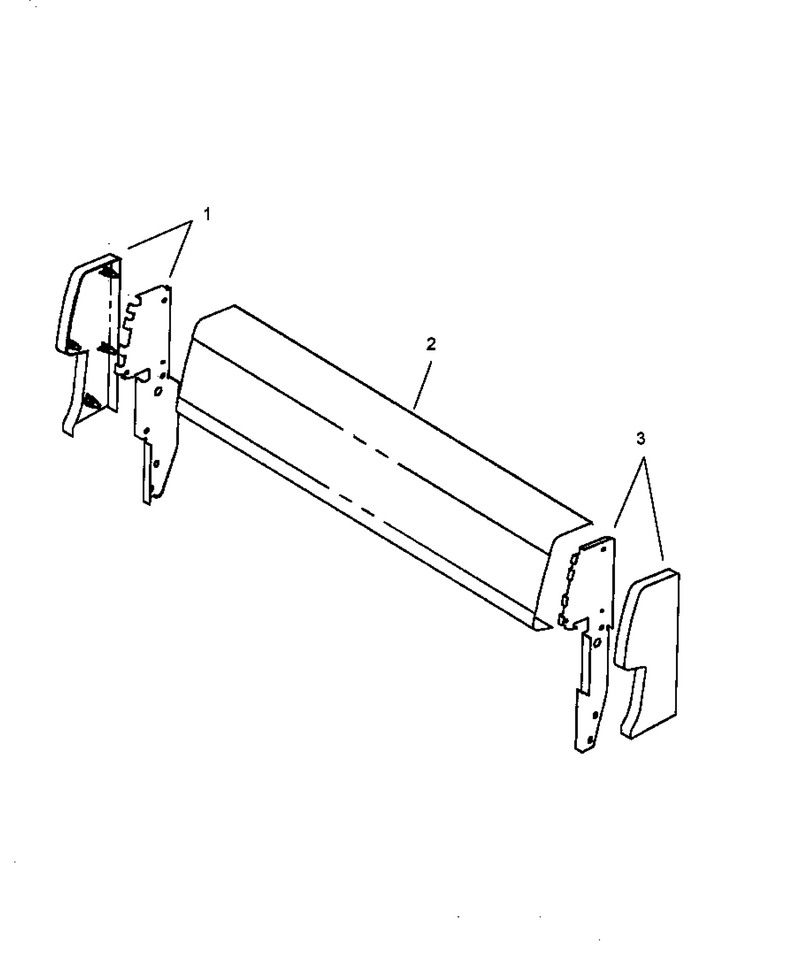

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
End Cap, Bkgd 4`` L.h. WPL-Y07712605
...
2
Pnl, Filler 4x30 WPL-06565712B
...
3
End Cap, Bkgd 4`` R.h. WPL-Y07712604

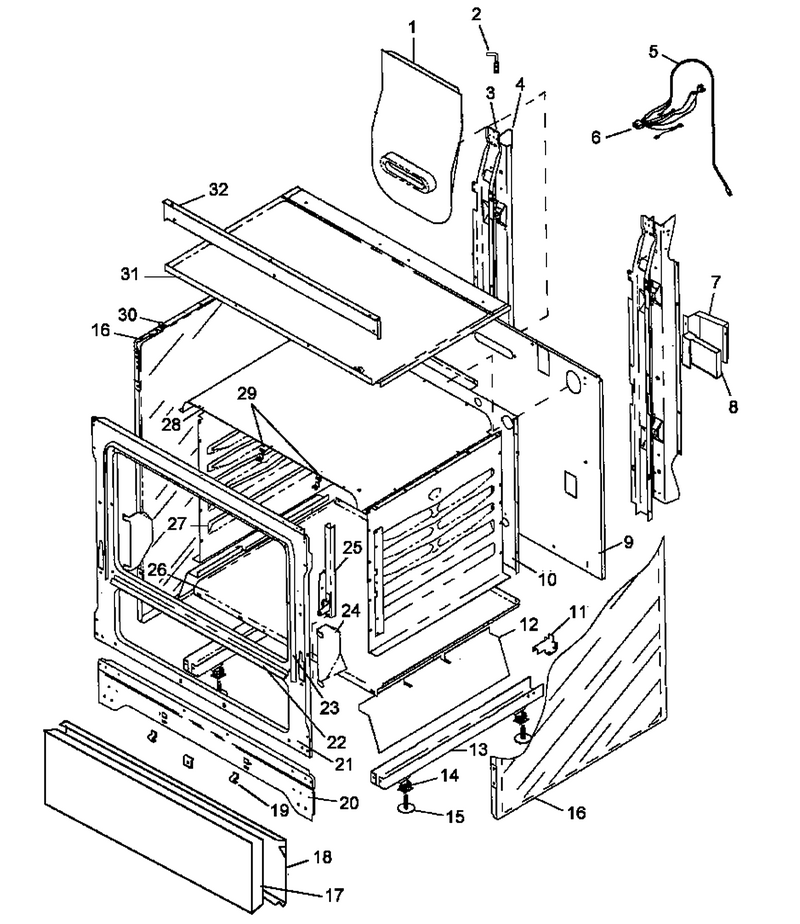

03 - Cabinet Assy

...
...
NI
Clamp, Speed WPL-Y0310113
...
1
Flue, Oven WPL-Y06564900
...
2
Wire, Hinge (Left) WPL-07730601
...
3
Supt. Main Back (Vert) WPL-Y06565600
...
4
Support, Rear, Vertical {j} WPL-0056477
...
5
Ass`y Power Cord WPL-0313772
...
6
Wire Harness, Pur WPL-Y07463101
...
7
Cover, Spark Module WPL-06462003
...
8
Module-Spk,2+1,apco WPL-Y07727100
...
9
Main Back {j} WPL-0088656
...
10
Backliner, Oven (Enamel) WPL-Y03382001E
...
11
Kit, Anti-Tip WPL-07687600
...
12
Radiation Shield, Broiler WPL-0310816
...
13
Rail, Base WPL-06554900
...
14
Snap-In Tee Nut WPL-Y0088571
...
15
Leveler WPL-W11117769
...
16
Side, Body (Almond) WPL-06559000L
...
20
Panel, Toe 30`` (Black) WPL-Y06451602
...
21
Frame, Front (Enamel) WPL-06567101E
...
22
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
23
Seal- Oven WPL-31958801
...
24
Shield, Insulation (J) WPL-0310064
...
25
Hinge, Oven Door WPL-Y07489700
...
26
Baffle, Base (30``gas) WPL-Y06467101
...
27
Liner,oven Side WPL-0311807
...
28
Topliner, Oven 30``gas WPL-Y06470802E
...
29
Clip, Capillary WPL-01052001
...
30
Bumper, Oven Door WPL-Y0063661
...
31
Burner Box, Gas 30`` WPL-Y06559504
...
32
Extension, Burner Box WPL-Y06559901

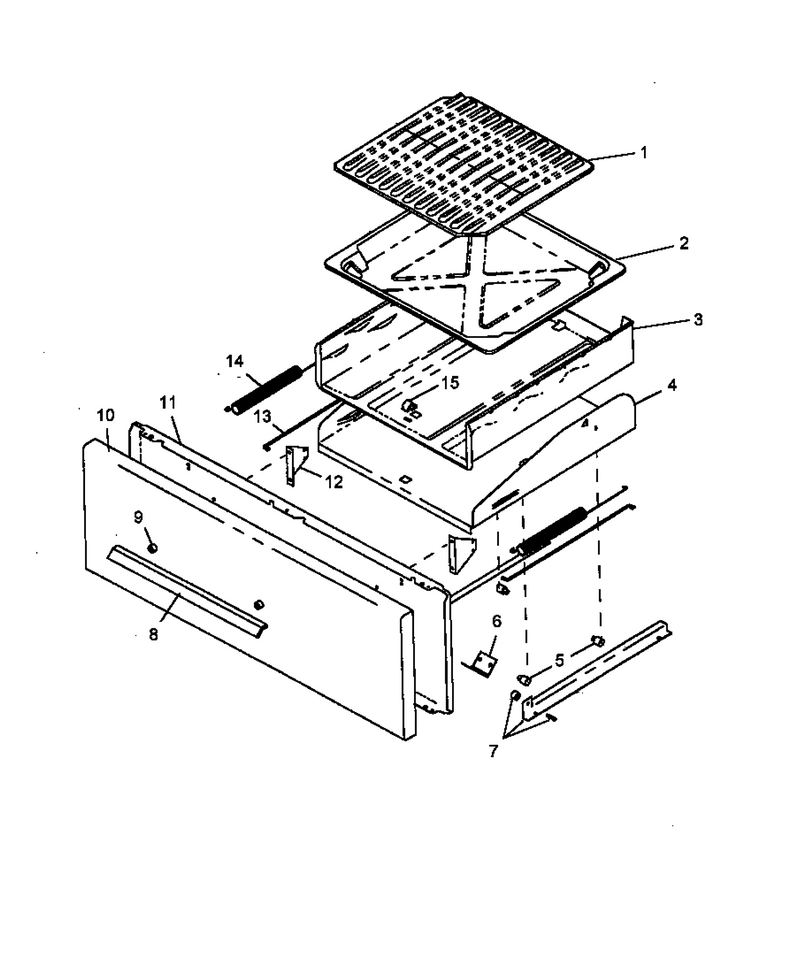

02 - Broiler Drawer Assy

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Drawer, Broiler WPL-86908CG
...
4
Support,body Carriage WPL-06522100
...
5
Glide-Drwr WPL-W10709871
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broiler Door (Alm) WPL-311882L
...
11
Liner, Broil Door,30`` WPL-312246E
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

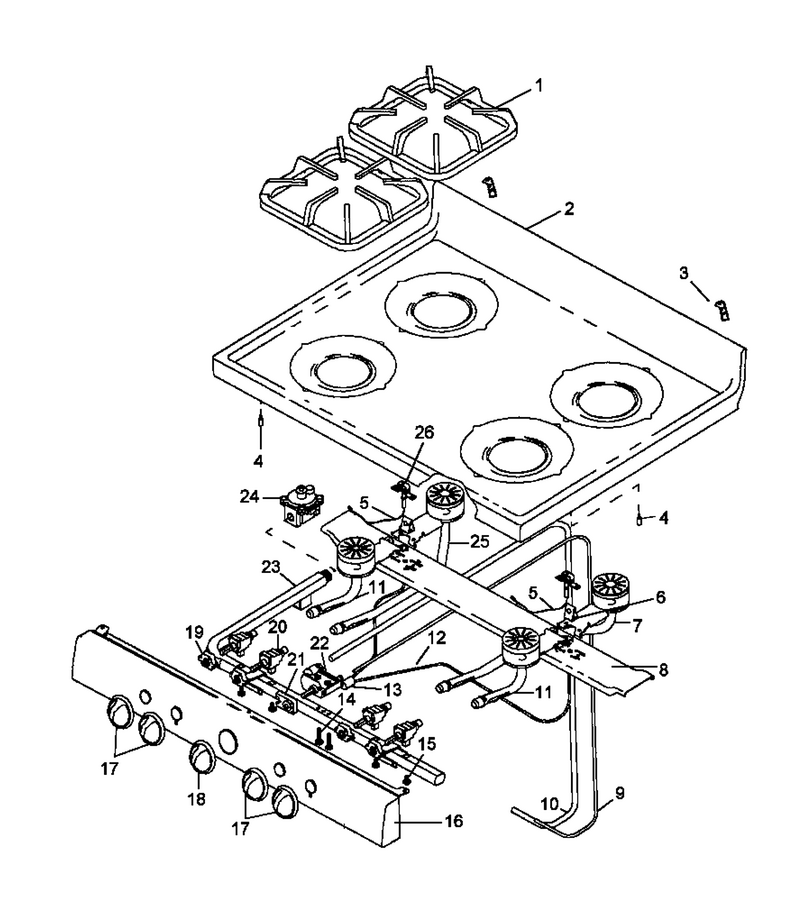

04 - Main Top Assy - Open Burners

...
...
NI
Screw No.10 X 5/16 WPL-0310234
...
1
Grate, Square Wire (Black) WPL-Y07713600
...
2
Maintop (Almond) WPL-Y06558100L
...
3
Bushing, Hinge Wire WPL-Y07730700
...
4
Screw, Stud WPL-31750709
...
5
Ignitor- G WPL-Y07491203
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Supt-Top Brnr, 30 WPL-Y06561401
...
9
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
10
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
11
Burner, Front WPL-Y07706900
...
14
Bolt, Mtg Therm/gasket WPL-Y07721600
...
15
Screw WPL-W10491986
...
16
Panel, Manifold WPL-Y07710204
...
17
Knob, Top Burner WPL-Y07708301
...
18
Knob, Oven Thermostat WPL-07723500
...
19
Switch, Spark-Valve WPL-Y07721000
...
20
Valve, Top Burner WPL-Y07720701
...
21
Switch, Spark T-Stat WPL-Y07720900
...
22
Kit- Spark WPL-R0711506
...
23
Pipe, Manifold WPL-07706801
...
24
Pressure Regulator WPL-77001246
...
25
Burner, Rear L.h. WPL-Y07707100
...
26
Bracket, Ignitor WPL-0310114

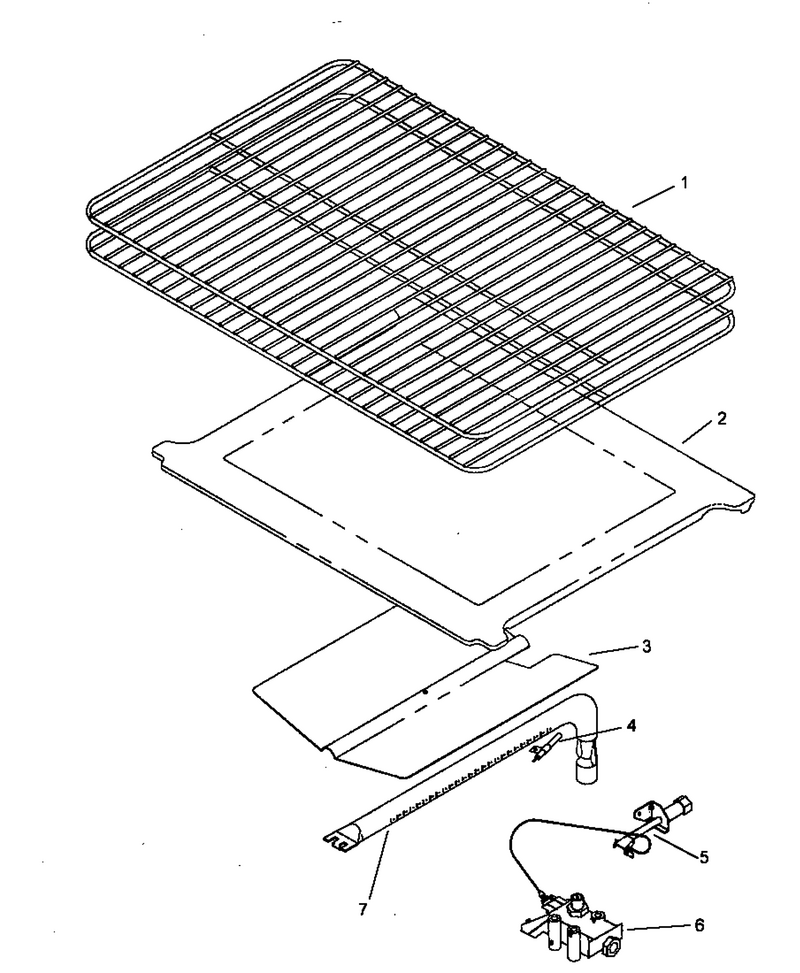

05 - Oven Components

...
...
NI
Screw, 8x 5/16 Pan Hd WPL-Y07509500
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Flame Spreader WPL-06497101
...
4
Igniter W WPL-R0709005
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Valve, Sfty, Ov W/pil WPL-Y07720101
...
7
Burner, Oven WPL-Y07720500

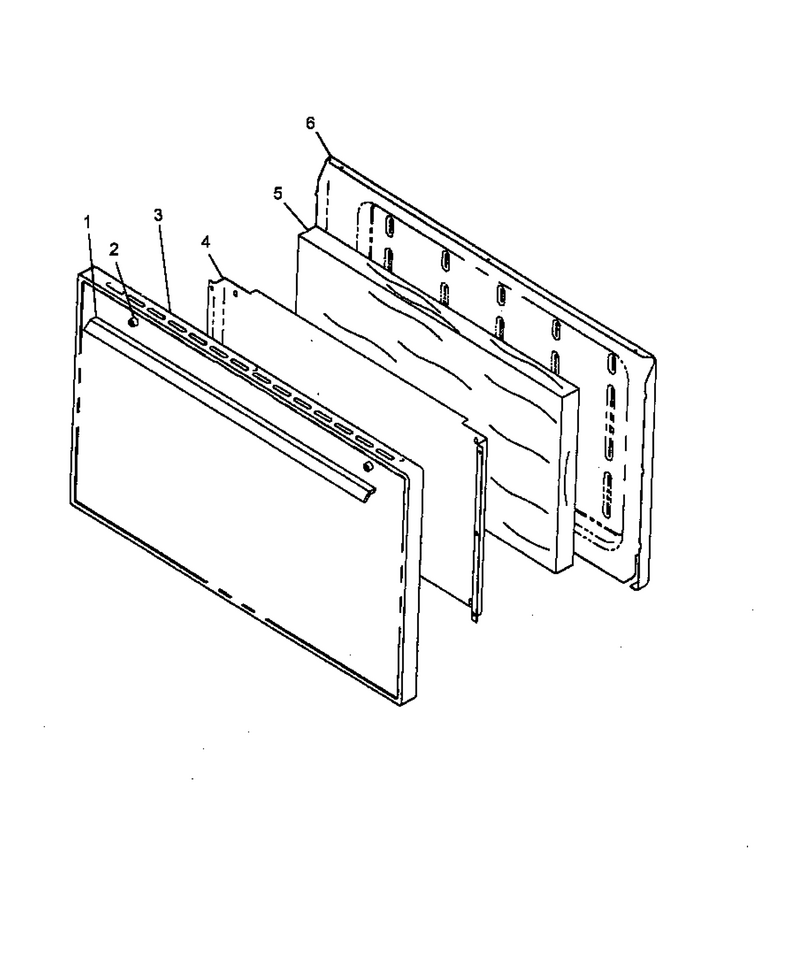

06 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Handle, Broiler Door WPL-Y0056139
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Panel, Door (Almond) WPL-06561300L
...
4
Baffle, Oven Door WPL-06511801
...
5
Insulation, Wrapper WPL-31975801
...
6
Liner, Oven Door WPL-Y06565000E
