Amana RLN330UW (BOM: P1143173N W)

Model: RLN330UW (BOM: P1143173N W)

Save Part Not Listed?
product name

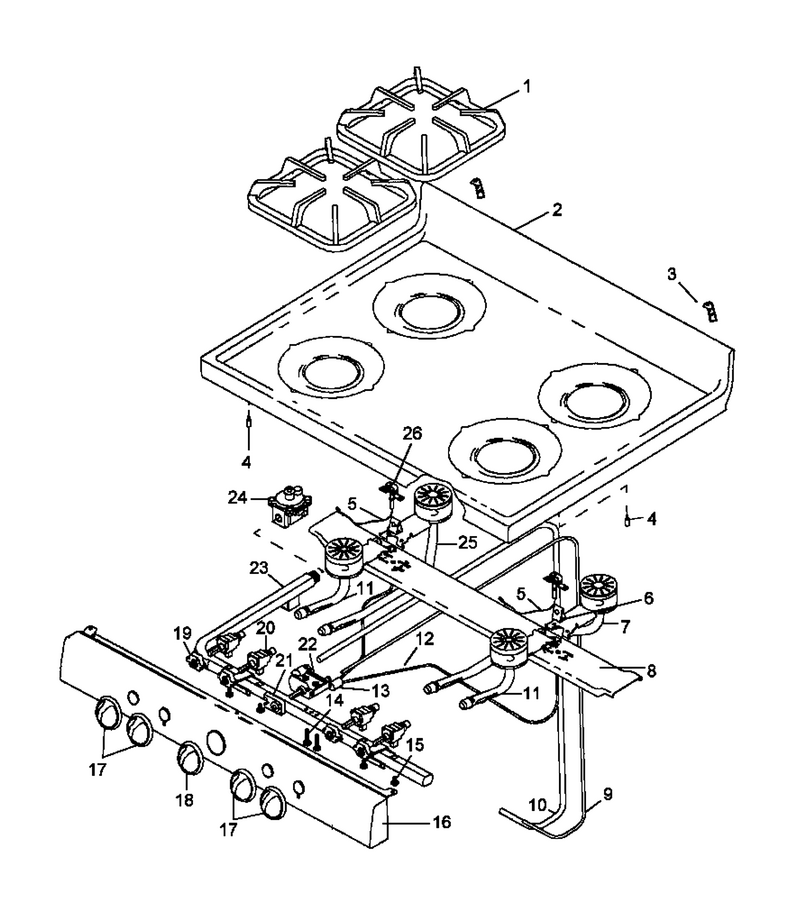

03 - Main Top Assy - Open Burners

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Grate, Wire Round 9`` WPL-Y07708700
...
2
Main Top W/grate Kit WPL-06558200W
...
3
Bushing, Hinge Wire WPL-Y07730700
...
4
Screw, Stud WPL-31750709
...
6
Pilot Tip (J) WPL-0057313
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Supt-Top Brnr, 30 WPL-Y06561401
...
9
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
10
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
11
Burner, Front WPL-Y07706900
...
12
Tubing, Top Burner Pilot WPL-31827501
...
13
Pilot Filter WPL-0311054
...
14
Bolt, Mtg Therm/gasket WPL-Y07721600
...
15
Screw WPL-W10491986
...
16
Pnl-Mnfd 30`` Gas WPL-Y07710206
...
17
Knob, Gas Valve WPL-07708401
...
18
Knob, Gas Therm WPL-Y07723201
...
20
Valve, Top Burner WPL-Y07720701
...
22
Kit- Pilot WPL-R0711505
...
23
Pipe-Manifold WPL-07706802F
...
24
Pressure Regulator WPL-77001246
...
25
Burner, Rear L.h. WPL-Y07707100
...
26
Bracket, Ignitor WPL-0310114

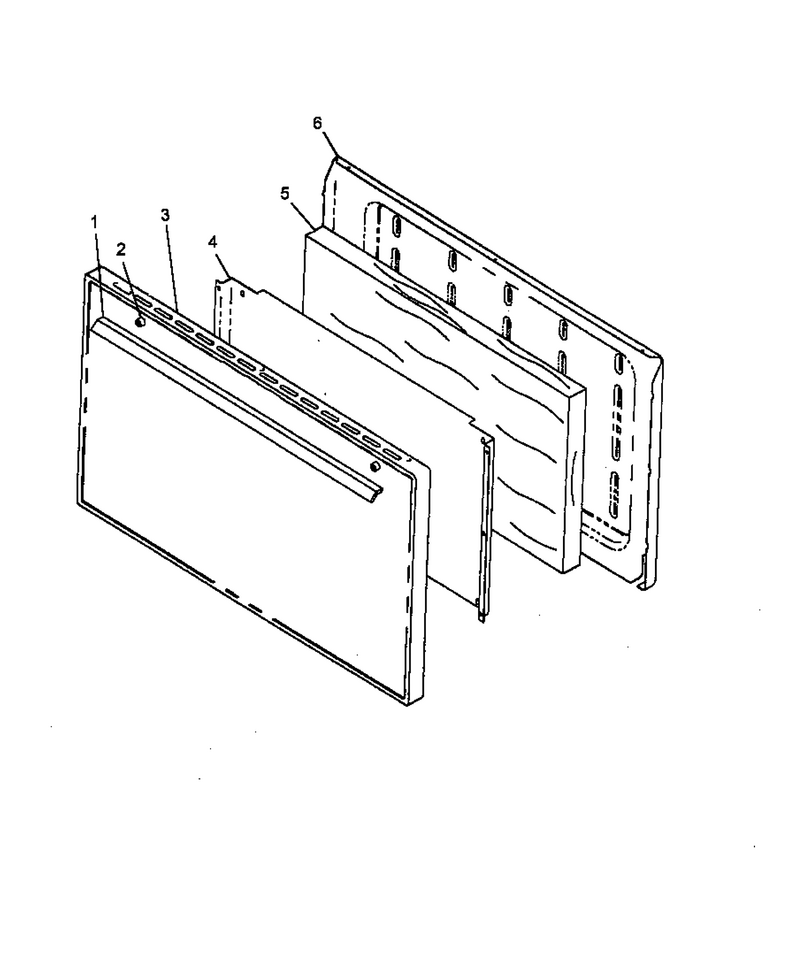

05 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Handle, Oven Door (J) WPL-Y0052776
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Panel, Door (White) WPL-06561300W
...
4
Baffle, Oven Door WPL-06511801
...
5
Insulation, Wrapper WPL-31975801
...
6
Liner, Oven Door WPL-Y06565000E

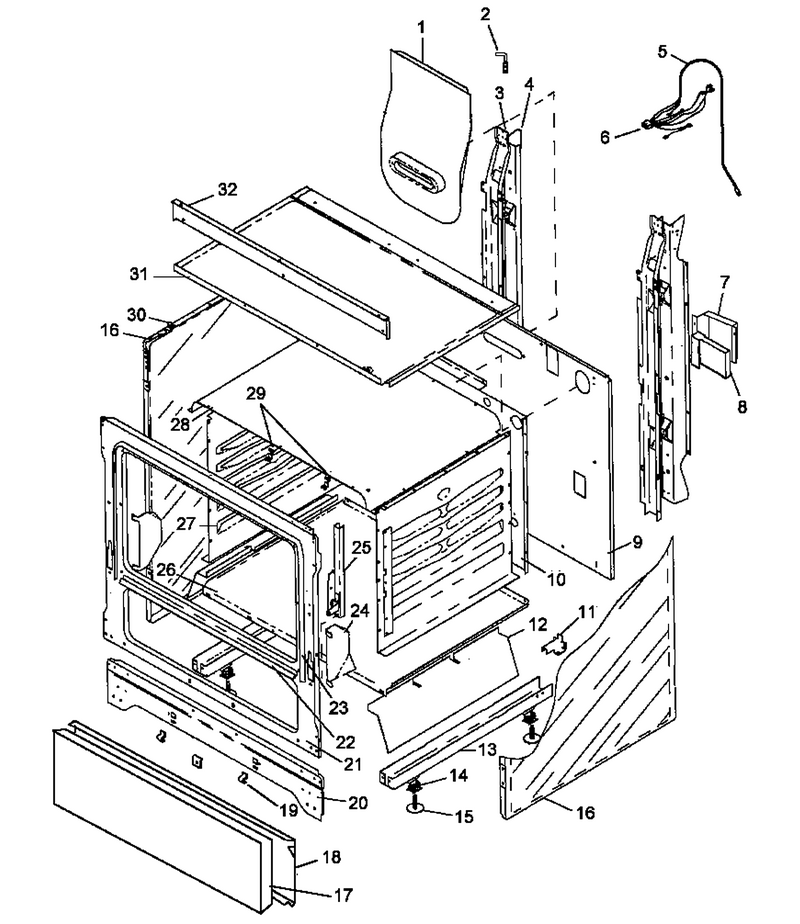

02 - Cabinet Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Flue, Oven WPL-Y06564900
...
2
Wire, Hinge (Left) WPL-07730601
...
3
Supt. Main Back (Vert) WPL-Y06565600
...
4
Support, Rear, Vertical {j} WPL-0056477
...
9
Main Back {j} WPL-0088656
...
10
Backliner, Oven (Enamel) WPL-Y03382001E
...
11
Kit, Anti-Tip WPL-07687600
...
12
Radiation Shield, Broiler WPL-0310816
...
13
Rail, Base WPL-06554900
...
14
Snap-In Tee Nut WPL-Y0088571
...
15
Leveler WPL-W11117769
...
16
Side, Body (White) WPL-06559000W
...
17
Panel, Fixed (White) WPL-Y06539000W
...
18
Shield, Broiler WPL-Y06554000
...
19
Spring Clip WPL-Y0088664
...
20
Panel, Toe 30`` (Galv) WPL-Y06451603
...
21
Frame, Front (Enamel) WPL-06567101E
...
22
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
23
Seal- Oven WPL-31958801
...
24
Shield, Insulation (J) WPL-0310064
...
25
Hinge, Oven Door WPL-Y07489700
...
26
Baffle, Base (30``gas) WPL-Y06467101
...
27
Liner,oven Side WPL-0311807
...
28
Topliner, Oven 30``gas WPL-Y06470802E
...
29
Clip, Capillary WPL-01052001
...
32
Burner Box, Gas 30`` WPL-Y06559505

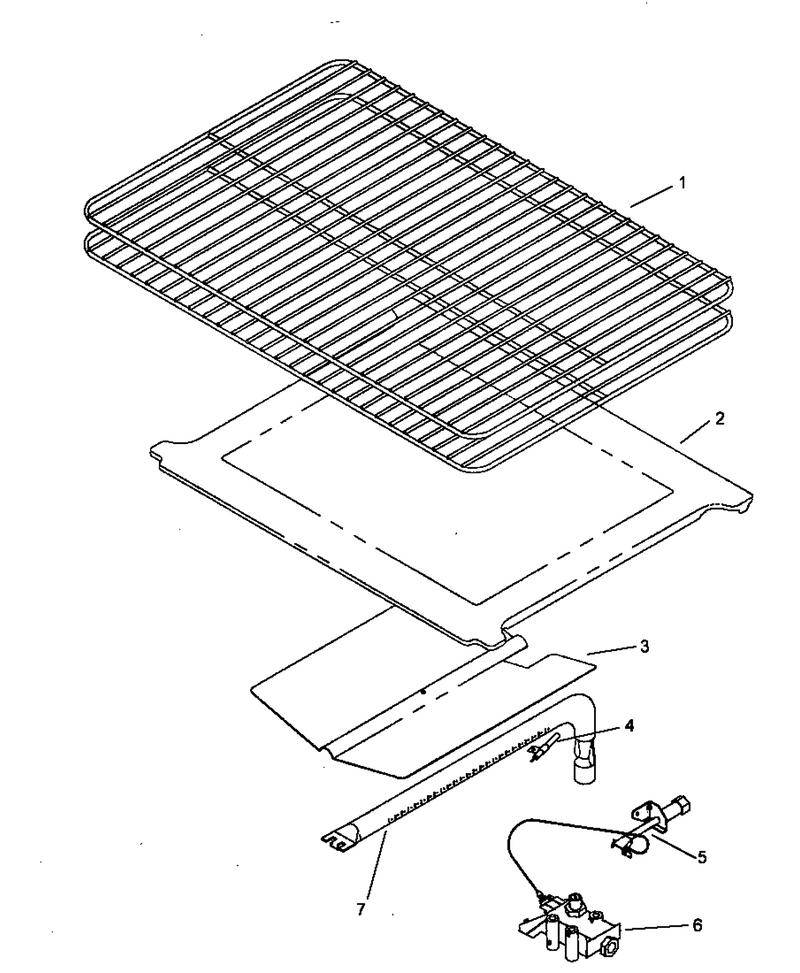

04 - Oven Components

...
...
NI
Screw WPL-WP4159193
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-06497102
...
5
Pilot, Oven Burner WPL-Y07720400
...
6
Valve, Sfty, Ov W/pil WPL-Y07720101
...
7
Burner, Oven WPL-Y07720500

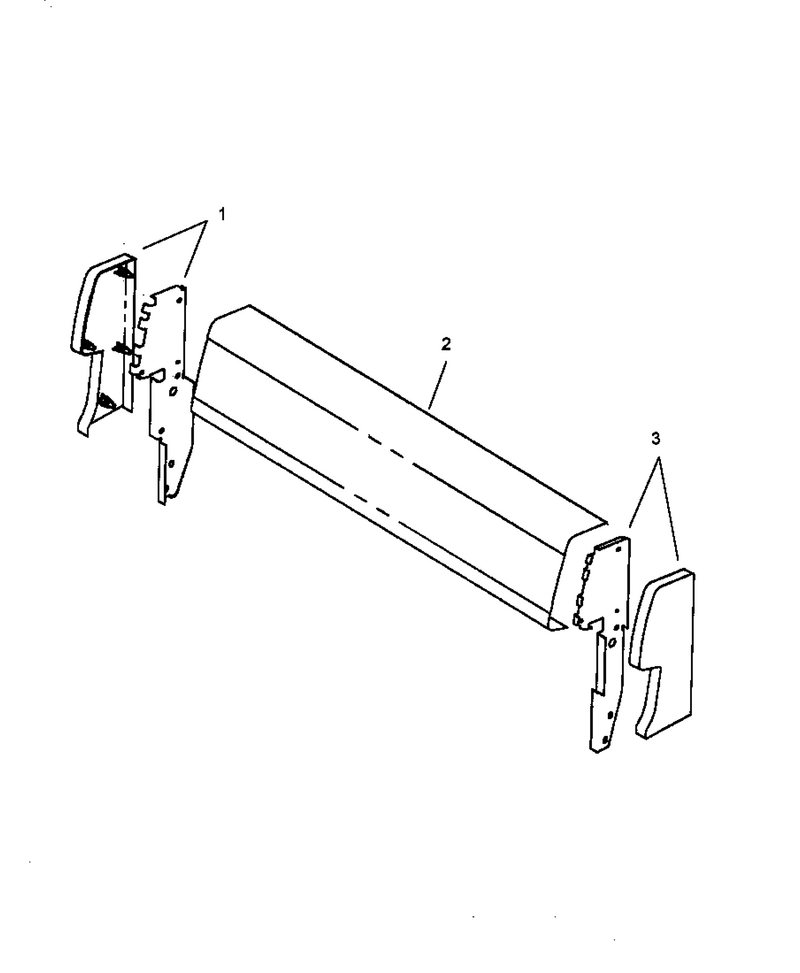

01 - Backguard Assy

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
End Cap, Bkgd 4`` L.h. WPL-Y07712605
...
2
Pnl, Filler 4x30 WPL-Y06565714W
...
3
End Cap, Bkgd 4`` R.h. WPL-Y07712604
