Amana RLN330UW (BOM: P1143073N W)

Model: RLN330UW (BOM: P1143073N W)

Save Part Not Listed?
product name

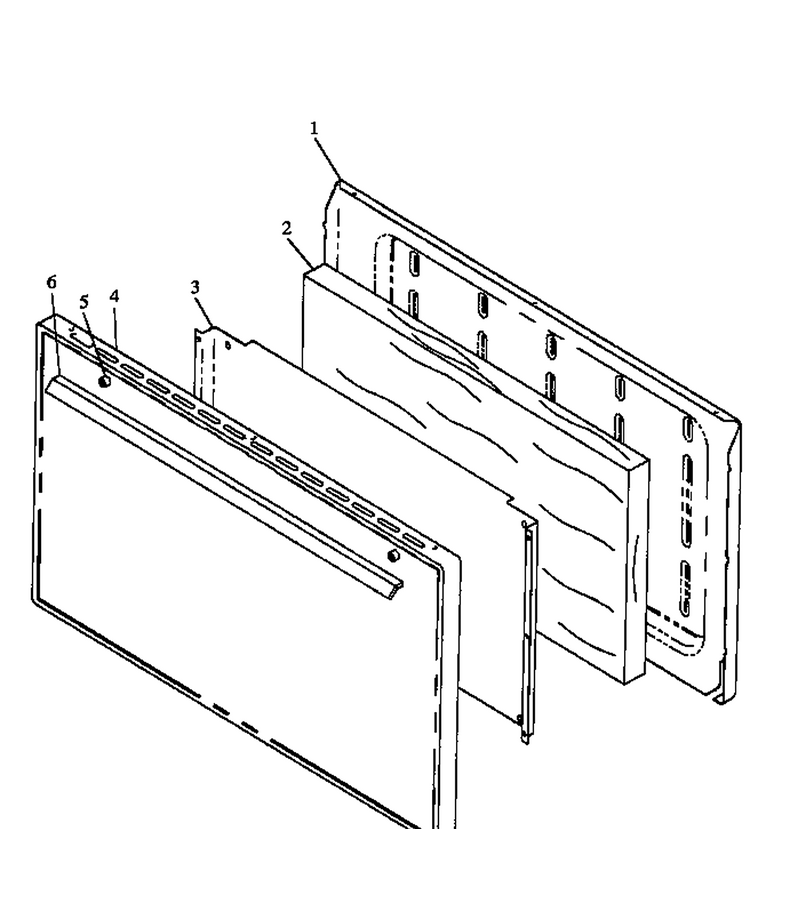

06 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
3
Baffle, Oven Door WPL-06511801
...
4
Panel, Door (White) WPL-Y06561301W
...
5
Handle Spacer, Plastic (J) WPL-Y0310818
...
6
Handle, Oven Door (J) WPL-Y0052776

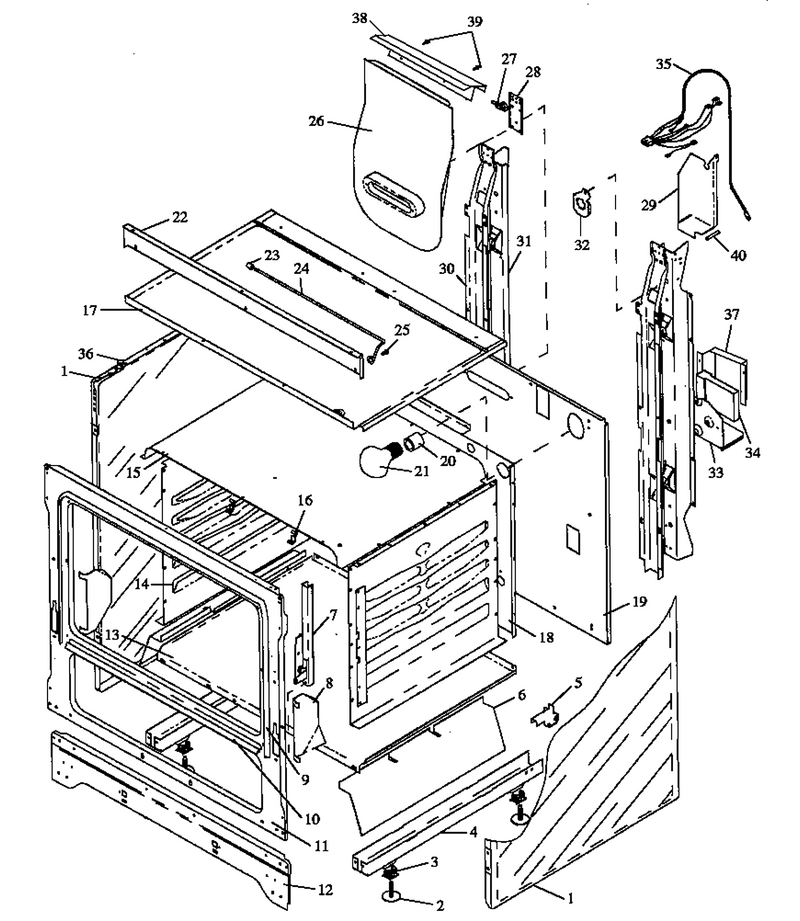

03 - Cabinet Section

...
...
NI
Clamp, Speed WPL-Y0310113
...
1
Side, Body (White) WPL-06559000W
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Radiation Shield, Broiler WPL-0310816
...
7
Hinge, Oven Door WPL-Y07489700
...
8
Shield, Insulation (J) WPL-0310064
...
9
Seal- Oven WPL-31958801
...
10
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
11
Frame, Front (Enamel) WPL-06567100E
...
12
Panel, Toe 30`` (Galv) WPL-Y06451603
...
13
Baffle, Base (30``gas) WPL-Y06467101
...
14
Liner,oven Side WPL-0311807
...
15
Liner, Oven Top - Porcelain WPL-88885CG
...
16
Clip, Capillary WPL-0310802
...
17
Box, Burner WPL-Y06559502
...
18
Backliner, Oven (Enamel) WPL-Y03382001E
...
19
Main Back {j} WPL-0088656
...
22
Extension, Burner Box WPL-Y06559900
...
26
Flue, Oven WPL-Y06564900
...
27
Hinge Arm,right Hand WPL-07712802
...
28
Bracket, Hinge WPL-06565500
...
30
Supt. Main Back (Vert) WPL-Y06565600
...
31
Support, Rear, Vertical {j} WPL-0056477

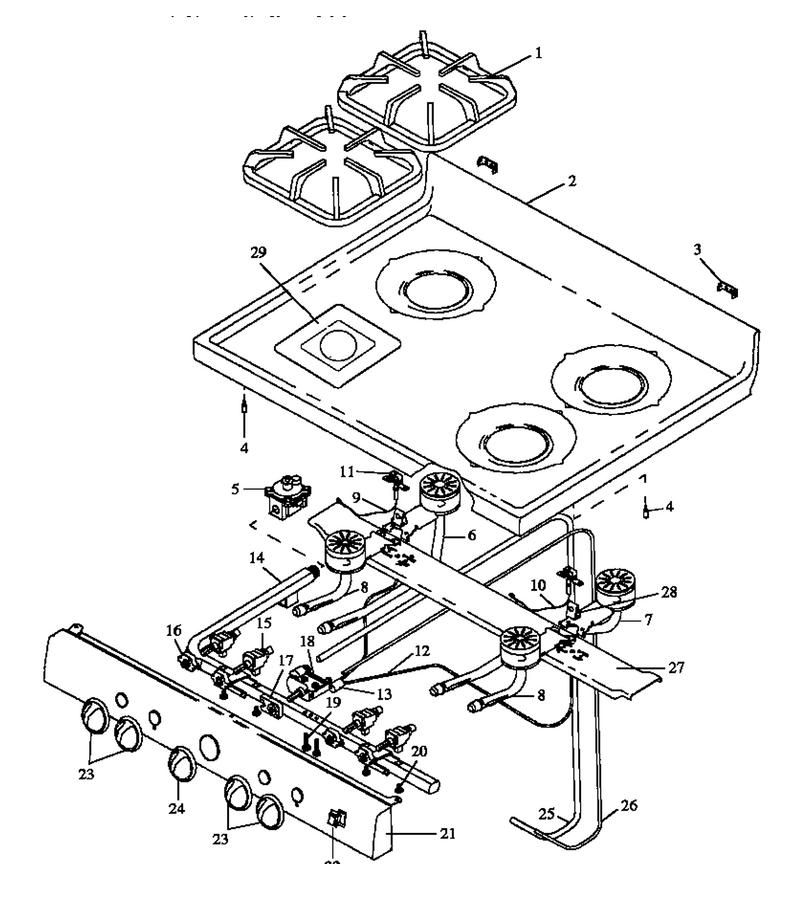

04 - Open Top Burner Assy

...
...
NI
Screw No.10x1/2 Blunt WPL-Y0310363
...
1
Grate, Wire Round 9`` WPL-Y07708700
...
2
Main Top W/grate Kit WPL-06558200W
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw, Stud WPL-31750709
...
5
Pressure Regulator WPL-77001246
...
6
Burner, Rear L.h. WPL-Y07707100
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Burner, Front WPL-Y07706900
...
12
Tubing, Top Burner Pilot WPL-31827501
...
13
Pilot Filter WPL-0311054
...
14
Pipe, Manifold WPL-07706801
...
15
Valve, Top Burner WPL-Y0057338
...
18
Thermostat WPL-R0711030
...
19
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
20
Screw WPL-W10491986
...
21
Pnl-Mnfd 30`` Gas WPL-Y07710203
...
23
Knob, Gas Valve WPL-07708401
...
24
Knob, Thermostat WPL-07708400
...
25
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
26
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
27
Support, Top Burner WPL-06561400
...
28
Pilot Tip (J) WPL-0057313

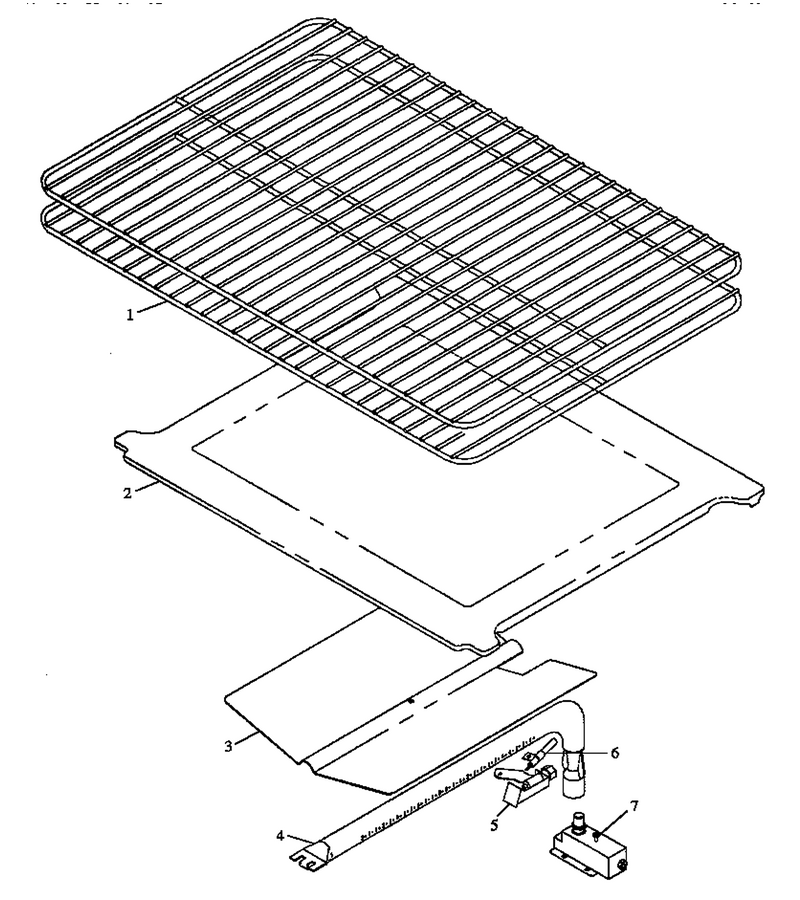

05 - Oven Components

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-0311821
...
4
Oven Burner WPL-0311865
...
5
Pilot, Oven Burner (Standing) WPL-Y07697200
...
7
Valve, Safety WPL-4157094

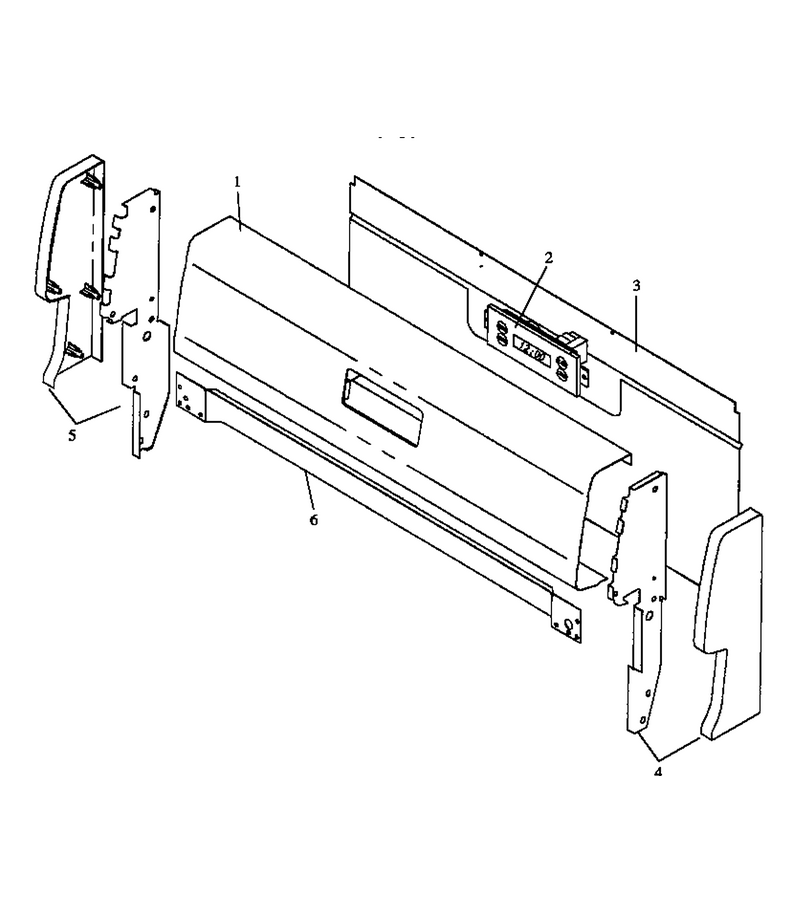

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Pnl, Bkgd 4x30 (White) WPL-06565701W
...
4
07712604 WPL-06566800
...
5
End Cap, Bkgd 4`` L.h. WPL-Y06566801

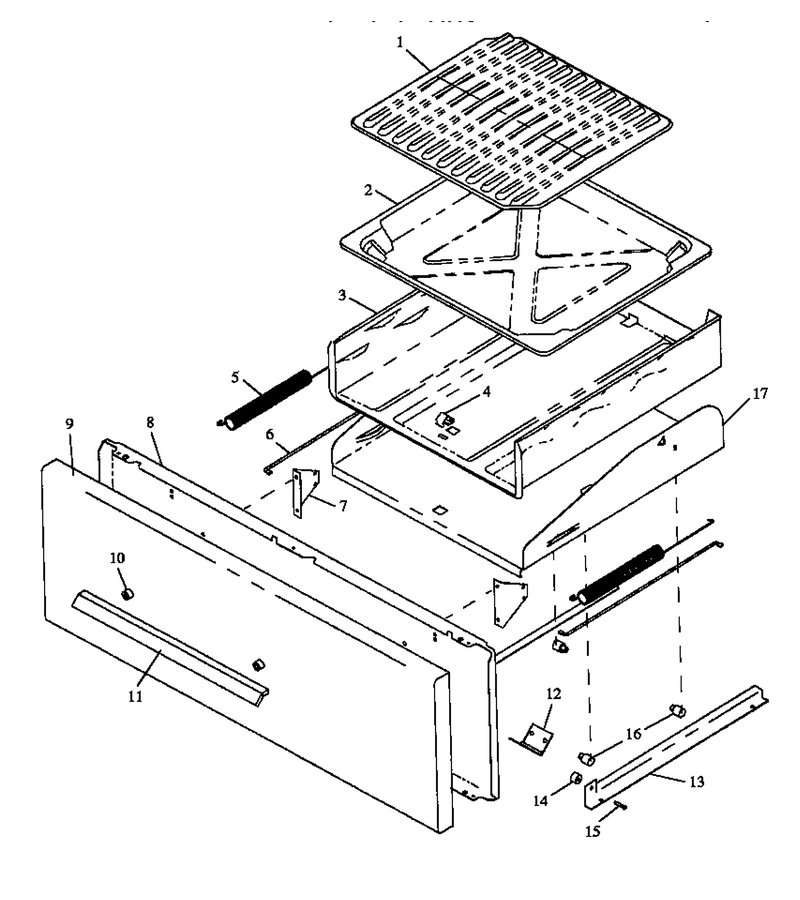

02 - Broiler Drawer Assy

...
...
NI
Spring Clip WPL-Y0088664
...
9
Panel, Fixed (White) WPL-Y06539000W
