Amana RL6-5 (BOM: P7625003M)

Model: RL6-5 (BOM: P7625003M)

Save Part Not Listed?
product name

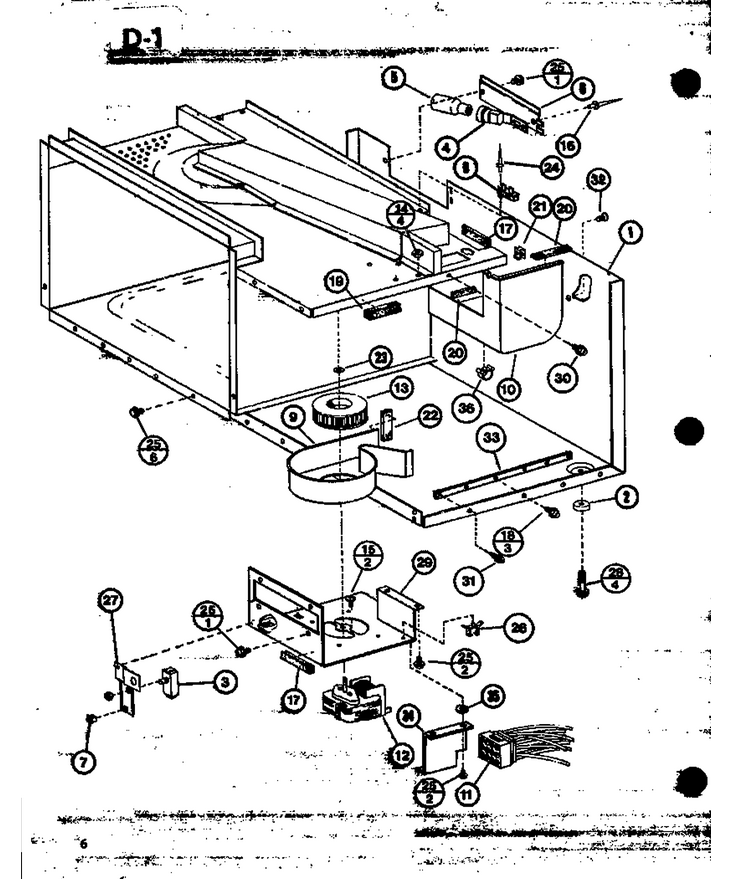

01 - Page 1

...
...
1
Gasket, Oven WPL-C8896201
...
2
Ctr Brkt Assy - Right WPL-D7482001
...
3
Roller Assy Kit WPL-R0157145
...
4
X$x Pad WPL-M0050902
...
5
Grease Shield WPL-D7544002
...
6
Assy, Antenna WPL-C8806701
...
7
Bearing Cap WPL-B5792601
...
8
Stub-Antenna A WPL-B5783101
...
9
Bearing-Antenna A WPL-B5783001
...
10
Bushing A WPL-C8838501
...
11
Gasket WPL-53001610
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263902
...
14
Flange Cover Pntd WPL-D7562502
...
15
Washer WPL-M0274051
...
16
Clip WPL-B5667302
...
17
Oven Cavity WPL-D7350507
...
18
Switch WPL-C8736703
...
19
Screw A-K WPL-M0227525
...
20
Screw WPL-WP3388228
...
21
Screw WPL-WP489349
...
22
Screw WPL-M0236921
...
23
Screw WPL-M0230727
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Spring A WPL-A3277701
...
26
Guide Screw A-K WPL-A3277801
...
27
Screw Adjusting A-K WPL-A3277601
...
28
Switch-L Intl A WPL-A3162510
...
29
Speed Nut A WPL-M0286114
...
30
Rivet-Pop WPL-59002054

02 - Page 2

...
...

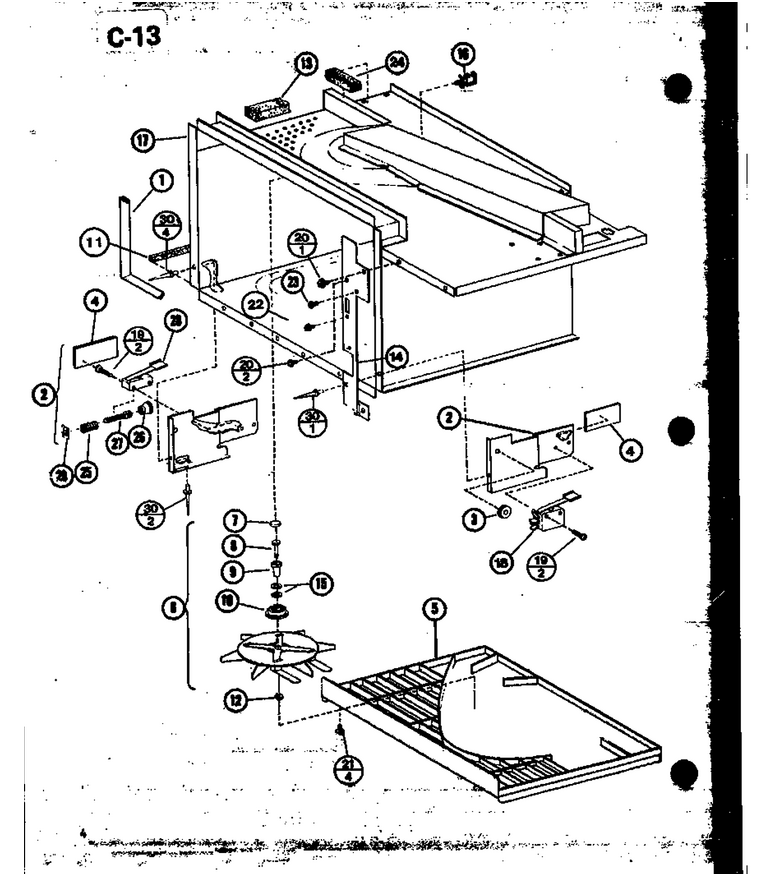

1
Base Pan WPL-D7506205
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Switch Door Open WPL-C8715204
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Access Panel WPL-B5782906
...
7
Grommet WPL-M0580204
...
8
Fuse, Thermal WPL-B5795303
...
9
Scroll WPL-D7609401
...
10
Magnetron Cover WPL-D7349003
...
11
Wiring Harness Oven WPL-D7674501
...
12
Motor- Blo WPL-C8793205
...
13
Blower Wheel WPL-C8793501
...
14
Lock-Nut---K WPL-M0282801
...
15
Screw WPL-WP3400094
...
16
Rivet-Pop WPL-59002054
...
17
Gasket WPL-A3030302
...
18
Screw WPL-WP489464
...
19
Gasket (Per Foot) WPL-A3030303
...
20
Gasket (Per Foot) WPL-10839706
...
21
Clip WPL-M0288213
...
22
Gasket-Cavity Top WPL-10839709
...
23
Nut WPL-WP3195558
...
24
Rivet WPL-WP210720
...
25
Screw WPL-WP3388228
...
26
Clip WPL-B5667303
...
27
Bracket WPL-C8896601
...
28
Screw-Shoulder WPL-M0220219
...
29
Mtg Plate WPL-D7533302
...
30
Screw WPL-WP489349
...
31
Screw WPL-WP90767
...
32
Screw WPL-M0216519
...
33
Brace, Base Pan WPL-B8356701
...
36
Clip WPL-M0106801

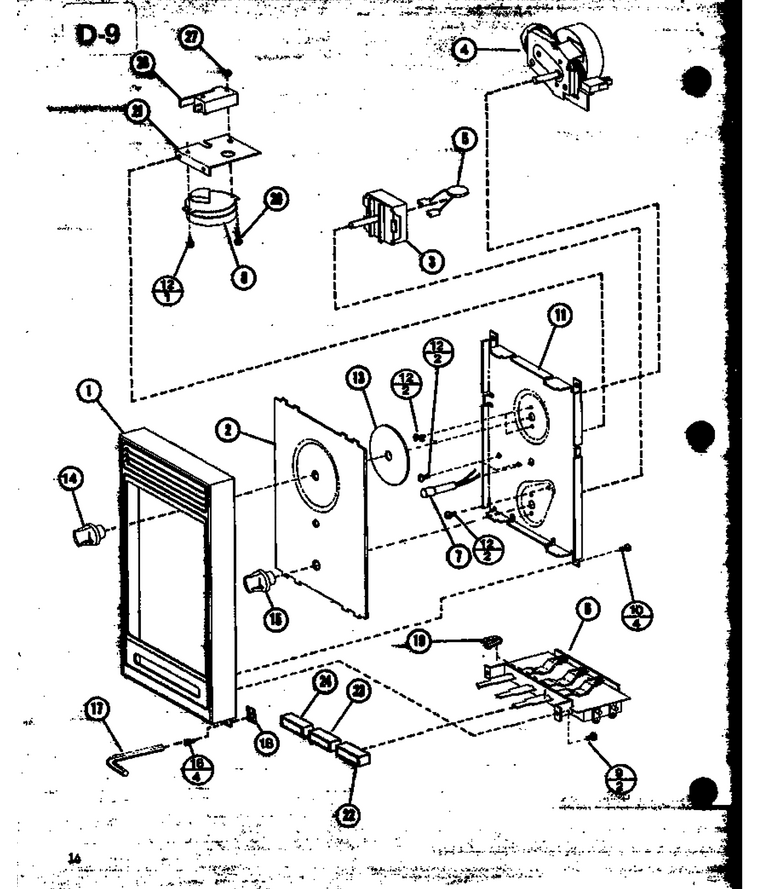

05 - Page 6

...
...
1
Escutcheon Pntd WPL-D7548906
...
2
Lens Escut. WPL-D7541208
...
3
Rotary Switch WPL-B8334102
...
4
Timer 30 Min WPL-C8791708
...
5
Ptc Resistor Assy WPL-A1027301Q
...
6
Switch Ssl WPL-D7546301
...
7
Light Pilot A WPL-B5786601
...
8
Timer WPL-B5699801
...
9
Screw WPL-W11084238
...
10
Screw WPL-WP59002061
...
11
Chassis Plate WPL-D7558403
...
12
Screw WPL-M0234114
...
13
Disk Timer WPL-C8730420
...
14
Knob WPL-C8735901
...
15
Knob-Timer WPL-C8759503
...
16
Screw T.c WPL-M0229916
...
17
Wrench-Hex WPL-A4696103
...
18
Speed Nut K WPL-M0288301
...
19
Spring WPL-A1039301
...
20
Switch-Cut Off WPL-A3220703
...
21
Bracket WPL-B5699601
...
22
Light Button WPL-C8869301
...
23
Stop Button WPL-C8869401
...
24
Start Button WPL-C8869501
...
26
Screw WPL-M0227520
...
27
Nut K WPL-M0282005

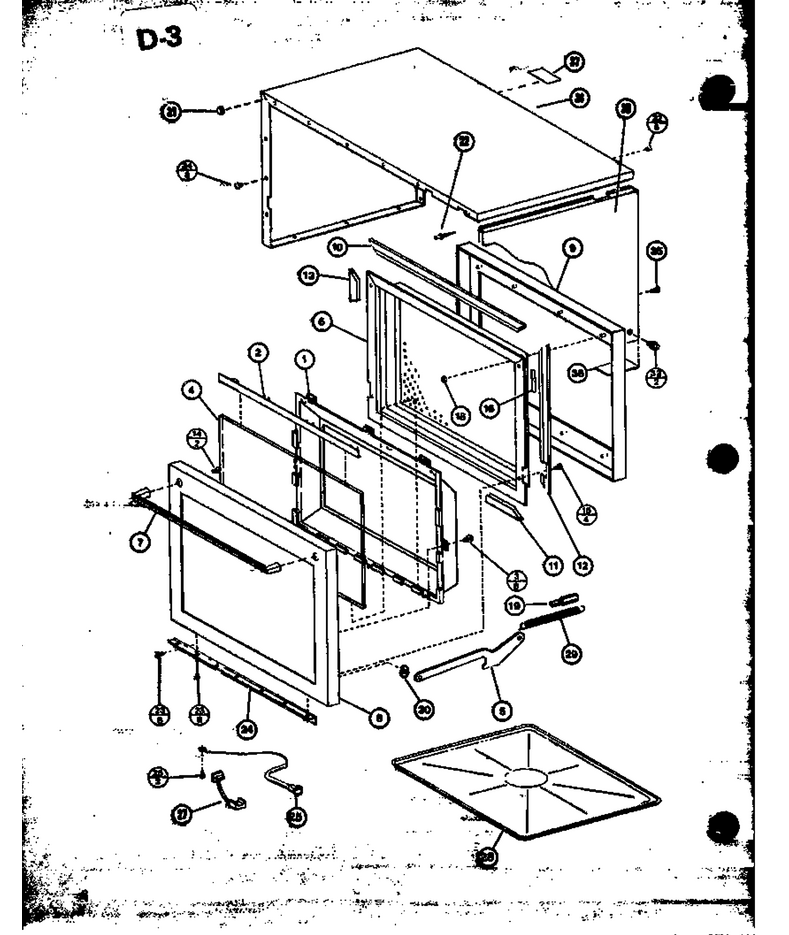

03 - Page 3

...
...
1
Retainer WPL-D7533601
...
2
Cap Lens Retainer WPL-D7533502
...
3
Screw A K WPL-M0253704
...
4
Outer Window WPL-D7534003
...
5
Counterbalance Arm WPL-C8890601
...
6
Inner Door Assy WPL-C8755405
...
7
Door Handle WPL-D7623801
...
8
Outer Door WPL-D7597708
...
9
Inner Door Mold Assy WPL-D7564601
...
10
Gasket, Door WPL-D7542001
...
11
Gasket, Door WPL-D7542002
...
12
Gasket, Door WPL-D7542005
...
13
Gasket Door WPL-D7542006
...
14
Screw WPL-WPW10068250
...
15
Screw WPL-M0259218
...
16
Tape Per Roll WPL-M0275163
...
18
Nut WPL-717488
...
19
Torx Bit Tx 15h WPL-R0193046
...
20
Pin, Ctr Bal Arm WPL-A1042201
...
21
Bumper WPL-A1511502
...
22
Rivet-Pop WPL-A4539615
...
23
Screw WPL-M0259203
...
24
Hinge WPL-C8886601
...
25
Cord, Power WPL-B8310501
...
26
Screw WPL-M0218116
...
27
Grommet, Cord WPL-211881
...
28
Oven Tray WPL-R0156726
...
29
Spring Dr Latch K WPL-C8893501
...
30
Access Panel WPL-D7378006
...
31
Outer Cabinet WPL-D7378110
...
32
Screw WPL-WP3388228
...
33
Screw Torx WPL-M0243324
...
34
Screw-Sm/hex WPL-12990523
...
36
Seal K WPL-B5738501
...
37
Tape Alum WPL-M0275166

04 - Page 4

...
...
1
Lock Washer WPL-M0272805
...
2

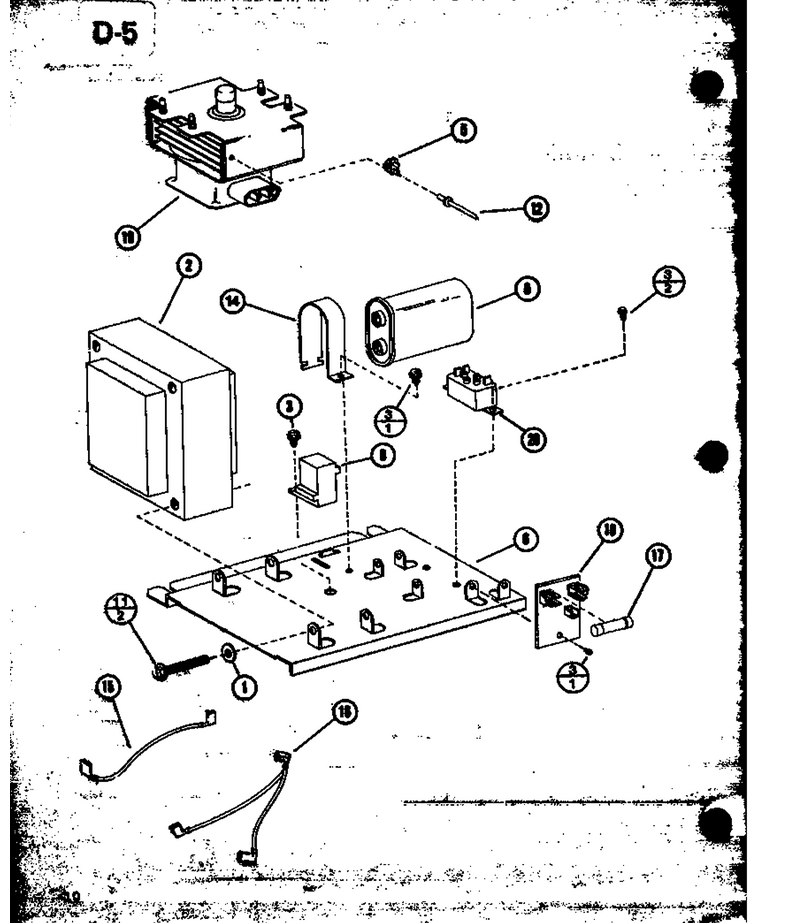

Transformer K WPL-D7391405
...
3
Screw WPL-WP3388228
...
5
Fuse- Ther WPL-59001951
...
6
Mtg Plate Trans WPL-D7351805
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Rivet WPL-WP210720
...
14
Strap-Capacitor WPL-A3257003
...
15
Hv Wire WPL-D7365120
...
16
Jumper Wire WPL-D7292686
...
17
Fuse 20 A WPL-WPM0805101
...
18
Board-Term WPL-C8988701
...
19
Magnetron WPL-10794402
...
20
Relay K WPL-B5773502
