Amana RL6-1020ET (BOM: P7638303M)

Model: RL6-1020ET (BOM: P7638303M)

Save Part Not Listed?
product name

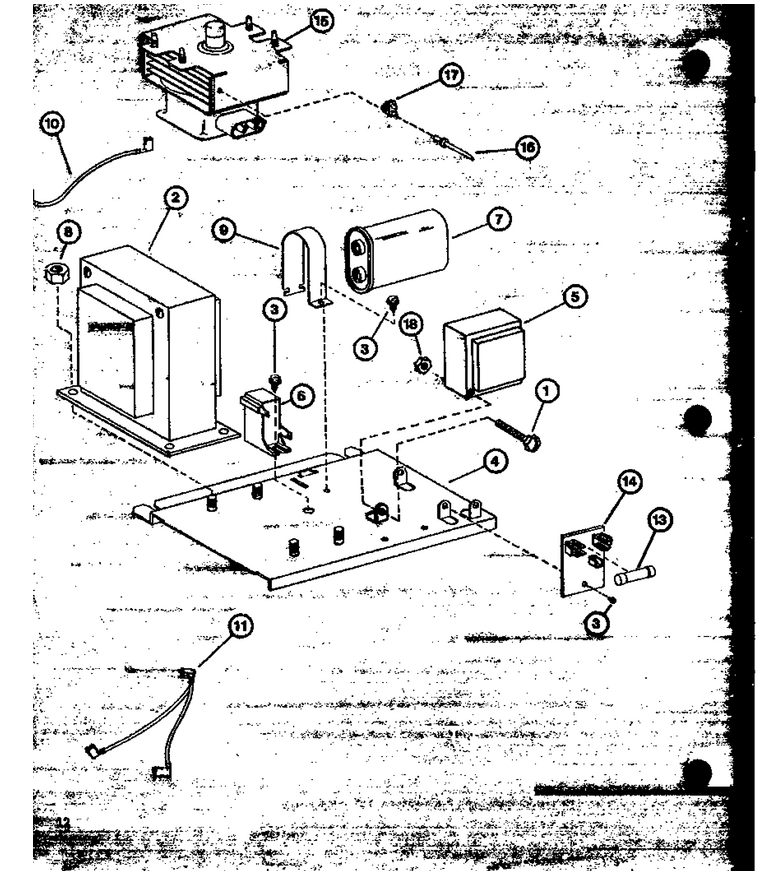

03 - Page 5

...
...
1
Screw WPL-M0253509
...
2
Transformer WPL-D7423102
...
3
Screw WPL-WP3388228
...
4
Xfmr Plate WPL-D7422904
...
5
Transformer Filament WPL-C8788008
...
6
Kit, Diode WPL-M3D71
...
7
Capacitor-.69 WPL-59001160
...
8
Nut WPL-WP487939
...
9
Strap-Capacitor WPL-A3257003
...
10
Jumper Wire WPL-D7292655
...
11
Jumper Wire WPL-D7292686
...
13
Fuse 20 A WPL-WPM0805101
...
14
Board-Term WPL-C8988701
...
15
Magnetron WPL-10794402
...
16
Rivet WPL-WP210720
...
17
Fuse- Ther WPL-59001951
...
18
Nut K WPL-M0282005

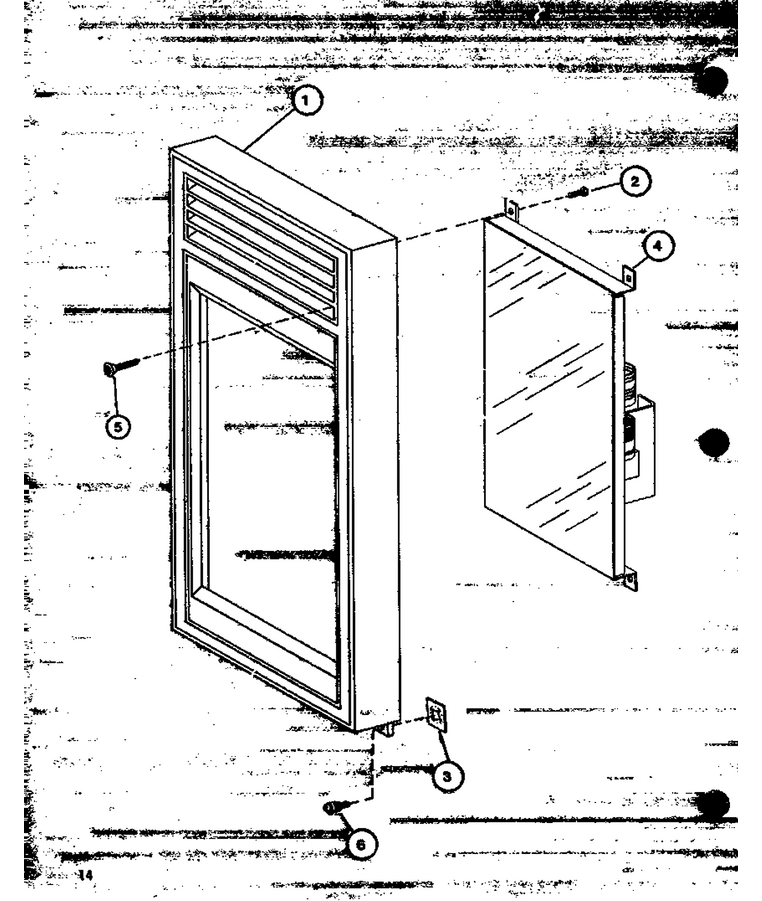

04 - Page 6

...
...
NI
Torx Drive Shank WPL-R0193552
...
1
Control Escut-Pnt WPL-D7661603
...
2
Screw WPL-WP59002061
...
3
Speed Nut K WPL-M0288301
...
4
Digital Timer WPL-R0163103
...
6
Screw Torx WPL-M0243324

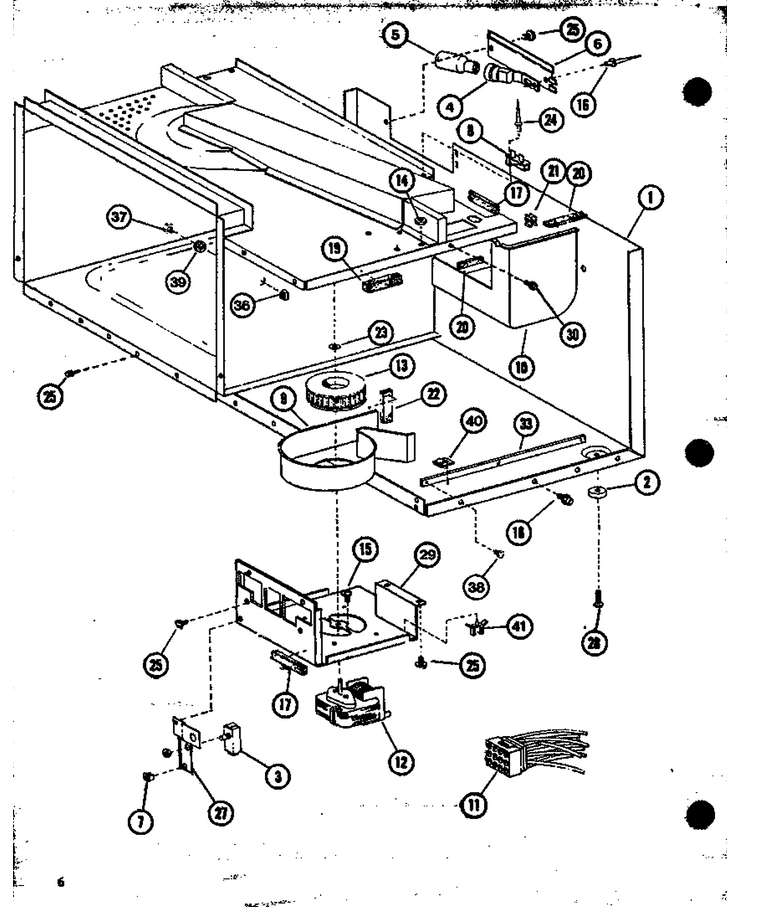

01 - Page 2

...
...
NI
Adj Tool-Interlock WPL-R0193039
...
1
Base Pan WPL-D7506205
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Switch Door Open WPL-C8715205
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Access Panel WPL-B5782906
...
7
Grommet WPL-M0580204
...
8
Fuse, Thermal WPL-B5795303
...
9
Scroll WPL-D7609401
...
10
Magnetron Cover WPL-D7349003
...
11
Wiring Harness WPL-D7675501
...
12
Motor, Blower WPL-C8793204
...
13
Blower Wheel WPL-C8793501
...
14
Lock-Nut---K WPL-M0282801
...
15
Screw WPL-WP3400094
...
16
Rivet-Pop WPL-59002054
...
17
Gasket WPL-A3030302
...
18
Screw WPL-WP489464
...
19
Gasket (Per Foot) WPL-A3030303
...
20
Gasket (Per Foot) WPL-10839706
...
21
Clip WPL-M0288213
...
22
Gasket-Cavity Top WPL-10839709
...
23
Nut WPL-WP3195558
...
24
Rivet WPL-WP210720
...
25
Screw WPL-WP3388228
...
27
Bracket WPL-C8896601
...
28
Screw-Shoulder WPL-M0220219
...
29
Mtg Plate WPL-D7533302
...
30
Screw WPL-WP489349
...
33
Brace, Base Pan WPL-B8356701
...
36
Temp Probe Jack K WPL-B8355401
...
37
Nut K WPL-M0281405
...
38
Screw WPL-WP90767
...
39
Washer WPL-M0270536
...
40
Clip, Cord WPL-M0104102
...
41
Clip WPL-B5667303

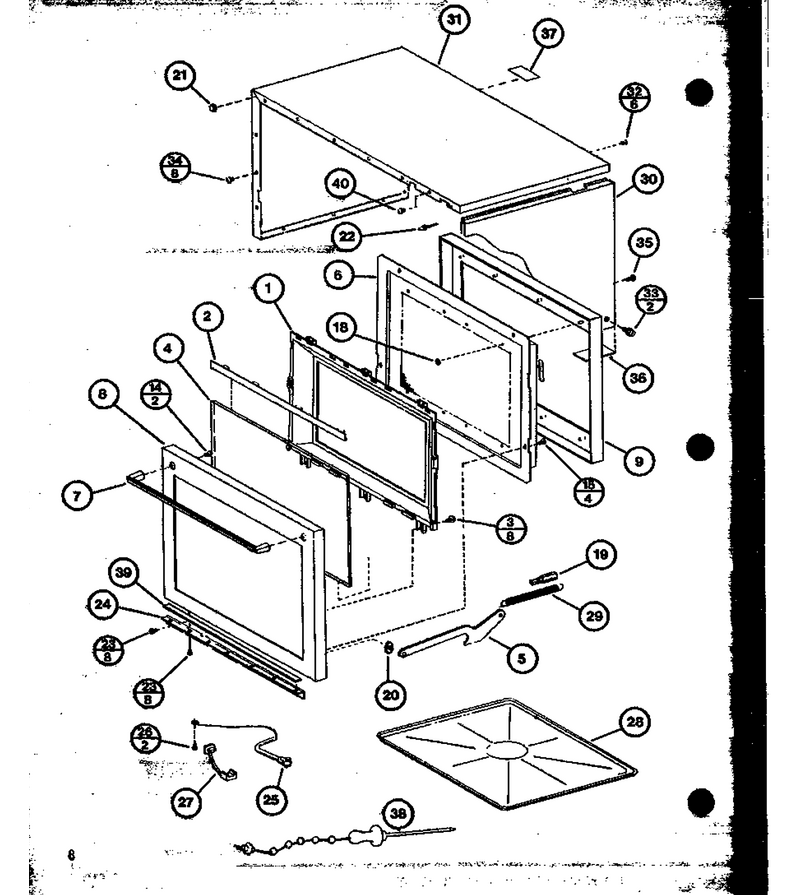

02 - Page 3

...
...
NI
Paint-Spray-Deep Rich Br. WPL-A0050769
...
1
Lens Retainer WPL-D7663001
...
2
Cap Lens Retainer WPL-D7533502
...
3
Screw A K WPL-M0253704
...
4
Outer Window WPL-D7534003
...
5
Counterbalance Arm WPL-C8890602
...
6
Inner Door Weld Ptd WPL-D7662906
...
7
Door Handle WPL-D7623801
...
8
Outer Door WPL-D7597708
...
9
Inner Door Mld Assy WPL-R0157489
...
14
Screw WPL-WPW10068250
...
15
Screw WPL-M0259218
...
18
Nut WPL-717488
...
19
Torx Bit Tx 15h WPL-R0193046
...
20
Pin, Ctr Bal Arm WPL-A1042201
...
21
Bumper WPL-A1511502
...
22
Rivet-Pop WPL-A4539615
...
23
Screw WPL-M0259203
...
24
Hinge WPL-C8886601
...
25
Cord, Power WPL-B8310501
...
26
Screw WPL-M0218116
...
27
Grommet, Cord WPL-211881
...
28
Oven Tray WPL-R0156726
...
29
Spring Dr Latch K WPL-C8893501
...
30
Access Panel WPL-D7396803
...
31
Wrapper WPL-D7396701
...
32
Screw WPL-WP3388228
...
33
Screw Torx WPL-M0243324
...
34
Screw-Sm/hex WPL-12990523
...
35
Screw Torx WPL-M0259318
...
36
Seal K WPL-B5738501
...
37
Tape Alum WPL-M0275166
...
38
Temp Probe WPL-C8821504
...
39
Shim WPL-A3127102
...
40
Screw WPL-8169474
