Amana RL-3 (BOM: P7558902M)

Model: RL-3 (BOM: P7558902M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

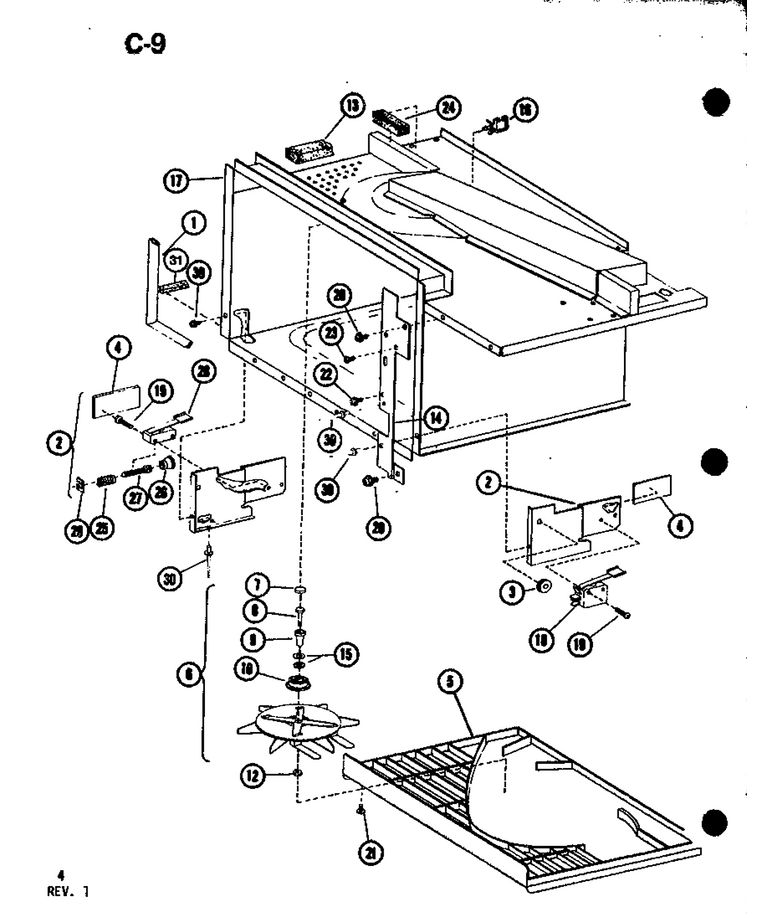

01 - Page 1

...
...
1
Gasket, Oven WPL-C8896201
...
2
Ctr Brkt Assy - Right WPL-D7482001
...
3
Roller Assy Kit WPL-R0157145
...
4
X$x Pad WPL-M0050902
...
5
Grease Shield WPL-D7544002
...
6
Assy, Antenna WPL-C8806701
...
7
Bearing Cap WPL-B5792601
...
8
Stub-Antenna A WPL-B5783101
...
9
Bearing-Antenna A WPL-B5783001
...
10
Bushing A WPL-C8838501
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263902
...
14
Flange Cover Pntd WPL-D7562502
...
15
Washer WPL-M0274044
...
16
Clip WPL-B5667302
...
17
Oven Cavity WPL-D7350513
...
18
Switch WPL-C8736703
...
19
Screw A-K WPL-M0227525
...
20
Screw WPL-WP3388228
...
21
Screw WPL-WP489349
...
22
Screw WPL-M0236921
...
23
Screw WPL-M0230727
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Spring A WPL-A3277701
...
26
Guide Screw A-K WPL-A3277801
...
27
Screw Adjusting A-K WPL-A3277601
...
28
Switch-L Intl A WPL-A3162510
...
29
Speed Nut A WPL-M0286114
...
30
Rivet-Pop WPL-59002054
...
31
Gasket WPL-53001610

02 - Page 2

...
...
1
Base Pan WPL-D7506205
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Switch Door Open WPL-C8715204
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Access Panel WPL-B5782906
...
7
Grommet WPL-M0580204
...
8
Fuse, Thermal WPL-B5795303
...
9
Scroll WPL-D7609401
...
10
Magnetron Cover WPL-D7349003
...
11
Wiring Harness WPL-D7632901
...
12
Motor- Blo WPL-C8793205
...
13
Blower Wheel WPL-C8793501
...
14
Lock-Nut---K WPL-M0282801
...
15
Screw WPL-WP3400094
...
16
Rivet-Pop WPL-59002054
...
17
Gasket WPL-A3030302
...
18
Screw WPL-WP489464
...
19
Gasket (Per Foot) WPL-A3030303
...
20
Gasket (Per Foot) WPL-10839706
...
21
Clip WPL-M0288213
...
22
Gasket-Cavity Top WPL-10839709
...
23
Nut WPL-WP3195558
...
24
Rivet WPL-WP210720
...
25
Screw WPL-WP3388228
...
27
Bracket WPL-C8896601
...
28
Screw-Shoulder WPL-M0220219
...
29
Mtg Plate WPL-D7533302
...
30
Screw WPL-WP489349
...
32
Screw WPL-M0216519
...
33
Clip WPL-M0106801

05 - Page 6

...
...
1
Escutchion Pntd WPL-D7548903
...
2
Lens, Escutchion WPL-D7541204
...
3
Relay K WPL-B5773502
...
4
Timer 30 Min K-A WPL-C8791704
...
5
Ptc Resistor Assy WPL-A1027301Q
...
6
Switch WPL-B5674703
...
7
Button Start WPL-C8846502
...
8
Brkt. Switch Mtg WPL-B5782803
...
9
Screw WPL-W11084238
...
10
Screw WPL-WP59002061
...
11
Chassis Plate WPL-D7558404
...
12
Screw WPL-M0234114
...
13
Disk Timer WPL-C8730420
...
14
Knob, Timer WPL-C8735903
...
15
Thinplate WPL-B8348102
...
16
Screw T.c WPL-M0229916
...
17
Wrench-Hex WPL-A4696103
...
18
Speed Nut K WPL-M0288301

03 - Page 3

...
...
1
Stricker, Switch WPL-B8345501
...
2
Rivet WPL-A3183901
...
3
Nut WPL-M0287401
...
4
Outer Window WPL-D7425808
...
5
Cb Arm L A WPL-B5693104
...
6
Inner Door Assy A WPL-C8755401
...
7
Door Handle Pntd WPL-C3671304
...
8
Outer Door WPL-D7514904
...
9
Inner Door Mold Assy WPL-D7564601
...
10
Gasket Top A WPL-D7320001
...
11
Gasket Bottom A WPL-D7320002
...
12
Gasket Right A WPL-D7320003
...
13
Gasket Left A WPL-D7320004
...
14
Screw WPL-M0234031
...
15
Screw WPL-M0259218
...
16
Tape Per Roll WPL-M0275163
...
17
Tape Roll WPL-M0275155
...
18
Nut WPL-717488
...
19
Torx Bit Tx 15h WPL-R0193046
...
20
Shim WPL-A3127102
...
21
Bumper WPL-A1511502
...
22
Rivet-Pop WPL-A4539615
...
23
Screw WPL-M0259203
...
24
Hinge WPL-C8886601
...
25
Cord, Power WPL-B8310501
...
26
Screw WPL-M0218116
...
27
Grommet, Cord WPL-211881
...
28
Oven Tray WPL-R0156726
...
29
Spring WPL-M0775001
...
30
Access Panel Pntd WPL-D7378004
...
31
Outer Cabinet WPL-D7378110
...
32
Screw WPL-WP3388228
...
33
Screw WPL-WP59002061
...
34
Screw-Sm/hex WPL-12990523
...
35
Screw Torx WPL-M0259318
...
36
Warranty Seal WPL-B5738502
...
37
Tape Alum WPL-M0275166

04 - Page 5

...
...
1
Lock Washer WPL-M0272805
...
2
Transformer WPL-D7391404
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP489349
...
5
Fuse- Ther WPL-59001951
...
6
Mtg Plate Trans WPL-D7351805
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Pop Rivet WPL-A4539602
...
14
Strap-Capacitor WPL-A3257003
...
15
Hv Wire WPL-D7365120
...
16
Jumper Wire WPL-D7292652
...
17
Fuse 20 A WPL-WPM0805101
...
18
Board-Term WPL-C8988701
...
19
Magnetron WPL-10794402
