Amana REF18090C5E REV (BOM: REF18090C5E A)

Model: REF18090C5E REV (BOM: REF18090C5E A)

Save Part Not Listed?
product name

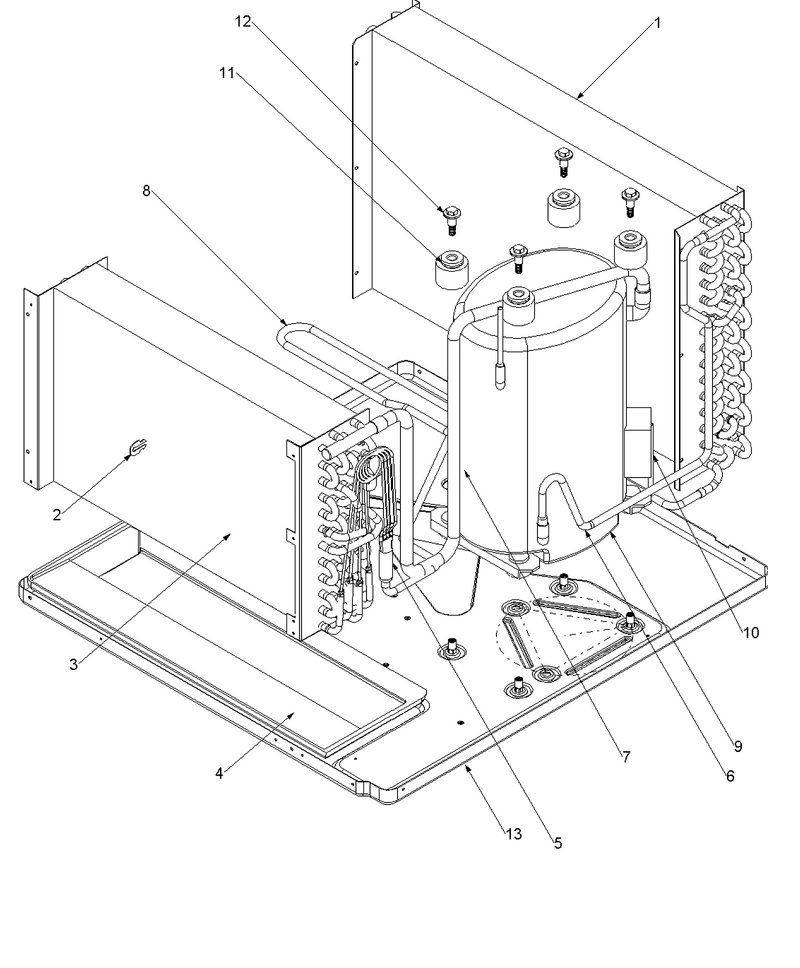

02 - Evaporator, Condenser And Compressor

...
...
NI
Plug Wire, Compressor WPL-BT3068517
...
1
Coil, Condenser (serv) WPL-3064912
...
2
Clip, Bulb WPL-BT1531802
...
3
Coil, Evaporator WPL-3064606
...
4
Pan, Drain (styrofoam Large) WPL-BT3005002
...
6
Discharge Line WPL-3093697
...
7
Suction Line WPL-30936142
...
8
Assy, Liquid Line WPL-3093819
...
9
Compressor(bristol) WPL-BT9266202
...
10
Clip, Retainer WPL-BT1392311
...
11
Grommet. Comp WPL-A3448601
...
12
Bolt, Compressor WPL-BT1393701

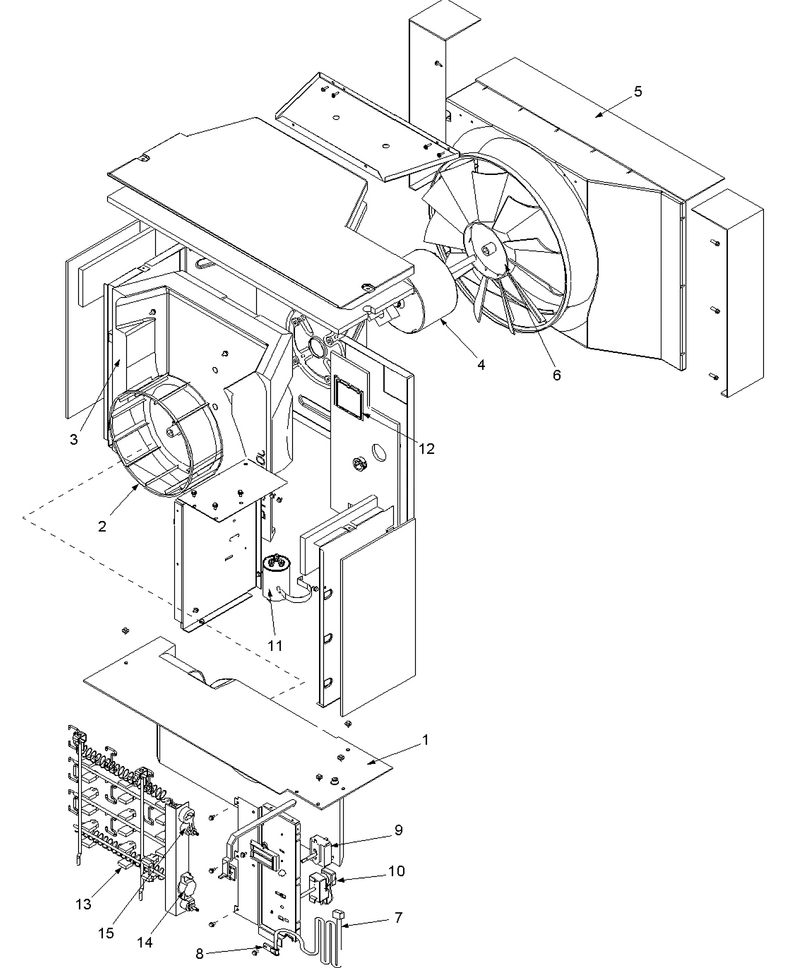

01 - Center Partition Assy And Controls

...
...
NI
Service Ha WPL-BT1292201
...
1
Venturi, Fan WPL-BT3010004
...
2
Wheel, Blower WPL-BT1368002
...
3
Scroll WPL-BT3006005
...
4
Motor, 1/4hp-50hz WPL-BT1340008
...
5
Shroud, Fan (large) WPL-BT3011002
...
6
Fan Blade- WPL-BT1086702
...
7
Cord, Power 230v 20 Amp 65`` WPL-BT1210006
...
8
Relief, Power Cord (large) WPL-BT1393401
...
9
Switch WPL-BT1370834
...
10
Thermostat,elec Heat WPL-BT1370821
...
11
Capacitor WPL-4388208
...
12
Plug, Damper WPL-BT3076000
...
13
Element, Heat WPL-BT1420007
...
14
Limit Switch WPL-BT1243713

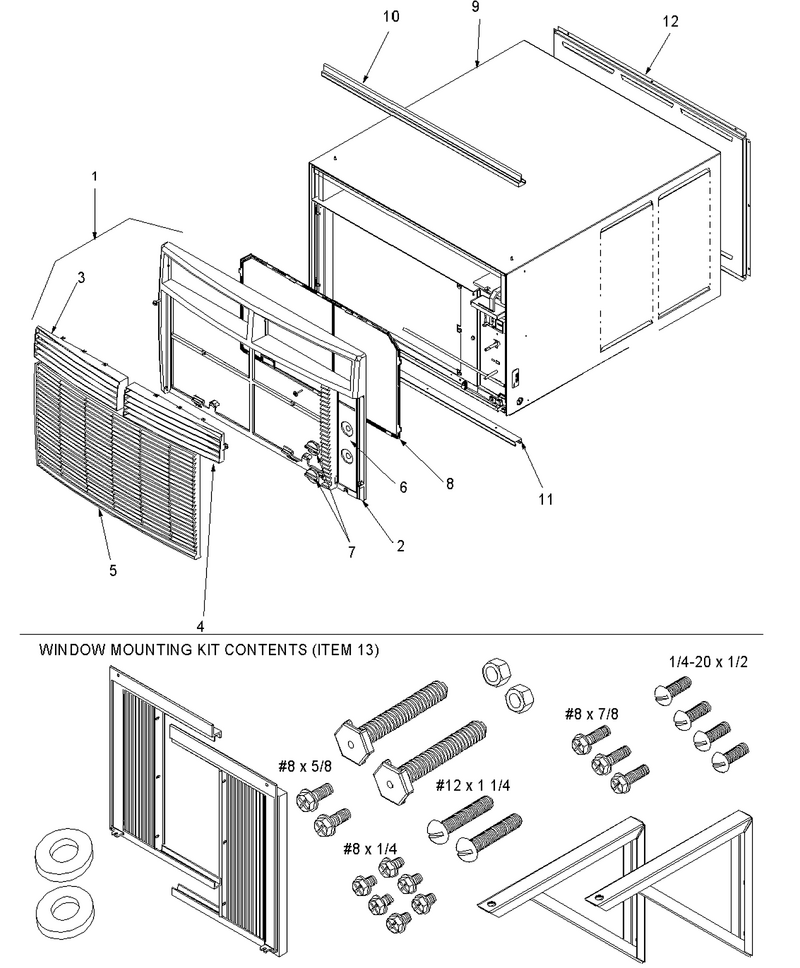

03 - Outercase, Curtains And Front Assy

...
...
1
Assy,front Lrg Ldr WPL-BT3075030
...
2
Frame WPL-BT3075104
...
3
Assy Front WPL-BT3075029
...
4
Assy Front WPL-BT3075029
...
5
Assy Front WPL-BT3075029
...
6
Label, Control (goodman) WPL-BT1493354
...
7
Knob- Rac WPL-WPBT3075631
...
8
Filter, Air (serv) WPL-BT1369602
...
9
Assy, Wrapper WPL-3050801
...
10
Support, Top (w/paint Lrg) WPL-3003002P
...
11
Support, Bottom (brk/paint Lrg WPL-3003102P
...
12
Pnl, Rear Louver (w/paint Lrg) WPL-3002206P
...
13
Kit, Window Install (large) WPL-WMK-LRG
