Amana RE18090C2DR REV (BOM: RE18090C2DR D)

Model: RE18090C2DR REV (BOM: RE18090C2DR D)

product name

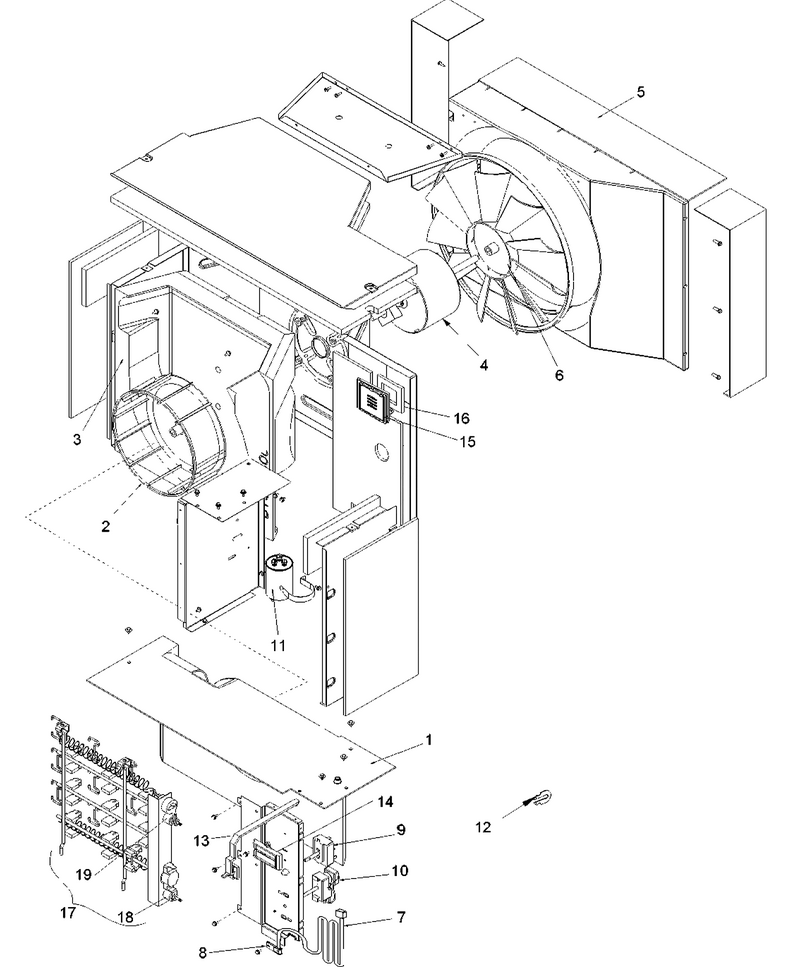

01 - Center Partition Assy & Controls

...
...
Note: Units With Bt1420000 Heaters Use Only One Limit Device. The Limit Is A Combo Limit With Both The Limit Switch And Fuselink Built Into One Device. WPL-NOTE:

...
NI
Service Ha WPL-BT1292201

...
1
Venturi, Fan WPL-BT3010004

...
2
Wheel, Blower WPL-BT1368002

...

...
4
Motor, 1/4hp 208/230v (serv) WPL-BT1340005S

...
5
Shroud, Fan (large) WPL-BT3011002

...
6
Fan Blade- WPL-BT1086702

...
7
Cord, Power 230v 20 Amp 65`` WPL-BT1210006

...
8
Relief, Power Cord (large) WPL-BT1393401

...

...
10
Thermostat, Elec Heat WPL-BT1370807

...
11
Capacitor WPL-4388208

...
12
Clip, Bulb WPL-BT1531802

...
13

...
14
Slide, Damper Control WPL-BT3076302

...
15
Door, Exhaust (rac) WPL-BT3076100

...
16
Foam Gasket WPL-BT1392611

...
17
Element, Heat WPL-BT1420007

...

...
19
Limit, Thermal WPL-BT1243734

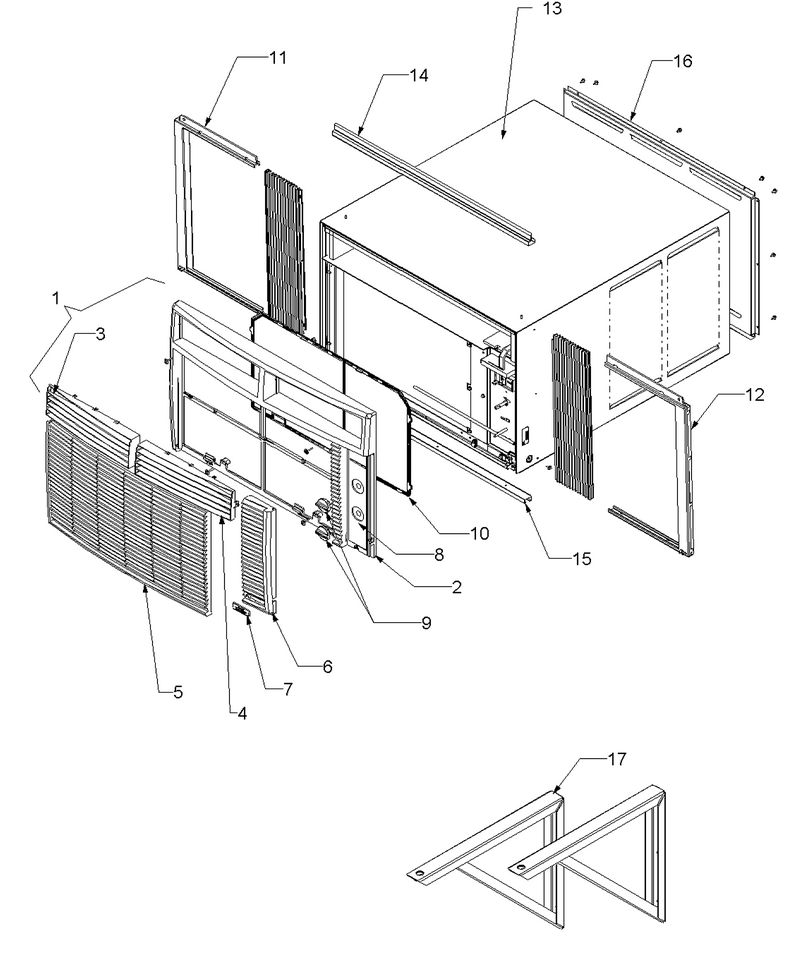

03 - Outercase, Curtains & Front Assy

...
...
NI

...
1
Assy,front Lrg Ldr WPL-BT3075030


...
3
Assy Front WPL-BT3075029

...
4
Assy Front WPL-BT3075029

...
5
Assy Front WPL-BT3075029

...
8
Label, Control (goodman) WPL-BT1493354

...
9

...
10
Filter, Air (serv) WPL-BT1369602

...
13
Assy, Wrapper WPL-3050801

...
14
Support, Top (w/paint Lrg) WPL-3003002P

...
15
Support, Bottom (brk/paint Lrg WPL-3003102P

...
16
Pnl, Rear Louver (w/paint Lrg) WPL-3002206P

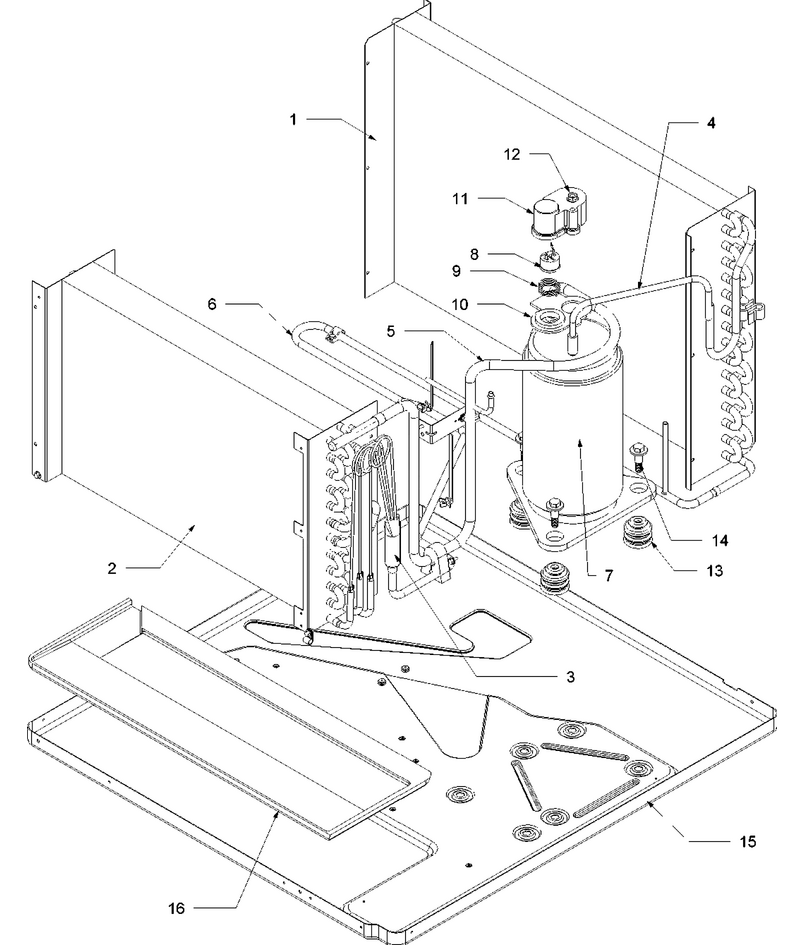

02 - Evaporator, Condenser & Compressor

...
...
1
Assy, Cond. Coil WPL-3096518

...
2
Coil, Evaporator WPL-3096031

...
3
Assy, Capillary Tube WPL-3093874

...
4
Line, Discharge WPL-30936323

...
5
Assy, Suction Line WPL-3093736

...
6
Assy, Liquid Line WPL-3093836

...
7
Compressor WPL-D6926118H

...
10
Gasket(goldstar) WPL-BT1392630

...
11
Cover, Terminal WPL-BT3055506


...
13
Grommet. Comp WPL-A3448601

...
14
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

...
15
Assy, Basepan (large) WPL-3050209

...
16
Pan, Drain (styrofoam Large) WPL-BT3005002
