Amana RCS10PBD (BOM: P1327702M)

Model: RCS10PBD (BOM: P1327702M)

Save Part Not Listed?
product name

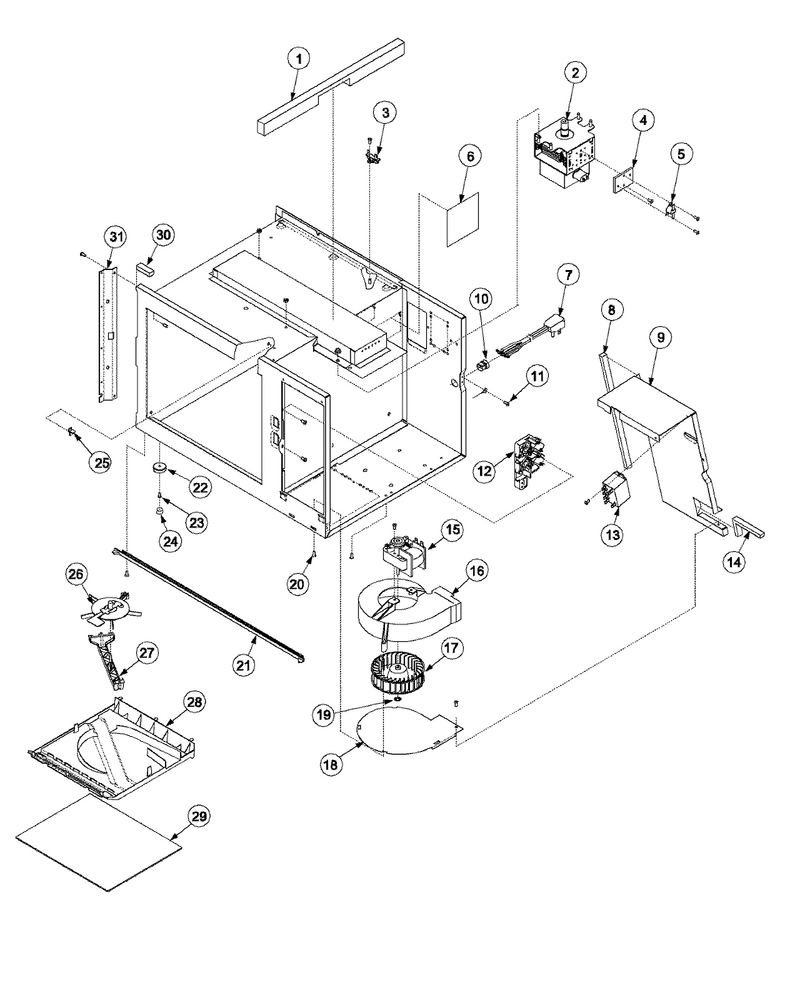

01 - Blower & Cavity

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Magnetron WPL-10489401
...
3
Fuse, Thermal WPL-B5795305
...
4
Plate, Thermal Cutout WPL-B8380601
...
5
Thermal Protector WPL-B5684106
...
6
Window, Oven Light WPL-B8367701
...
7
Cord, Power WPL-1731300208
...
8
Gasket WPL-A3030302
...
9
Blower Partition,black E Ct WPL-D7685413
...
10
Strain Relief WPL-8536977
...
11
Screw, Tf WPL-M0231704
...
12
Switch, Interlock Kit WPL-12002636
...
13
Relay WPL-12492201
...
14
Gasket WPL-A3030302
...
15
Screw WPL-M0213123
...
16
Scroll, Blower WPL-D7684601
...
17
Blower Wheel WPL-C8793501
...
18
Screw WPL-WP3388228
...
19
Nut WPL-WP3195558
...
20
Screw WPL-M0254706
...
21
Trim,oc WPL-12667301
...
22
Foot O.c. Wrapper WPL-B5732506
...
23
Pop Rivet WPL-A4539625
...
24
Plug,foot WPL-C8965405
...
25
Support, Shelf WPL-B8374901
...
26
Assy, Antenna WPL-C8943002Q
...
27
Cradle, Antenna WPL-D7685505
...
28
Grease Shield WPL-D7692501
...
29
Tray-Glass Floor WPL-C8936902
...
30
Gasket (Inch) WPL-A3030301
...
31
Screw, Tf WPL-M0231704

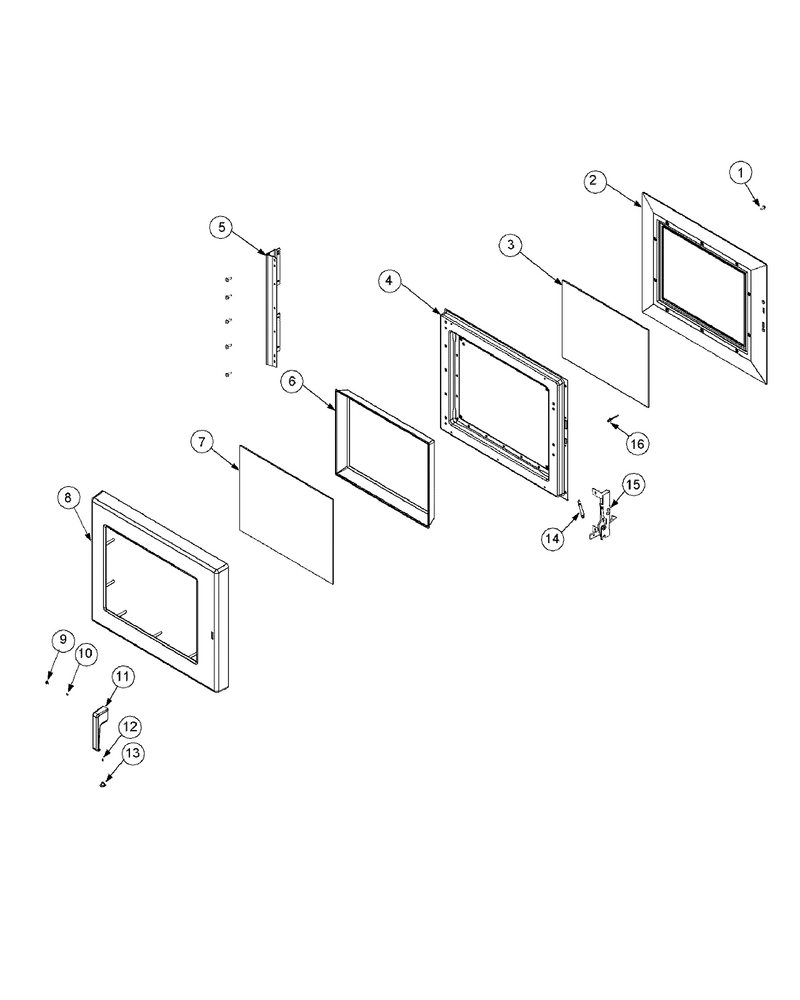

03 - Door

...
...
1
Magnetic Y-Drive Bit WPL-R0193574
...
2
Door, Inner WPL-D7683508
...
3
Window, Inner WPL-B8371202
...
4
Door Ring Weld WPL-59002013
...
5
Screw WPL-WP90767
...
6
Box,shadow WPL-12667201
...
7
Window,outer WPL-C8960402
...
8
Door,outer WPL-12667101
...
9
Hole, Plug WPL-59001007
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit WPL-R0000282
...
16
Rivet-Pop WPL-59002054

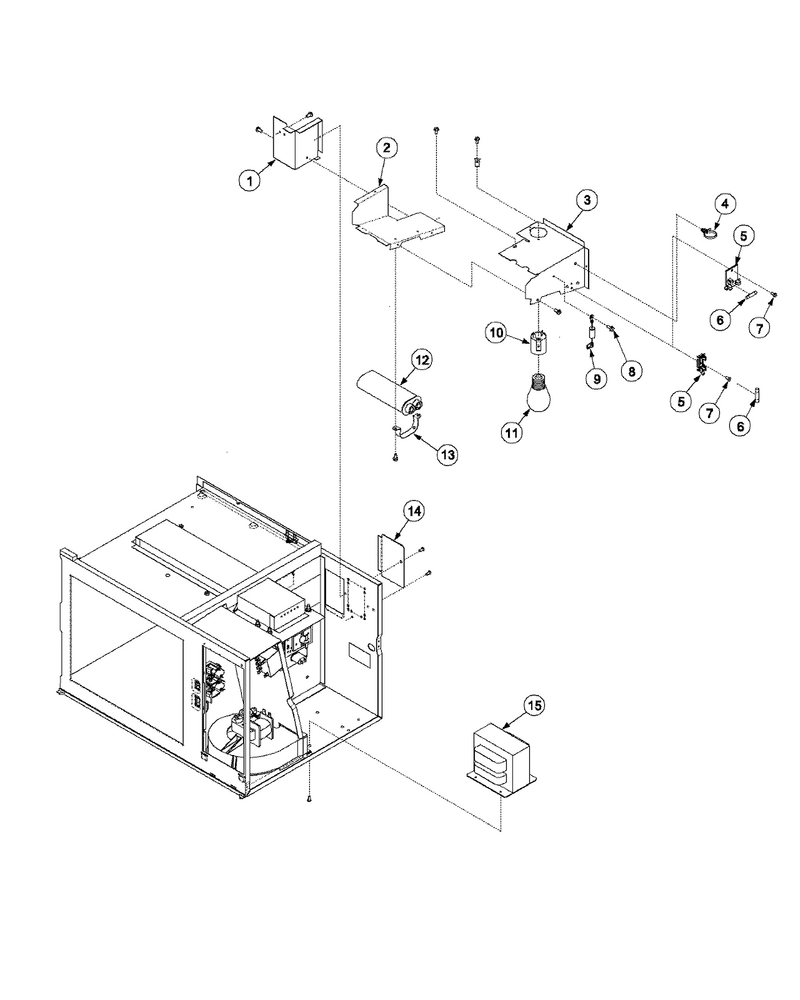

04 - Electrical Components

...
...
1
Screw WPL-WP489349
...
2
Air Duct. Bottom WPL-D7772202
...
3
Screw WPL-WP3388228
...
4
Tie Wire WPL-WPM0322202
...
5
Block-Fuse WPL-W10206728
...
6
Fuse 20 A WPL-WPM0805101
...
7
Screw WPL-WP59002061
...
8
Screw, Tf WPL-M0231704
...
9
Rectifier WPL-B8383101
...
10
Receptacle, Lamp WPL-B8371401
...
11
Light Bulb WPL-8009
...
12
Capacitor-.74 WPL-D8547928
...
13
Strap, Capacitor WPL-A4055405
...
14
Screw WPL-WP3388228
...
15
Transformer WPL-10426611

...
...
NI
Tech Sheet, Com Micro WPL-16023208

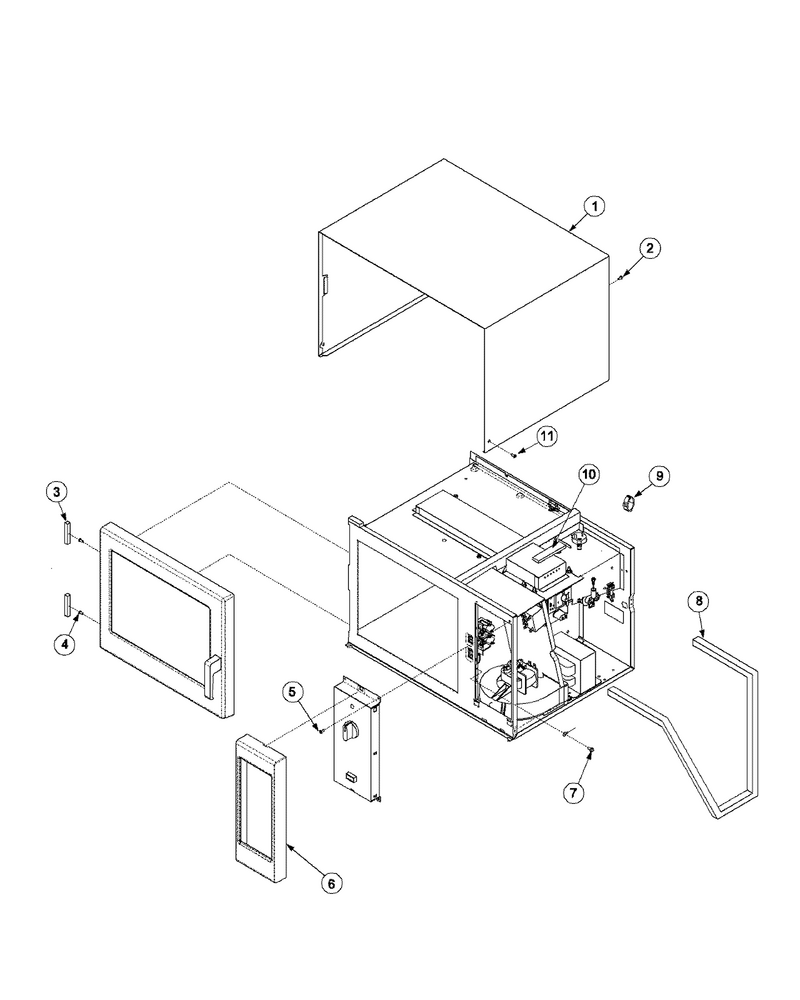

05 - Outer Case

...
...
1
Wrapper,oc WPL-D7684913
...
2
Screw, Tf WPL-M0231704
...
3
Gasket WPL-A3263904
...
4
Screw WPL-WP12990527
...
5
Screw WPL-WP3388228
...
6
Side Escutcheon-Rcs10pbd WPL-59001005
...
7
Screw, Tf WPL-M0231704
...
8
Gasket (Per Foot) WPL-10839706
...
9
Clip, Guide WPL-M0118705
...
10
Sealer WPL-M0275501
...
11
Screw WPL-M0215116

07 - Wiring Information

...
...
NI

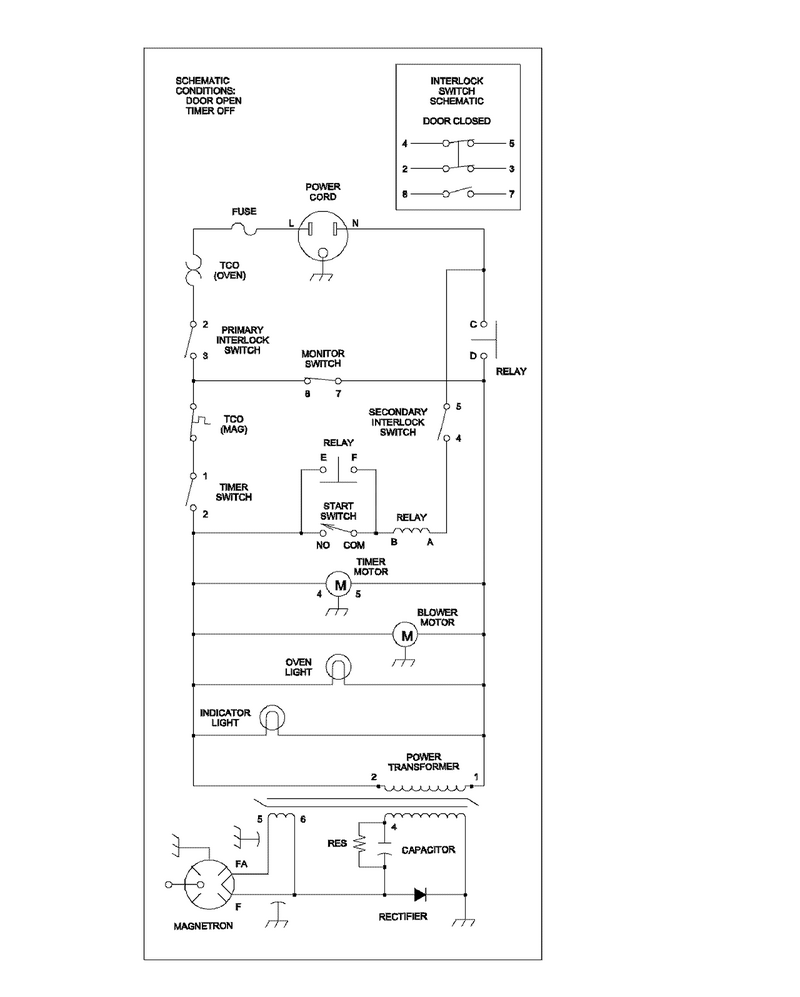

Wiring Information WPL-15003066

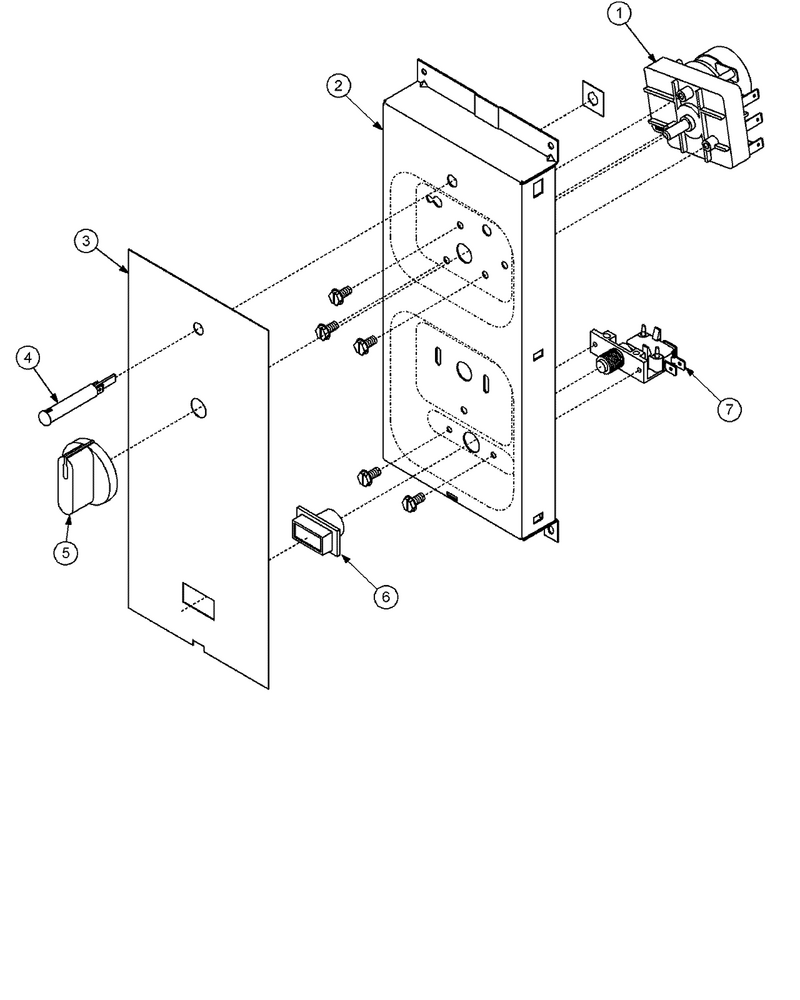

02 - Control

...
...
1
Timer, 6 Minute WPL-2025206101
...
2
Brkt,control(E-Ct) WPL-12471402
...
3
Thinplate,control WPL-59001003
...
4
Light-Indicator/ W Clip WPL-M0360204
...
5
Knob, Timer WPL-12360801
...
6
Button, Push WPL-12487801
...
7
Screw WPL-M0213815
