Amana RCS10MPS (BOM: P1327705M)

Model: RCS10MPS (BOM: P1327705M)

Save Part Not Listed?
product name

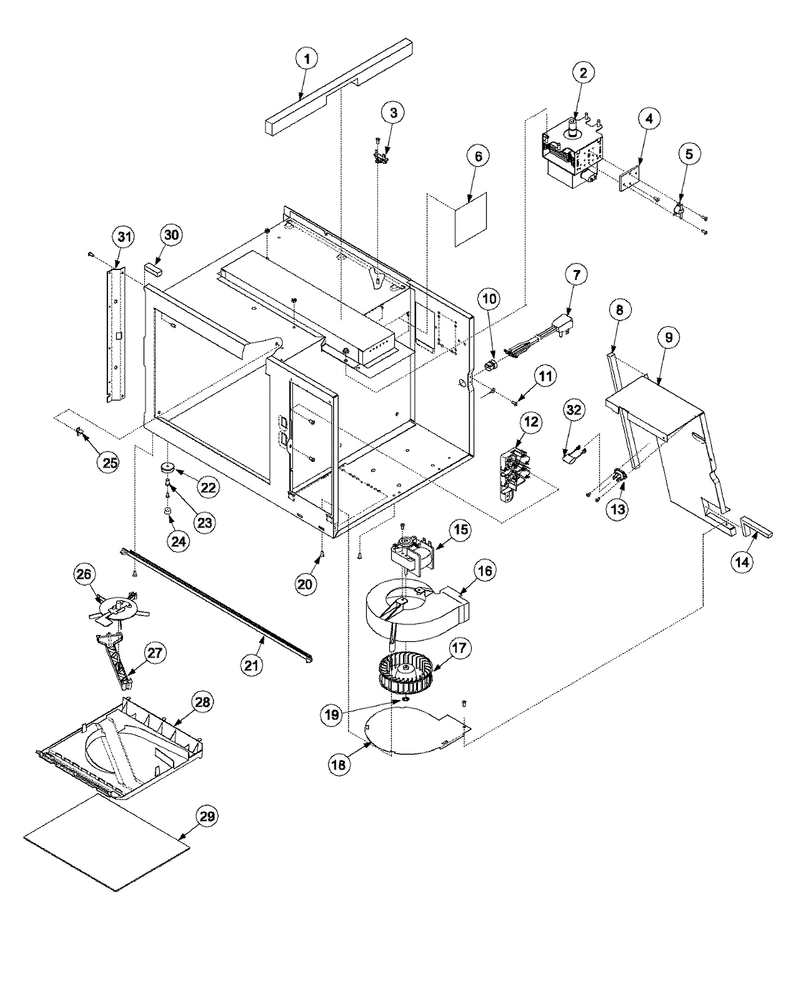

01 - Blower & Cavity

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Magnetron WPL-10489401
...
3
Fuse, Thermal WPL-B5795305
...
4
Plate, Thermal Cutout WPL-B8380601
...
5
Screw T.c WPL-M0229916
...
6
Window, Oven Light WPL-B8367701
...
7
Cord, Power WPL-1731300208
...
8
Gasket WPL-A3030302
...
9
Blower Partition,black E Ct WPL-D7685413
...
10
Strain Relief WPL-8536977
...
11
Screw, Tf WPL-M0231704
...
12
Switch, Interlock Kit WPL-12002636
...
14
Gasket WPL-A3030302
...
15
Screw WPL-M0213123
...
16
Scroll, Blower WPL-D7684601
...
17
Blower Wheel WPL-C8793501
...
18
Screw WPL-WP3388228
...
19
Nut WPL-WP3195558
...
20
Screw,tc WPL-M0230017
...
21
Trim,oc WPL-12667301
...
22
Foot, Outer Case WPL-C8960601
...
23
Eyelet WPL-M0571201
...
24
Plug Button WPL-C8965404
...
25
Support, Shelf WPL-B8374901
...
26
Assy, Antenna WPL-C8943002Q
...
27
Cradle, Antenna WPL-D7685505
...
28
Grease Shield WPL-D7692501
...
29
Tray-Glass Floor WPL-C8936902
...
30
Gasket (Inch) WPL-A3030301
...
31
Screw, Tf WPL-M0231704

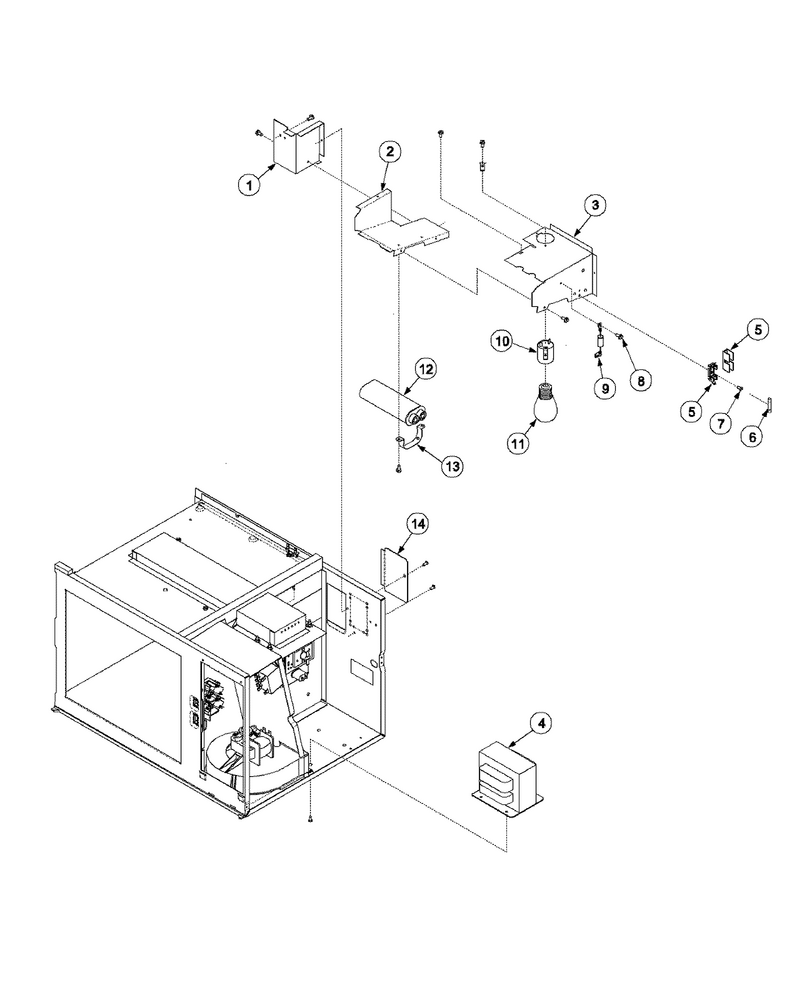

03 - Electrical Components

...
...
1
Screw WPL-WP489349
...
2
Air Duct. Bottom WPL-D7772202
...
3
Duct, Top Air WPL-D7772007
...
4
Screw WPL-WP3390631
...
5
Block-Fuse WPL-W10206728
...
6
Fuse 20 A WPL-WPM0805101
...
7
Screw WPL-M0213123
...
8
Screw, Tf WPL-M0231704
...
9
Rectifier WPL-B8383101
...
10
Receptacle, Lamp WPL-B8371401
...
11
Light Bulb WPL-8009
...
12
Capacitor-.74 WPL-D8547928
...
13
Screw WPL-WP489349
...
14
Screw WPL-WP3388228

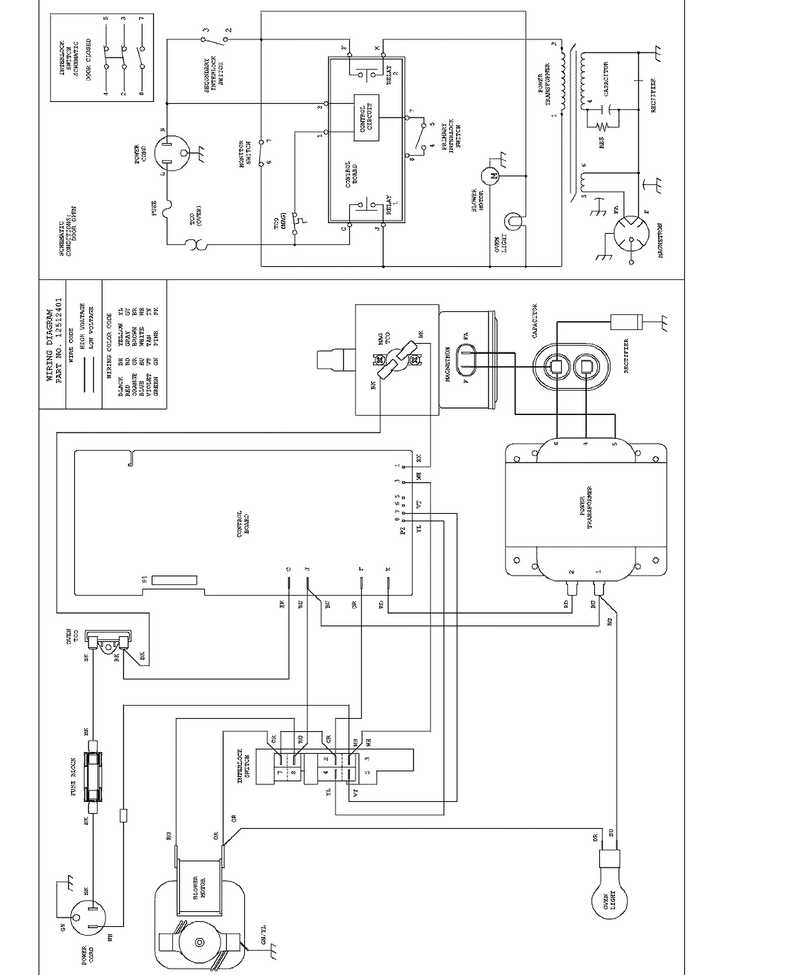

06 - Wiring Information

...
...
NI
Wiring Information WPL-15002958

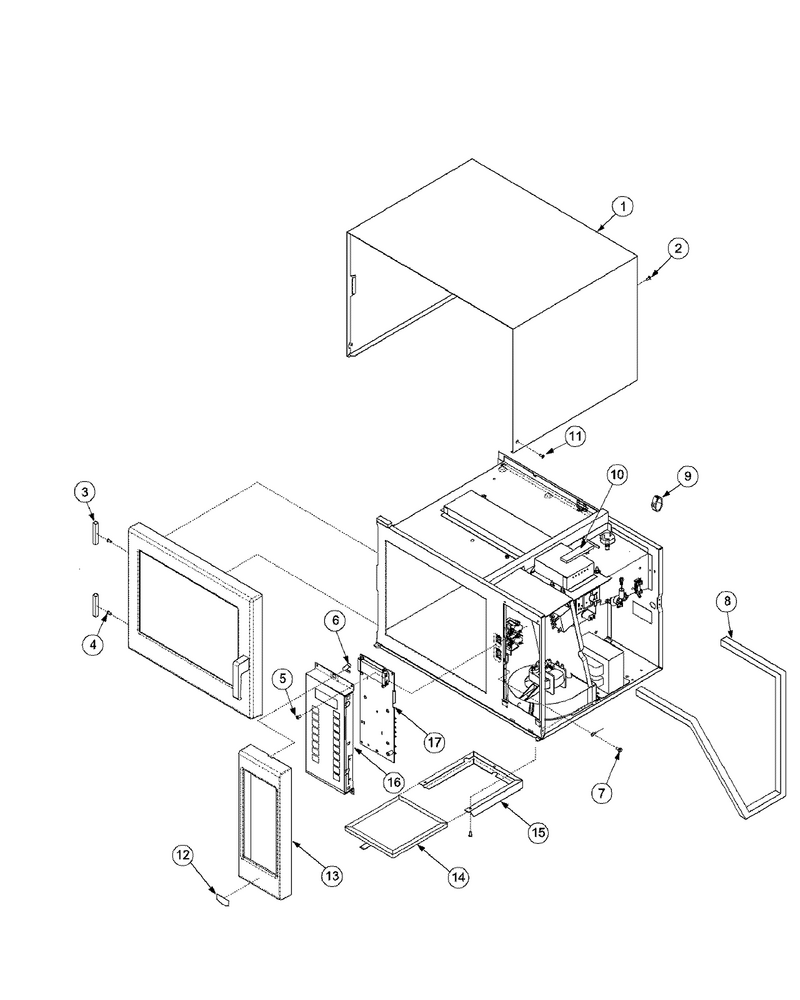

04 - Outer Case

...
...
1
Wrapper WPL-D7684903
...
2
Screw, Tf WPL-M0231704
...
3
Gasket WPL-A3263904
...
4
Screw WPL-WP12990527
...
5
Screw, Tf WPL-M0231704
...
6
Clip WPL-B8379401
...
7
Screw, Tf WPL-M0231704
...
8
Gasket (Per Foot) WPL-10839706
...
9
Clip, Guide WPL-M0118705
...
10
Sealer WPL-M0275501
...
11
Screw, T F WPL-M0249619
...
12
Label, Rcs10mps WPL-59001031
...
13
Escutcheon,side WPL-12667401
...
14
Filter, Preform WPL-10169101Q
...
15
Bracket WPL-D7740902
...
16
Assy, Touch Panel WPL-R9900592
...
17
Kit,hv/lv Board WPL-R0131385

...
...
NI
Magnetic Y-Drive Bit WPL-R0193574

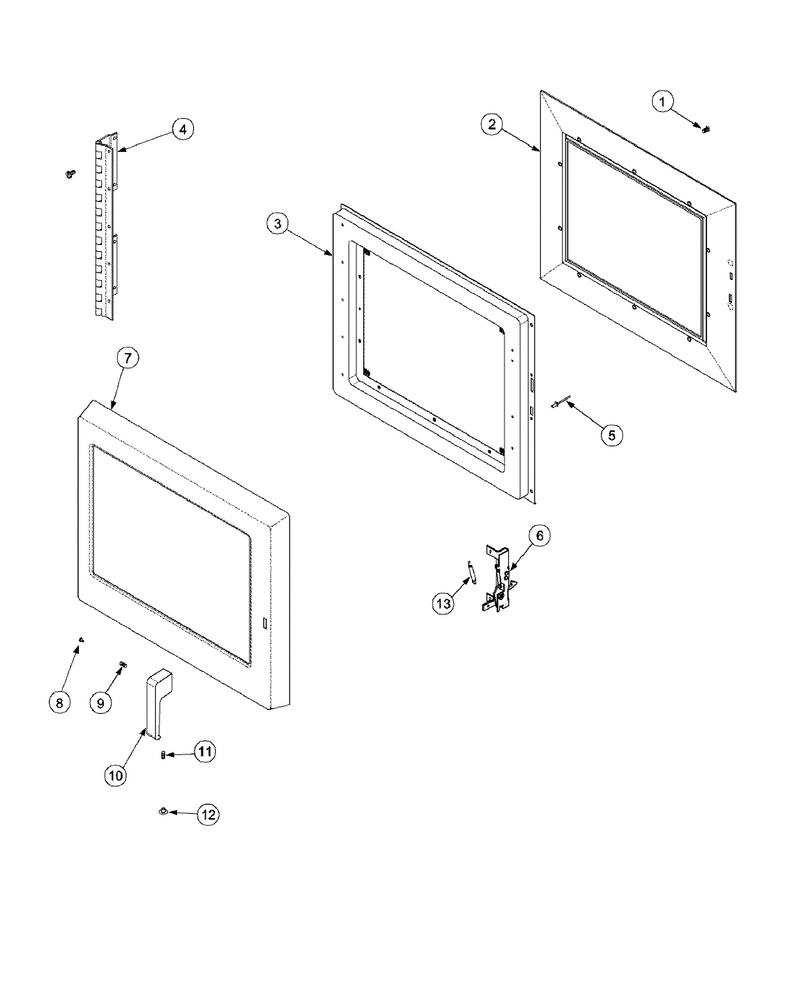

02 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Door Ring Weld WPL-59002013
...
4
Hinge-Door WPL-C8961811
...
5
Rivet-Pop WPL-59002054
...
6
Latch Kit WPL-R0000282
...
7
Assy,outer Door WPL-R0131711
...
8
Hole, Plug WPL-59001007
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Wht) WPL-M0310305
...
13
Spring, Door Latch WPL-C8893502
