Amana RCS10MPC (BOM: P1327716M)

Model: RCS10MPC (BOM: P1327716M)

Save Part Not Listed?
product name

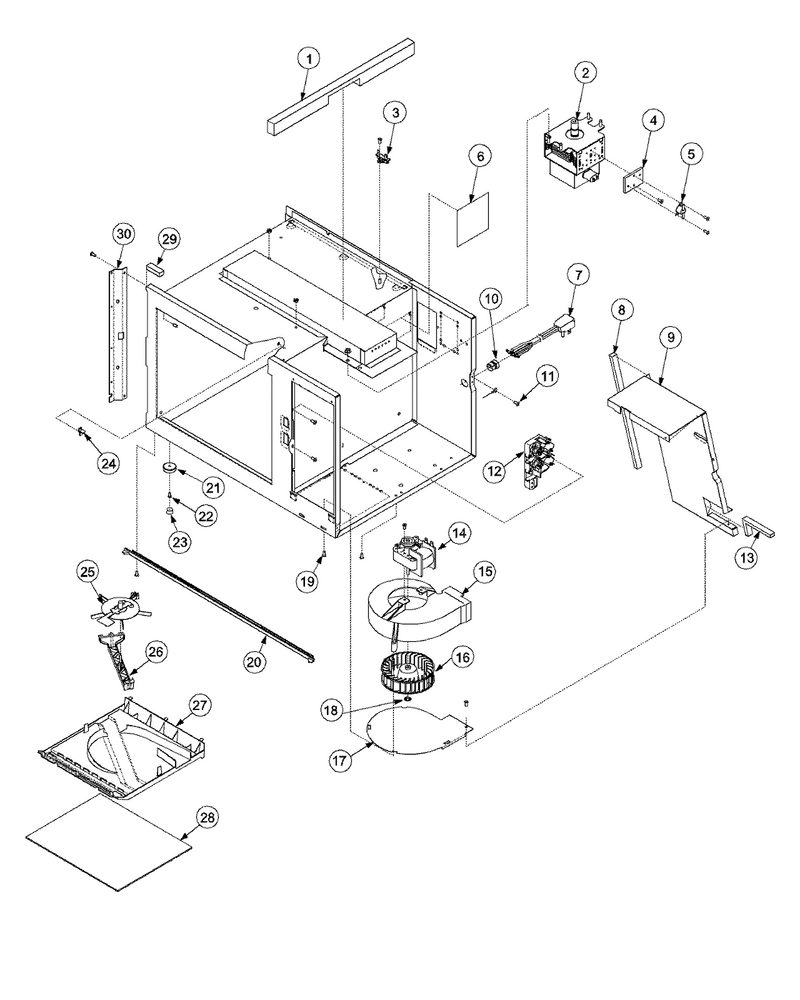

01 - Blower & Cavity

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Magnetron WPL-10489401
...
3
Screw WPL-WPW10068250
...
4
Plate, Thermal Cutout WPL-B8380601
...
5
Thermal Protector WPL-B5684106
...
6
Window, Oven Light WPL-B8367701
...
7
Cord, Power WPL-1731300208
...
8
Gasket WPL-A3030302
...
9
Blower Partition,black E Ct WPL-D7685413
...
10
Strain Relief WPL-8536977
...
11
Screw, Tf WPL-M0231704
...
12
Switch, Interlock WPL-59001114
...
13
Gasket WPL-A3030302
...
14
Screw WPL-M0213123
...
15
Scroll, Blower WPL-D7684601
...
16
Blower Wheel WPL-C8793501
...
17
Brkt Scroll WPL-C8942501
...
18
Nut WPL-WP3195558
...
19
Screw WPL-M0254706
...
20
Trim,oc WPL-12667301
...
21
Foot O.c. Wrapper WPL-B5732506
...
22
Pop Rivet WPL-A4539625
...
23
Plug,foot WPL-C8965405
...
24
Support, Shelf WPL-B8374901
...
25
Assy, Antenna WPL-C8943002Q
...
26
Cradle, Antenna WPL-D7685505
...
27
Grease Shield WPL-D7692501
...
28
Tray-Glass Floor WPL-C8936902
...
29
Gasket (Inch) WPL-A3030301
...
30
Screw, Tf WPL-M0231704

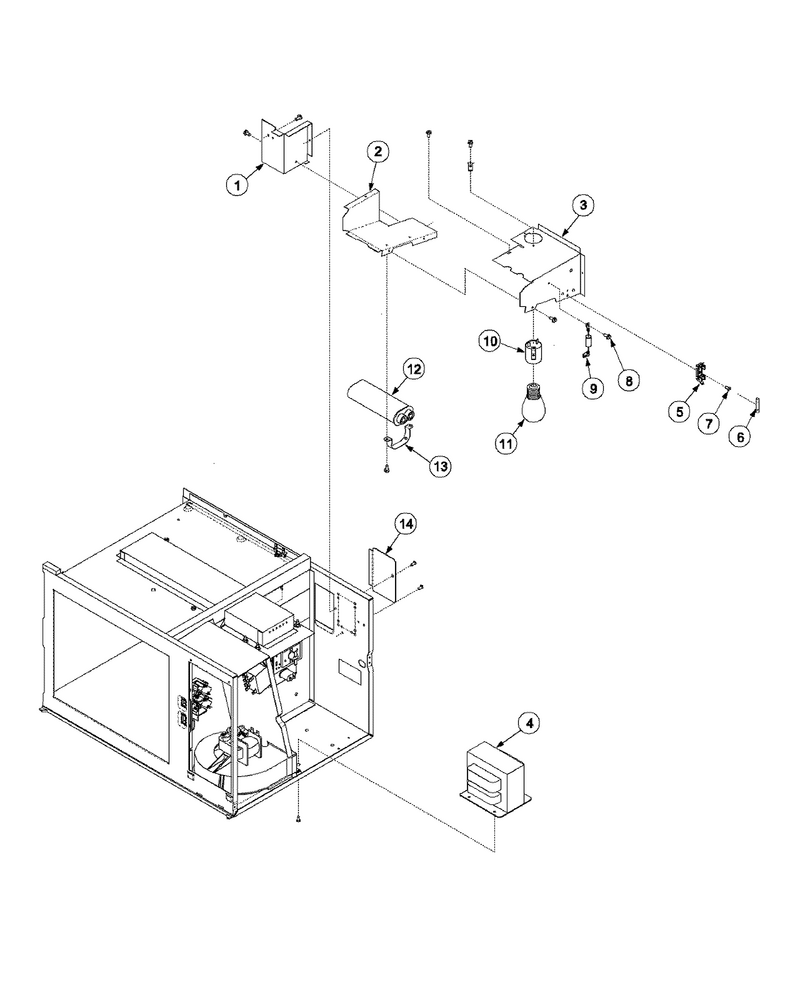

03 - Electrical Components

...
...
1
Screw WPL-WP489349
...
2
Air Duct. Bottom WPL-D7772202
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP3390631
...
5
Block-Fuse WPL-W10206728
...
6
Fuse 20 A WPL-WPM0805101
...
7
Screw WPL-WP59002061
...
8
Screw, Tf WPL-M0231704
...
9
Rectifier WPL-B8383101
...
10
Receptacle, Lamp WPL-B8371401
...
11
Light Bulb WPL-8009
...
12
Capacitor-.72 WPL-59001161
...
13
Screw WPL-WP489349
...
14
Cover, Light WPL-B8370702

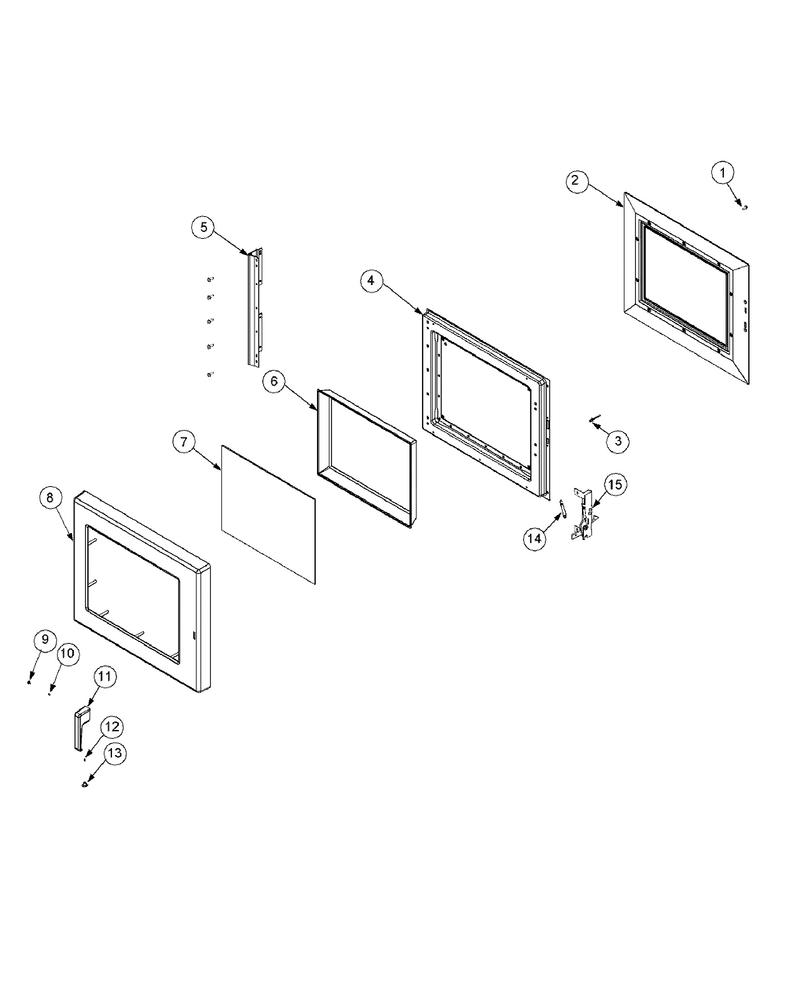

02 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Rivet-Pop WPL-59002054
...
4
Door Ring Weld WPL-59002013
...
5
Screw WPL-WP90767
...
6
Box,shadow WPL-12667201
...
7
Window,outer WPL-C8960402
...
8
Door,outer WPL-12667101
...
9
Hole, Plug WPL-59001007
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit WPL-R0000282

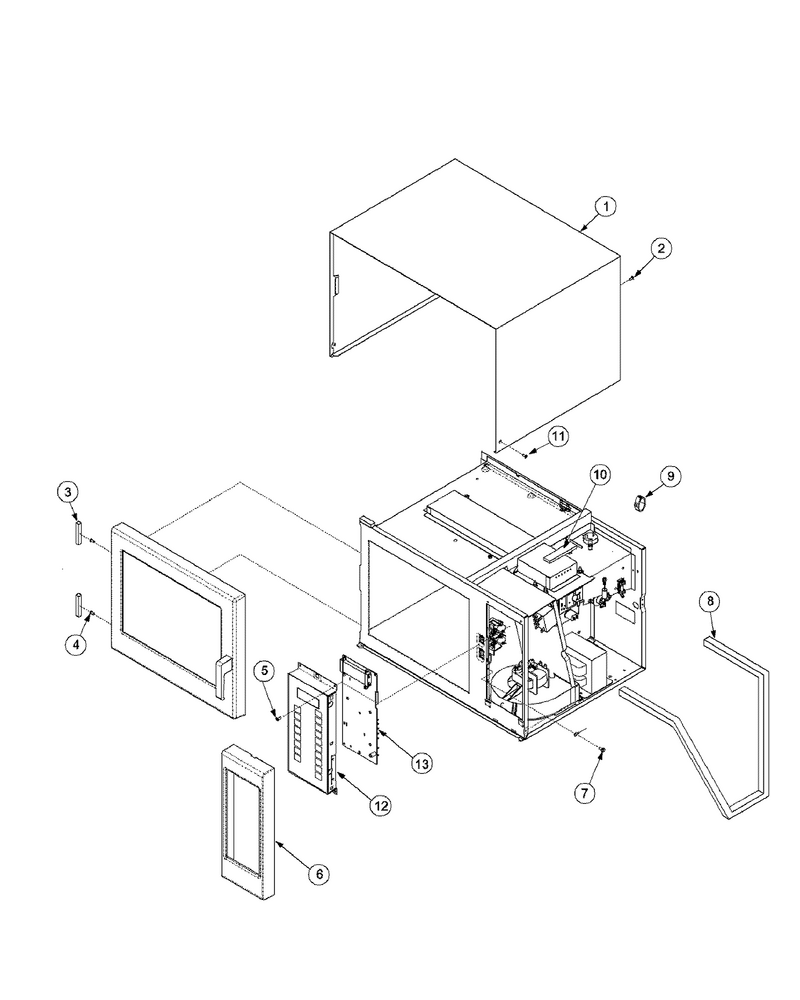

04 - Outer Case

...
...
1
Wrapper,oc WPL-D7684913
...
2
Screw, Tf WPL-M0231704
...
3
Gasket WPL-A3263904
...
4
Screw WPL-WP12990527
...
5
Screw WPL-WP3388228
...
6
Escutcheon,side WPL-12667001
...
7
Screw, Tf WPL-M0231704
...
8
Gasket (Per Foot) WPL-10839706
...
9
Clip, Guide WPL-M0118705
...
10
Sealer WPL-M0275501
...
11
Gasket K WPL-A4591129
...
12
Assy, Touch Panel WPL-R9900589
...
13
Board, Hv/lv WPL-59001149

...
...
NI
Magnetic Y-Drive Bit WPL-R0193574

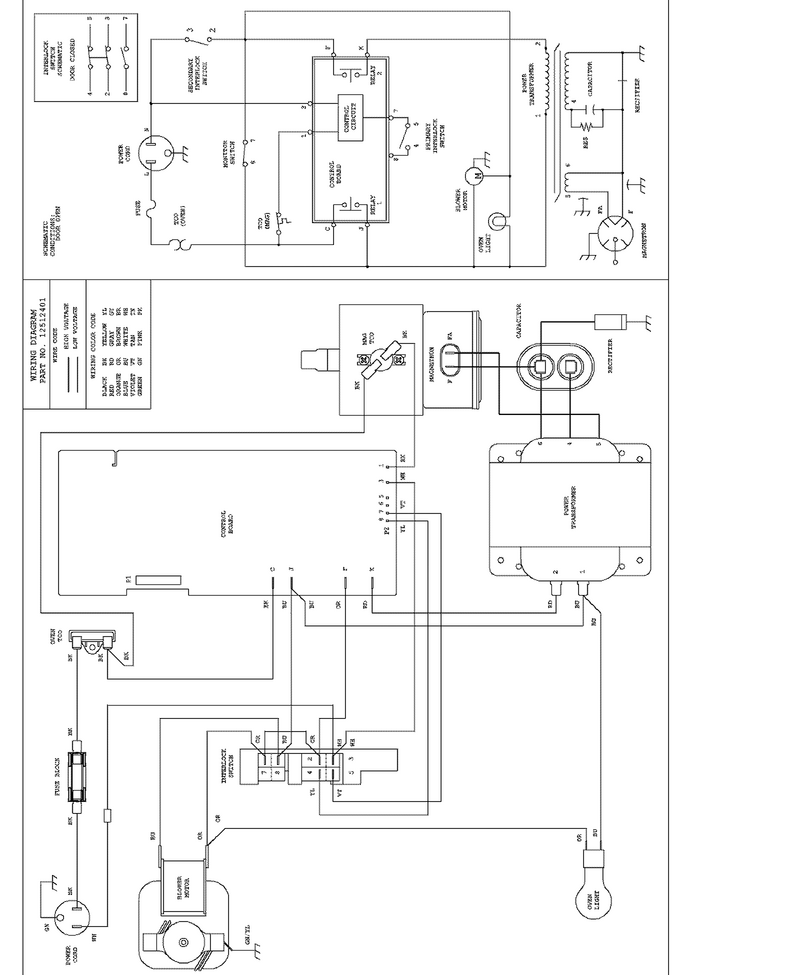

06 - Wiring Information

...
...
NI
Wiring Information WPL-15002958
