Amana RCS10MPC (BOM P1327716M)

Model: RCS10MPC (BOM P1327716M)

Save Part Not Listed?
product name

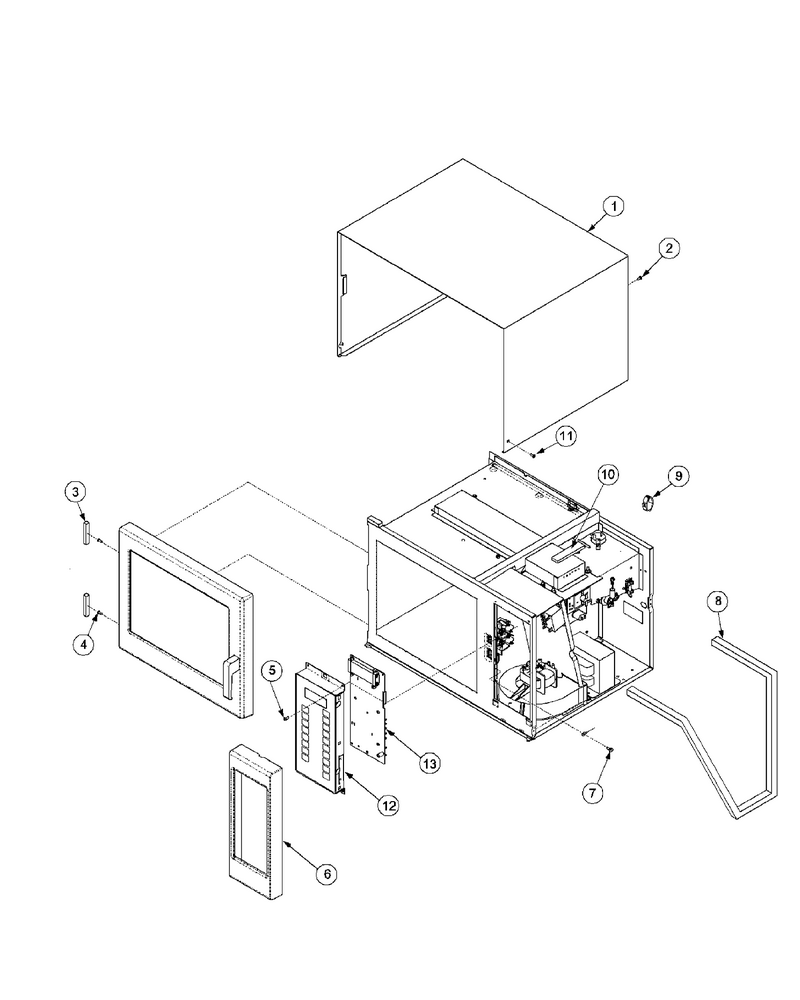

01 - Outer Case

...
...
001
Wrapper,oc WPL-D7684913
...
002
Screw, Tf WPL-M0231704
...
003
Gasket WPL-A3263904
...
004
Screw WPL-WP12990527
...
005
Screw WPL-WP3388228
...
006
Escutcheon,side WPL-12667001
...
007
Screw, Tf WPL-M0231704
...
008
Gasket (Per Foot) WPL-10839706
...
009
Clip, Guide WPL-M0118705
...
010
Sealer WPL-M0275501
...
011
Gasket K WPL-A4591129
...
012
Assy, Touch Panel WPL-R9900588
...
013
Board, Hv/lv WPL-59001149

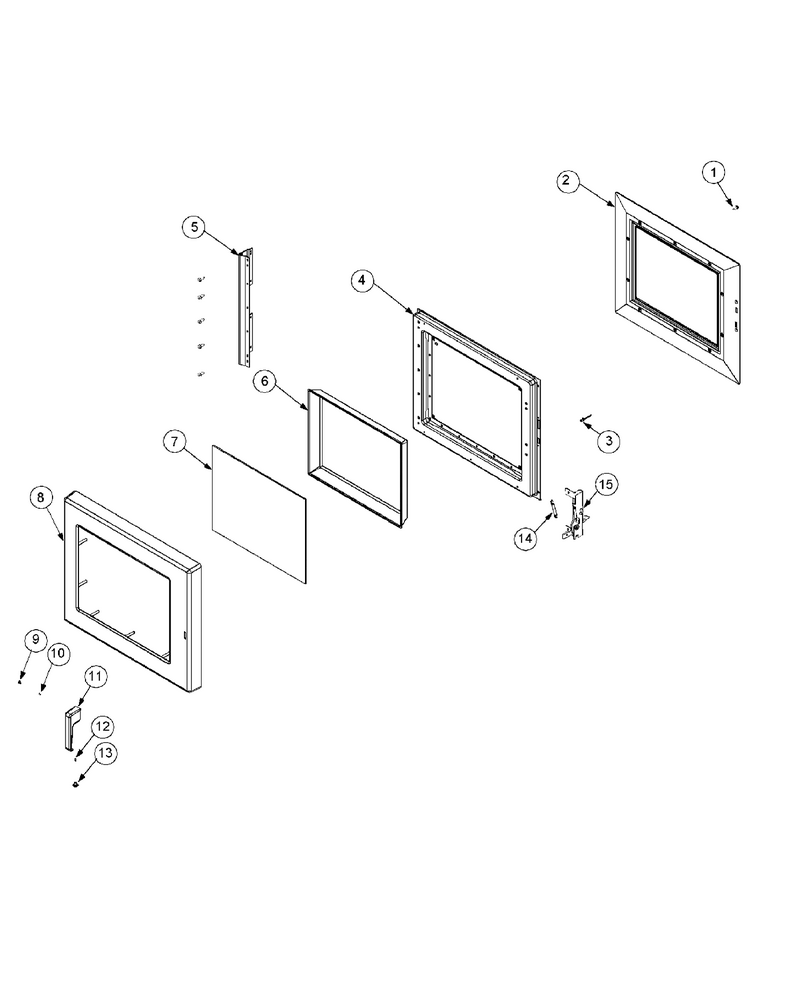

02 - Door

...
...
001
Magnetic Y-Drive Bit WPL-NLA
...
002
Inner Door/glass Assy WPL-D7784901
...
003
Rivet-Pop WPL-59002054
...
004
Door Ring Weld WPL-59002013
...
005
Screw WPL-WP90767
...
006
Box,shadow WPL-NLA
...
007
Window,outer WPL-C8960402
...
008
Door, Outer WPL-59001198
...
009
Hole, Plug WPL-59001007
...
010
Screw WPL-WP8533976
...
011
Handle, Door WPL-12490901
...
012
Screw WPL-WP8533976
...
013
Plug, Button (Wht) WPL-M0310305
...
014
Spring, Door Latch WPL-C8893502
...
015
Latch Kit WPL-R0000282

...
...
001
Wiring Information WPL-NLA

...
...
001
Gasket, Oven Top WPL-B8369901
...
002
Magnetron WPL-10489401
...
003
Screw WPL-WPW10068250
...
004
Screw T.c WPL-M0229916
...
005
Screw WPL-M0232012
...
006
Window, Oven Light WPL-B8367701
...
007
Cord, Power WPL-1731300208
...
008
Gasket WPL-A3030302
...
009
Blower Partition,black E Ct WPL-D7685413
...
010
Strain Relief WPL-8536977
...
011
Screw, Tf WPL-M0231704
...
012
Switch, Interlock WPL-59001114
...
013
Gasket WPL-A3030302
...
014
Screw WPL-NLA
...
015
Scroll, Blower WPL-D7684601
...
016
Blower Wheel WPL-C8793501
...
017
Brkt Scroll WPL-C8942501
...
018
Nut WPL-WP3195558
...
019
Screw WPL-M0254706
...
020
Trim,oc WPL-12667301
...
021
Foot O.c. Wrapper WPL-B5732506
...
022
Pop Rivet WPL-A4539625
...
023
Plug,foot WPL-C8965405
...
024
Support, Shelf WPL-B8374901
...
025
Assy, Antenna WPL-C8943002Q
...
026
Cradle, Antenna WPL-D7685505
...
027
Grease Shield WPL-D7692501
...
028
Adhesive WPL-W10841140
...
029
Gasket (Inch) WPL-A3030301
...
030
Screw, Tf WPL-M0231704

...
...
001
Shield, Light WPL-D7772101
...
002
Air Duct. Bottom WPL-D7772202
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP3390631
...
005
Block-Fuse WPL-W10206728
...
006
Fuse 20 A WPL-WPM0805101
...
007
Screw WPL-WP59002061
...
008
Screw, Tf WPL-M0231704
...
009
Rectifier WPL-B8383101
...
010
Receptacle, Lamp WPL-B8371401
...
011
Light Bulb WPL-8009
...
012
Capacitor-.72 WPL-59001161
...
013
Strap, Capacitor WPL-A4055405
...
014
Screw WPL-WP3388228

...
...
001
Magnetic Y-Drive Bit WPL-NLA
...
002
Menu Label WPL-12155701
...
003
Manual, Service Com Micro WPL-16021520
...
004
Tech Sheet, Com Micro WPL-16023209
...
005
Manual-Prod Safety WPL-16021751
...
006
Use & Care Manual WPL-59001481
...
007
Harness, Oven WPL-12512301
