Amana RCS10A (BOM: P1330203M)

Model: RCS10A (BOM: P1330203M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

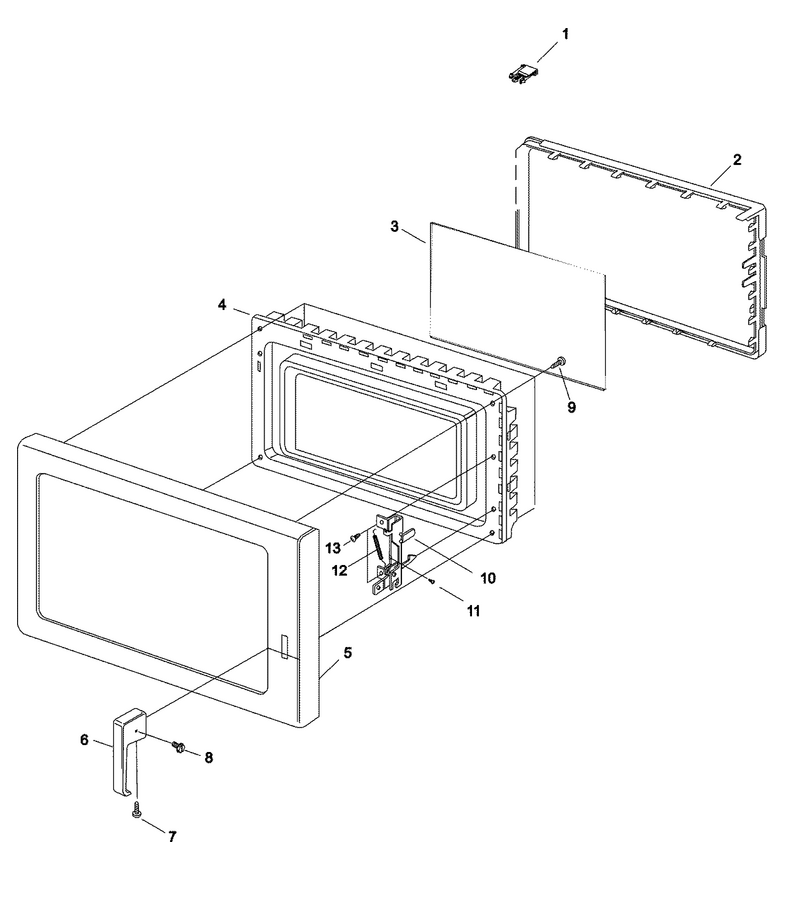

03 - Door

...
...
1
Cap, Top Hinge WPL-53001543
...
2
Choke Cover WPL-53001608
...
3
Window, Inner Door WPL-13066801
...
4
Inner Door Weldment WPL-53001778
...
5
Assy, Outer Door (Blk) WPL-53001602
...
6
Handle Kit- W/screws & Loctite WPL-12002453
...
7
Screw- Handle Bottom WPL-53001546
...
8
Screw- Handle Side WPL-53001547
...
9
Screw, Pan Hd S/tap WPL-R0654030
...
10
Latch WPL-53001779
...
11
Screw, Pan Hd WPL-R0654180
...
12
Spring WPL-53001780
...
13
Screw WPL-W11380570

...
...
NI
Tech Sht, 2004 Rcs/rfs Comm Mw WPL-16021681

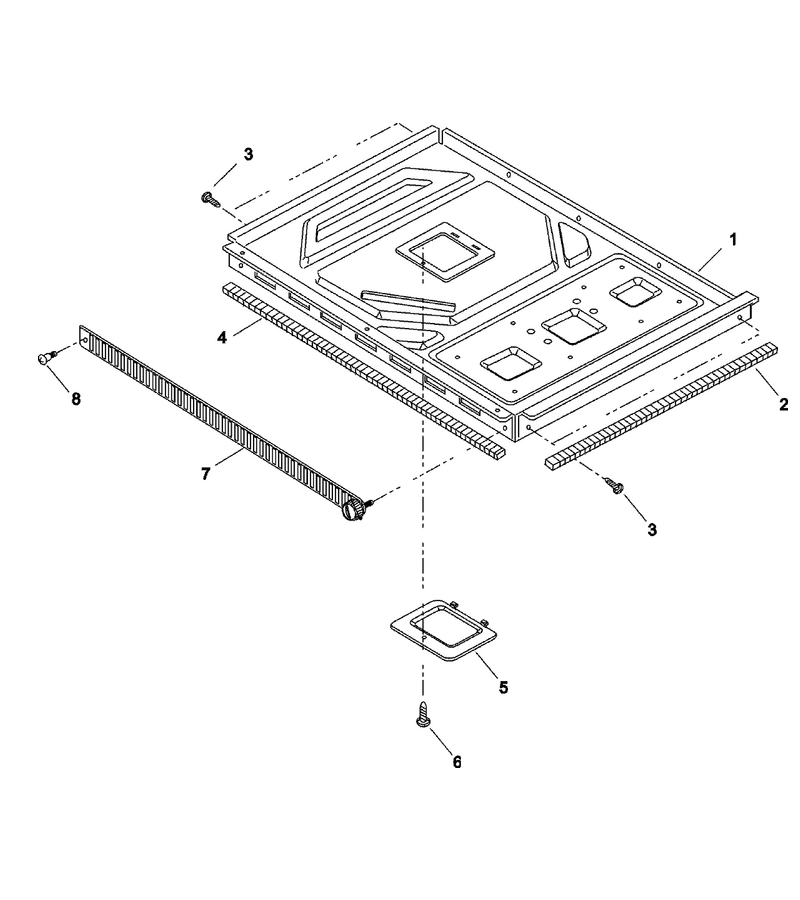

02 - Base And Filter

...
...
1
Base Plate- W/cover & Gaskets WPL-53001625
...
2
Gasket, Base- Side WPL-53001626
...
3
Screw WPL-W11380570
...
4
Gasket, Base- Front WPL-53001627
...
5
Cover, Base WPL-53001628
...
6
Screw WPL-W11380570
...
7
Filter, Air- W/thumb Screw WPL-53001571
...
8
Screw, Drawing WPL-53001629

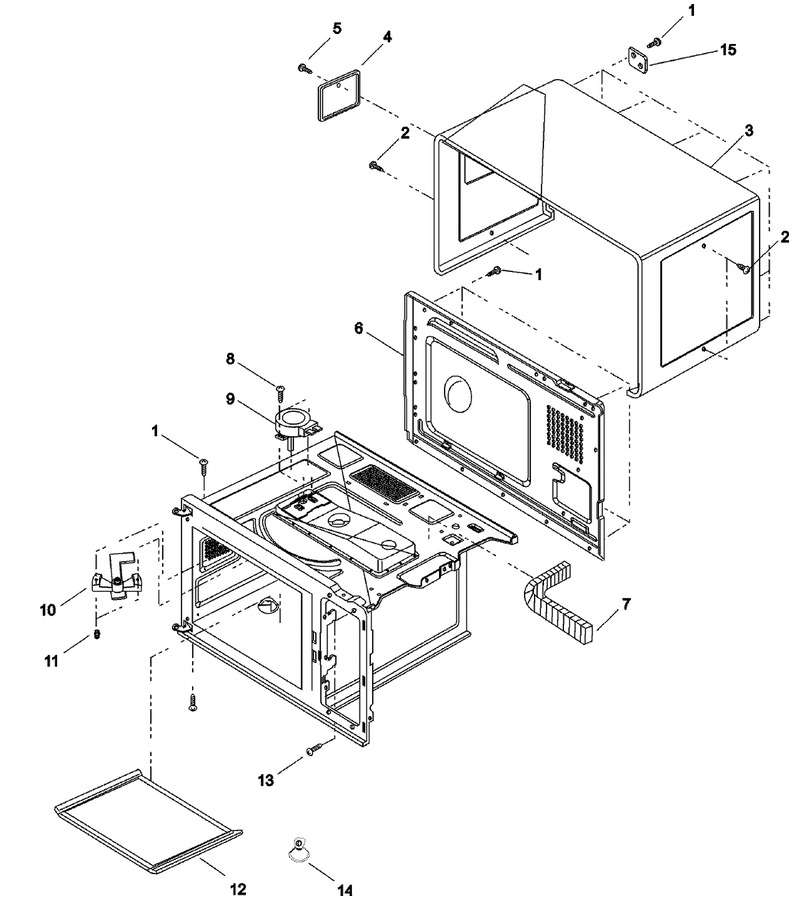

01 - Antenna, Tray, Outer Case,

...
...
1
Screw WPL-8169475
...
2
Screw WPL-W11380570
...
3
Outer Case- Black WPL-53001611
...
4
Cover, Lamp- Black WPL-53001618
...
5
Screw Tapping, Counter Sunk Hd WPL-53001609
...
6
Back Panel WPL-53001551
...
7
Gasket WPL-53001610
...
8
Screw, Pan Hd WPL-R0654180
...
9
Motor- Antenna 120v 60hz WPL-53001552
...
10
Antenna Kit- W/rivets WPL-12002451
...
11
Rivet Assembly WPL-53001554
...
12
Tray, Ceramic WPL-53001555
...
13
Screw WPL-W11380570
...
14
Suction Cup- For Tray Removal WPL-59001235
...
15
Bracket, Stacking WPL-53001619

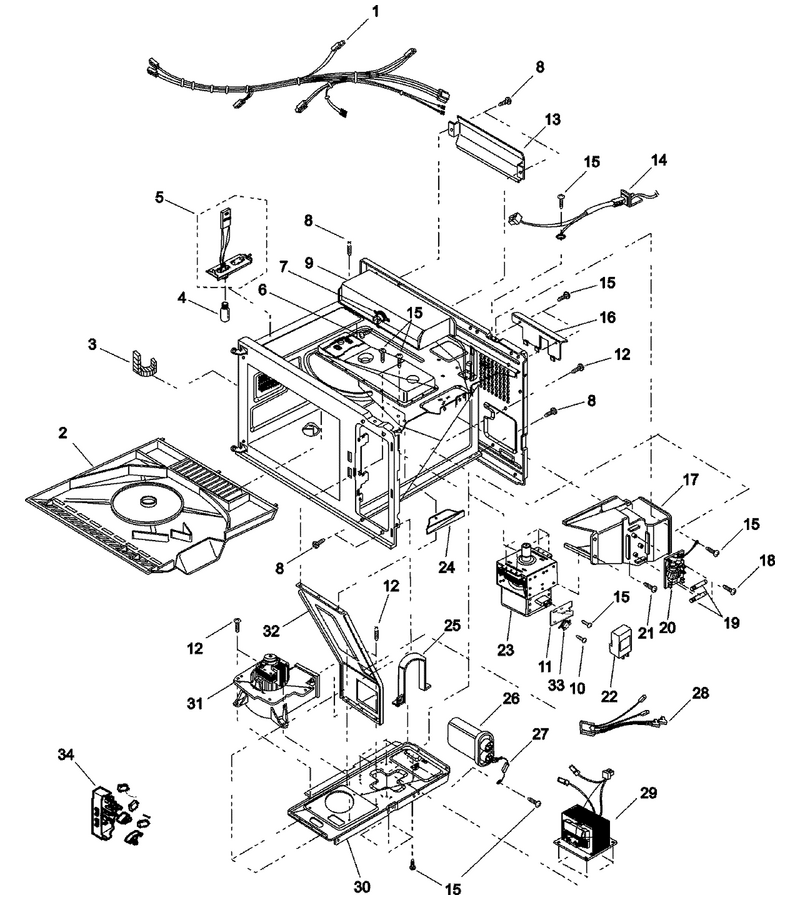

04 - Electrical, Grease Shield, Ducts,

...
...
1
Harness, Main WPL-53001646
...
2
Grease Shield WPL-53001556
...
3
Gasket WPL-53001610
...
4
Bulb-Light WPL-WPA3073101
...
5
Lamp Socket / Bracket Assy WPL-53001558
...
6
Screw, Pan Hd S/tap WPL-R0654030
...
7
Thermostat, Cavity 125/-35 Celcius WPL-W10864742
...
8
Screw WPL-W11380570
...
9
Duct, Outlet-Top WPL-53001559
...
10
Screw Tapping,pan Head WPL-R0131307
...
11
Bracket- Thermostat WPL-53001643
...
12
Screw WPL-8169475
...
13
Air Deflector WPL-53001620
...
14
Power Cord WPL-53001562
...
15
Screw WPL-4344826
...
16
Cover, Power Cord WPL-53001621
...
17
Duct, Main WPL-53001563
...
18
Screw, Pan Head WPL-53001462
...
19
Fuse, 10 Amp WPL-M0805106
...
20
Fuse Block / Filter Assy WPL-53001564
...
21
Screw, Pan Hd WPL-R0654180
...
22
Filter, Choke WPL-4359624
...
23
Magnetron WPL-W10859575
...
24
Bracket WPL-53001622
...
25
Bracket, Capacitor WPL-53001623
...
26
Capacitor- .95 Mf. WPL-53001566
...
27
Diode- Bla WPL-WPR9800486
...
28
Harness- Transformer Primary WPL-53001624
...
29
Transformer Hv WPL-53001567
...
30
Base- Transformer WPL-53001568
...
31
Blower Motor Assy WPL-53001569
...
32
Guide, Air WPL-53001570
...
33
Thermal Cut Out- Magnetron WPL-53001560
...
34
Switch Assy, Interlock WPL-53001601

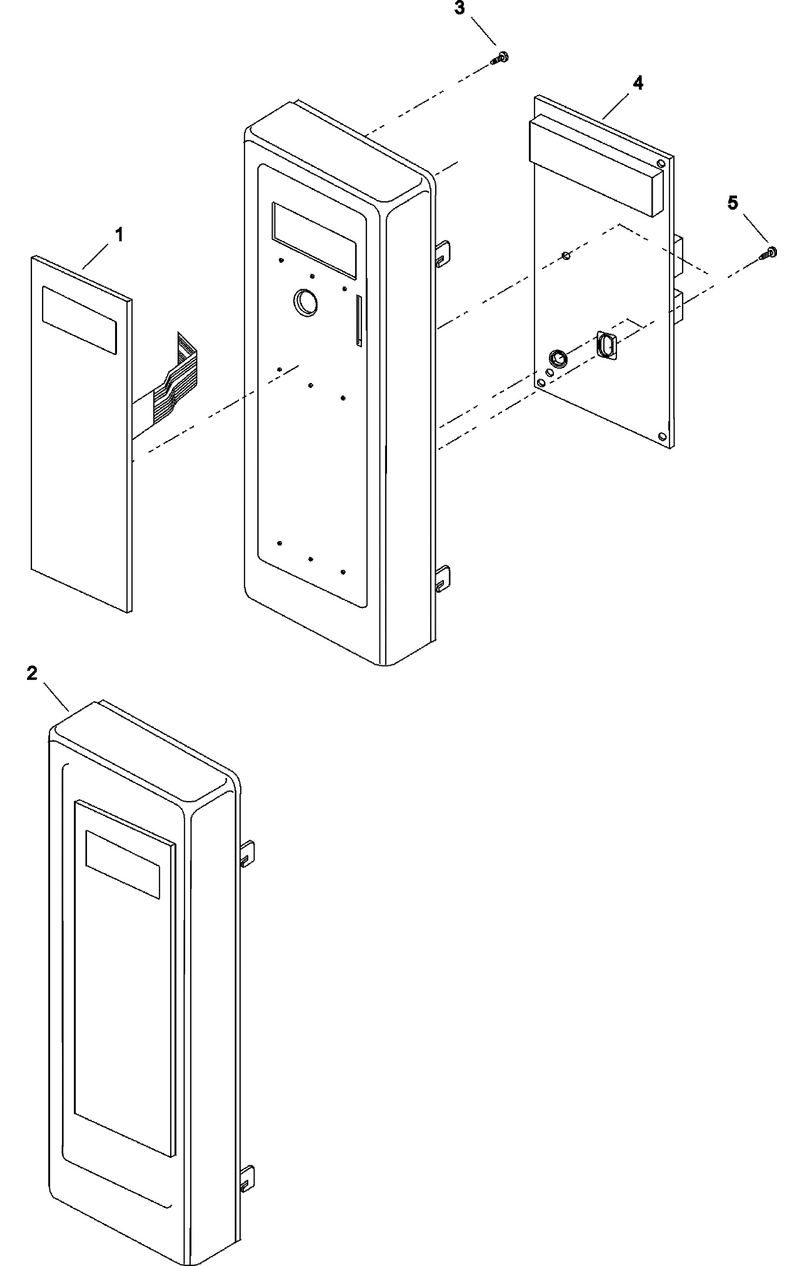

06 - Timer And Escutcheon

...
...
1
Touch Panel WPL-53001603
...
2
Escutcheon / Touch Panel Assy WPL-53001605
...
3
Screw, Special D WPL-R0654178
...
4
Board, Hv/lv WPL-53001612
...
5
Screw, Pan Head WPL-53001462

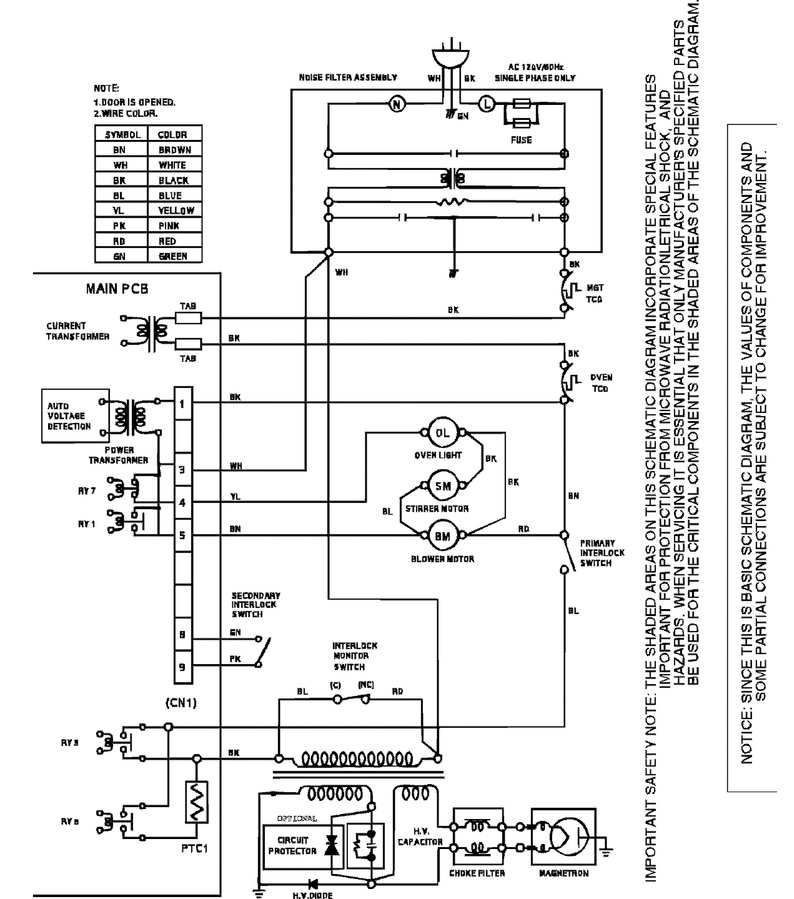

07 - Wiring Information

...
...
NI
Wiring Information WPL-15003552
