Amana RCS10 (BOM: P1324601M)

Model: RCS10 (BOM: P1324601M)

Save Part Not Listed?
product name

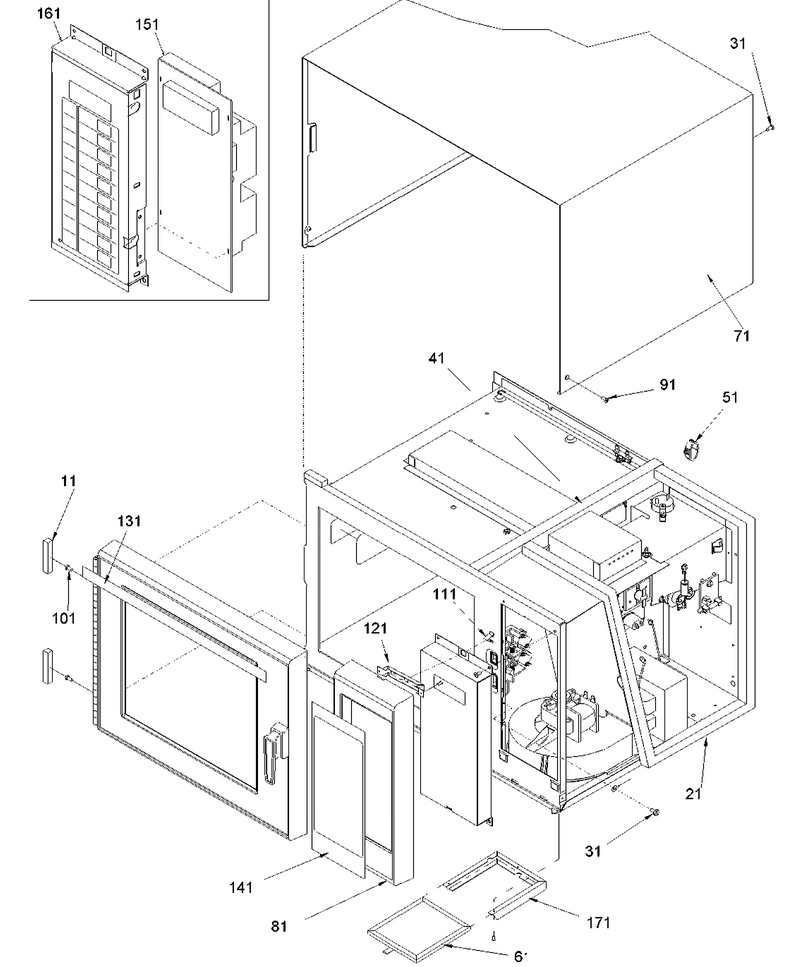

03 - Outer Cabinet

...
...
11
Gasket WPL-A3263904
...
21
Gasket (Per Foot) WPL-10839706
...
31
Screw, Tf WPL-M0231704
...
41
Gasket, Oven Top WPL-B8369901
...
51
Clip, Guide WPL-M0118705
...
71
Wrapper O.c. (Black) WPL-D7684909
...
81
Escut, Control (Black) WPL-D7704517
...
91
Screw WPL-M0215116
...
101
Screw WPL-WP90767
...
151
Board,hv/lv WPL-12470111
...
161
Assy, Touch Panel WPL-R9900588

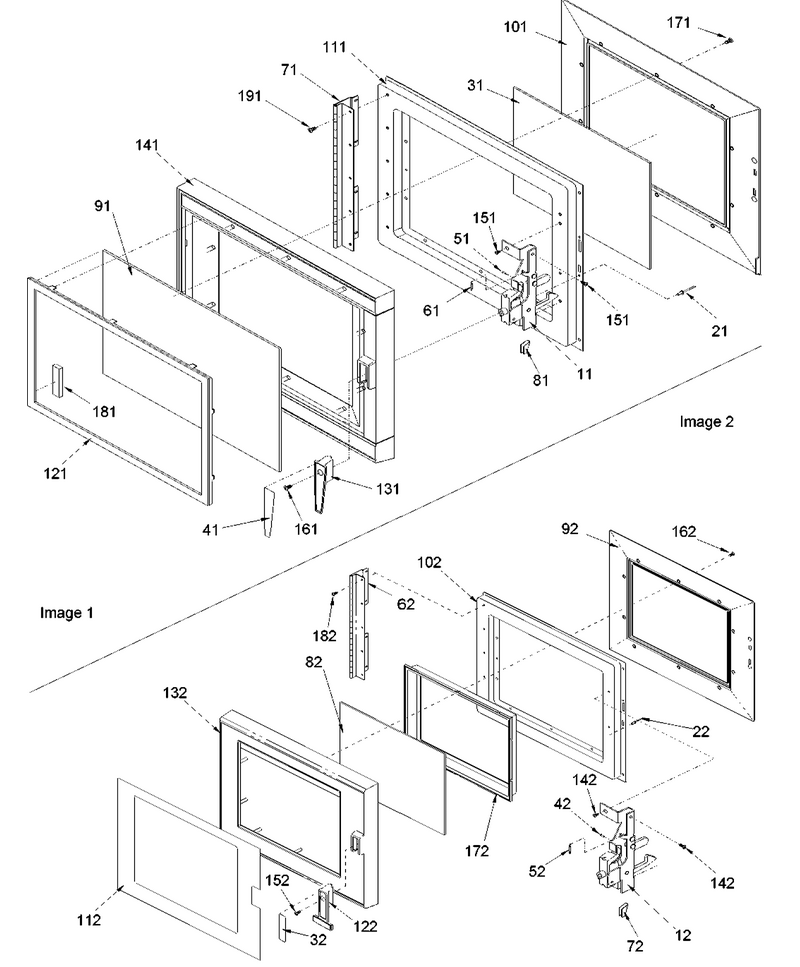

01 - Door Assembly

...
...
11
Latch Assy WPL-R0150122
...
21
Rivet-Pop WPL-59002054
...
31
Window, Inner WPL-B8371202
...
41
Ins Hdl WPL-B8378901
...
51
Pin, Latch WPL-B8379201
...
61
Spring, Door Latch WPL-C8893502
...
71
Hinge, Door (Black) WPL-C8936213
...
81
Pad-Latch Assy WPL-C8991301
...
91
Window WPL-C8965302
...
101
Door, Inner WPL-D7683508
...
111
Kit-Door R WPL-R0131710
...
121
Retainer, Lens WPL-D7716001
...
131
Handle Front WPL-D7741501
...
141
Door, Blk Outer V WPL-D7755402
...
151
Screw WPL-WP3388228
...
161
Screw WPL-M0234030
...
171
Screw-Hi Lo Y-Drive Head WPL-67003392
...
181
Gasket (Inch) WPL-A3030301
...
191
Screw WPL-WP90767

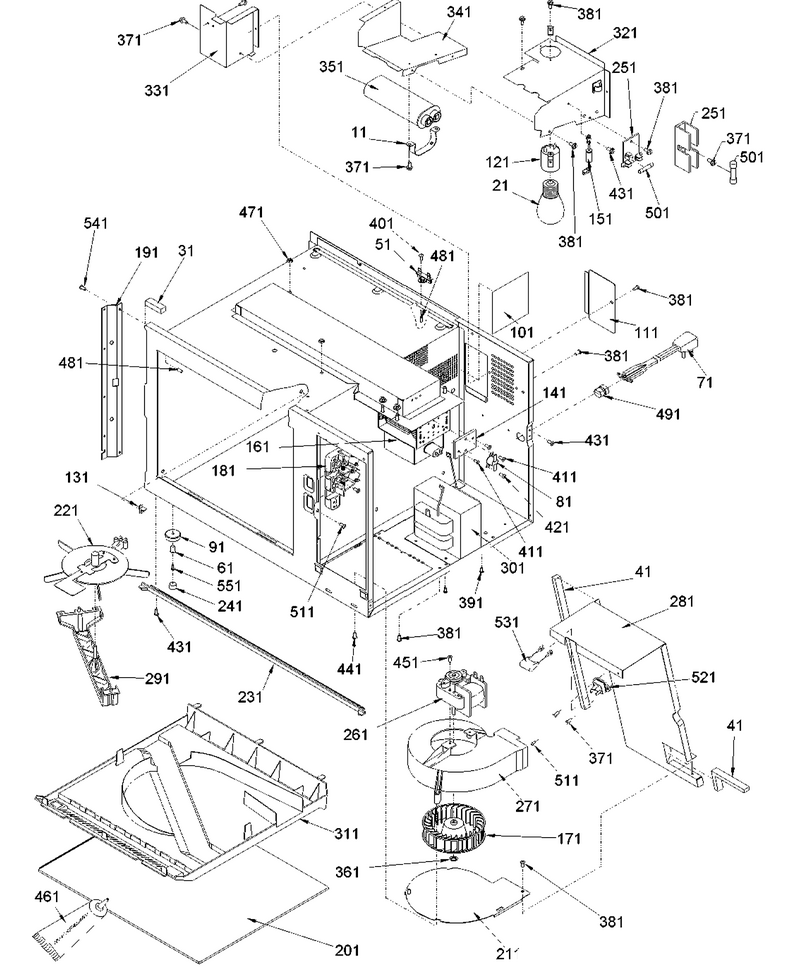

02 - Internal Components

...
...
NI
Harness, Oven WPL-12512301
...
11
Strap, Capacitor WPL-A4055406
...
21
Light Bulb WPL-8009
...
31
Gasket (Inch) WPL-A3030301
...
41
Gasket WPL-A3030302
...
51
Fuse, Thermal WPL-B5795305
...
61
Pop Rivet WPL-A4539625
...
71
Cord, Power WPL-1731300208
...
81
Thermal Protector WPL-B5684106
...
91
Foot O.c. Wrapper WPL-B5732506
...
101
Window, Oven Light WPL-B8367701
...
111
Cover, Light WPL-B8370702
...
121
Receptacle, Lamp WPL-B8371401
...
131
Support, Shelf WPL-B8374901
...
141
Plate, Thermal Cutout WPL-B8380601
...
151
Rectifier WPL-B8383101
...
161
Magnetron WPL-10489401
...
171
Blower Wheel WPL-C8793501
...
181
Switch, Interlock Kit WPL-12002636
...
191
Brkt,hinge Support WPL-C8935903
...
201
Tray-Glass Floor WPL-C8936902
...
211
Brkt Scroll WPL-C8942501
...
221
Assy, Antenna WPL-C8943002Q
...
231
Trim WPL-C8943602
...
241
Plug,foot WPL-C8965405
...
251
Block-Fuse WPL-W10206728
...
261
Motor, Blower WPL-D7670306
...
271
Scroll, Blower WPL-D7684601
...
281
Blower Partition,black E Ct WPL-D7685413
...
291
Cradle, Antenna WPL-D7685505
...
301
Transformer WPL-10426611
...
311
Grease Shield WPL-D7692501
...
321
Duct, Top Air WPL-D7772007
...
331
Shield, Light WPL-D7772101
...
341
Air Duct. Bottom WPL-D7772202
...
351
Capacitor-.74 WPL-59001162
...
361
Nut WPL-WP3195558
...
371
Screw WPL-WP489349
...
381
Screw WPL-WP3388228
...
391
Screw WPL-WP3390631
...
401
Screw WPL-WPW10068250
...
411
Screw T.c WPL-M0229916
...
421
Screw WPL-M0232012
...
431
Screw WPL-12992301
...
441
Screw WPL-M0254706
...
451
Screw WPL-M0213123
...
461
Adhesive WPL-W10841140
...
471
Nut WPL-M0288808
...
481
Cap, Protective-Threaded (Red) WPL-M0308801
...
491
Strain Relief WPL-8536977
...
501
Fuse 20 A WPL-WPM0805101
...
511
Screw-Sm/hex WPL-12990523
...
541
Screw, Tf WPL-M0231704
