Amana RCS10 (BOM: P1140411M)

Model: RCS10 (BOM: P1140411M)

Save Part Not Listed?
product name

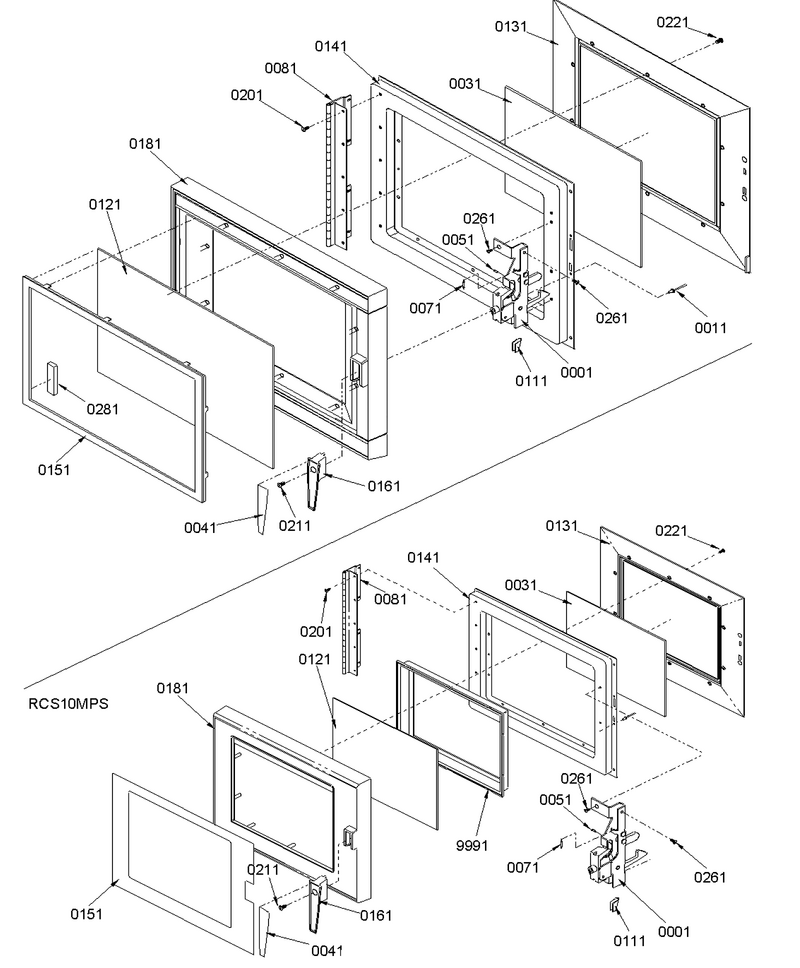

02 - Door Assembly

...
...
1
Latch Assy WPL-R0150122
...
11
Rivet-Pop WPL-59002054
...
31
Window, Inner WPL-B8371202
...
41
Ins Hdl WPL-B8378901
...
51
Pin, Latch WPL-B8379201
...
71
Spring, Door Latch WPL-C8893502
...
81
Hinge, Door (Black) WPL-C8936213
...
111
Pad-Latch Assy WPL-C8991301
...
121
Window WPL-C8965302
...
131
Door, Inner WPL-D7683508
...
141
Kit-Door R WPL-R0131710
...
151
Retainer, Lens WPL-D7716001
...
161
Handle Front WPL-D7741501
...
181
Door, Blk Outer V WPL-D7755402
...
201
Screw WPL-M0234403
...
211
Screw WPL-M0234030
...
221
Screw WPL-489392
...
261
Screw WPL-WP59002061
...
281
Gasket (Inch) WPL-A3030301

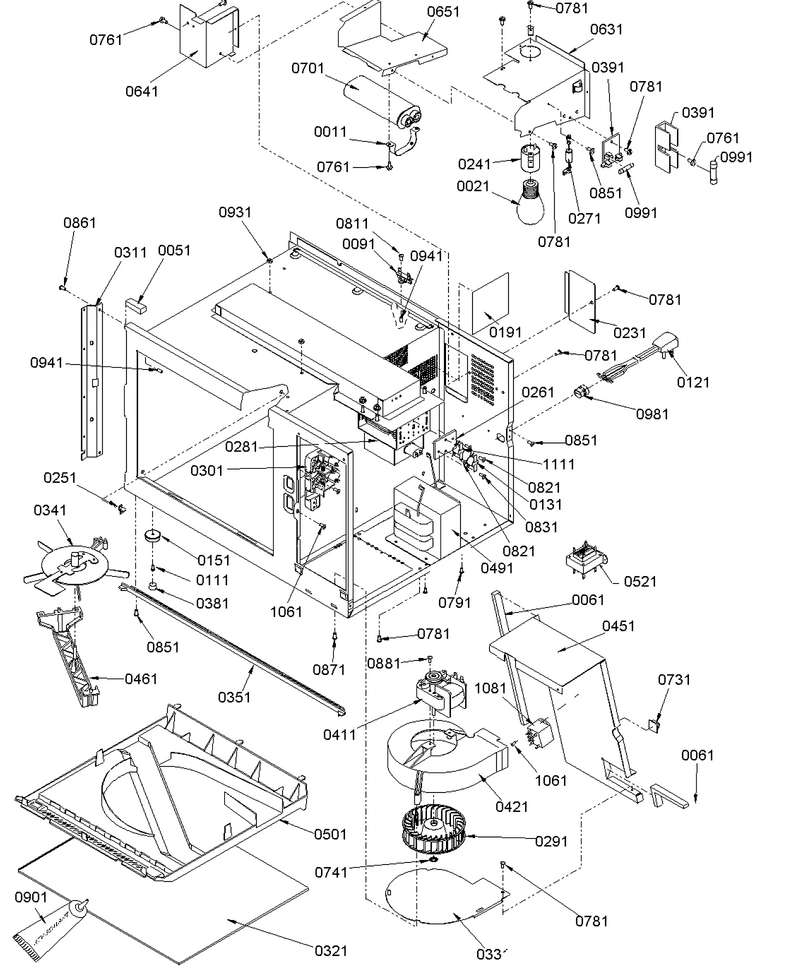

03 - Internal Components

...
...
11
Strap, Capacitor WPL-A4055405
...
21
Light Bulb WPL-8009
...
51
Gasket (Inch) WPL-A3030301
...
61
Gasket WPL-A3030302
...
91
Fuse, Thermal WPL-B5795305
...
111
Pop Rivet WPL-A4539625
...
121
Cord, Power WPL-1731300208
...
131
Thermal Protector K WPL-B5684105
...
151
Foot O.c. Wrapper WPL-B5732506
...
191
Window, Oven Light WPL-B8367701
...
231
Cover, Light WPL-B8370702
...
241
Receptacle, Lamp WPL-B8371401
...
251
Support, Shelf WPL-B8374901
...
261
Plate, Thermal Cutout WPL-B8380601
...
271
Rectifier WPL-B8383101
...
281
Magnetron WPL-10489401
...
291
Blower Wheel WPL-C8793501
...
301
Switch, Interlock Kit WPL-12002636
...
311
Brkt,hinge Support WPL-C8935903
...
321
Tray-Glass Floor WPL-C8936902
...
331
Brkt Scroll WPL-C8942501
...
341
Assy, Antenna WPL-C8943002Q
...
351
Trim WPL-C8943602
...
381
Plug,foot WPL-C8965405
...
391
Board-Term WPL-C8988701
...
411
Motor, Blower WPL-D7670306
...
421
Scroll, Blower WPL-D7684601
...
451
Blower Partition,black E Ct WPL-D7685413
...
461
Cradle, Antenna WPL-D7685505
...
491
Transformer WPL-10426611
...
501
Grease Shield WPL-D7692501
...
631
Duct, Top Air WPL-D7772006
...
641
Shield, Light WPL-D7772101
...
651
Air Duct. Bottom WPL-D7772202
...
701
Capacitor-.74 WPL-D8547928
...
731
Clip, Cord WPL-M0104102
...
741
Nut WPL-WP3195558
...
761
Screw WPL-WP489349
...
781
Screw WPL-WP3388228
...
791
Screw WPL-WP3390631
...
811
Screw WPL-WPW10068250
...
821
Screw T.c WPL-M0229916
...
831
Screw WPL-M0232012
...
851
Screw WPL-12992301
...
861
Screw, Tf WPL-M0231704
...
871
Screw WPL-M0254706
...
881
Screw WPL-M0213123
...
901
Adhesive WPL-W10841140
...
931
Nut WPL-M0288808
...
941
Cap, Protective-Threaded (Red) WPL-M0308801
...
981
Strain Relief WPL-8536977
...
991
Fuse 20 A WPL-WPM0805101
...
1061
Screw-Sm/hex WPL-12990523

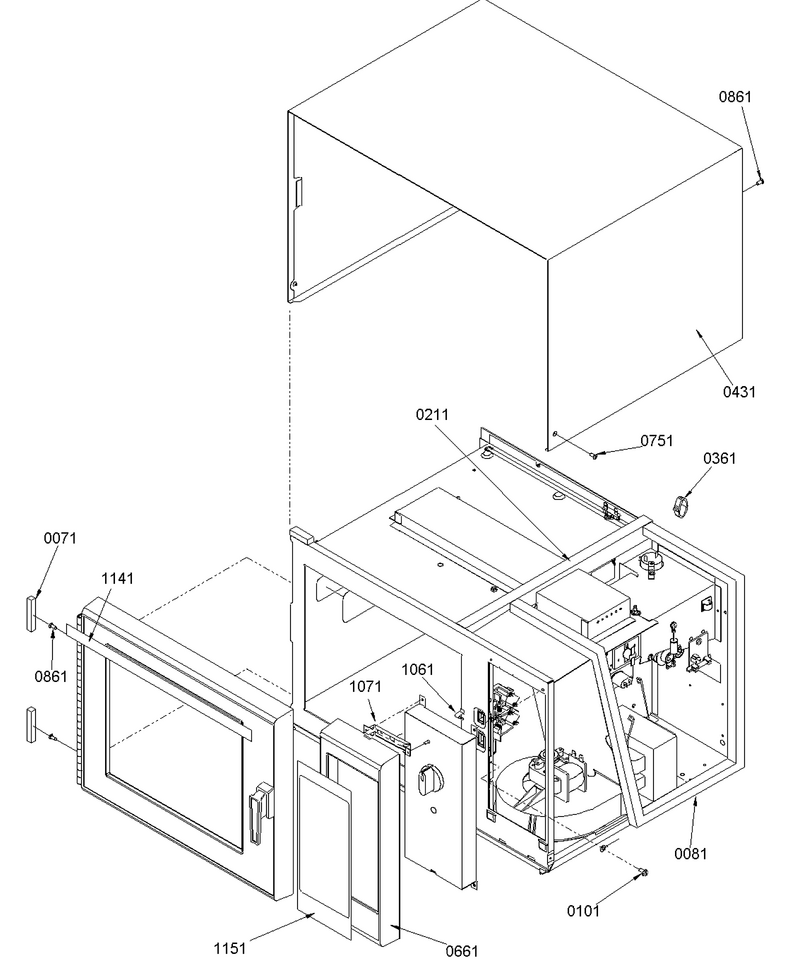

04 - Outer Cabinet

...
...
71
Gasket WPL-A3263904
...
81
Gasket (Per Foot) WPL-10839706
...
101
Screw, Tf WPL-M0231704
...
211
Gasket, Oven Top WPL-B8369901
...
361
Clip, Guide WPL-M0118705
...
431
Wrapper O.c. (Black) WPL-D7684909
...
661
Escut, Control (Black) WPL-D7704517
...
751
Screw WPL-M0215116
...
861
Screw, Tf WPL-M0231704

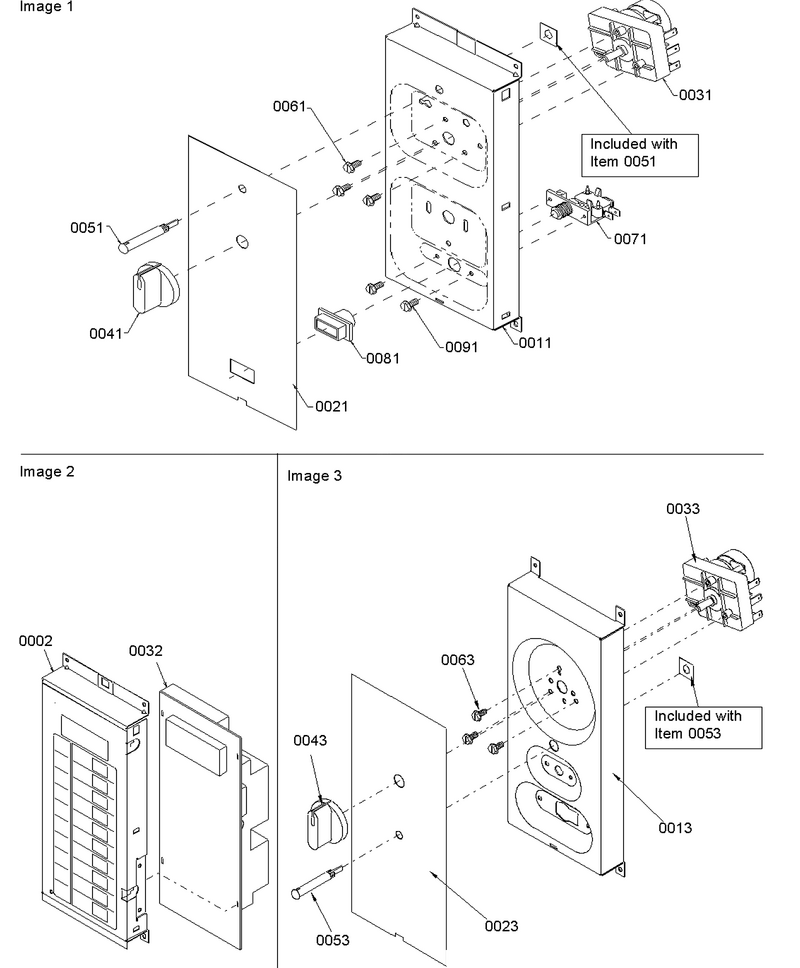

01 - Control Panel Assembly

...
...
2
Assy, Keyboard WPL-R0163271
...
32
Pc Board Assy WPL-R163159A
