Amana RCR8 (BOM: P8551205S)

Model: RCR8 (BOM: P8551205S)

Save Part Not Listed?
product name

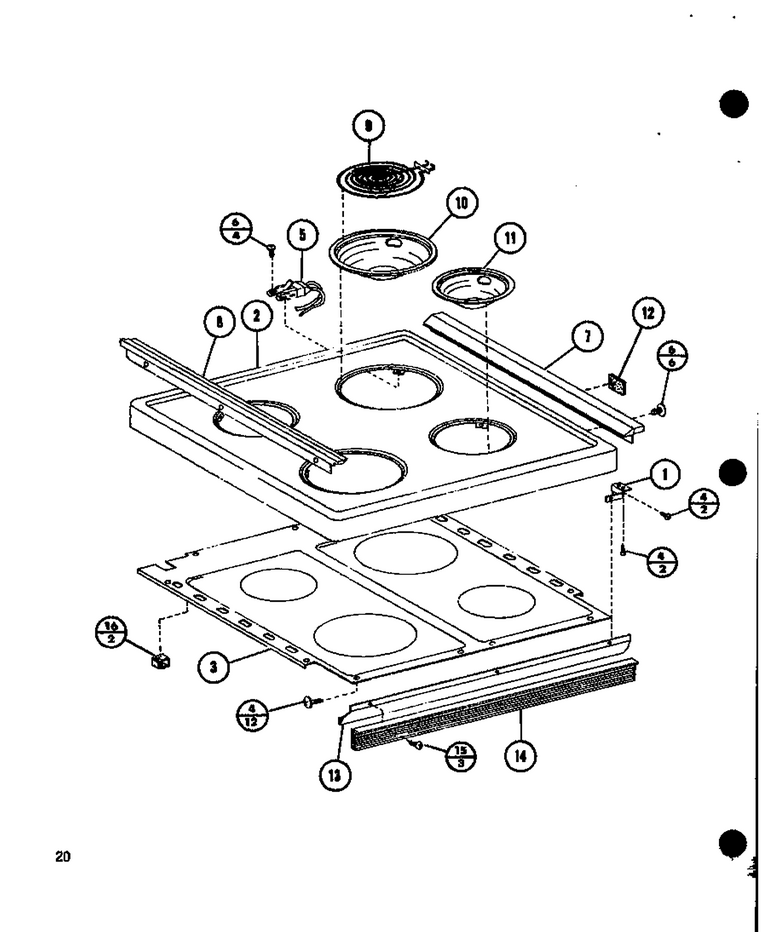

12 - Page 8

...
...
1
Brkt-Front Lh WPL-C2709002
...
2
Range Top (Bsq) WPL-D8520107
...
3
Drip Pan WPL-D8520203
...
4
Screw WPL-M0217224
...
5
Receptacle WPL-330031
...
6
Screw WPL-M0232702
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WP3191454
...
10
Bowl-Drip WPL-WPW10196406
...
11
Bowl-Drip WPL-WPW10196405
...
12
Gasket WPL-B5718912
...
13
Guard WPL-C2706101
...
14
Grille WPL-D8509402
...
15
Screw WPL-M0254518
...
16
Clip WPL-M0110503

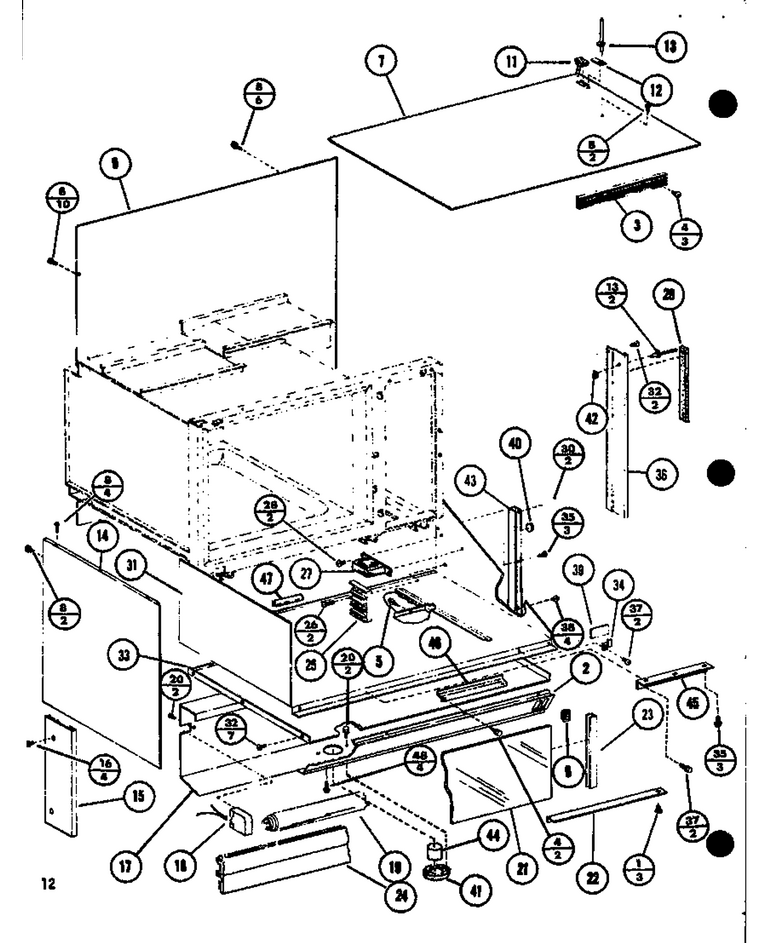

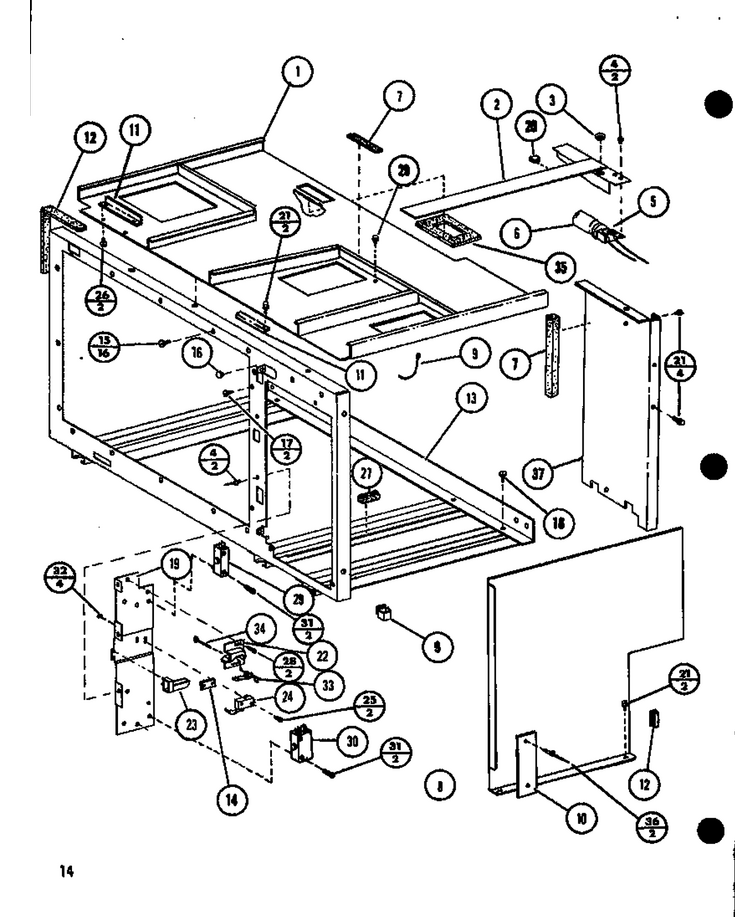

02 - Page 10

...
...
1
Foot WPL-A4400801
...
2
Side Frame Weld WPL-D8504105
...
3
Glide WPL-C2705301
...
4
Kick Panel-Black WPL-C2706704
...
5
Kick Plate WPL-C2706602
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer Rear Insul WPL-D8573202
...
9
Screw WPL-M0217224
...
10
Screw WPL-W10856125
...
11
Socket-Oven Light WPL-B5691205
...
12
Screw WPL-W10856125
...
13
Light Bulb WPL-8009
...
14
Strap-Grd WPL-A4406901
...
15
Screw WPL-M0213145
...
16
Usr 0041847 WPL-M0282402
...
17
Brkt-Term Block WPL-C2705001
...
20
Block-Term WPL-WP8203546
...
21
Cover-Lower Lead WPL-D8509502
...
22
Stiffener WPL-D8530901
...
24
Tube-Oven Vent WPL-B5012301
...
25
Grommet WPL-M0580005
...
28
Screw A K WPL-M0211516
...
30
Screw WPL-WP1163839
...
31
Cover WPL-B5003501
...
32
Duct- Hoiz. Vent WPL-C2706402
...
33
Clip WPL-M0110503
...
34
Washer WPL-M0270001
...
35
Screw WPL-M0227804
...
36
Trim WPL-D8509302
...
37
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
38
Retainer-Top Insul WPL-D8506203
...
39
Clip WPL-M0110503
...
40
Bumper WPL-A1511501
...
41
Retainer-Insul R WPL-D8506701
...
42
Side Panel-A WPL-D8501107
...
43
Brkt-Side Pnl Rh WPL-B5010201
...
44
Bumper WPL-A4401502
...
45
Gasket WPL-B5718912
...
46
Support Range Top WPL-B5029201
...
47
Plug K WPL-M0311103
...
48
Clamp Cable WPL-M0585301

05 - Page 13

...
...
NI
Grease WPL-R0195010
...
1
Arm WPL-B5004501
...
2
Assy, Door Latch (10442001) WPL-D8508301
...
3
Screw WPL-M0217224
...
4
Arm-Actuator WPL-A4405801
...
5
Cam, Lock Solenoid WPL-B5004201
...
6
Insulator-Switch WPL-A4405601
...
7
Speed Nut A- K WPL-M0287901
...
8
Clip WPL-M0119701
...
9
Pad WPL-A4405901
...
10
Pin-Grooved WPL-A4405701
...
11
Rivet A WPL-M0010202
...
12
Screw WPL-M0227520
...
13
Screw WPL-WP74004005
...
14
Solenoid, Lock WPL-Y0306856
...
15
Spring, Solenoid WPL-Y0306846
...
16
Switch, Limit WPL-B5004402
...
17
Washer WPL-M0270501
...
18
Washer WPL-M0270515
...
19
Assy, Latch Solenoid WPL-C2705401

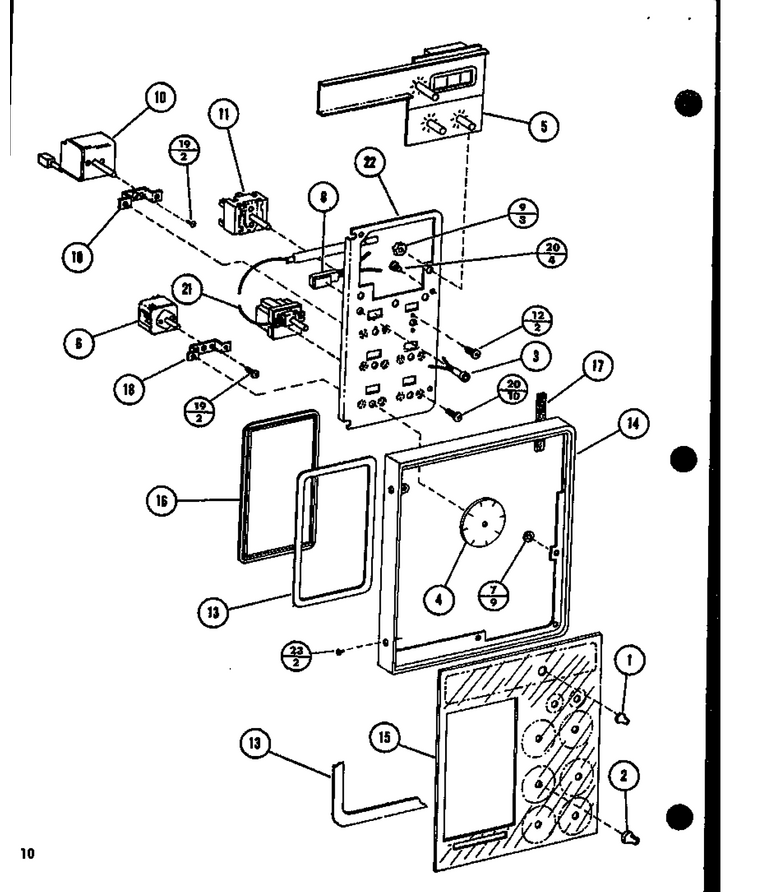

07 - Page 3

...
...
1
Knob, Dual Timer WPL-B5005101
...
2
Knob K WPL-C2737001
...
3
Light Ind Kit WPL-R0157517
...
4
Disk WPL-C2732507
...
5
Timer, Clock WPL-D8553104
...
6
Switch- In WPL-R0702564
...
7
Stud Reciever WPL-M0270403
...
8
Cont Wire Harness WPL-D8568203
...
9
Usr 0041847 WPL-M0282402
...
10
Oven Thermostat Kit WPL-R0199311
...
11
Oven Selector Sw Kit WPL-R0199309
...
12
Screw WPL-M0200414
...
13
Tape Per Roll WPL-M0275163
...
14
Escutchen WPL-D8550702
...
15
Lens-Assy WPL-C2732804
...
16
Gasket, Lens WPL-D8554201
...
17
Gasket, Foam WPL-A3030339
...
18
Brkt-Mtg WPL-A4404801
...
19
Screw WPL-W11214483
...
20
Screw WPL-M0232702
...
22
Control Plate Pnt WPL-D8552802
...
23
Screw WPL-WP8281236

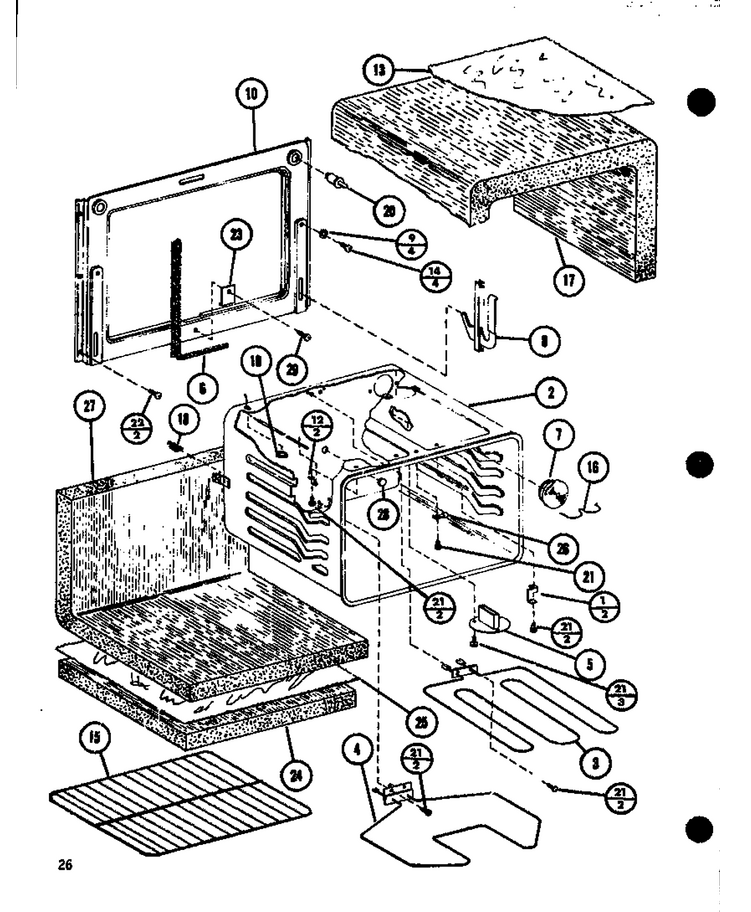

03 - Page 11

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity WPL-D8510503
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002602
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge WPL-R0156581
...
9
Washer Padded WPL-M0271202
...
10
Panel Front Cavity WPL-D8579002
...
12
Retainer-Thermo WPL-A4407801
...
13
Foil-Alum WPL-A4400603
...
14
Screw WPL-M0203342
...
15
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
16
Retainer-Lamp WPL-A4407001
...
17
Insulation, Top And Sides WPL-B5003002
...
18
Spring WPL-A4407101
...
19
Plug Button WPL-M0311101
...
20
Switch- Oven Door WPL-Y0316882
...
21
Screw WPL-M0217824
...
22
Screw WPL-M0217224
...
23
Retainer-Gasket K WPL-A4427901
...
24
Insulation K WPL-B5002301
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Insulation K WPL-B5002401
...
28
Plug WPL-M0311102
...
29
Screw WPL-W11233072

10 - Page 6

...
...
1
Duct Weld Pnt WPL-D7529510
...
2
Screw WPL-M0213815
...
3
Rivet WPL-WP210720
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795303
...
9
Gasket (Per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349002
...
14
Lock-Nut---K WPL-M0282801
...
15
Switch-Jack WPL-C8845401
...
16
Nut-Decorative WPL-A3275701
...
17
Oven Weld WPL-D7350516
...
18
Gasket Oven Cavity WPL-D7442201
...
19
Screw WPL-M0253504
...
20
Screw WPL-M0216516
...
21
Screw WPL-M0216519
...
22
Washer Retainer WPL-A1034901
...
23
Oven Tray WPL-R0156726
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
31
Gasket-Per Ft WPL-A3030329
...
32
Bracket-Blower WPL-C8910001
...
33
Screw WPL-M0202842
...
34
Washer WPL-M0272605
...
36
Air Chute Assy WPL-C8848601
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Wiring Harness WPL-D7447901
...
40
Bearing Cap WPL-B5792601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing-Antenna A WPL-B5783001
...
43
Washer WPL-M0274044
...
44
Bushing A WPL-C8838501
...
46
Assy, Antenna WPL-C8806701
...
47
Nut A WPL-M0281203
...
48
Assy, Antenna WPL-C8806701
...
49
Grease Shield WPL-D7544002
...
50
Tape, Foil 1.25 X 12`` WPL-74003472
...
51
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
52
Plate Back Up WPL-C8853401
...
53
Nut WPL-M0282009

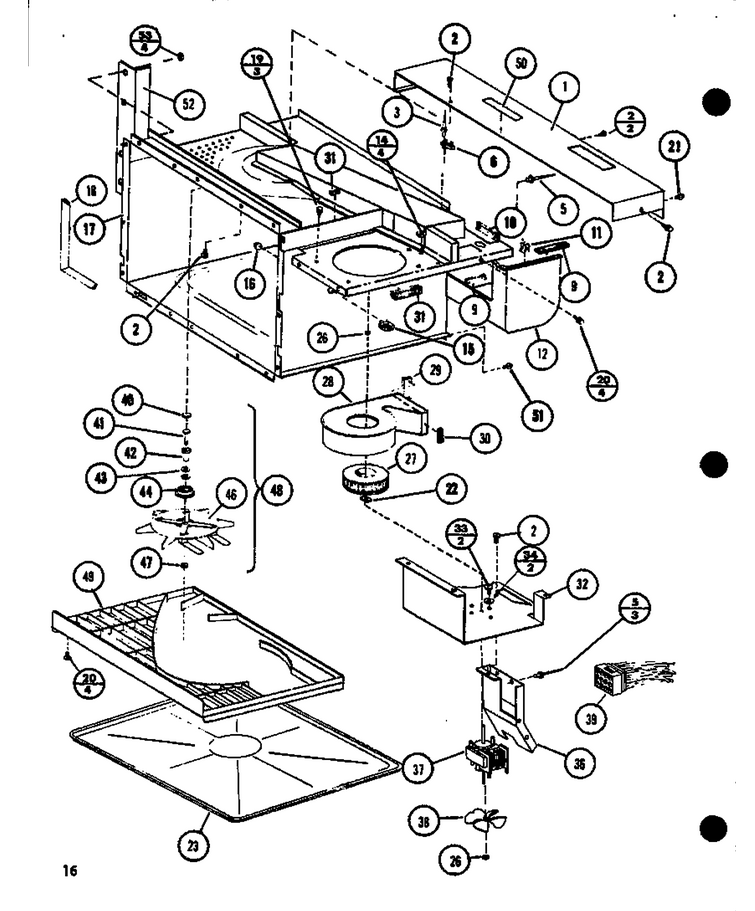

09 - Page 5

...
...
1
Lower Top Weld WPL-D8552701
...
2
Light Holder WPL-D8529903
...
3
Bushing (Blk) WPL-74009866
...
4
Rivet-Pop WPL-59002054
...
5
Socket-Oven Light WPL-B5691205
...
6
Bulb-Light WPL-WPA3167501
...
7
Gasket (Per Foot) WPL-10839706
...
8
Divider WPL-D8529602
...
9
Clip-Cable WPL-M0110505
...
10
Barrier-Thermostat WPL-B5020701
...
11
Shield Ptd WPL-A4423902
...
12
Gasket (Per Foot) WPL-A3030303
...
13
Yoke Pntd WPL-D7353124
...
14
Insulation Intlk Brk WPL-A1032302
...
15
Screw WPL-WP489349
...
16
Bumper WPL-A1511502
...
17
Screw WPL-WP488234
...
18
Screw WPL-M0220114
...
19
Bracket WPL-D7545101
...
20
Clip WPL-M0114901
...
21
Screw WPL-WP59002061
...
22
Door Catch WPL-C8889701
...
23
Door Guide,sleeve WPL-C8840402
...
24
Limit Switch WPL-B8306602
...
25
Screw K WPL-M0229005
...
26
Screw WPL-M0232702
...
27
Gasket-Per Ft WPL-A3030340
...
28
Screw A K WPL-M0211516
...
29
Switch, Limit WPL-C8842003
...
31
Screw WPL-M0227520
...
32
Nut K WPL-M0282005
...
33
Lever WPL-B8305701
...
34
Pin Bell-Crank WPL-A3182601
...
35
Gasket WPL-10839712
...
36
Pop Rivet WPL-A4539603
...
37
Panel Inner Back WPL-C2730502

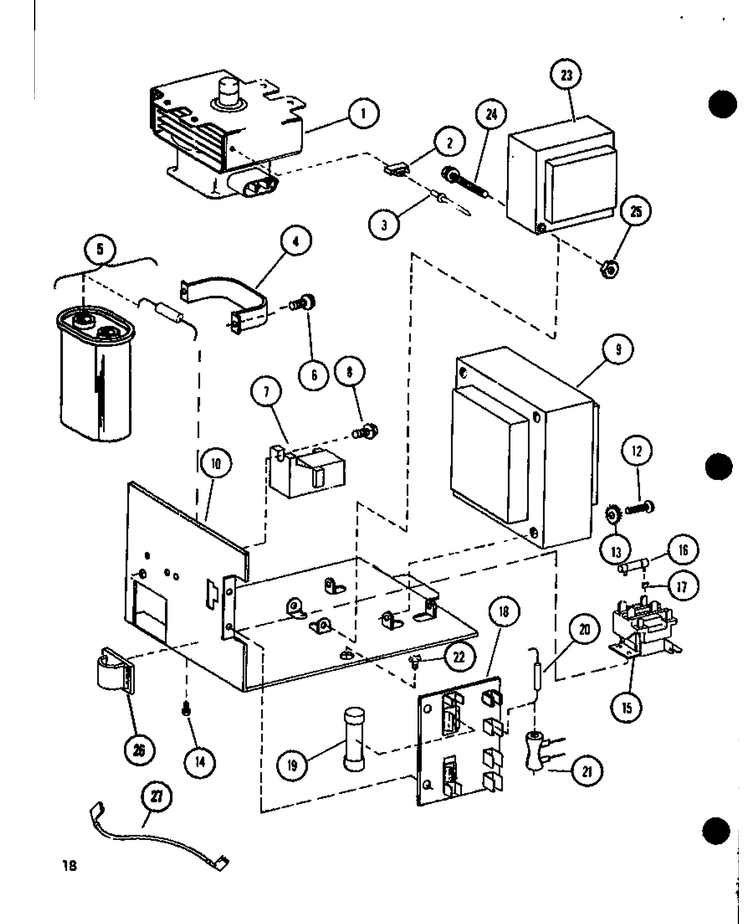

11 - Page 7

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-WP3388228
...
9
Transformer WPL-D7369203
...
10
Xfmr Mtg Plate WPL-D7442104
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
18
Terminal Board WPL-C8841603
...
19
Fuse-20a WPL-M0850507
...
20
Fuse WPL-M0038102
...
21
Resistor K WPL-M0308607
...
22
Sems Fastener WPL-YM0258229
...
23
Transformer-Filament WPL-C8807801
...
24
Screw WPL-M0253509
...
25
Nut K WPL-M0282005
...
27
Jumper Wire WPL-D7292655

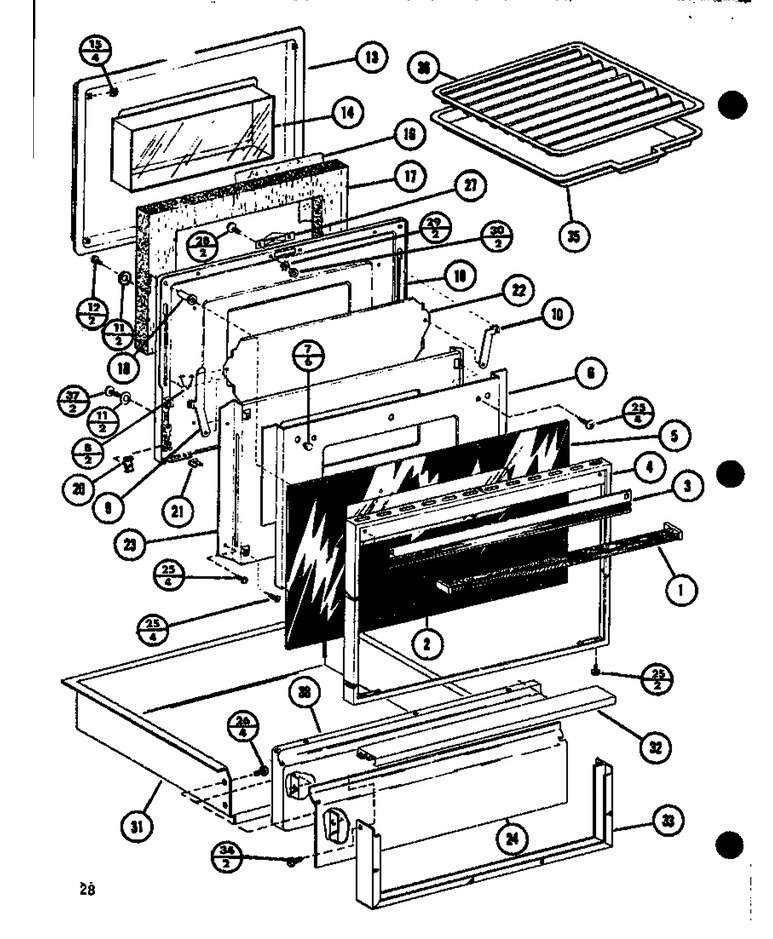

04 - Page 12

...
...
1
Handle WPL-C8958202
...
2
Pad, Handle WPL-A4406402
...
3
Ext Door Trim WPL-D8507802
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Glass Panel Kit WPL-D8507902
...
6
Heat Shield WPL-D8507601
...
7
Bumper-Glass WPL-A4406501
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Arm-Shutter Rh WPL-B5003901
...
11
Washer Padded WPL-M0271202
...
12
Screw WPL-M0203052
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation, Door Plug WPL-B5001101
...
18
Spacer WPL-A4406301
...
19
Inner Door Weld WPL-D8506903
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
24
Drawer Wld Brn K WPL-C2713803
...
25
Screw WPL-W11233072
...
26
Screw WPL-M0217224
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0203218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
31
Drawer Pan Pntd K WPL-C2713903
...
32
Handle, Drawer WPL-D8514301
...
33
Ext Drawer Ft K WPL-D8548101
...
34
Screw WPL-67001466
...
35
Procelain Broiler (Pan And Grid) WPL-4396923
...
36
Procelain Broiler (Pan And Grid) WPL-4396923
...
37
Screw WPL-M0205218
...
38
Wld Drawer-W K WPL-C2725202

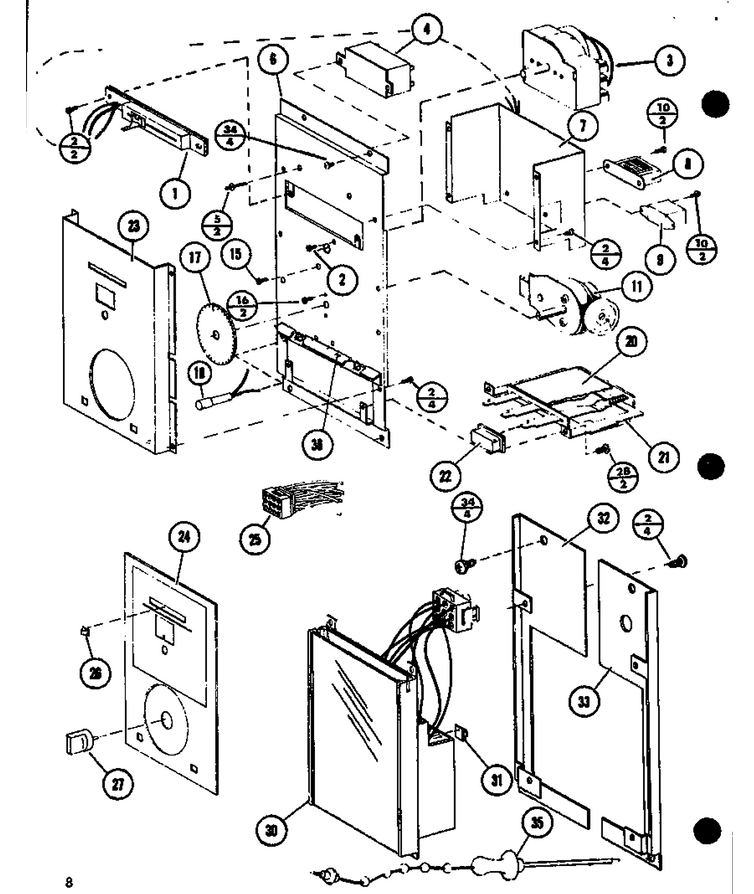

06 - Page 2

...
...
2
Screw WPL-M0213815
...
21
Switch Ssl K WPL-C8787802
...
22
Button (Stop) K WPL-C8743108
...
28
Screw WPL-M0234003
...
30
Sub 54678, Touchmatic Timer WPL-R163079A
...
31
Clip, Cord WPL-M0104102
...
32
Mounting Plate, Lh WPL-D7460601
...
33
Mounting Plate, Rh WPL-D7460602
...
34
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
35
Temp Probe WPL-C8821504

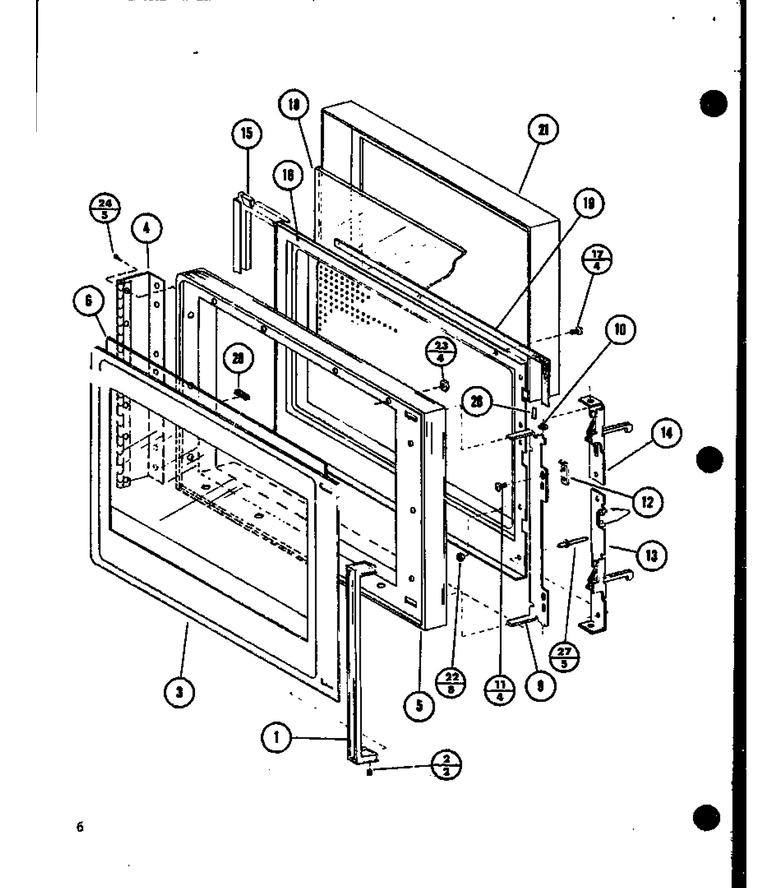

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8903601
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202516
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320007
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0259218
...
18
Inner Window A-K WPL-A3167901
...
19
Adhesive WPL-A1037301
...
21
Inner Door Mold Assy WPL-D7240304
...
22
Nut WPL-717488
...
23
Nut WPL-M0288806
...
24
Screw WPL-214597
...
27
Rivet-Pop WPL-59002054
...
28
Tape Per Roll WPL-M0275163
...
29
Gasket 1 WPL-10839714

08 - Page 4

...
...
NI
Louver Screen WPL-A4429101
...
1
Screw WPL-WP59002061
...
2
Panel Light Switch WPL-D8531104
...
3
Grille WPL-C2726101
...
4
Screw WPL-M0254518
...
5
Screw WPL-M0211532
...
6
Switch-Oven Light WPL-B5009903
...
7
Top Cover-W- WPL-D8530106
...
8
Screw WPL-M0217224
...
9
Panel, Upper Rear WPL-D8530602
...
11
Receptacle WPL-A4416701
...
12
Cover WPL-A4430101
...
13
Rivet-Pop WPL-59002054
...
14
Side Pnl G WPL-D8530504
...
15
Trim Post R.h WPL-C2715703
...
16
Screw WPL-67001466
...
17
Reflector Plt Pnt WPL-D8529304
...
18
Socket WPL-C2722712
...
19
Lamp-Fluor WPL-WP95292
...
20
Screw WPL-M0201414
...
21
Glass-Splash WPL-D8531604
...
22
Angle Ptd WPL-D8532502
...
23
Trim-Lower Glass WPL-B5013201
...
24
Escut Back Splash WPL-D8533202
...
25
Terminal Block WPL-B5014101
...
26
Screw WPL-M0234426
...
27
Ballast WPL-74003033
...
28
Screw WPL-WP488234
...
29
Gasket (Per Foot) WPL-10839706
...
30
Screw WPL-WP59002061
...
31
Base Frame Weld WPL-D8531503
...
32
Screw WPL-WP59002061
...
33
Filter Pan Weld-Pntd WPL-D8531705
...
34
Brkt-Module Mtg WPL-A4414001
...
35
Screw WPL-M0232723
...
36
Trim-Lh WPL-D8529804
...
37
Screw WPL-M0213145
...
38
Clip WPL-M0110503
...
39
Seal K WPL-B5738501
...
40
Bumper WPL-A1511501
...
41
Pad Starter WPL-B8336801
...
42
Bracket WPL-M0293201
...
43
Extension Crn Post WPL-D8528708
...
44
Starter, Flourescent WPL-A1028001
...
45
Angle Yoke WPL-A4428901
...
46
Shield, Vision WPL-A4424402
...
47
Edge Liner-Ft WPL-M0293001
...
48
Screw WPL-WP59002061

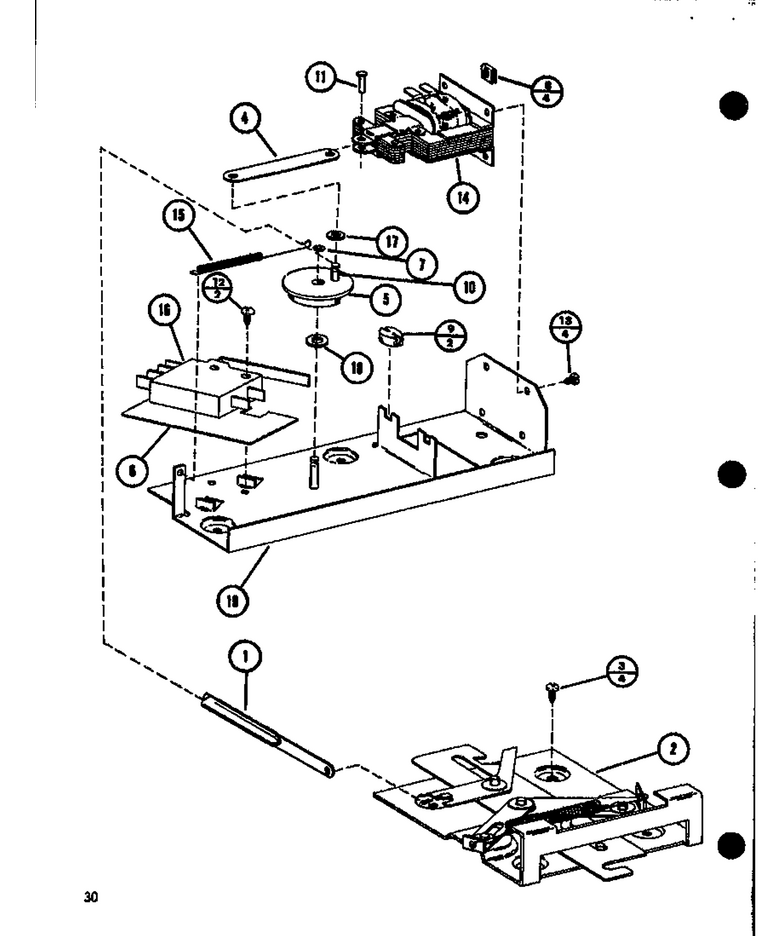

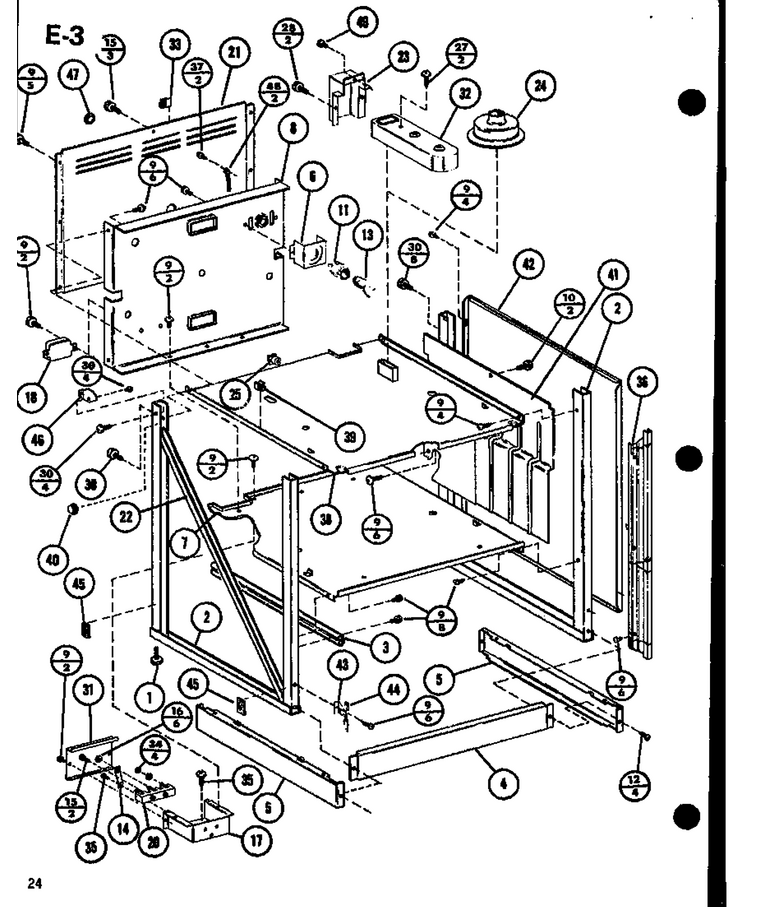

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
