Amana RCR-7 (BOM: P8551501S)

Model: RCR-7 (BOM: P8551501S)

Save Part Not Listed?
product name

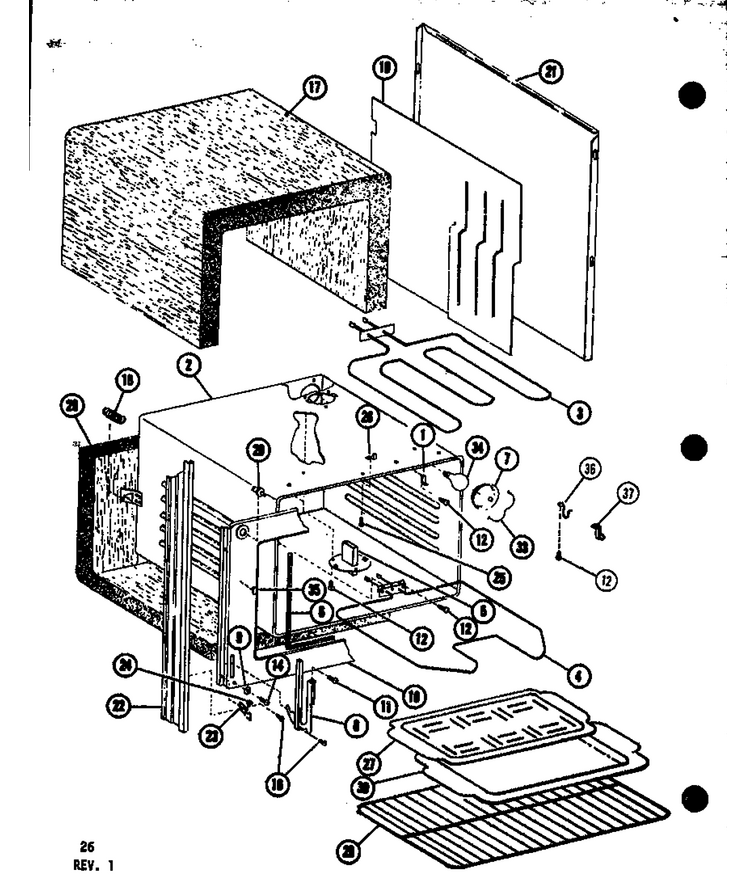

03 - Page 11

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity, Weldment WPL-D8510501
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002601
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge Assy WPL-D8509901
...
9
Washer, Padder WPL-M0271201
...
10
Front Cav Panel Kit WPL-D8509801
...
11
Screw-Adj WPL-M0202232
...
12
Screw WPL-M0217824
...
14
Screw WPL-M0203342
...
16
Screw WPL-M0217224
...
17
Insulation K WPL-B5003001
...
18
Spring WPL-A4407101
...
19
Retainer-Insul R WPL-D8506701
...
20
Switch- Oven Door WPL-Y0316882
...
21
Side Panel W K WPL-D8501110
...
22
Trim WPL-D8509301
...
23
Brkt-Side Pnl Lh WPL-B5010202
...
24
Bumper WPL-A4401502
...
25
Screw WPL-M0217824
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Procelain Broiler (Pan And Grid) WPL-4396923
...
28
Insulation K WPL-B5002401
...
29
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
30
Procelain Broiler (Pan And Grid) WPL-4396923
...
33
Retainer-Lamp WPL-A4407001
...
34
Light Bulb WPL-8009
...
35
Bumper WPL-A4402201
...
36
Retainer-Bulb WPL-A4407201
...
37
Retainer-Thermo WPL-A4407801

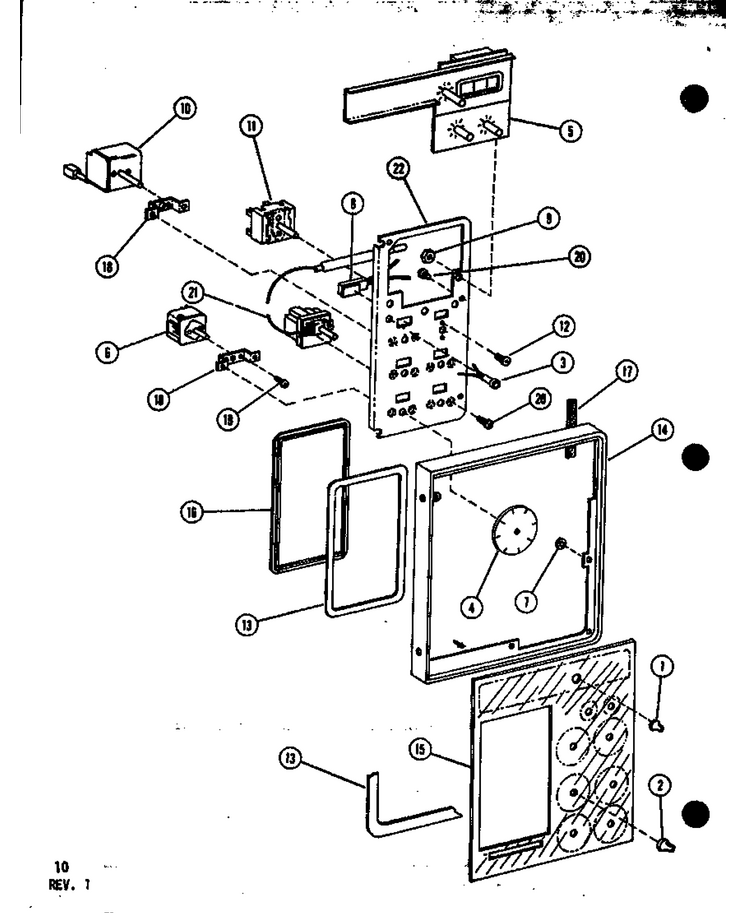

06 - Page 3

...
...
NI
Bracket, Therm WPL-B5029301
...
1
Knob, Dual Timer WPL-B5005101
...
2
Knob K WPL-C2737001
...
3
Pilot Light WPL-C2726301
...
4
Control, Disc Assembly, Propor WPL-C2732502
...
5
Timer Kit WPL-D8553101
...
6
Switch- In WPL-R0702564
...
7
Speednut WPL-M0120301
...
8
Harness Pilot Light WPL-B5010302
...
9
Usr 0041847 WPL-M0282402
...
10
Thermostat Oven WPL-D8557501
...
11
Switch WPL-C2723601
...
12
Screw WPL-M0200414
...
13
Tape Per Roll WPL-M0275163
...
14
Trim, Control Panel WPL-D8550701
...
15
Lens, Control Panel WPL-C2732801
...
16
Gasket, Lens WPL-D8554201
...
17
Gasket, Foam WPL-A3030339
...
18
Brkt-Mtg WPL-A4404801
...
19
Screw WPL-W11214483
...
20
Screw WPL-M0232702
...
22
Plate Control, Mtg WPL-D8552801

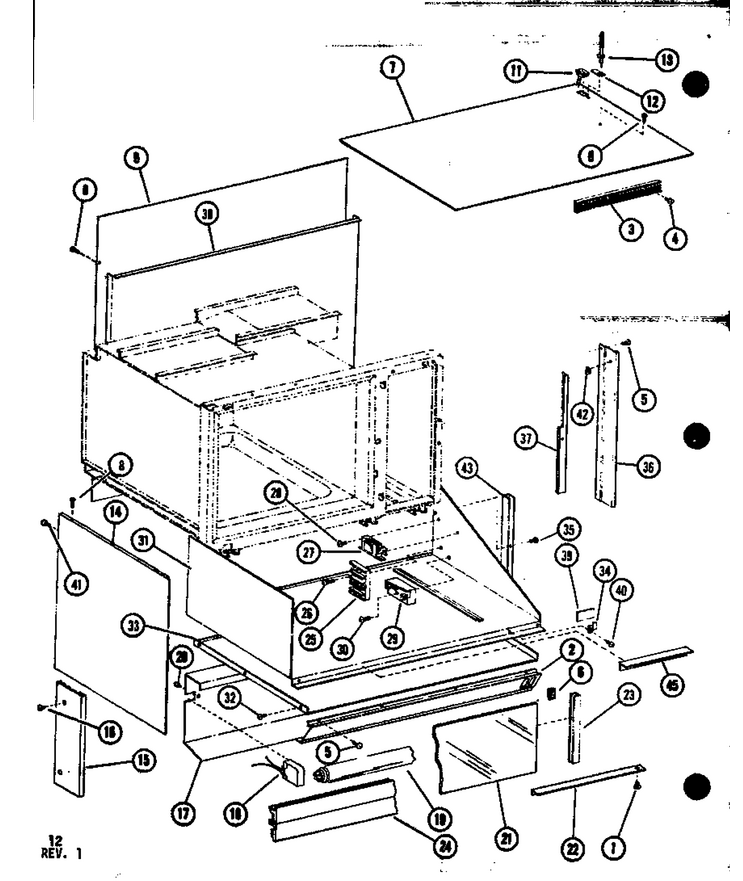

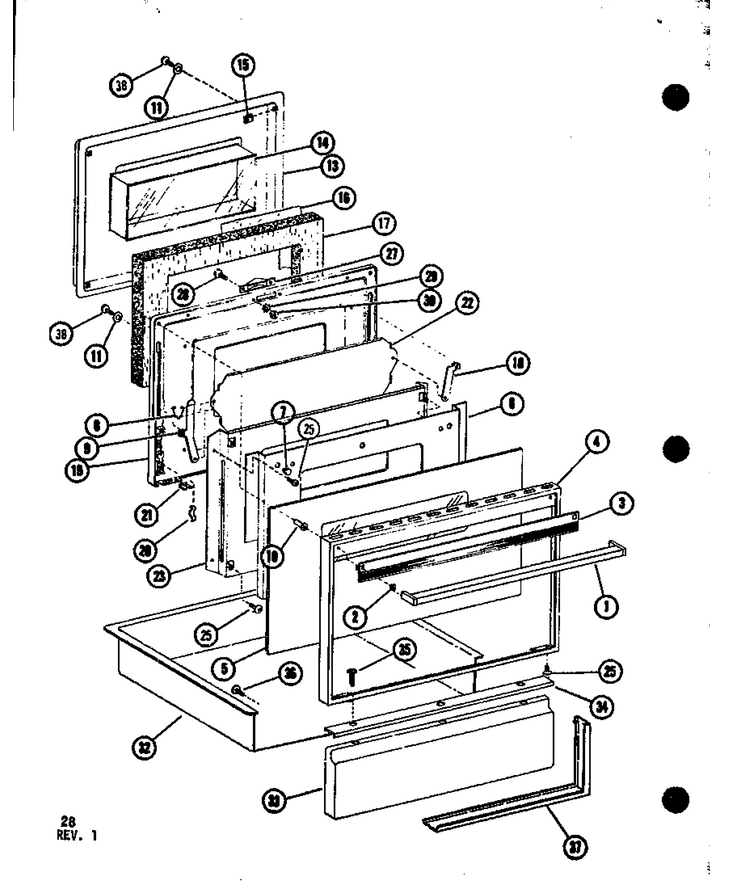

04 - Page 12

...
...
1
Handle WPL-C8958202
...
2
Pad, Handle WPL-A4406402
...
3
Ext Door Trim WPL-D8507802
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Glass Panel Kit WPL-D8507902
...
6
Heat Shield WPL-D8507601
...
7
Bumper-Glass WPL-A4406501
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Spacer WPL-A4406301
...
11
Washer, Padder WPL-M0271201
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation, Door Plug WPL-B5001101
...
18
Arm-Shutter Rh WPL-B5003901
...
19
Inner Panel WPL-D8506901
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
25
Screw WPL-W11233072
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0203218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
32
Storage Drawer, Metal WPL-C2713902
...
33
Wld Drawer-W K WPL-C2725202
...
34
Handle, Drawer WPL-D8514301
...
35
Screw WPL-67001466
...
36
Screw WPL-M0217224
...
38
Screw WPL-M0203051

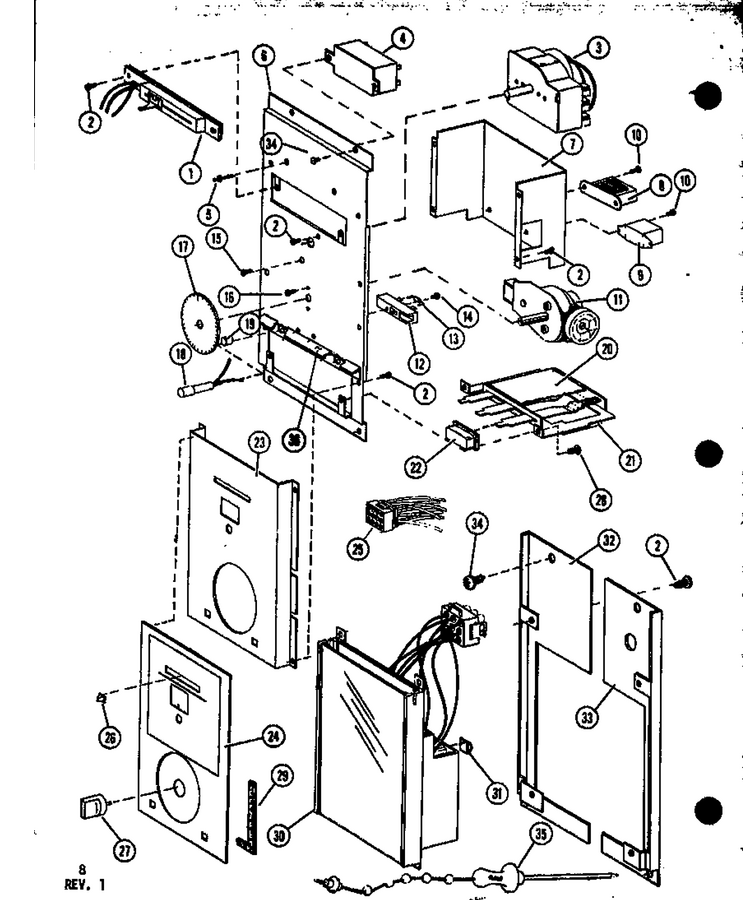

05 - Page 2

...
...
1
Slide, Temperature Control WPL-C8846801
...
2
Screw WPL-M0213815
...
3
Timer Percent A WPL-C8843701
...
4
Relay WPL-B5773501
...
5
Rivet-Pop WPL-A4539638
...
6
Plate WPL-D7440701
...
7
Temp Contr Assy WPL-C8843606
...
8
Transformer WPL-C8845602
...
9
Kit, Relay WPL-C8845501
...
10
Screw WPL-WP59002061
...
11
Timer WPL-C8791705
...
12
Terminal Block WPL-B5677205
...
13
Resistor WPL-M0305205
...
14
Screw, No.6x18x1/4 (3) WPL-487010
...
15
Screw WPL-8169474
...
16
Screw WPL-M0234402
...
17
Disk, Timer WPL-C8730415
...
18
Indicator Light WPL-B5020003
...
19
Spacer WPL-A4422102
...
20
Insulator Bd A WPL-A1024501
...
21
Switch Ssl K WPL-C8787802
...
22
Button (Start) K WPL-C8743107
...
23
Sub Plate WPL-D7467501
...
24
Lens Timer WPL-C8860002
...
25
Wiring Harness, Cont WPL-D7478401
...
26
Knob WPL-B5776201
...
27
Knob WPL-C8735901
...
28
Screw WPL-M0234003
...
34
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
35
Temp Probe WPL-C8821504

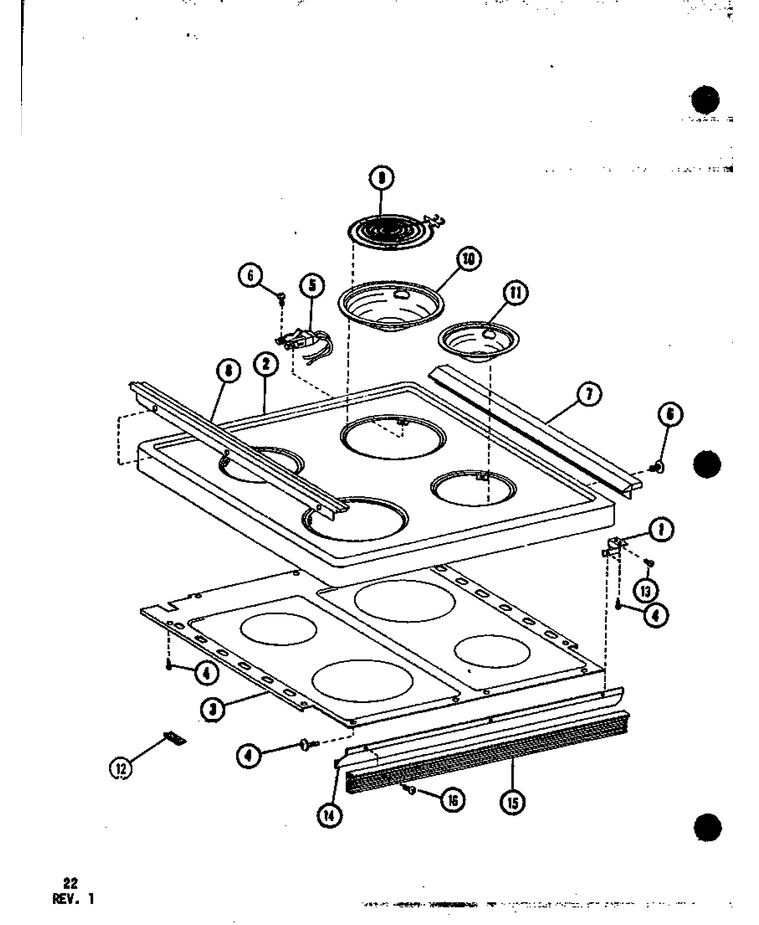

11 - Page 9

...
...
1
Brkt-Front WPL-C2709001
...
2
Top-Range C WPL-D8520102
...
3
Drip Pan WPL-D8520202
...
4
Screw WPL-M0217224
...
5
Receptacle WPL-330031
...
6
Screw WPL-M0232702
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WP3191454
...
10
Bowl-Drip WPL-WPW10196405
...
11
Bowl-Drip WPL-WPW10196406
...
12
Gasket WPL-B5718912
...
13
Screw WPL-M0217224
...
14
Guard WPL-C2706101
...
15
Grille WPL-D8509402
...
16
Screw WPL-M0254518

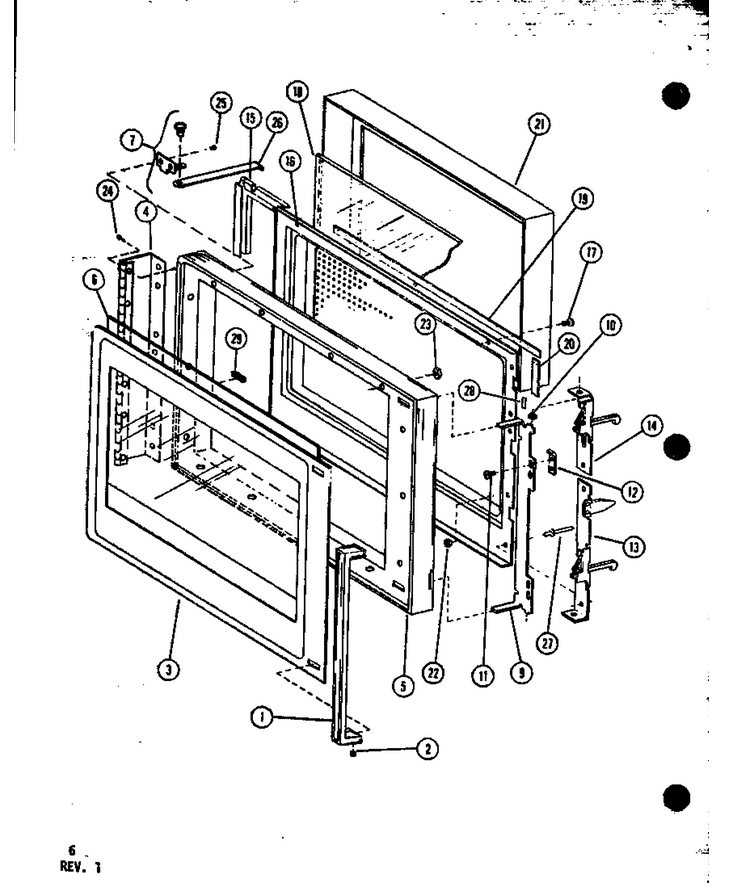

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8853001
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
7
Arm Door Stop Assy WPL-R0189027
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320006
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0258518
...
18
Inner Window A-K WPL-A3167901
...
19
Gasket Window A-K WPL-A3264601
...
20
Gasket Window A-K WPL-A3264602
...
21
Inner Door Mold Assy WPL-D7240301
...
22
Nut WPL-717488
...
23
Nut WPL-M0288806
...
24
Screw WPL-214597
...
25
Screw WPL-M0232702
...
26
Arm, Door Stop WPL-A3211408
...
27
Rivet-Pop WPL-59002054
...
28
Tape Per Roll WPL-M0275163
...
29
Gasket 1 WPL-10839714

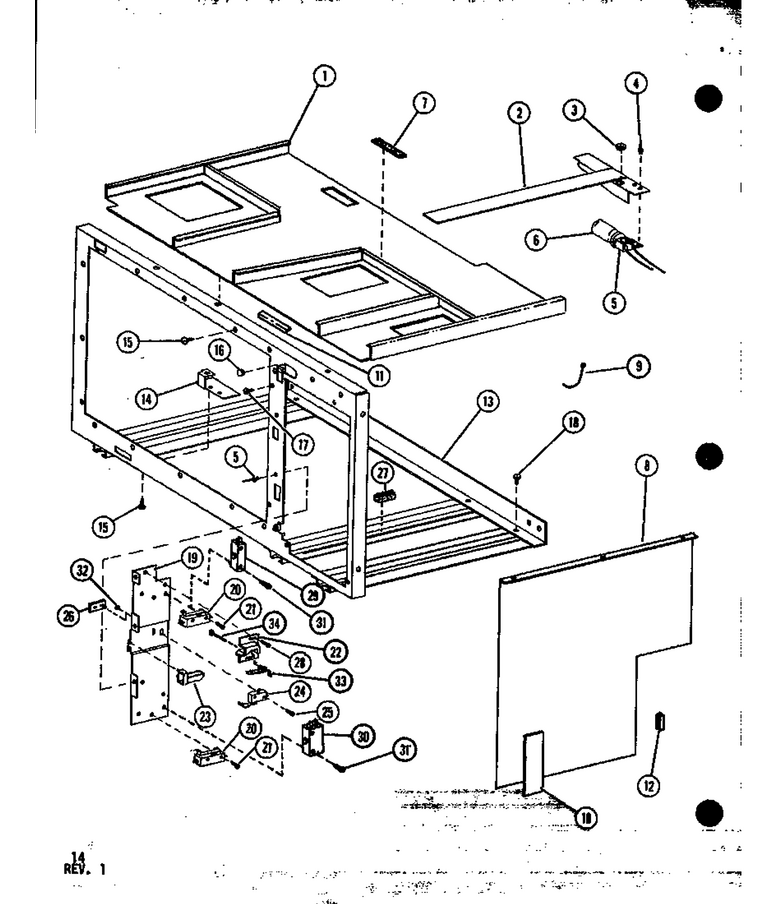

08 - Page 5

...
...
1
Lower Top Weld WPL-D8552701
...
2
Light Holder WPL-D8529903
...
3
Snap, Bushing WPL-A4554803
...
4
Rivet-Pop WPL-59002054
...
5
Socket-Oven Light WPL-B5691205
...
6
Bulb-Light WPL-WPA3167501
...
7
Gasket (Per Foot) WPL-10839706
...
8
Divider WPL-D8529602
...
9
Tie-Wire WPL-WPW10339879
...
10
Barrier-Thermostat WPL-B5020701
...
11
Shield Ptd WPL-A4423902
...
12
Gasket (Per Foot) WPL-A3030303
...
13
Yoke Pntd WPL-D7353114
...
14
Bracket WPL-B8316401
...
15
Screw WPL-WP489349
...
16
Bumper WPL-A1511502
...
17
Screw WPL-WP488234
...
18
Screw WPL-M0220114
...
19
Bracket, Switch Mounting WPL-D7446101
...
20
Limit Switch WPL-C2724308
...
21
Screw WPL-M0227520
...
22
Door Catch WPL-B8316501
...
23
Sleeve, Door Guide WPL-C8840401
...
24
Limit Switch WPL-B8306602
...
25
Screw K WPL-M0229005
...
26
Nut A WPL-M0289504
...
27
Gasket-Per Ft WPL-A3030340
...
28
Screw A K WPL-M0211516

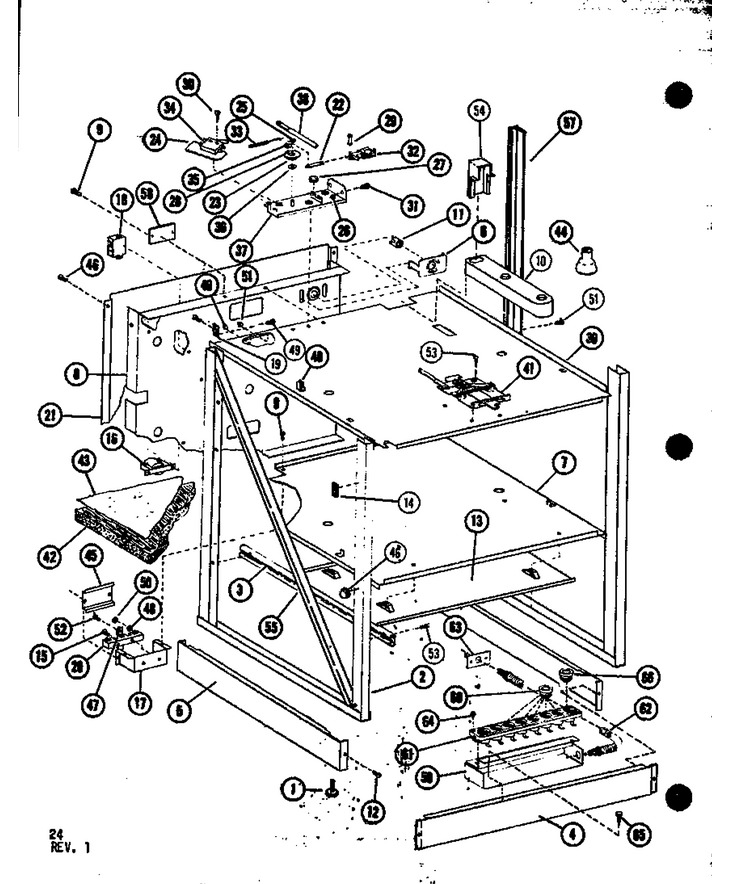

02 - Page 10

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504105
...
3
Glide WPL-C2705301
...
4
Panel, Kick Front WPL-C2706702
...
5
Kick Plate WPL-C2706602
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
9
Screw WPL-M0217224
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-M0232723
...
13
Heat Shield WPL-C2706801
...
14
Gasket WPL-B5718912
...
15
Screw WPL-M0213145
...
16
Ballast WPL-74003033
...
17
Brkt-Term Block WPL-C2705001
...
18
Relay, Oven WPL-Y0091669
...
19
Bracket-Top WPL-A4416102
...
20
Block-Term WPL-WP8203546
...
21
Lwr Lead Cover Kit WPL-R0199214
...
22
Arm-Actuator WPL-A4405801
...
23
Cam, Lock Solenoid WPL-B5004201
...
24
Insulator-Switch WPL-A4405601
...
25
Speed Nut A- K WPL-M0287901
...
26
Clip WPL-M0119701
...
27
Pad WPL-A4405901
...
28
Pin-Grooved WPL-A4405701
...
29
Pop Rivet WPL-M0010212
...
30
Screw WPL-M0227520
...
31
Screw WPL-WP74004005
...
32
Solenoid, Lock WPL-Y0306856
...
33
Spring, Solenoid WPL-Y0306846
...
34
Switch, Limit WPL-B5004401
...
35
Washer WPL-M0270501
...
36
Washer WPL-M0270515
...
37
Assy, Latch Solenoid WPL-C2705401
...
38
Arm WPL-B5004501
...
39
Retainer WPL-D8506201
...
40
Clip WPL-M0110503
...
41
Assy, Door Latch (10442001) WPL-D8508301
...
42
Insulation K WPL-B5002301
...
43
Foil Aluminum K WPL-A4400601
...
44
Tube-Oven Vent WPL-B5012301
...
45
Cover WPL-B5003501
...
46
Bumper WPL-A1511501
...
47
Strap-Grd WPL-A4406901
...
48
Usr 0041847 WPL-M0282402
...
49
Screw WPL-WP1163839
...
50
Washer WPL-M0270001
...
51
Screw WPL-W11233072
...
52
Screw WPL-M0227804
...
53
Screw WPL-M0217224
...
55
Stiffener WPL-D8530901
...
57
Ext Corner Post WPL-D8528703

07 - Page 4

...
...
NI
Screw WPL-W11233072
...
1
Screw WPL-WP59002061
...
2
Panel Light Switch WPL-D8531104
...
3
Grille WPL-C2726101
...
4
Screw WPL-M0254518
...
5
Screw A K WPL-M0211516
...
6
Light Switch, Fluorescent WPL-B5009904
...
7
Upper Cover C WPL-D8530102
...
8
Screw WPL-M0217224
...
9
Panel, Upper Rear WPL-D8530602
...
11
Receptacle WPL-A4416701
...
12
Cover WPL-A4430101
...
13
Rivet-Pop WPL-59002054
...
14
Side Pnl A WPL-D8530503
...
15
Trim Post R.h WPL-C2715703
...
16
Screw WPL-67001466
...
17
Reflector Plateptd WPL-D8529302
...
18
Socket-Fl Bulb WPL-B5009605
...
19
Lamp-Fluor WPL-WP95292
...
20
Screw WPL-M0201414
...
21
Glass-Splash WPL-D8531604
...
22
Angle Ptd WPL-D8532502
...
23
Trim-Lower Glass WPL-B5013201
...
24
Escut Back Splash WPL-D8533202
...
25
Terminal Block WPL-B5014101
...
26
Screw WPL-WP59002061
...
27
Ballast WPL-74003033
...
28
Screw WPL-WP488234
...
29
Pulser WPL-B5010101
...
30
Screw-Shoulder WPL-A3214906
...
31
Base Frame WPL-D8531501
...
32
Screw WPL-WP59002061
...
33
Filter Pan W-Pnt WPL-D8531703
...
34
Brkt-Module Mtg WPL-A4414001
...
35
Screw WPL-M0232723
...
36
Trim, End WPL-D8553401
...
37
Shield Ptd WPL-B5013704
...
38
Panel, Inner Back WPL-C2730501
...
39
Seal K WPL-B5738501
...
40
Screw WPL-WP3390631
...
41
Screw WPL-M0213931
...
42
Bracket WPL-M0293201
...
43
Ext Corner Post WPL-D8528703

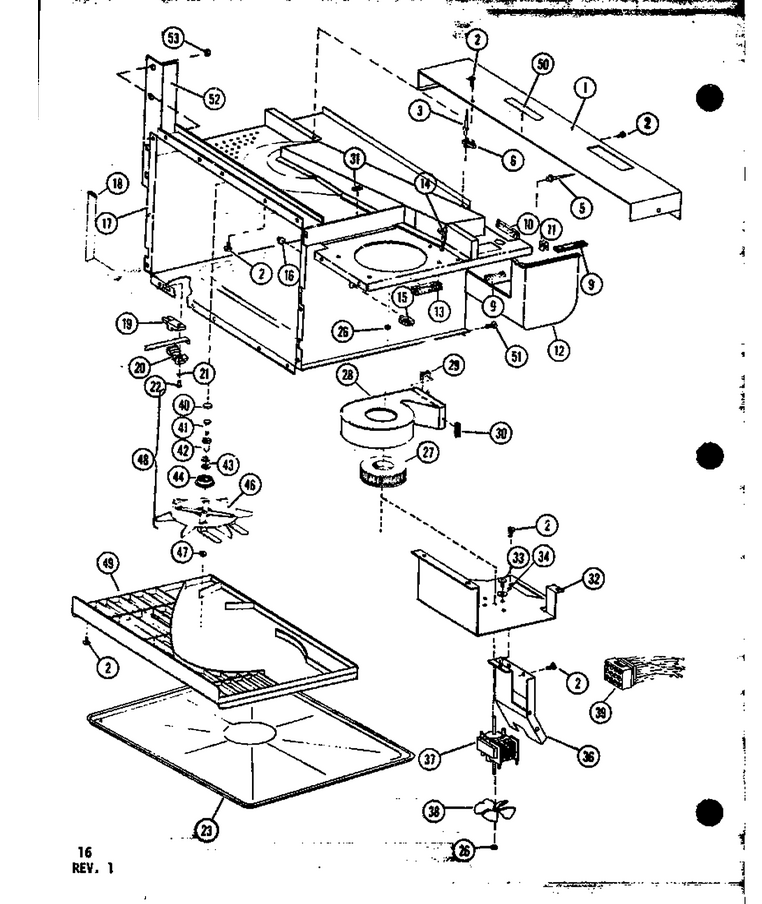

09 - Page 6

...
...
1
Duct Back Weld WPL-C8847202
...
2
Screw WPL-M0213815
...
3
Rivet WPL-WP210720
...
5
Rivet-Pop WPL-59002054
...
6
Fuse, Thermal WPL-B5795303
...
9
Gasket (Per Foot) WPL-10839706
...
10
Gasket-Per Ft WPL-A3030331
...
11
Clip WPL-M0288213
...
12
Magnetron Cover WPL-D7349002
...
13
Gasket 1/2 By 3/8 WPL-10839716
...
14
Lock-Nut---K WPL-M0282801
...
15
Switch-Jack WPL-C8845401
...
16
Nut-Decorative WPL-A3275701
...
17
Oven Weld WPL-D7350516
...
18
Gasket Oven Cavity WPL-D7442201
...
19
Bushing WPL-C3696902
...
20
Bushing WPL-C3696903
...
21
Clip,hairpin WPL-A3171501
...
22
Pin-Door Stop WPL-A3222601
...
23
Oven Tray WPL-R0156726
...
26
Nut WPL-WP3195558
...
27
Blower Wheel WPL-C8847001
...
28
Blower, Scroll WPL-C8849201
...
29
Gasket-Cavity Top WPL-10839709
...
30
Gasket-Per Ft WPL-A3030314
...
31
Gasket-Per Ft WPL-A3030329
...
32
Bracket WPL-C8847301
...
33
Screw WPL-M0202842
...
34
Washer WPL-M0272605
...
36
Air Chute Assy WPL-C8848601
...
37
Motor WPL-C8793203
...
38
Fan Blade WPL-B5706701
...
39
Harness, Chassis WPL-D7477801
...
40
Bearing Cap WPL-B5792601
...
41
Stub-Antenna A WPL-B5783101
...
42
Bearing-Antenna A WPL-B5783001
...
43
Washer WPL-M0274044
...
44
Bushing A WPL-C8838501
...
46
Assy, Antenna WPL-C8806701
...
47
Nut A WPL-M0281203
...
48
Assy, Antenna WPL-C8806701
...
49
Grease Shield WPL-D7544002
...
50
Tape Alum WPL-M0275166
...
51
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
52
Plate Back Up WPL-C8853401
...
53
Nut WPL-M0282009

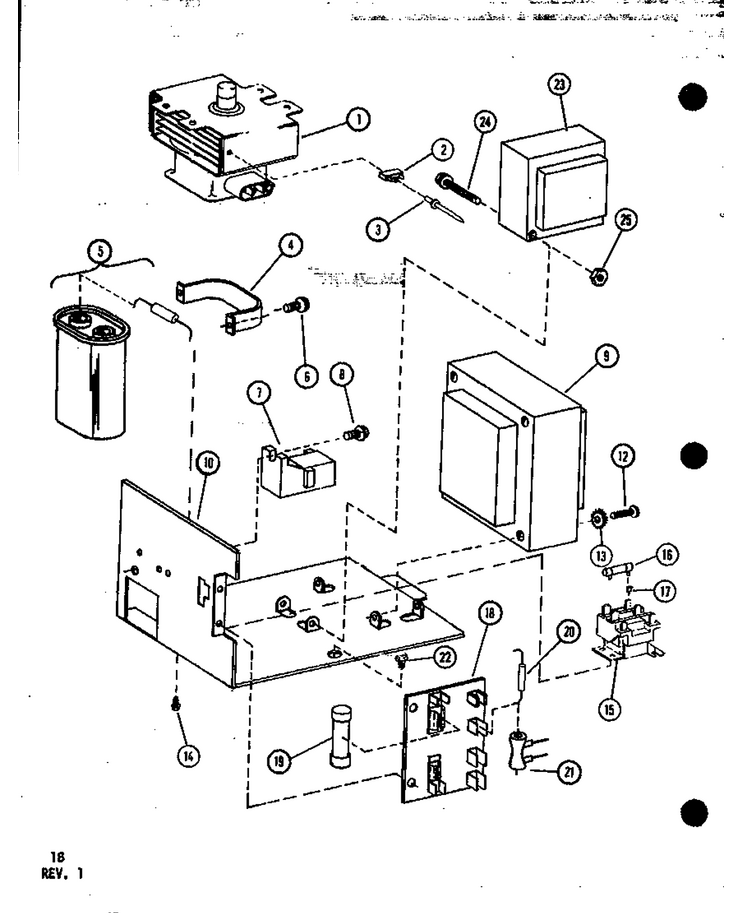

10 - Page 7

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet-Pop WPL-59002054
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Screw WPL-M0241203
...
9
Transformer WPL-D7391401
...
10
Plate-Trans Mtg WPL-D7442102
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
14
Screw WPL-M0253916
...
15
Relay A WPL-C3656303
...
16
Resistor, Relay A WPL-M0305007
...
17
Terminal Pb A WPL-M0320704
...
18
Terminal Board WPL-C8841603
...
19
Fuse-20a WPL-M0850507
...
20
Fuse WPL-M0308110
...
21
Resistor A WPL-M0308601
...
22
Sems Fastener WPL-YM0258229
...
23
Transformer-Filament WPL-C8807801
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
