Amana RCR-5 (BOM: P8231902S)

Model: RCR-5 (BOM: P8231902S)

Save Part Not Listed?
product name

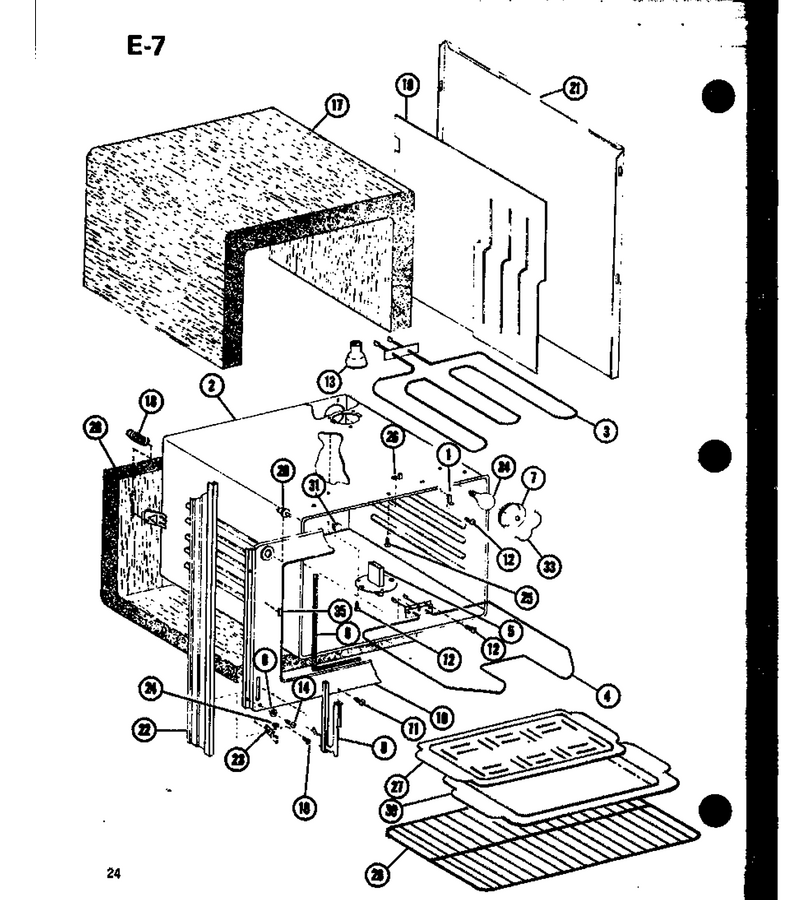

03 - Page 11

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity, Weldment WPL-D8510501
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002601
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge Assy WPL-D8509901
...
9
Washer, Padder WPL-M0271201
...
10
Front Cav Panel Kit WPL-D8509801
...
11
Screw-Adj WPL-M0202232
...
12
Screw WPL-M0227929
...
13
Tube-Oven Vent WPL-B5012301
...
14
Screw WPL-M0203342
...
16
Screw WPL-W11233072
...
17
Insulation K WPL-B5003001
...
18
Spring WPL-A4407101
...
19
Retainer-Insul R WPL-D8506701
...
20
Switch- Oven Door WPL-Y0316882
...
21
Side Panel-Al WPL-D8501109
...
22
Trim WPL-D8509301
...
23
Brkt-Side Pnl Lh WPL-B5010202
...
24
Bumper WPL-A4401502
...
25
Screw WPL-WP98165
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Procelain Broiler (Pan And Grid) WPL-4396923
...
28
Insulation K WPL-B5002401
...
29
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
30
Procelain Broiler (Pan And Grid) WPL-4396923
...
31
Plug K WPL-M0311103
...
33
Retainer-Lamp WPL-A4407001
...
34
Light Bulb WPL-8009
...
35
Bumper WPL-A4402201

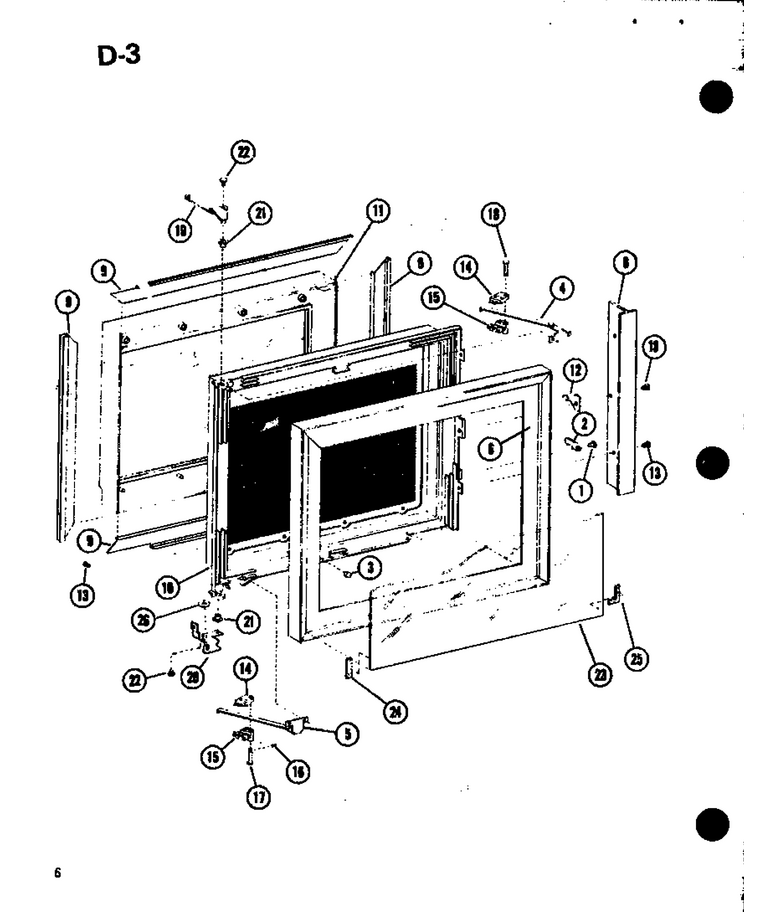

05 - Page 2

...
...
1
Pin, Countersunk, Latch WPL-A3183902
...
2
Latch, Door WPL-A3183001
...
3
Push Nut WPL-M0285401
...
4
Door Stop WPL-B5724404
...
5
Door Stop Assy WPL-B5724401
...
6
Extrusion-Door WPL-D7388201
...
8
Handle WPL-C8713403
...
9
Tape Per Roll WPL-M0275163
...
10
Inner Door Wldmt WPL-D7213701
...
11
Inner Door Mold Assy WPL-D7250301
...
12
Door Latch WPL-B5710801
...
13
Screw WPL-214597
...
14
Bushing WPL-C3696902
...
15
Bushing WPL-C3696903
...
16
Clip,hairpin WPL-A3171501
...
17
Pin-Door Stop WPL-A3222601
...
18
Pin-Door Stop WPL-A3211102
...
19
Hinge-Bottom WPL-C8763702
...
20
Hinge, Bottom WPL-C8803501
...
21
Bushing-Hinge WPL-B5721701
...
22
Screw WPL-M0258001
...
23
Glass-Door WPL-C8756101
...
24
Gasket-Per Ft WPL-A30303-35
...
25
Gasket-Per Ea WPL-A30303-36
...
26
Washer Non-Metal WPL-M0274032

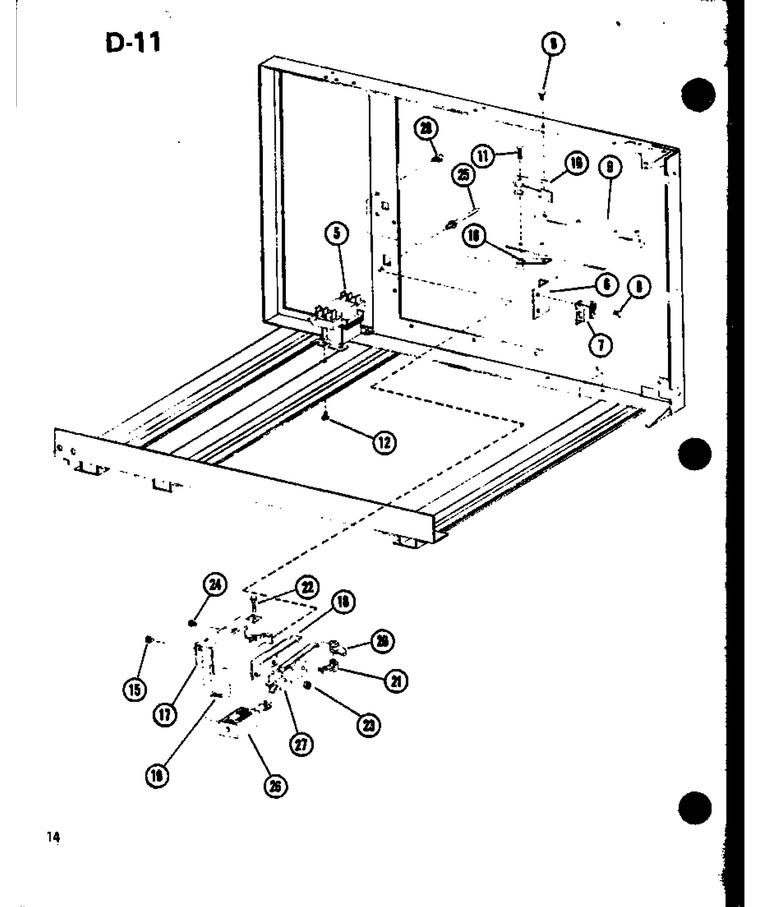

09 - Page 6

...
...
5
Relay A WPL-C3656303
...
6
Bracket WPL-A3222702
...
7
Catch, Door WPL-A3232302
...
8
Screw WPL-WP59002061
...
9
Bracket, Switch WPL-C8805501
...
10
Switch Wld WPL-B8304401
...
11
Screw WPL-M0227520
...
12
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
15
Screw A K WPL-M0211516
...
16
Speed Nut WPL-M0289502
...
17
Bracket Latch K WPL-C8782402
...
18
Latch Spring WPL-B5769001
...
19
Screw WPL-M0227520
...
20
Bell Crank WPL-B5672502
...
21
Bell Crank WPL-B5672503
...
22
Pin-Bell Crank WPL-A3182602
...
23
Nut K WPL-M0282005
...
24
Screw WPL-M0203014
...
25
Rivet-Pop WPL-59002054
...
26
Solenoid, Door Locking WPL-B5682103
...
27
Switch Preform A WPL-A3163412
...
28
Screw WPL-M0230015

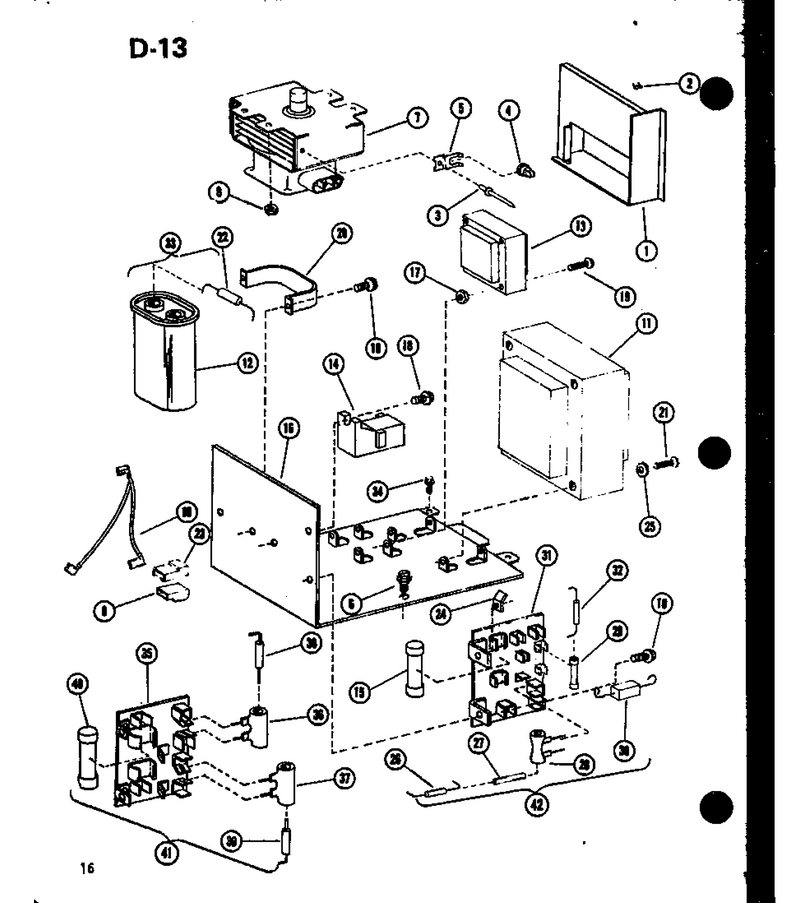

10 - Page 7

...
...
1
Air Duct Wld WPL-C8802401
...
2
Clip WPL-M0113501
...
3
Rivet-Pop WPL-59002054
...
4
Thermal Cut Out WPL-B5665810
...
5
Clip WPL-B5725102
...
6
Sems Fastener WPL-YM0258229
...
7
Magnetron WPL-10794402
...
8
Nut WPL-WP488130
...
9
Insulator, Pod K WPL-M0325501
...
10
Jumper Wire WPL-D7292652
...
11
Transformer WPL-D7369202
...
12
Capacitor Assy WPL-R0160021
...
13
Transformer Filament WPL-C8788005
...
14
Kit, Diode WPL-M3D71
...
15
Fuse-20a WPL-M0850507
...
16
Mtg Plate WPL-D7419701
...
17
Nut K WPL-M0282005
...
18
Screw WPL-WP489349
...
19
Screw WPL-M0254409
...
20
Bracket WPL-A3184702
...
21
Screw WPL-M0254452
...
22
Resistor A WPL-M0305202
...
23
Insulator, Term. K WPL-M0325301
...
24
Terminal WPL-M0320901
...
25
Lock Washer WPL-M0272805
...
26
Fuse WPL-M0308110
...
27
Sleeve WPL-M0321701
...
28
Resistor A WPL-M0305009
...
29
Resistor Fuse Kit WPL-R0157332
...
30
Resistor WPL-M0305204
...
31
Terminal Board WPL-C8758401
...
32
Fuse WPL-M0308101
...
33
Capacitor Assy WPL-R0160021
...
34
Screw WPL-M0253916
...
35
Terminal Board WPL-C8841601
...
36
Resistor A WPL-M0305009
...
37
Resistor WPL-M0308605
...
38
Fuse WPL-M0308110
...
39
Fuse Resistor K WPL-M0308109
...
40
Fuse-20a WPL-M0850507
...
41
See Note Late Production Assembly, Refer To Product WPL-Y00000000
...
42
See Note Early Production Assembly, Refer To Product WPL-Y00000000

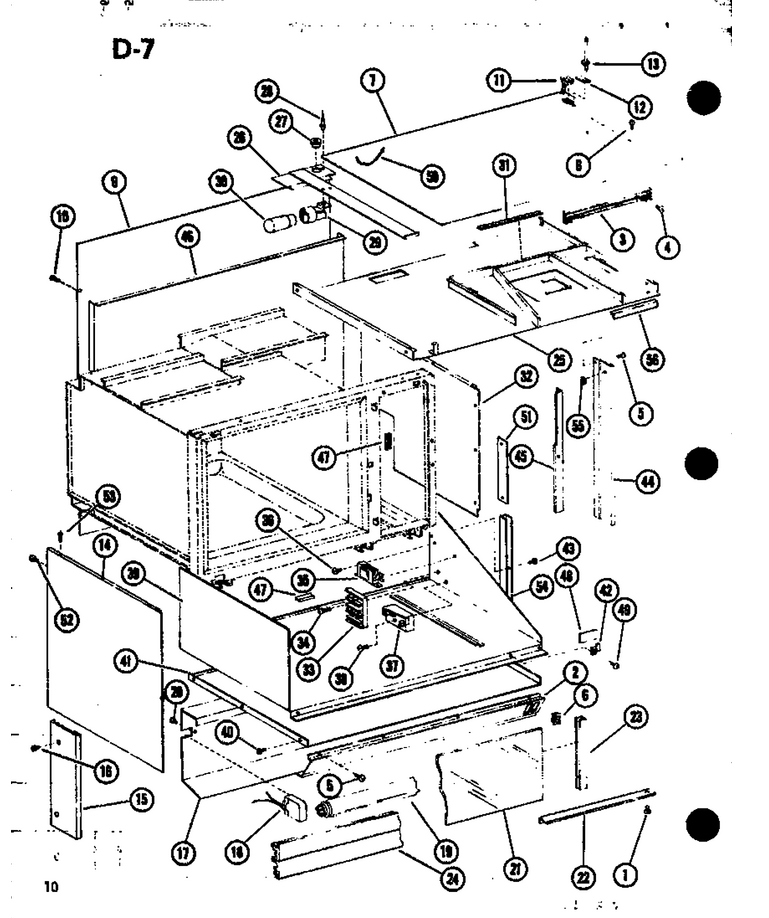

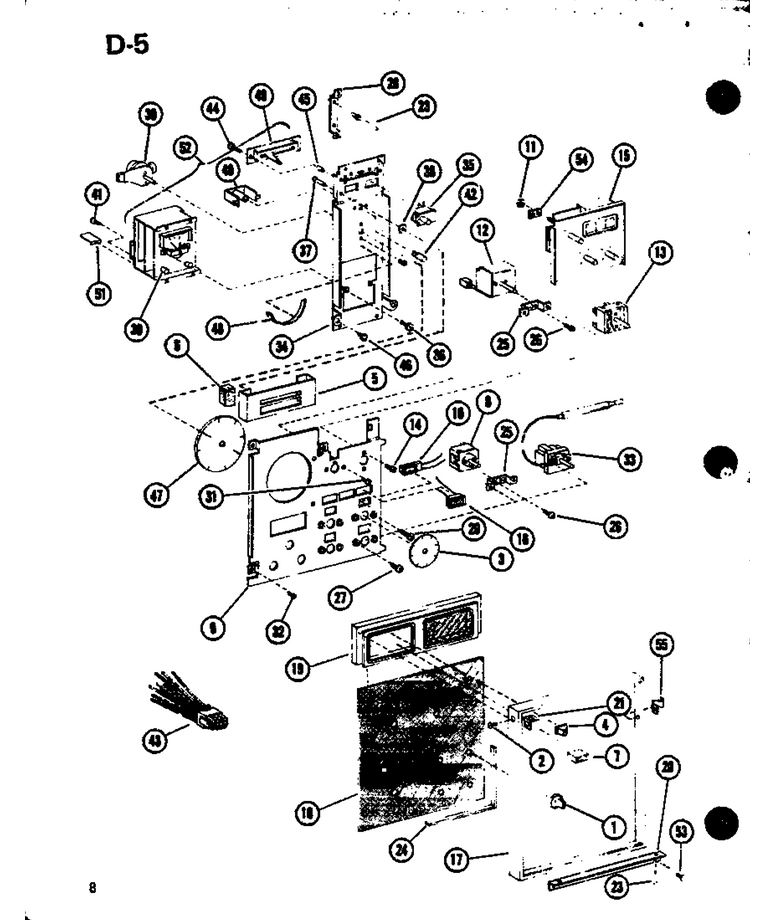

07 - Page 4

...
...
1
Screw WPL-WP59002061
...
2
Panel WPL-D8531102
...
3
Grille WPL-C2715502
...
4
Screw WPL-M0254518
...
5
Screw A K WPL-M0211516
...
6
Light Switch, Fluorescent WPL-B5009904
...
7
Upper Cover C WPL-D8530102
...
8
Screw-Sm/hex WPL-12990523
...
9
Panel, Upper Rear WPL-D8530602
...
10
Screw A K WPL-M0211516
...
11
Receptacle WPL-A4416701
...
12
Cover WPL-A4430101
...
13
Rivet-Pop WPL-59002054
...
14
Side Pnl G WPL-D8530504
...
15
Trim Post R.h WPL-C2715703
...
16
Screw WPL-M0228714
...
17
Reflector Plateptd WPL-D8529302
...
18
Socket-Fl Bulb WPL-B5009606
...
19
Lamp-Fluor WPL-WP95292
...
20
Screw WPL-M0201414
...
21
Glass-Splash WPL-D8531601
...
22
Angle Ptd WPL-D8532502
...
23
Trim-Lower Glass WPL-B5013201
...
24
Escutcheon WPL-D8533201
...
25
Top Wld-Lwr WPL-D8530002
...
26
Wld-Light Hold WPL-D8529902
...
27
Bushing (Blk) WPL-74009866
...
28
Rivet-Pop WPL-59002054
...
29
Socket-Oven Light WPL-B5691205
...
30
Bulb-Light WPL-WPA3167501
...
31
Gasket (Per Foot) WPL-10839706
...
32
Module Divider WPL-D8529601
...
33
Terminal Block WPL-B5014101
...
34
Screw WPL-WP59002061
...
35
Ballast WPL-74003033
...
36
Screw WPL-M0234114
...
37
Pulser WPL-B5010101
...
38
Screw, Pulser Mtg. WPL-A3124906
...
39
Base Frame WPL-D8531501
...
40
Screw WPL-WP59002061
...
41
Filter Pan W-Pnt WPL-D8531703
...
42
Brkt-Module Mtg WPL-A4414001
...
43
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
44
Trim-Rh WPL-D8529803
...
45
Shield Ptd WPL-B5013704
...
46
Inner Back Pnl WPL-D8530801
...
47
Gasket (Per Foot) WPL-A3030303
...
48
Seal K WPL-B5738501
...
49
Screw WPL-WP3390631
...
50
Tie-Wire WPL-WPW10339879
...
51
Barrier-Thermostat WPL-B5020701
...
52
Screw WPL-M0213931
...
53
Screw WPL-WP59002061
...
54
Ext Corner Post WPL-D8528704
...
55
Bracket WPL-M0293201
...
56
Shield Ptd WPL-A4423902

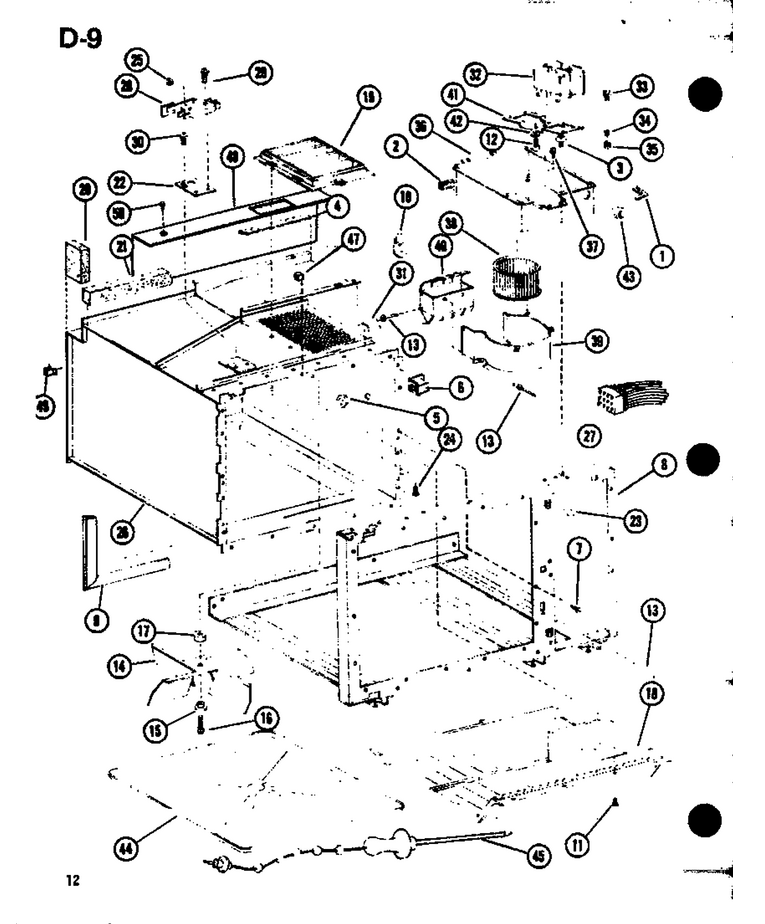

08 - Page 5

...
...
NI
Tape WPL-M0027533
...
1
Gasket-Per Ft WPL-A3030332
...
2
Gasket WPL-10839712
...
3
Screw WPL-M0230015
...
4
Gasket,per Ft WPL-A30303-30
...
5
Nut-Decorative WPL-A3275701
...
6
Switch-Jack Assy WPL-B5771902
...
7
Screw WPL-WP489349
...
8
Yoke Wld WPL-D7353102
...
9
Gasket WPL-D7302501
...
10
Thermal Cut-Out WPL-B5665803
...
11
Screw WPL-M0230015
...
12
Screw WPL-M0202642
...
13
Rivet-Pop WPL-59002054
...
14
Xfan Blade-Stirrer WPL-C8720801
...
15
Bearing WPL-A3214801
...
16
Shoulder Screw WPL-A3214903
...
17
Bushing-Stirrer Mt WPL-B5704203
...
18
Grease Shield WPL-D7352601
...
19
Air Duct WPL-C8714801
...
20
Gasket WPL-B5695301
...
21
Gasket, Air Sealing WPL-B5695302
...
22
Bracket-Switch WPL-B5765901
...
23
Bumper WPL-A1511502
...
24
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
25
Washer WPL-M0274049
...
26
Oven Wld WPL-D7168318
...
27
Wire Harness WPL-D7404801
...
28
Switch Wld WPL-B5666510
...
29
Screw WPL-M0227520
...
30
Screw WPL-M0234114
...
31
Clip WPL-M0118801
...
32
Motor WPL-B5736103
...
33
Screw WPL-M0227303
...
34
Eyelet K WPL-A0381401
...
35
Clip, Waterline WPL-12454802
...
36
Hanger Wld WPL-C8805302
...
37
Screw WPL-WP489349
...
38
Blower Wheel WPL-C3670805
...
39
Scroll WPL-C8805601
...
40
Air Duct WPL-B5783601
...
41
Motor Mount WPL-B5647301
...
42
Washer WPL-M0272605
...
43
Grommet WPL-A3258801
...
44
Oven Tray WPL-R0156726
...
45
Temp Probe WPL-C8821504
...
47
Clip-Cable WPL-M0110505
...
48
Duct Cover WPL-D8553501
...
49
Clip WPL-M0113501
...
50
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402

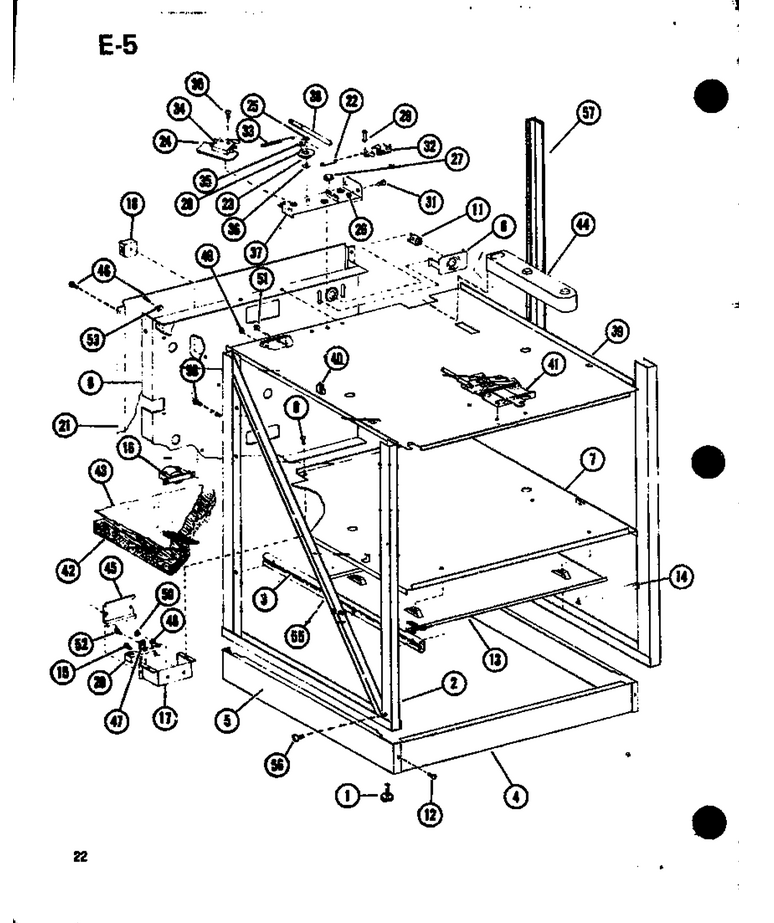

02 - Page 10

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504105
...
3
Glide WPL-C2705301
...
4
Panel, Kick Front WPL-C2706701
...
5
Panel, Kick Side WPL-C2706601
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer WPL-D8506301
...
9
Screw WPL-WP90767
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-M0214217
...
13
Heat Shield WPL-C2706801
...
14
Extrusion, Heat Shield WPL-B5006101
...
15
Screw WPL-M0211545
...
16
Ballast WPL-74003033
...
17
Brkt-Term Block WPL-C2705001
...
18
Relay, Oven WPL-Y0091669
...
20
Block-Term WPL-WP8203546
...
21
Lwr Lead Cover Kit WPL-R0199214
...
22
Arm-Actuator WPL-A4405801
...
23
Cam, Lock Solenoid WPL-B5004201
...
24
Insulator-Switch WPL-A4405601
...
25
Speed Nut A- K WPL-M0287901
...
26
Clip WPL-M0119701
...
27
Pad WPL-A4405901
...
28
Pin-Grooved WPL-A4405701
...
29
Pop Rivet WPL-M0010212
...
30
Screw WPL-M0227520
...
31
Screw WPL-WP74004005
...
32
Solenoid, Lock WPL-Y0306856
...
33
Spring, Solenoid WPL-Y0306846
...
34
Switch, Limit WPL-B5004401
...
35
Washer WPL-M0270501
...
36
Washer WPL-M0270515
...
37
Assy, Latch Solenoid WPL-C2705401
...
38
Arm WPL-B5004501
...
39
Retainer WPL-D8506201
...
40
Clip WPL-M0110503
...
41
Assy, Door Latch (10442001) WPL-D8508301
...
42
Insulation K WPL-B5002301
...
43
Foil Aluminum K WPL-A4400601
...
44
Duct-Vent WPL-C2706401
...
45
Cover WPL-B5003501
...
46
Screw WPL-M0213931
...
47
Strap-Grd WPL-A4406901
...
48
Usr 0041847 WPL-M0282402
...
49
Clip-Speed Nut WPL-M0119101
...
50
Washer WPL-M0270001
...
51
Clip WPL-M0110503
...
52
Screw WPL-M0227804
...
53
Clamp WPL-M0102311
...
55
Stiffener WPL-D8530901
...
56
Screw WPL-WP1163839
...
57
Ext Corner Post WPL-D8528704
...
58
Screw WPL-WP4312464

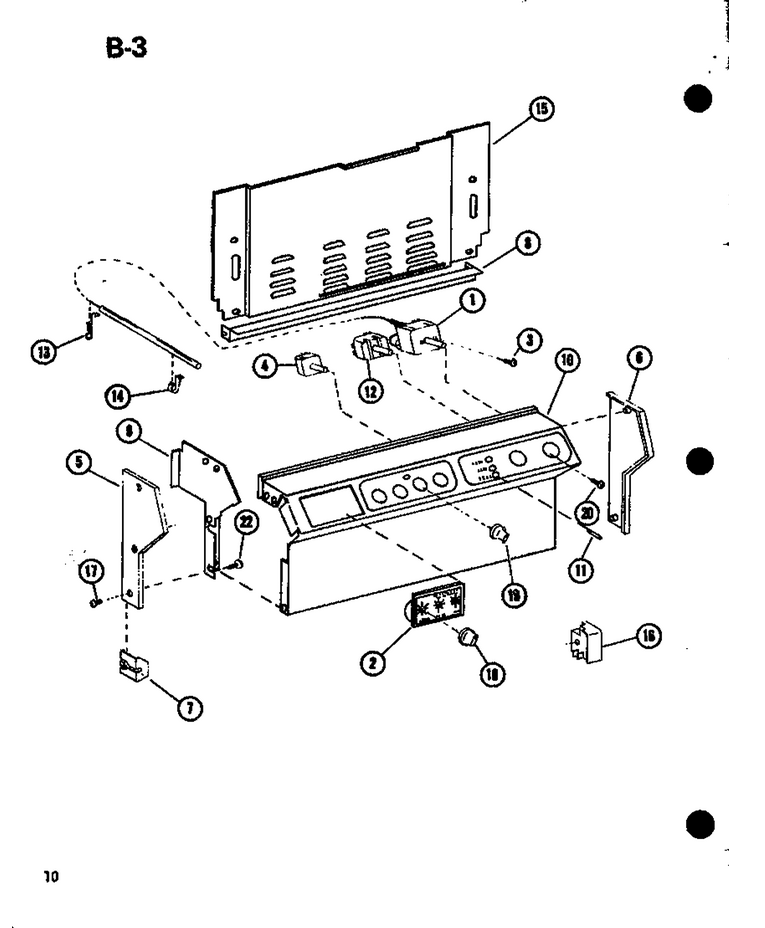

01 - Page 1

...
...
1
Thermostat-Oven WPL-C2712902
...
2
Timer WPL-C2715001
...
3
Screw WPL-M0202528
...
4
Switch- In WPL-R0702564
...
5
End Cap WPL-D8515201
...
6
End Cap WPL-D8515202
...
7
Brkt-End Cap WPL-B5011301
...
8
Supt-Backsplash WPL-B5018401
...
9
Supt-End Cap Rh WPL-C2714501
...
10
Panel-Control WPL-D8529001
...
11
Light-Indicator/ W Clip WPL-M0360204
...
12
Switch WPL-C2723602
...
13
Retainer-Bulb WPL-A4407201
...
14
Retainer-Thermo WPL-A4407801
...
15
Cover-Upper Lead WPL-D8509603
...
16
Pulser WPL-B5010101
...
17
Screw WPL-M0234229
...
18
Knob, Dual Timer WPL-B5005101
...
19
Knob, Control WPL-B5012903
...
20
Screw A WPL-M0202515
...
22
Screw WPL-M0234041

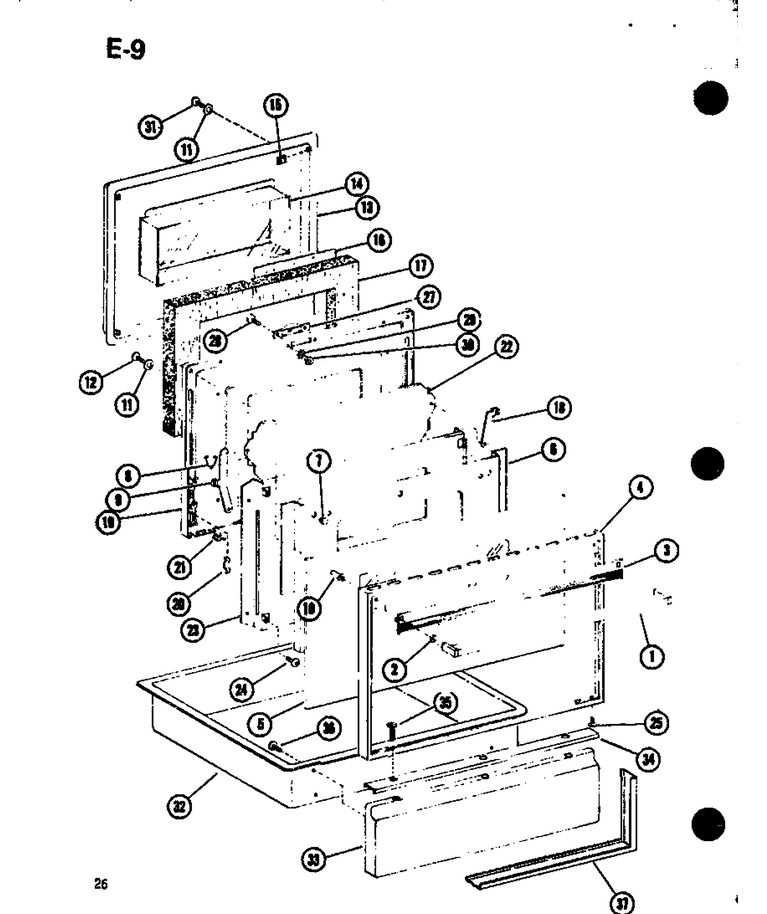

04 - Page 12

...
...
1
Handle, Oven Door WPL-D8535901
...
2
Pad WPL-A4406401
...
3
Trim Ext WPL-D8507801
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Panel WPL-D8507901
...
6
Heat Shield WPL-D8507601
...
7
Bumper-Glass WPL-A4406501
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Spacer WPL-A4406301
...
11
Washer, Padder WPL-M0271201
...
12
Screw WPL-M0203051
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation, Door Plug WPL-B5001101
...
18
Arm-Shutter Rh WPL-B5003901
...
19
Inner Panel WPL-D8506901
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W11233072
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0203218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
31
Screw WPL-W11233072
...
32
Storage Drawer, Metal WPL-C2713902
...
33
Drawer Wld Blk K WPL-C2713801
...
34
Handle, Drawer WPL-D8514301
...
35
Screw WPL-M0214528
...
36
Screw WPL-WP90767

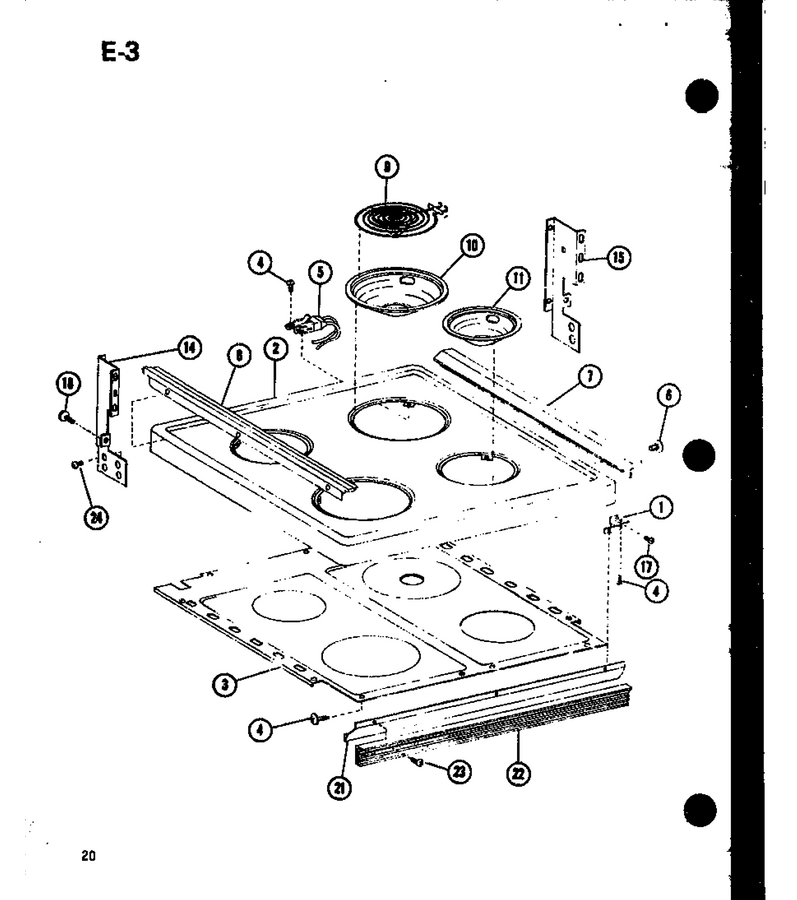

11 - Page 9

...
...
1
Brkt-Front Lh WPL-C2709002
...
2
Range Top (Alm) WPL-D8520105
...
3
Drip Pan WPL-D8520202
...
4
Screw-Tr No.8-32 X 1/2``, Door Handle WPL-M0234030
...
5
Receptacle WPL-330031
...
6
Screw WPL-WP59002061
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WP3191454
...
10
Bowl-Drip WPL-WPW10196405
...
11
Bowl-Drip WPL-WPW10196406
...
14
Bracket-Top WPL-A4416101
...
15
Bracket-Top WPL-A4416102
...
17
Screw WPL-M0213931
...
18
Screw WPL-WP90767
...
21
Guard WPL-C2706101
...
22
Grille, Front WPL-D8509403
...
23
Screw WPL-M0217616
...
24
Screw WPL-WP4312464

06 - Page 3

...
...
1
Knob K WPL-C2737001
...
2
Screw WPL-WP8281236
...
3
Disc-Surf/oven WPL-D8532303
...
4
Knob-Control WPL-B5742501
...
5
Mtg Plate WPL-B5012001
...
6
Gasket (Per Foot) WPL-A3030303
...
7
Button-Push WPL-C2715201
...
8
Kit- Switc WPL-WPR0702021
...
9
Panel, Control Mtg. WPL-D8531002
...
10
Light Ind Kit WPL-R0157517
...
11
Usr 0041847 WPL-M0282402
...
12
Thermostat, Oven WPL-D8534601
...
13
Switch WPL-B5005001
...
14
Screw WPL-M0200414
...
15
Timer WPL-D8532701
...
16
Indicator-Oven WPL-B5009709
...
17
Trim WPL-D8526302
...
18
Glass-Control Pnl WPL-D8529201
...
19
Clock-Esc Assy WPL-C2717501
...
20
Shield Ptd WPL-B5013904
...
21
Angle-Frame A WPL-A3251801
...
23
Rivet-Pop WPL-59002054
...
24
Gasket, Foam WPL-A3030339
...
25
Brkt-Mtg WPL-A4404801
...
26
Screw WPL-M0202528
...
27
Screw WPL-M0217616
...
28
Brkt-Control Pnl WPL-A4416401
...
29
Screw WPL-M0217616
...
30
Sleeve WPL-A3284601
...
31
Screw WPL-M0217615
...
32
Screw WPL-M0217628
...
33
Temp-Assure-Cnt-Kit WPL-R0199297
...
34
Mtg Plate WPL-D7360101
...
35
Switch WPL-B5674703
...
36
Screw WPL-M0202528
...
37
Rivet WPL-M0260002
...
38
Speed Nut WPL-M0287603
...
39
Timer-35 Min WPL-C8730603
...
40
Lamp Socket WPL-B5781101
...
41
Screw WPL-M0213815
...
42
Bulb WPL-A3171201
...
43
Wire Harness WPL-C8823201
...
44
Screw A-K WPL-M0227525
...
45
Spacer WPL-M0800201
...
46
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
47
Disc-Timer WPL-C2716601
...
48
Light Shield WPL-A3297501
...
49
Slide Control, Cookmatic WPL-B5786001
...
51
Insulation Board WPL-A1009101
...
52
Control Mod Assy WPL-C8809901
...
53
Screw WPL-M0254518
...
54
Tab-Clock Mtg WPL-A4414601
...
55
Bracket WPL-A4421701
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
